CL100 LaviLock
Description

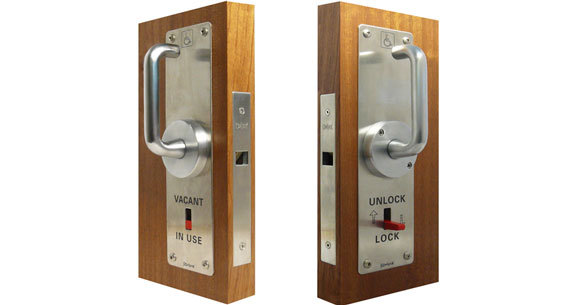

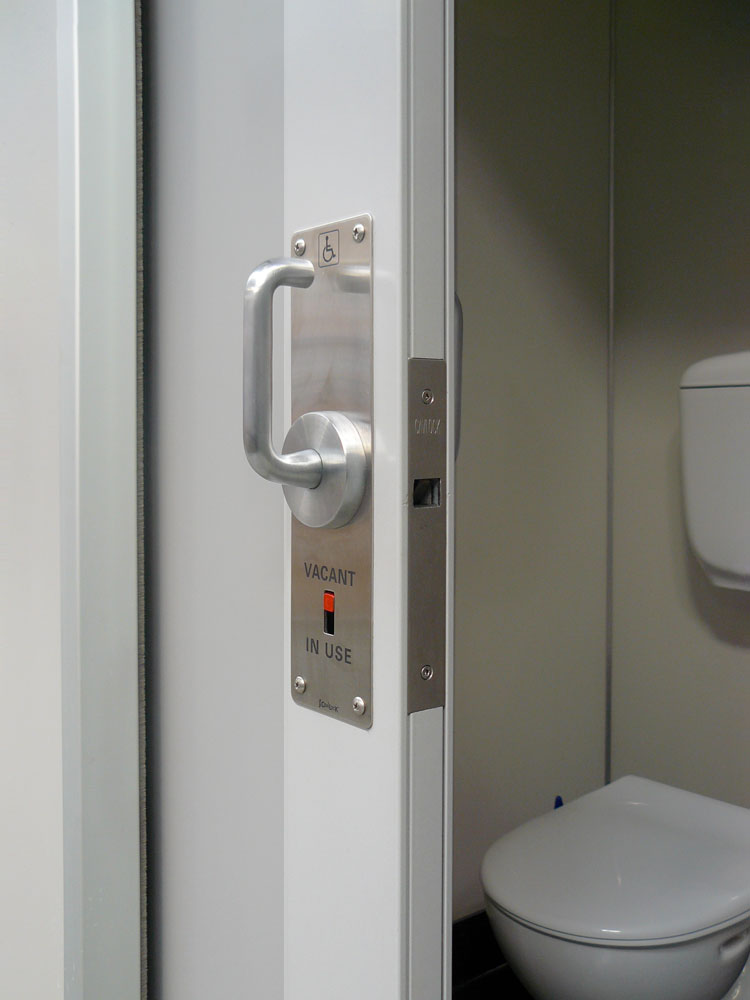

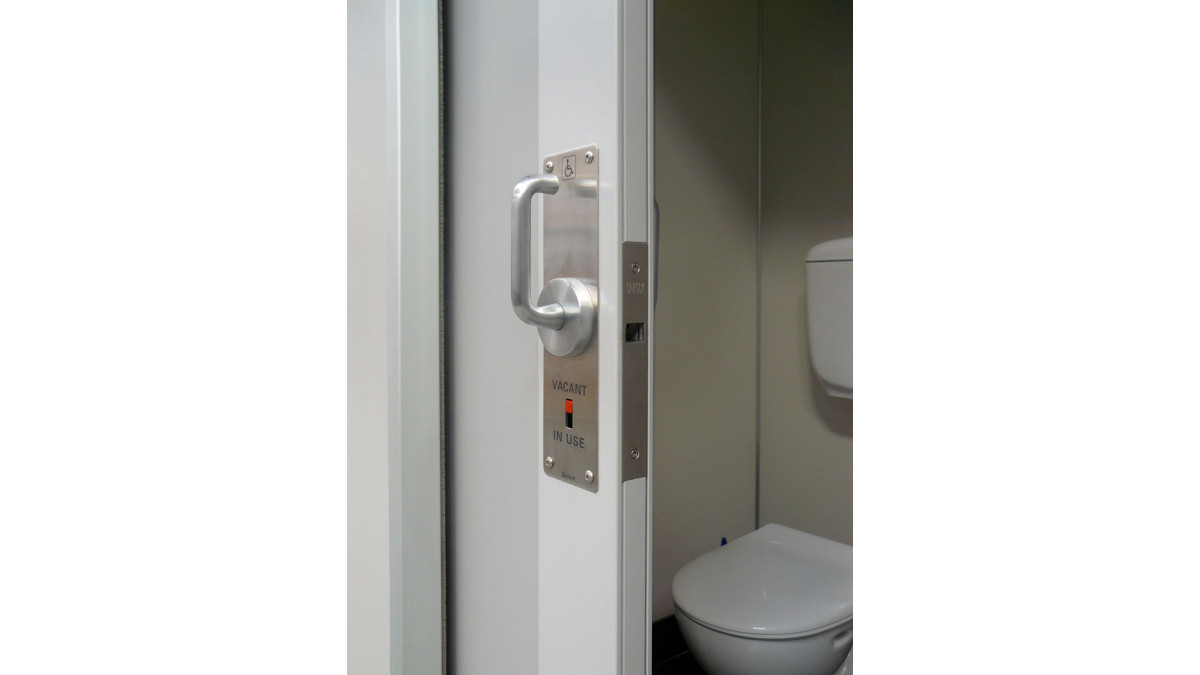

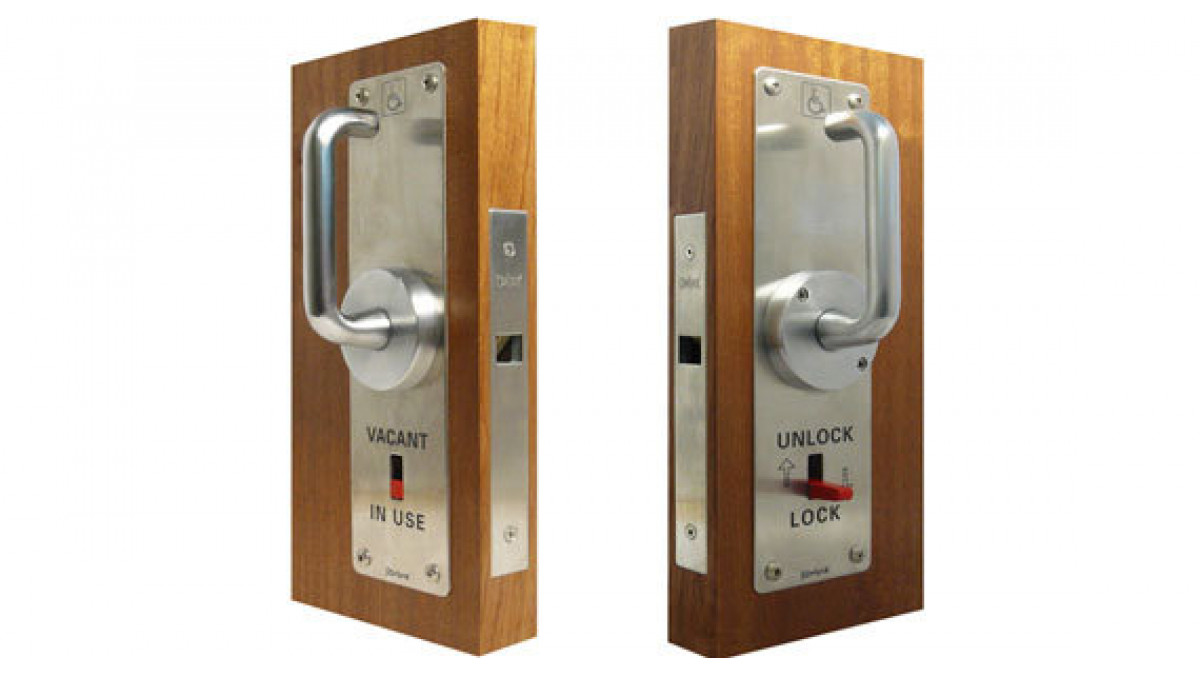

The CL100 LaviLock is the most popular code compliant commercial-grade disabled toilet access lock available on the New Zealand market. It has been specifically designed for sliding toilet doors and has the added benefits of 'Vacant' and 'In Use' indication etched into the side plate.

These locks are also handed, meaning that setting up exit free is as simple as ordering the correct hand lockset.

Important: to be Council Compliant the Lever / Lever option must be used for paraplegic toilets and the door needs to be a minimum of 910mm wide for a clear walk through of 760mm. With today's wheelchair manufacturing sizes however, a door leaf of 1000mm is more suited to provide easy access.

Minimum recommended door thickness is 34mm.

Finishes available: SCP (Satin Chrome Plate) or PB (Polished Brass).

Key Features
  • Supplied as a complete set including lever handles, S/S indication plates, slide locking buttons and CL100 mortice lock case
  • Fail safe 'Exit Free' functionality
  • Easy to read Vacant/In Use lettering
  • High quality cast componentry for longevity of product life
Categories
Locks
Ranges
CS CaviLock
NZ Made
NZ Made
Scope of Use
  • Specifically designed for sliding toilet doors
  • 'Exit Free' functionality





Limitations on Use

Important: To be Council Compliant the Lever / Lever option must be used for paraplegic toilets and the door needs to be a minimum of 910mm wide for a clear walk through of 760mm.

With today's wheelchair manufacturing sizes however, a door leaf of 1000mm is more suited to provide easy access.

  • Minimum recommended door thickness is 34mm
In-Service History

The CaviLock CL100 hardware range been successfully used in commercial projects in New Zealand and Australia since 1994.

Other Performance Attributes
  • High quality cast componentry for longevity of product life
Test Results
Test Results
Documents
Data Sheet
Appraisal, Accreditation, Certification and Testing

06.2020

Maintenance Instructions
Warranty
Additional Information

CS Cavity Sliders (CS For Doors) are a manufacturer of cavity sliding door systems and related products.
