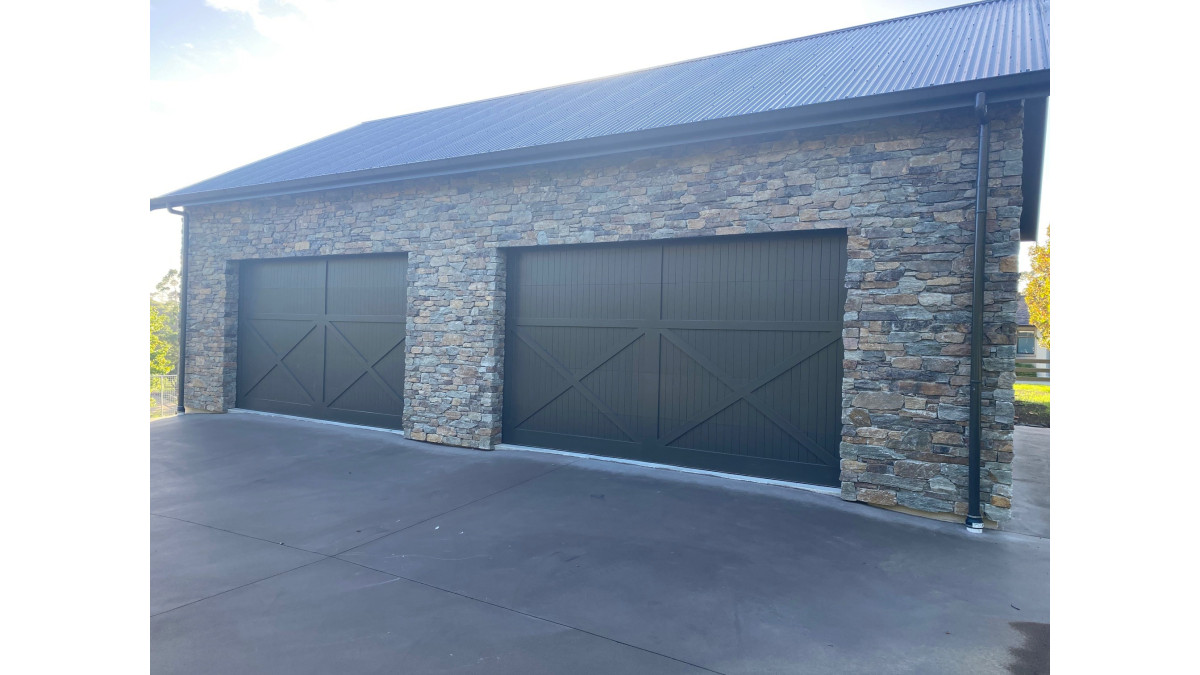

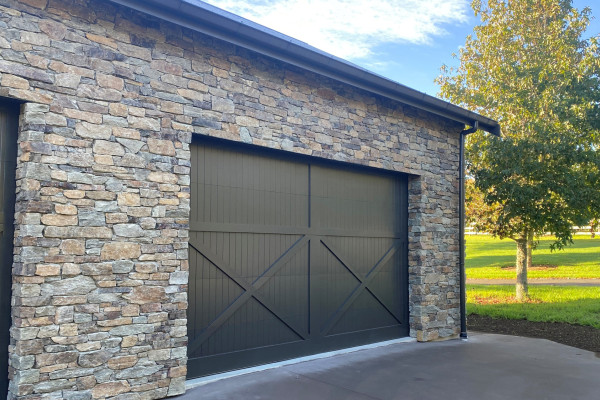

Craftstone Select used to upgrade an existing board & batten clad barn

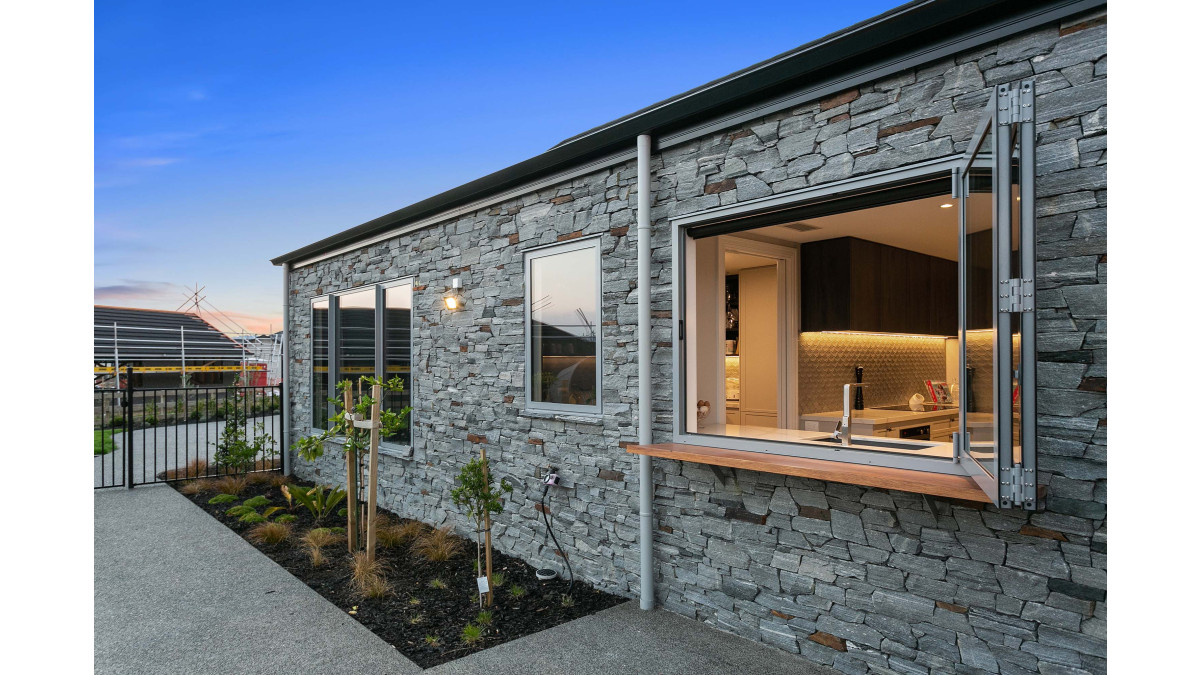

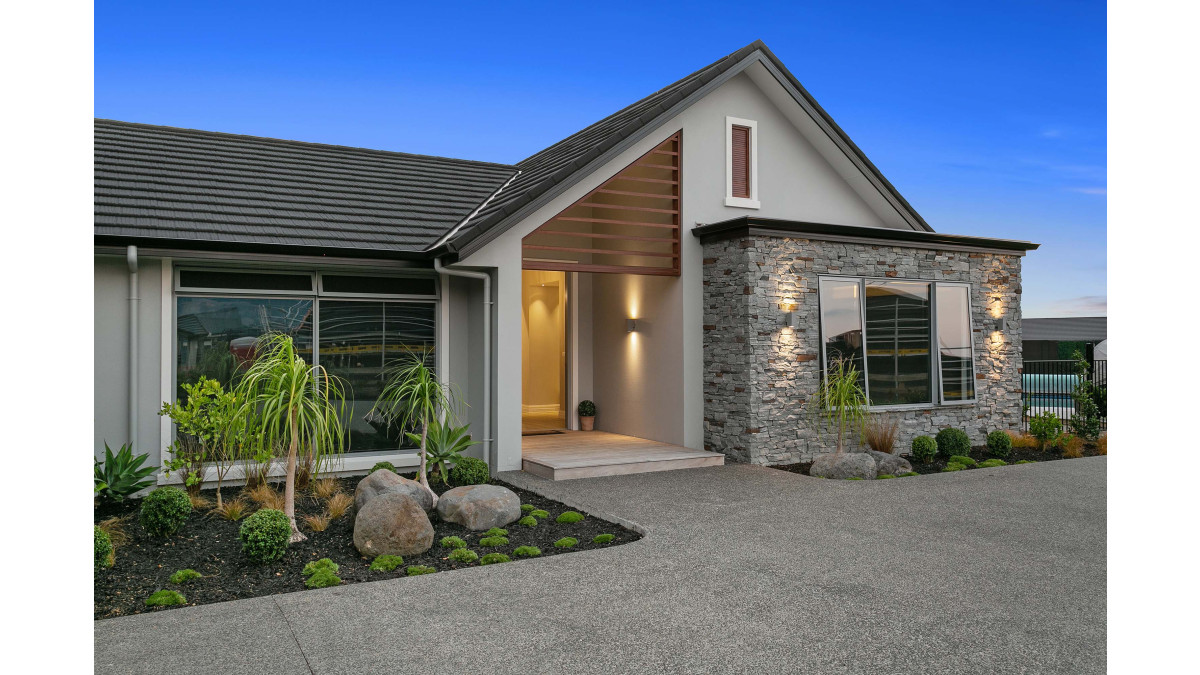

Craftstone Select — Grey Mica & Cape Brown blend

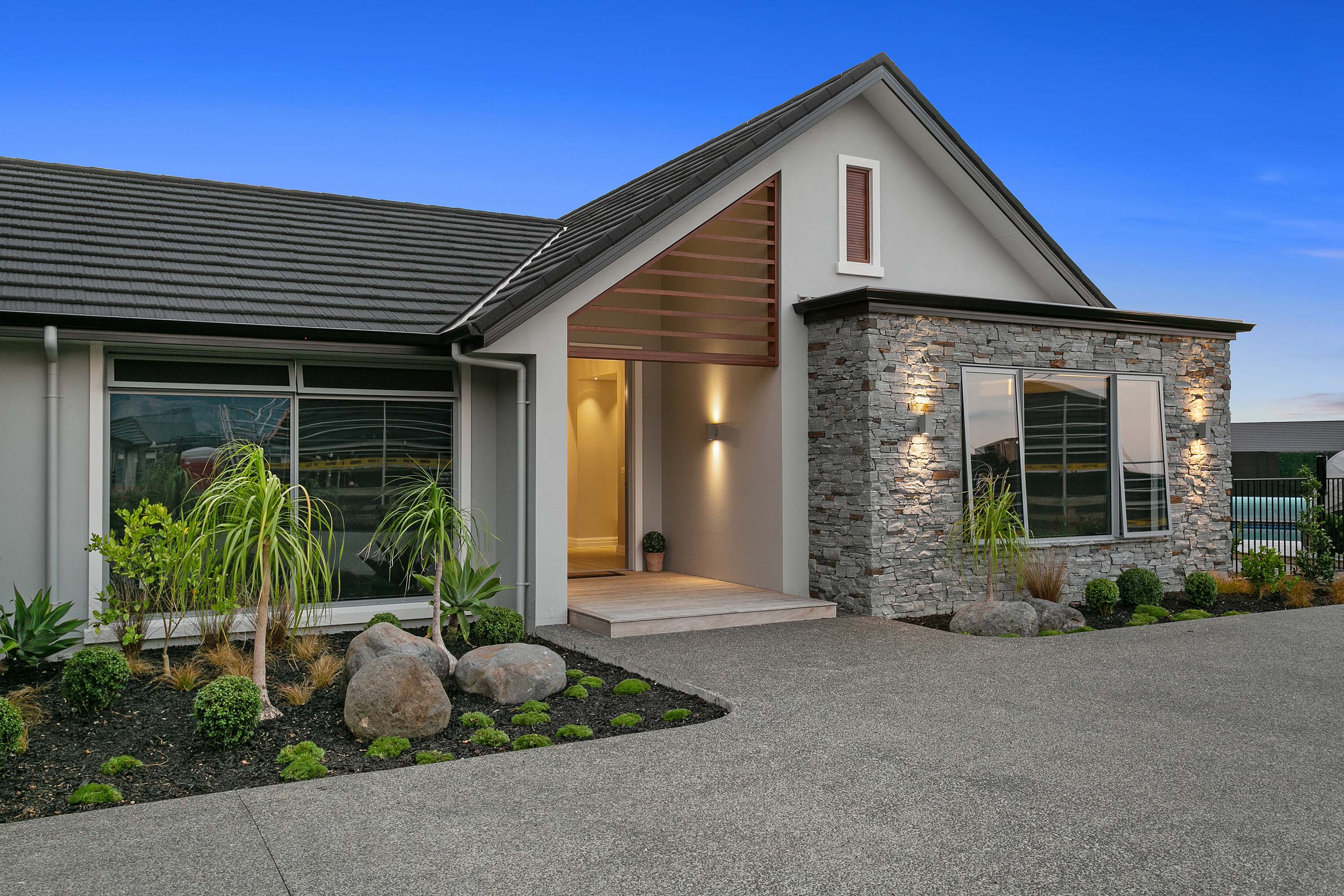

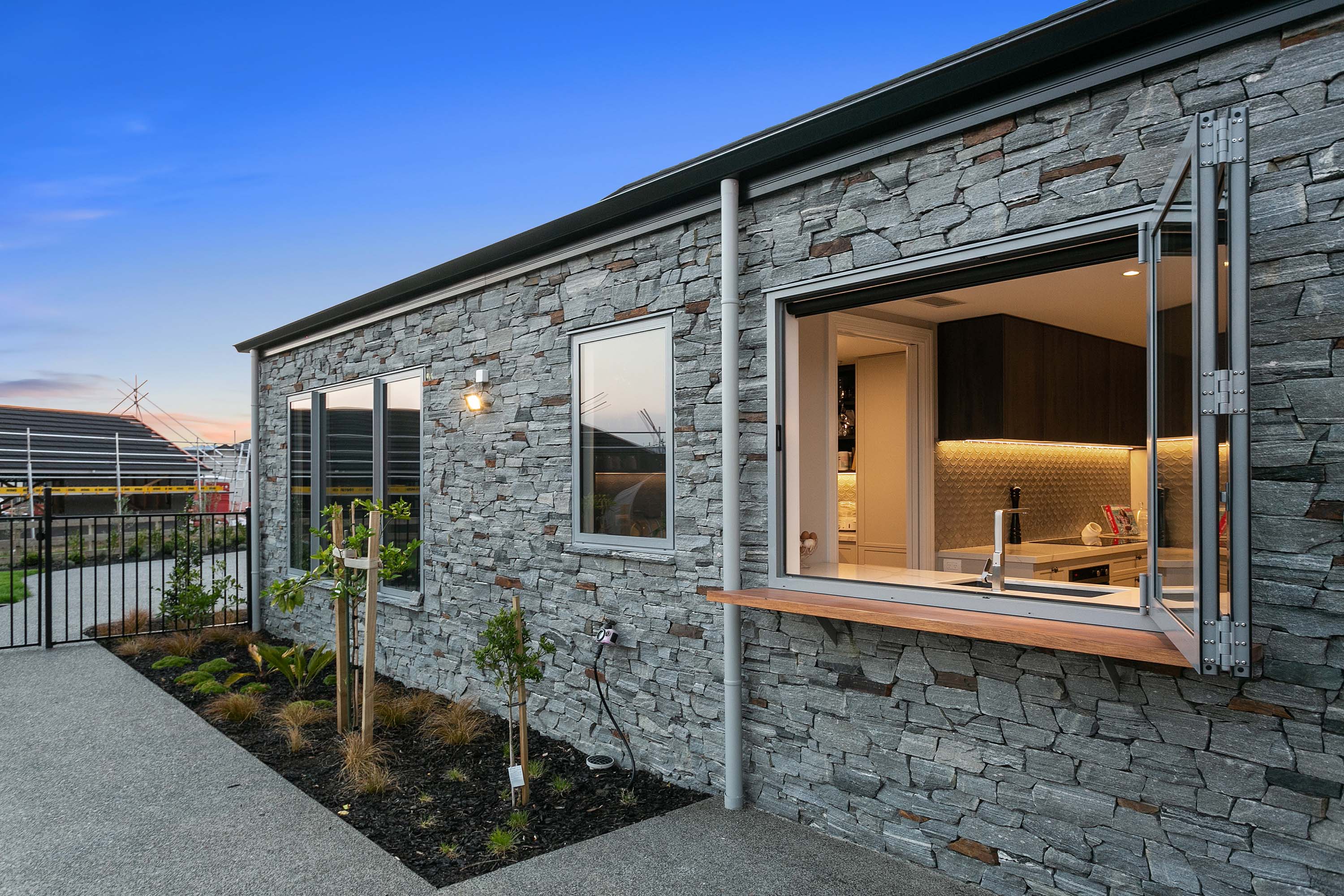

Craftstone Select — Grey Mica & Cape Brown blend

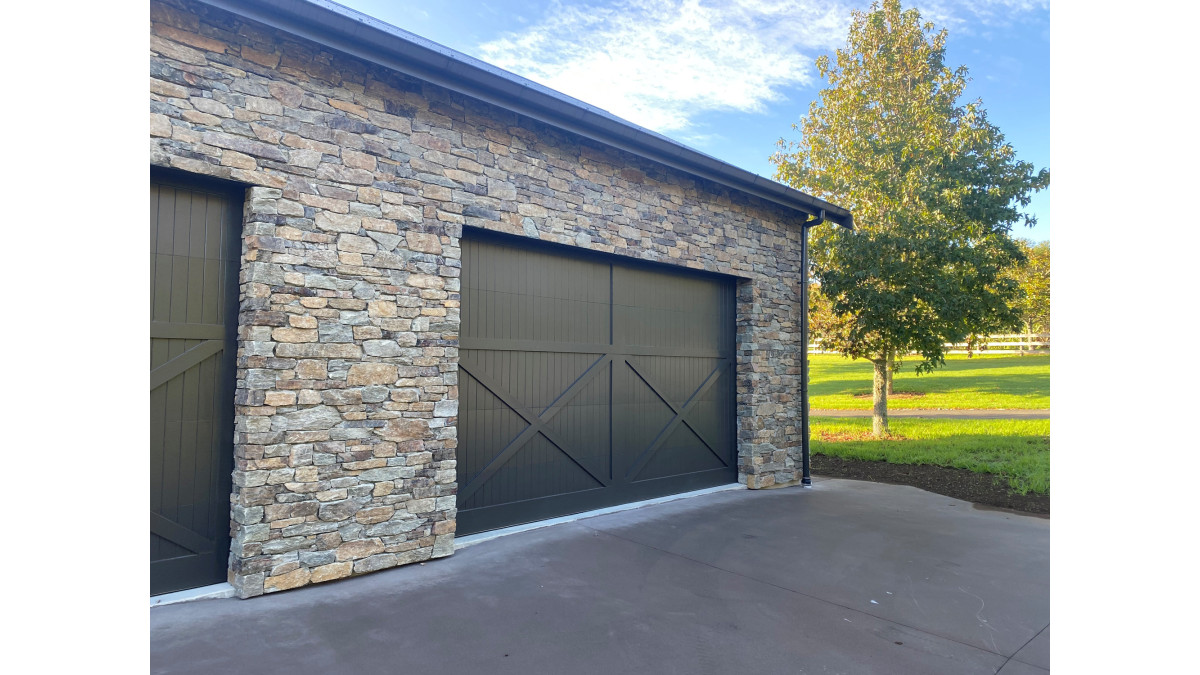

Craftstone Select — blend of Tundra, Cape Brown, and Green Mica stones

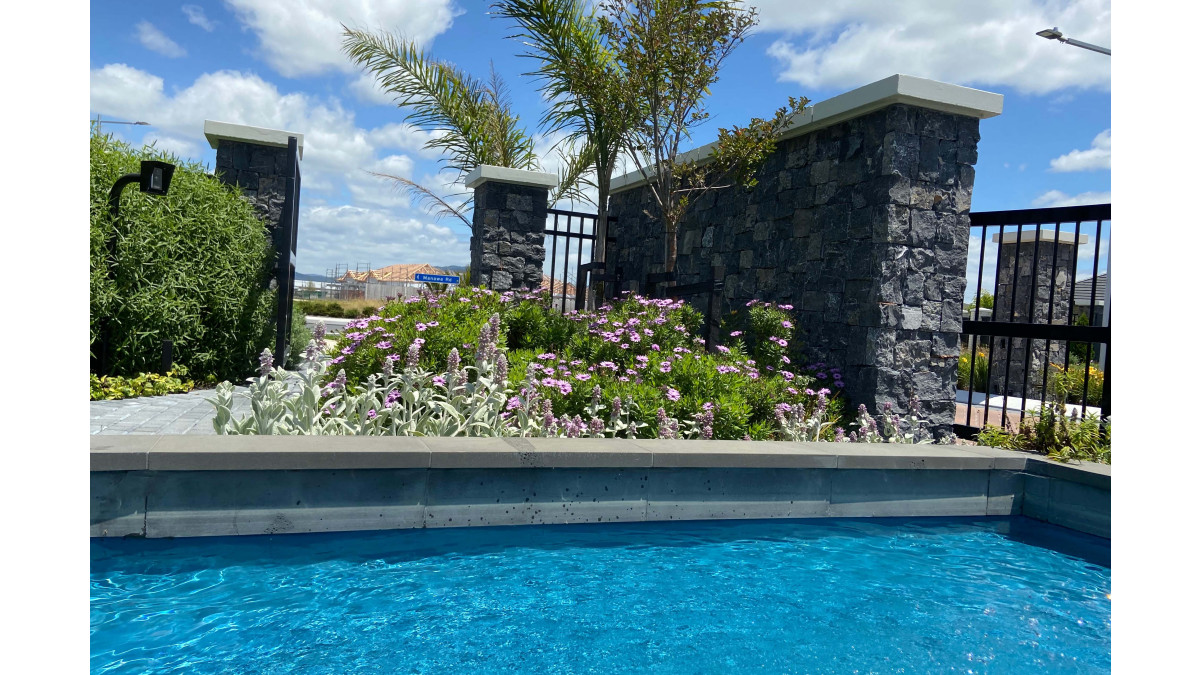

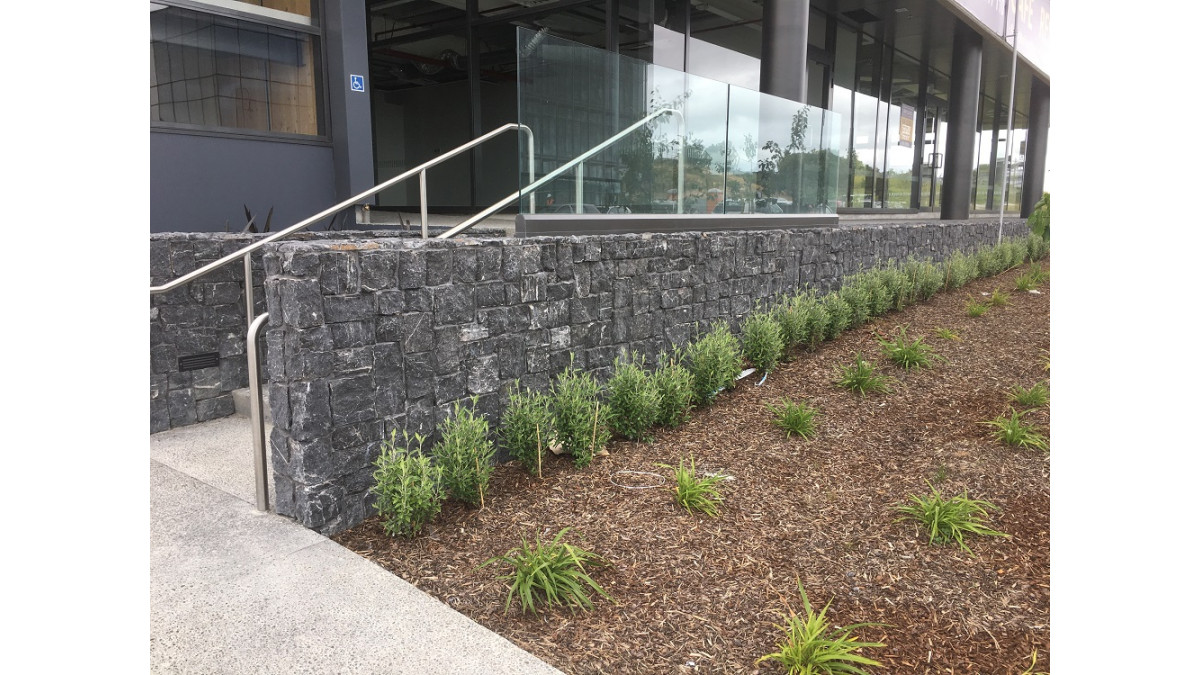

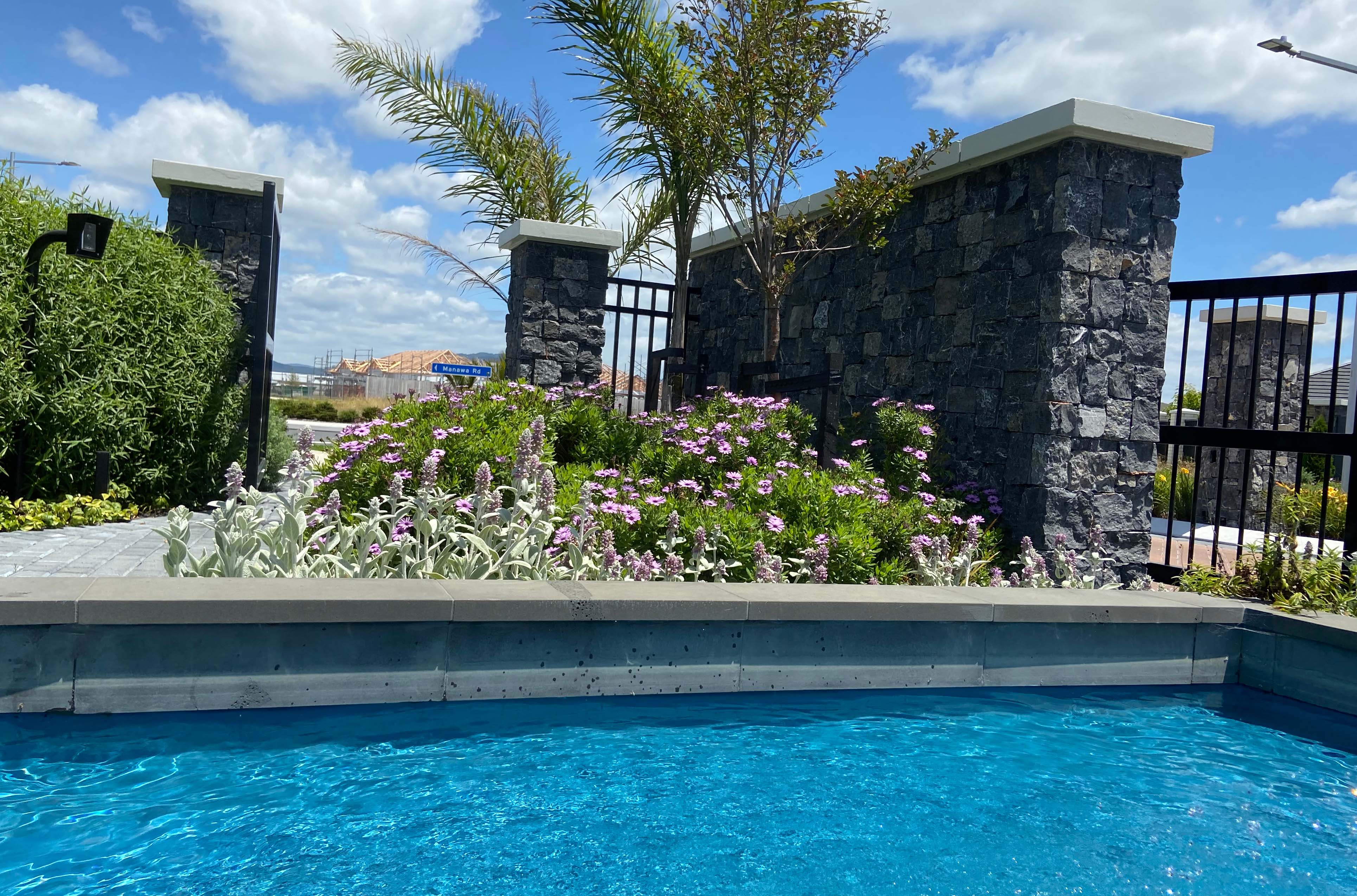

Craftstone Select — Quary

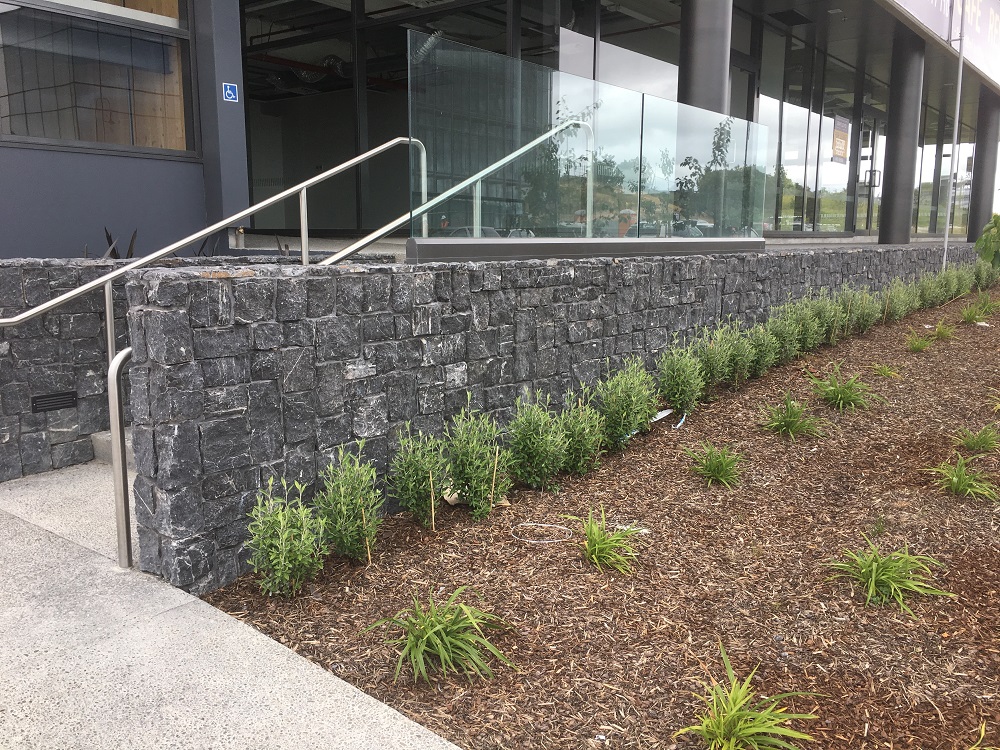

Craftstone Select — Quarry

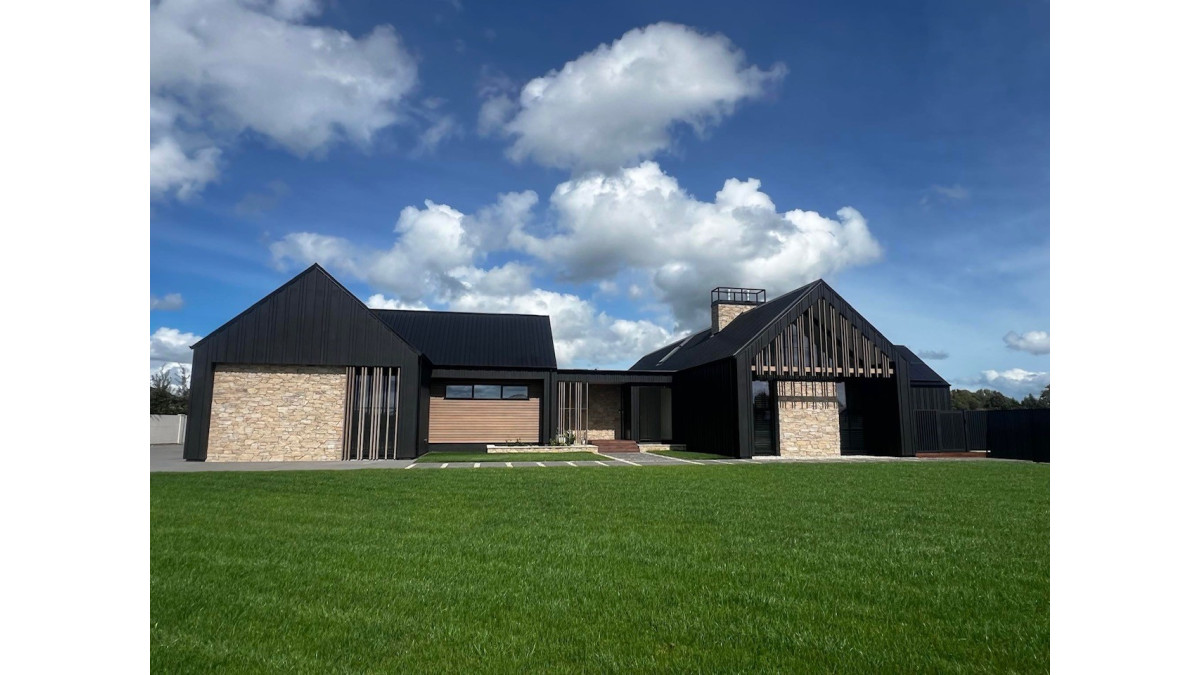

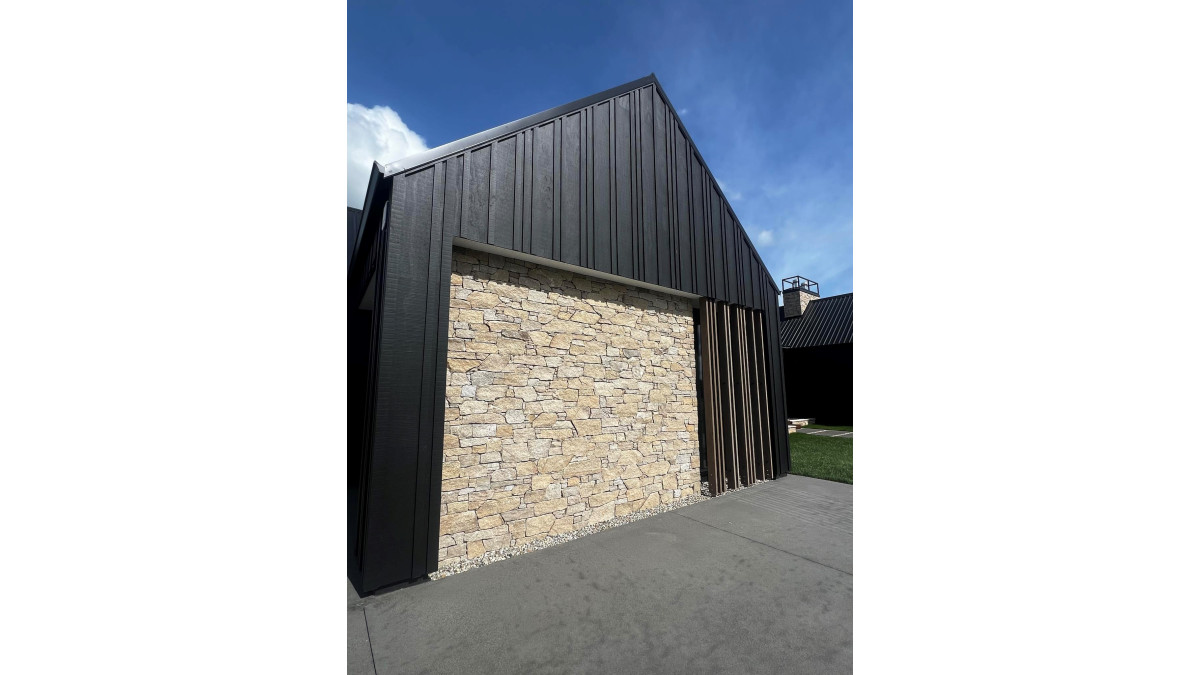

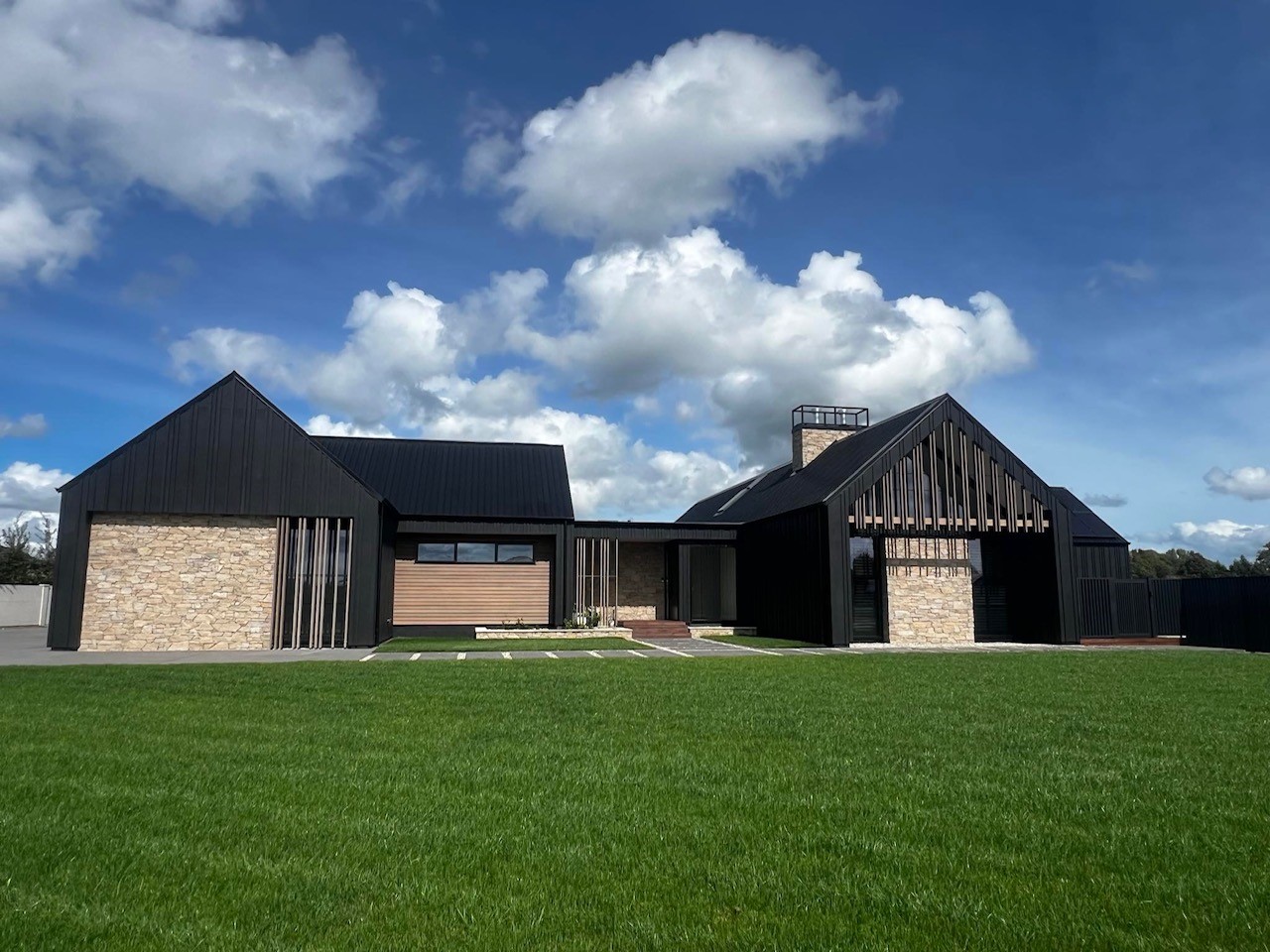

Craftstone Select — Desert Stone. New build by David Reid Homes

Craftstone Select — Desert Stone

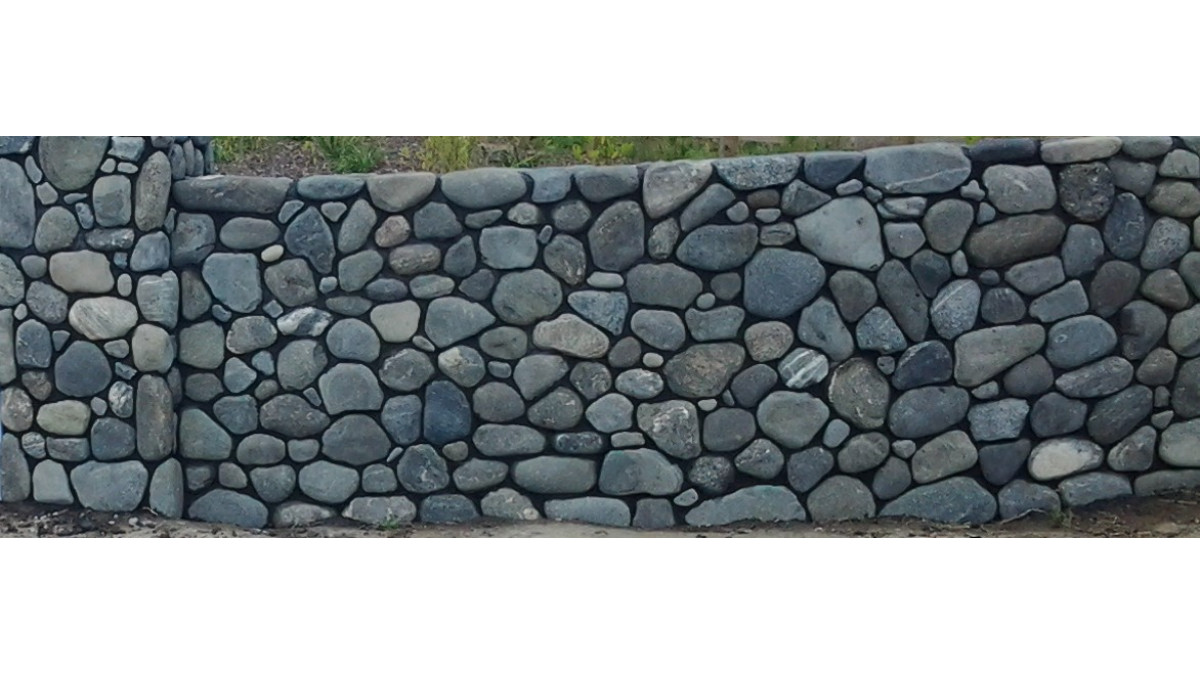

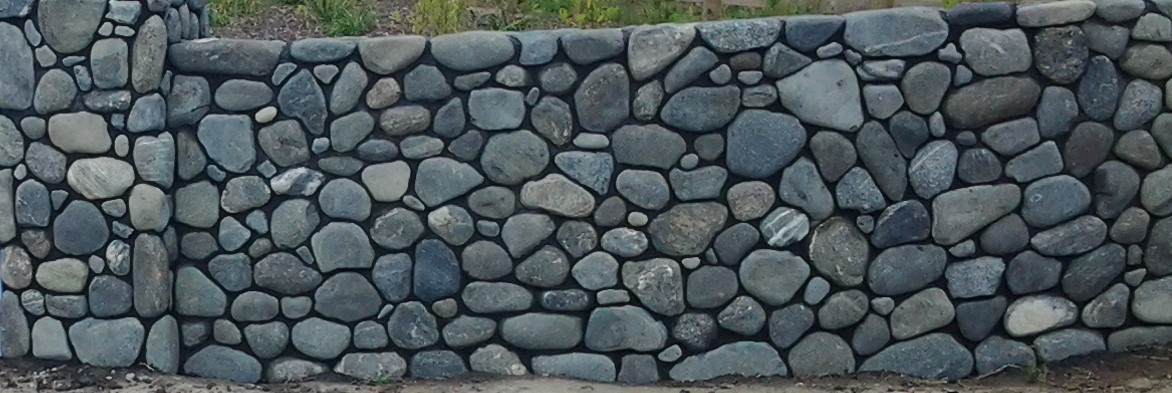

Craftstone Select — Riverstone wall with black pointing

Craftstone Select — Riverstone wall with black pointing

Product Enquiries

Description

Craftstone Select are individual flat pieces of natural back-cut stone and 90 degree corner stones manually selected and shaped by the stonemason to produce an authentic full-thickness appearance. Craftstone Select stone can be used as part of the BRANZ Appraised Craftstone Real Stone Veneer System.

The BRANZ appraisal covers Select stone pieces bonded to sealed 9mm Craftstone fibre cement board. The fibre cement is fixed over timber battens to form a 20mm cavity, and mechanically anchored to the structural wall framing by stainless steel screws. The system eliminates the need for foundation footings or engineered lintels.

Craftstone Select comes in a wide variety of colours and stone types. Stone colours can be mixed to the client’s preference, and installed as a stacked stone style, or with mortar options such as pointed or bagged finishes. Craftstone Select comes with a range of matching sills and capstones available in most colours.

Key Features

Individually selected, natural stone pieces for an authentic full-thickness look
Options for mortar including bagged finishes and pointing in a wide range of colours and shades
New Zealand’s only BRANZ Appraised system for the installation of real stone veneer cladding
Medium weight cladding system, face loaded on the wall
Eliminates the need for foundation footings or engineered lintels
Suitable for retrofit applications on existing structures
Incorporates a two-stage weatherproofing system — sealed fibre cement on a 20mm drained cavity
Bonded using proprietary mortar adhesive that leads the market in tensile strength and durability
Installed through a nationwide network of Craftstone approved installers
Full technical support for architects and builders
Stone sourcing service available to match a client's choice

Ranges

Fibre Cement Board

NZ-Owned Business

Scope of Use

The Craftstone Real Stone Veneer System has been appraised as an external wall cladding system for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
constructed with timber framing complying with the NZBC; and,
with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
situated in NZS 3604 Wind Zones up to, and including, Extra High.

The Craftstone Real Stone Veneer System has also been appraised for weathertightness and structural wind loading when used as an external wall cladding for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regard to floor area and building height; and,
constructed with timber framing complying with the NZBC; and,
situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa.

See BRANZ Appraisal 793 for full information.

Refer to Craftstone for projects outside of this scope. Alternative systems are available that may suit the project.

Limitations on Use

The Craftstone Real Stone Veneer System must only be installed on vertical surfaces (except for sills which must have a minimum 10º slope and be waterproofed in accordance with the Technical Literature).
The system is appraised for use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills. (Note: The Appraisal of the Craftstone Real Stone Veneer System relies on the joinery meeting the requirements of NZS 4211 for the relevant Wind Zone or design wind pressure.)
Installation of components and accessories (excluding battens, fibre-cement board and screws) supplied by Petros Holdings Ltd and approved installers must be carried out only by Petros Holdings Ltd (Craftstone) approved installers.

Refer to Craftstone for projects outside of this scope. Alternative systems are available that may suit the project.

Statement of Building Code Compliance

In the opinion of BRANZ, the Craftstone Real Stone Veneer System, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal 793, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. The Craftstone Real Stone Veneer System meets the requirements for loads arising from self-weight, earthquake, wind, impact and creep [i.e. B1.3.3 (a), (f), (h), (j) and (q)].
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years and B2.3.2. The Craftstone Real Stone Veneer System meets these requirements.
E2 EXTERNAL MOISTURE: Performance E2.3.2. The Craftstone Real Stone Veneer System meets this requirement.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Craftstone Real Stone Veneer System meets this requirement.

See BRANZ Appraisal 793 for full information.

In-Service History

The Craftstone Real Stone Veneer System has been used in residential and light commercial applications since 2012. Craftstone has been chosen by group home builders, and specified by architects across New Zealand.
