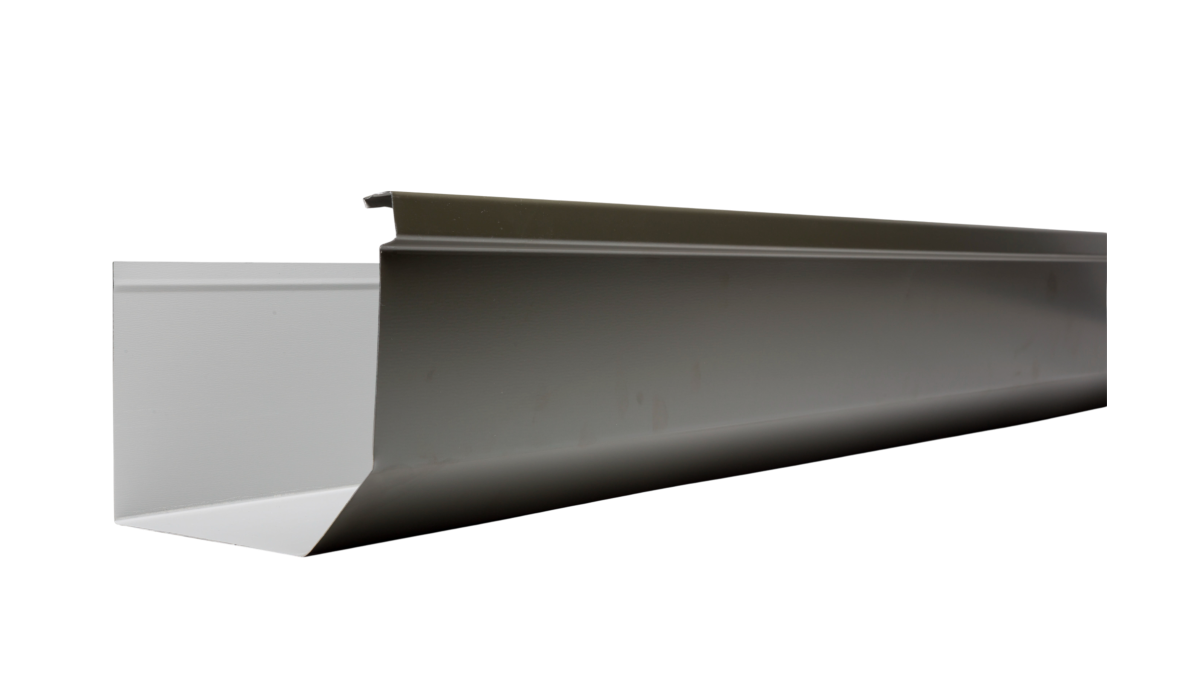

Spouting Texan 175mm Bevel
Description

The Texan 175mm Bevel profile delivers industrial size with residential finesse. Ideal where high volume performance and strength are needed, but without an unsightly industrial appearance. This profile will handle just about anything when it comes to downpours.

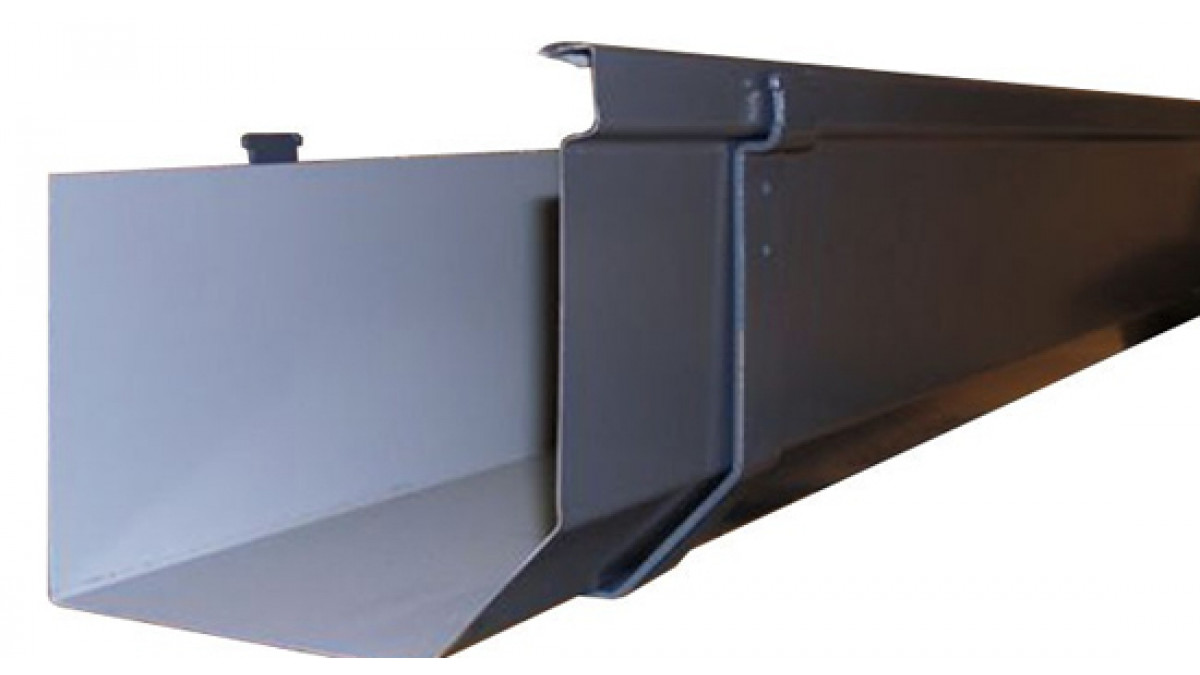

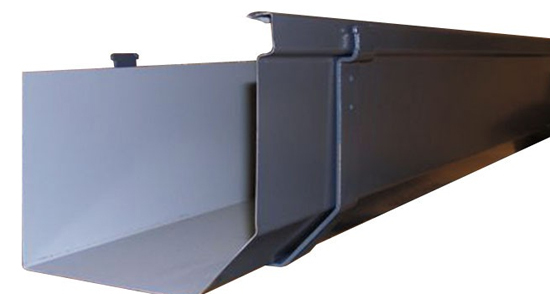

This profile can be run in Magnaflow, Alumigard, Euramax or Copper. Texan 175mm only comes with external brackets — the aluminium bracket is manufactured out of 38 x 4.5mm aluminium which gives it the strength needed on a big spouting, and still provides a smooth, faultless finish when powder coated.

Key Features

Only has one option of bracket, which is external in either powdercoated aluminium for Magnaflow, Alumigard or Euramax spouting or Copper for the same application.

NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Continuous Group rainwater systems are intended to collect and channel water that runs off a roof.  It is intended that the metal spouting be placed at the perimeter of the building (positioned outside the building envelope).

  • Available throughout New Zealand
  • Maximum cross sectional area 20,030mm2
  • Effective cross section with 10mm freeboard 17,525mm2
  • Flow capacity 322 Litres/minute
  • Minimum downpipe cross section 4776mm2



Limitations on Use





Statement of Building Code Compliance
  • Test information available from Pacific Coilcoaters, New Zealand Steel and Ambro Metals, combined with past history of rainwater products indicate, that provide the product use and maintenance is in line with the guidelines contained in the current literature, Continuous Group rainwater systems can be expected to meet the performance criteria in clause E2 of the New Zealand Building Code.
  • All copper, brass and aluminium products listed above are fit for purpose in environment Zone B, C, D and E*.
  • Pre-painted steel products are fit for purpose in environment Zone B and C*.  They may be used in environment Zone D subject top pre-approval warranty application based on site address*.
  • *In all cases, areas with high wind and/or salt and/or thermal/industrial atmospheric conditions may require specific engineering design (S.E.D.)  Reference: Section D, Durability from NZS3604:2011.
Documents
BPIS - Texan 175 copper spouting system

BPIR:TEXCU-SYS:2023.v1

BPIS - Texan pre-painted metal fascia system

BPIR:TEXPM-SYS:2023.v1

Compatibility of Materials in Contact
Compatibility of Materials Subject to Run-off
Environmental Information
Material Compatibility — Material Selection
Spouting Texan 175mm Bevel Specification
Environmental Information
Installation and Operation
Care and Maintenance
Warranty
Spouting Texan 175mm Bevel Brochure
Alumigard
CG Colour Finishes
CG Designer Colour Range
Copper
Magnaflow
CAD/PDF Details
Spouting 175 The Texan Industrial Detail
