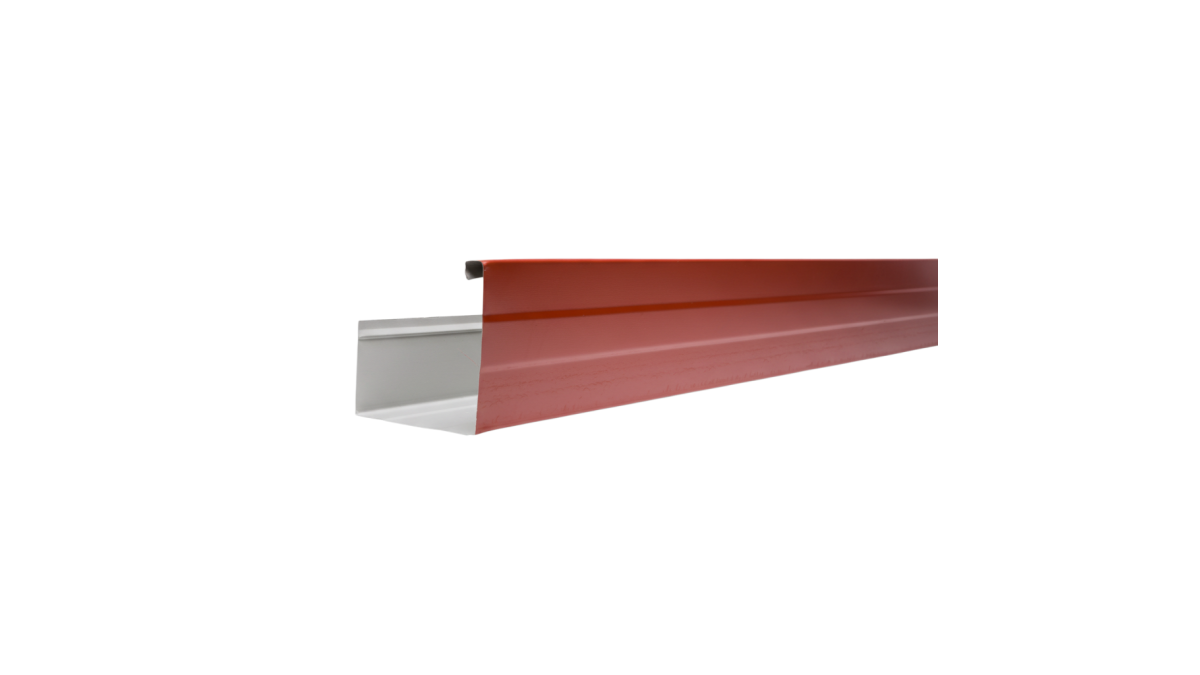

Spouting Cube 125mm Box
Description

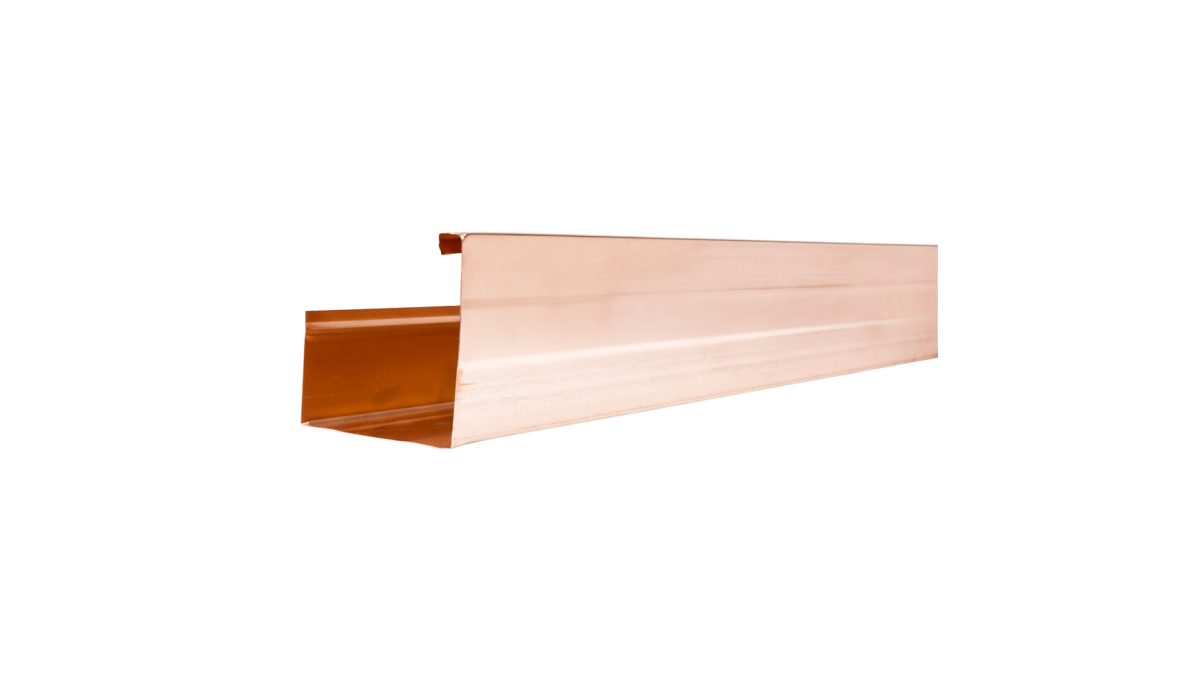

The high front face of Continuous Group's Cube 125 is perfect for hiding unsightly large roof edge details like old terracotta or concrete roof types. Cube 125 can be customised by using different materials.  This profile can be can be run in the following material, Magnaflow, Alumigard, Euramax or Copper depending on the environment.

Key Features

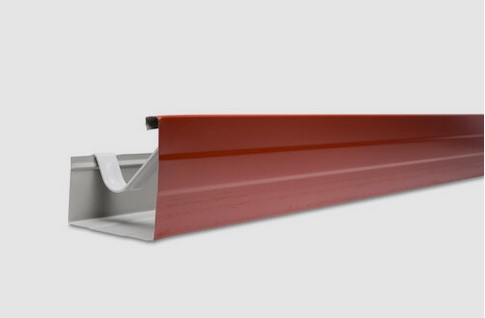

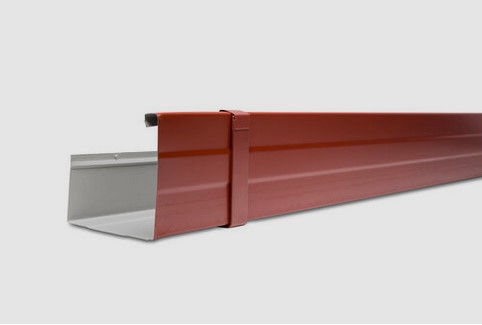

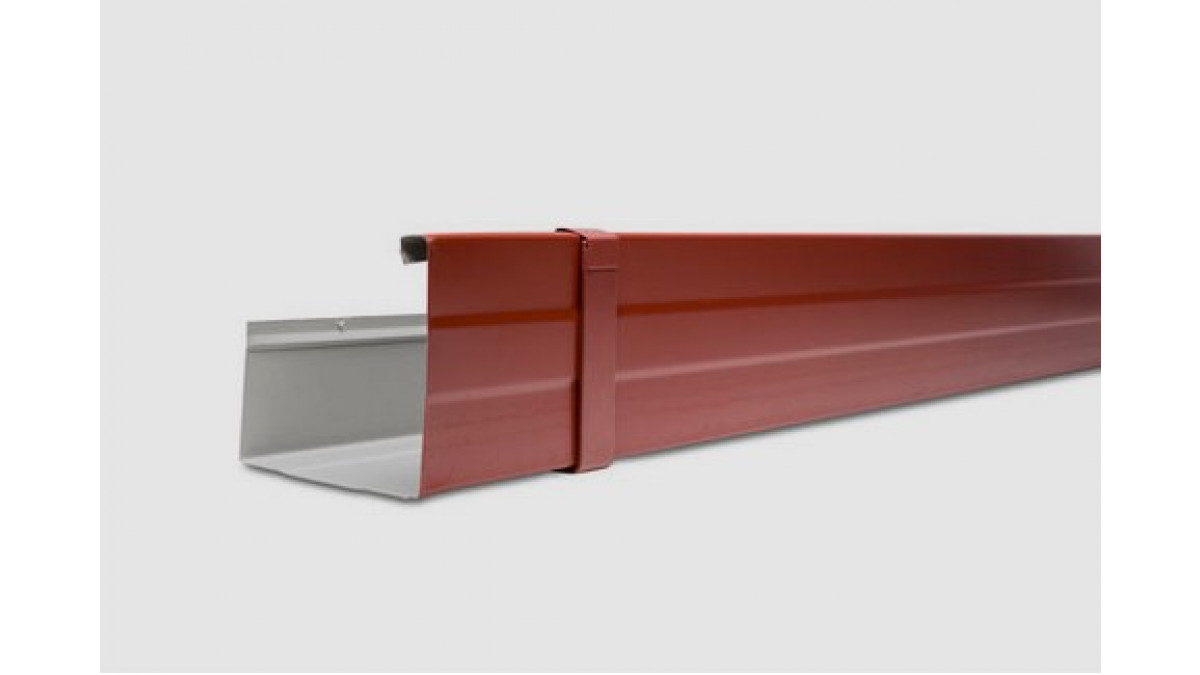

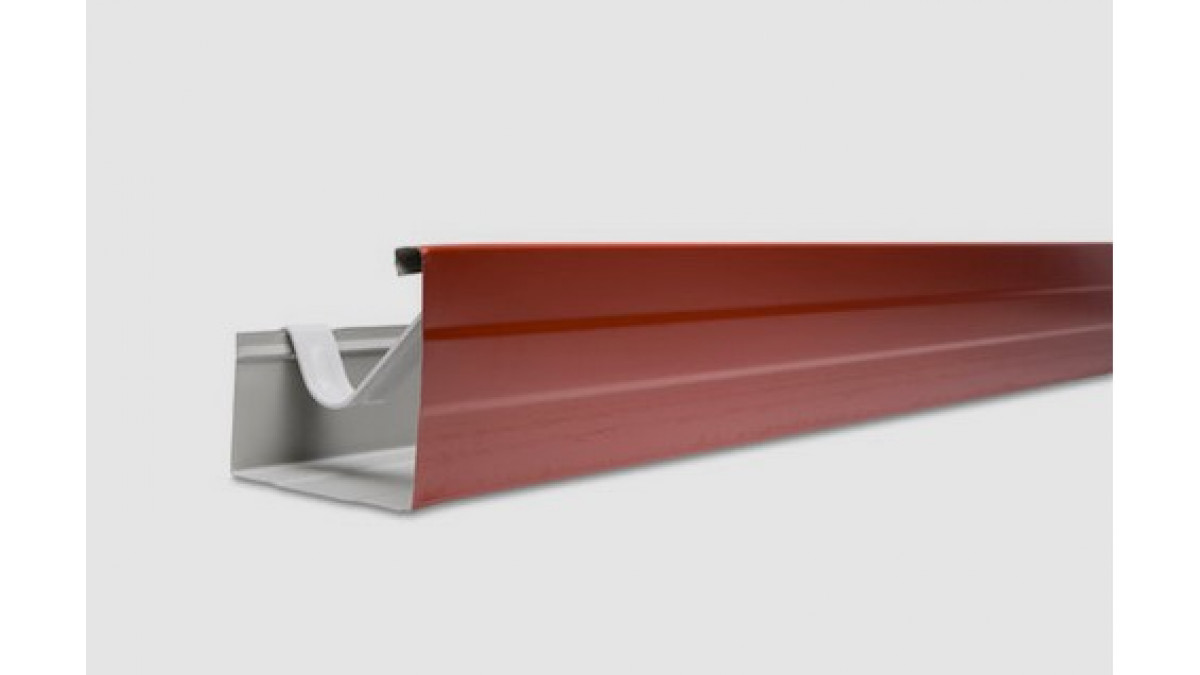

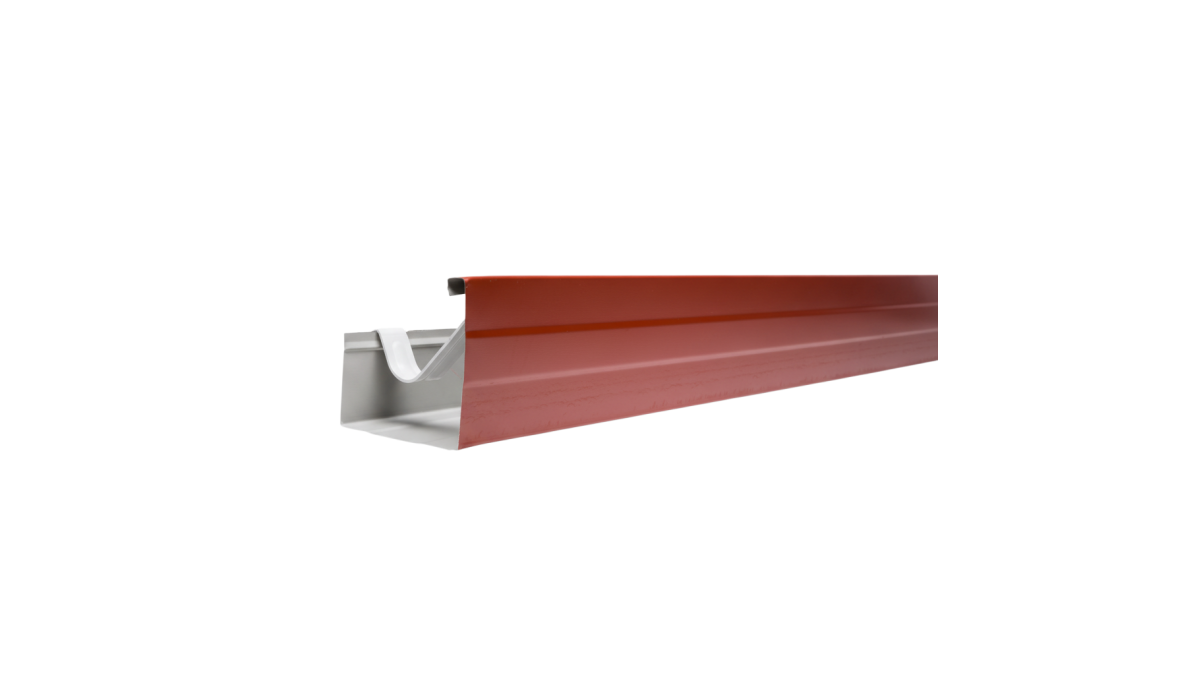

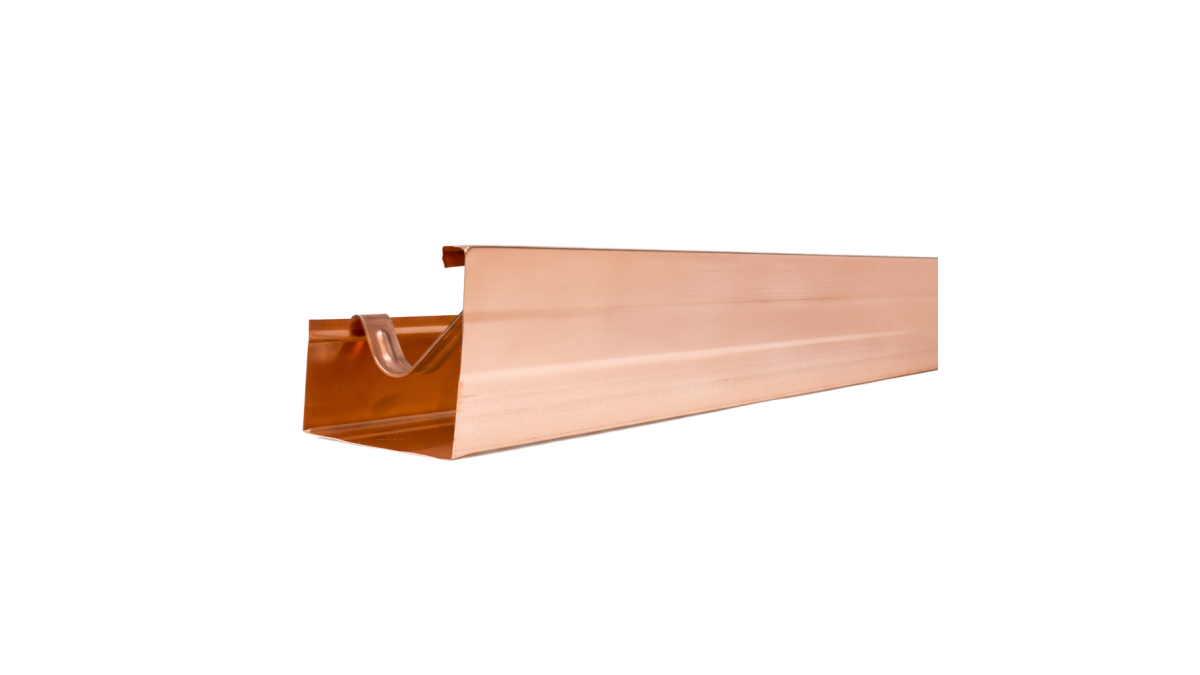

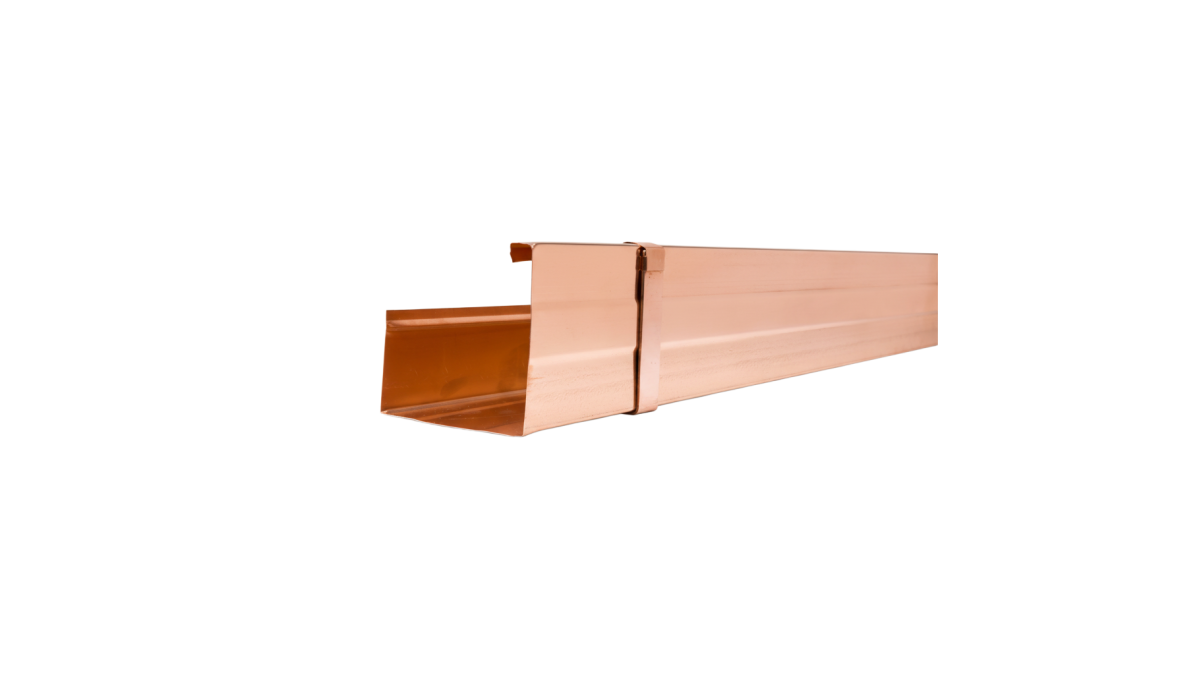

  • The customer has the option of either internal and external brackets for both colorcote or copper spouting
  • When installing internal or external brackets on Magnaflow, Alumigard or Euramax spouting, all brackets are manufactured in aluminium and powdercoated

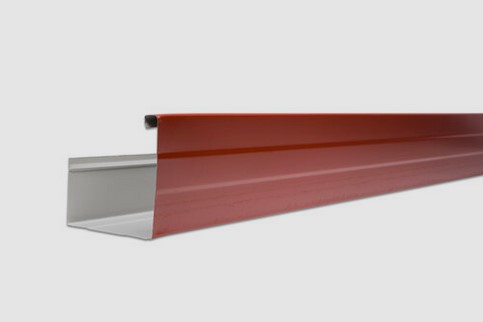

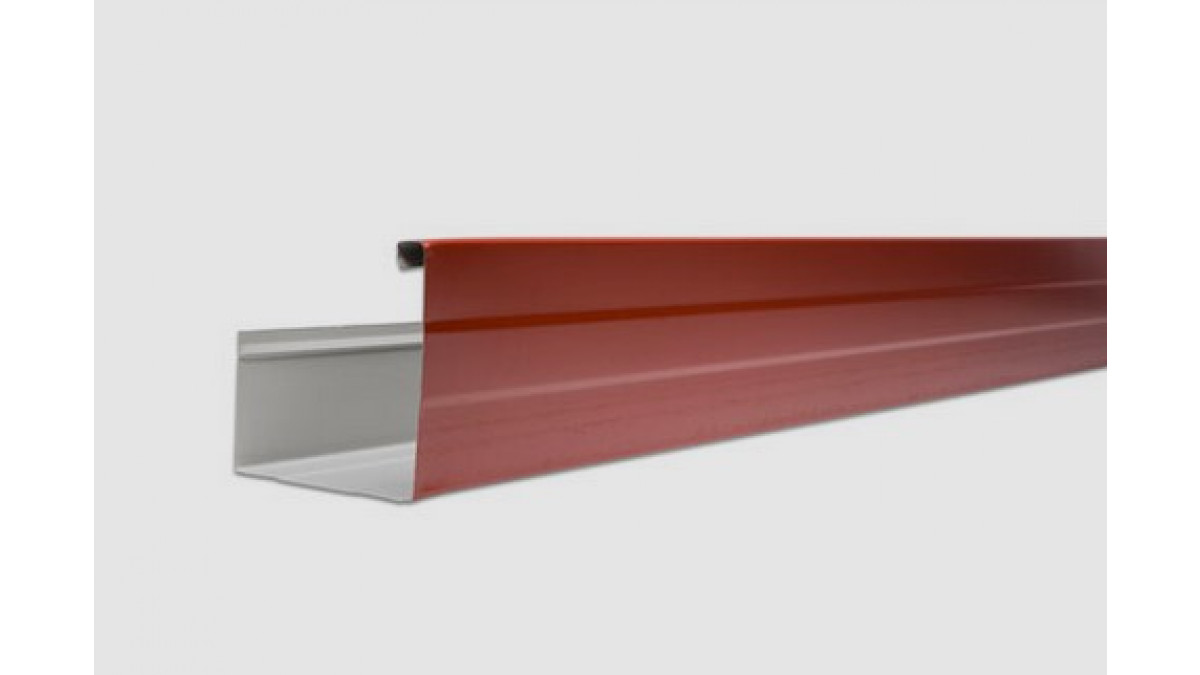

  • Profile can be folded without the swages for a cleaner straightline finish for those architectural designed builds
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Continuous Group rainwater systems are intended to collect and channel water that runs off a roof.  It is intended that the metal spouting be placed at the perimeter of the building (positioned outside the building envelope).

  • Perfect for hiding unsightly large roof edge details like old terracotta or concrete roof types
  • Profile can be folded without the swages for a cleaner straightline finish for those architectural designed builds
  • Available throughout New Zealand.
  • Maximum cross sectional area 8656mm2
  • Effective cross section with 10mm freeboard 7412mm2
  • Flow capacity 110 Litres/minute
  • Minimum downpipe cross section 3215mm2
Statement of Building Code Compliance
  • Test information available from Pacific Coilcoaters, New Zealand Steel and Ambro Metals, combined with past history of rainwater products indicate, that provide the product use and maintenance is in line with the guidelines contained in the current literature, Continuous Group rainwater systems can be expected to meet the performance criteria in clause E2 of the New Zealand Building Code.
  • All copper, brass and aluminium products listed above are fit for purpose in environment Zone B, C, D and E*.
  • Pre-painted steel products are fit for purpose in environment Zone B and C*.  They may be used in environment Zone D subject top pre-approval warranty application based on site address*.
  • *In all cases, areas with high wind and/or salt and/or thermal/industrial atmospheric conditions may require specific engineering design (S.E.D.)  Reference: Section D, Durability from NZS3604:2011.
Documents
BPIS - Cube 125 copper spouting system

BPIR:C12CU-SYS:2023.v1

BPIS - Cube 125 pre-painted metal fascia system

BPIR:C12PM-SYS:2023.v1

Compatibility of Materials in Contact
Compatibility of Materials Subject to Run-off
Cube 125mm Box Gutter Specifications
Environmental Information
Material Compatibility — Material Selection
Environmental Information
Installation and Operation
Care and Maintenance
Warranty
Cube 125mm Box Gutter Brochure
Alumigard
CG Colour Finishes
CG Designer Colour Range
Copper
Magnaflow
CAD/PDF Details

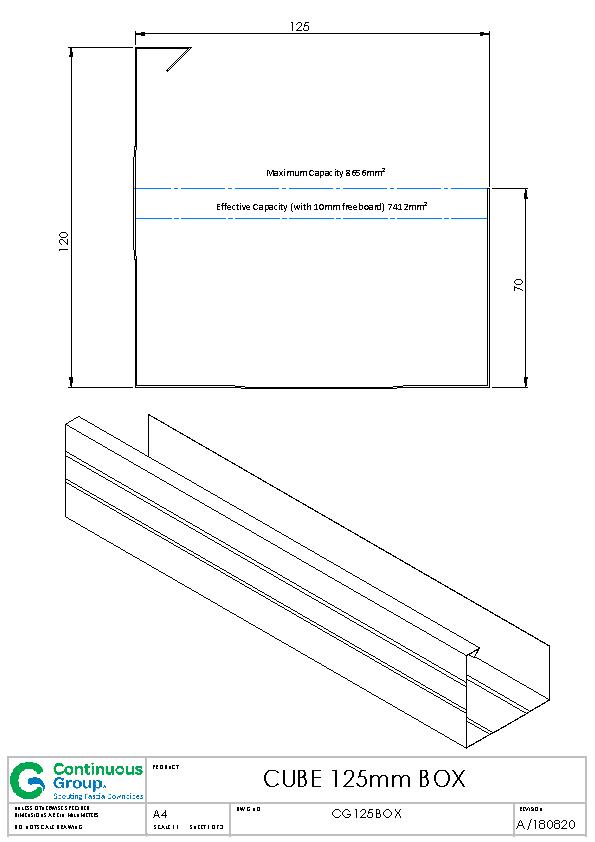

Spouting Cube 125mm Box Gutter Detail
