Downpipe FS-80mm
Description

The FS-80 downpipe provides increased water capacity for a complete, trusted rainwater installation. Part of the Continuous Group's Form Series, the FS-80 is a roll-formed lock seamed downpipe. This product can be used for water collection, but can not be used where a water tank head height is higher than the top of the drain. Customers can use Ezi-Flo Series downpipe where charged/sealed downpipes are required.

FS-80 can be run in Magnaflow, Alumigard, Euramax and Copper. FS-80 downpipe is available throughout New Zealand.

Key Features

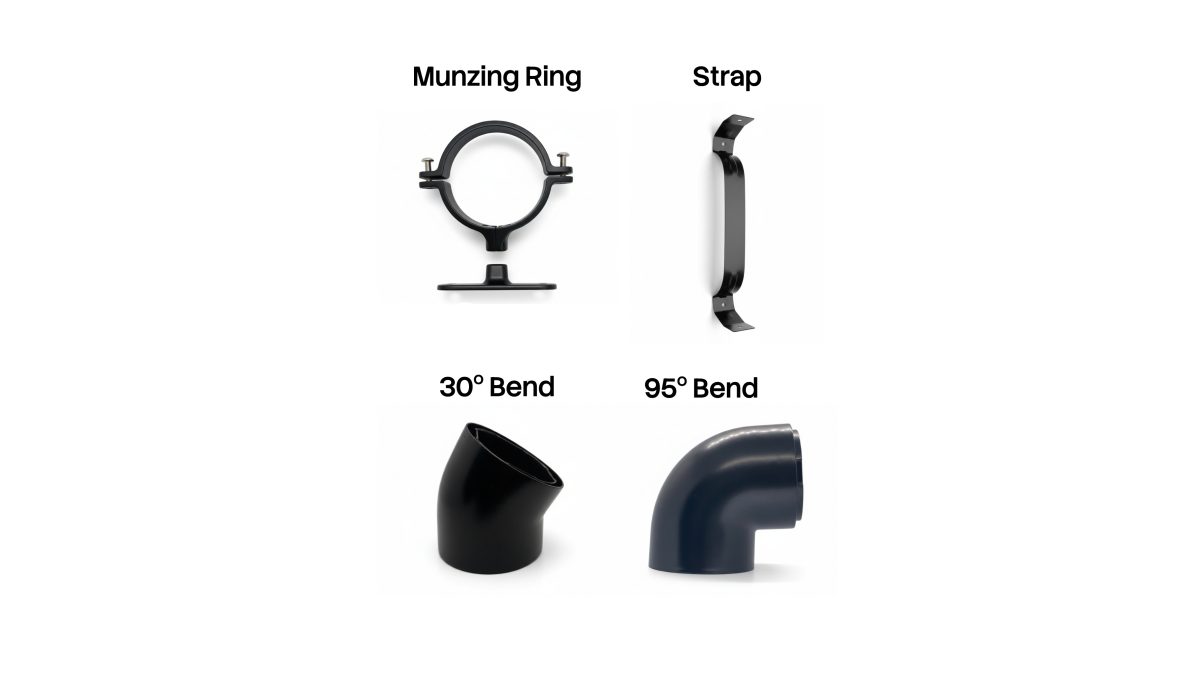

FS-80 (80mm downpipe) comes with a number of different components for different applications:

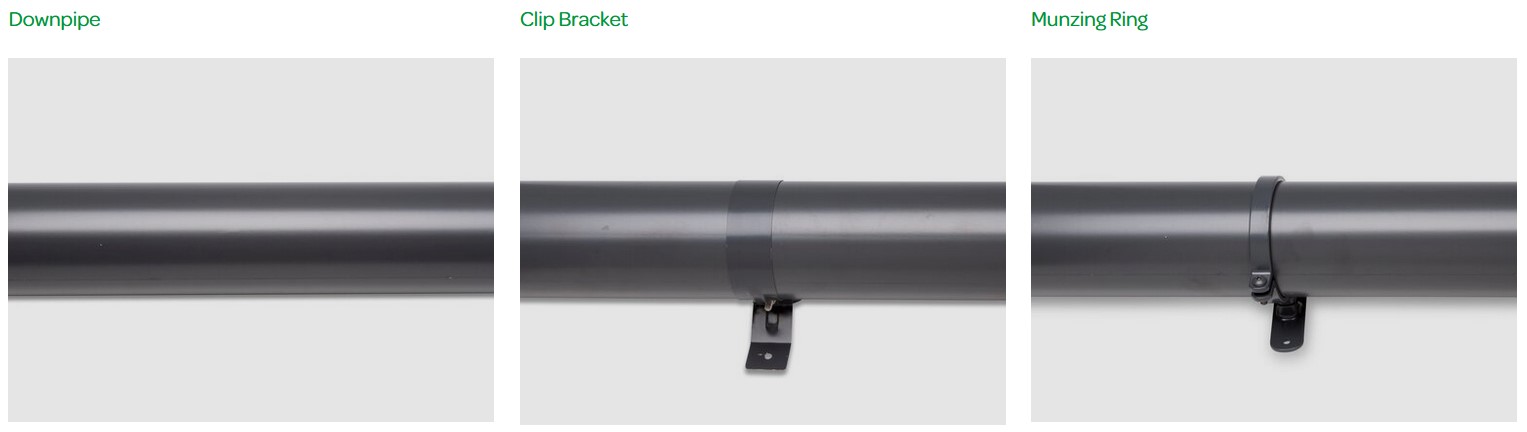

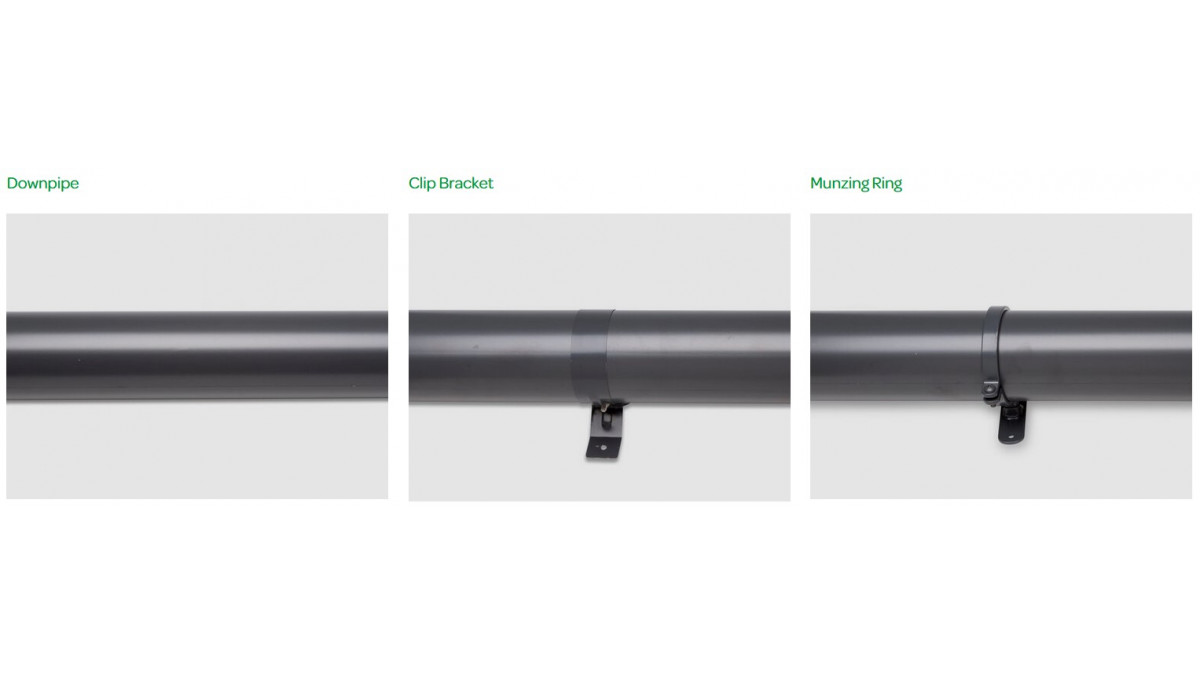

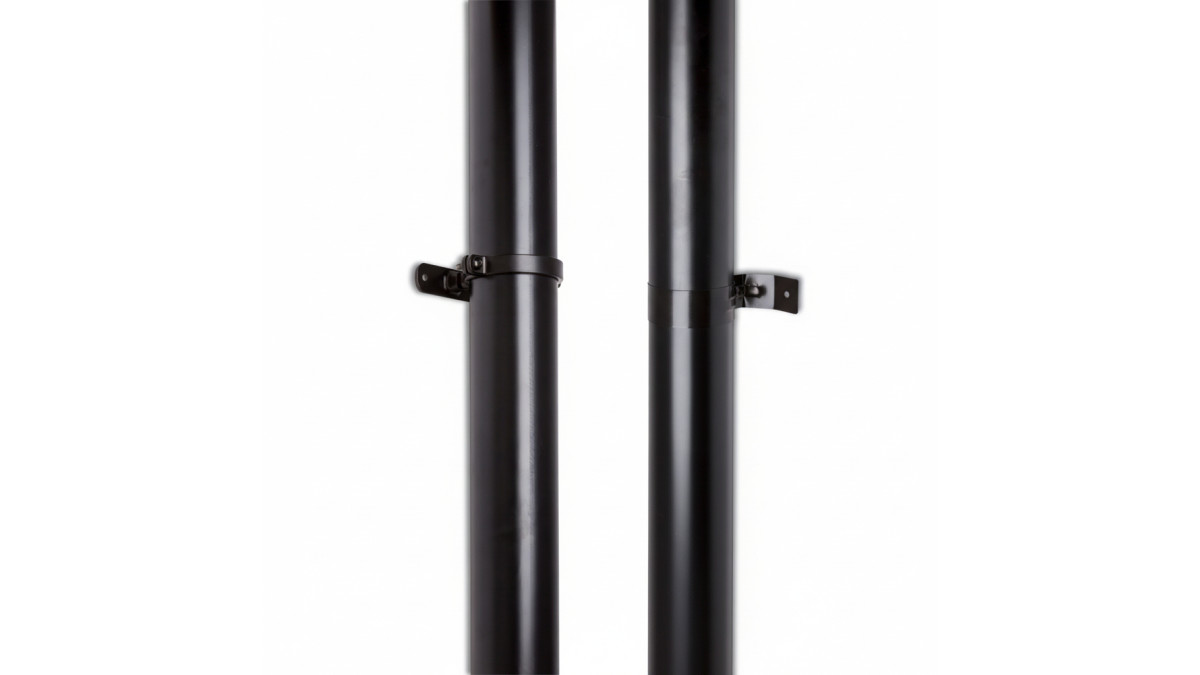

  • Clips or Munzing Rings
  • 3 different degree bends, 95°, 45°, 30°
  • Tee Junctions
  • L Kick Spreader or T Spreaders
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Continuous Group Form Series Downpipes are intended to collect and channel water that runs off a roof. It is intended that the metal downpipes be placed at the perimeter of the building (positioned outside the building envelope).

  • Available throughout New Zealand
  • Can be run in Magnaflow, Alumigard, Euramax and Copper
  • Inside Diameter = 80mm
  • Outside Diameter = 81.2mm
  • Capacity = 5020mm2
Limitations on Use

This product can be used for water collection, but can not be used where a water tank head height is higher than the top of the drain. Customers can use Ezi-Flo Series downpipe where charged/sealed downpipes are required.

Statement of Building Code Compliance
  • Test information available from Pacific Coilcoaters, New Zealand Steel and Ambro Metals, combined with past history of rainwater products indicate, that provide the product use and maintenance is in line with the guidelines contained in the current literature, Continuous Group rainwater systems can be expected to meet the performance criteria in clause E2 of the New Zealand Building Code.
  • All copper, brass and aluminium products listed above are fit for purpose in environment Zone B, C, D and E*.
  • Pre-painted steel products are fit for purpose in environment Zone B and C*.  They may be used in environment Zone D subject top pre-approval warranty application based on site address*.
  • *In all cases, areas with high wind and/or salt and/or thermal/industrial atmospheric conditions may require specific engineering design (S.E.D.)  Reference: Section D, Durability from NZS3604:2011.
