Downpipe FS-75x55
Description

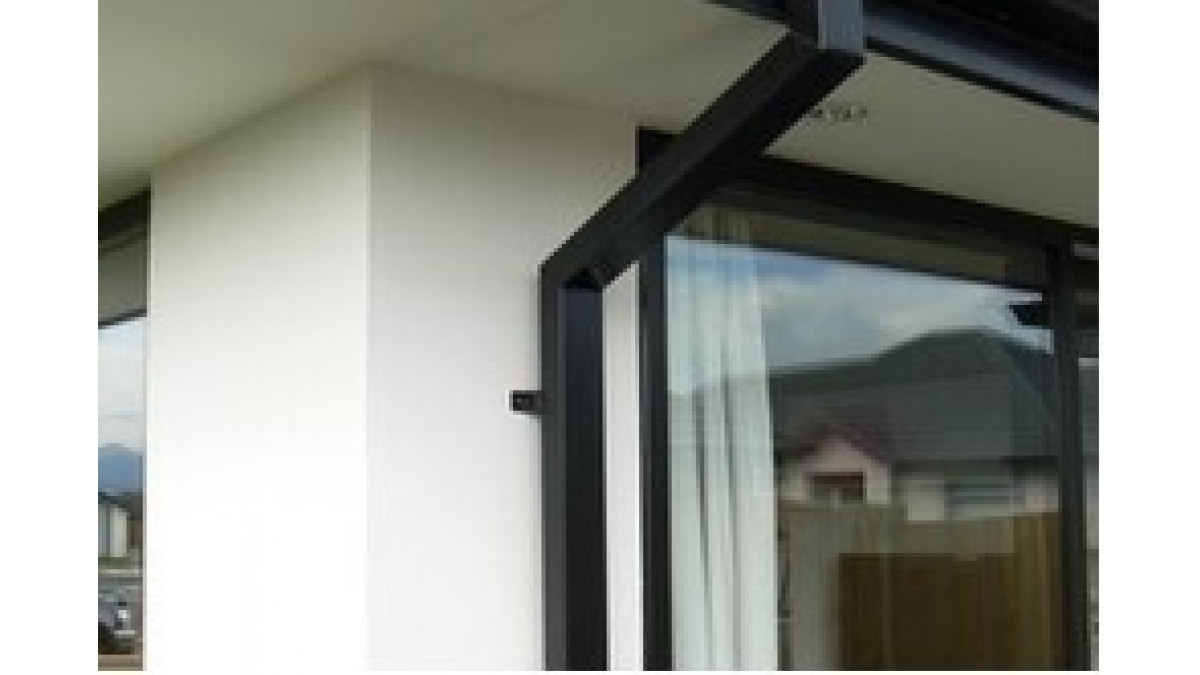

Continuous Group FS-75x55 downpipe provides a stylish rectangular shape to a residential home's downpipes, that can be colour matched to the spouting. This product can be used for water collection, but can not be used where water tank head height is higher than top of drain. Use Ezi-Flo Series downpipes where a charged/sealed system are required.

Downpipe capacity, both in size and number, determine the effectiveness of any rainwater system. Downpipes should be distributed evenly around the rainwater system and their design and specification should allow for maximum rainfall situations.

All Continuous Group's bends are uniquely designed with male and female ends so as to allow the most efficient flow of water. A typical bend is at 95°, but can be hand made to differing angles if required.

FS-75x55 can be manufactured in Magnaflow and Copper.

FS-75x55 downpipe is available throughout New Zealand.

Key Features

FS-75x55 comes with a number of different components manufactured or handmade for different applications:

  • Standard clip or standoff bracket
  • 4 different degree bends, 95°, 45°, 30°
  • Tee Junctions
  • L Kick Spreader or T Spreaders
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Continuous Group Form Series Downpipes are intended to collect and channel water that runs off a roof.  It is intended that the metal downpipes be placed at the perimeter of the building (positioned outside the building envelope).

  • Available throughout New Zealand
  • Inside Diameter = 73.8mmx52.8mm
  • Outside Diameter = 75x54mm
  • Capacity = 3890mm2
Limitations on Use

This product can be used for water collection, but can not be used where water tank head height is higher than top of drain. Use Ezi-Flo Series downpipes where a charged/sealed system are required.

Downpipe capacity, both in size and number, determine the effectiveness of any rainwater system. Downpipes should be distributed evenly around the rainwater system and their design and specification should allow for maximum rainfall situations.

Statement of Building Code Compliance
  • Test information available from Pacific Coilcoaters, New Zealand Steel and Ambro Metals, combined with past history of rainwater products indicate, that provide the product use and maintenance is in line with the guidelines contained in the current literature, Continuous Group rainwater systems can be expected to meet the performance criteria in clause E2 of the New Zealand Building Code.
  • All copper, brass and aluminium products listed above are fit for purpose in environment Zone B, C, D and E*.
  • Pre-painted steel products are fit for purpose in environment Zone B and C*.  They may be used in environment Zone D subject top pre-approval warranty application based on site address*.
  • *In all cases, areas with high wind and/or salt and/or thermal/industrial atmospheric conditions may require specific engineering design (S.E.D.)  Reference: Section D, Durability from NZS3604:2011.
Documents
Compatibility of Materials in Contact
Compatibility of Materials Subject to Run-off
Environmental Information
FS Downpipe Specifications
Material Compatibility — Material Selection
Environmental Information
Care and Maintenance
Warranty
FS Downpipe Brochure
CG Colour Finishes
CG Designer Colour Range
Copper
Magnaflow
