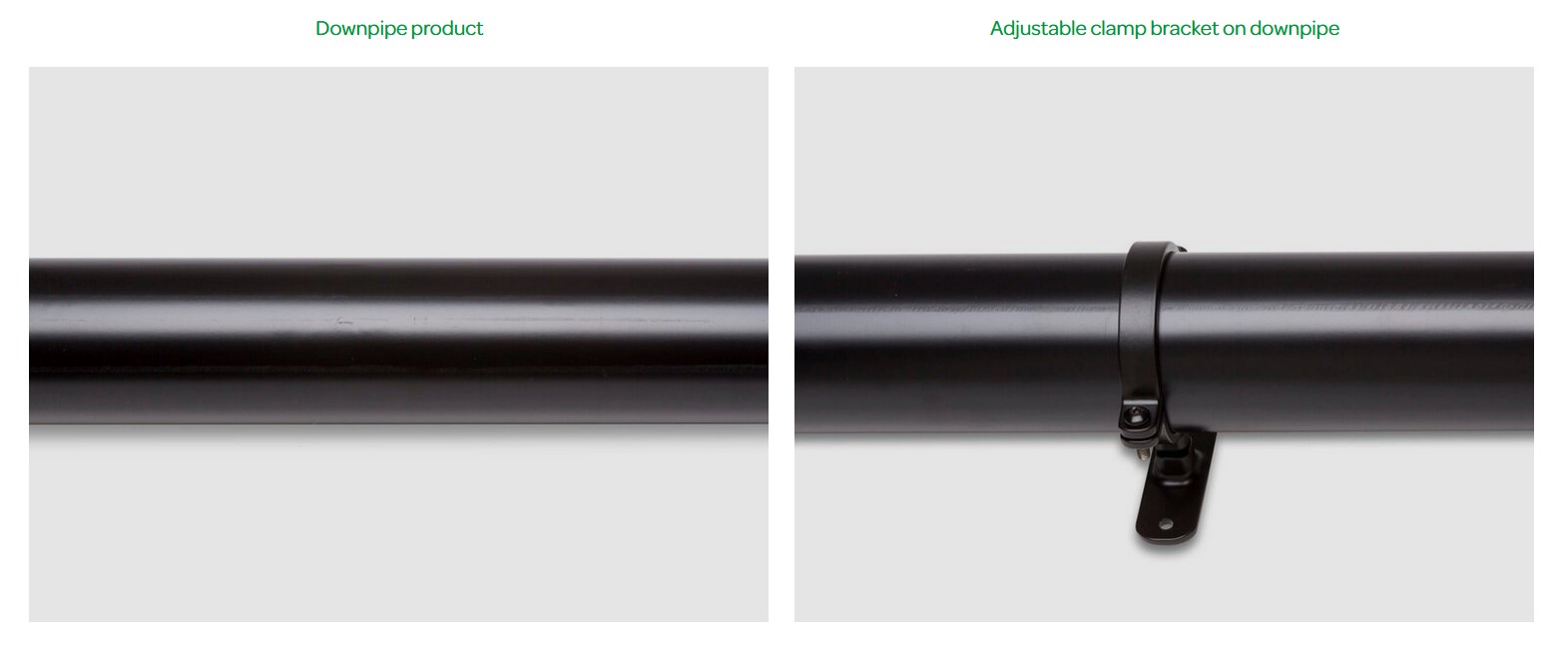

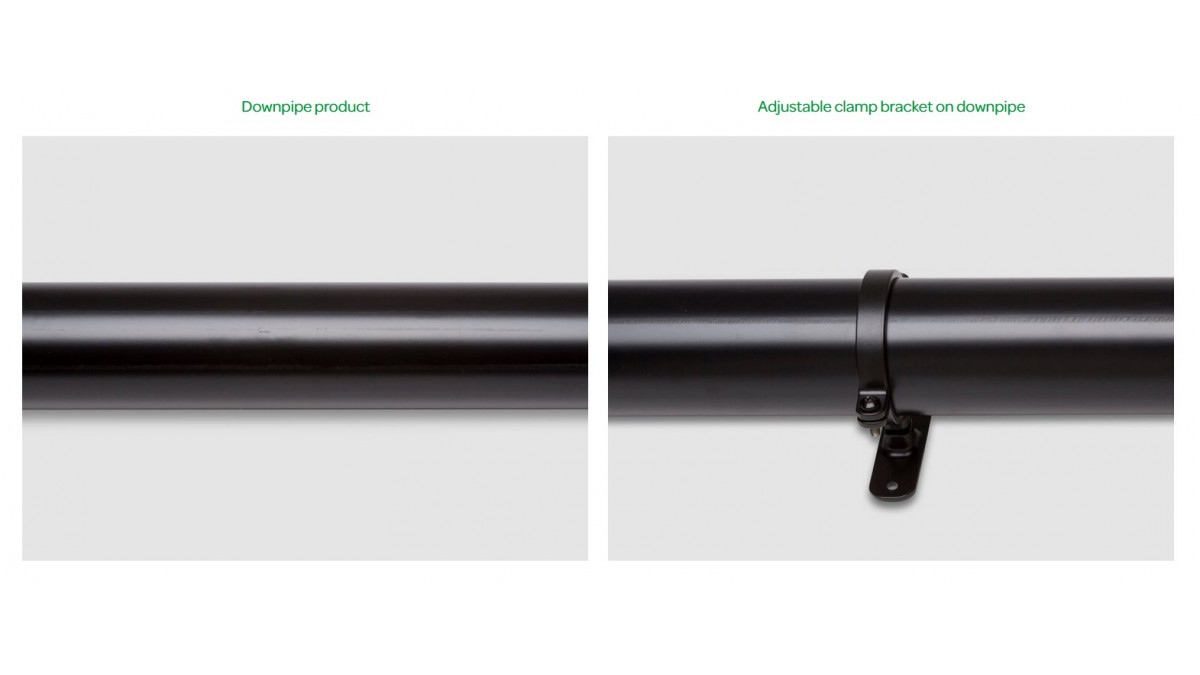

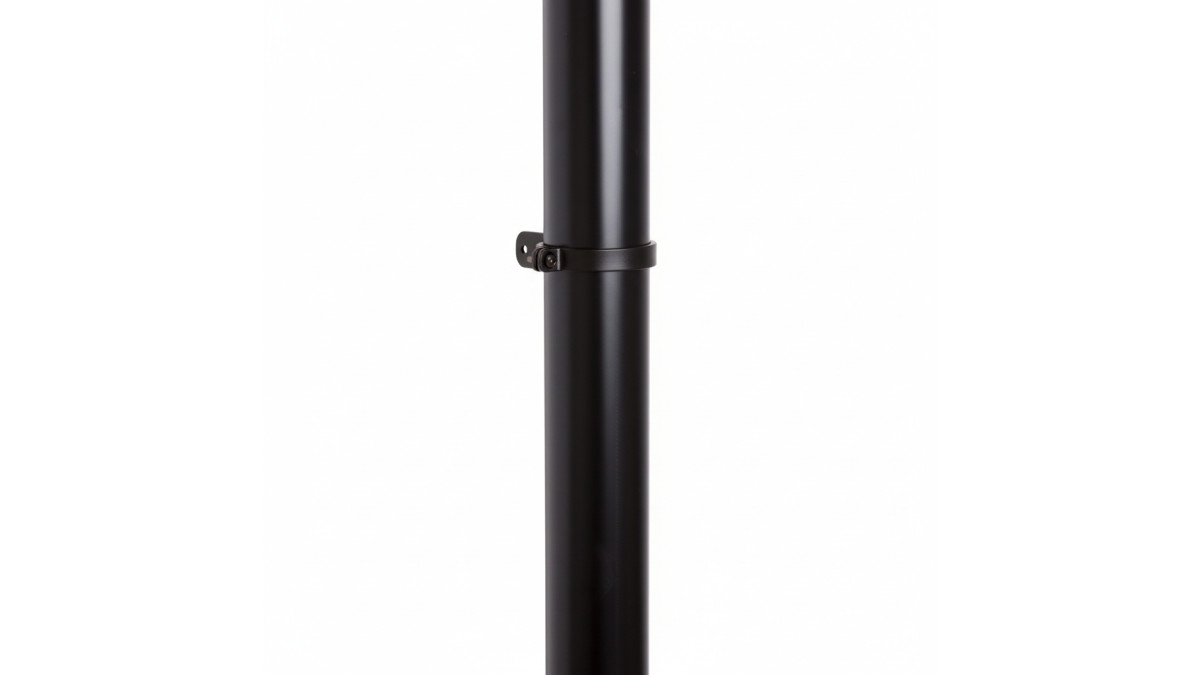

Downpipe EF-80mm
Description

The EF-80 downpipe provides a highly durable finishing touch to Continuous Group's quality rainwater systems. Part of the EZI-FLO Series, the EF-80 is an extruded aluminium downpipe which is suitable for a high salt area. The EZI-FLO Series of pipes can be powdercoated in any one of 60 colours. This product is ideal for water collection, as it can be used where water tank head height is higher than top of drain.

EF-80 is manufactured in1.90mm 6060 T5 extruded Aluminium and powdercoated. EF-80 downpipe is available throughout New Zealand.

Key Features

EF-80 comes with a number of different components for different applications:

  • Munzing Rings
  • 3 different degree bends, 95°, 45°, 30°
  • Tee Junctions
  • L Kick Spreader or T Spreaders
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Continuous Group EEZI-FLOTM Series Downpipes are intended to collect and channel water that runs off a roof.  It is intended that the metal downpipes be placed at the perimeter of the building (positioned outside the building envelope).

  • Suitable for a high salt area
  • Ideal for water collection, as it can be used where water tank head height is higher than top of drain
  • Available throughout New Zealand.
  • Inside Diameter = 78.8mm
  • Outside Diameter = 82mm
  • Capacity = 4870mm2
Limitations on Use

Downpipe capacity, both in size and number, determine the effectiveness of any rainwater system. Downpipes should be distributed evenly around the rainwater system and their design and specification should allow for maximum rainfall situations.

Statement of Building Code Compliance
  • Test information from Inex Metals, combined with past history of downpipe systems indicate that provided the product use and maintenance is in line with the guidelines contained int eh current literature, Continuous Group EXI-FLO Series downpipes can be expected to meet the performance criteria in clause E2 of the New Zealand Building Code.
  • All products in the Ezi-FlowTM series are manufactured and are fit for purpose in environment Zone B, C, D and E*
  • *In all cases areas with high wind and/or salt and/or thermal/industrial atmospheric conditions may require specific engineering design (S.E.D.) Reference: Section 4, Durability from NZS3604:2011
Other Performance Attributes
  • Environment B, C and D: 20 year perforation warranty and 5 year paint warranty.
  • Environment E: 15 year perforation warranty and 5 year paint warranty.
Documents
Compatibility of Materials in Contact
Compatibility of Materials Subject to Run-off
Downpipe Ezi Flow Series Specification
Material Compatibility — Material Selection
Environmental Information
Care and Maintenance
Warranty
Downpipe Ezi Flow Series Brochure
CG Colour Finishes
CG Designer Colour Range
