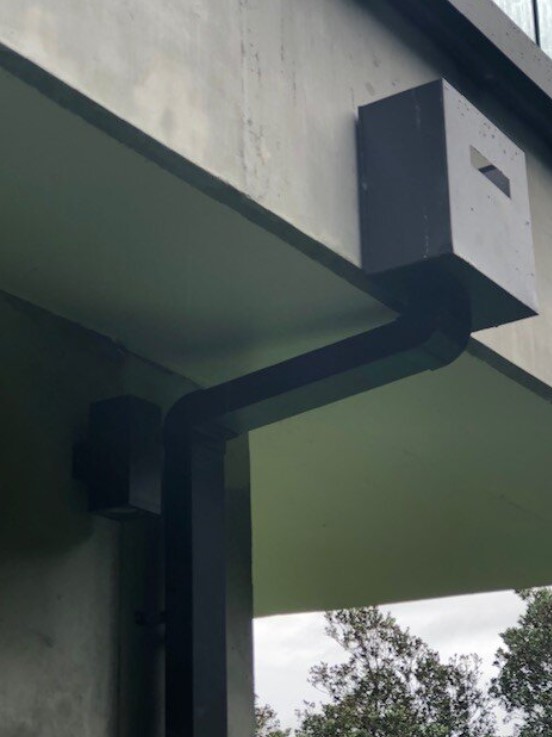

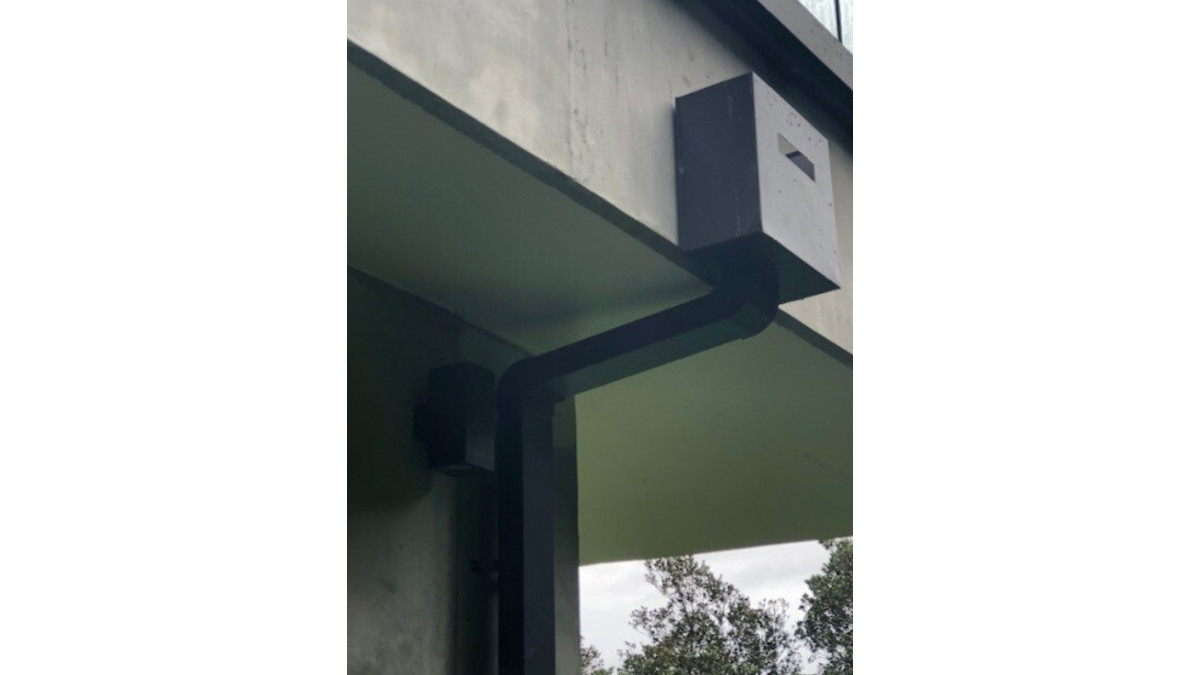

Downpipe EF-100x55
Description

The EF-100x55 combines extruded aluminium material with a modern rectangular downpipe design, providing a highly durable downpipe with significant water capture capacity. As part of Continuous Group's EZI-FLO Series, the EF-100x55 can be powdercoated in any one of 60 colours. It is ideal for heavy sea spray zone areas.

EF-100x55 is manufactured in 1.90mm 6060 T5 extruded Aluminium and powdercoated. EF-100x55 downpipe is available throughout New Zealand.

Key Features

EF-100x55 downpipe comes with a number of different components for different applications:

  • Munzing Rings
  • 3 different degree bends, 95°, 45°, 30°
  • Tee Junctions
  • L Kick Spreader or T Spreaders
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Continuous Group EZI-FLO Series Downpipes are intended to collect and channel water that runs off a roof. It is intended that the metal downpipes be placed at the perimeter of the building (positioned outside the building envelope).

  • It is ideal for heavy sea spray zone areas
  • Available throughout New Zealand.
  • Inside Diameter = 96.2mmx51.2mm
  • Outside Diameter = 100mmx55mm
  • Capacity = 4925mm2
Limitations on Use

Downpipe capacity, both in size and number, determine the effectiveness of any rainwater system. Downpipes should be distributed evenly around the rainwater system and their design and specification should allow for maximum rainfall situations.

Statement of Building Code Compliance

Continuous Group EZI-FLO downpipes are intended to collect and channel water that runs off a roof.  It is intended that the downpipes be placed at the perimeter of the building (positioned outside the building envelope).

  • Test information from Inex Metals, combined with past history of downpipe systems indicate that provided the product use and maintenance is in line with the guidelines contained int eh current literature, Continuous Group EXI-FLO Series downpipes can be expected to meet the performance criteria in clause E2 of the New Zealand Building Code.
  • All products in the EZI-FLO series are manufactured and are fit for purpose in environment Zone B, C, D and E*
  • *In all cases areas with high wind and/or salt and/or thermal/industrial atomospheric conditions may require specific engineering design (S.E.D.) Reference: Section 4, "Durability" from NZS3604:2011
  • Environment B, C and D = 20 year perforation warranty and 5 year paint warranty.
  • Environment E = 15 year perforation warranty and 5 year paint warranty.



Documents
Compatibility of Materials in Contact
Compatibility of Materials Subject to Run-off
Downpipe Ezi Flow Series Specification
Material Compatibility — Material Selection
Environmental Information
Care and Maintenance
Warranty
Downpipe Ezi Flow Series Brochure
CG Colour Finishes
CG Designer Colour Range

The Continuous Group are a leading supplier of spouting, downpipes, fascia and rainwater heads in New Zealand.
