Seismic Flush Twinline Wall/Ceiling Covers

Construction Specialties

All products

Product Enquiries

Description

Seismic Flush Twinline wall and ceiling covers are designed to allow for seismic movement while maintaining a seamless look. Designed for joint sizes 101.6mm (4") and up. Features a lightweight panel designed to disengage from the wall during a seismic event so it doesn't damage surrounding wall surfaces, and an exclusive hook-and-loop system with shock cord prevents panel from falling off the wall.

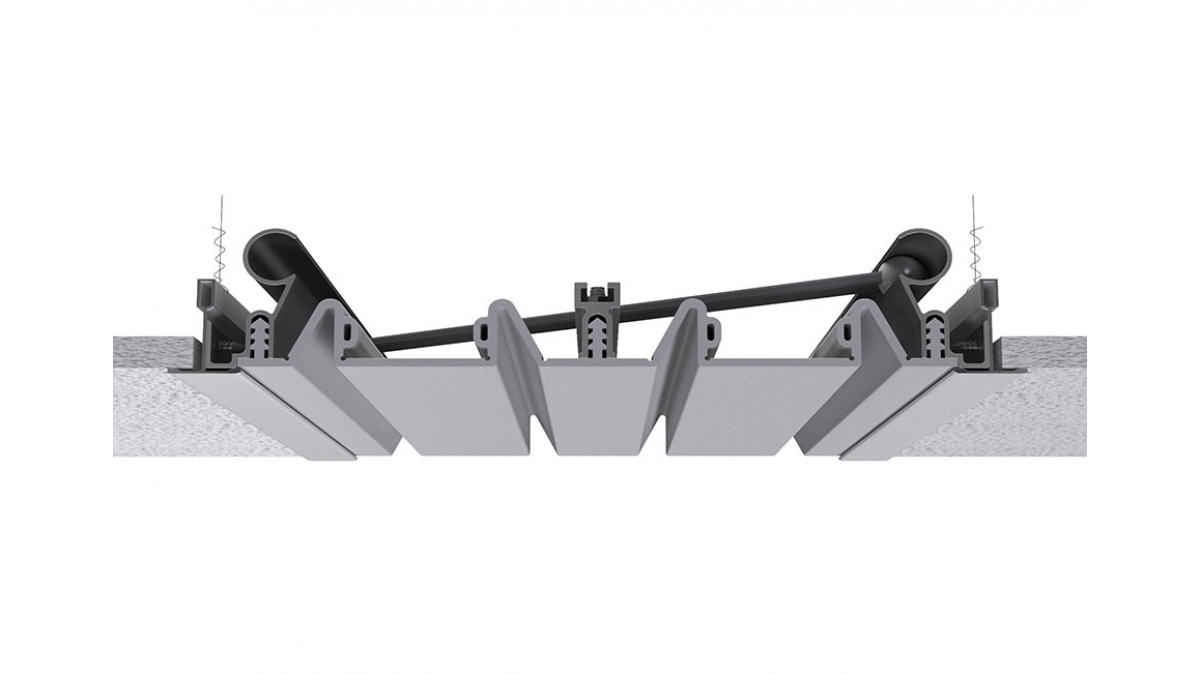

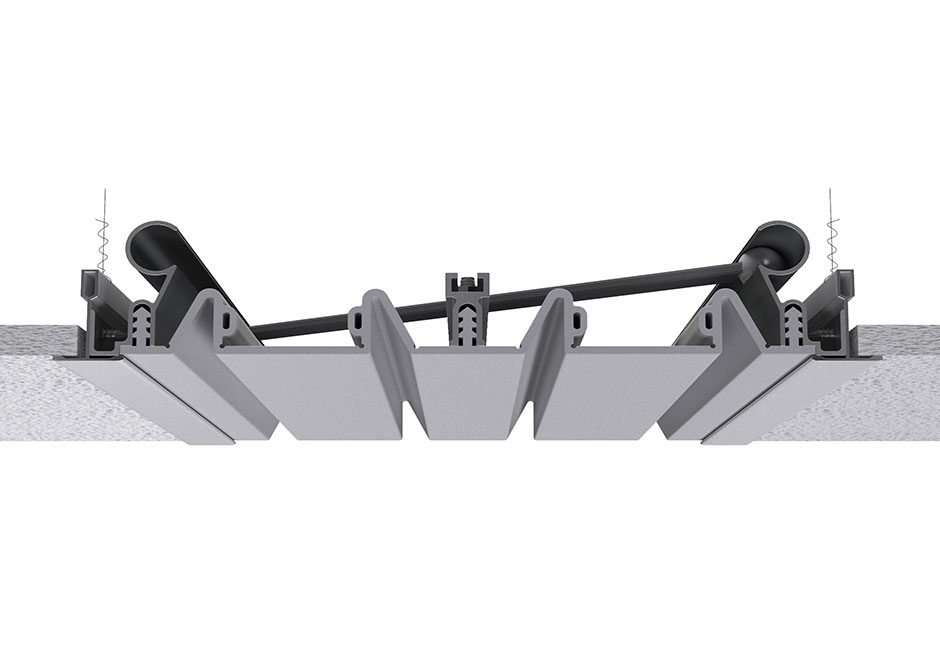

FCF — 76.2mm+ (3"+) — Flush Ceiling Flat seal

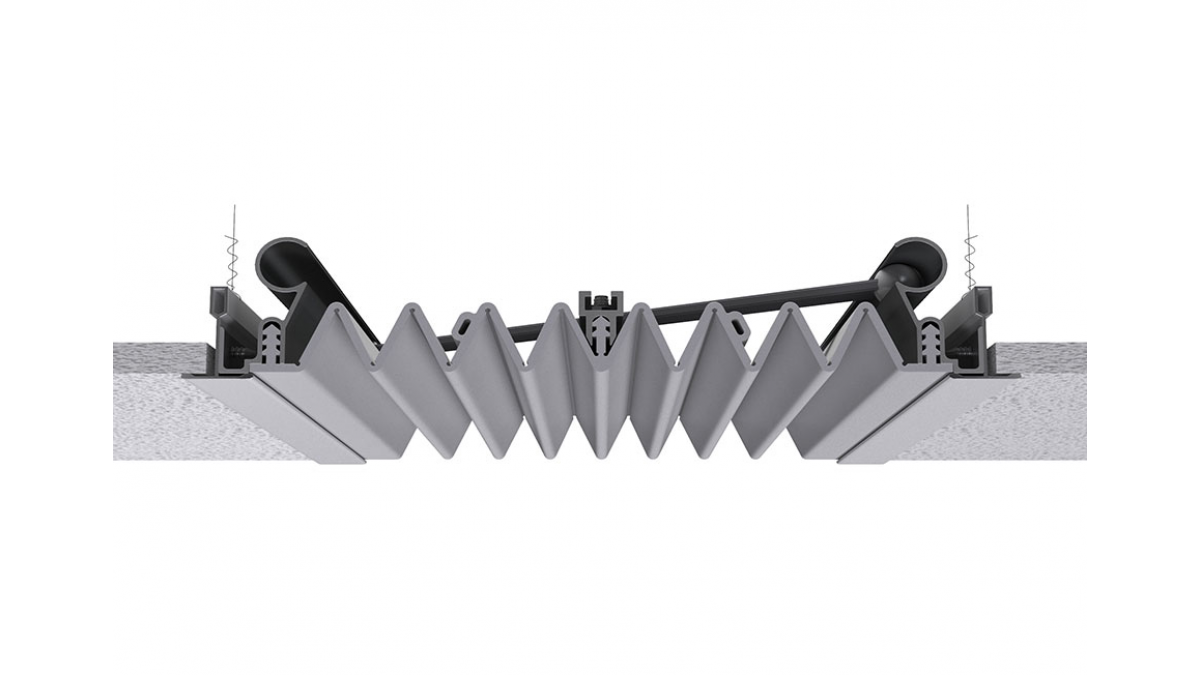

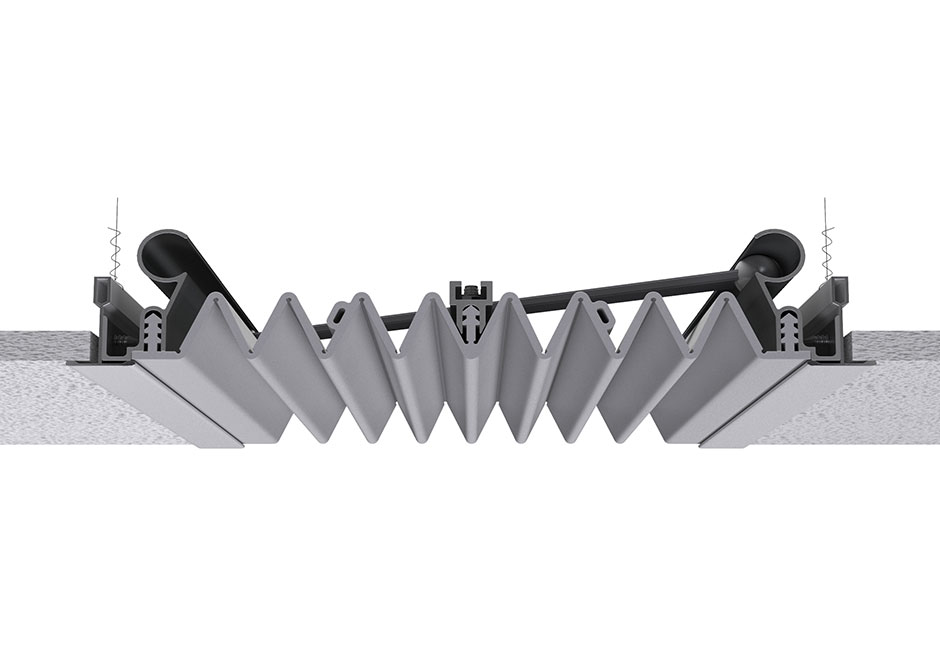

FCS — 127mm+ (5"+) — Flush Ceiling Serrated seal

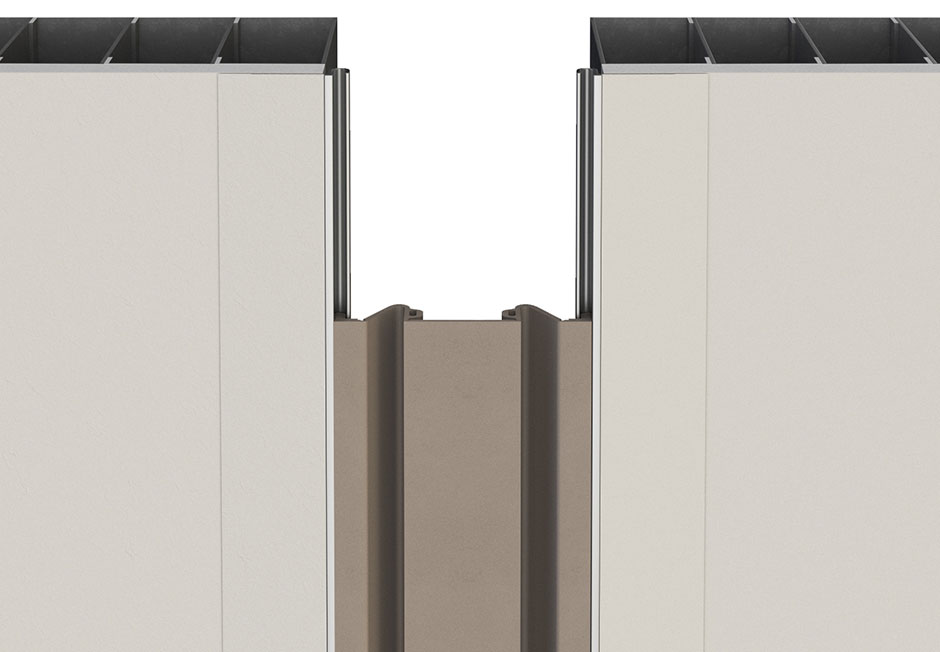

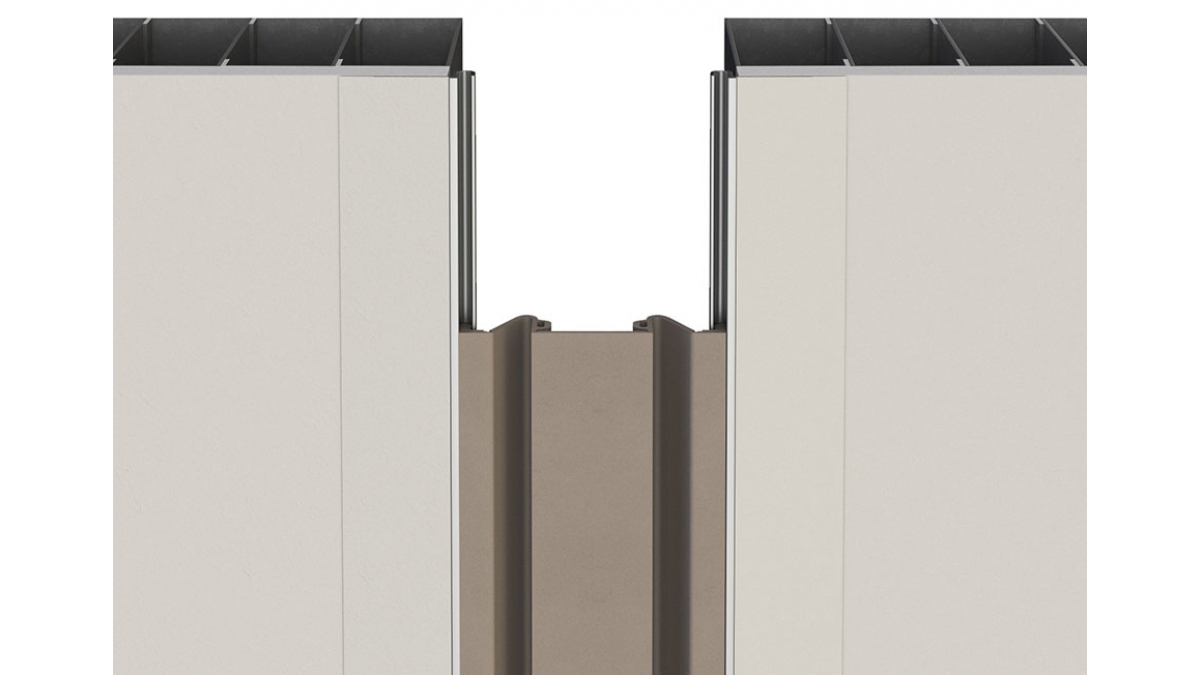

FWF — 76.2mm+ (3"+) — Flush Wall Flat seal

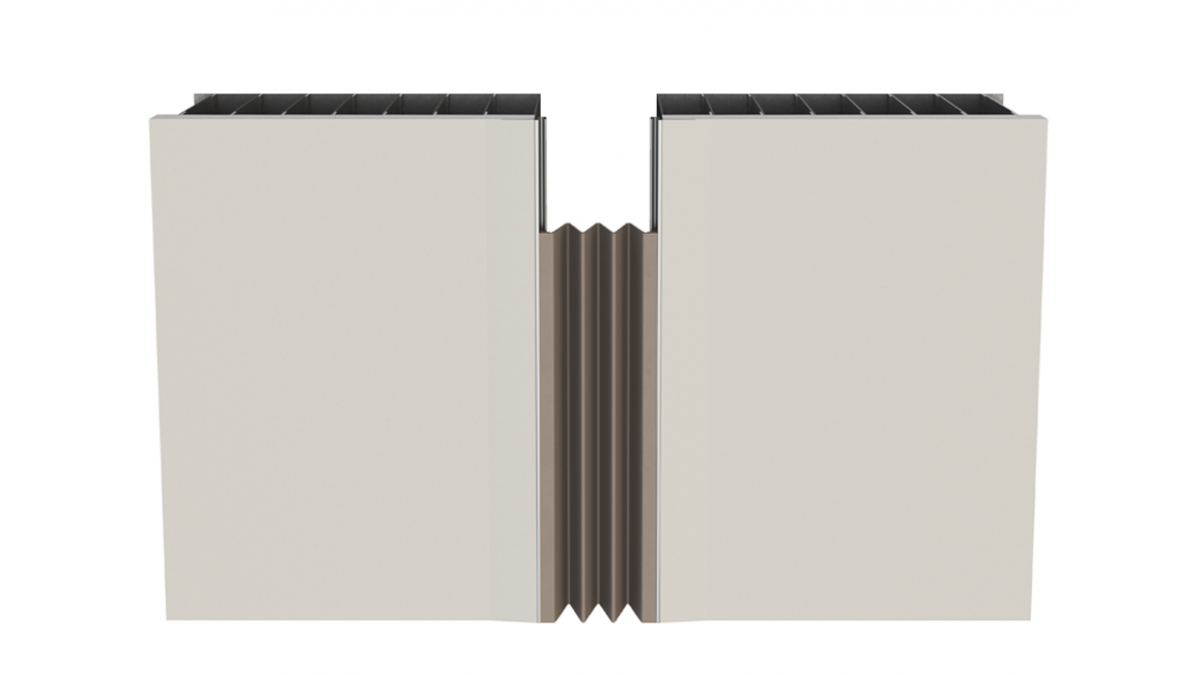

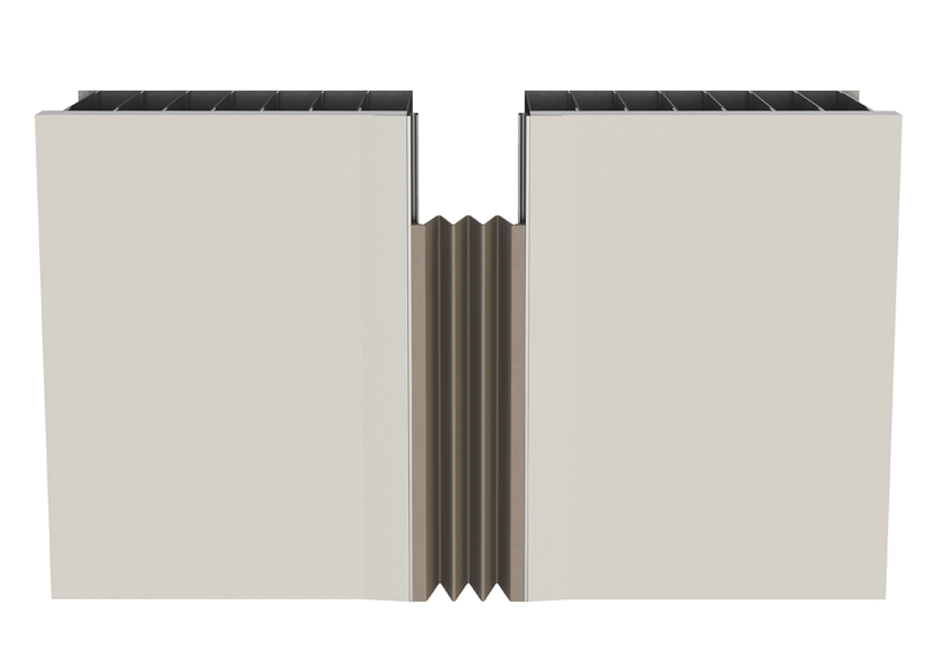

FWS — 127mm+ (5"+) — Flush Wall Serrated seal

Key Features

Seismic movement
Minimum exposed surface
Optional sealed gasket installation
ISO 9001: 2000 compliant
5 year limited warranty

Ranges

Seismic Cover: Wall & Ceiling Covers

Scope of Use

Suitable for all commercial and healthcare interiors
Seismic movement
Matches Twinline floor covers
Joint size: >101.6mm
Total movement: 100-200% of joint:

Finishes:

Drywall
Ceramic tile

Statement of Building Code Compliance

This product, if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

Clause B2 Durability
Clause F2 Hazardous Building Materials

In-Service History

Construction Specialties NZ Ltd. has been operating in New Zealand as a manufacturing distributor of the Construction Specialties range of products since 1988. Construction Specialties is a privately owned USA based, global company. Here in New Zealand, CS are privately owned and run as a wholly separate entity.

Recent / Current Projects:

NZ International Convention Centre
CCEV
Metro sports CHCH
Wellington Town Hall
Wellington Children Hospital
Wellington District Court
Wakefield Hospital
The Langlands Hotel Invercargill
Summerset group (Nationwide New Build)
Ormiston Town Centre
Cordis Hotel
55 Corinthian Drive Albany

Past Projects:

Auckland Airport Expansion
AUT and UOA University projects
Christchurch Acute Hospital
The Terrace Christchurch
UOC Christchurch
Starship Hospital

Other Performance Attributes

ISO 9001: 2000 compliant
CS Seismic and Expansion Joint Covers have been tested to ASTM E1399 / E1399M - 97(2017) Standard Test Method for Cyclic Movement and Measuring the Minimum and Maximum Joint Widths of Architectural Joint Systems

Warranty

CS Expansion Joint Covers feature a 5 year limited warranty
Installation: 2 years
