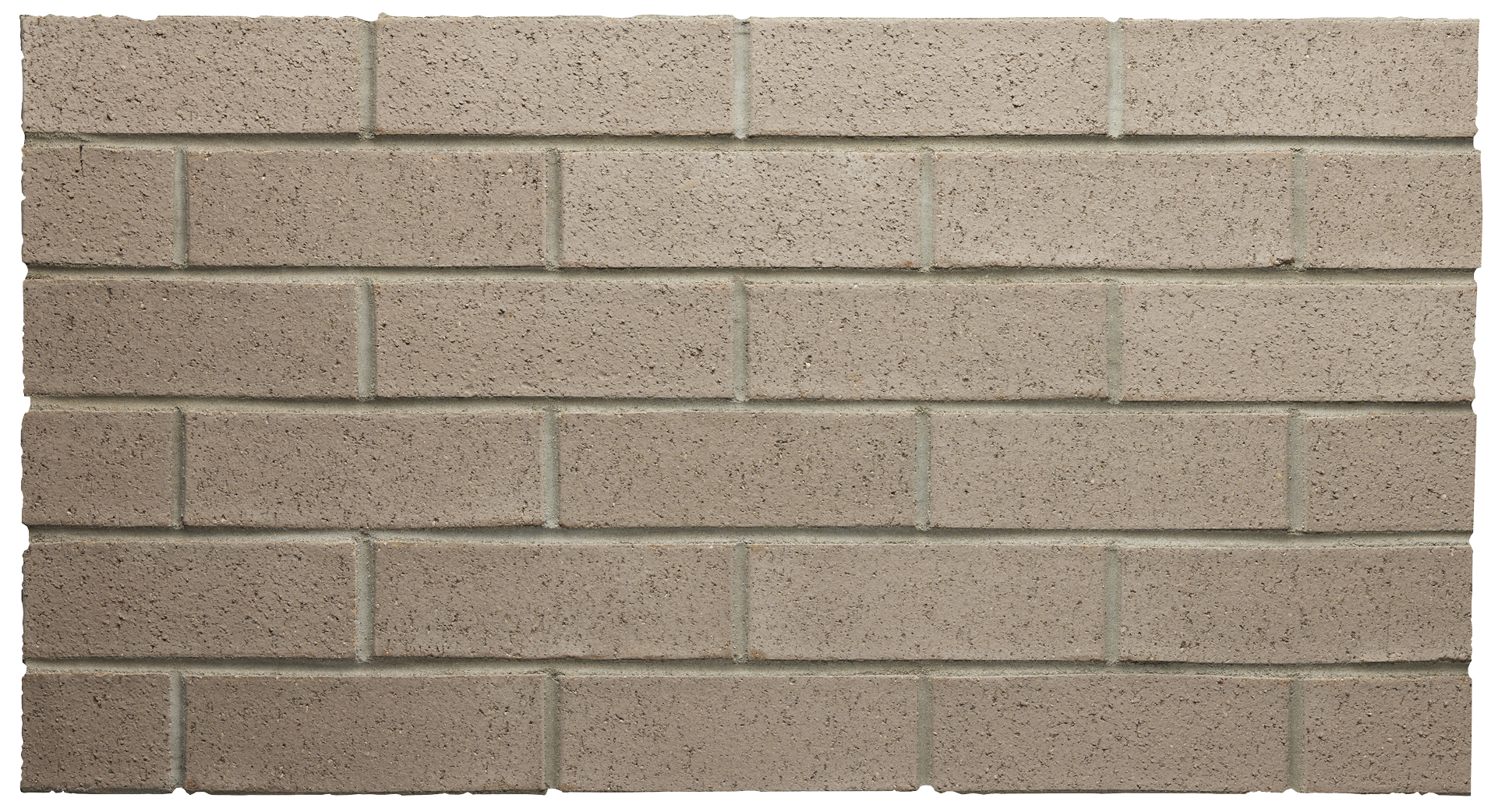

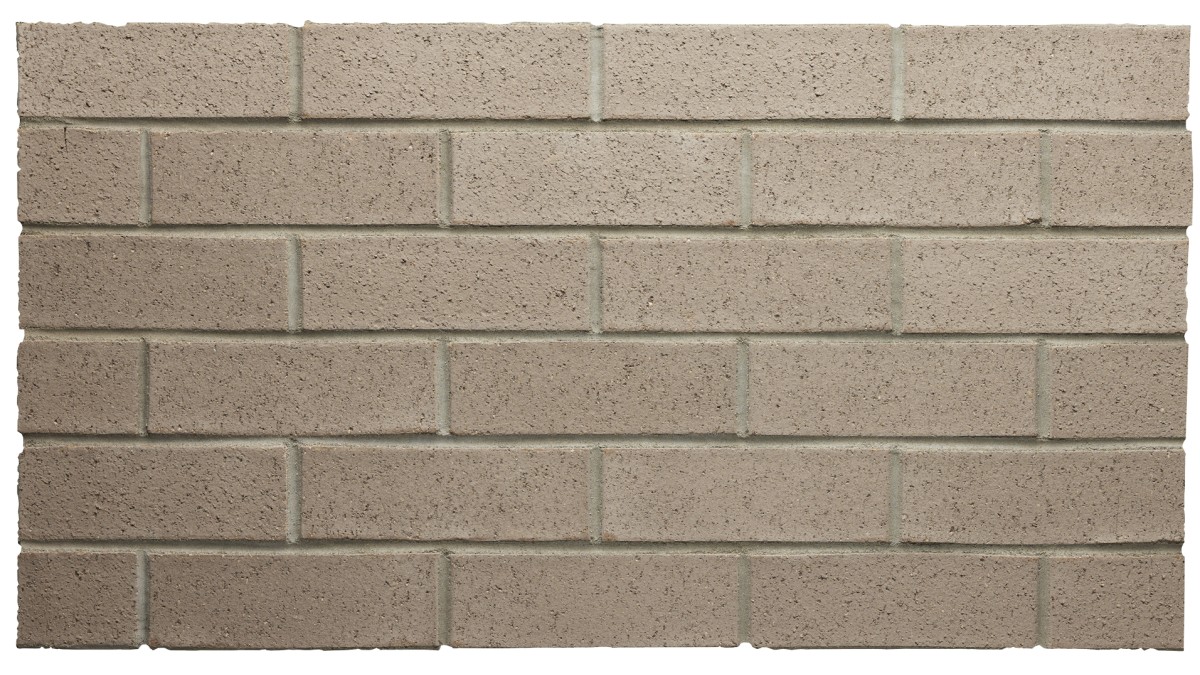

Silver Birch
Description

The bricks of the Origin range are fresh and modern. Whether for a clean and minimalist look or one with character, these colours and textured combine beautifully with other materials like timber, stone, steel and glass for residential projects as statements of style.

  • 230 x 76 x 70mm
Key Features

Part of the Origin range of clay bricks. Alpine by Monier Bricks textured coating provides interest and colour variation; showing whites through to the wheat coloured base. Use for a modern coastal aesthetic. Best with a rolled joint.

Origin bricks are fresh and modern, they are suited to either minimalist looks, or for adding character. The colours and textures combine with other materials like timber, stone, steel and glass to make a statement of individual style.

  • 230 x 76 x 70mm
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
Scope of Use

Brick Veneer Cladding is suitable for buildings within the following scope:

  • For residential and light commercial type buildings
  • The scope limitations of NZBC Acceptable Solution E2/AS1 Paragraph 1.1 in terms of floor area, with a maximum of two stories
  • With a maximum height of brick veneer of 7.5m above the supporting foundation, except that at gable ends and some piers this height may be up to 10.0m, and a maximum height of 4.0m above a roof line or 7.5m above an adjacent building foundation, whichever is the lesser
  • With a depth of cavity of between 40 and 75mm
  • With a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1 Table 2
  • Situated in NZS 3604 Wind Zones up to and including 'Extra High'
Limitations on Use
  • For use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills



Statement of Building Code Compliance

This product will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B1 Structure: Performance B1.3.1, B1.3.2, B1.3.3, B1.3.4
  • Clause B2 Durability: Performance B2.3.1(b), B2.3.1(c), B2.3.2
  • Clause E2 External moisture: Performance E2.3.2
  • Clause F2 Hazardous building materials: Performance F2.3.1

Brickworks Building Products is one of the world’s largest and most diverse building material manufacturers.

Product Enquiries
