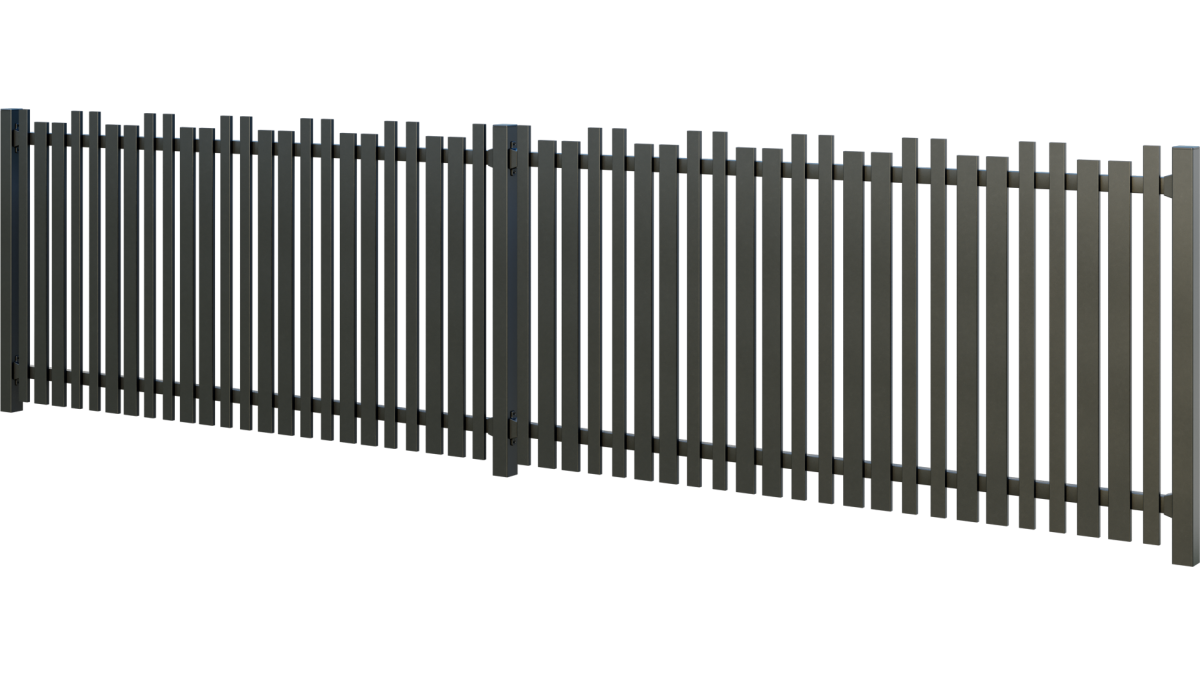

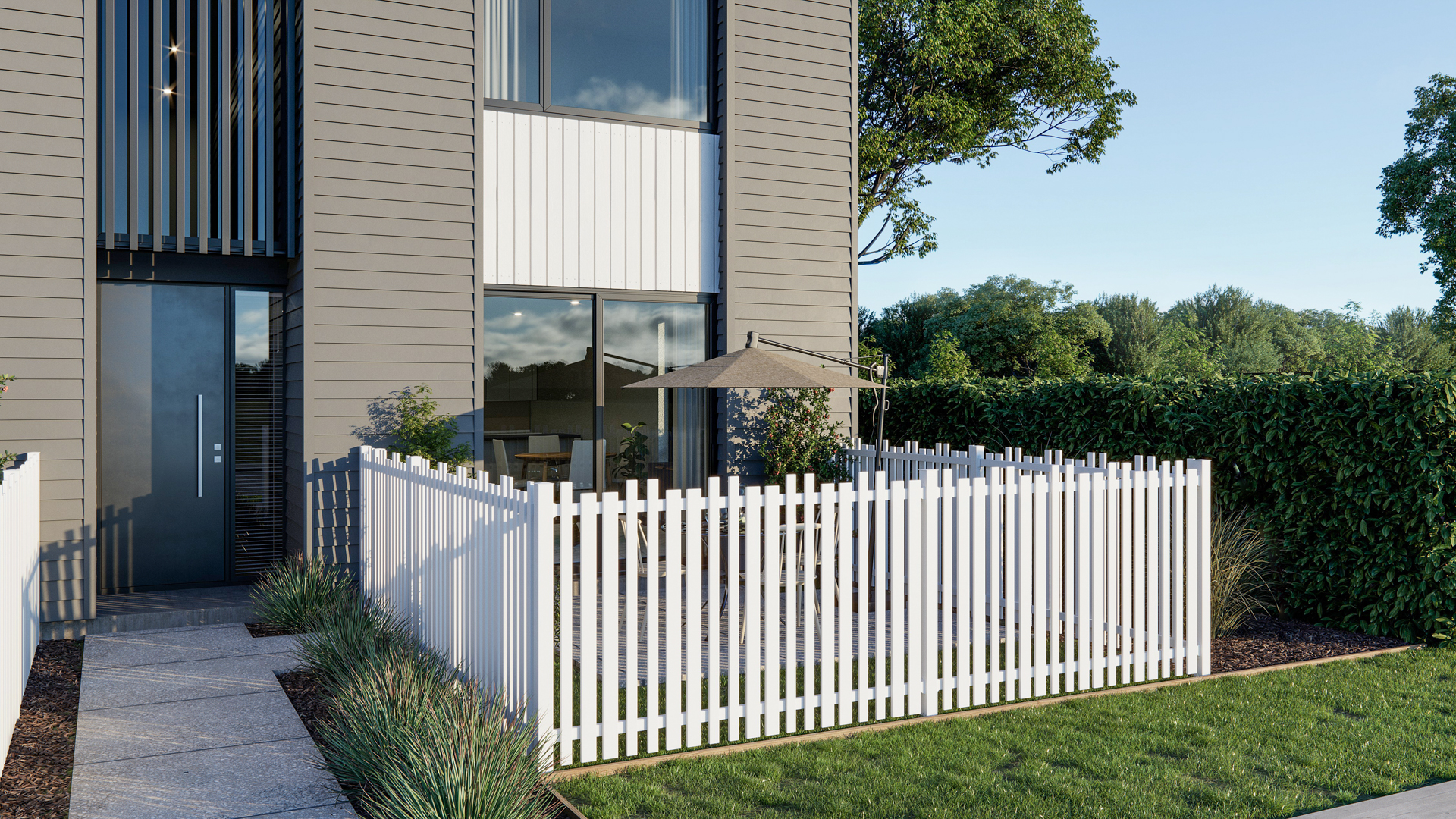

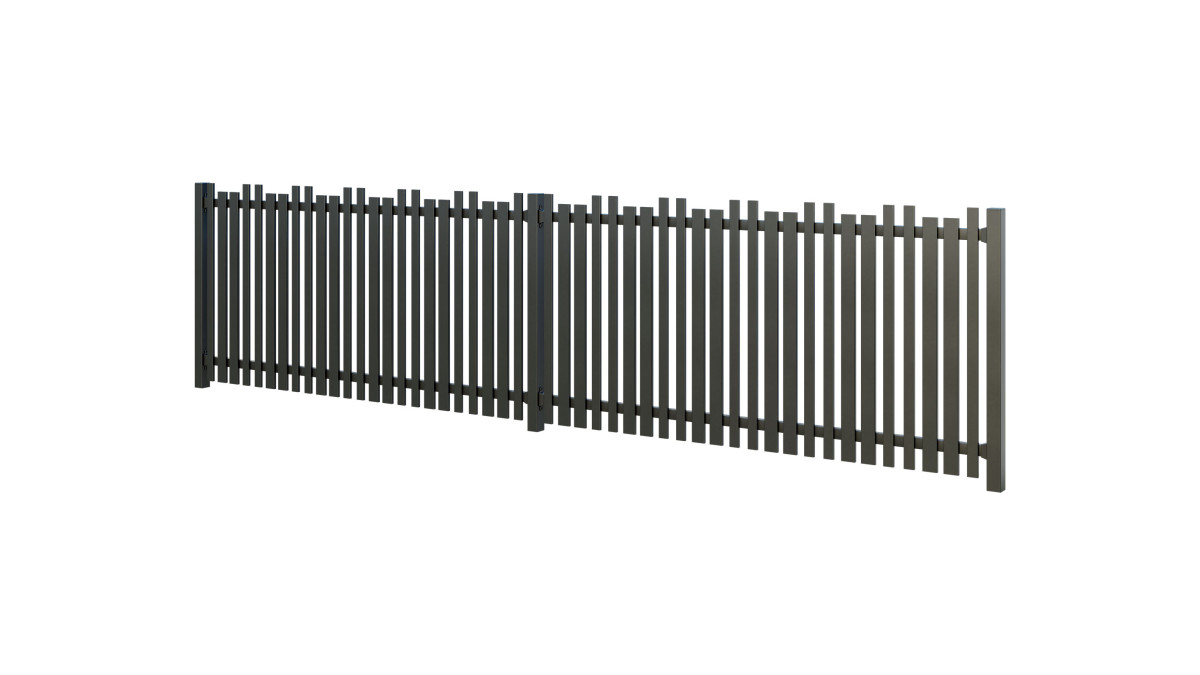

PicketPanel Forte Fencing System
Description

PicketPanel is the aluminium alternative to timber picket fencing. Forte has 50mm and 70mm pickets, spaced at 30, 40 and 50mm apart with the 70mm pickets set at 10mm lower than the 50mm pickets, resulting in 40% permeability.

  • Panel Height:950, 1200, 1500, 1800mm
  • Panel Length:2430mm
  • Permeability 40%
Key Features
  • Aluminium construction
  • Traditional picket fence design
  • Available in a raking design
  • Easy installation
  • 40% permeability



Scope of Use
  • Low maintenance alternative to timber batten with lower life cycle cost
  • Available in a raking design
  • Medium Density
  • Subdivision Fencing
  • Privacy Screening
  • Residential Boundary Fencing
  • Pool Fencing



Limitations on Use
  • Must be installed in accordance with Boundaryline's PS1 when being used for F9 appliance
  • This is not compliant for F4 application
Statement of Building Code Compliance

When designed and installed in accordance with the Boundaryline installation instructions and PS1:

  • Compliant with NZ Building Code F9 Restricted access to residential pools
  • PS1 available on request
Other Performance Attributes
  • 5 year warranty
Documents
PS1 PicketPanel
Installation and Operation
Brochure: Boundaryline Fence Book
