Yale Libi® Digital Lock Keyed
ASSA ABLOY
All products

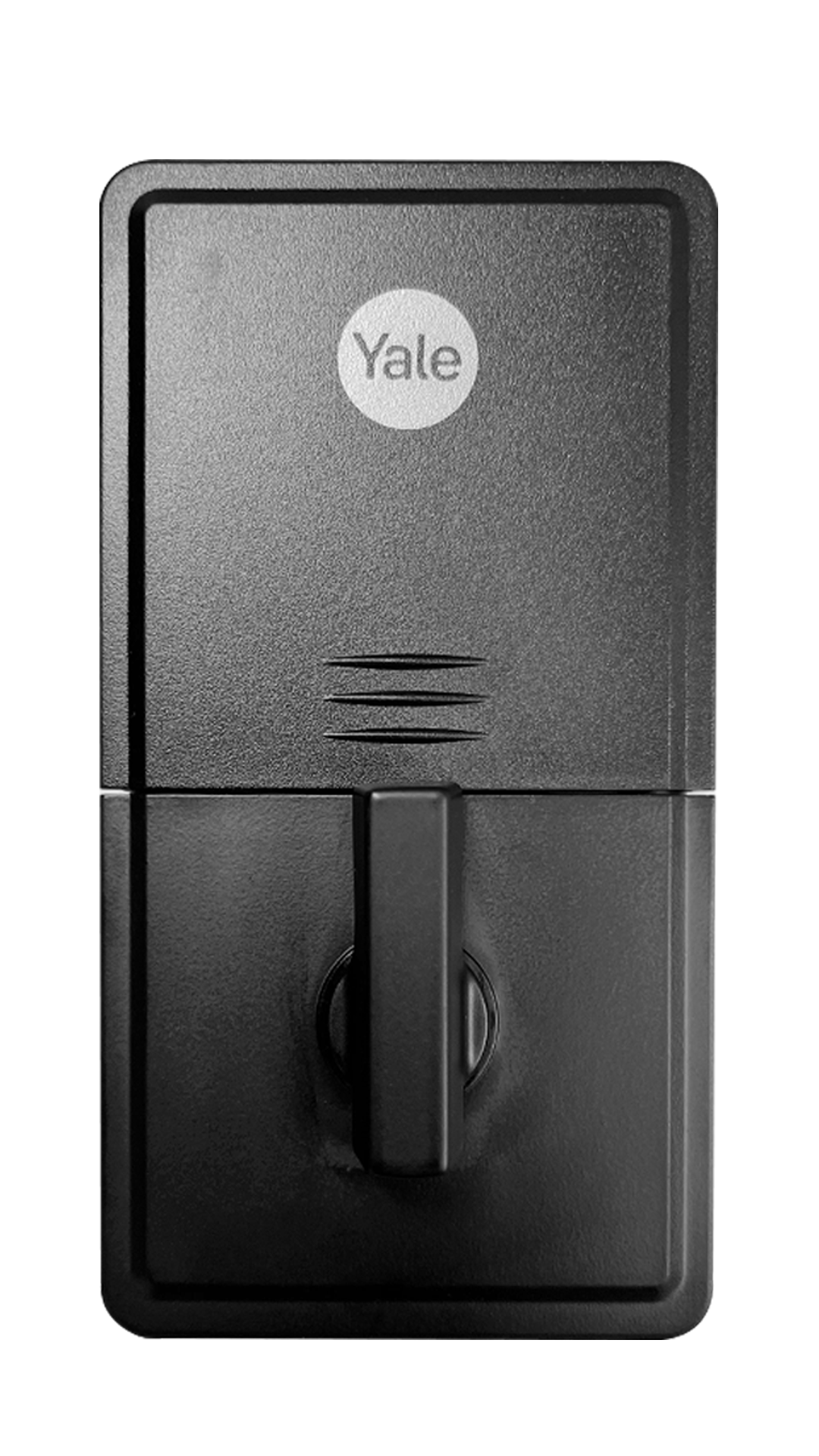

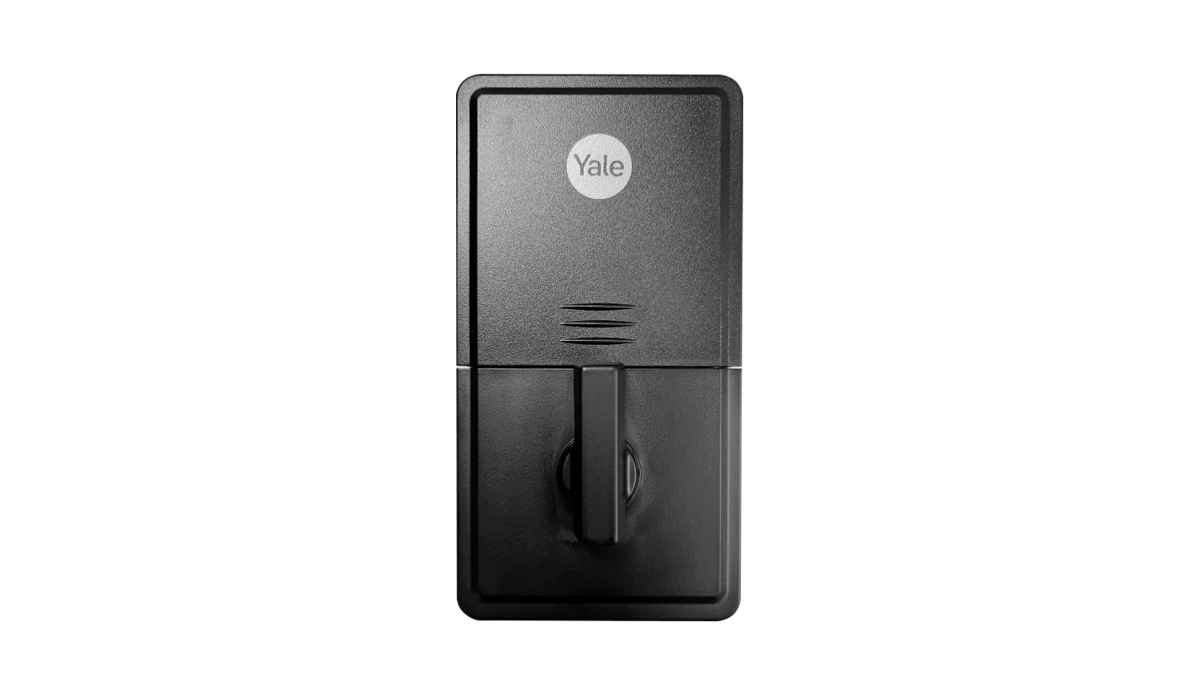

YLBD226NRMBK BACK

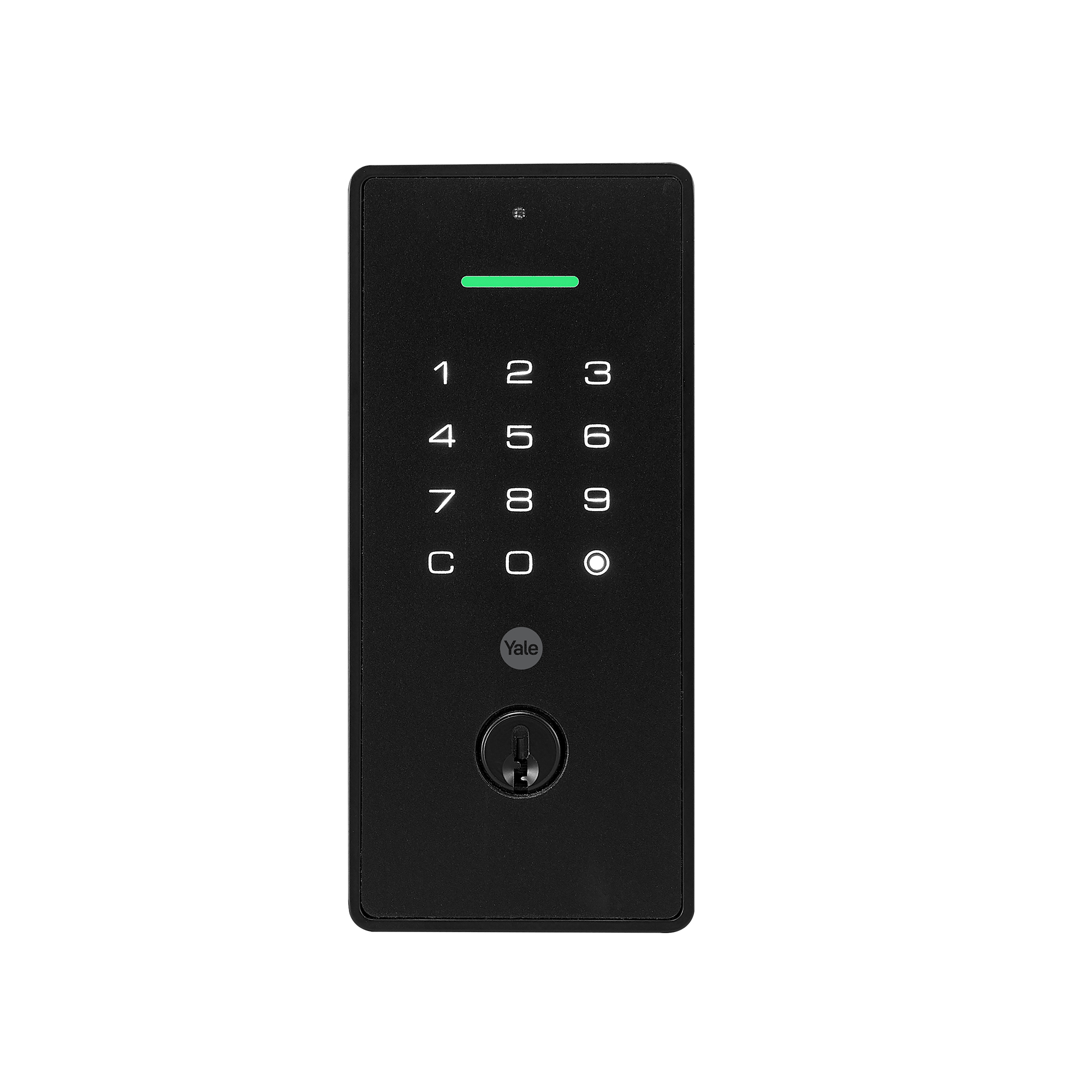

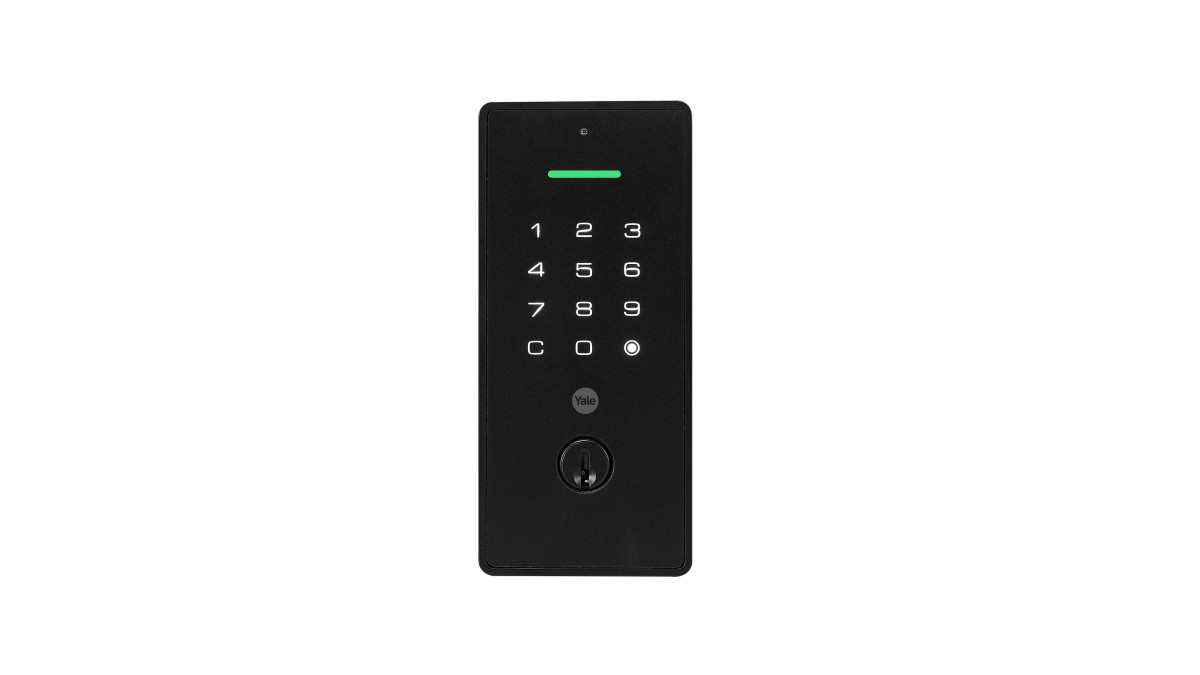

YLBD226NRMBK front square

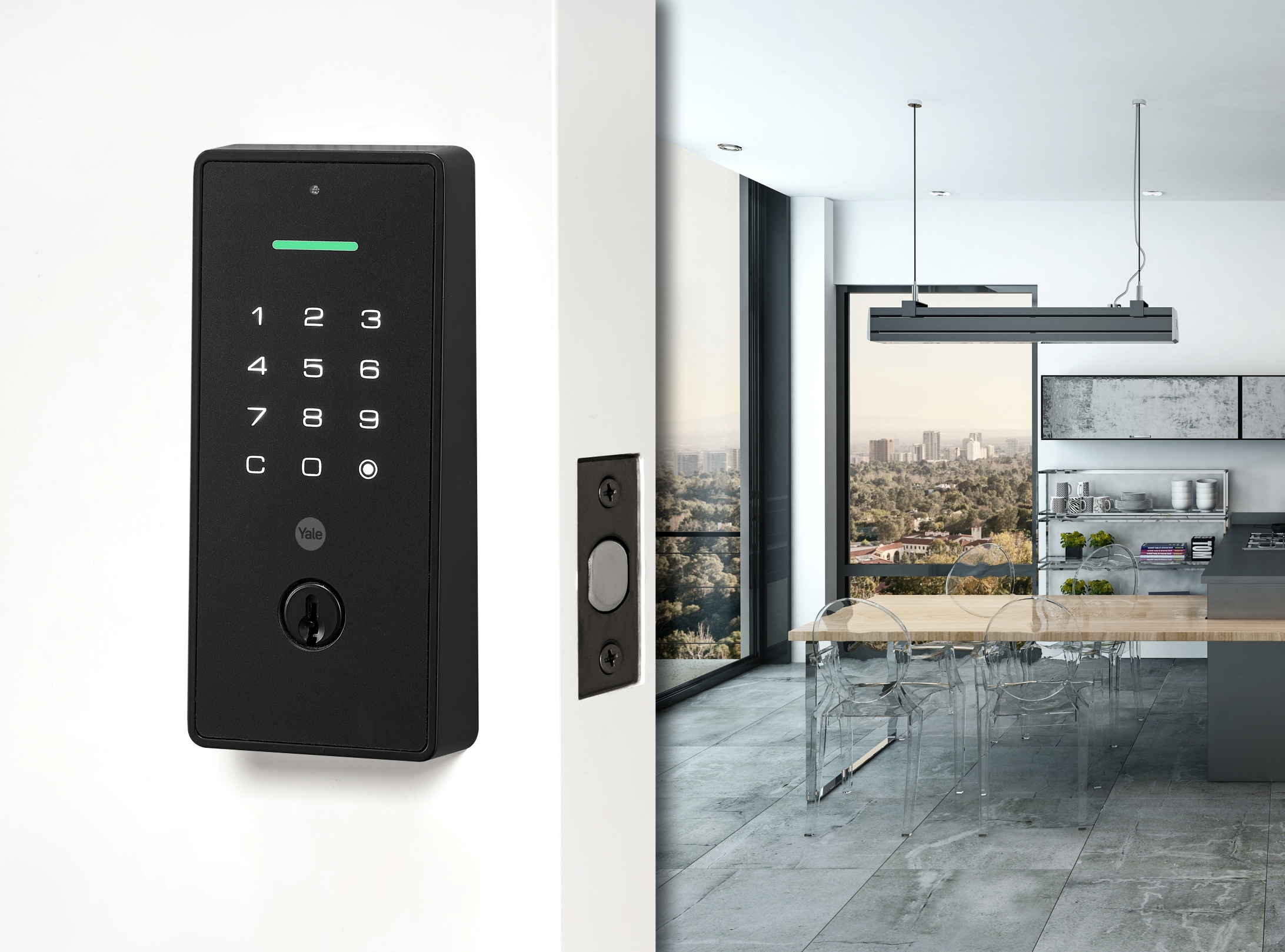

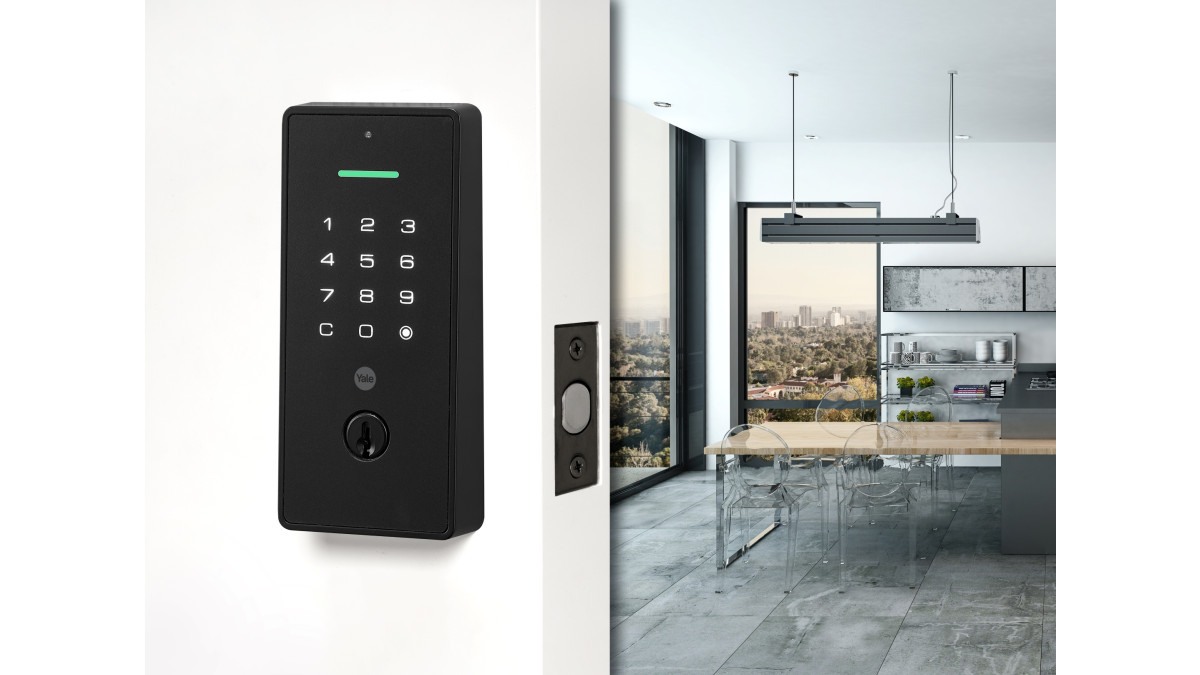

YLBD226NRMBK insitu

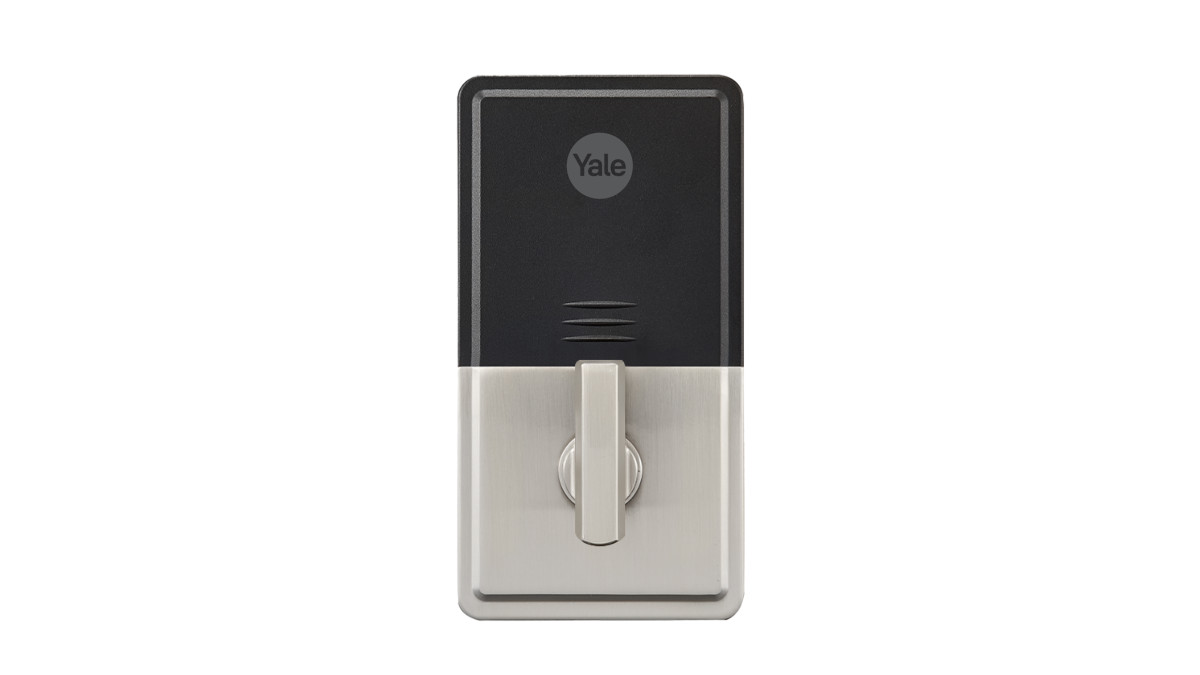

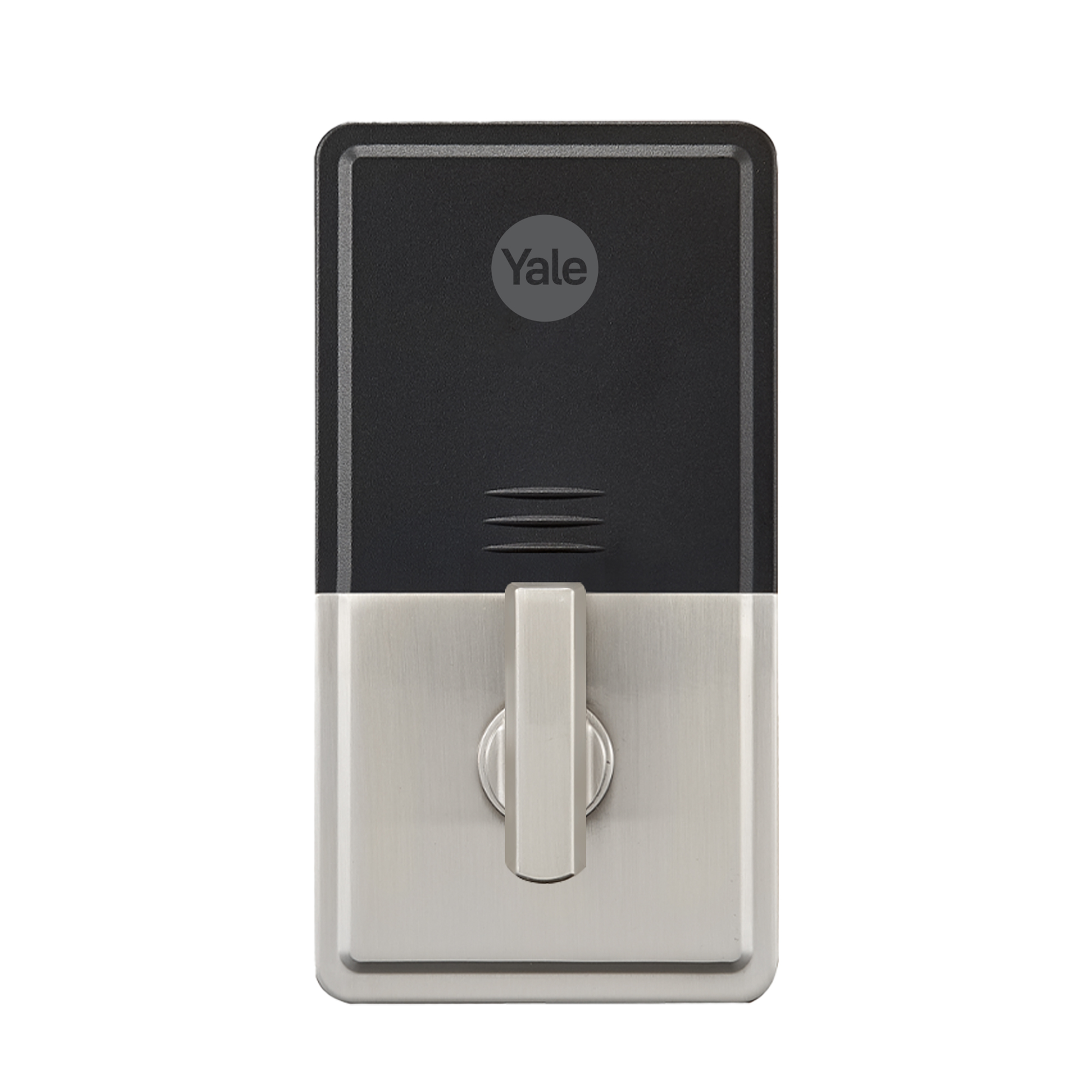

YLBD226NRSN BACK

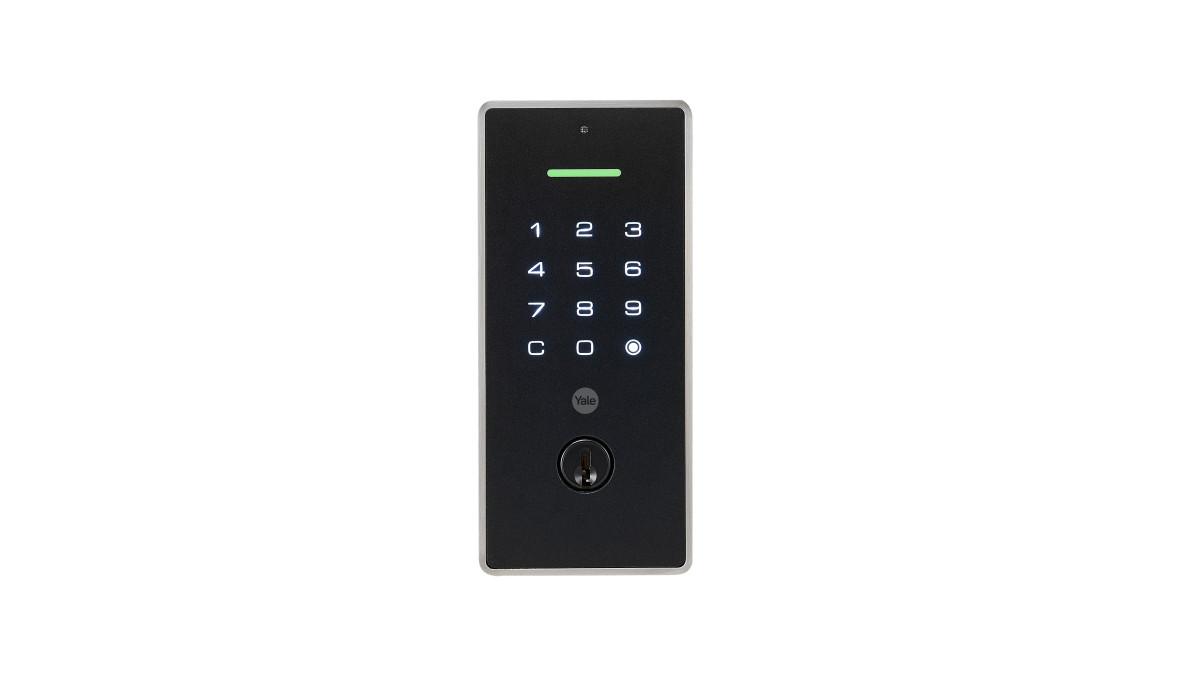

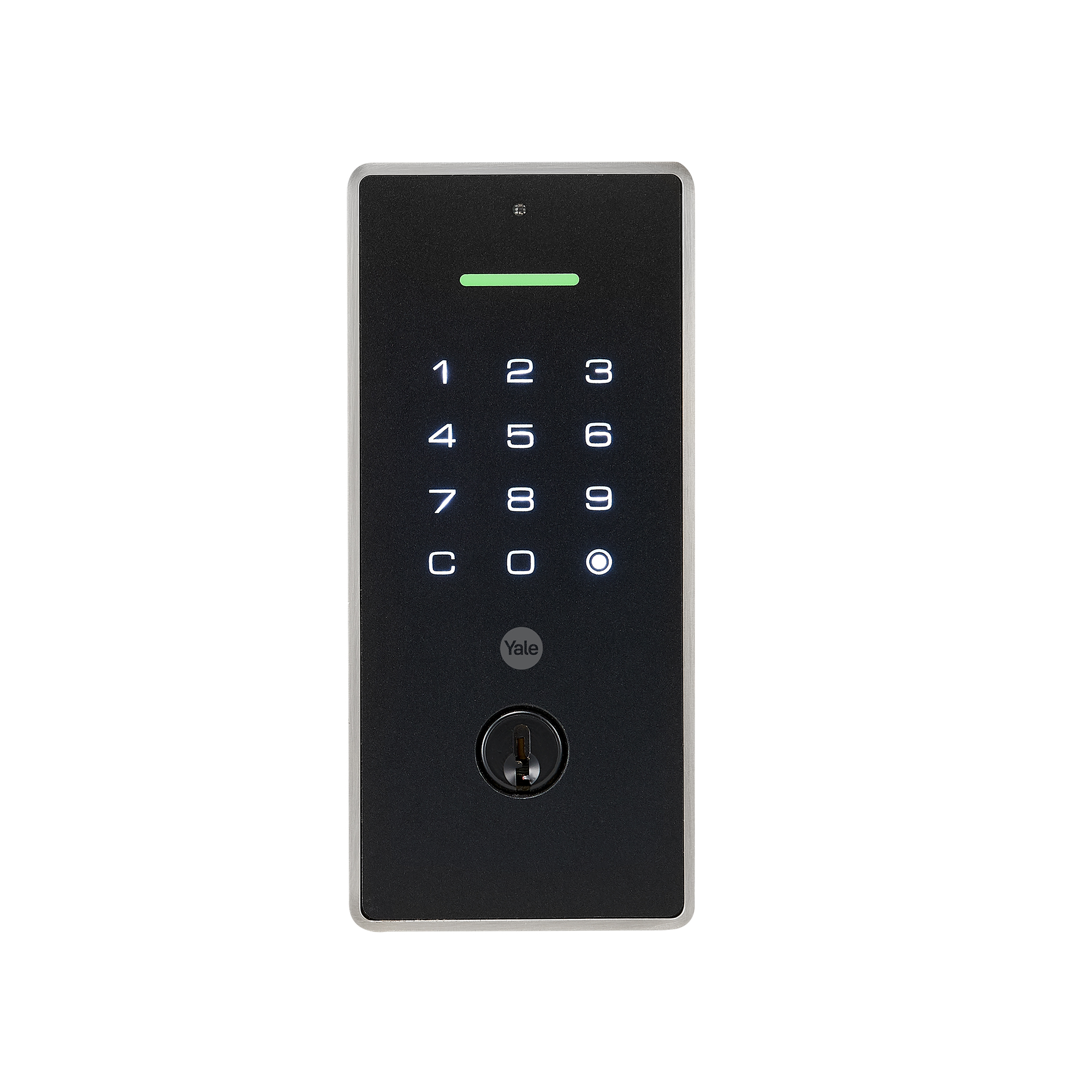

YLBD226NRSN front square

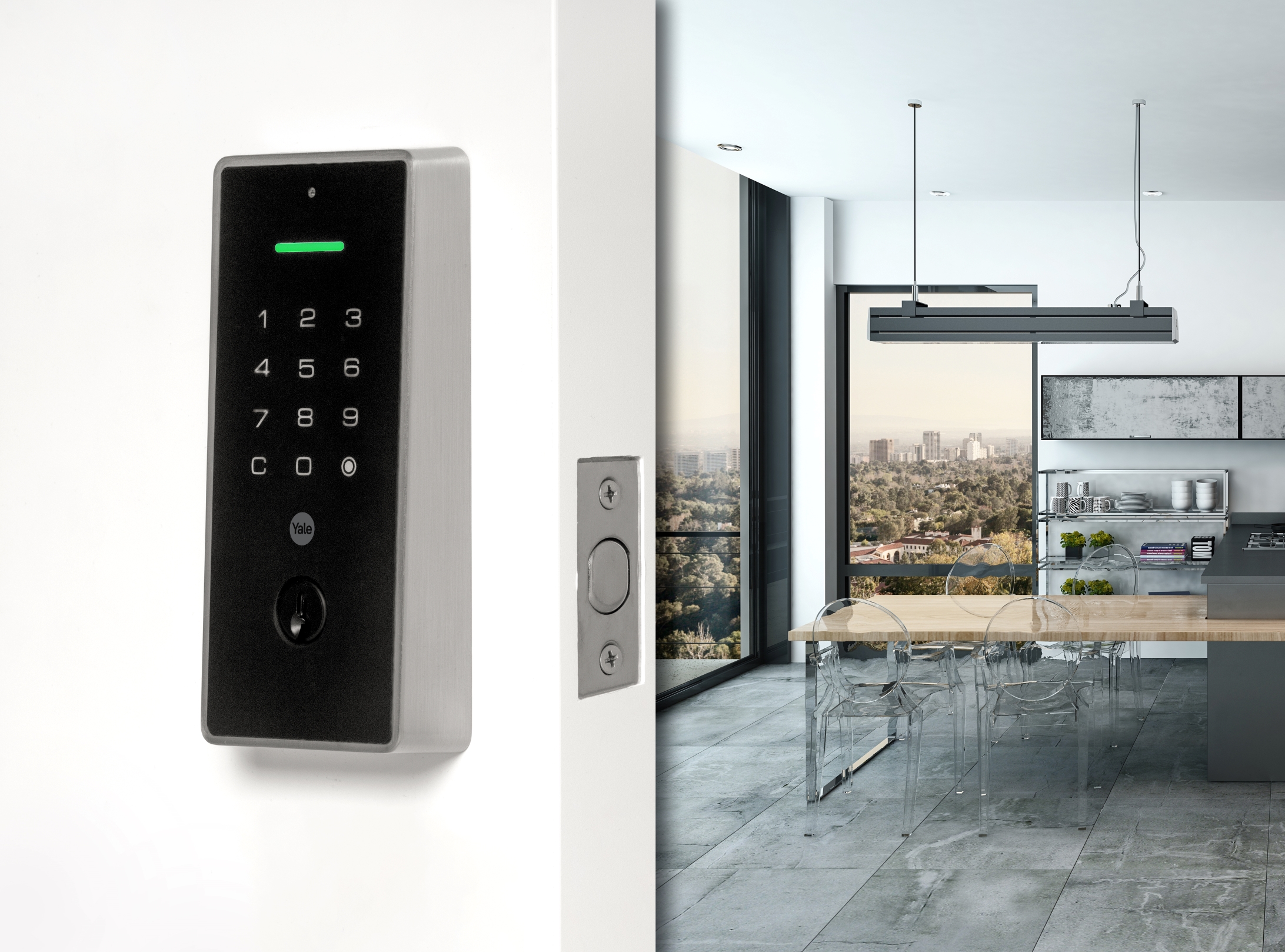

YLBD226NRSN insitu
Description
Discover the Yale Libi® Digital Lock Keyed – the perfect blend of security and convenience for your home. Say goodbye to the hassle of lost keys with the dual access options of a keypad and mechanical key. The glove-friendly LED backlit keypad ensures you can easily unlock your door, even in the dark. Plus, with the capacity to store up to 70 user codes, you can grant access to family, friends, and trusted service providers without worry.
The Libi® Digital Lock Keyed takes your security a step further with its auto-locking feature, providing you with peace of mind knowing your door will always be securely locked behind you. Powered by a reliable 9V battery, this deadbolt ensures you won't be left out in the cold.
With its thoughtful design and user-friendly features, the Libi® Digital Lock Keyed is an essential addition to any home, offering unmatched security and convenience. Embrace the future of home security and enjoy the confidence that comes with a Yale lock.
Key Features
  • PIN Code: Unlock your door with a personalised PIN code. Register up to 100 users.
  • Easy DIY Install: Designed to fit into a standard 54mm lock hole making DIY installation a breeze.
  • Auto-lock: Set a timer for automatic locking, providing peace of mind.
  • Mechanical Key Override: Should the batteries go flat, you have a mechanical key override that will prevent you from being locked out.
Categories
Locks
Ranges
Electronic Locking
Scope of Use

Designed to fit into a standard 54mm lock hole, this deadbolt is compatible with timber doors 35mm to 45mm thick and features a 60-70mm adjustable backset, making installation a breeze.

Other Performance Attributes
  • C4 keyway
  • Auto-locking function
  • Auto-90 second lockout (5 incorrect code attempts)
  • Up to 70 user codes (Five one-time user codes)
  • Reversable door handing (suits right or left-hand doors)
  • Meets ANSI/BHMA Grade 2
  • IP Rating - IPX4
  • Retrofit Solution for Mechanical Deadbolt (54mm borehole)
  • 4 x AA batteries (not included)*
  • Suitable door thickness 35mm – 45mm
  • Backset adjustable to 60mm or 70mm
  • Operating Temperature -20ºC ~ 70ºC
  • Operating Humidity 30% ~ 90%
  • Available in Satin Nickel & Matt Black finishes
*For optimum results, we only recommend alkaline batteries. Up to 12 months depending on the frequency of your usage (10 cycles per day).

ASSA ABLOY specialise in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
