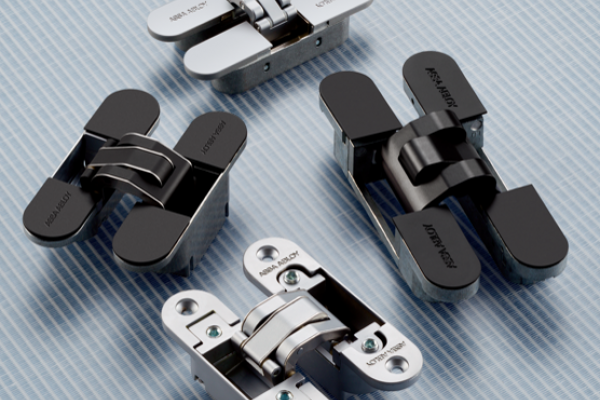

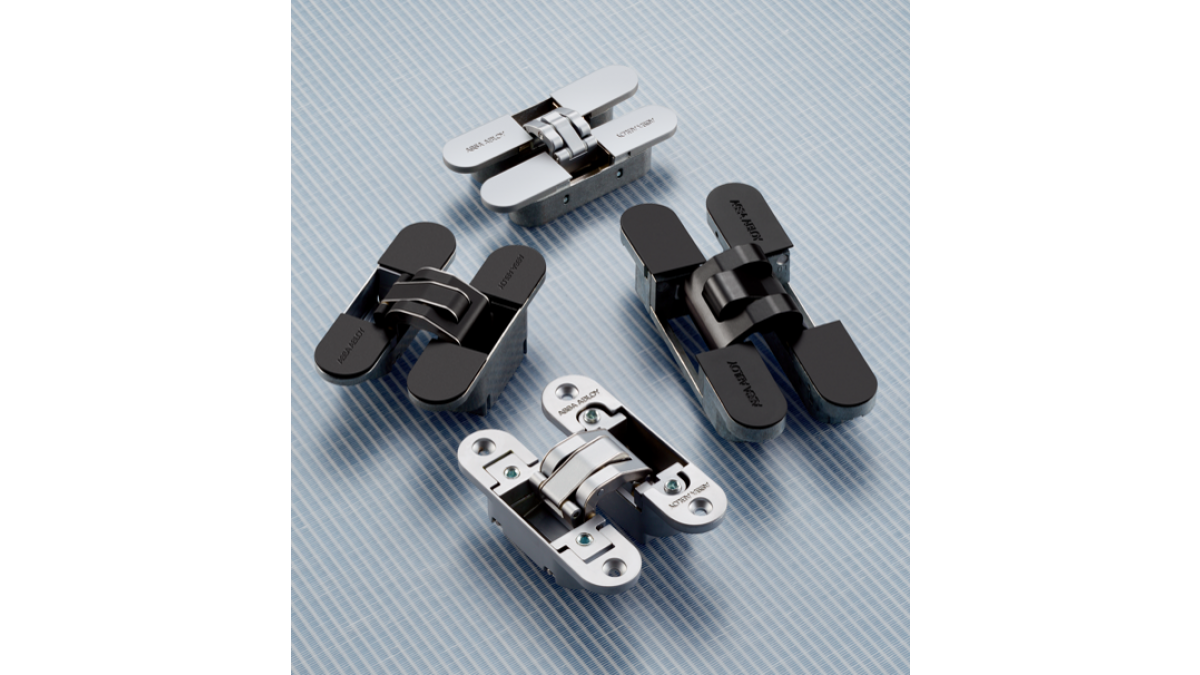

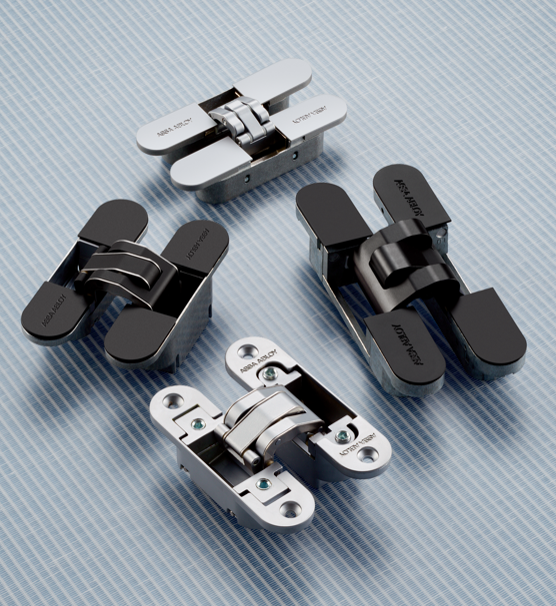

ASSA ABLOY Concealed Hinges
Description

Beautifully disguised — ASSA ABLOY concealed hinges virtually disappear from view when an opening is closed, while providing aesthetic continuity when a door is open.

Satin chrome and matte black finishes are standard, with other colours, such as champagne and matte white, available on request.

Key Features
  • Adjustable (3 way) for easy installation and ownership
  • 3 sizes to cover full range of common door weights
  • The snap-on covers conceal screws for a clean aesthetic
  • One model without covers
  • For wood or hollow metal doors and frames
  • Non-handed
  • Opening angle: 180 degrees
  • Base material: Zinc alloy

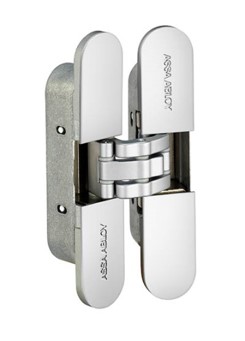

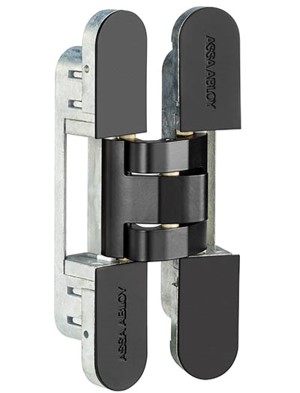

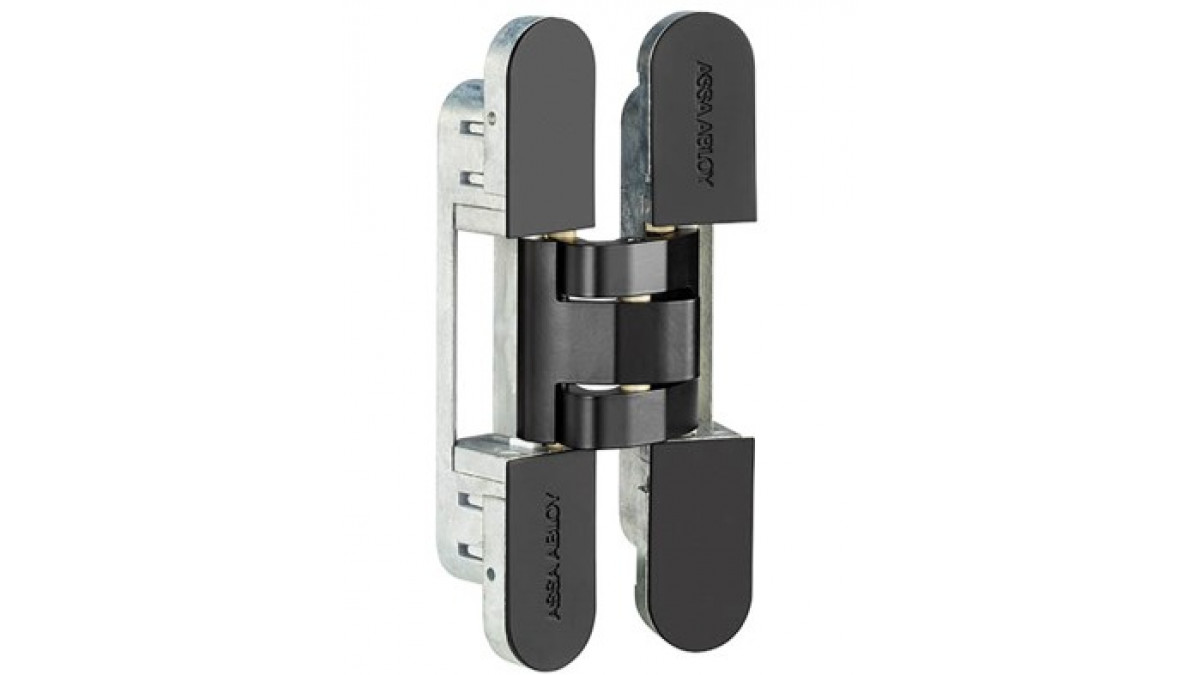

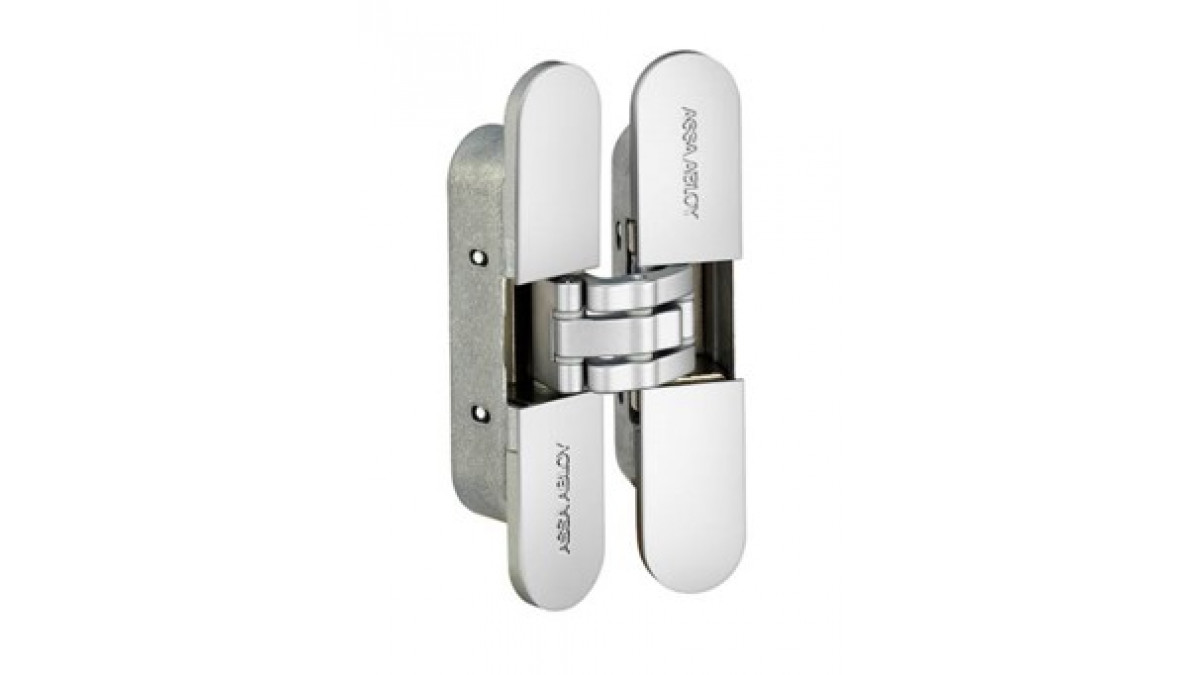

  • Satin chrome and matte black finishes standard
  • Other colours such as champagne and matte white on request
Scope of Use

With a minimal, clean look, the ASSA ABLOY Concealed Hinges are preferred by architects and designers for high-end high rise, multi-family and hotels.

  • 3 sizes to cover full range of common door weights
  • One model without covers
  • For wood or hollow metal doors and frames
  • Non-handed
  • Opening angle: 180 degrees
Documents
Data Sheet
Concealed Hinge Selector
