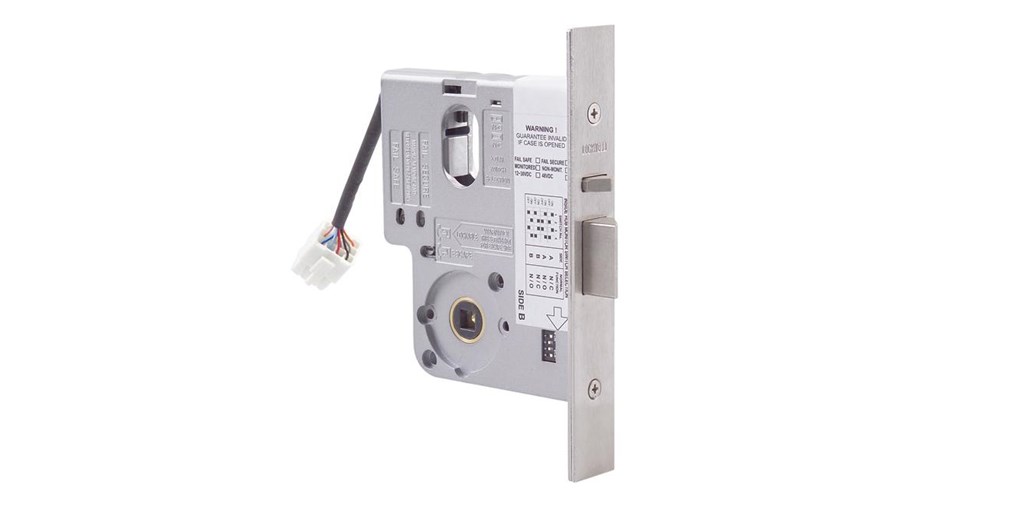

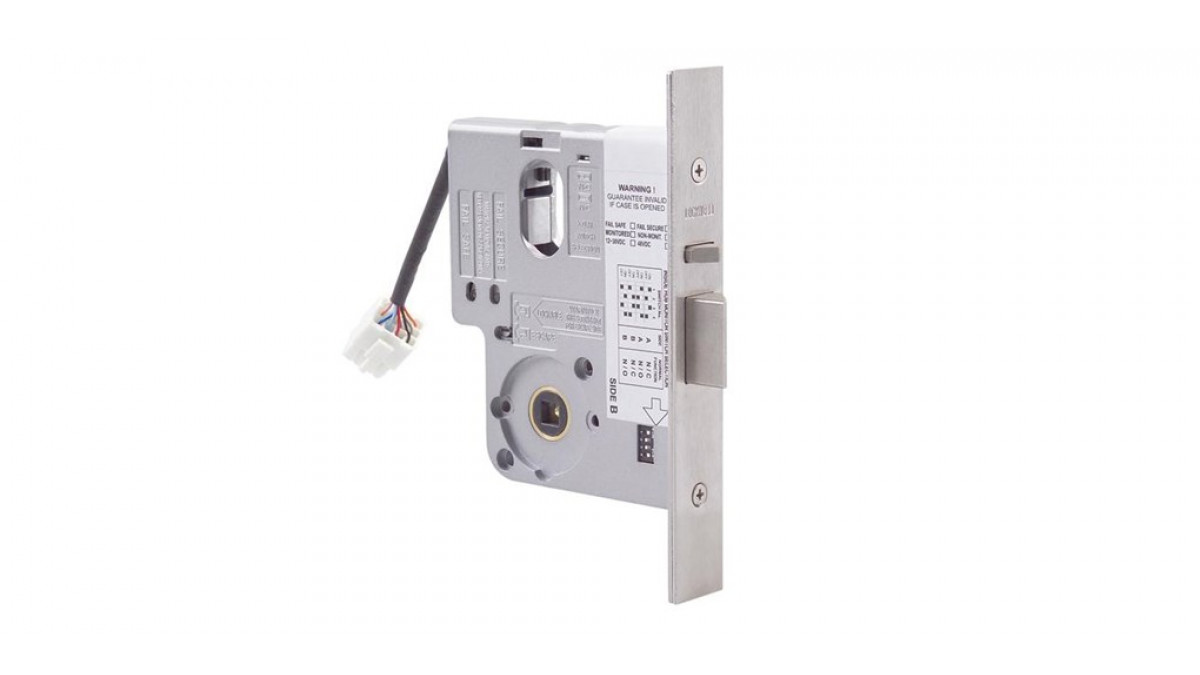

Lockwood Electric Mortice Locks: 3570 Series
Description

The lock can be operated by push buttons, intercom systems and key switches or integrated with electronic access control systems for use with higher security devices such as keypads or card readers.

Key Features
  • Voltage: 12Vdc-24Vdc operating voltage
  • Current: 500mA (max) 80mA holding @ 12Vdc & 275mA (max) 50mA holding @ 24Vdc
  • LED Current: When LEDs are fitted, add 15mA (max) to total current draw
  • Monitoring: Dual key override / Deadlatched and door closed / Request to exit / Locked / Microswitches: 500mA (max) @ 30Vdc each circuit / Reedswitch: 100mA (max) @ 30Vdc
  • Environment: Operational temperature range -20°C to +60°C
  • Case/Cover: High purity zinc alloy construction
  • Backset: 60mm standard, 89 and 127 mm available
  • Latch Bolts: Reversible with stainless steel construction
  • Door Clearance: 3 mm to 6.5mm
  • Door Thickness: Standard applications 32 to 50mm
  • Cylinder: Standard Lockwood oval shaped cylinders
  • Cabling: 1.6m length of cable with 12 pin socket supplied with each lock. Recommended cable: 18AWG (0.82mm2) cable runs up to 30m
  • Furniture: Compatible with Lockwood series door furniture
  • Standard Finishes: Satin Chrome (SC) standard / Bright Chrome (CP) / Polished Brass (PB)
Categories
Locks
Scope of Use
  • Voltage: 12Vdc-24Vdc operating voltage
  • Current: 500mA (max) 80mA holding @ 12Vdc & 275mA (max) 50mA holding @ 24Vdc
  • Environment: Operational temperature range -20°C to +60°C
  • Door Clearance: 3 mm to 6.5mm
  • Door Thickness: Standard applications 32 to 50mm
  • Cabling: 1.6m length of cable with 12 pin socket supplied with each lock. Recommended cable: 18AWG (0.82mm2) cable runs up to 30m
