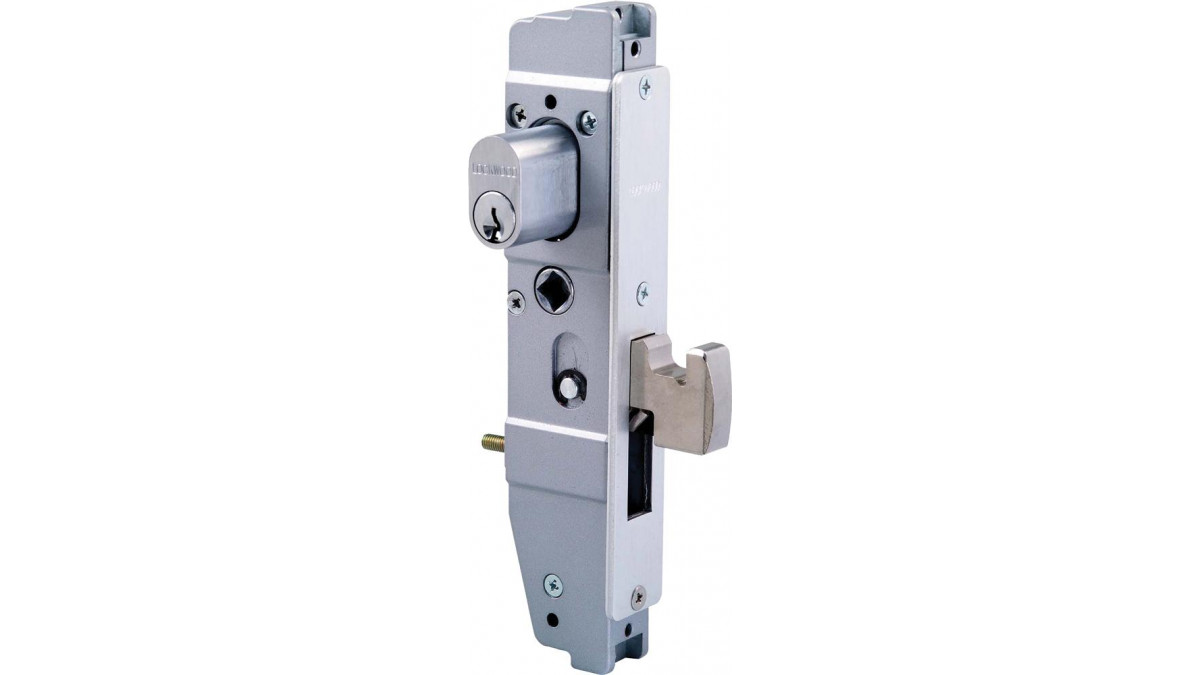

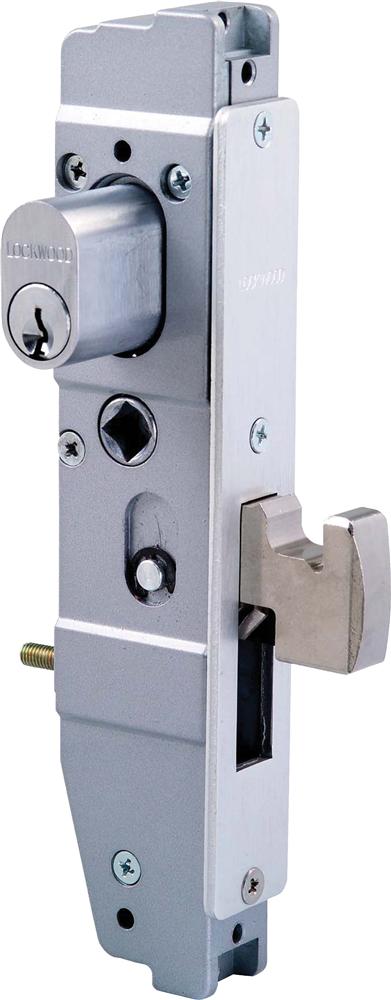

Lockwood Mortice Locks: 3541 Series (Short Backset Hook Bolt)
Description

Short backset, swing-bolt deadlocks suitable for narrow stile sliding and swing doors. Positive action deadbolt is hooked to engage and lock into a latching or security strike when the bolt is in the thrown position (3541 only). Deadbolt is locked or unlocked by either key, turnknob, escape turn or handle.

Key Features
  • Backset: 23mm and 30mm
  • Bolt: 28mm projection sintered stainless steel. The bolt is hooked to suit sliding and swing applications and is chamfered for self latching
  • Door thickness: Suits hollow stile door sections with 28mm internal thickness and 50mm max external thickness. Timber doors of 32mm to 50mm
  • Materials: Zinc alloy case
  • Strikes: Latching strike for sliding doors and non latching security strike for swing doors to protect against jemmying
Categories
Locks
Ranges
Locking
Scope of Use
  • Suits hollow stile door sections with 28mm internal thickness and 50mm maximum external thickness
  • Timber doors of 32mm to 50mm
Documents
ASSA ABLOY Lockwood Mortice Locks
ASSA ABLOY Lockwood Mortice Locks: 3541 Series
ASSA ABLOY Lockwood Mortice Locks: Specification Guide
