Lockwood Lever & Push/Pull Furniture: Push/Pull Plates
ASSA ABLOY
All products

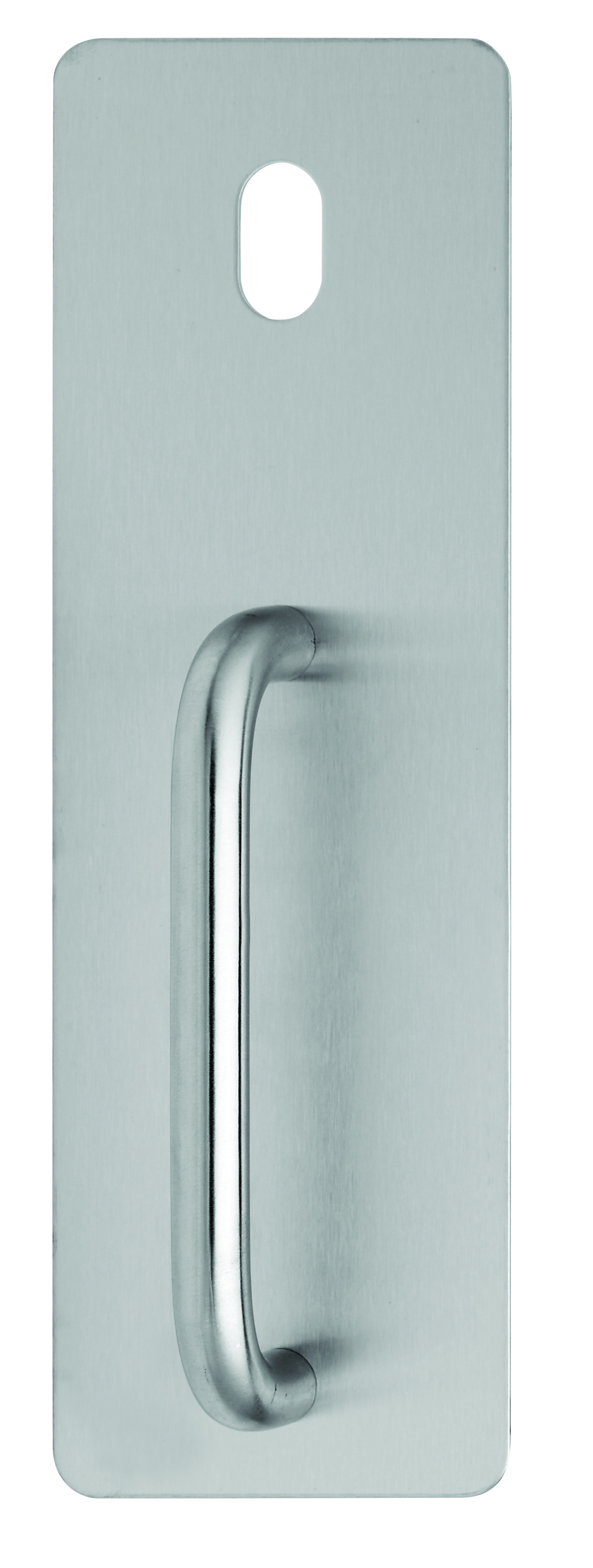

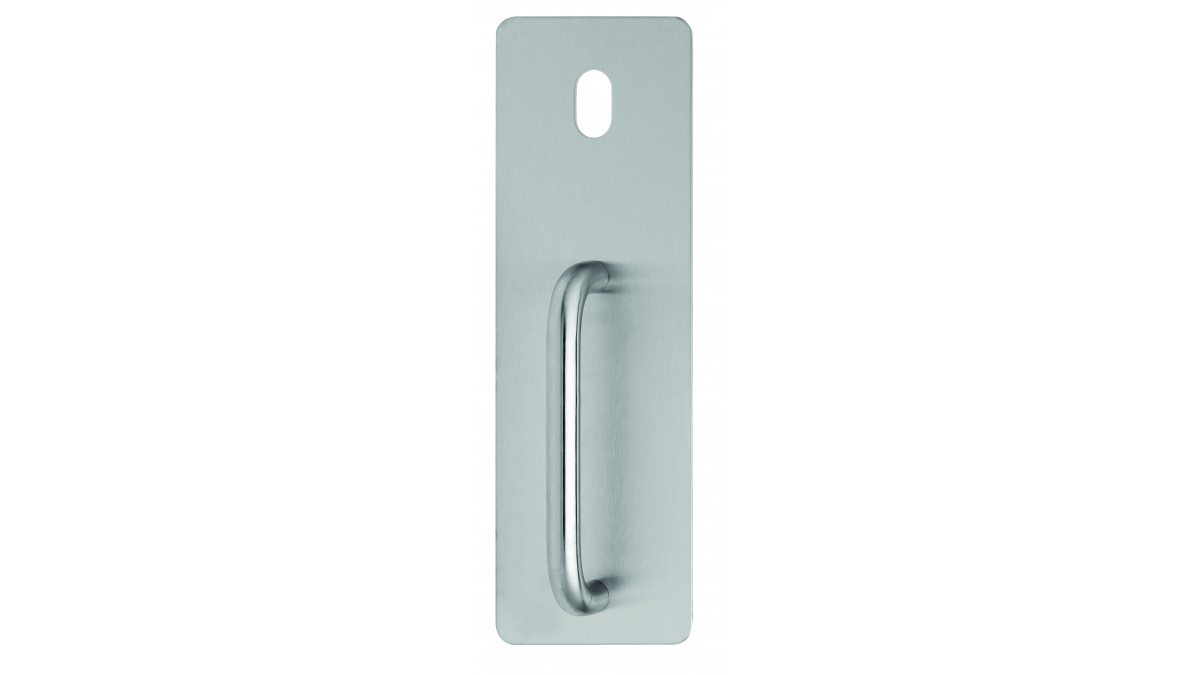

C 214 10mm Radius Corner Plates 21427NN SS
216 217
218 219
Description

Concealed fixed plates have studs with internal threads located in each corner, visible plates have corresponding countersunk holes and are fixed back to back through the door.

Designed for use with Lockwood 3570 Synergy Series and 3770 Selector Series Mortice Locks.

Key Features

214/215:

  • Dimensions: Length 300mm / Width 100mm / Thickness 2mm / Handle diameter 17.5mm / Finger clearance 40mm
  • Materials: Stainless steel or brass
  • Door thickness: 35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208
  • Finishes: Satin Stainless Steel (SS) / Polished Stainless Steel (PS) / Powdercoat (PC) / Polished Brass (PB)

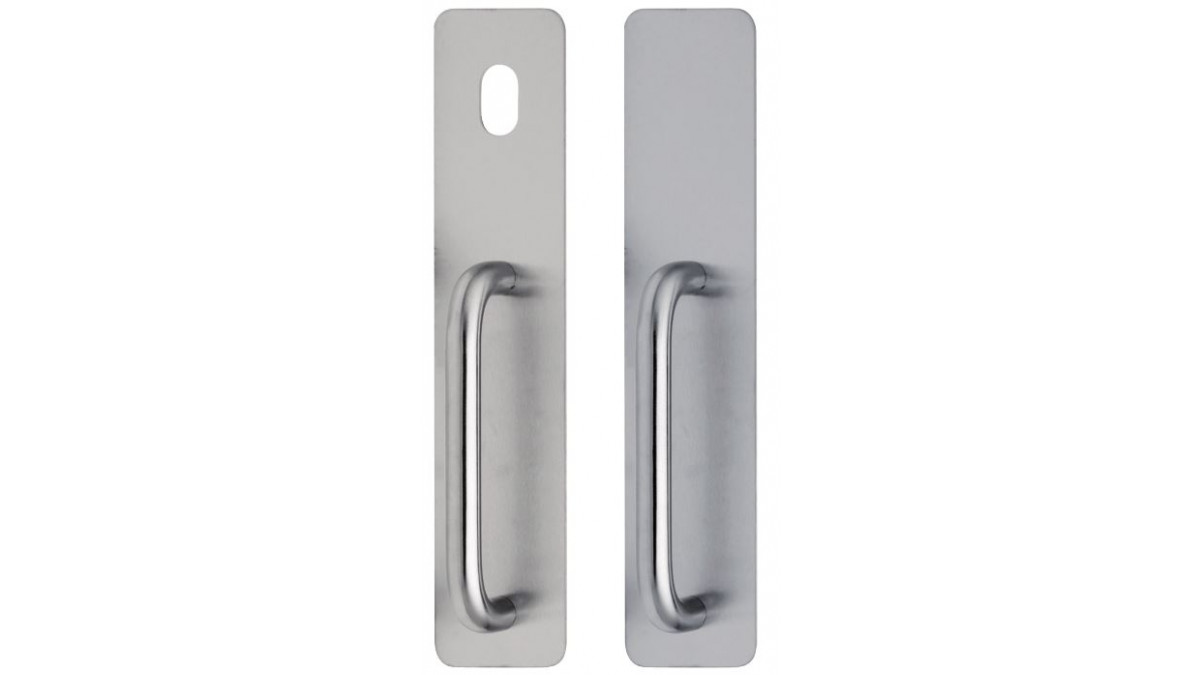

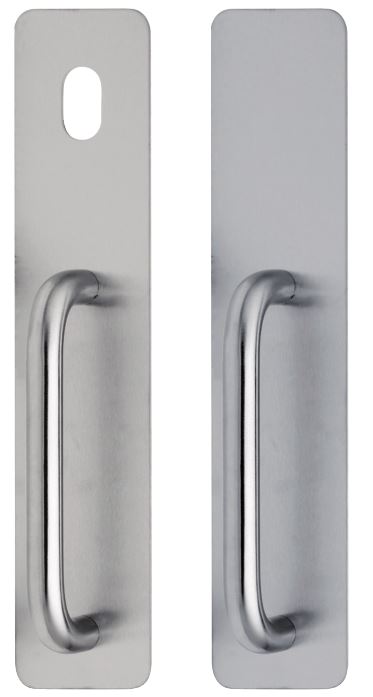

216/217:

  • Dimensions: Length 300mm / Width 65mm / Thickness 2mm / Handle diameter 17.5mm / Finger clearance 40mm
  • Materials: Stainless steel or brass
  • Door thickness: 35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208
  • Finishes: Satin Stainless Steel (SS) / Polished Stainless Steel (PS) / Powdercoat (PC) / Polished Brass (PB)

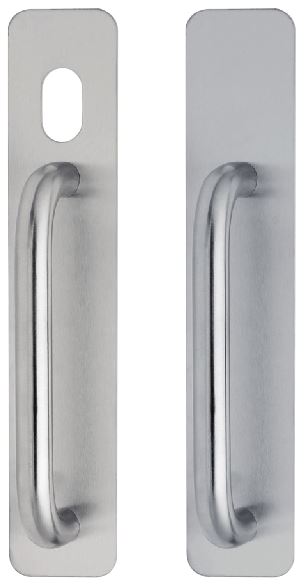

218/219:

  • Dimensions: Length 250mm / Width 50mm / Thickness 2mm / Handle diameter 17.5mm / Finger clearance 40mm
  • Materials: Stainless steel or brass
  • Door thickness: 35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208
  • Finishes: Satin Stainless Steel (SS) / Polished Stainless Steel (PS) / Powdercoat (PC) / Polished Brass (PB)
Categories
Handles and Knobs
Ranges
Lever & Push/Pull Furniture
Scope of Use
  • Designed for use with Lockwood 3570 Synergy Series and 3770 Selector Series Mortice Locks
Documents
ASSA ABLOY Lever & Push/Pull Furniture: 214/215 Series
URL
ASSA ABLOY Lever & Push/Pull Furniture: 216/217 Series
URL
ASSA ABLOY Lever & Push/Pull Furniture: 218/219 Series
URL
ASSA ABLOY Lever & Push/Pull Furniture: Push/Pull Plates
URL
