Lockwood Door Closers: 7700 Series
ASSA ABLOY
All products

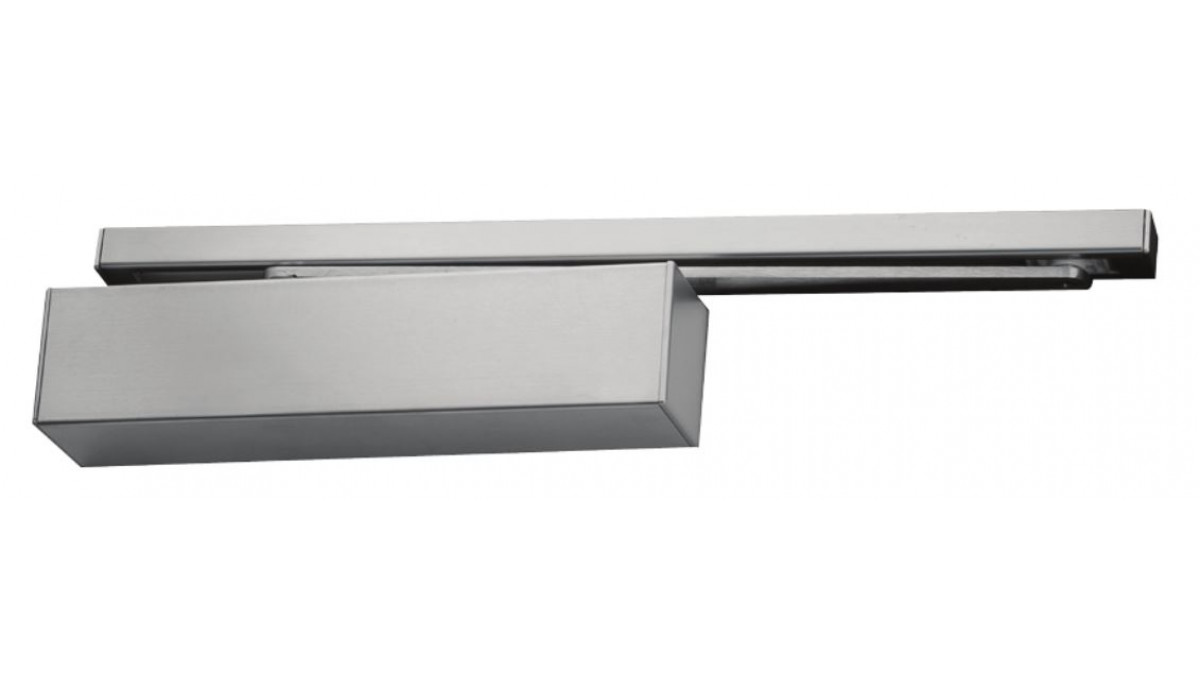

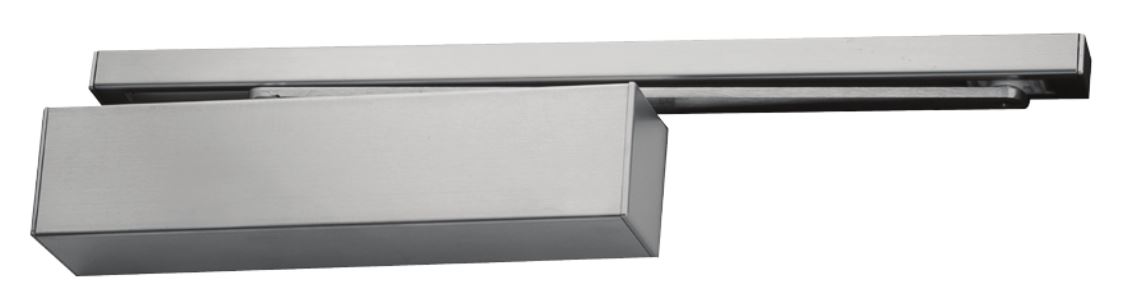

7714srda

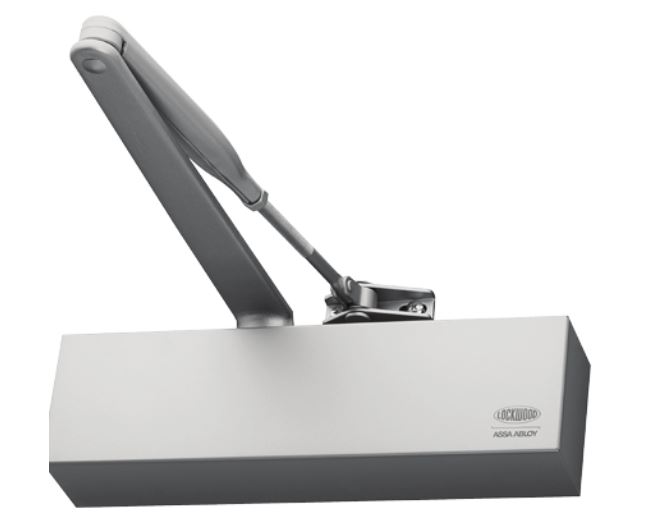

7714da

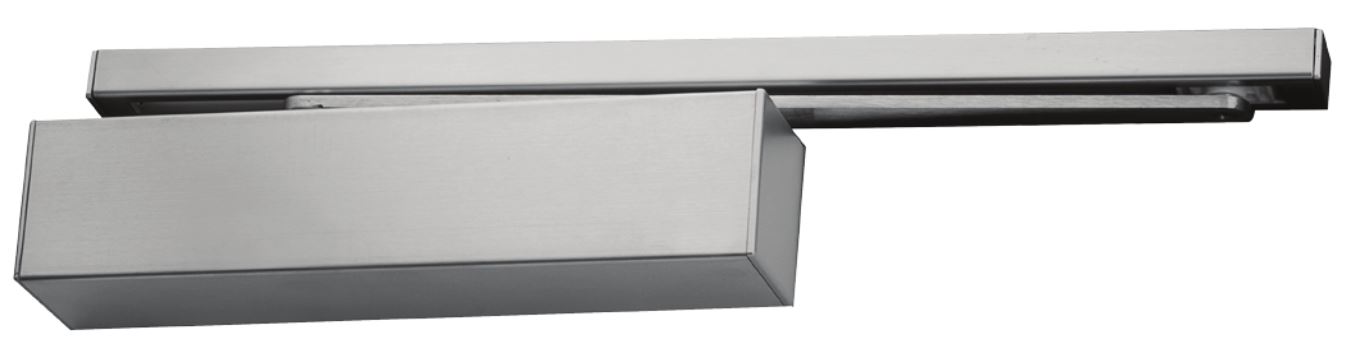

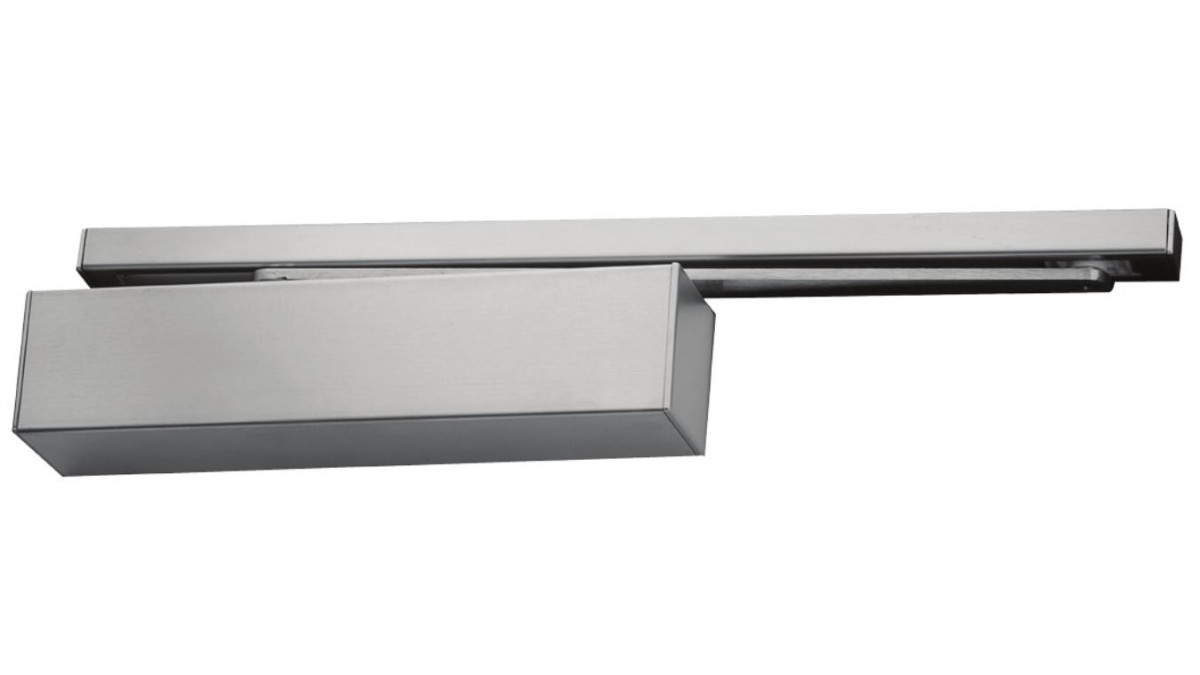

7726srda

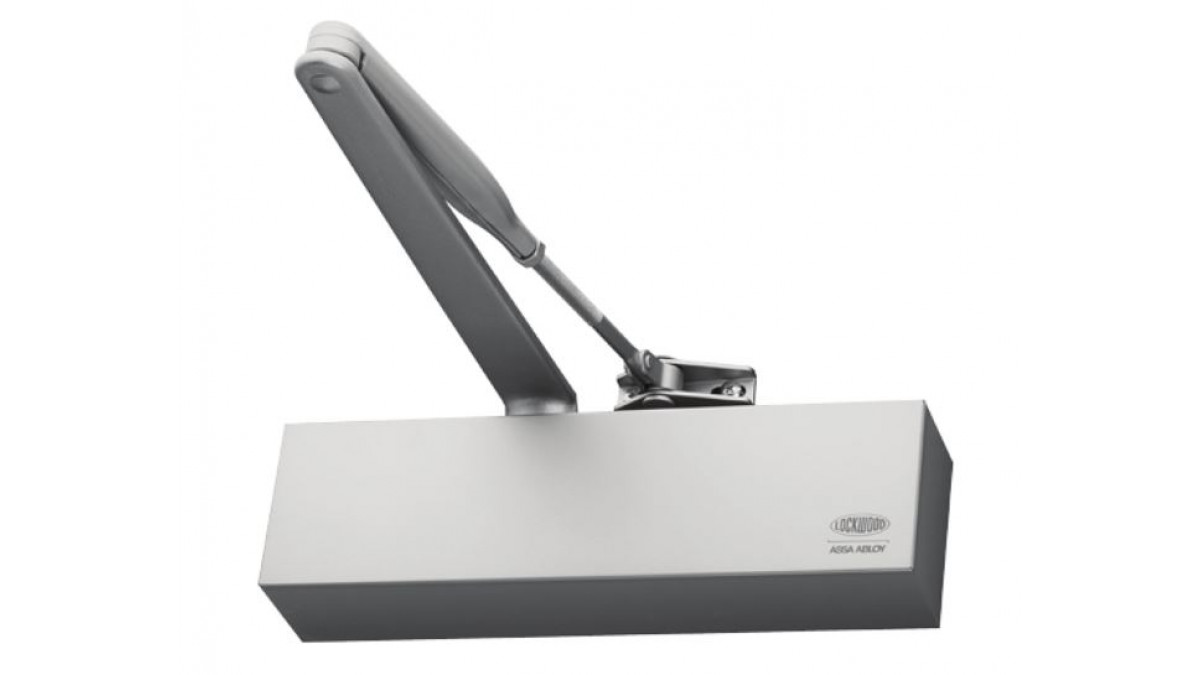

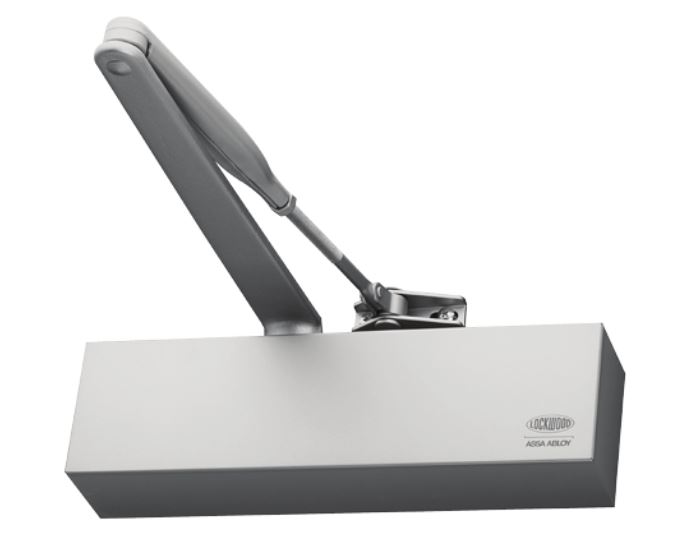

7726da
Description

The Slide Arm Series permits smoother opening by way of reducing power as the door opens. Ideally suited for schools, hospitals or doors where children, disabled or the aged may enter.

Rack and pinion adjustable power door closer suitable for architectural and commercial applications.

Key Features
  • Power: 7714SRDA — EN adjustable 1 to 3 / 7726SRDA — EN adjustable 1 to 5 / 7714DA — EN adjustable 1 to 4 / 7726DA — EN adjustable 2 to 6
  • Back Check (BC): Adjustable
  • Hold open: Adjustable. Hold-open can be set at any angle up to 130° of opening for 7714SRDA / 7726SRDA and 150° for 7714DA / 7726DA
  • Handling: Non-handed, suitable for left or right hand doors
  • Cover: Fully formed metal
  • Materials: Extruded aluminium body manufactured from high-performance silicon alloy
  • Mechanism: Rack and pinion design
  • Mounting: Regular and over-door mounting
  • Valves: Adjustable closing and latching speed valves with overload protection
  • Delayed action: Adjustable
Categories
Door Closers
Ranges
Door Closers
Scope of Use
  • Ideally suited for schools, hospitals, and buildings where children, disabled or the aged may enter
  • Non-handed, suitable for left or right hand doors
  • Regular and over-door mounting
Documents
Additional Information
URL

ASSA ABLOY specialise in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
