Lockwood Door Closers: 72 Series
ASSA ABLOY
All products

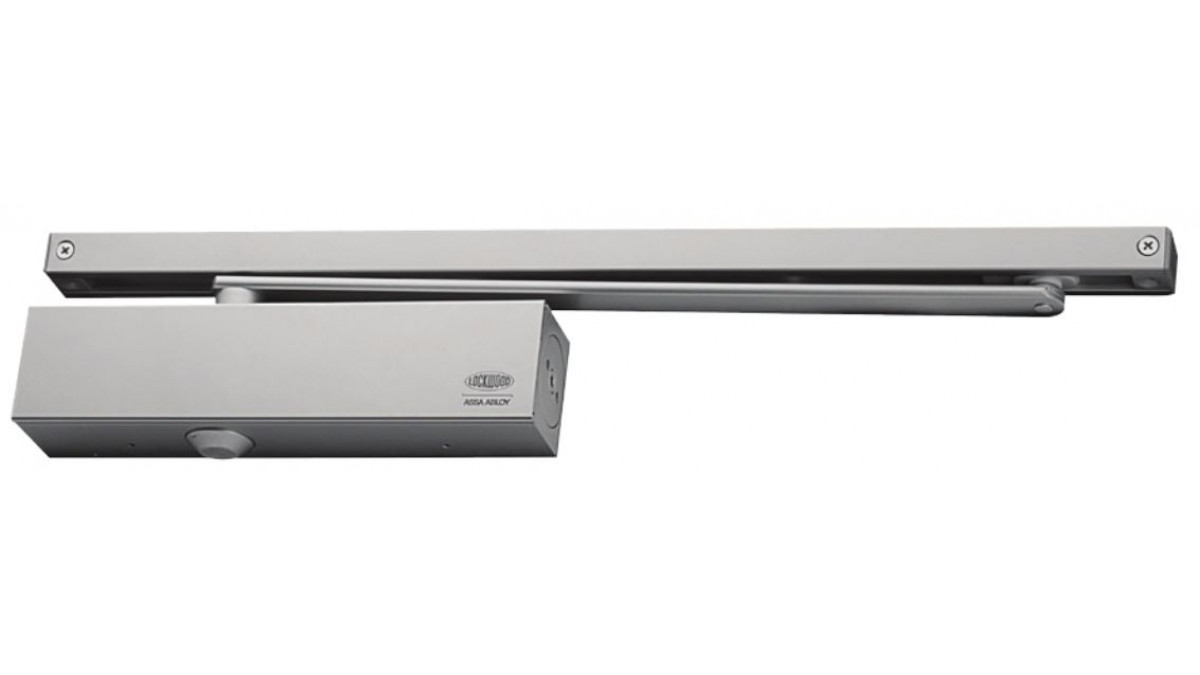

726SR

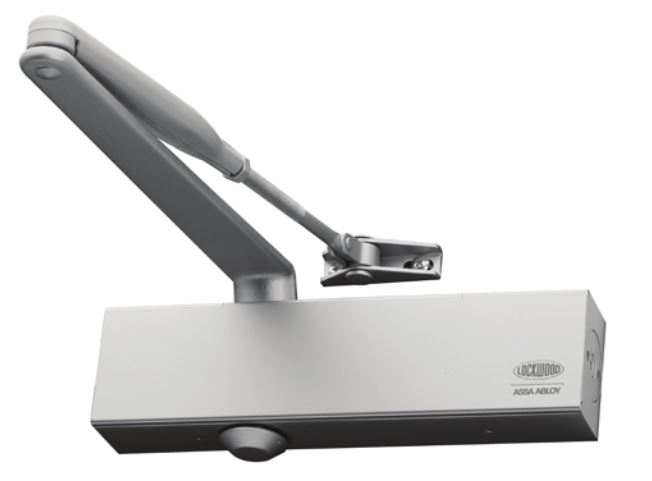

726

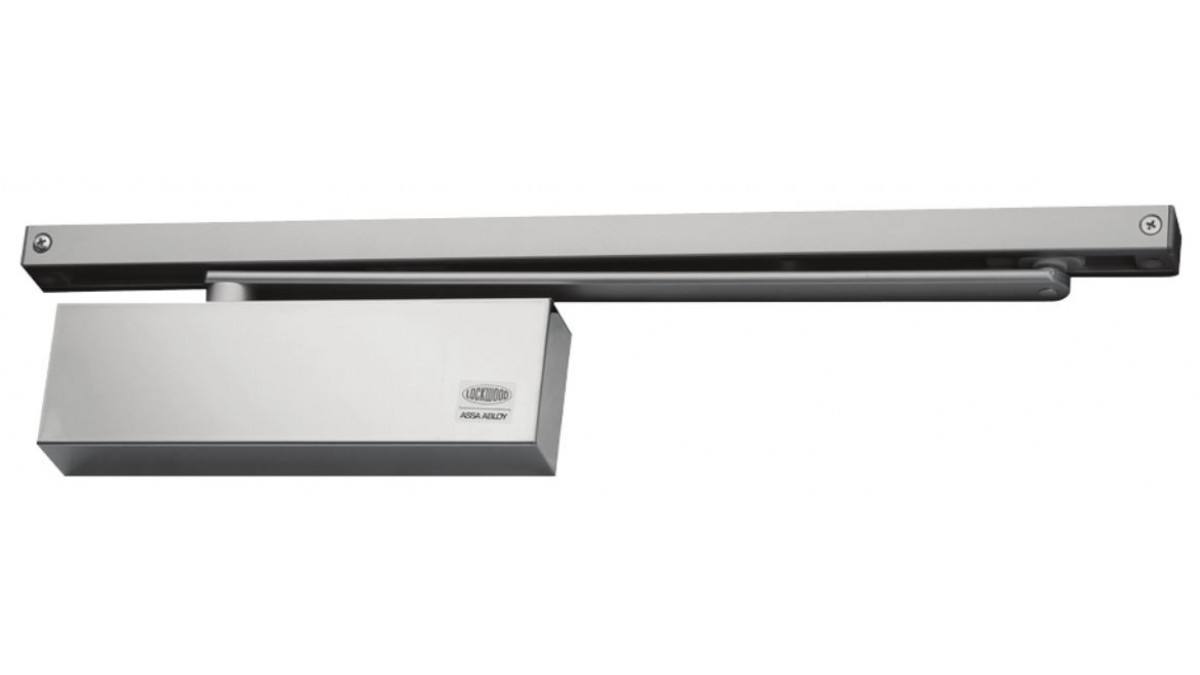

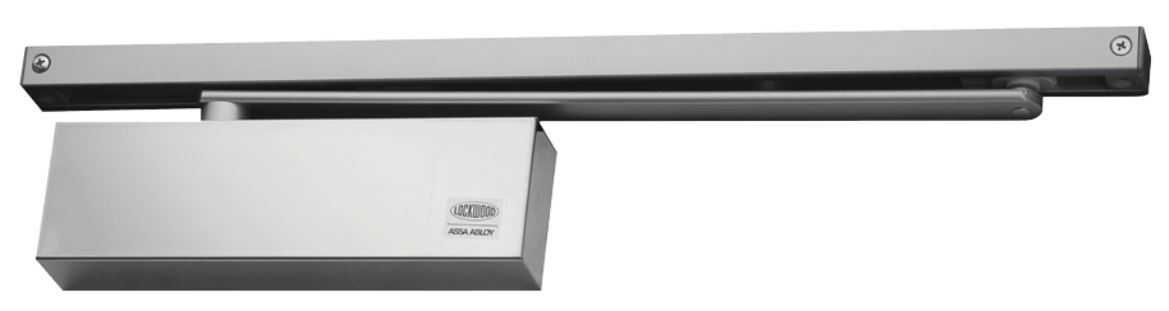

724SR

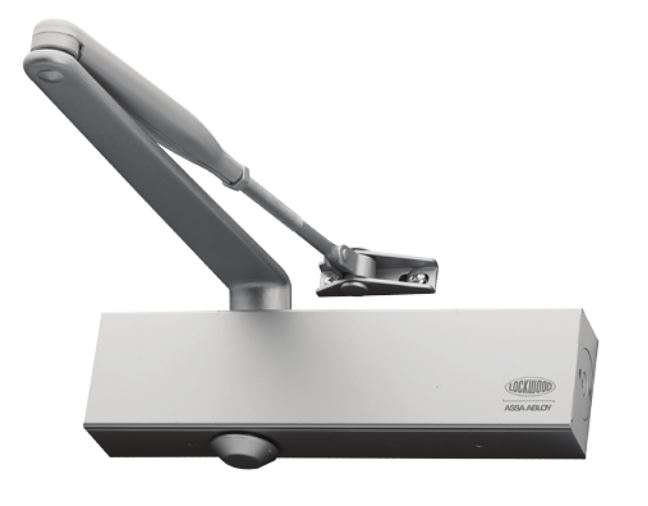

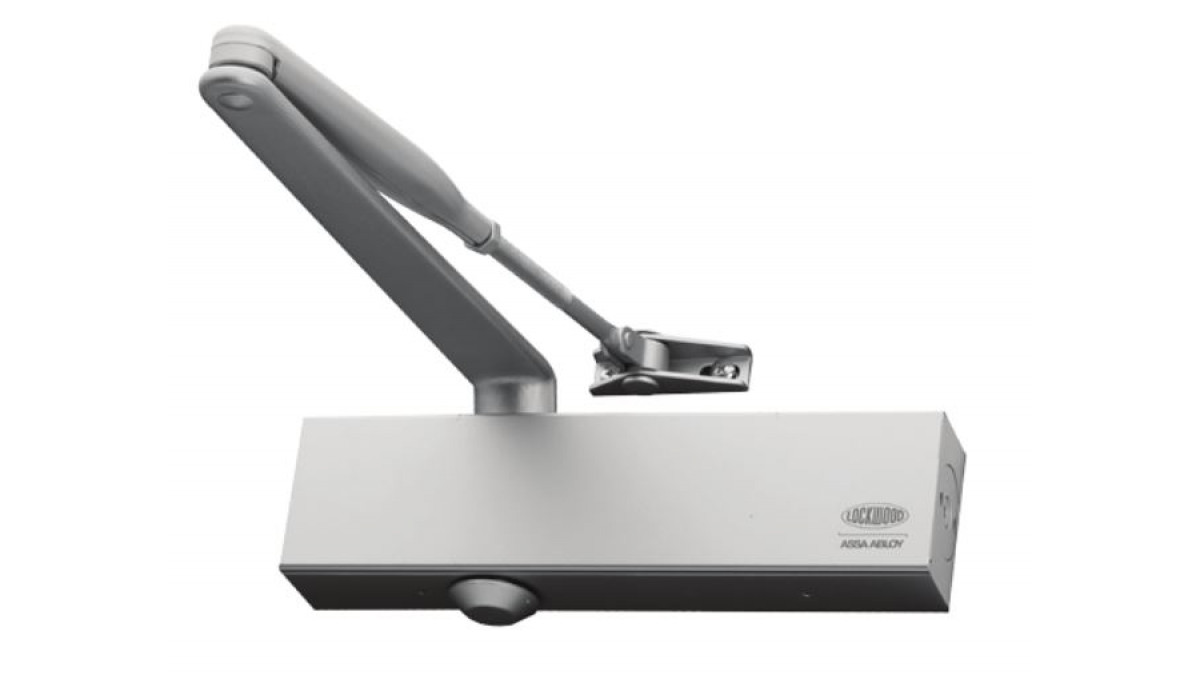

724
Description

The Lockwood Rack & Pinion Slide Arm Series provides for a cleaner, more aesthetic appearance on the door whilst utilising the same robust features and benefits of Rack and Pinion functionality.

A range of adjustable power door closer units suitable for architectural and commercial applications.

Key Features
  • Power: 726SR — EN adjustable 2 to 6 / 724SR — EN adjustable 2 to 6 / 726 — EN adjustable 2 to 6 / 724 — EN adjustable 2 to 4
  • Back check (BC): Adjustable
  • Hold open: Adjustable. Hold-open can be set at any angle up to 130° of opening for 726SR / 724SR and 150° for 726 / 724
  • Handling: Non-handed. Suitable for left or right hand doors
  • Cover: Clip-on
  • Materials: Extruded aluminium body manufactured from high-performance silicon alloy
  • Mechanism: Rack and pinion design
  • Mounting: Regular, parallel and over-door mounting
  • Valves: Adjustable closing and latching speed valves with overload protection
Categories
Door Closers
Ranges
Door Closers
Scope of Use
  • Suitable for left or right hand doors
  • Regular, parallel and over-door mounting
  • Suitable for commercial applications
