Lockwood 63mm Velocity Door Handles
Description

Designed in Australia, the Velocity® series encompasses the robust design and product quality that has become synonymous with Lockwood. An attractive yet unobtrusive rose design complemented with four modern lever designs. The Velocity Series captures the aesthetic tone of the residential market, providing style whilst maintaining utilitarian desire.

With a design that transcends the basic functional and aesthetic requirements of residential hardware, the Velocity series sets a new benchmark in ease of installation. The Velocity Series includes passage sets for connecting doors, privacy sets for bathroom and toilet doors and dummy half sets for use on cupboard and wardrobe doors where consistent styling is desired.

Velocity lever styles are common to the Lockwood Nexion and Lockwood Palladium ranges, facilitating a uniform design aesthetic throughout the home. It is also the perfect complement to the uncompromising Paradigm 005 deadbolt.

Key Features
  • Super Fast Installation — Through the simple twist and tighten fixing action the Velocity Series turns the rhetoric of ease of installation into reality. The frustration of fiddling with small parts or misplacing them during installation is a thing of the past, as Velocity lever sets are supplied pre-assembled, so there are no loose screws or spindles. Screws align through the rose, removing the need to locate them blind through the door. A twist and a quick tighten of screws and the levers are installed.
  • Materials — All Velocity levers and roses are made from solid zinc die-cast.
  • Latches — Passage sets are available both with and without a 60mm backset tubular latch. Privacy sets are supplied with a 60mm backset privacy latch which includes an activating pin for the inside of the door and an external emergency release function. The latch is automatically released when the internal handle is operated and is easily adapted for both open in and open out applications.
  • All latches are supplied with industry standard "D" strikes.
  • Standard Finishes:
    • Satin Chrome Pearl SP
    • Chrome Plate CP
    • Satin Chrome SC

Velocity Series Door Furniture levers include:

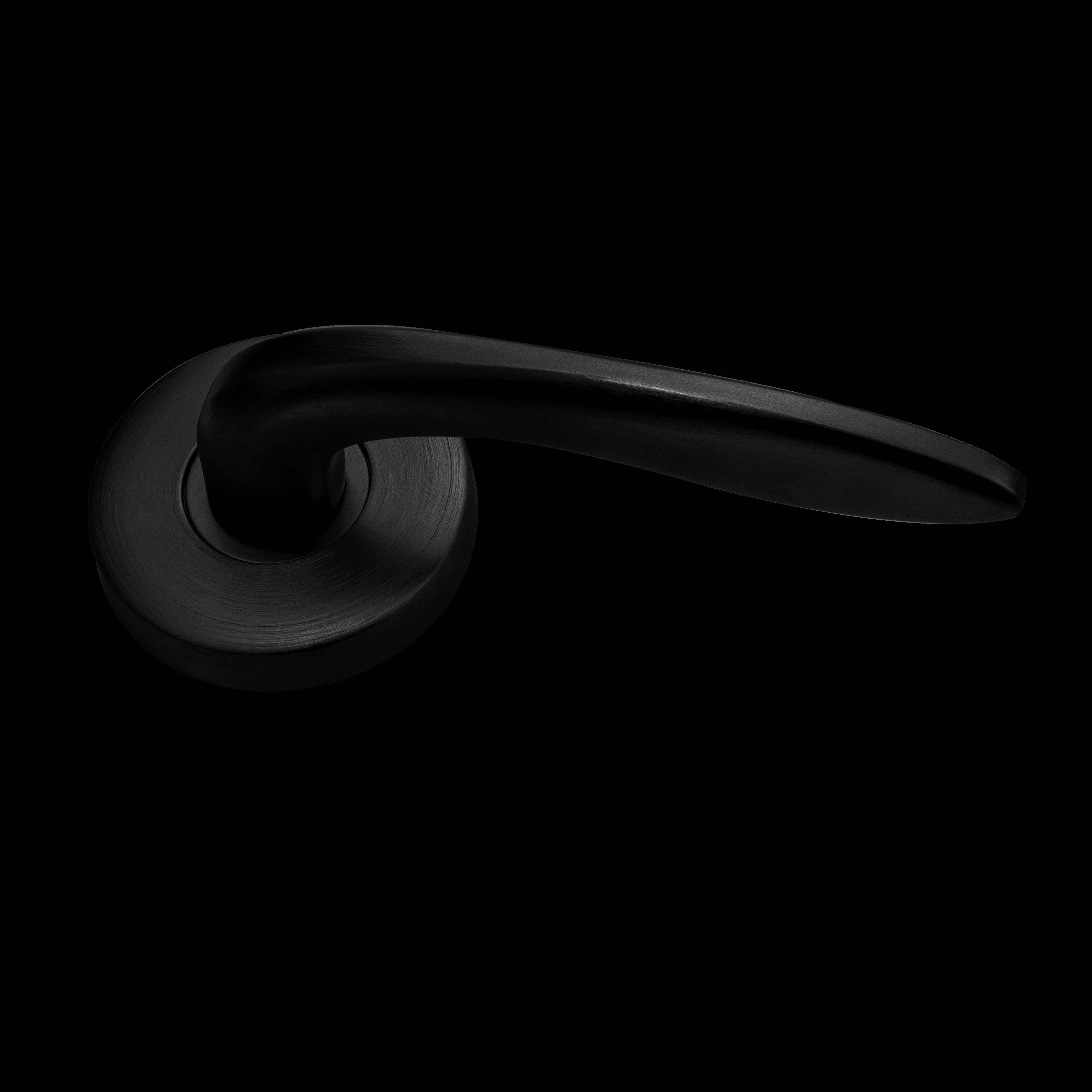

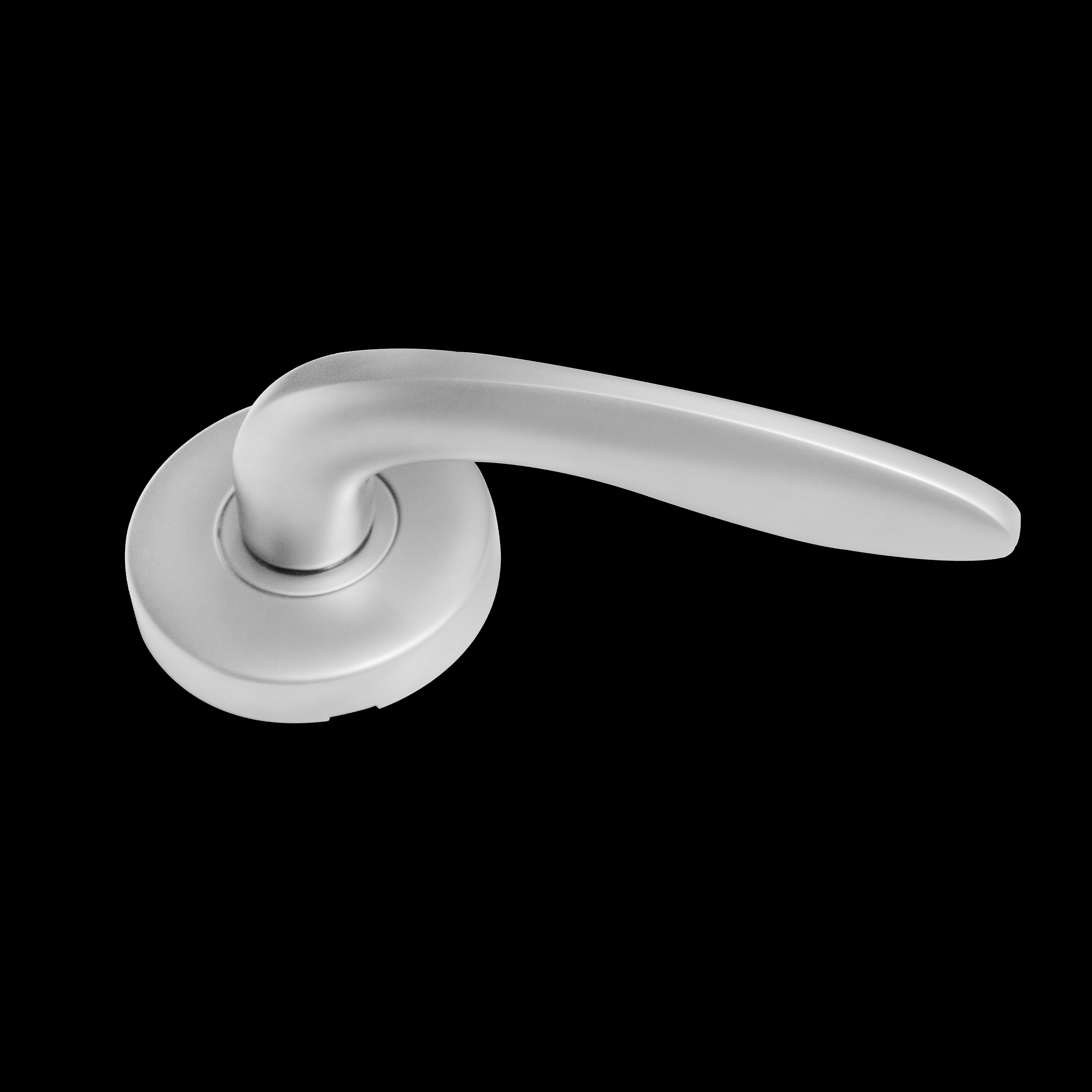

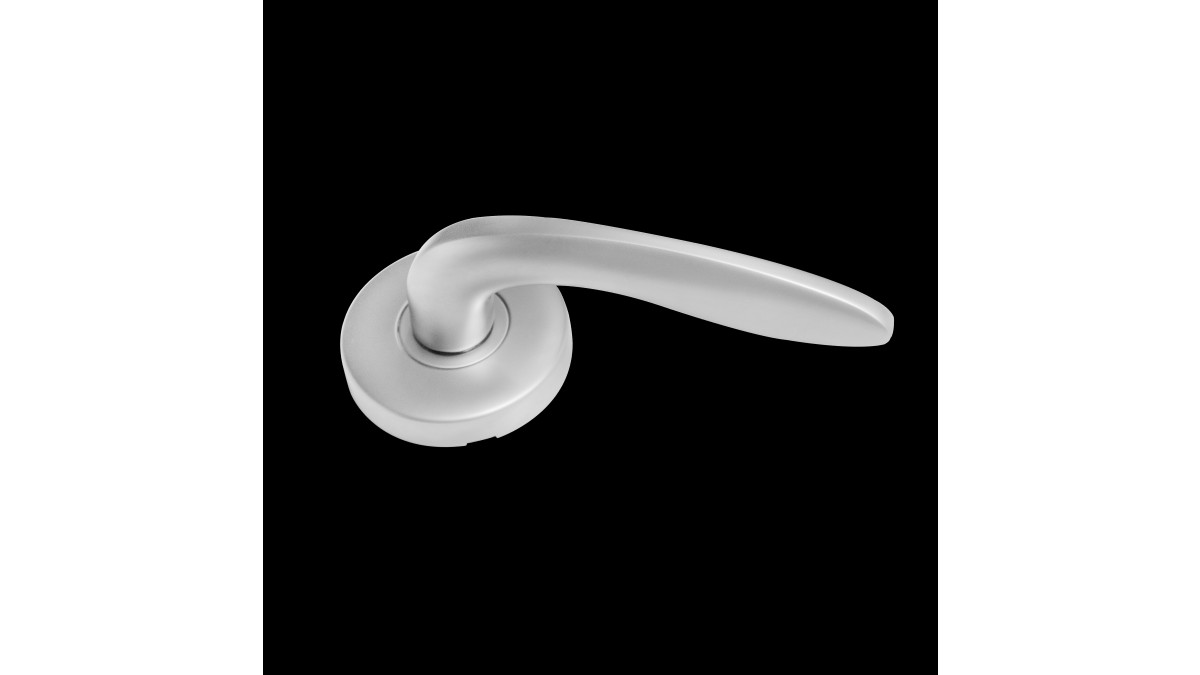

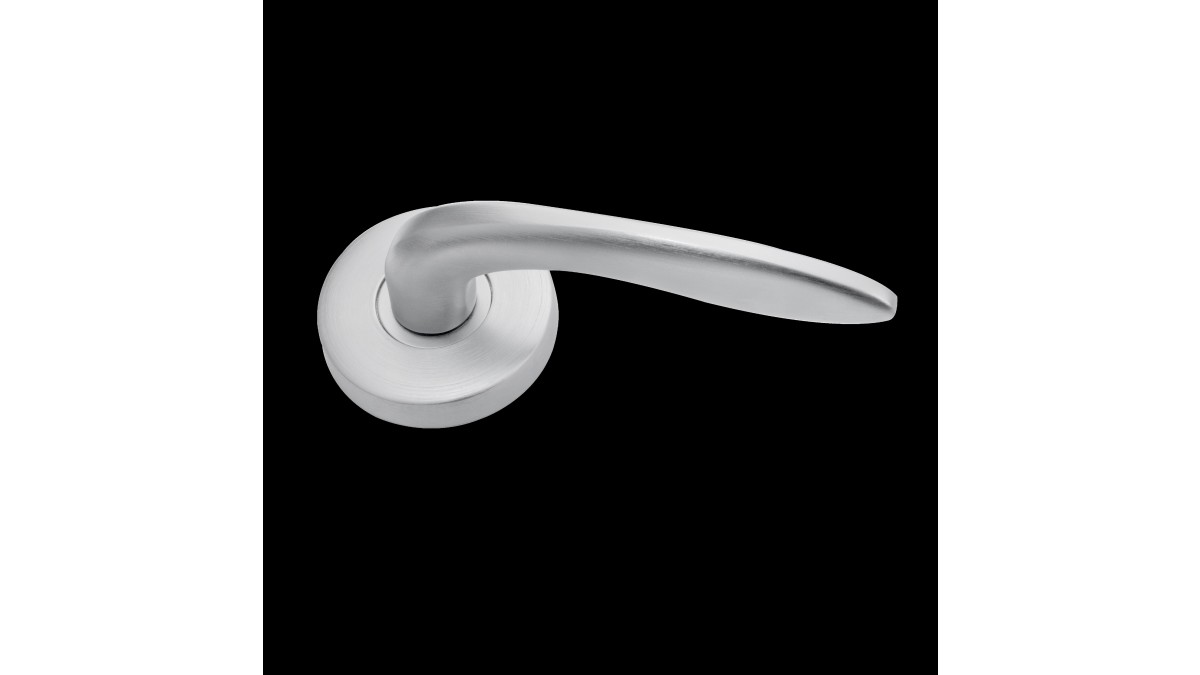

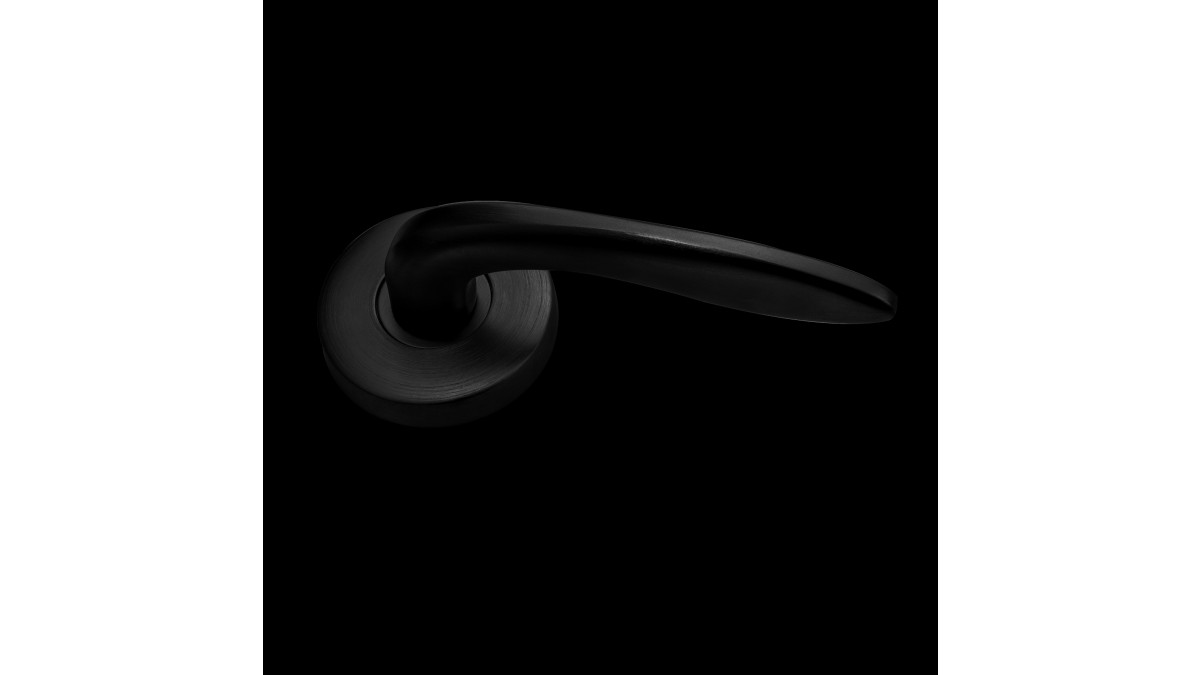

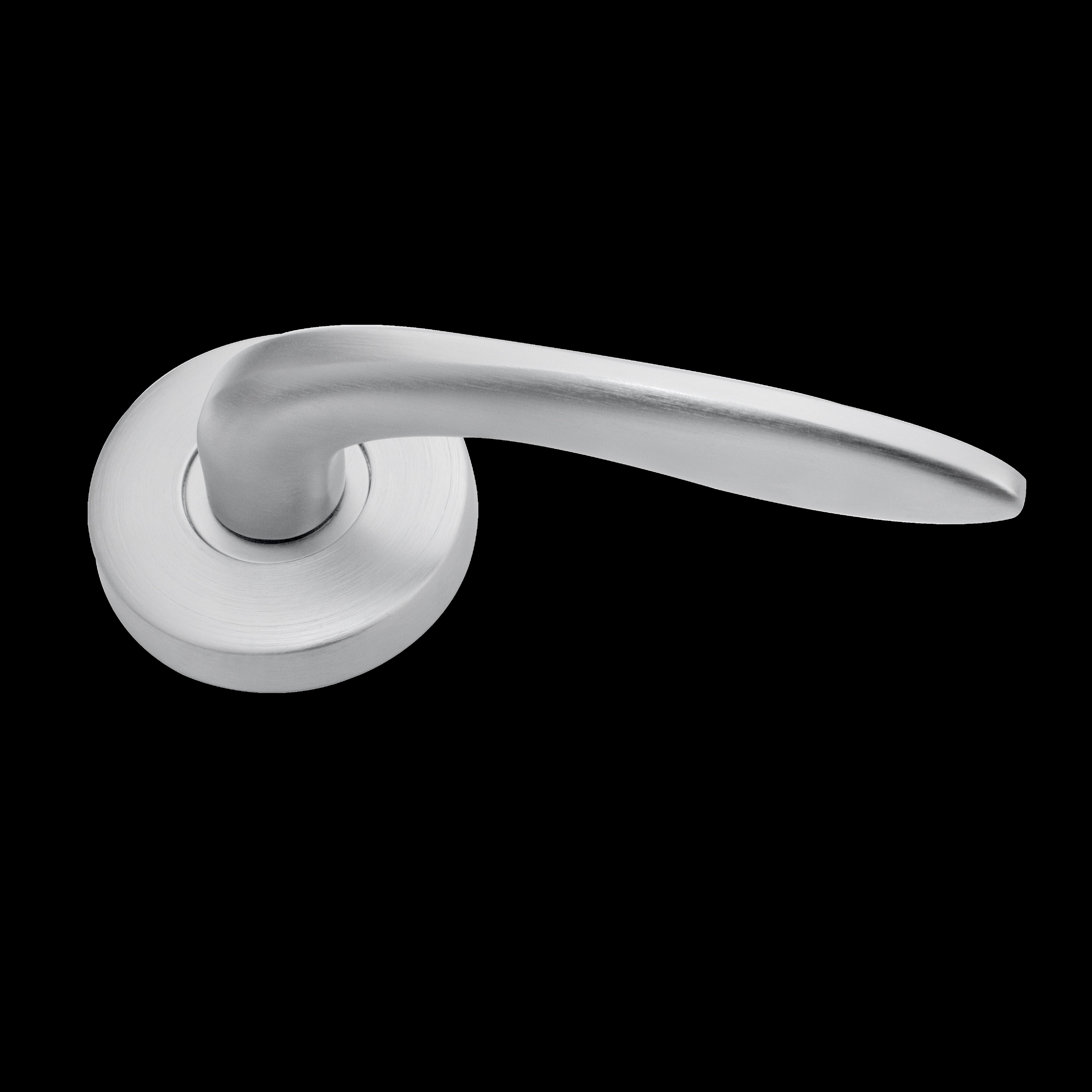

  • Summit L1

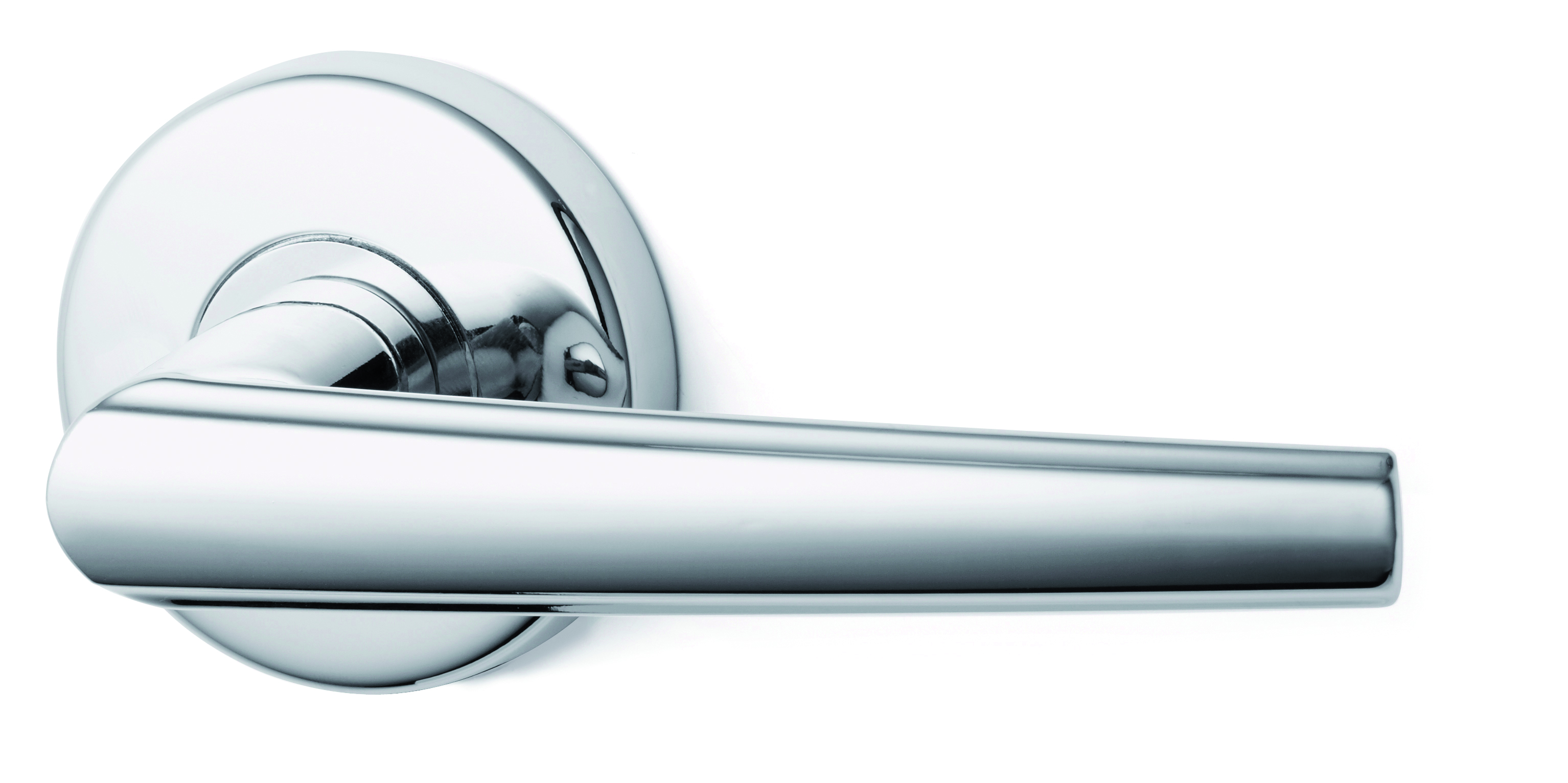

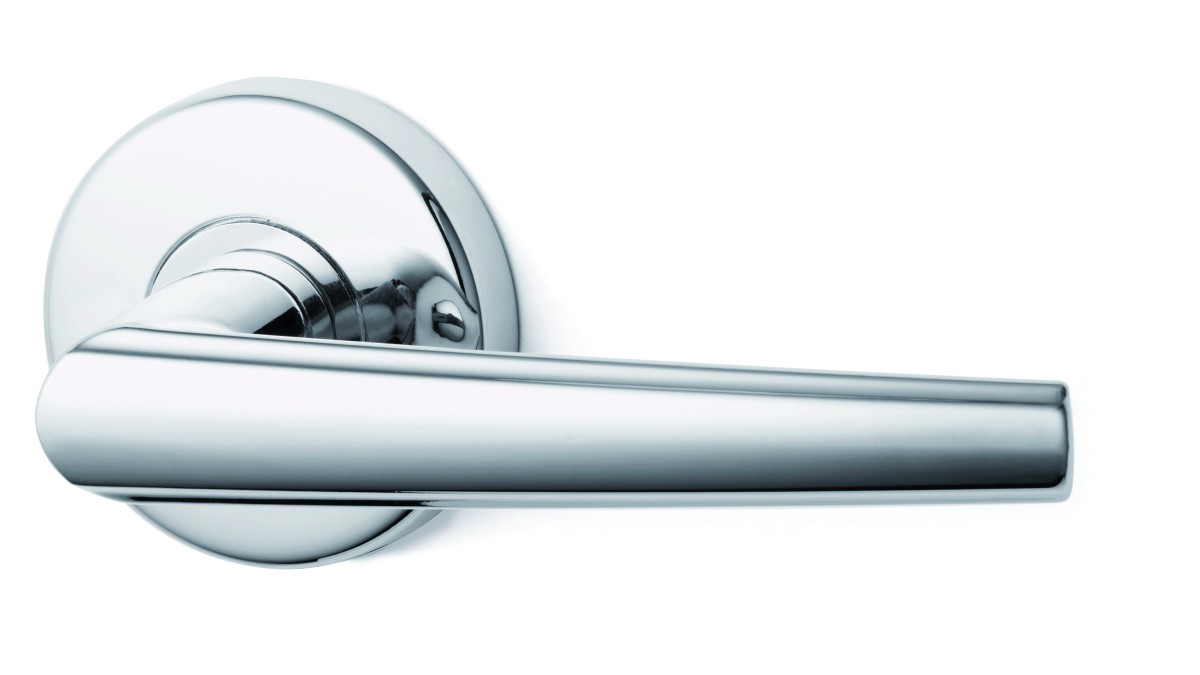

  • Spire L2

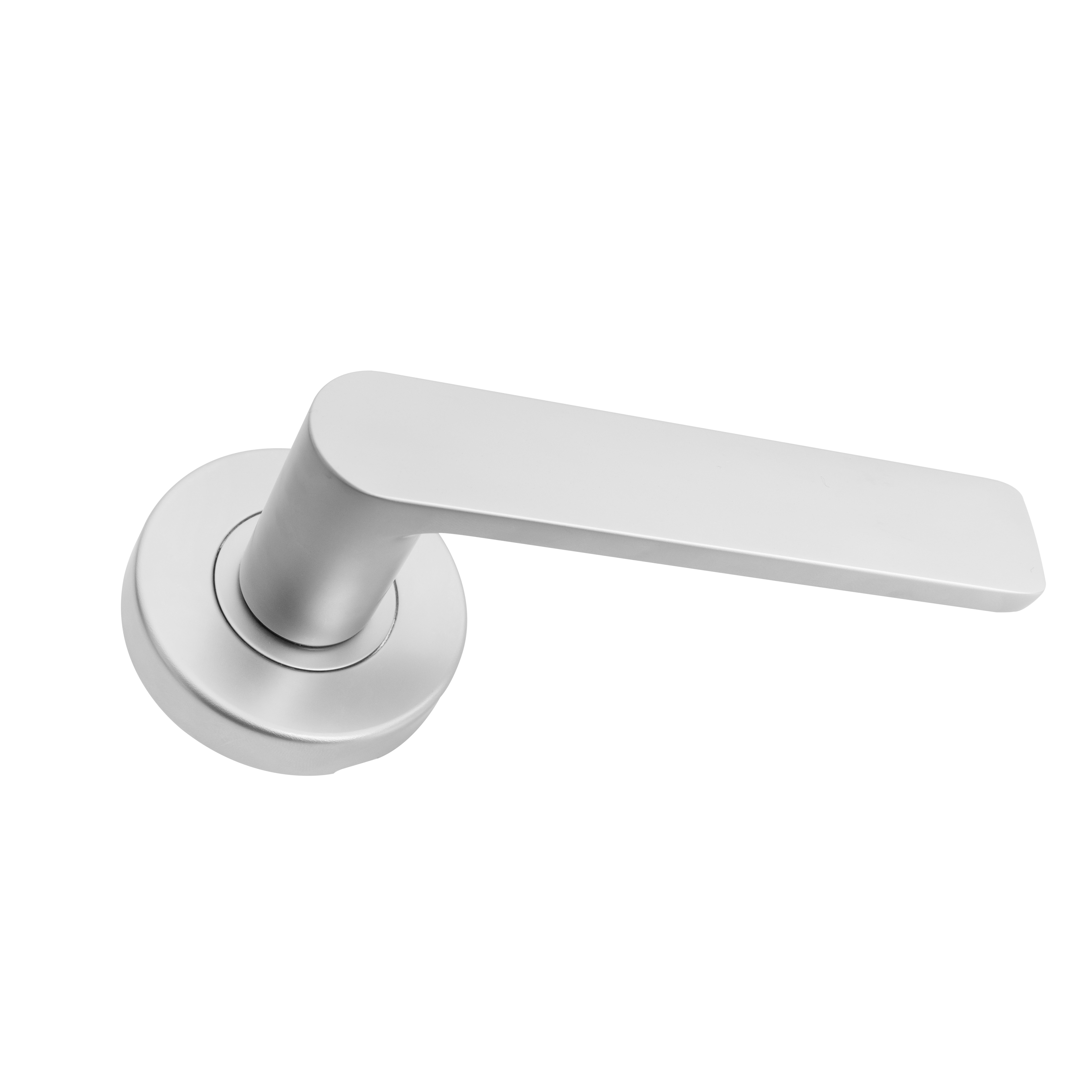

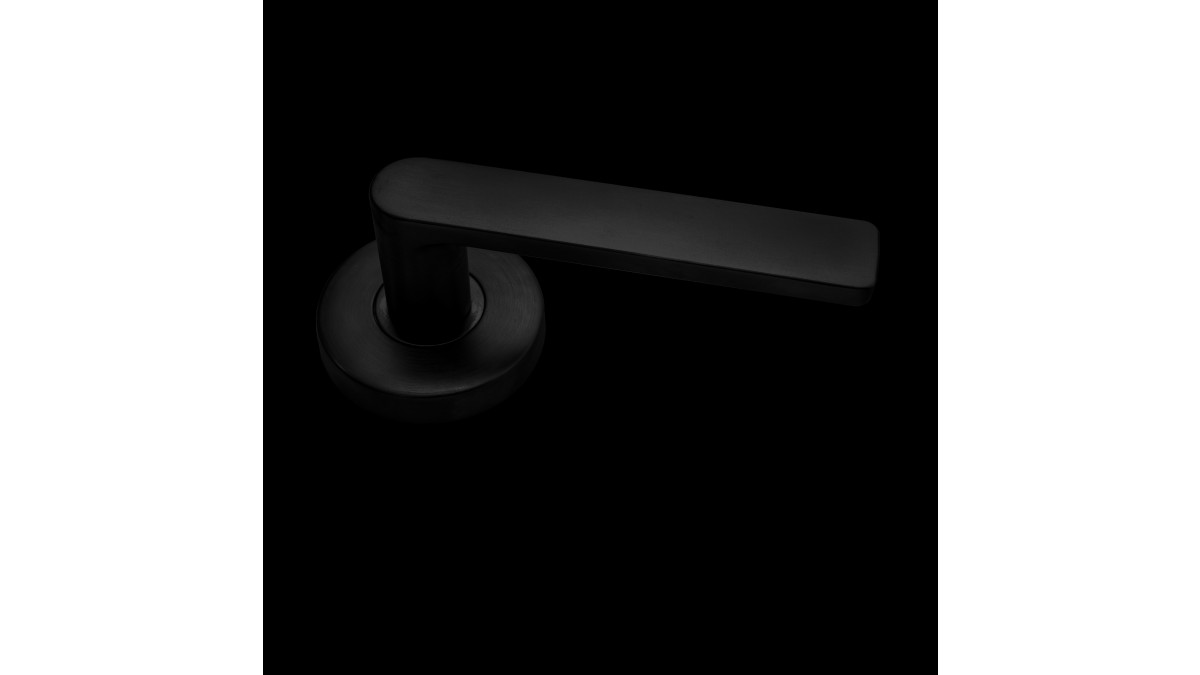

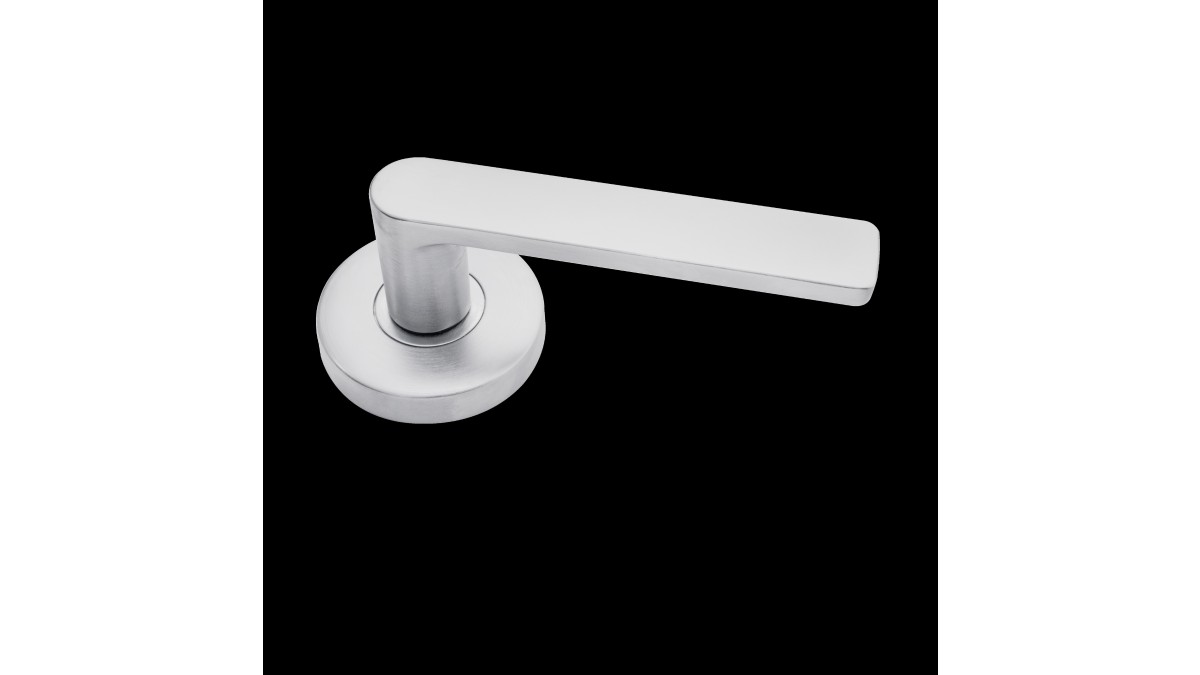

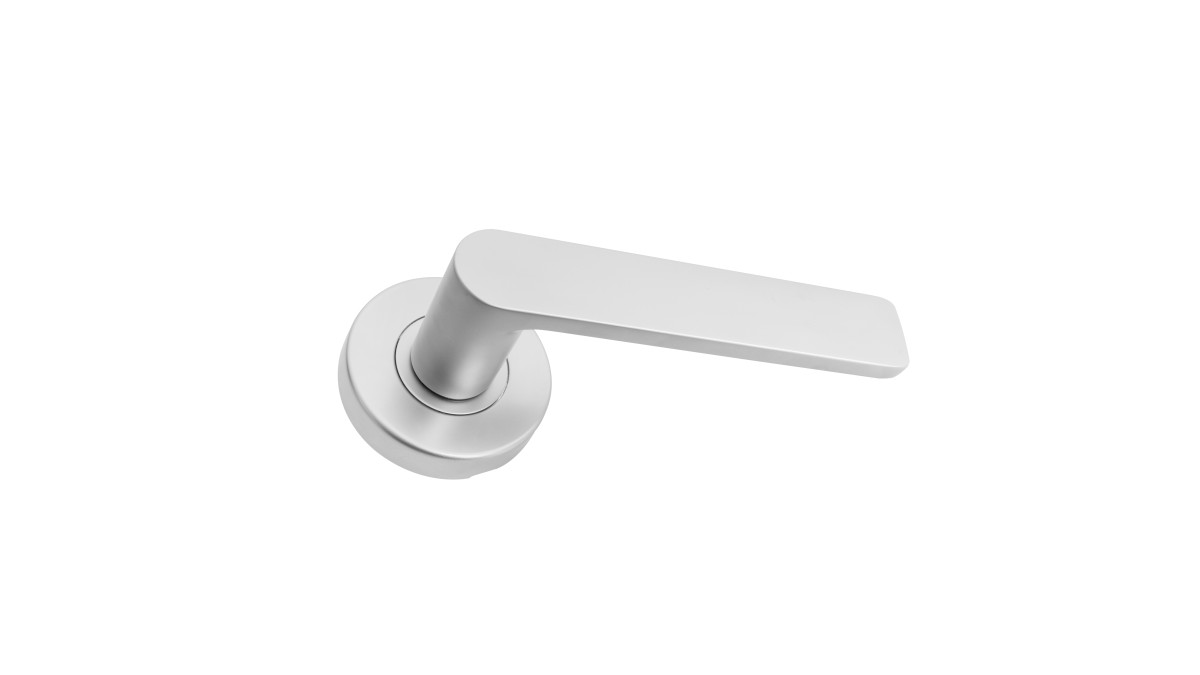

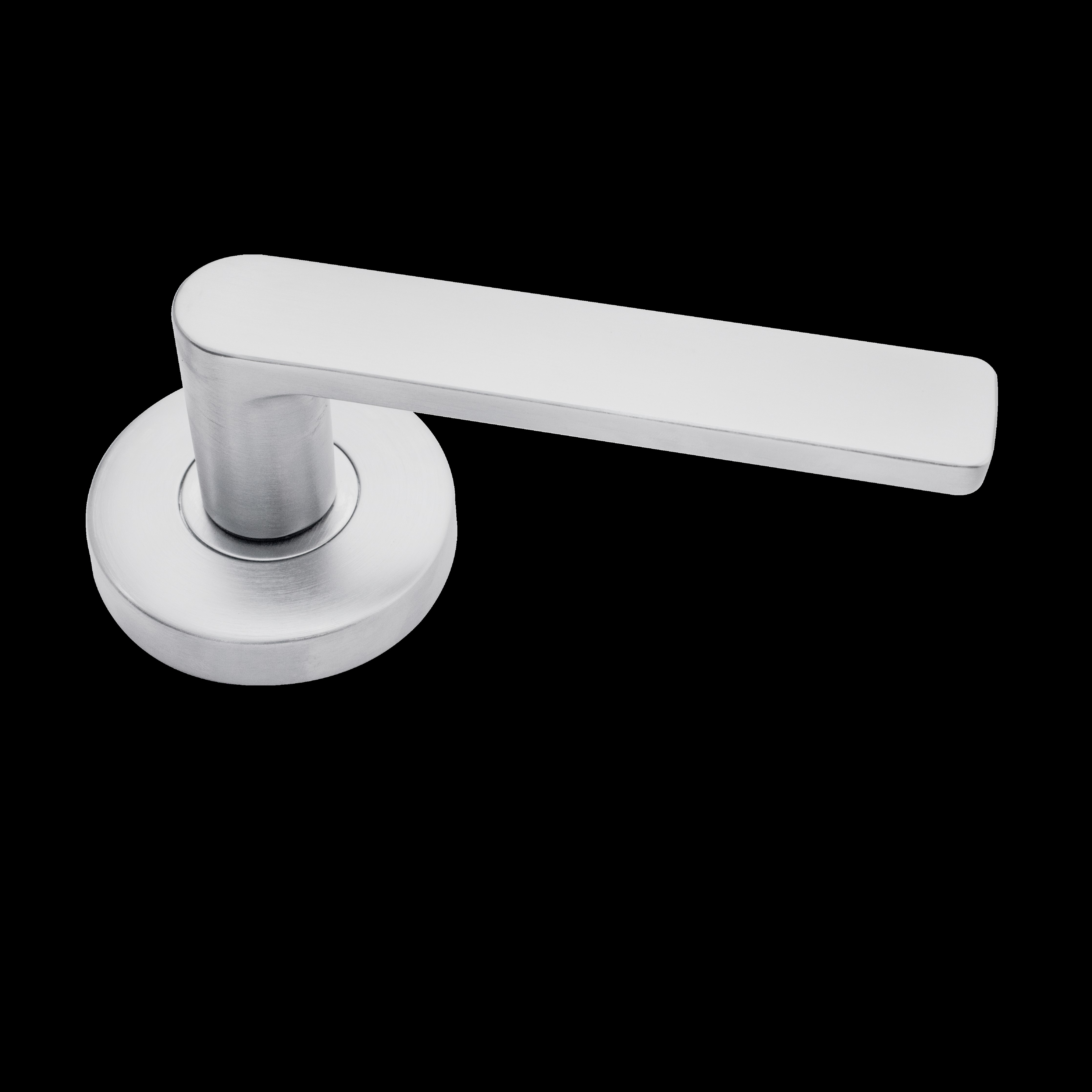

  • Element L3

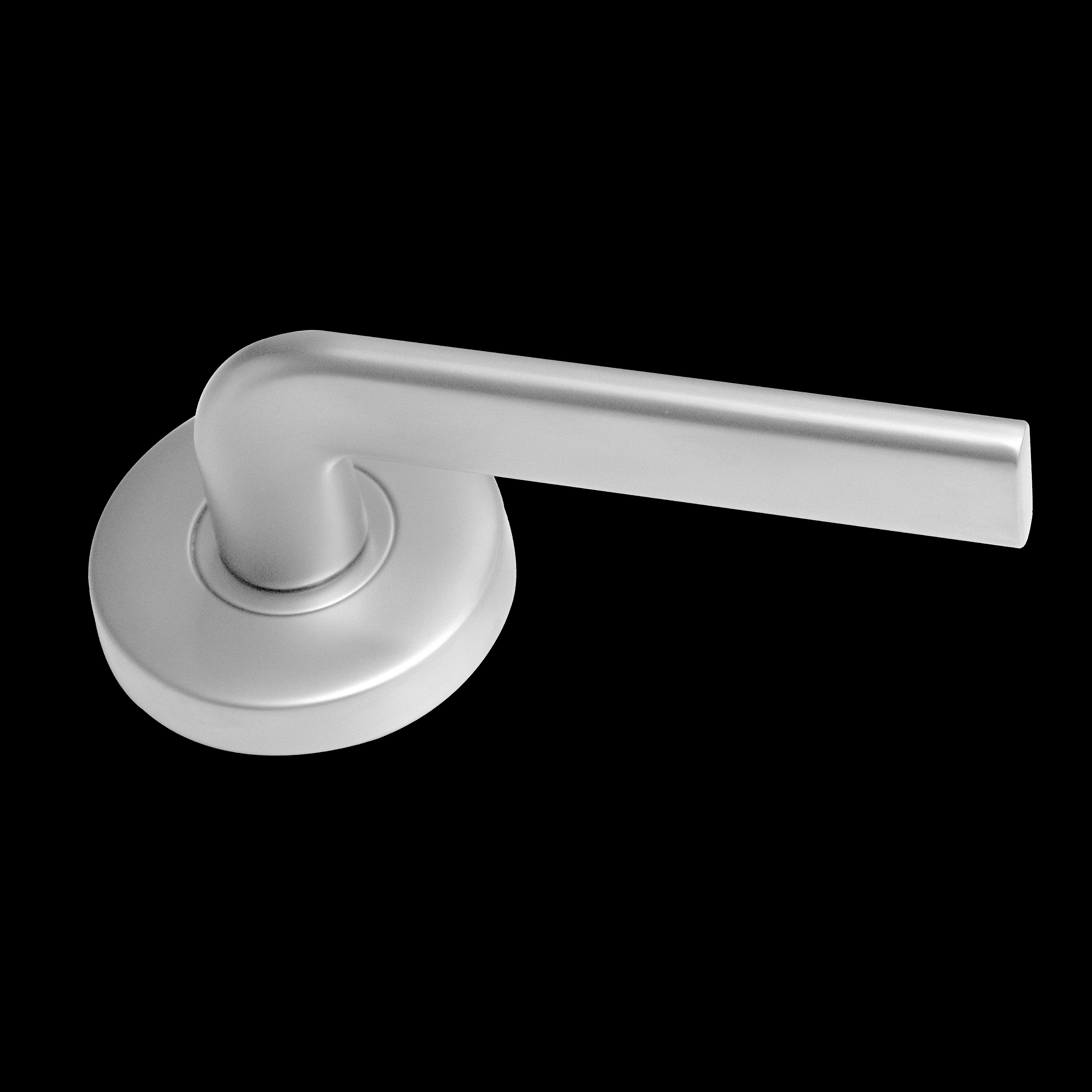

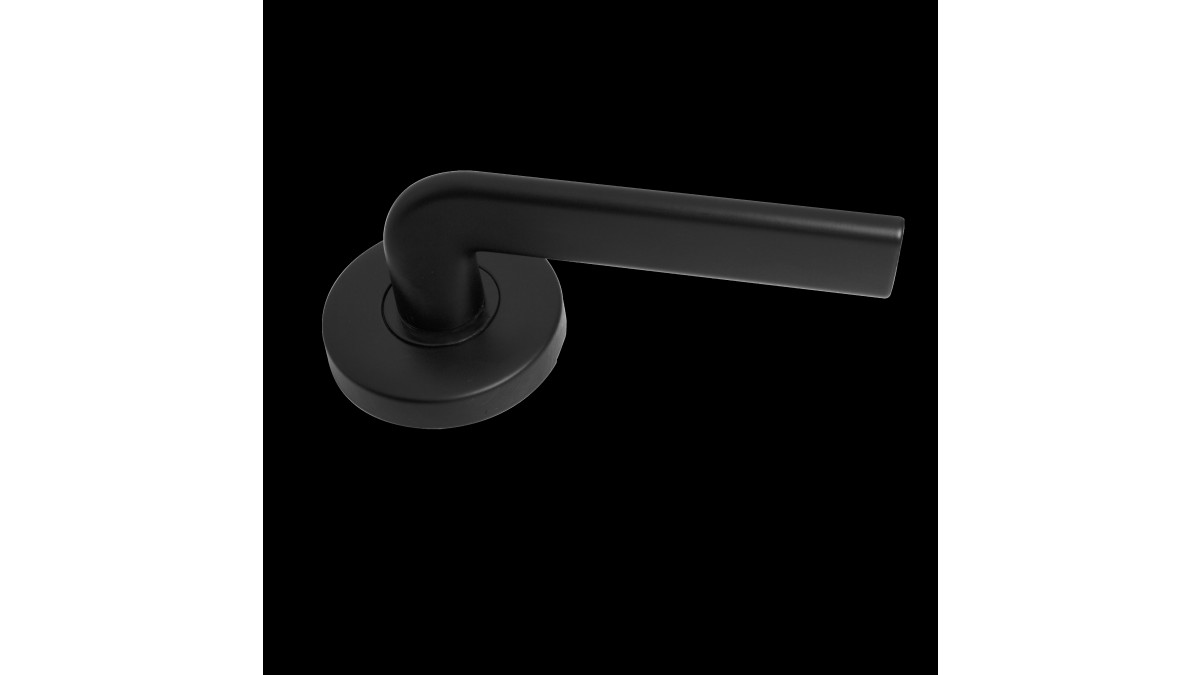

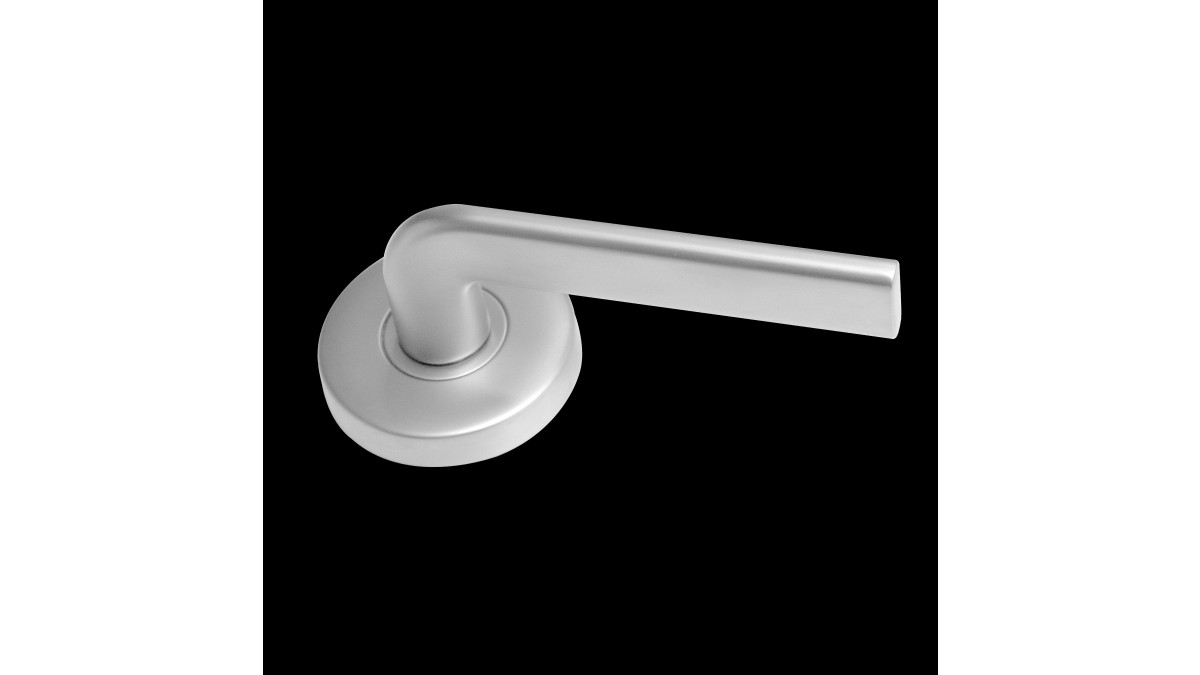

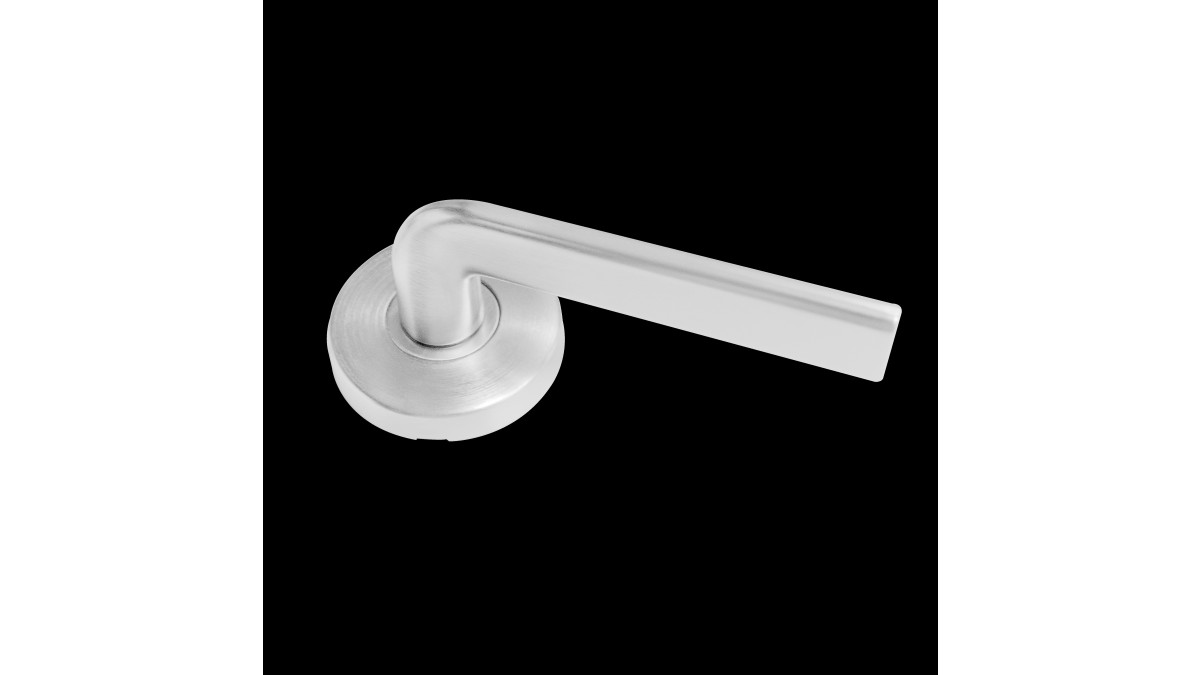

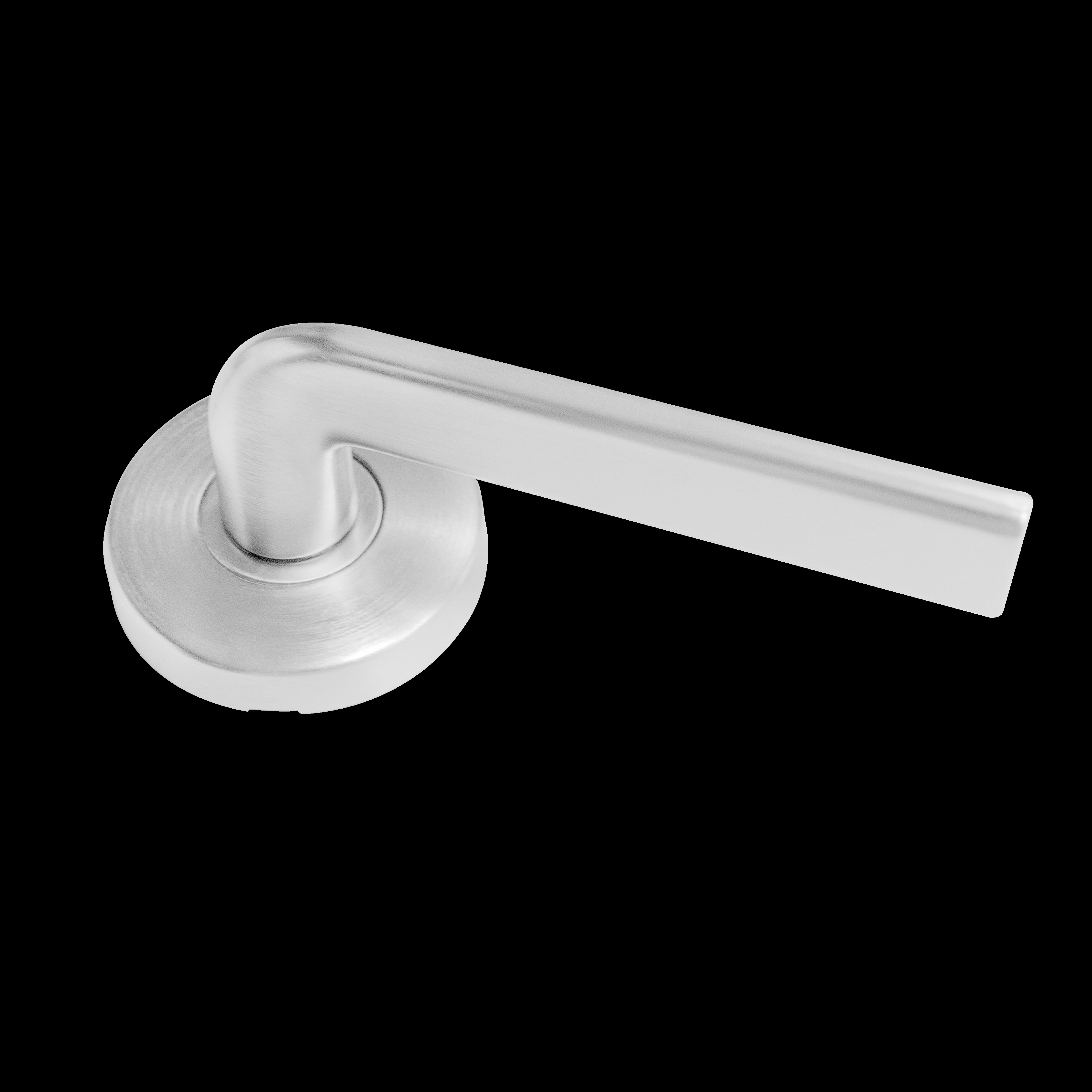

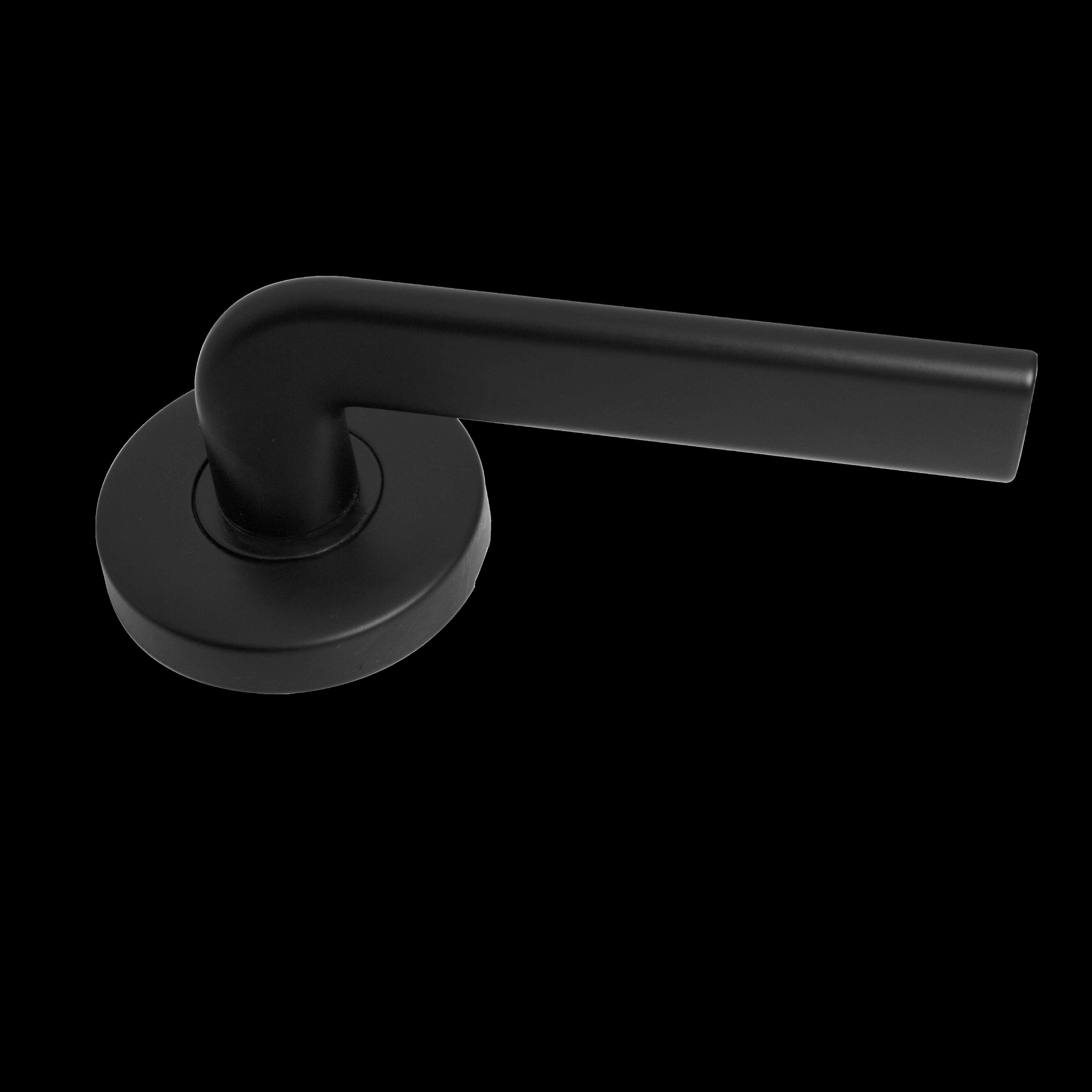

  • Glide L4

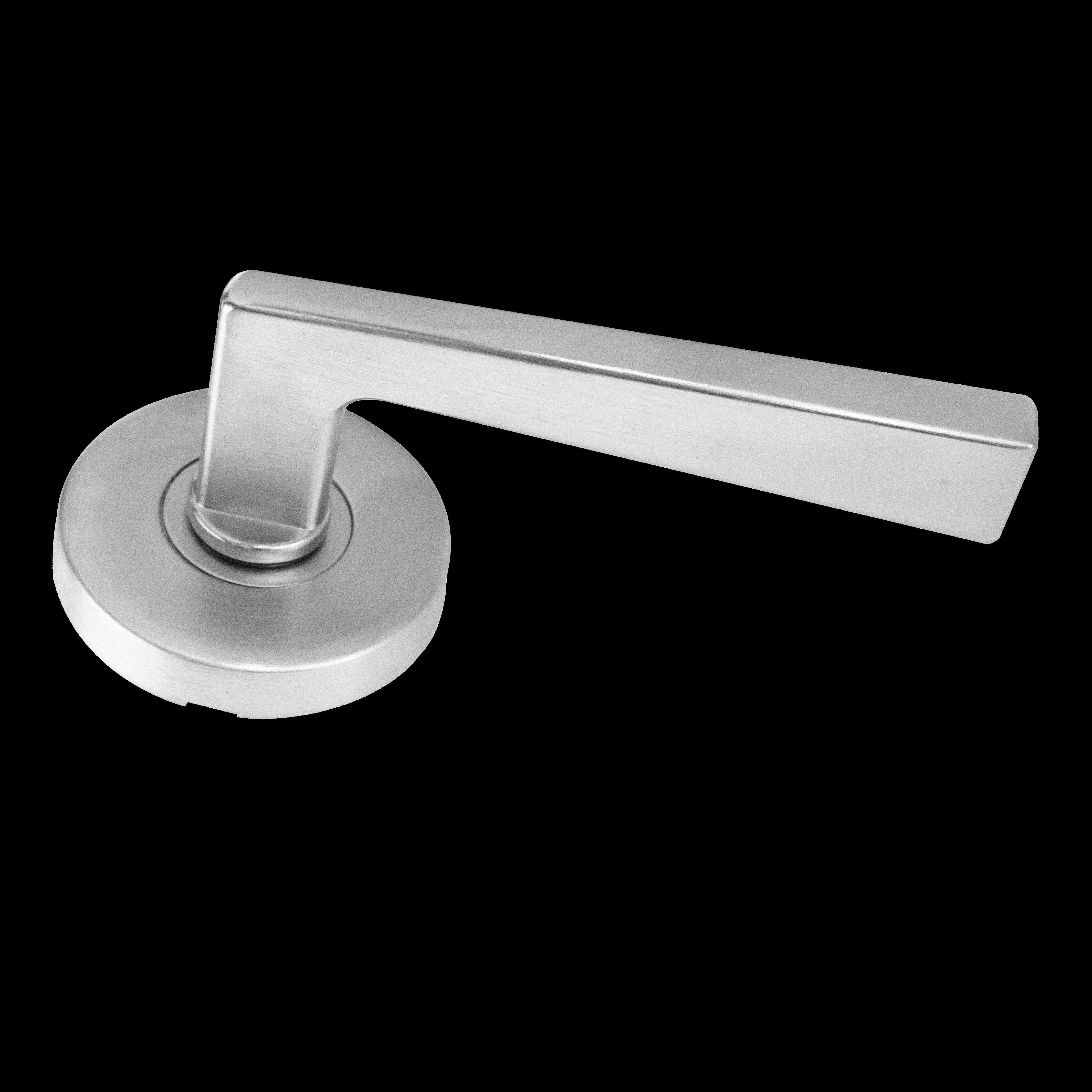

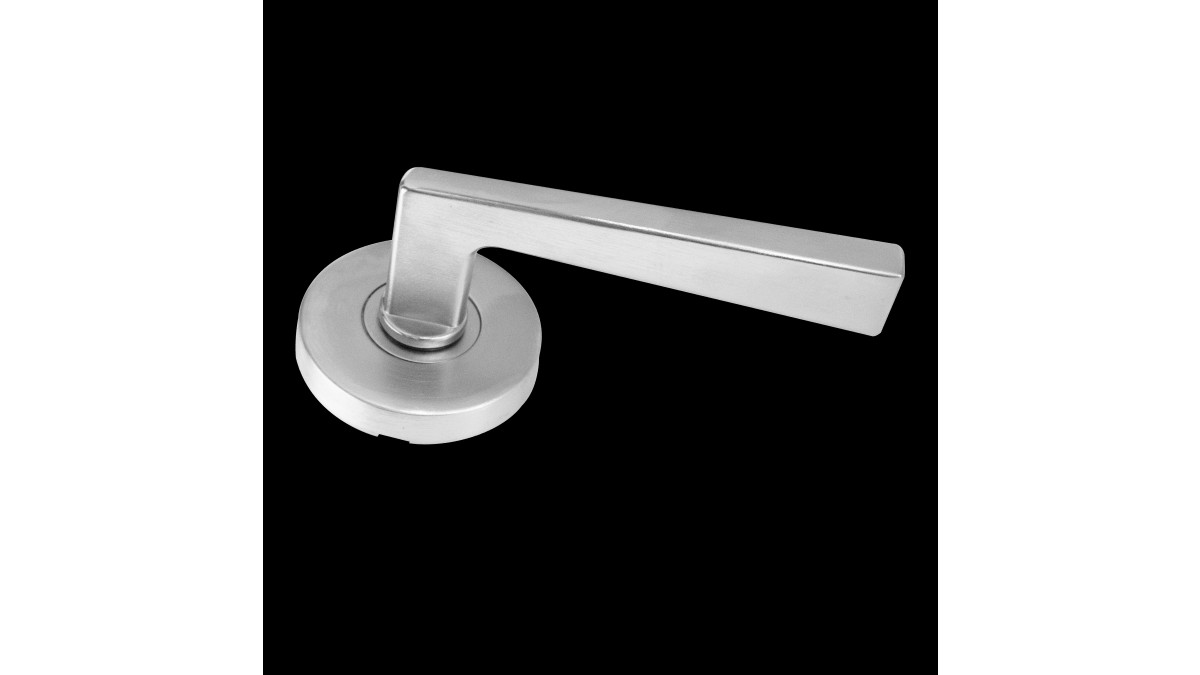

  • Hakea 28

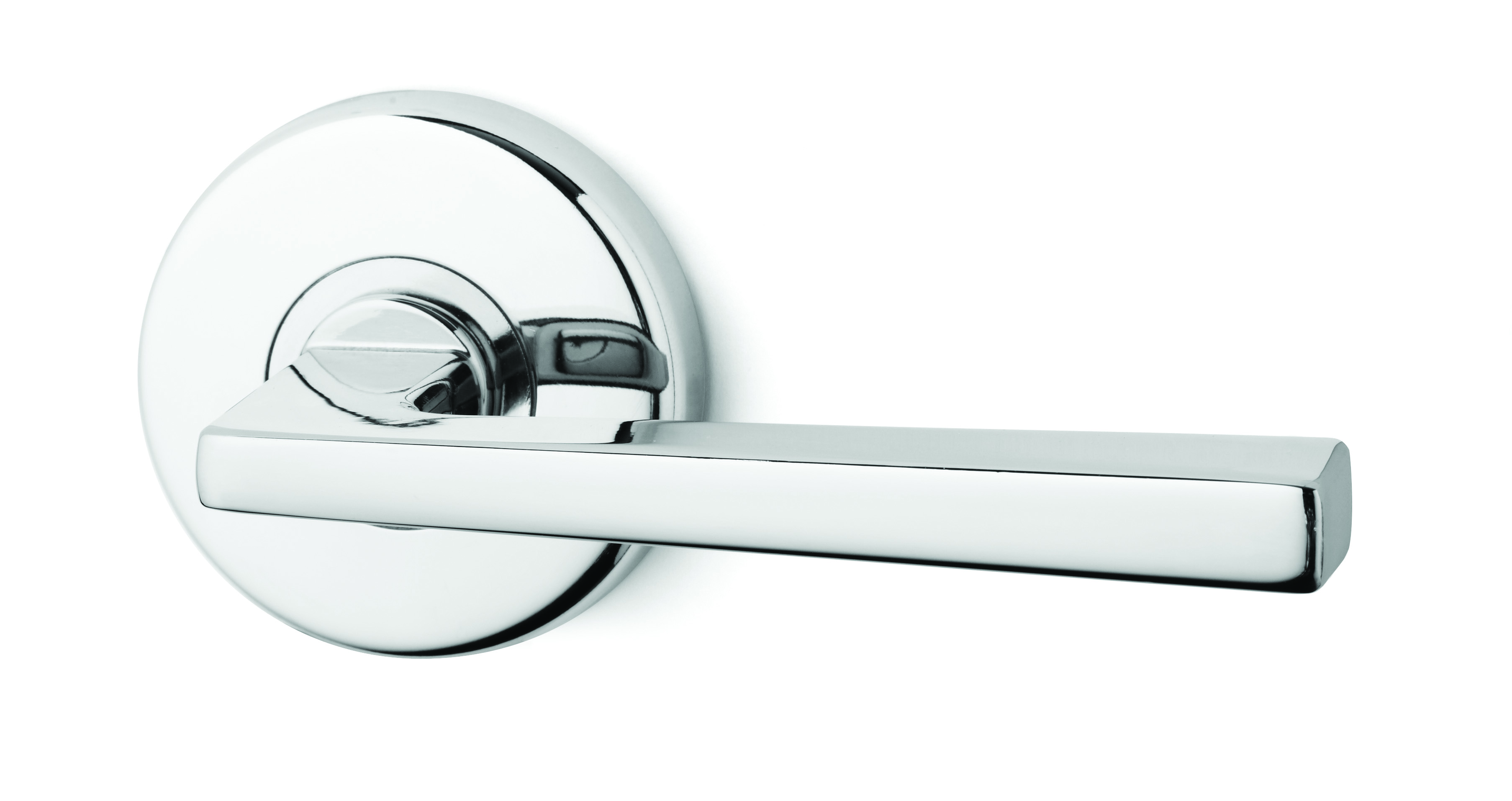

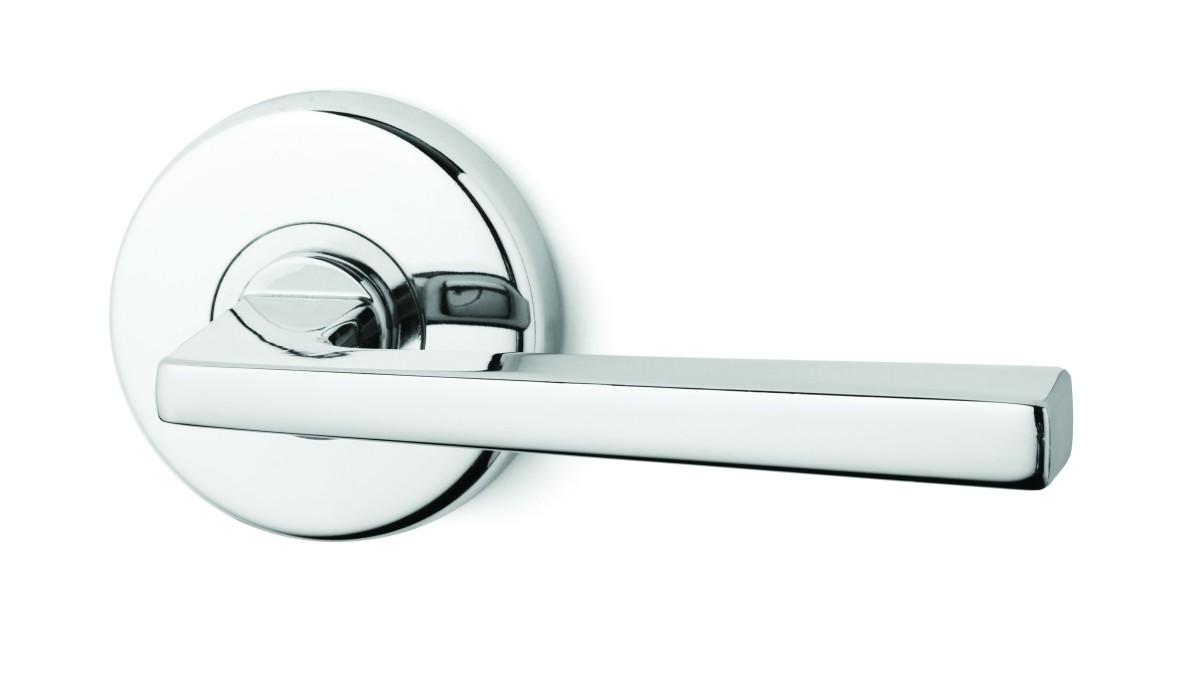

  • Saltbush 34

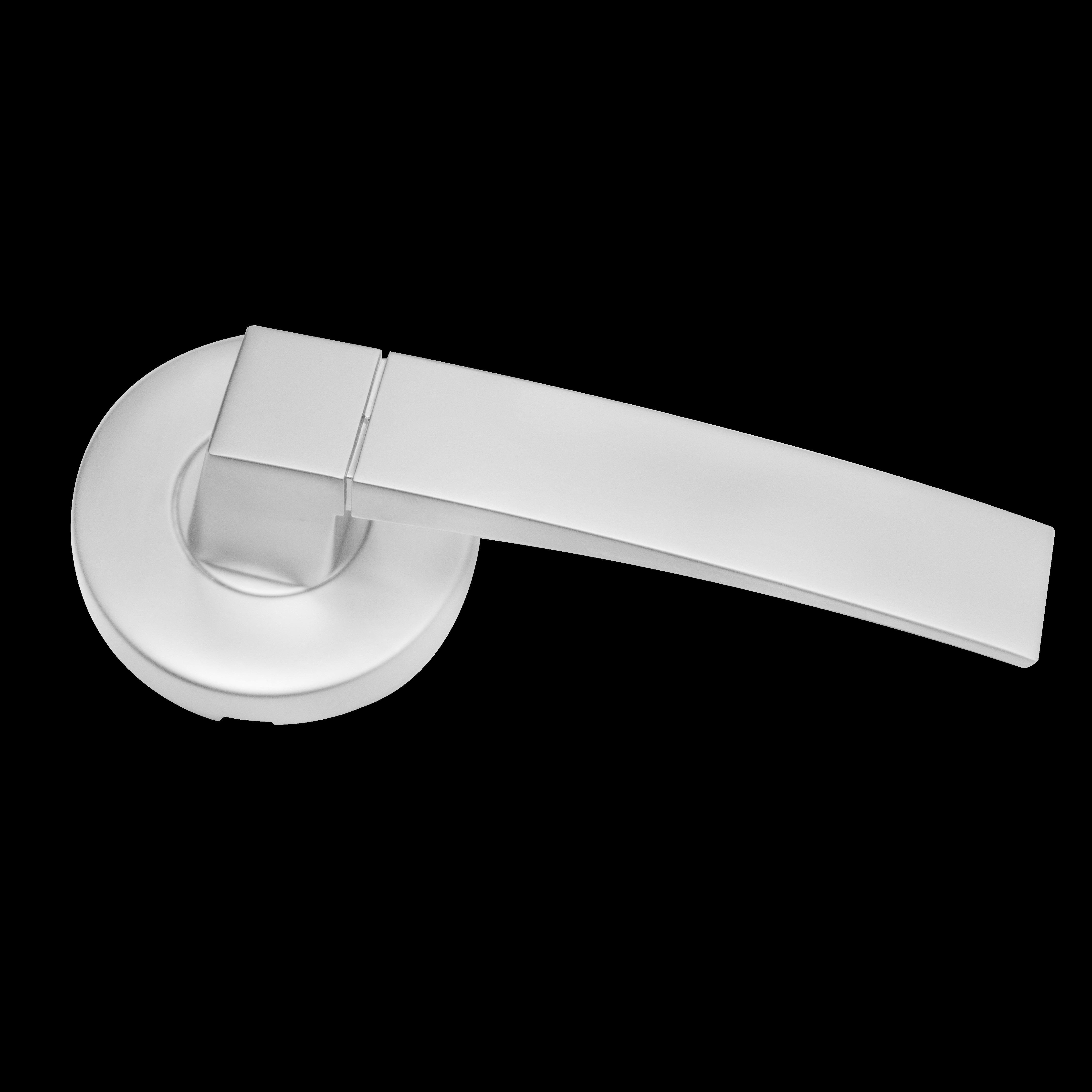

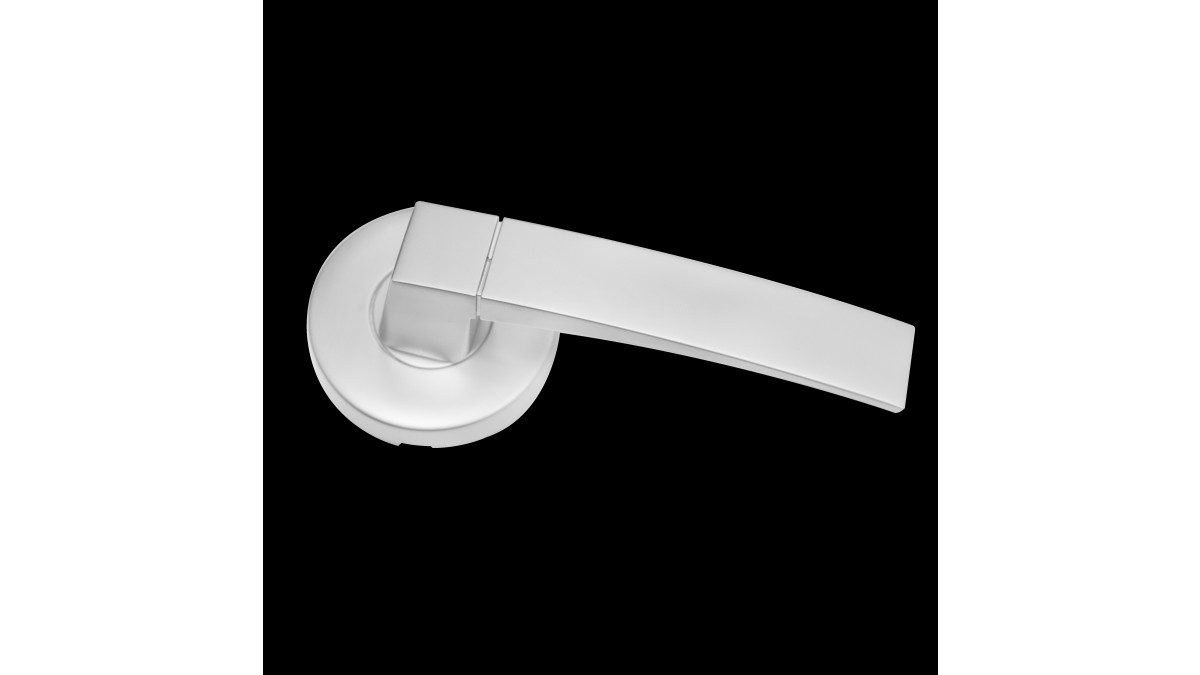

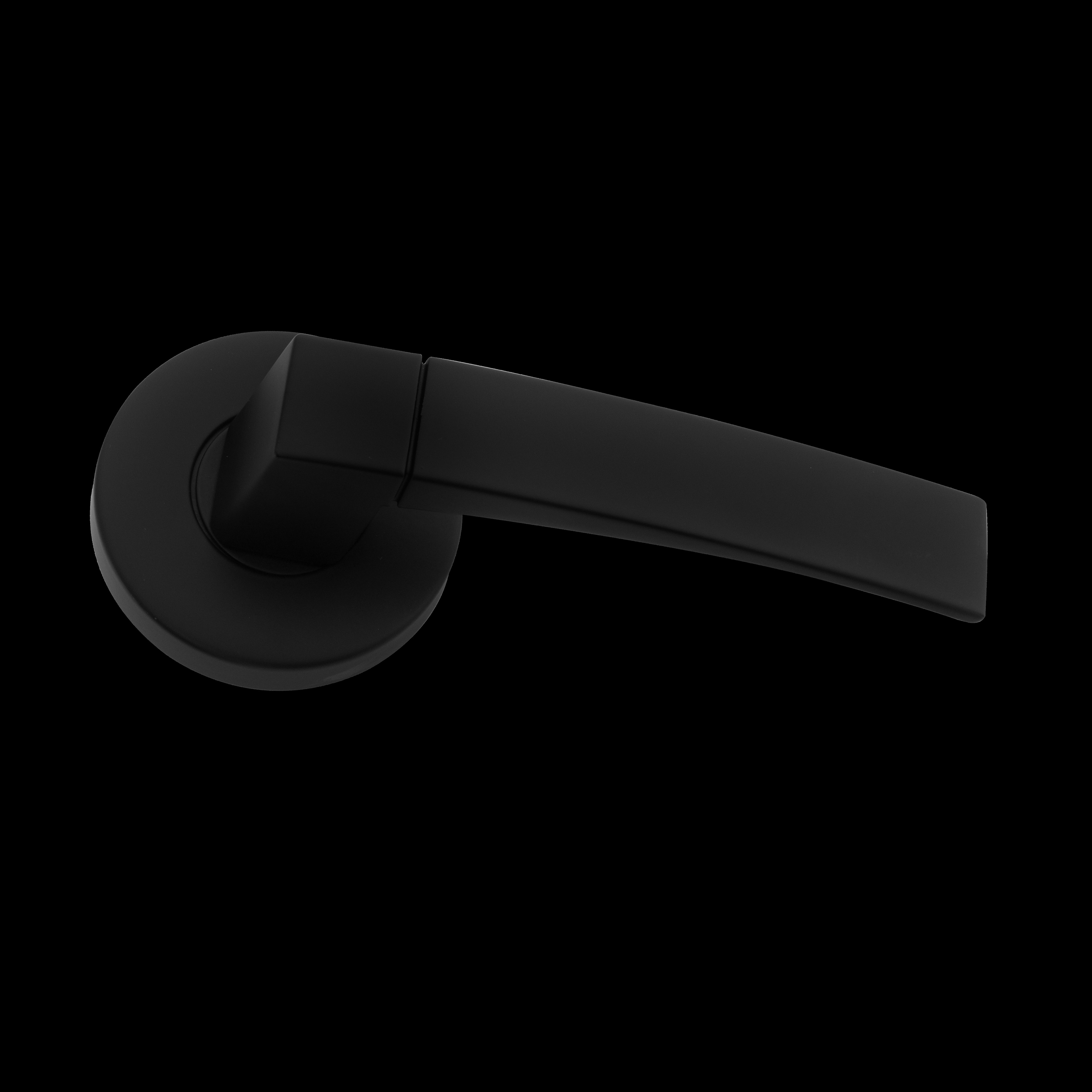

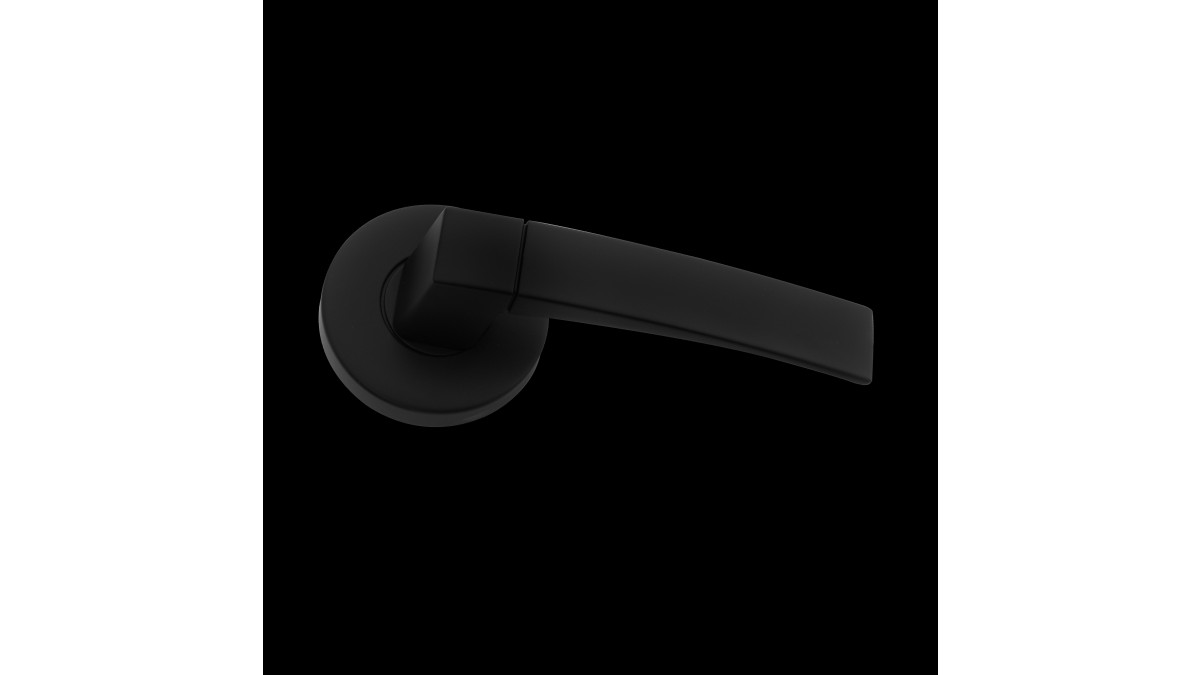

  • Urbo

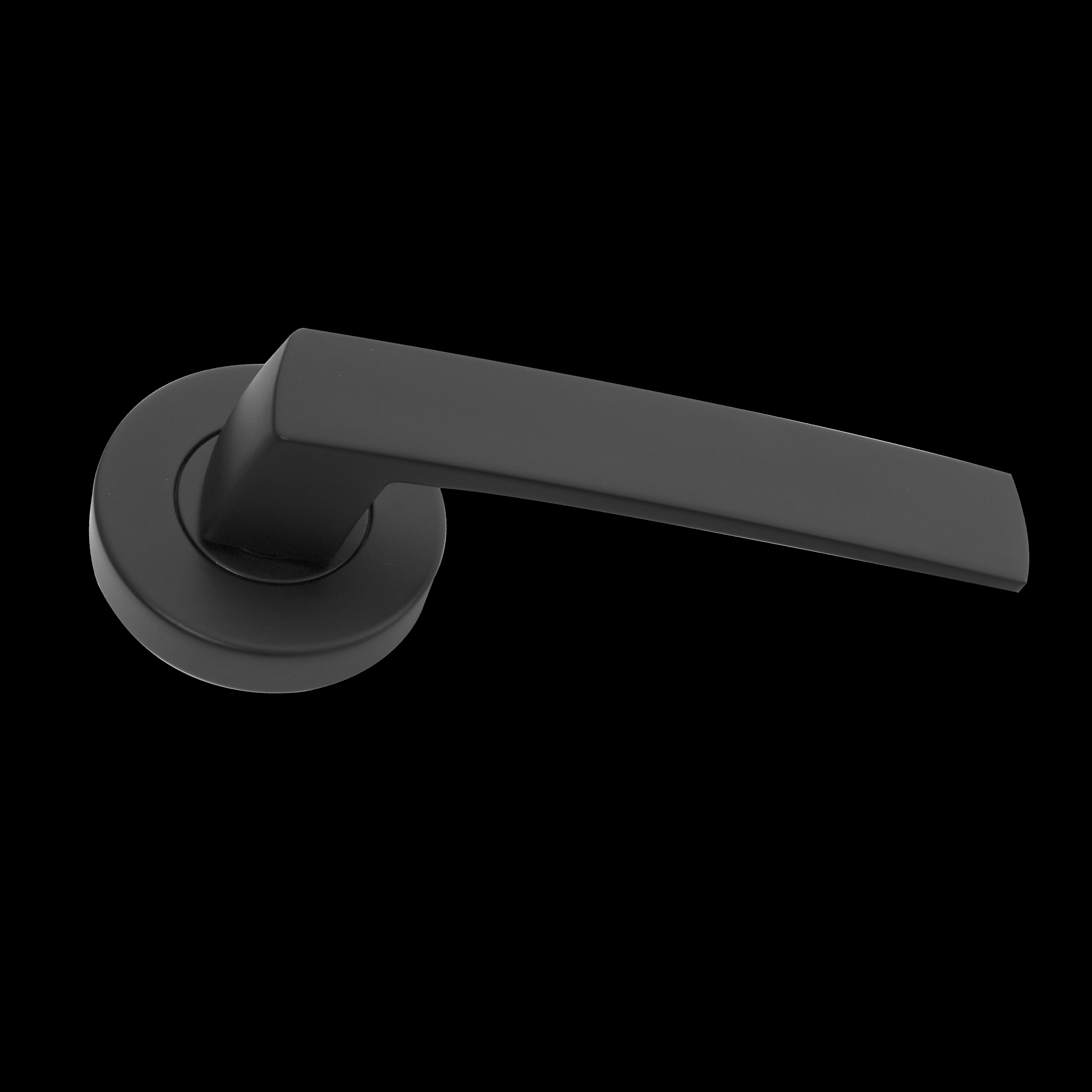

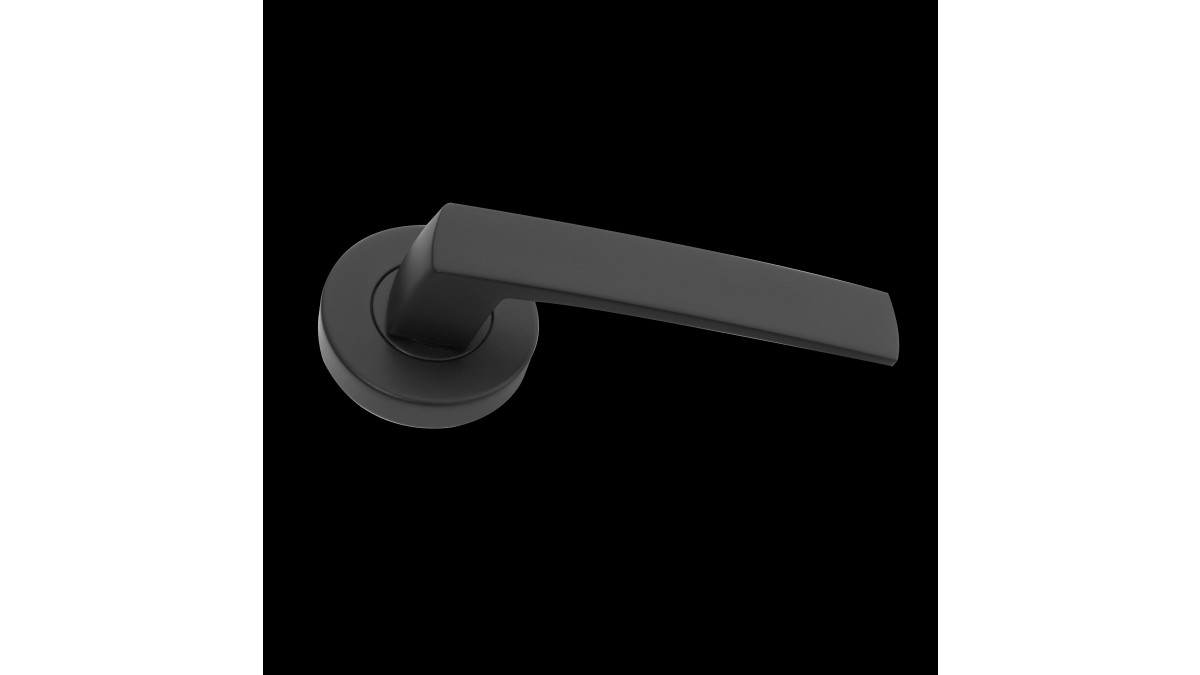

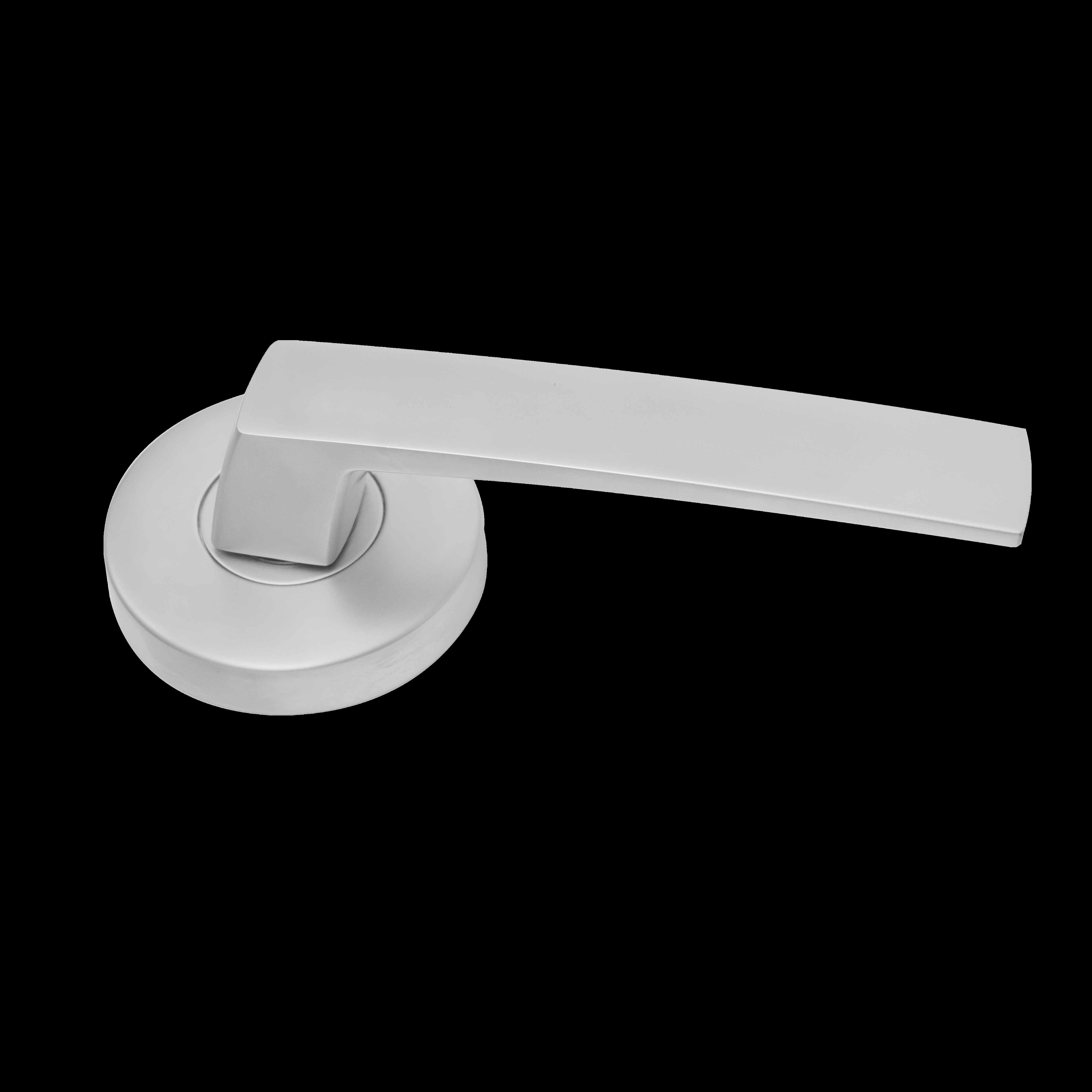

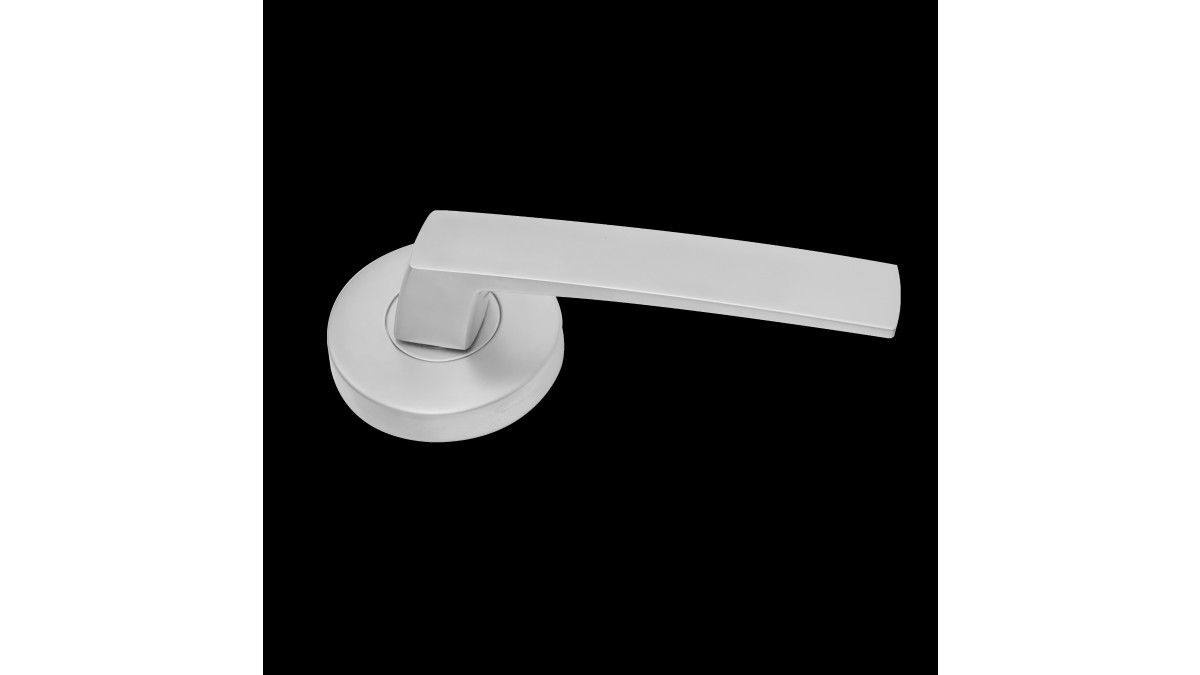

  • Malta
Scope of Use

Velocity® Series Door Handles offer home owners and builders a contemporary collection of levers on rose for use within a residential environment.

  • All fixings are concealed beneath a removable rose trim providing a crisp and clean presentation desired by the discerning home owner
  • Simple twist and tighten fixing method and lever set pre-assembly allows for super easy and super fast installation
  • Available in a choice of six lever designs and two finishes
  • The rose fits 50mm or 54mm diameter holes making it suitable for retrofit and common door preparations
  • Rose Dimensions: 63mm by 12.5mm
  • Door Thickness: Hinged doors 32mm to 45mm
