D&D Technologies TruClose® Multi-Adjust™ Heavy Duty Series 3
ASSA ABLOY
All products

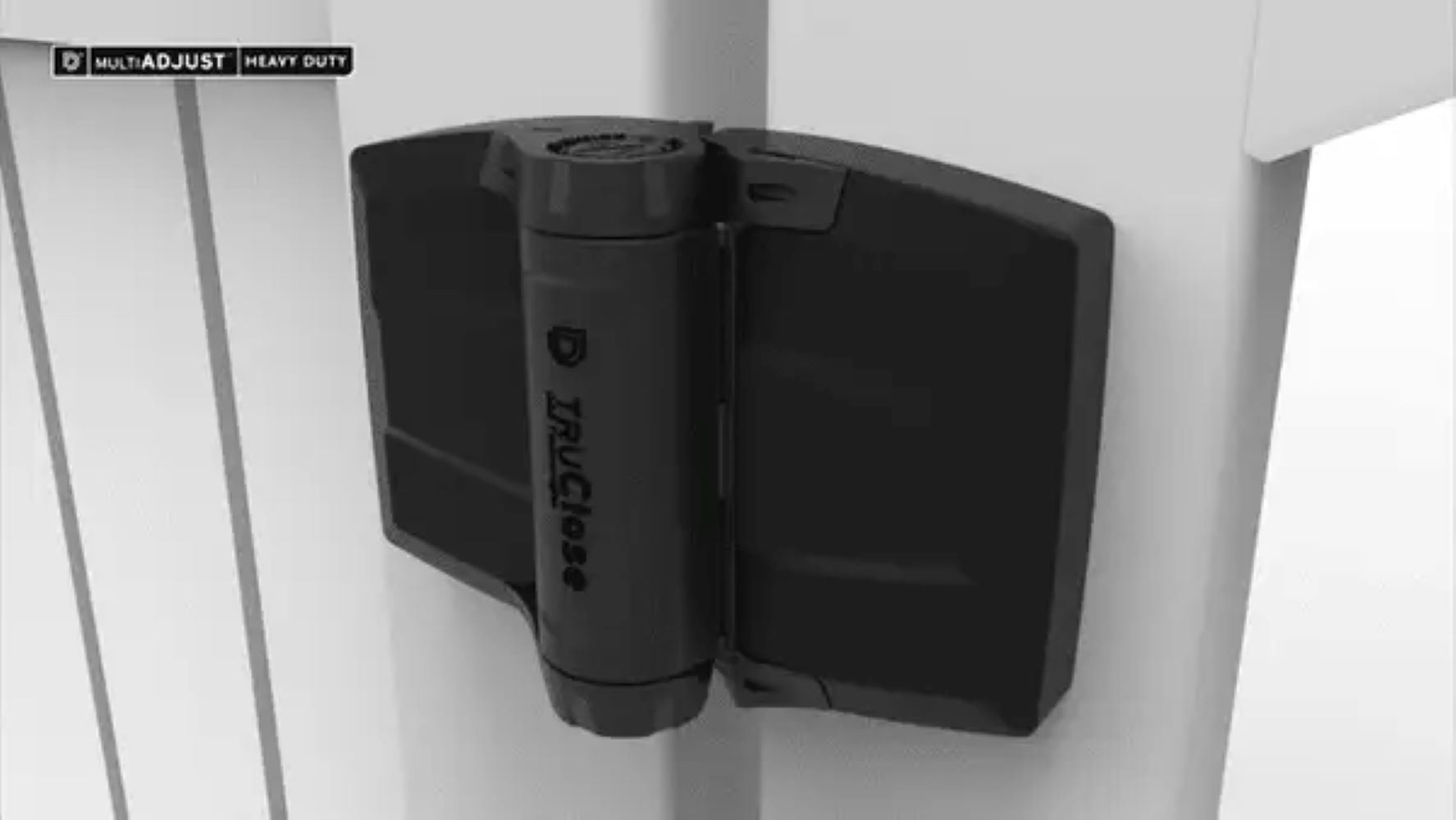

TCHDMA1S3e 600x

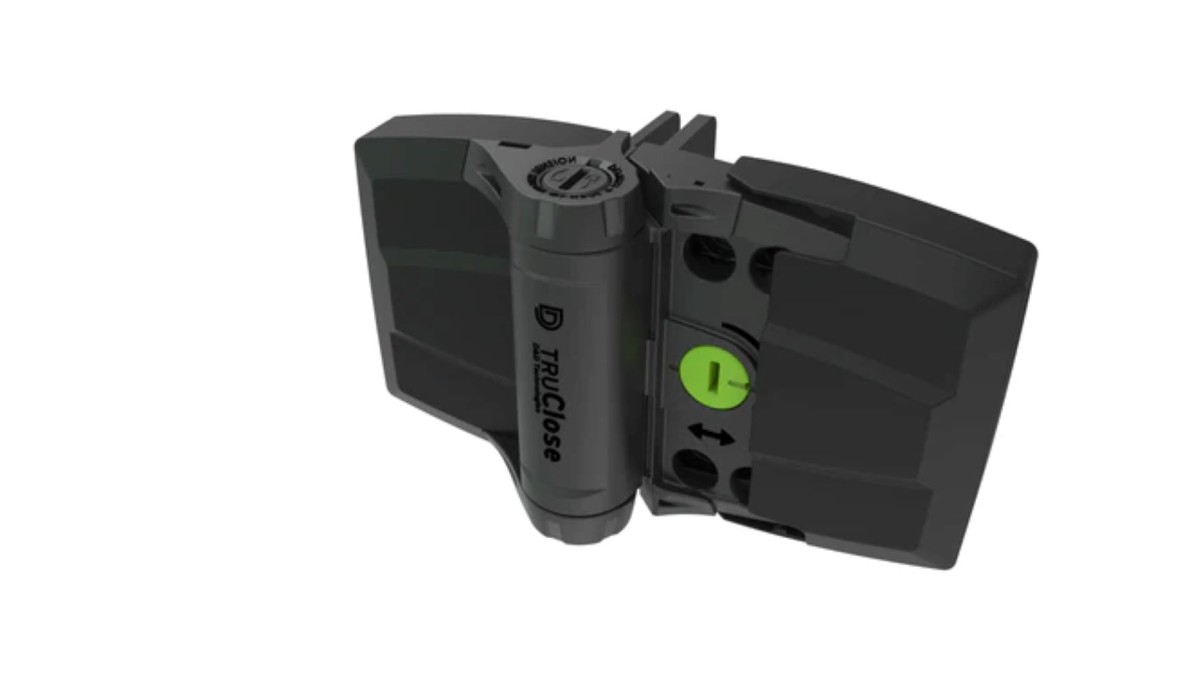

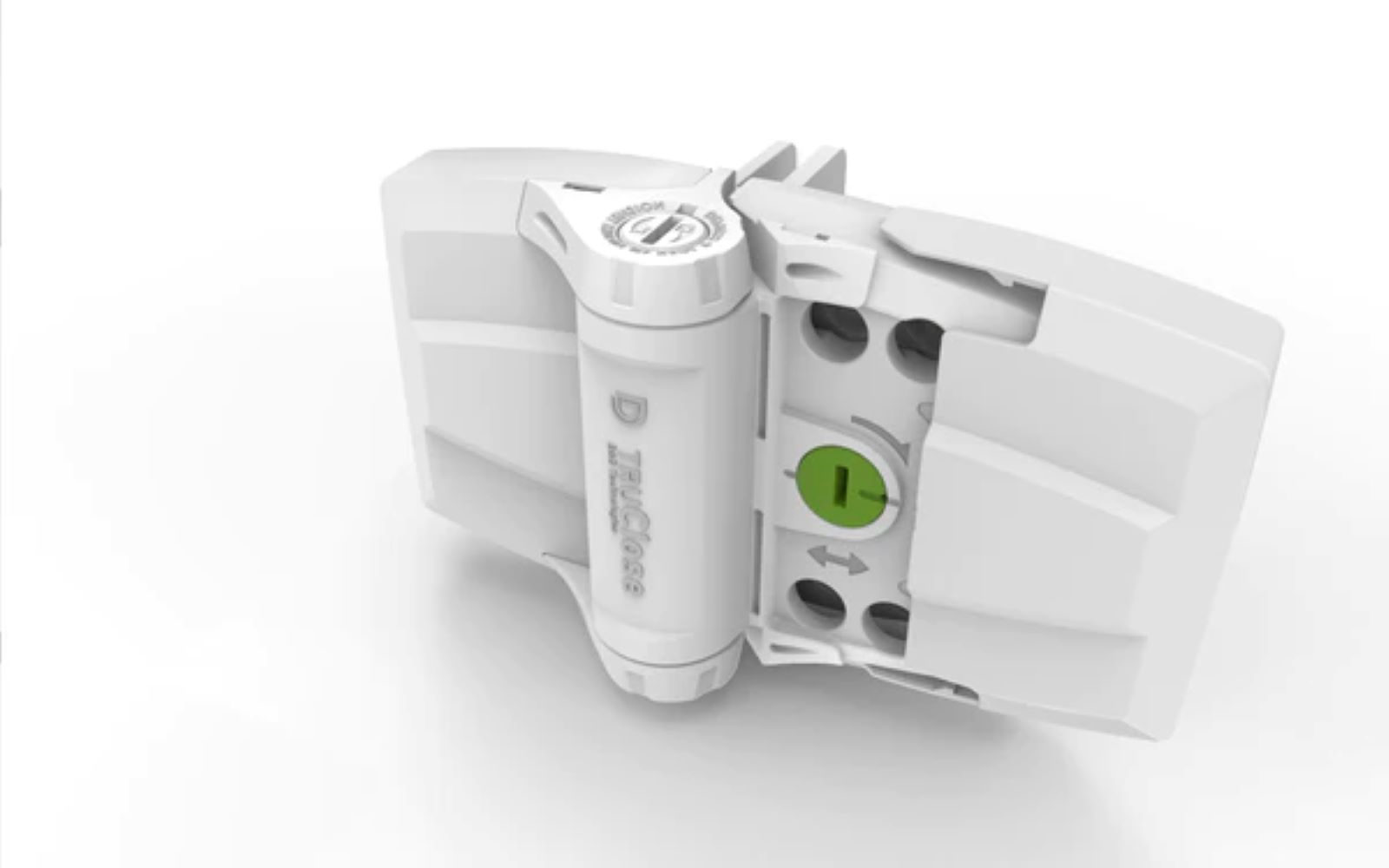

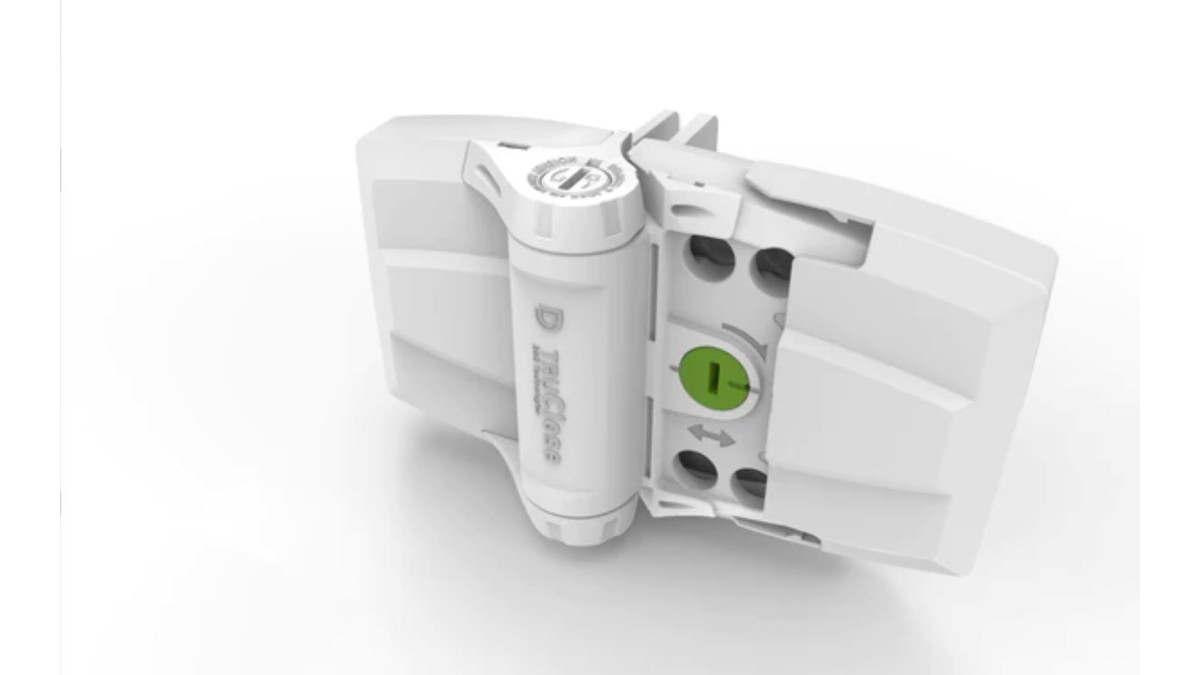

TCHDMAS3isotoprightwhitecoverhalfoff1 600x

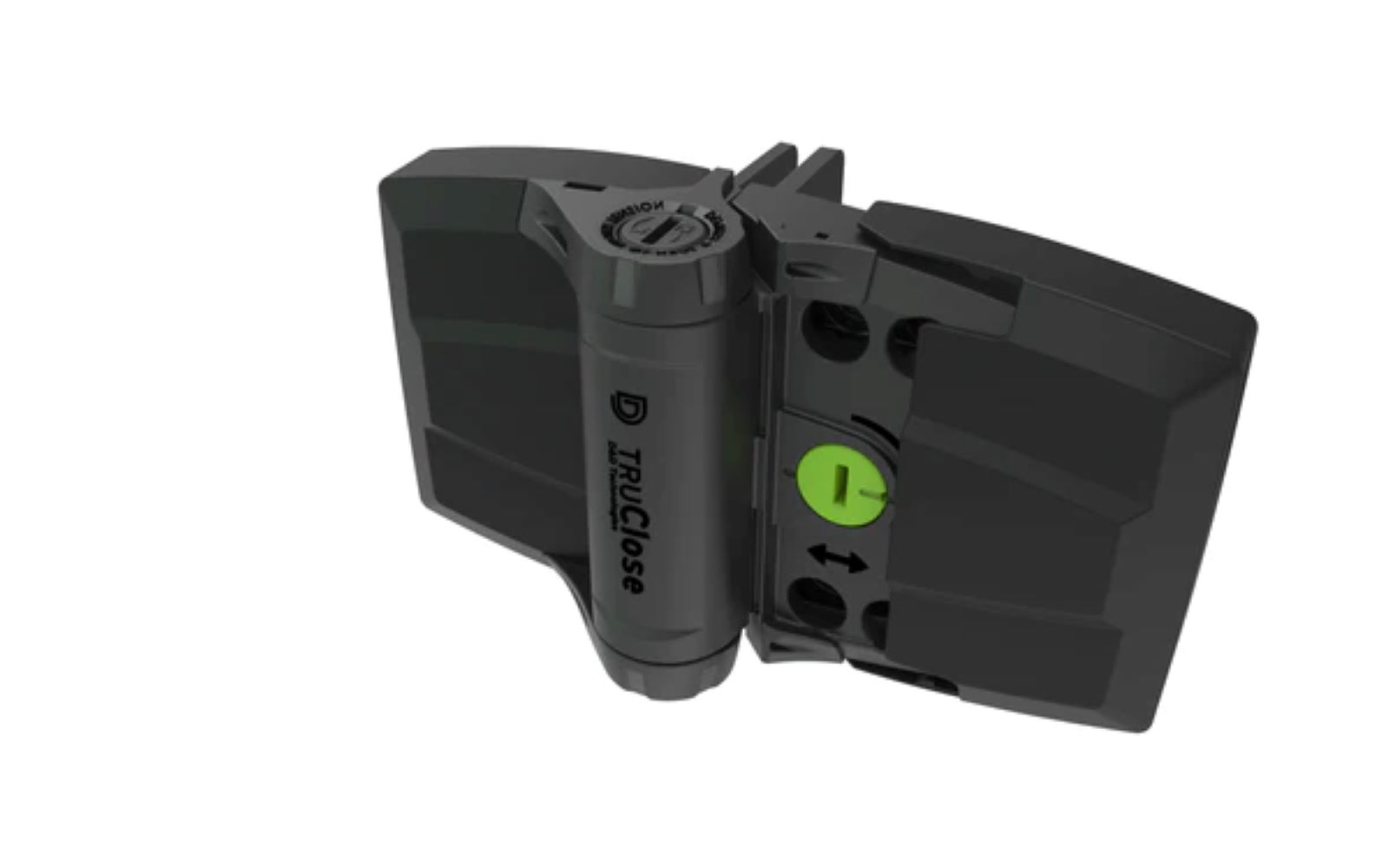

TCHDMAS3isotoprightcoverhalfoff1 600x

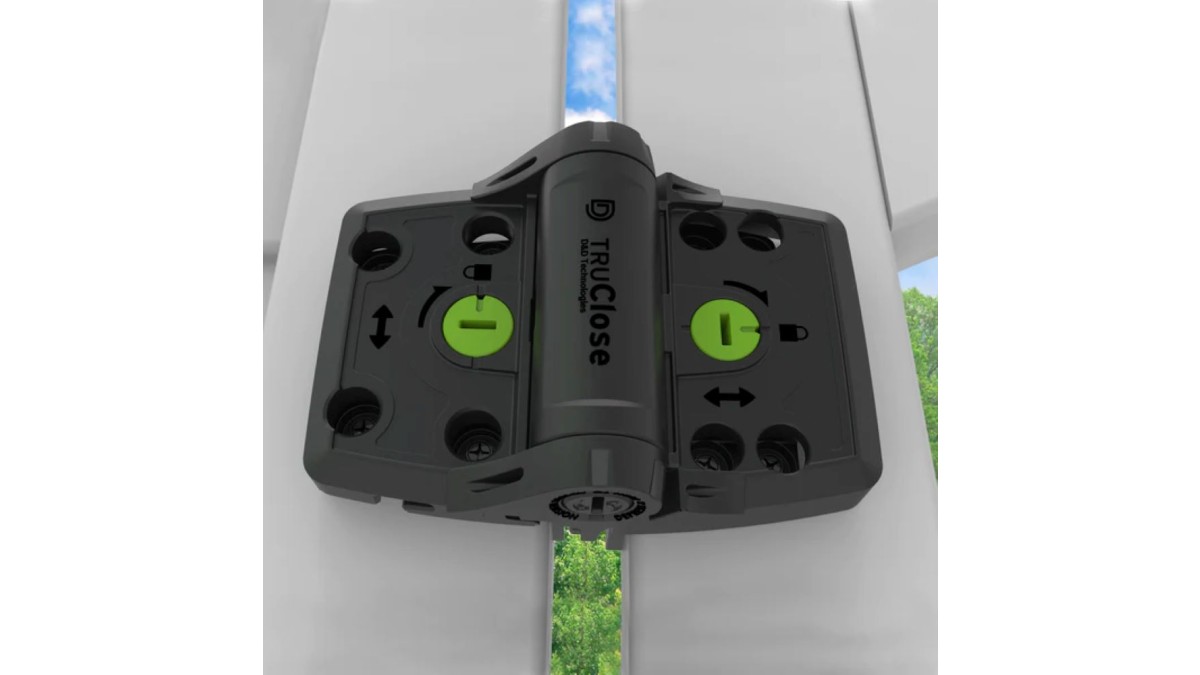

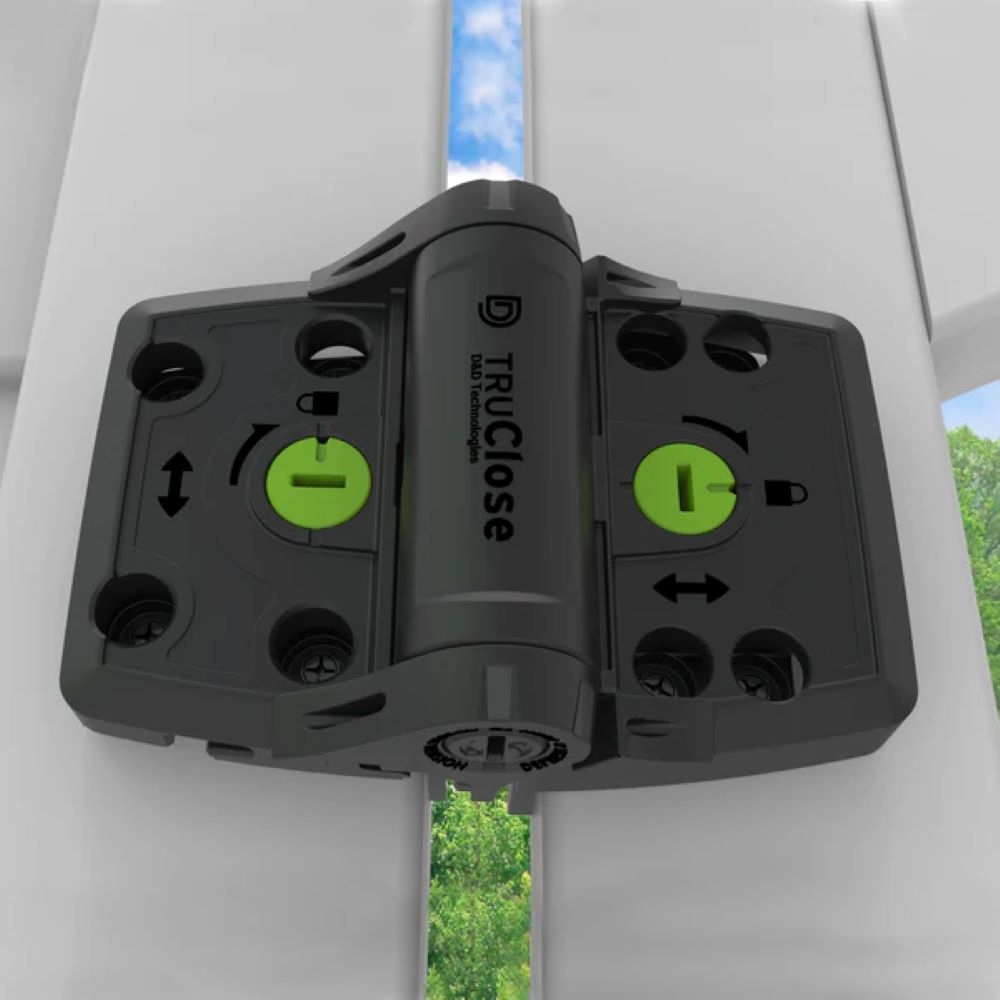

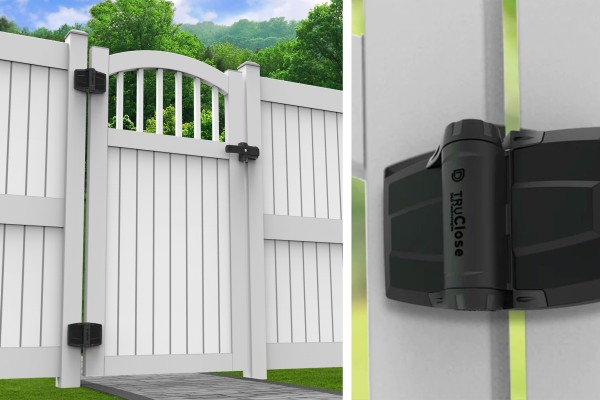

ddtech TruClose multiadjust TCHDMAS3 insitu 600x

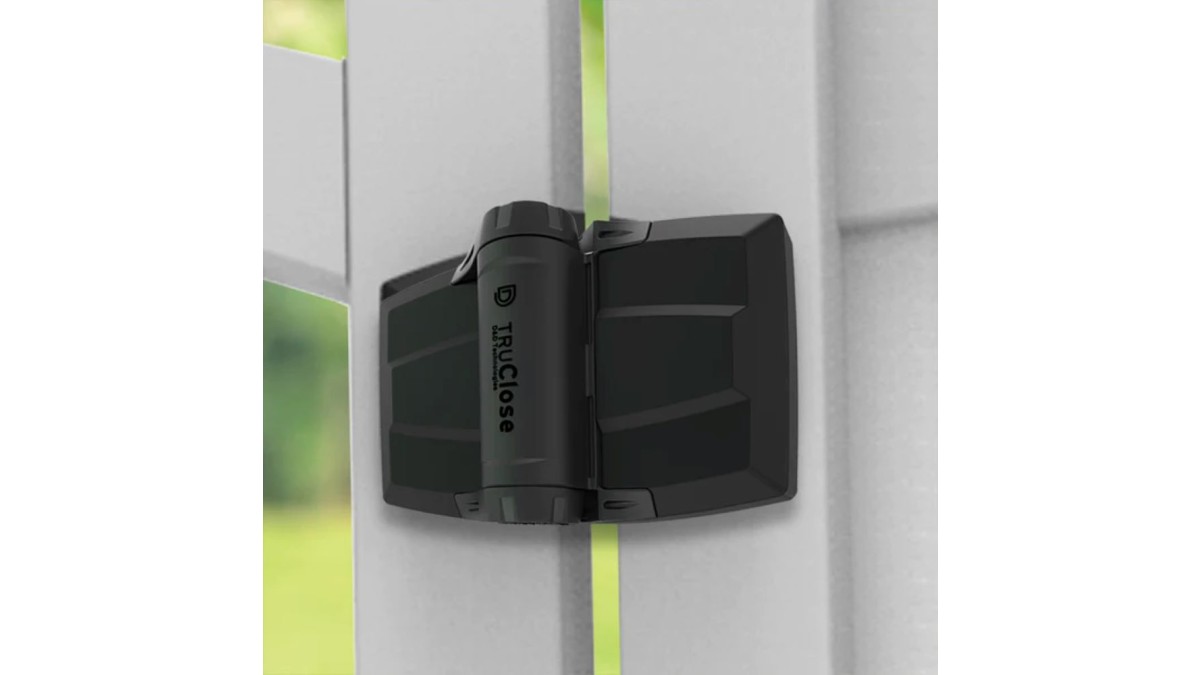

ddtech TCHDMAS3BT truclose multiadjust hero 2 600x
Description

TruClose® Gate Hinges are the world's most trusted gate hinges. These polymer and stainless steel hinges were devised to overcome all the problems associated with conventional gate hinges — rust, binding, sagging and staining. Ideal for heavy or high-traffic vinyl or composite gates and will self-close gates weighing up to 70kg.

  • TCHDMA1S3BT, TCHDMA1S3WT
Key Features
  • Patented 3-in-1 adjustment, solves gate sag for good
  • Gate gap variance from 16-43mm
  • Self-closes vinyl & composite gates up 70kg
  • Won’t rust, bind, sag or stain
  • Made from super-strong engineered polymer
  • Internal stainless steel spring and components
  • UV stabilised, self-lubricating durability
  • Colour/Finish: Black, White
  • Only one person needed to hang large gates
  • Independently tested to comply with AS1926 -12 standards
  • Australian made
  • Lifetime warranty
  • Product Code: TCHDMA1S3BT, TCHDMA1S3WT
Categories
Hinges and Runners Fencing, Walling and Gates
Ranges
Gate Hardware
Scope of Use

Tension adjustable, self-closing hinges with easy vertical and horizontal adjustments, ideal for heavy or high-traffic vinyl or composite gates and will self-close gates weighing up to 70kg. Only one person needed to hang large gates.

  • Gate Application: Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Public/Commercial Gate, Security Gate, Privacy Gate
  • Gate Type: Self-Closing
  • Gate Material: Vinyl/PVC
  • Self-Closing Gate Weight: Up to 70kg
  • Approx Gate Size: 1m H x 1.8m W
  • Gate Frame/Post Shape: Square-to-Square
  • Min Post Size: 70mm+
  • Ideal Gate Gap: 25mm
  • Fixing Method: Screw-On
Other Performance Attributes
  • Independently tested to comply with AS1926-12 standards
  • Lifetime warranty
  • UV stabilised, self-lubricating durability
  • News
Documents
Fitting/Installation Instructions
pdf
