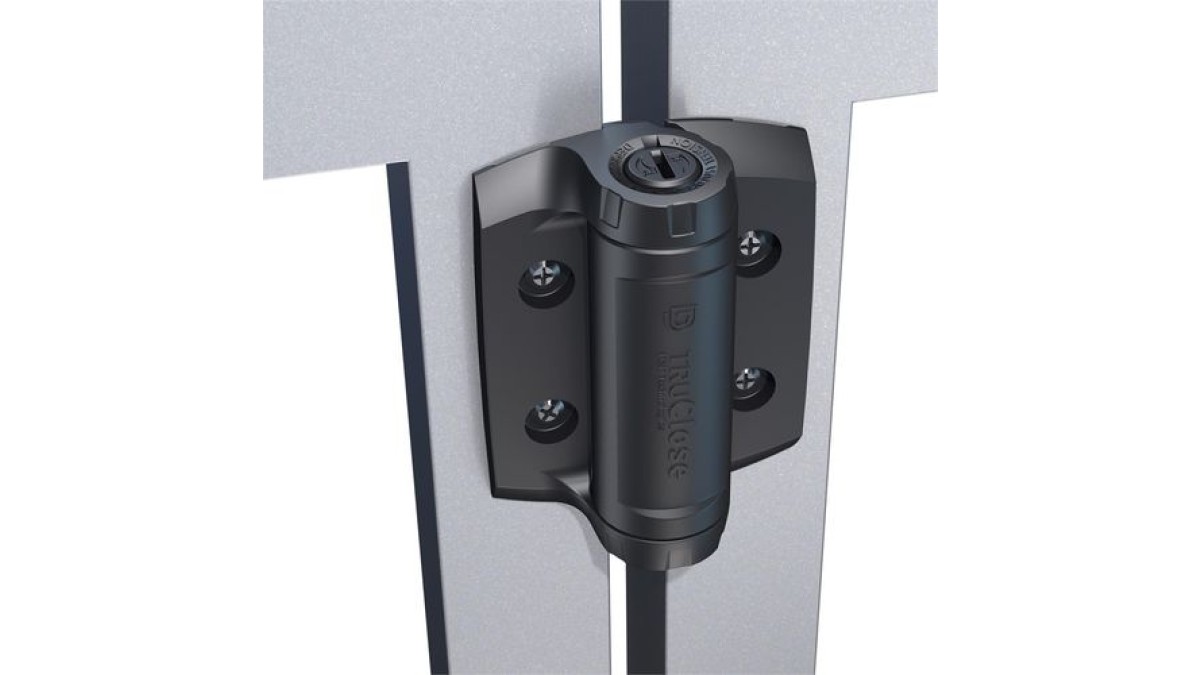

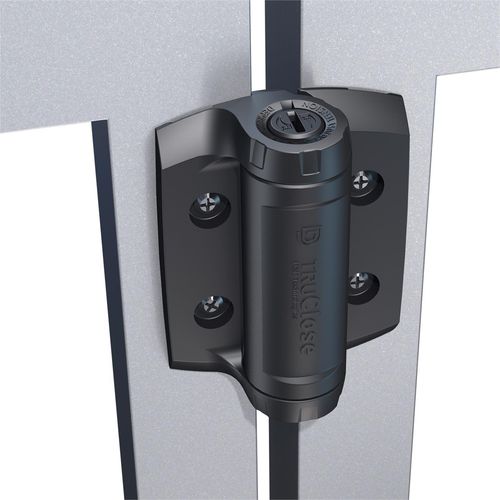

D&D Technologies Truclose® Heavy Duty Hinge For Wood & Vinyl Gates
ASSA ABLOY
All products
TCHD2LS3
Description
TruClose® Safety Gate Hinges are trusted child safety gate hinges. These polymer hinges were devised to overcome all the problems associated with conventional gate hinges rust, binding, sagging and staining. The TruClose Heavy Duty range of hinges are designed for heavy or high-traffic gates weighing up to 70kg.
The engineering-grade polymers and a stainless-steel closing spring deliver hinges designed to last a lifetime. Due to a high degree of safety and reliability, TruClose hinges are ideal for child safety gates around swimming pools, childcare centres, schools, homes, playgrounds and hotels/resorts.
TruClose hinges are quick and easy to install and to adjust for self-closing speed. They come standard with Black trim covers, which means there are no visible fasteners. Optional Polished or Chrome metallic trim covers are also available. The TruClose® Heavy Duty hinges come in a range of other options, including some with side-fixing legs (to assist speedy installation and extra fixing strength), a MultiAdjust version offering remarkable 3-way adjustment (vertical, horizontal and tension adjustment) and a version for round-posted gates and fences (such as on tennis court gates). D&D has sold millions of these award-winning TruClose® Safety Gate Hinges worldwide.
  • Product Code: TCHD2LS3
  • Gate Type: Self-Closing
  • Gate Material: Wood, Vinyl/PVC
  • Self-Closing Gate Weight: Up to 70kg
  • Approx Gate Size: 1.2m W x 1.8m H
  • Gate Frame/Post Shape: Square-to-Square
  • Min Post Size: 78mm+
  • Ideal Gate Gap: 19mm
  • Fixing Method: Screw-On
  • Colour/Finish: Black, Brushed Metallic, Polished Metallic
Key Features
  • Wide leafs for extra strength when fixing for heavy wood gates to wood posts
  • For safety gates install a hinge safety cap (optional)
  • Quick and easy to install
  • Self-closes gates up 70kg
  • Won’t rust, bind, sag or stain
  • Simple, adjustable closing tension (from either end of hinge)
  • Super-strong polymer and stainless steel construction
  • UV-stabilised and self-lubricating durability
  • Gloss black, decorative trim covers (no visible fasteners)
  • 1 or 2 side-fixing legs for faster alignment & added strength
  • Australian Made and Owned
  • Lifetime Warranty
Categories
Hinges and Runners Fencing, Walling and Gates Pool Fencing
Ranges
Gate Hardware
Scope of Use

Self-closing hinges for high-traffic & safety gates, self-closes gates up to 70kg.

  • Gate Application: Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate
  • Gate Type: Self-Closing
  • Gate Material: Wood, Vinyl/PVC
  • Self-Closing Gate Weight: Up to 70kg (154lbs)
  • Approx Gate Size: 1.2m W x 1.8m H (4ft x 6ft)
  • Gate Frame/Post Shape: Square-to-Square
  • Min Post Size: 78mm+
  • Ideal Gate Gap: 19mm
  • Fixing Method: Screw-On
Limitations on Use
  • When installing TruClose® hinges to a swimming pool gate always confirm any safety requirements with  local Council or safety authorities to ensure compliance
Other Performance Attributes
  • Won’t rust, bind, sag or stain
  • Super-strong polymer and stainless steel construction
  • UV-stabilised and self-lubricating durability
  • Lifetime warranty
