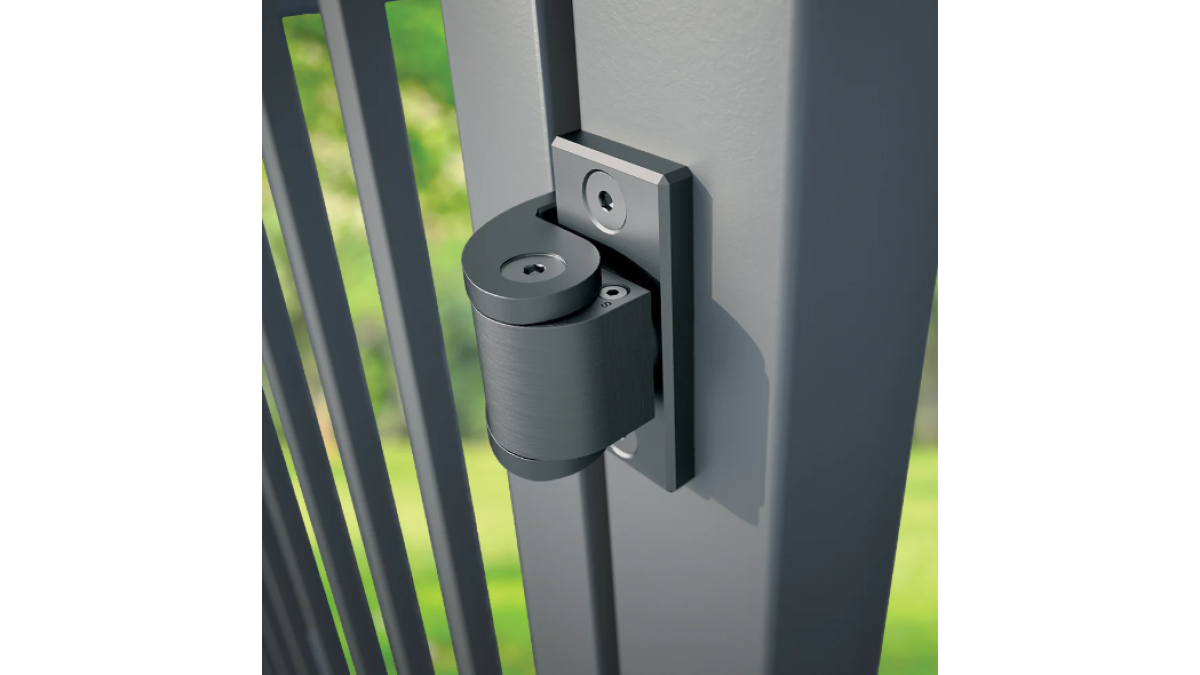

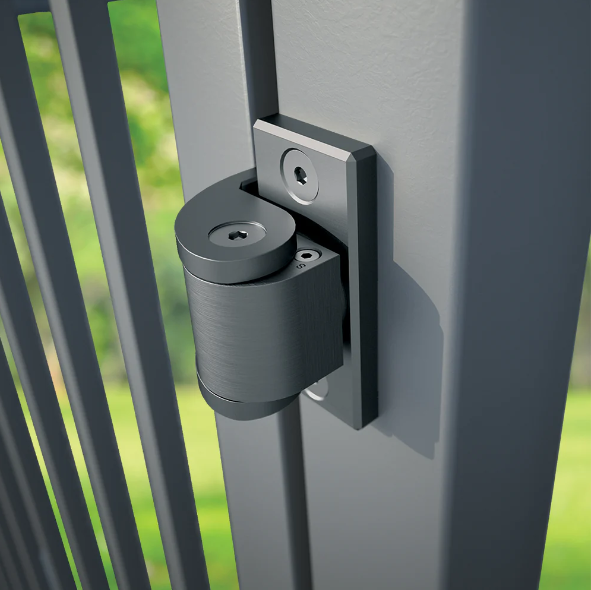

D&D Technologies Sureclose® Flush Mount Hinges & Hinge Closer
Description

Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges. SureClose 108 and 57 models are concealed hydraulic gate closers.

The models feature Final Snap-Close Action (FSA) which increases speed at the end of closing to overcome electric or coded locks. Both Closing Speed and Final Snap are adjustable using the supplied adjustment tool. Designed to never leak hydraulic fluid, the SureClose 108 or 57 are extremely safe and do not offer resistance if closed quickly in an emergency. Soft, quiet closure also protects the latching/locking system. SureClose 108SF and 57SF models are suitable for pool and safety gates. SF models open to and self-close from 90 degrees — no hold-open feature. All SureClose hinges and closers come packaged with the gate mounting bracket included.

Key Features
  • Maintenance-free
  • Self-Closes gates up to 120kg
  • Will not hold gates open at 90°
  • Multiple adjustment options
  • Prevents gate slam noise & gate damage
  • High corrosion resistance
  • 50 Micron anodised (Aluminium Components)
  • 5 Year Limited Warranty
Scope of Use

Internally Mounted, Hydraulic, Gate Hinge-Closer

Gate Application: Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate

Limitations on Use

When installing this hinge to a swimming pool gate always confirm any safety requirements with your local Council or authorities to ensure compliance.

Other Performance Attributes
  • Brand: SureClose®
  • Product Code: 75057223-75057224-75108223-75108224
  • Gate Type: Self-Closing
  • Gate Material: Aluminium, Steel/Ornamental Iron
  • Self-Closing Gate Weight: Up to 120kg
  • Approx Gate Size: 1.2m W x 1.8m H
  • Gate Frame/Post Shape: Square-to-Square
  • Min Post Size: 55mm+
  • Ideal Gate Gap: 13mm
  • Fixing Method: Screw-On, Bolt-On, Weld-On
  • Colour/Finish: Black Anodised
