D&D Technologies Shut it® Stainless Steel Badass Gate Hinge
ASSA ABLOY
All products
C13800 v2
Description

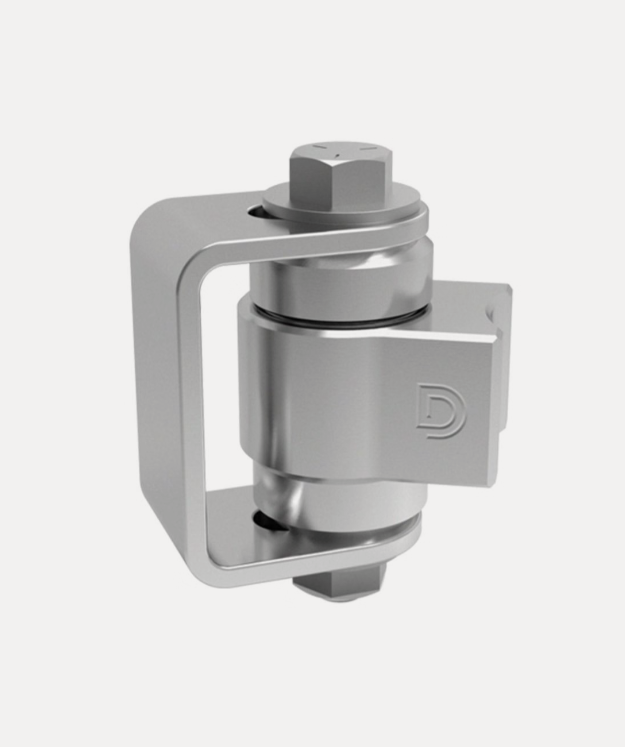

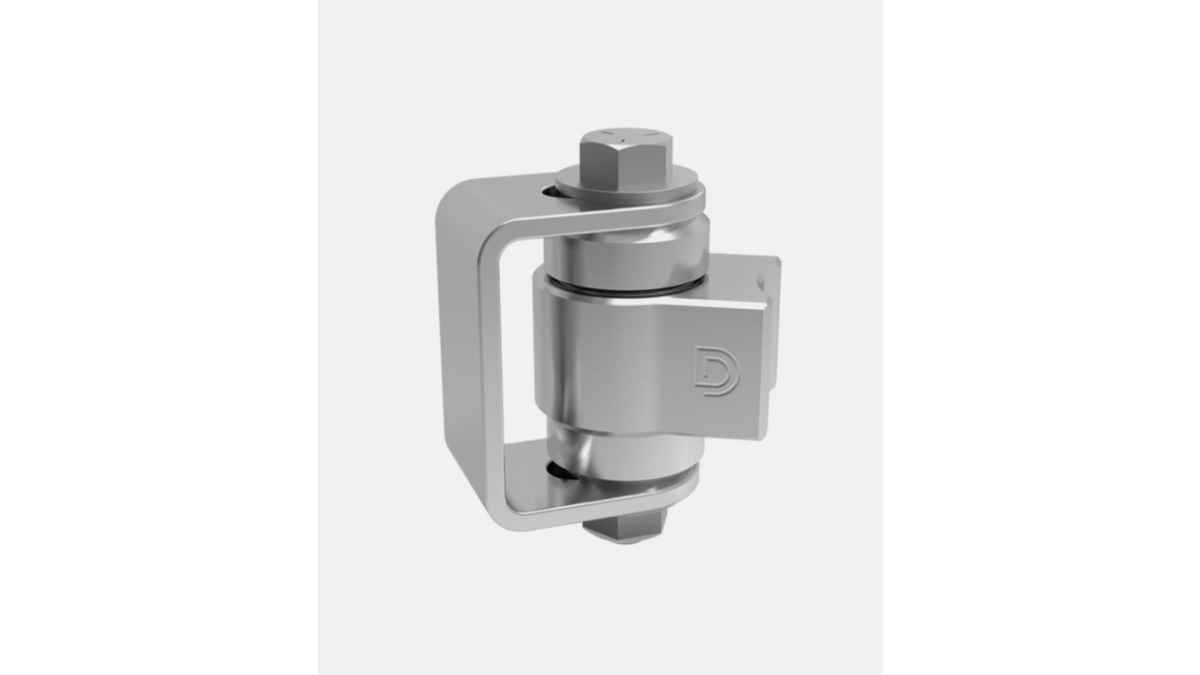

Shut it® Stainless Steel Badass Gate Hinge is CNC machined to the tightest tolerances in the industry. This hinge uses stainless steel for all the components including the bearings.

  • Product Code: C13800
  • Gate Type: Non Self-Closing
  • Gate Material: Steel/ Ornamental Iron
  • Approx Gate Size 2m H x 3m W
  • Gate Frame/Post Shape: Square to Square, Square to round
  • Min Post Size: 38mm
  • Ideal Gate Gap: 61-74mm
  • Fixing Method: Weld On
    Colour/ Finish: Stainless Steel
Key Features
  • 304 stainless steel including the bearings, shaft (bolt), washers and lock nut
  • Two sealed maintenance-free bearings (no greasing)
  • Adjustable yoke for perfect installations
  • Ideal for both square and round post installations
  • Load rating per gate: 900kg
  • Maximum gate weight: 500kg
Categories
Hinges, Drawers and Runners Fencing, Walling and Gates
Ranges
Gate Hardware
Scope of Use

Non self-closing, high performance gate hinge.

  • Pedestrian Gate
  • Driveway Gate — single or double
  • Pet Gate
  • Playground Gate
  • Public/Commercial Gate
  • Automated/Electric Gate
  • Security Gate
  • Privacy Gate

Installation:

  • Approx Gate Size 2m H x 3m W
  • Gate Frame/Post Shape: Square to Square, Square to round
  • Min Post Size: 38mm
  • Ideal Gate Gap: 61-74mm
  • Fixing Method: Weld On
Limitations on Use
  • Load rating per gate: 900kg
  • Maximum gate weight: 500kg
Other Performance Attributes
  • 304 stainless steel including the bearings, shaft (bolt), washers and lock nut
  • Two sealed maintenance-free bearings (no greasing)

ASSA ABLOY specialise in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
