D&D Technologies Shut it® Round Bolt-On Badass Hinge
ASSA ABLOY
All products
shutit badass 4 round bolt on ci2051 hero2 ddtech
CI2051
shutit badass 4 round bolt on ci2051 etch ddtech
CI2051
shutit badass 6 round bolt on ci2053 etch ddtech
CI2053
Description

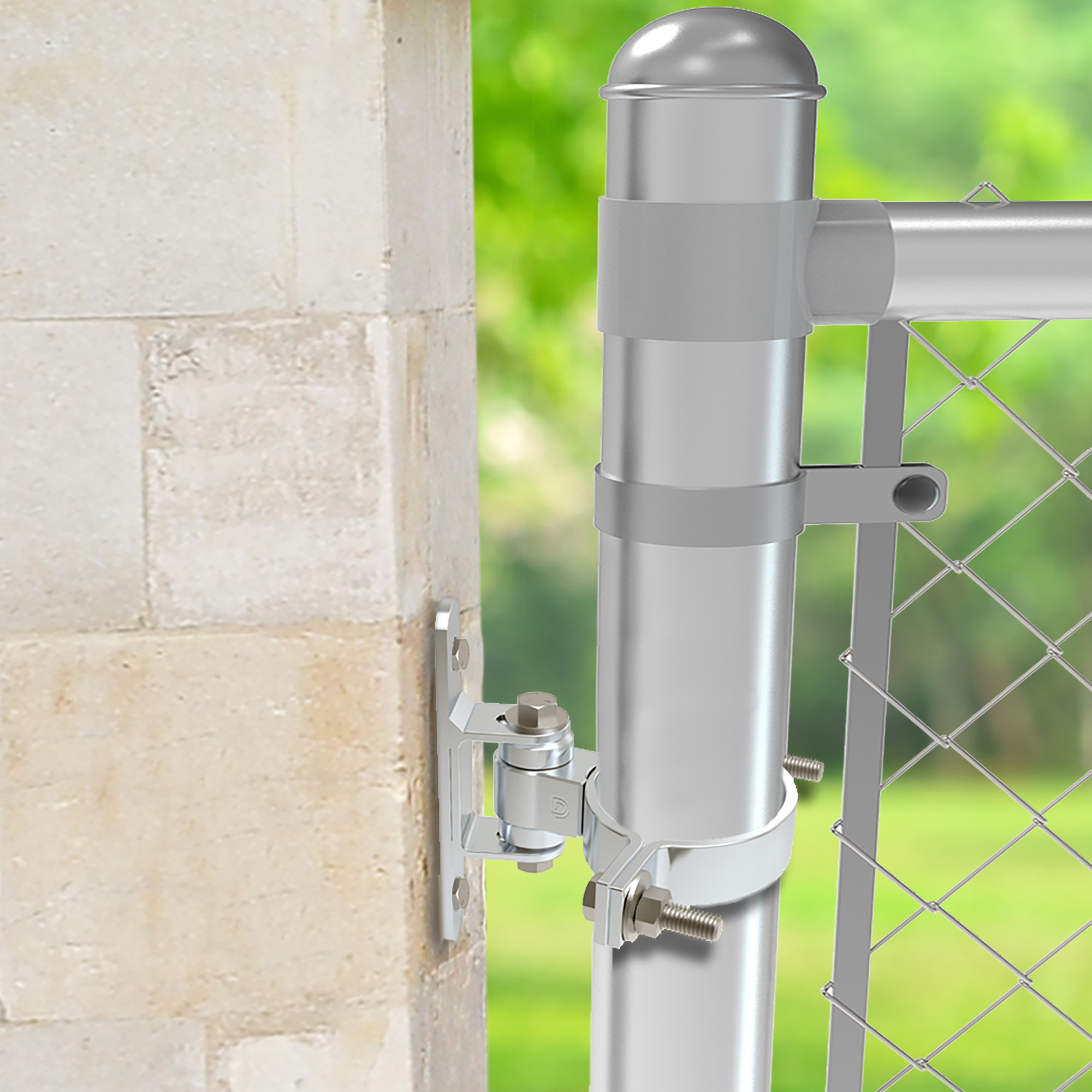

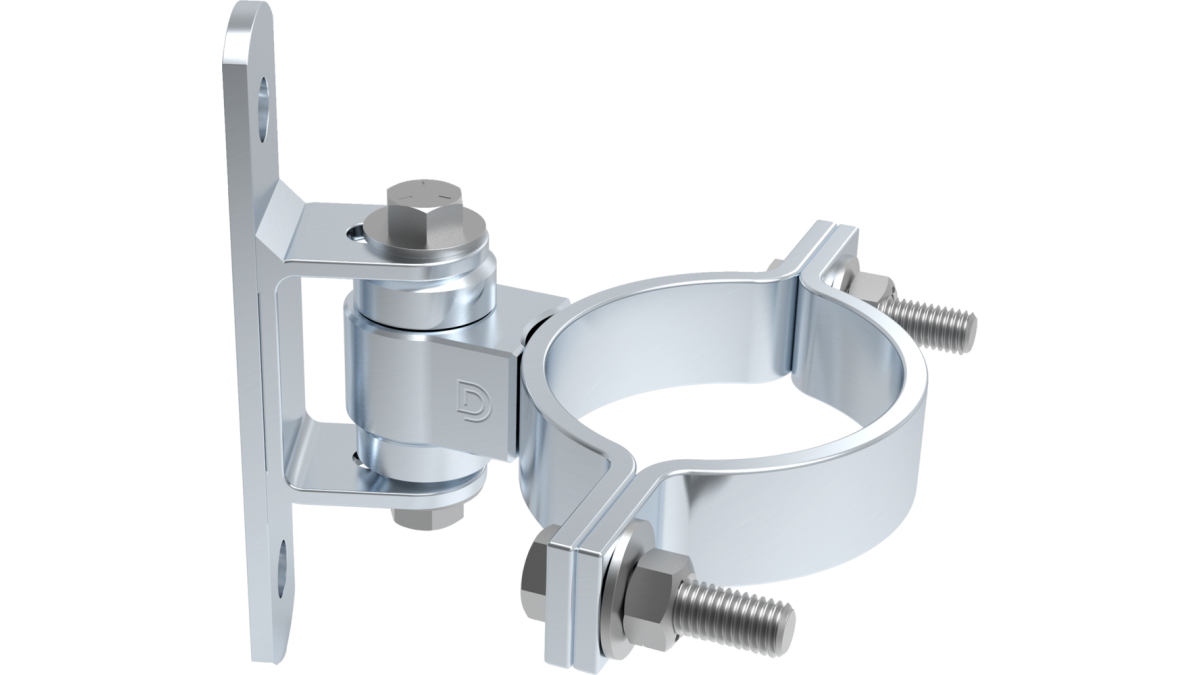

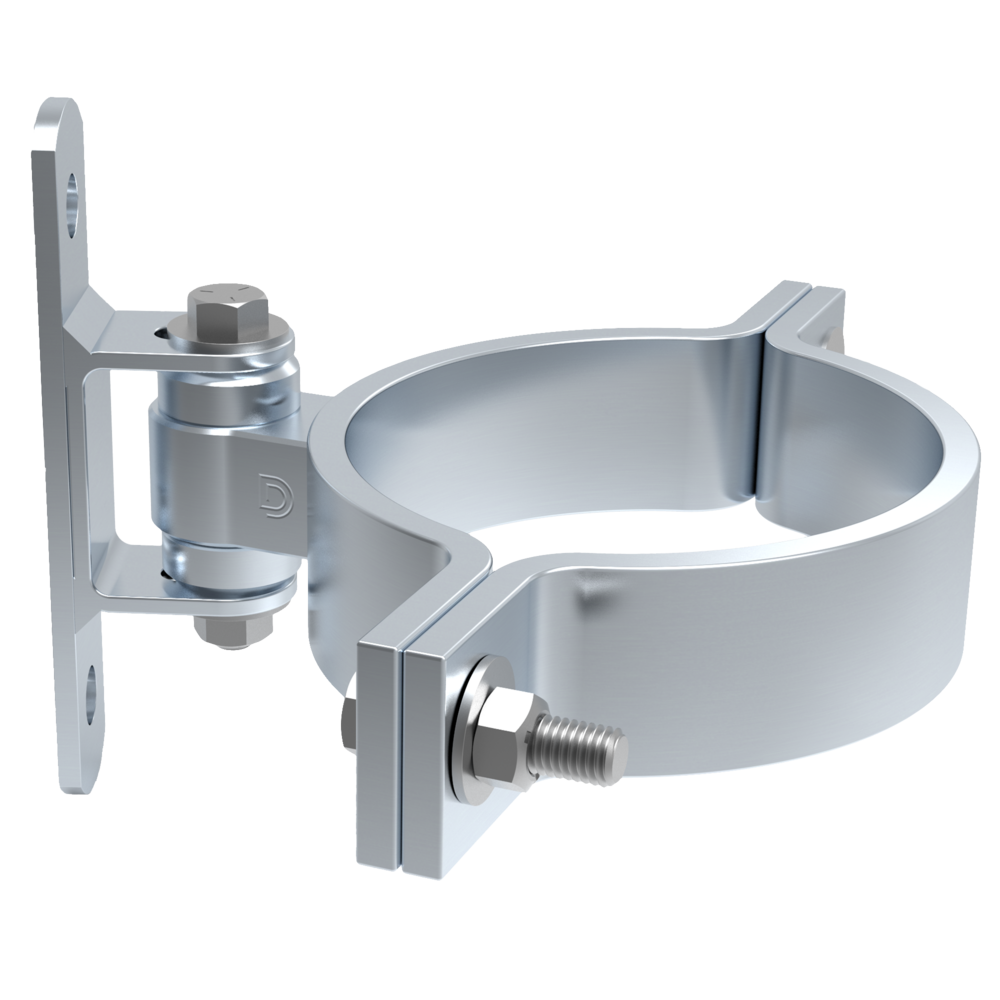

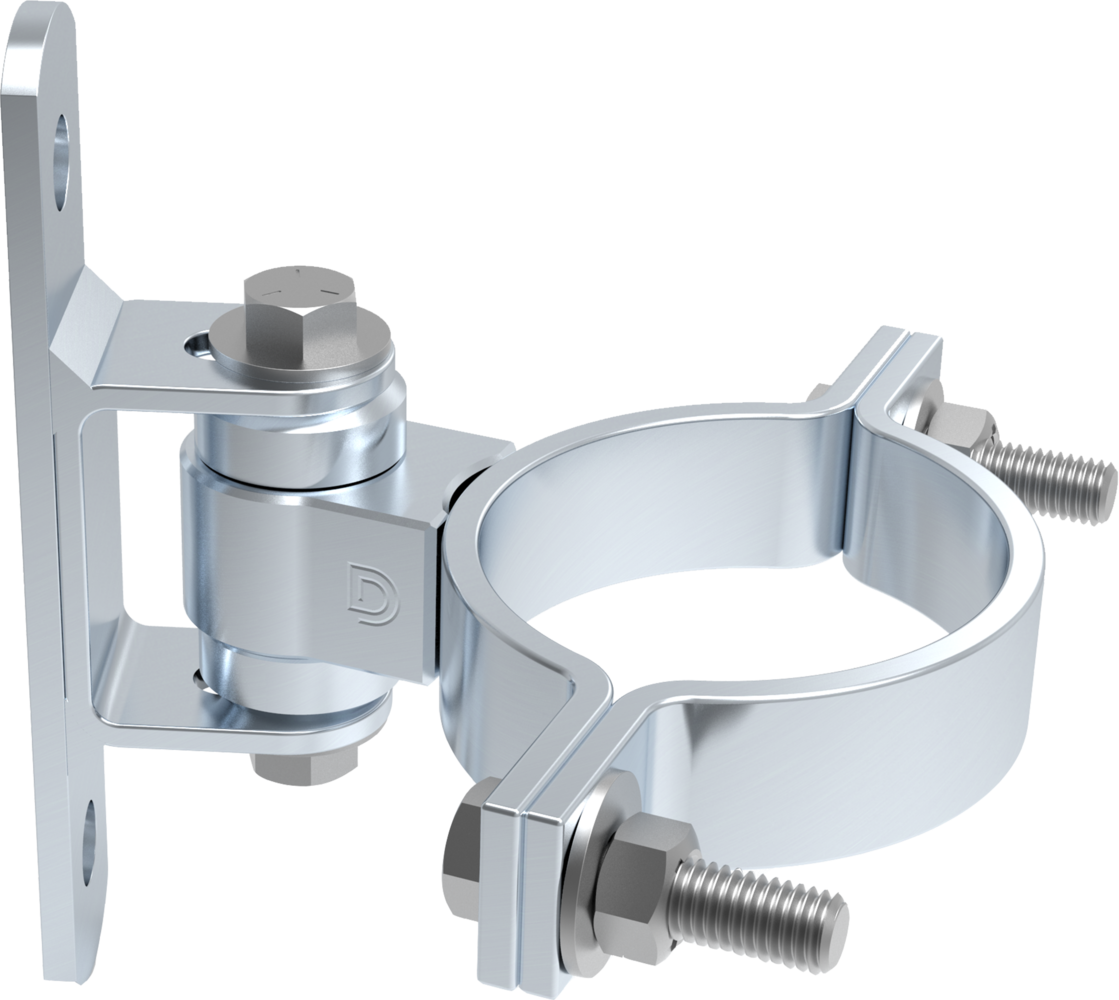

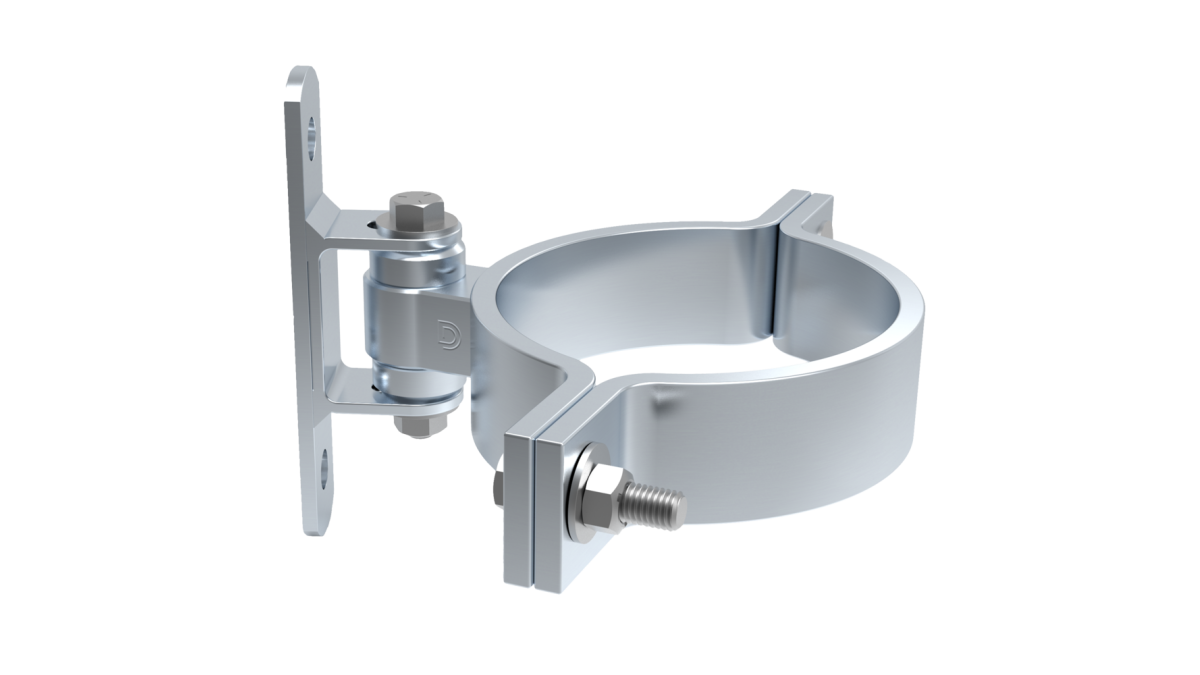

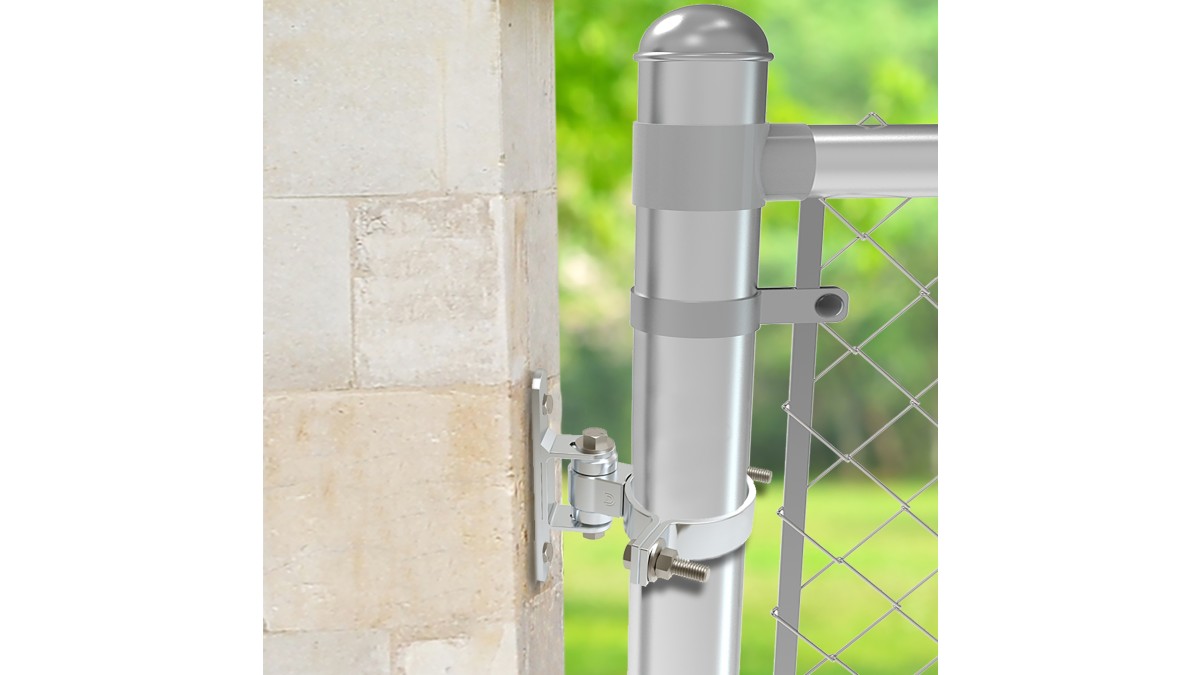

Shut it® Round Bolt-On Badass Hinge are CNC machined to the tightest tolerances in the industry. The 102mm & 152mm Round Bolt-On Hinges are designed to strap round posts to a flat gate frame. The Bolt-On BadAsses produce near frictionless movement with maintenance free usage.

  • Product Code: CI2051-CI2053
  • Gate Type: Non-Self-Closing
  • Gate Material: Steel/ Ornamental Iron
  • Approx Gate Size: 2m H x 3m W
  • Gate Frame/ Post Shape: Square-to-Round
  • Ideal Gate Gap: 69-81mm
  • Fixing Method: Bolt-On
  • Colour/Finish: Zinc
Key Features
  • Bolt-on hinges for the round to square posts
  • Two sealed maintenance-free bearings
  • For square to round post
  • Adjustable barrel for precise installations
  • Flat, bolt-on brackets for through bolting
  • Zinc plated
  • Load rating per gate: 900kg
  • Maximum gate weight: 450kg
Categories
Hinges, Drawers and Runners Fencing, Walling and Gates
Ranges
Gate Hardware
Scope of Use

Non self-closing gate hinge, designed to strap round posts to a flat gate frame.

  • Pedestrian Gate
  • Driveway Gate — single or double
  • Pet Gate
  • Playground Gate
  • Public/Commercial Gate
  • Automated/Electric Gate
  • Security Gate
  • Privacy Gate

Installation:

  • Approx Gate Size: 2m H x 3m W
  • Gate Frame/ Post Shape: Square-to-Round
  • Ideal Gate Gap: 69-81mm
  • Fixing Method: Bolt-On
Limitations on Use
  • Load rating per gate: 900kg
  • Maximum gate weight: 450kg
Other Performance Attributes
  • Near frictionless movement
  • Two sealed maintenance-free bearings

ASSA ABLOY specialise in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
