D&D Technologies Shut it® Original Badass Gate Hinge
ASSA ABLOY
All products

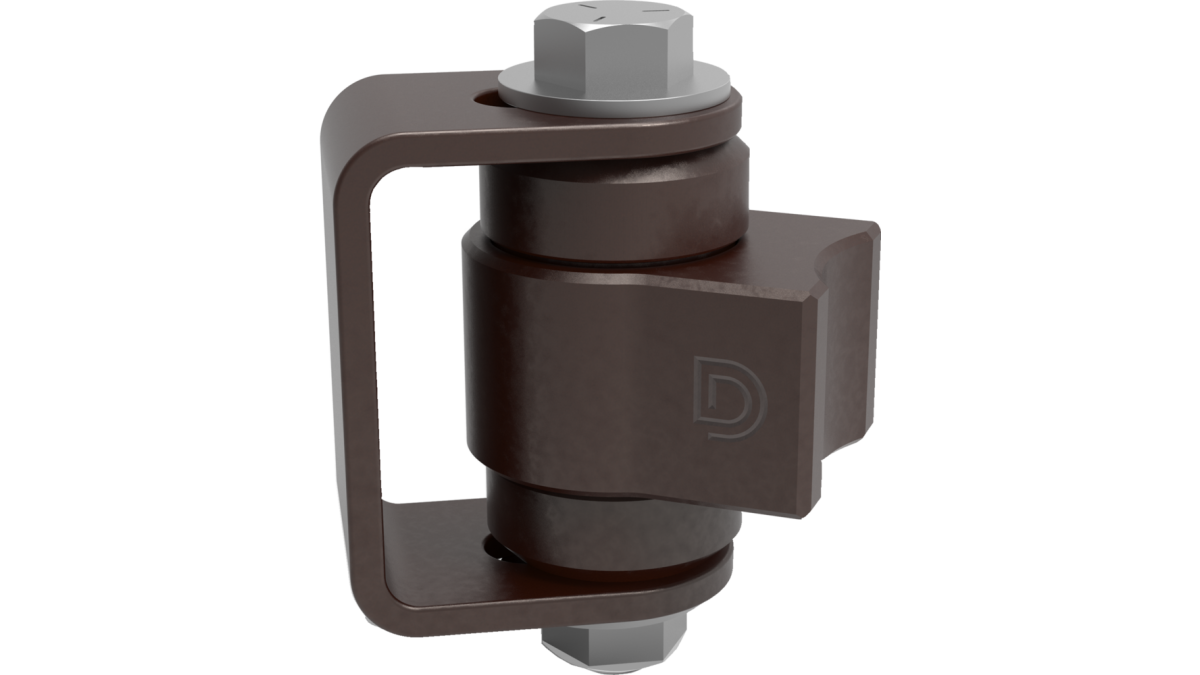

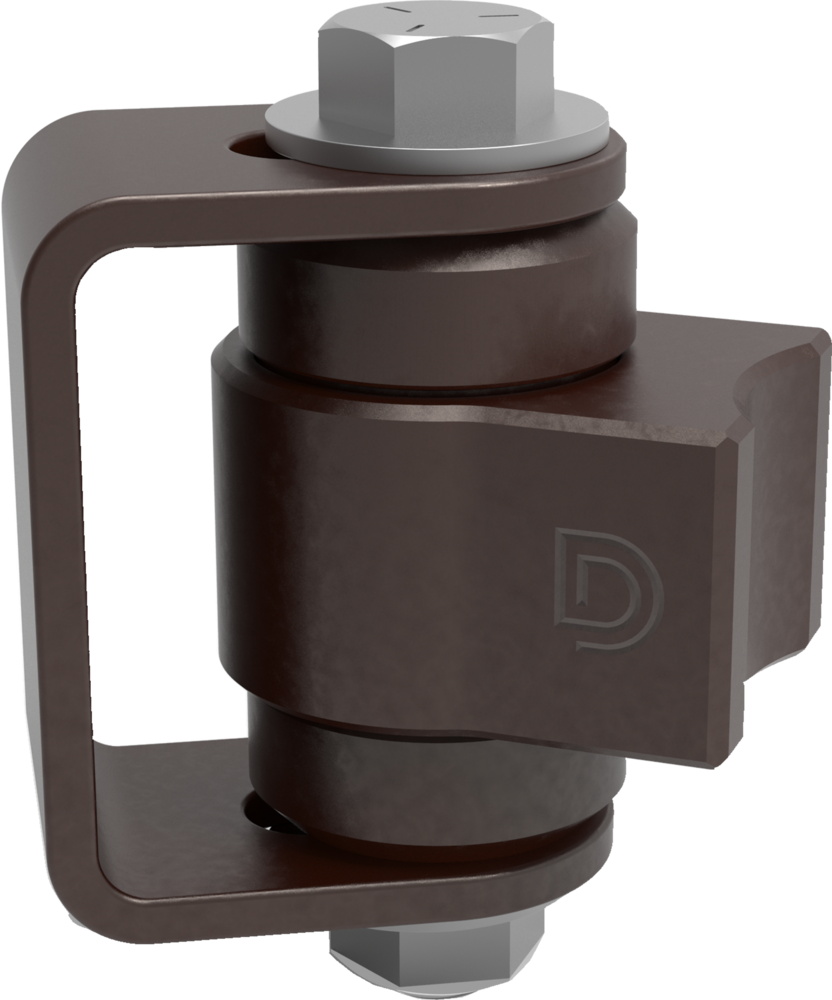

shutit badass original rusted ci3100 etch ddtech

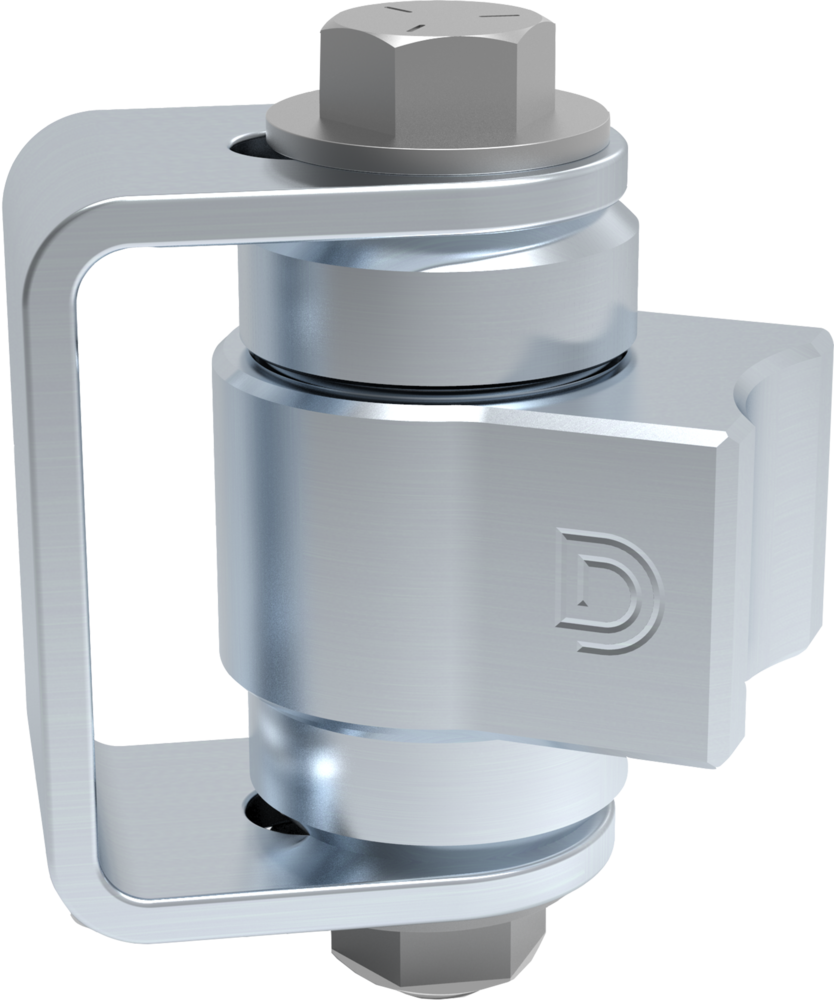

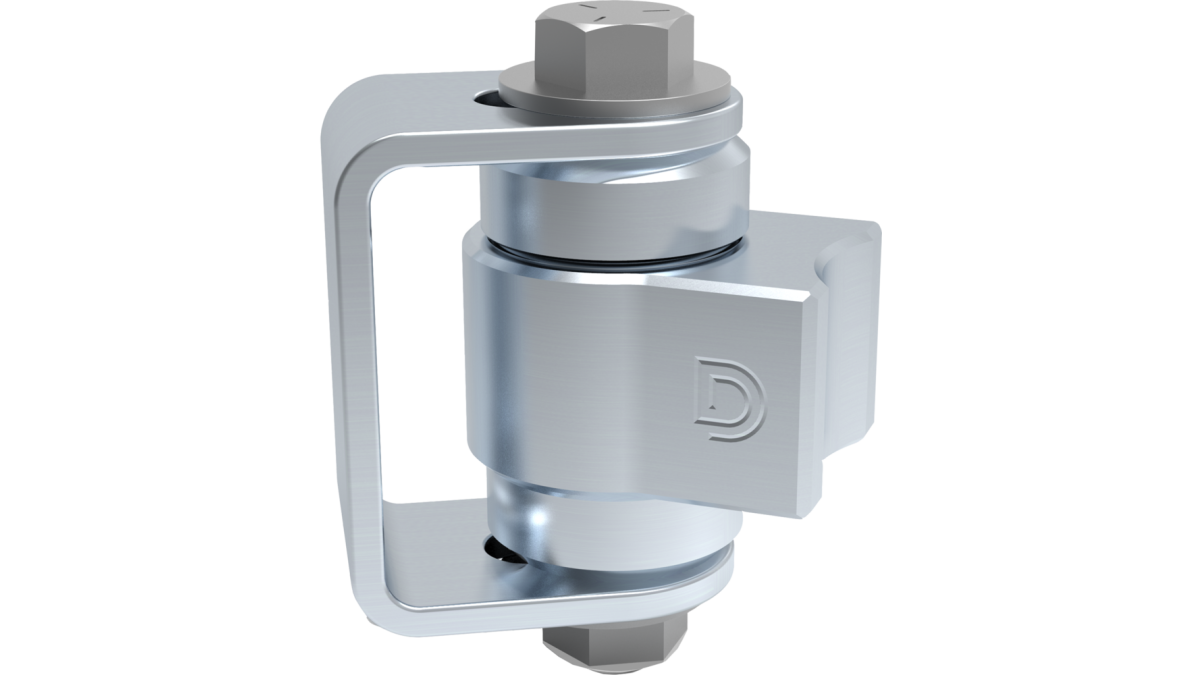

shutit badass original ci3000 etch ddtech
Description

Shut it® Original Badass Gate Hinge is CNC machined to the tightest tolerances in the industry. Due to Shut It's unique bushing design, the original like all other shut-it gates hinges produces near frictionless movement with maintenance-free usage.



Key Features
  • Available in Steel or Rusted Finish
  • Adjustable bracket for precise installations
  • Two sealed maintenance-free bearings
  • Ideal for both flat and round post installations
  • Load rating per gate: 900kg
  • Maximum gate weight: 500kg
Categories
Hinges, Drawers and Runners Fencing, Walling and Gates
Ranges
Gate Hardware
Other Performance Attributes
  • Product Code - CI3000-CI3100
  • Gate Application - Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
  • Gate Type - Non Self-Closing
  • Gate Material - Aluminium, Steel/ Ornamental iron
  • Approx Gate Size - 2m H x 3m W
  • Gate Frame/ Post Shape - Square to Square, Square to round
  • Min Post Size (mm) - 38mm
  • Ideal Gate Gap (mm) - 61 - 74mm
  • Fixing Method - Weld On
  • Colour/ Finish - Zinc, Rusted

ASSA ABLOY specialise in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
