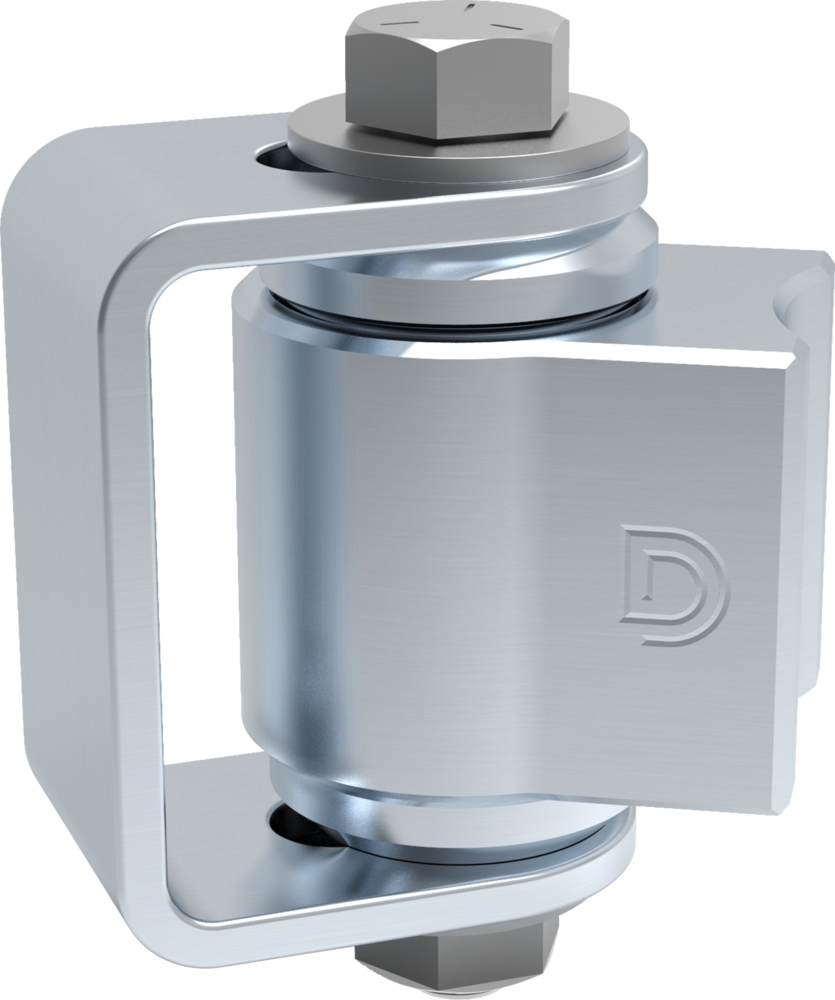

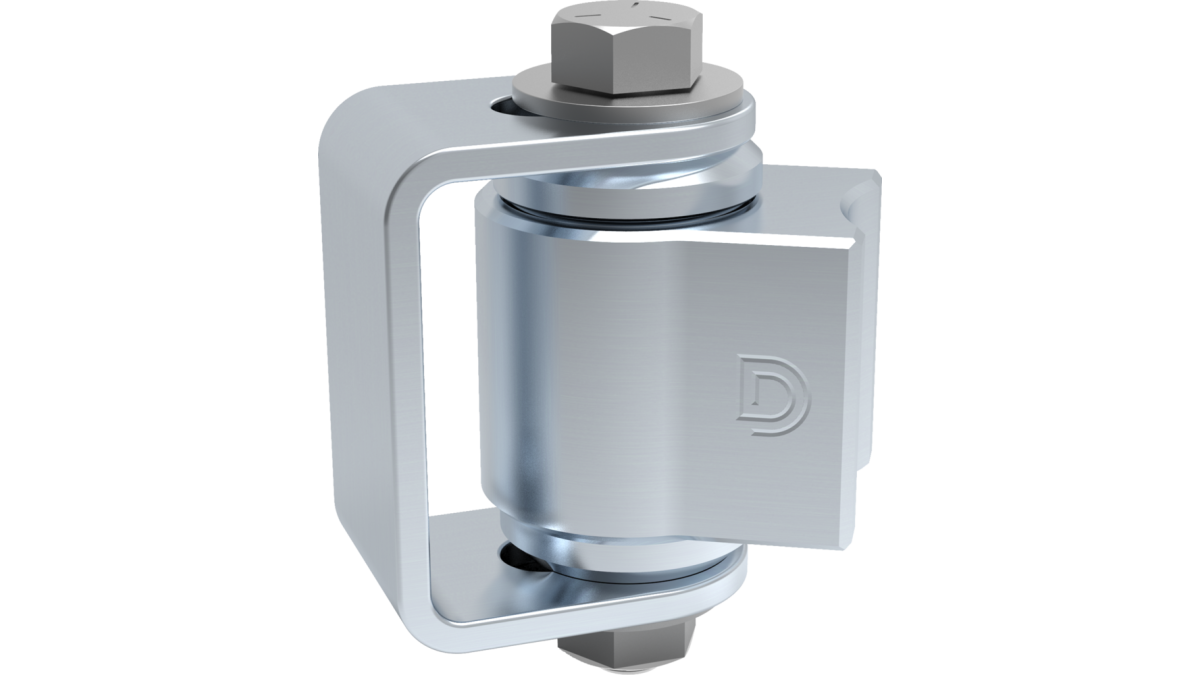

D&D Technologies Shut it® Heavy-Duty Badass Gate Hinge
Description

Shut it® Heavy-Duty Badass Gate Hinge is designed for the rarest of installations where even The Original is not bad enough. For these situations, Shut it has designed the HD to hold 50 percent more load than the Original. As with all BadAss hinges, the HD is CNC machined to the industry's tightest tolerances.

  • Product Code: CI3500
  • Gate Type: Non-Self-Closing
  • Gate Material: Steel/Ornamental Iron
  • Approx Gate Size: 2m H x 3m W
  • Gate Frame/Post Shape: Square-to-Square, Square-to-Round
  • Min Post Size: 38mm+
  • Ideal Gate Gap: 61-74mm
  • Fixing Method: Weld-On
  • Color/Finish: Zinc
Key Features
  • Three sealed maintenance-free bearings
  • Adjustable bracket for perfect installations
  • Ideal for square or round-post installations
  • Holds 50% more load than the 'Original'
  • Load rating per gate:1,360kg
  • Maximum gate weight: 680kg
Scope of Use

Non self-closing gate hinge designed for the rarest of installations where even The Original is not bad enough.

  • Pedestrian Gate
  • Driveway Gate — single or double
  • Pet Gate
  • Playground Gate
  • Public/Commercial Gate
  • Automated/Electric Gate
  • Security Gate
  • Privacy Gate

Installation:

  • Approx Gate Size: 2m H x 3m W
  • Gate Frame/Post Shape: Square-to-Square, Square-to-Round
  • Min Post Size: 38mm+
  • Ideal Gate Gap: 61-74mm
  • Fixing Method: Weld-On
Other Performance Attributes
  • Three sealed maintenance-free bearings
