PolyGlaze Polycarbonate Sheet
Ampelite
All products
Untitled design 67
polyglaze cad e1716426239220 480x154
Untitled design 68 (1)
Untitled design 68
Untitled design 2024 07 29T170432.088
Untitled design 2024 07 29T170539.212
Description

Ampelite's Polyglaze is a flat polycarbonate sheeting designed to provide a glass-like appearance for outdoor living spaces. It offers high-impact strength, being up to 150 times stronger than tempered glass, and blocks 99.9% of harmful UV radiation. The sheets are lightweight, easy to install directly onto rafters spaced at 600mm centres, and are available in clear and grey tint options, with lengths ranging from 2 to 6 metres.

Key Features
  • Material Type: Solid flat sheet made of polycarbonate, offering high impact resistance.
  • Impact Strength: Significantly stronger than standard glazing materials (up to 150x stronger than tempered glass), making it resistant to hail and physical impact.
  • UV Protection: Engineered with a UV-protective layer that blocks 99.9% of harmful ultraviolet rays. This helps prevent material degradation and protects occupants from UV exposure.
  • Light Transmission: Available in clear, grey and diffused, allowing control over visible light and solar heat transmission depending on the application.

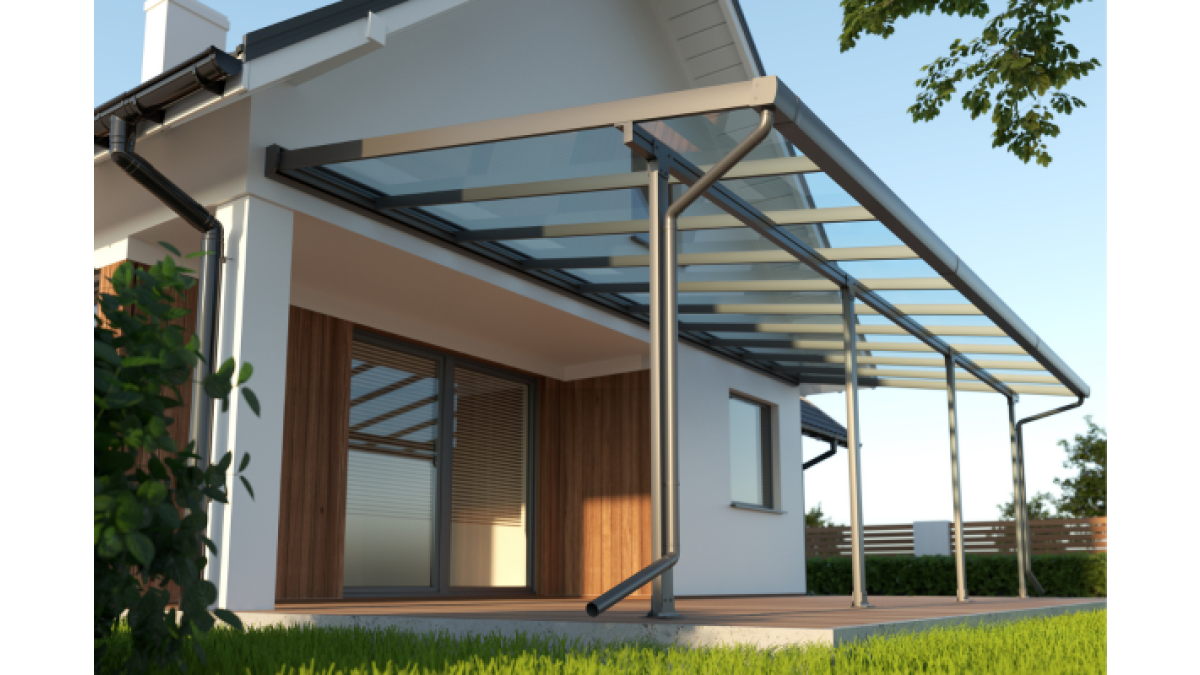

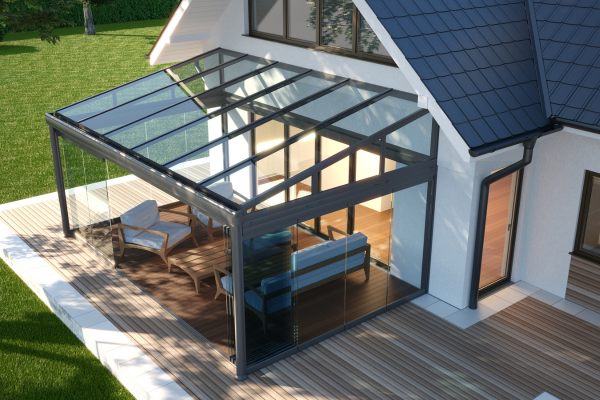

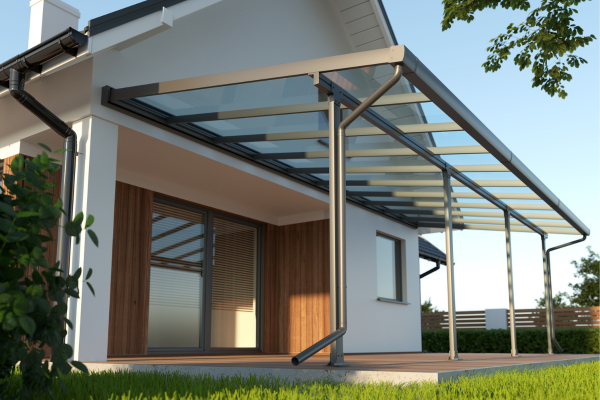

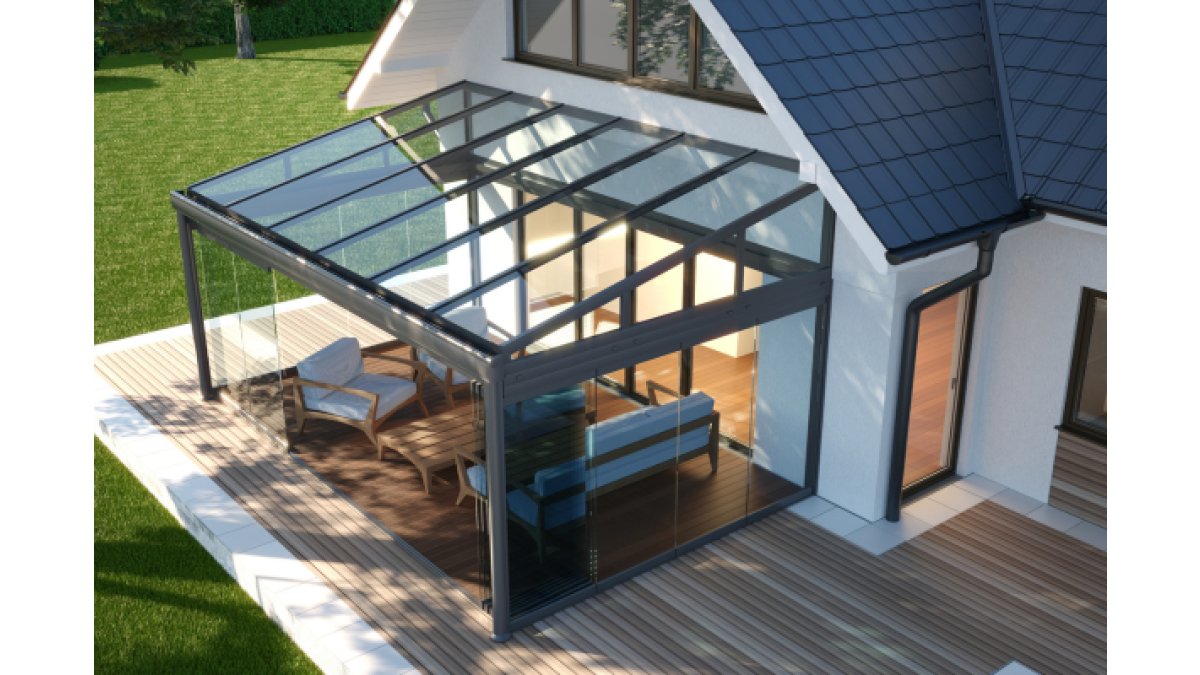

  • Applications: Primarily used in residential and light commercial roofing or canopy structures, such as pergolas, verandahs, and outdoor shelters.

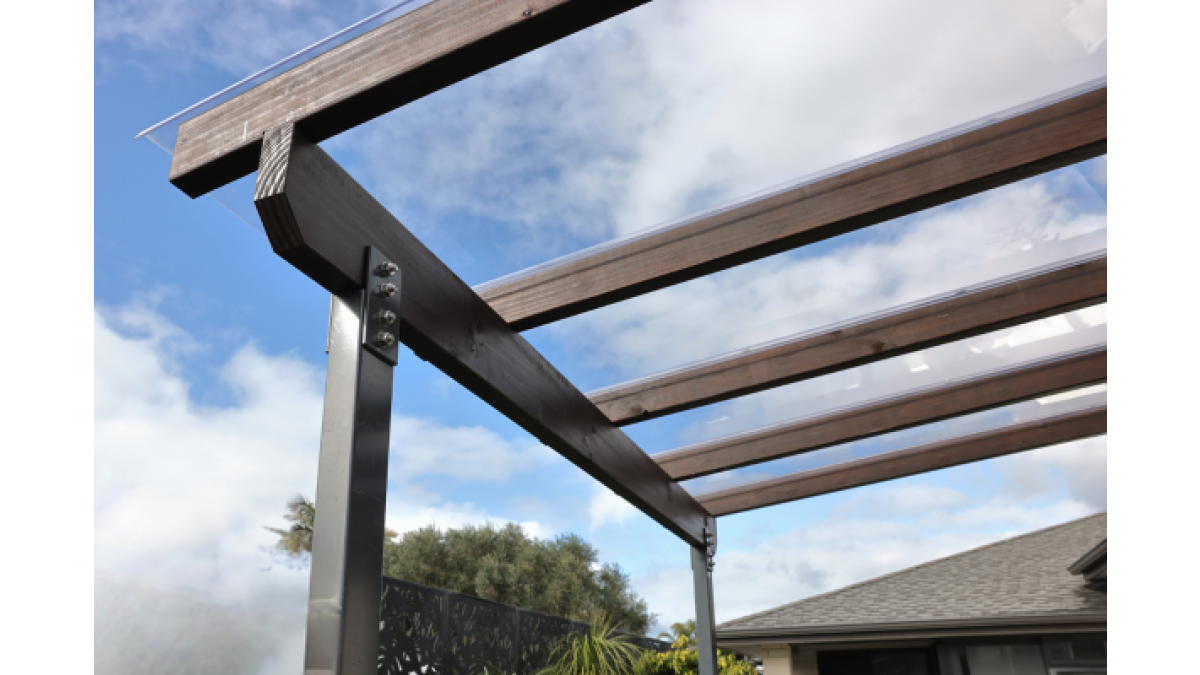

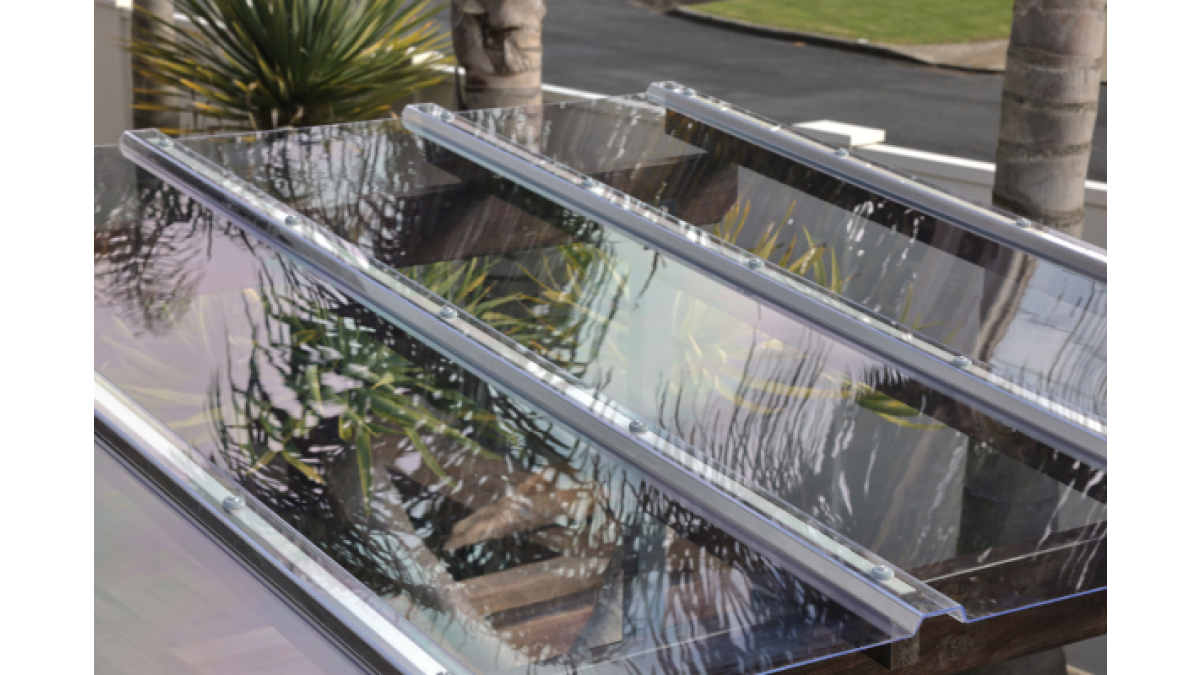

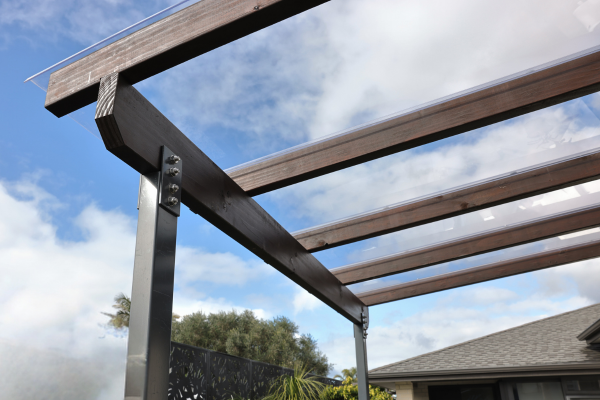

  • Installation & Compatibility: Designed for direct installation onto rafters, spaced at 600mm centers. Lightweight, which reduces structural load and simplifies handling.

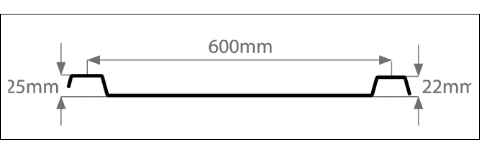

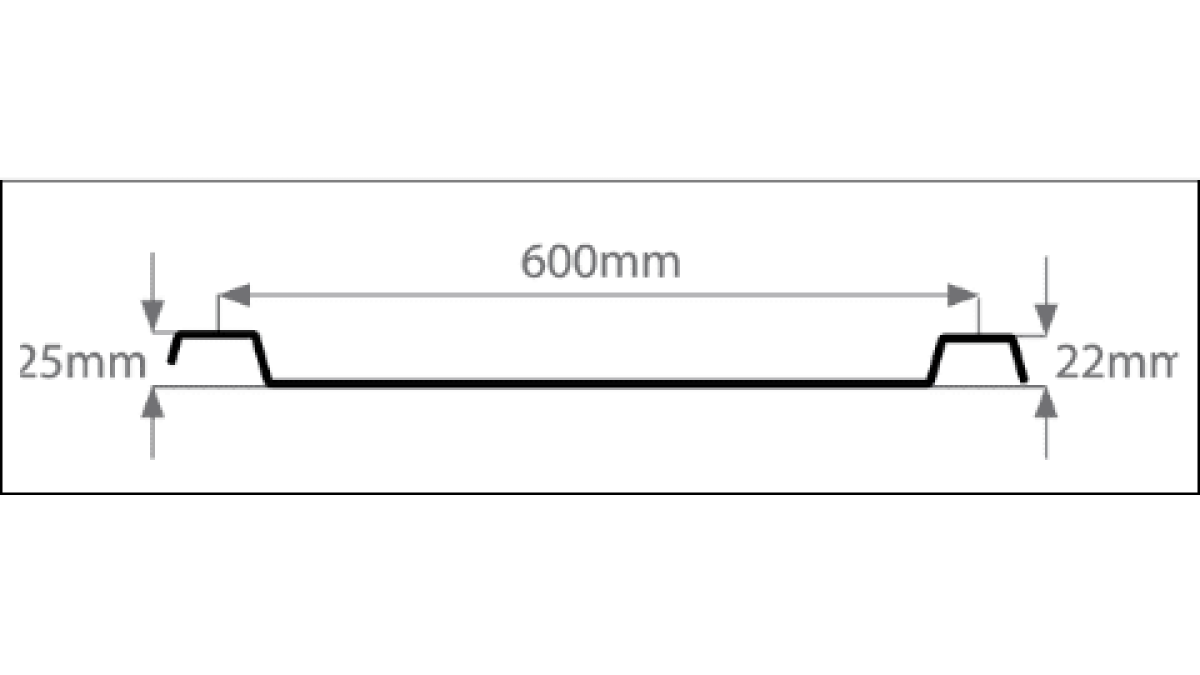

  • Sheet Sizes: 600mm cover in 3.0mm gauge, available in numerous lengths from 2000mm to 6000mm. The sheet width is designed to align with common roofing spans.
  • Weather Resistance: Good resistance to weathering and yellowing, due to the UV surface protection layer.
  • 1S fire performance
Categories
Plastic Cladding Plastic Roofing
Scope of Use
  • Residential and light commercial settings where a durable, transparent or translucent roof or wall panel is required.
  • Commonly used for:
    • Pergolas
    • Verandahs and patios
    • Covered walkways
    • Carports
    • Outdoor shelters
    • Skylight or glazing panels
  • Installed on structures with rafter spacings at 600 mm centers.
  • Requires allowance for thermal expansion due to polycarbonate's responsiveness to temperature changes.
  • Must be installed with the UV-protected side facing upward, as this coating provides long-term resistance to weathering and yellowing.
  • Suitable for external use in most New Zealand climate zones.
  • Performs well in areas prone to hail or wind-driven debris, due to its high impact strength.



Limitations on Use
  • Not designed for high fire-risk zones unless otherwise specified in the project-specific fire report (check for relevant AS/NZS fire ratings).
  • Structural glazing applications where the material is load-bearing
  • Must be supported by a compliant substructure (timber or steel framing) designed to NZS 3604 or relevant engineering design.
  • It should be installed according to manufacturer's guidelines to ensure it meets durability and weathertightness requirements of the NZ Building Code (NZBC)



Statement of Building Code Compliance
  • Clause B1 structure: B1.3.1, B1.3.2 (a, b, j)
  • Clause B2 Durability: Performance B2.3.1
  • Clause C3 Fire affecting areas beyond the fire source: Buildings C3.3
  • Clause E2 External moisture: Performance E2.3.1, E2.3.2
  • Clause F2 Hazardous building materials: Performance F2.3.1
  • Clause G7 Natural Light (translucent options)
Documents
BPIR Product Statement: Polyglaze

2024

pdf
Polyglaze Installation Guide

2024

pdf
Brochure
pdf

Ampelite is a leading manufacturer and supplier of fiberglass and polycarbonate roofing products in Australia and New Zealand. Established in 1969.
