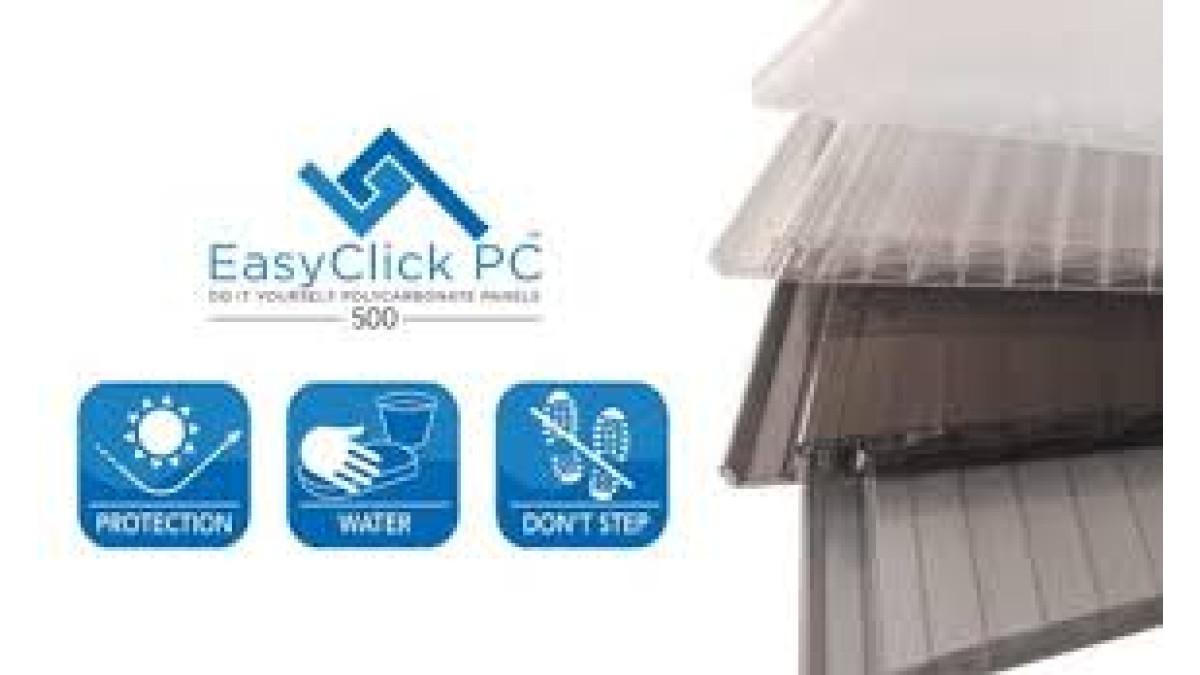

EasyClick PC 500 Polycarbonate Roofing Panels
Description

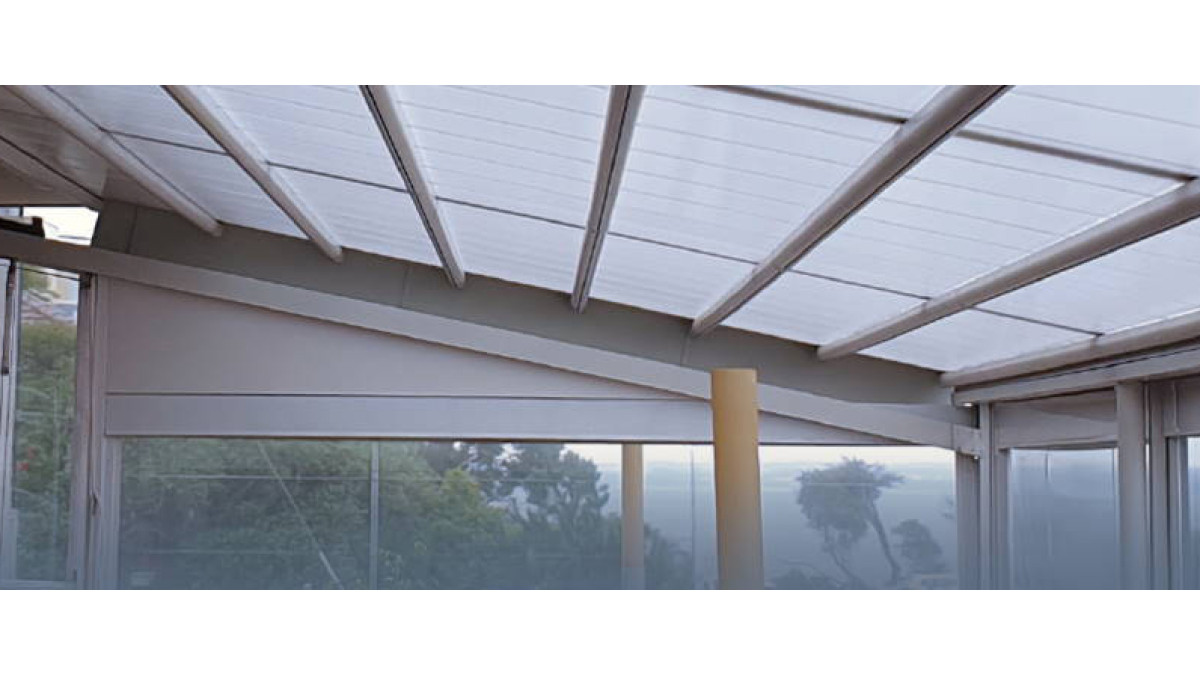

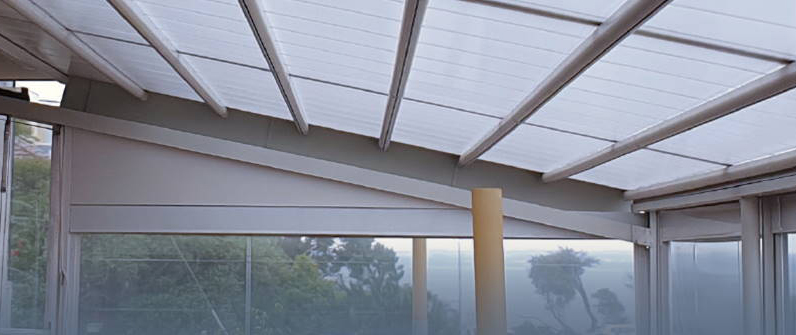

EasyClick PC is ideal as roofing and glazing for patios, greenhouses, and carports. EasyClick is thermally efficient and offers high light transmission while filtering 99% of UV rays, protecting patio furniture and vehicles from the harmful effects of the sun.

Its click together design allows for easy installation and makes it suitable for replacing old sheeting on existing structures and for new projects. Available in a 500mm wide panel and colours ranging from clear, opal and grey tints.

Key Features
  • Thermally efficient and offers high light transmission
  • Simple installation
  • Blocks 99.9% of harmful UV rays to protect patio furniture, vehicles etc
  • 10 year limited warranty against loss of light transmission, yellowing and weather impact
Scope of Use
  • Roof glazing option for projects requiring a light weight, transparent flat sheeting solution
  • Provides UV protection and heat reduction, while allowing light in
  • Ideal for patios, pergolas, greenhouses, carports, pool enclosures
  • Can be installed with standard DIY tools — cut panels to the desired length, screw in place, snap-in next panel and repeat, finish with aluminium U-channel
  • Easily retrofitted to structures designed for profiled sheeting with no additional support required
Limitations on Use
  • When installing in extreme wind conditions, please refer to span data or contact Ampelite if the wind loads are beyond the limitations
  • Easyclick PC is not suitable for trafficable areas, where an area is to expect foot traffic, please contact Ampelite for a trafficable product solution
  • Must not be installed in direct contact with plastics containing plasticises
Statement of Building Code Compliance

The history of use of Ampelite Easyclick PC 500 in New Zealand indicates that, provided the product is used and maintained in accordance with the guidelines contained in the current literature referenced, Ampelite Easyclick PC 500 systems can be expected to meet the performance criteria in clause B2 of the New Zealand Building Code.

  • Clause B2 Durability: Performance B2.3.1
  • Clause E2 External moisture: Performance E2.3.1, E2.3.2
  • Clause G7 Natural Light
Other Performance Attributes
  • 10 year limited warranty against loss of light transmission, yellowing and weather impact
  • Easyclick PC 500 blocks 99.9% of harmful UV rays
Documents
BPIR Product Statement: EasyClick PC
Technical Downloads: EasyClick PC
Technical Downloads: Webglas S-996
Data Sheet: EasyClick PC 500
Installation Video: EasyClick PC
Installation: EasyClick PC

Ampelite is a leading manufacturer and supplier of fiberglass and polycarbonate roofing products in Australia and New Zealand. Established in 1969.
