Plasma Core Entrance Door

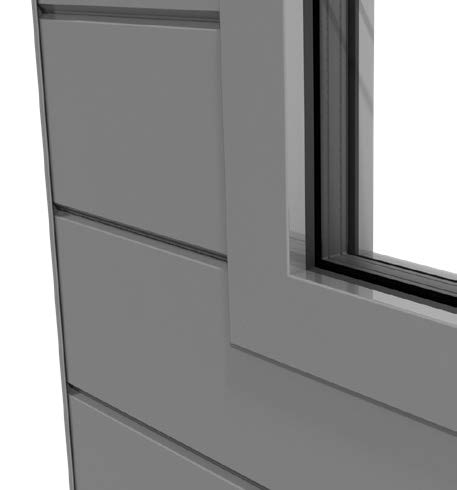

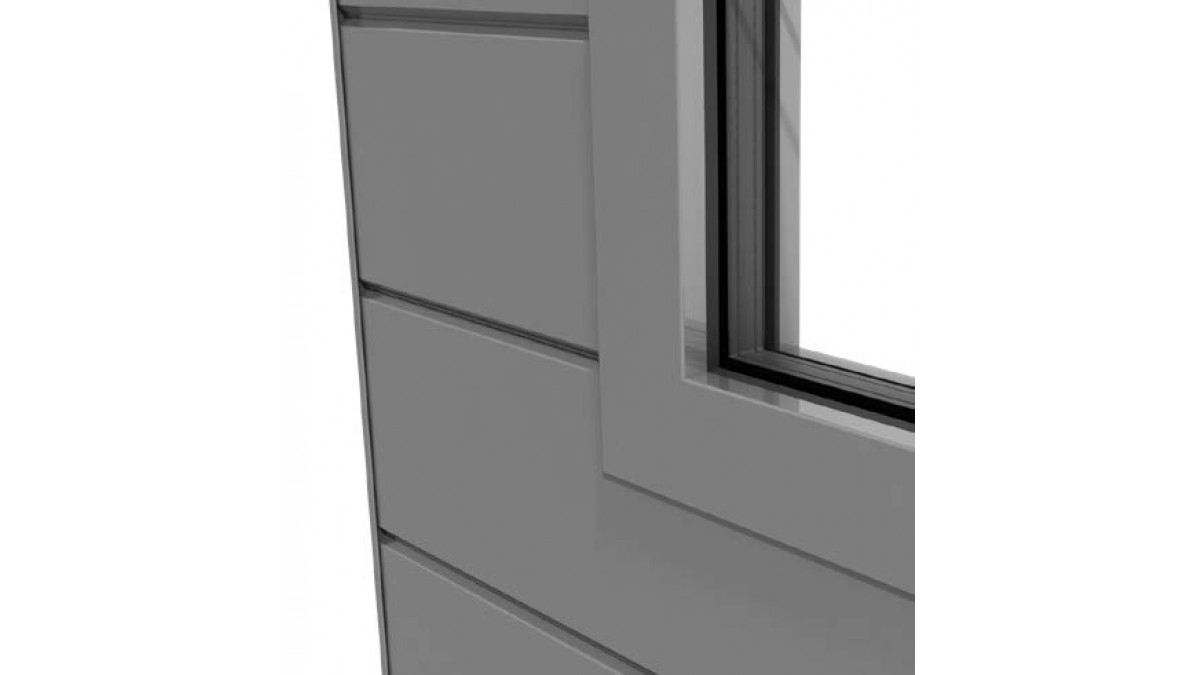

Plasma tongue and groove panel and bead detail

Product Enquiries

Description

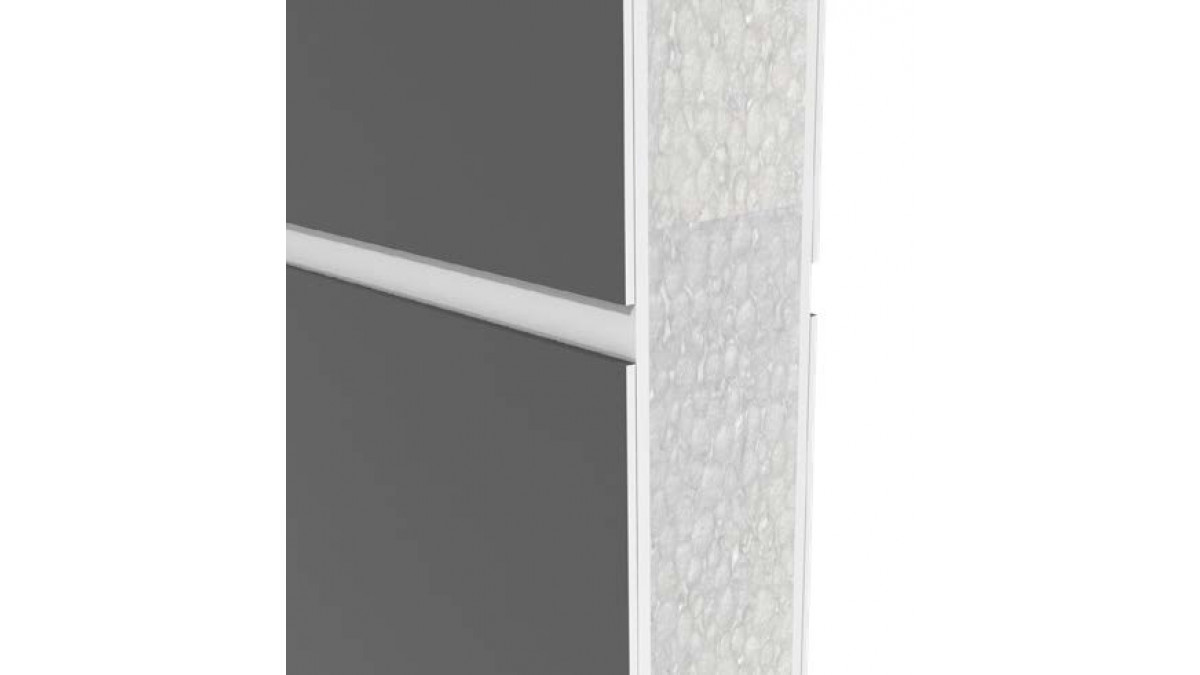

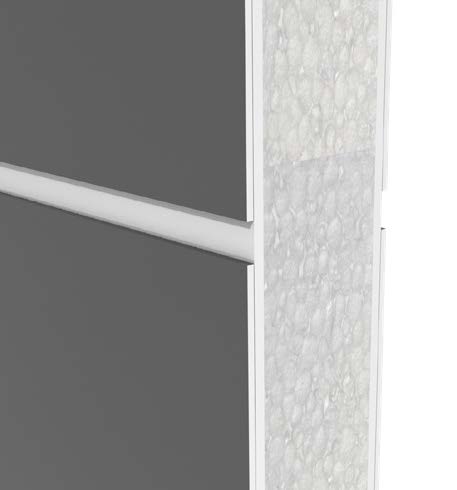

A clean, smooth architectural look is achieved using flat sheet aluminium or full glass treatments. Negative details lines can be featured on aluminium Plasma doors as well as edge-to-edge horizontal tongue and groove planks.

Aluminium doors can be powder coated or anodised and glass clad doors are coloured with an opaque Colourback finish. Dual colour (interior and exterior) is possible.

Key Features

For mainstream residential and commercial use (NB: Plasma Commercial is only compatible with APL Architectural Series and Commercial Shopfront Series)
Aluminium clad doors with a smooth flat finish for a minimalist architectural look, negative detail lines are available as well
Durable 2mm aluminium sheet cladding makes for a light entrance door
Glass inserts (22mm IGUs) possible
Can be dual coloured to match interior and exterior colour schemes
Glass Plasma is available in a wide variety of colours and can be custom matched

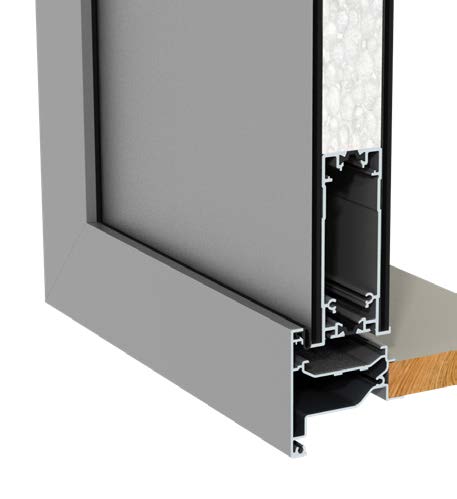

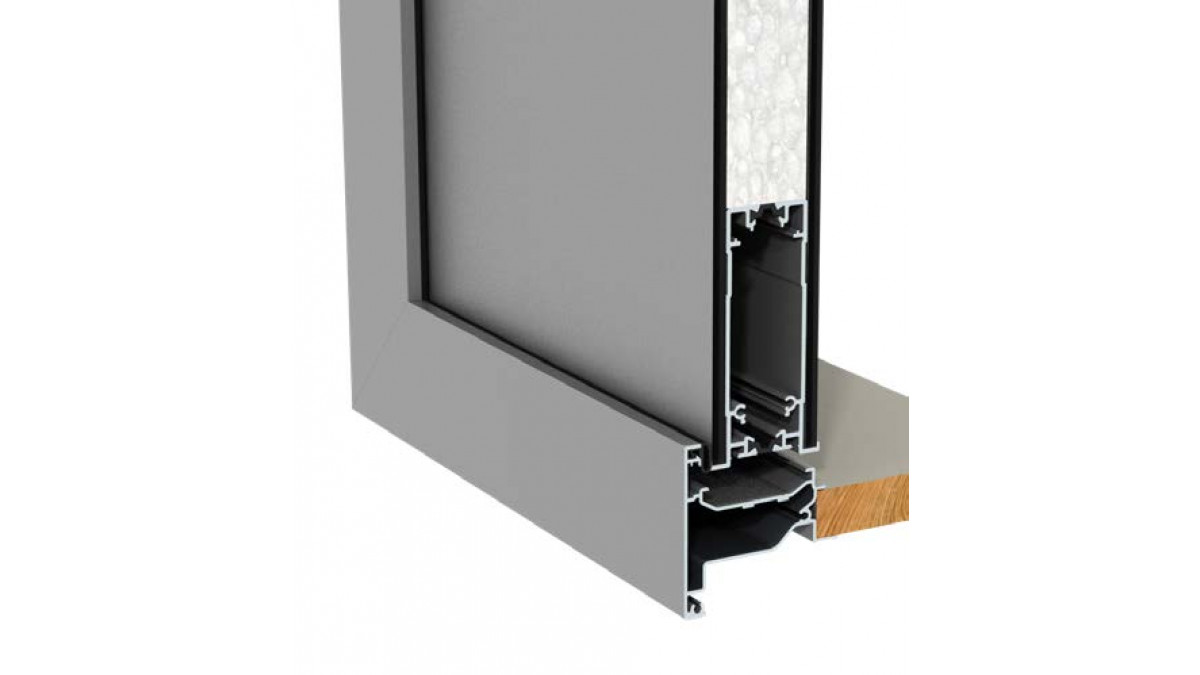

High density polystyrene core gives excellent thermal, acoustic and strength characteristics
An economic Slimline Plasma entrance door is possible using flat sheet aluminium cladding — available in restricted range of designs, colours and sizes
Commercial Plasma Door option with thickness of 51mm. Contains extra internal aluminium webbing for enhanced rigidity and durability.

Ranges

Entrance Doors

Scope of Use

Generally installed in protected entranceways and sheltered environments
Inward opening option is usually recommended

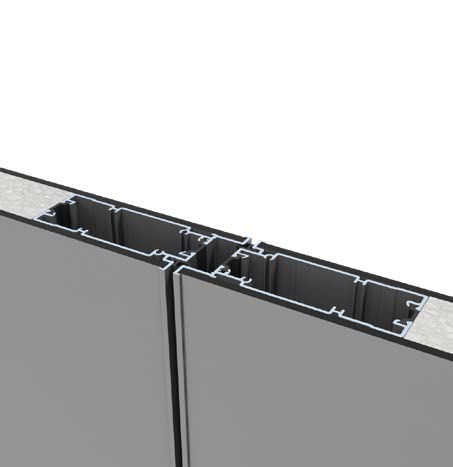

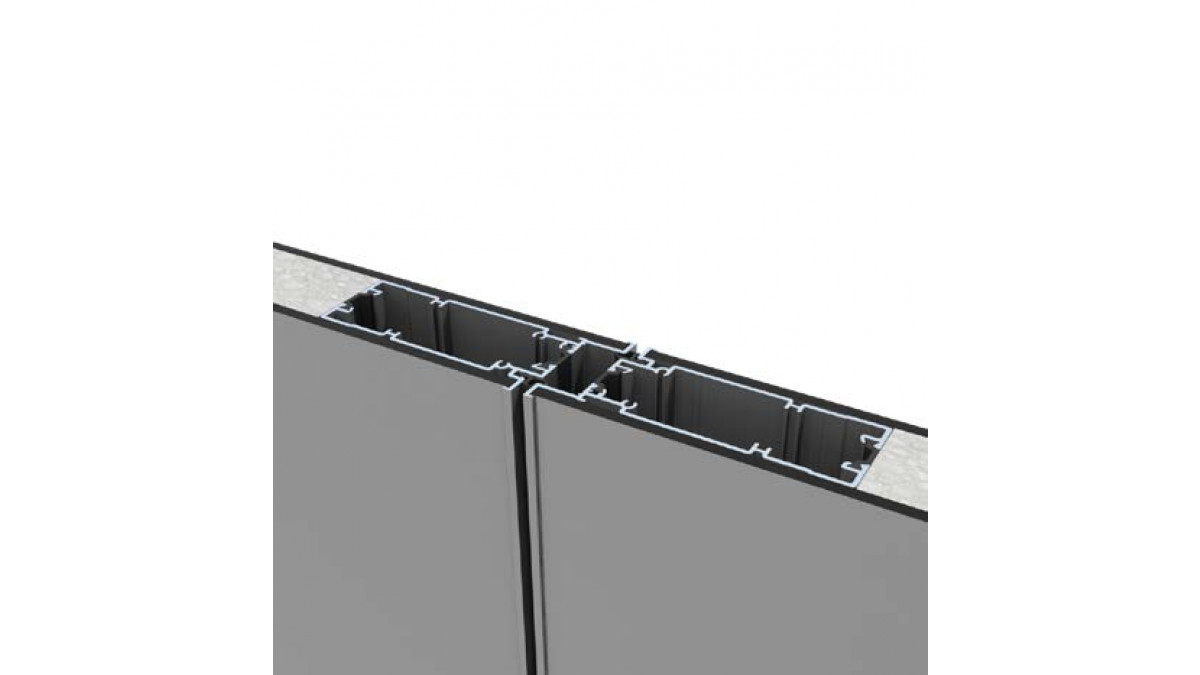

Double opening doors (French style) or opening sidelights possible for full-width access
Maximum panel size 3500 x 1460 (Slimline maximum size 2400 x 1200)
Plasma is compatible with all APL ranges
Accepts either standard hinges or pivot gear

Limitations on Use

Installation in sheltered environments recommended — away from full sun exposure
Dark colours not recommended for doors exposed to prolonged direct sunlight
Hardware type must be advised at time of door order

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

In-Service History

Released in 2009
Widely used by homeowners, builders, Group home builders and specifiers

Other Performance Attributes

Door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Case Studies
News

Altherm Window Systems Used to Create a 'Floating Roof'

ALTHERM Window Systems

April 2023

Case Studies

Altherm Releases User-Friendly Pivoting Door System

ALTHERM Window Systems

December 2015

Product News

Documents

Entrance Door R Values

2024

pdf

Data Sheet

2025

pdf

Altherm on Masterspec

URL

Full Specification

docx

Specification Clause

docx

WGANZ Guide to E2/AS1

pdf

Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

URL

Altherm Design Brochure

2020

URL

Altherm Entrance Door Brochure

2019

URL

Plasma Configuration Options

pdf

APL and Sustainability

2019

URL

Manufacturer Contact List

URL

CAD/PDF Details

View full


Full Set of Drawings

pdf

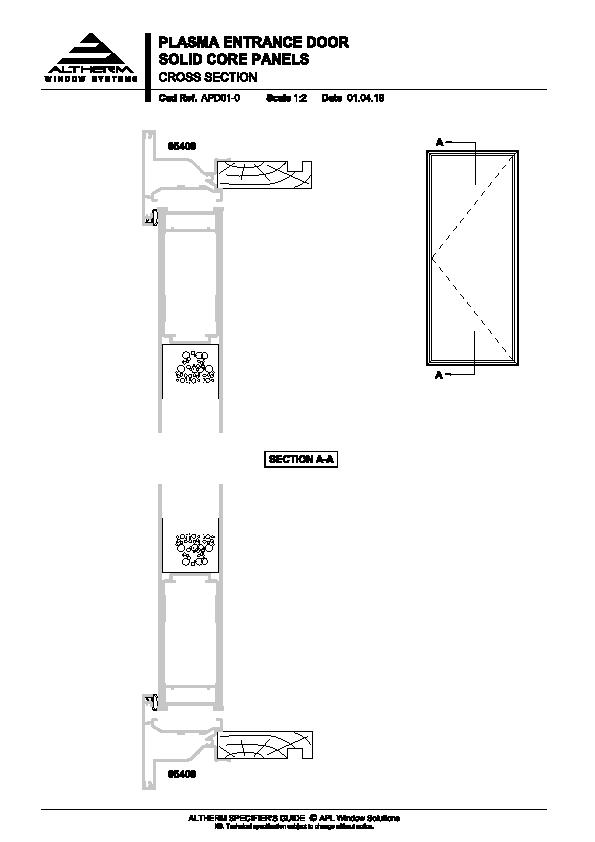

Altherm Residential Plasma Entrance Door Solid Core Panels

APD01-0

dwf

dwg

dxf

pdf

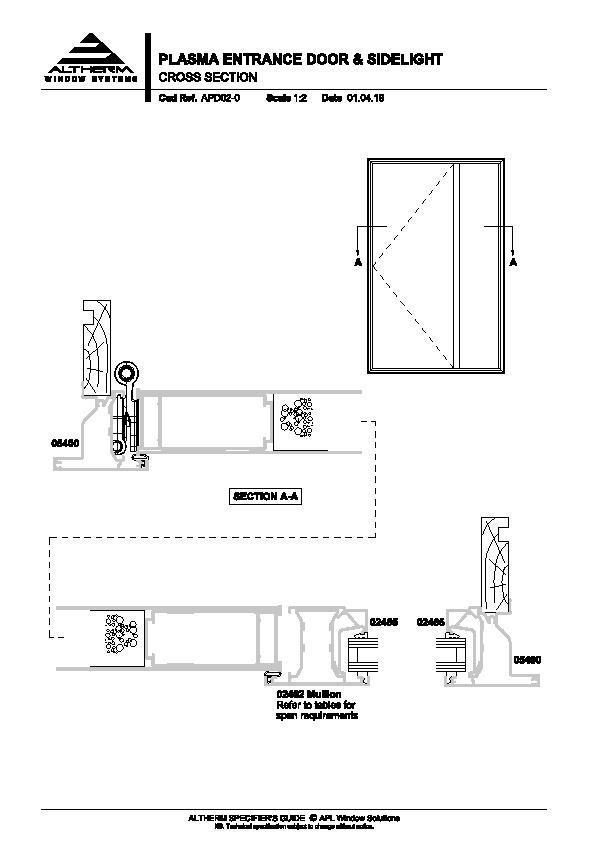

Altherm Residential Plasma Entrance Door & Sidelight

APD02-0

dwf

dwg

dxf

pdf

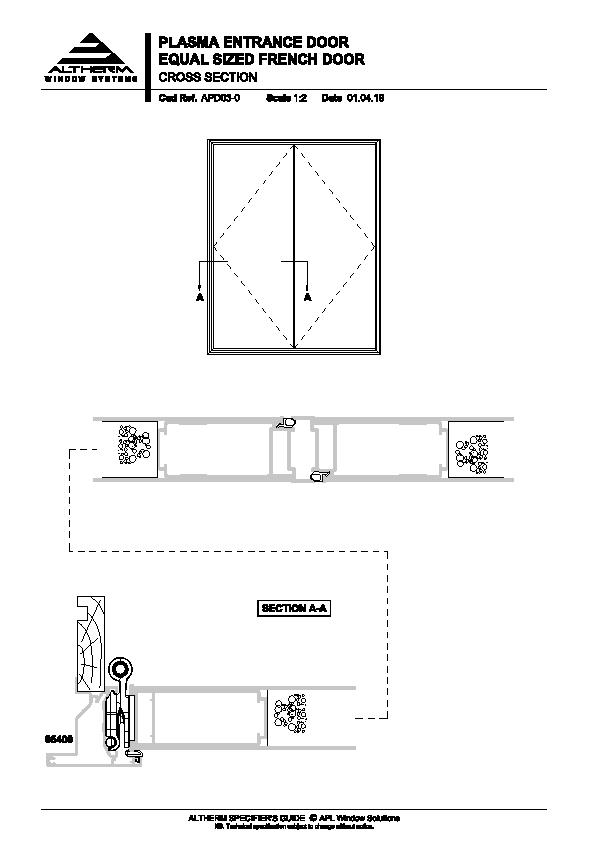

Altherm Residential Plasma Entrance Door Equal Sized French Door
