Von Duprin 33A Series
Description

The Von Duprin 33A Series is a contemporary range of push pad exit devices designed to suit single and double door applications. The 33 Series has been designed for use on narrow stile timber or aluminium hinged doors. Available in rim and surface vertical rod styles.

Furnished on all 33A Series exit devices is a fluid dampener that decelerates the push pad on its return stroke and eliminates most noise associated with exit device operation.

Key Features
  • Easy installation
  • Field sizeable to accommodate a range of door openings
  • Rim device has deadlocking latch with 19mm throw
  • Suits door stile as narrow as 44mm
  • Vertical rod device has deadlocking anti-friction latch with 16mm throw
  • Suitable for doors 711mm to 914mm (up to 1220mm with 1220mm exit device)
  • Extension rods are available for doors over 2134mm high

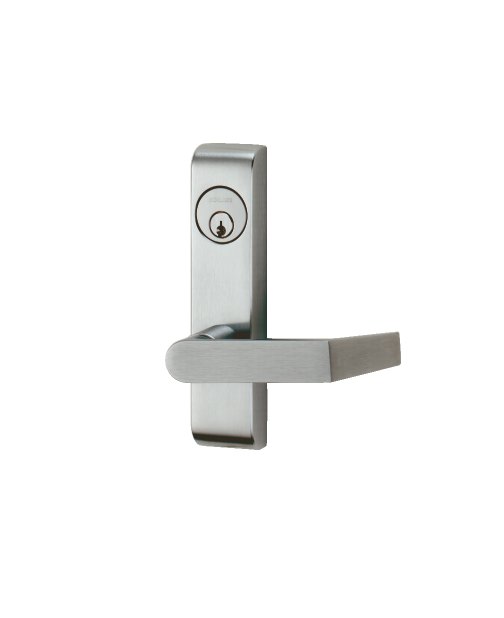

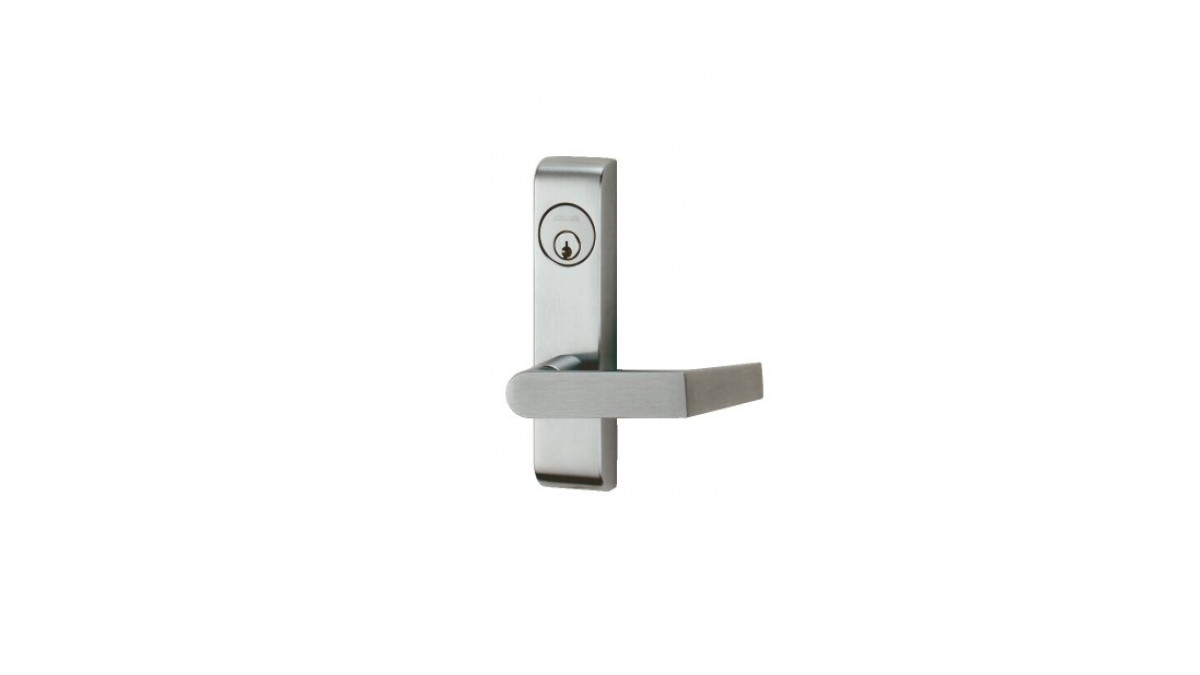

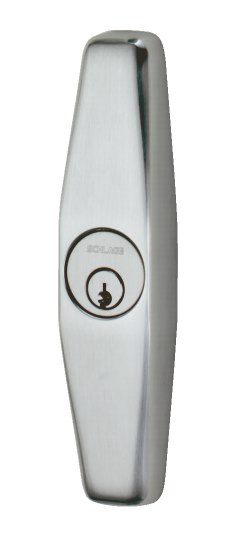

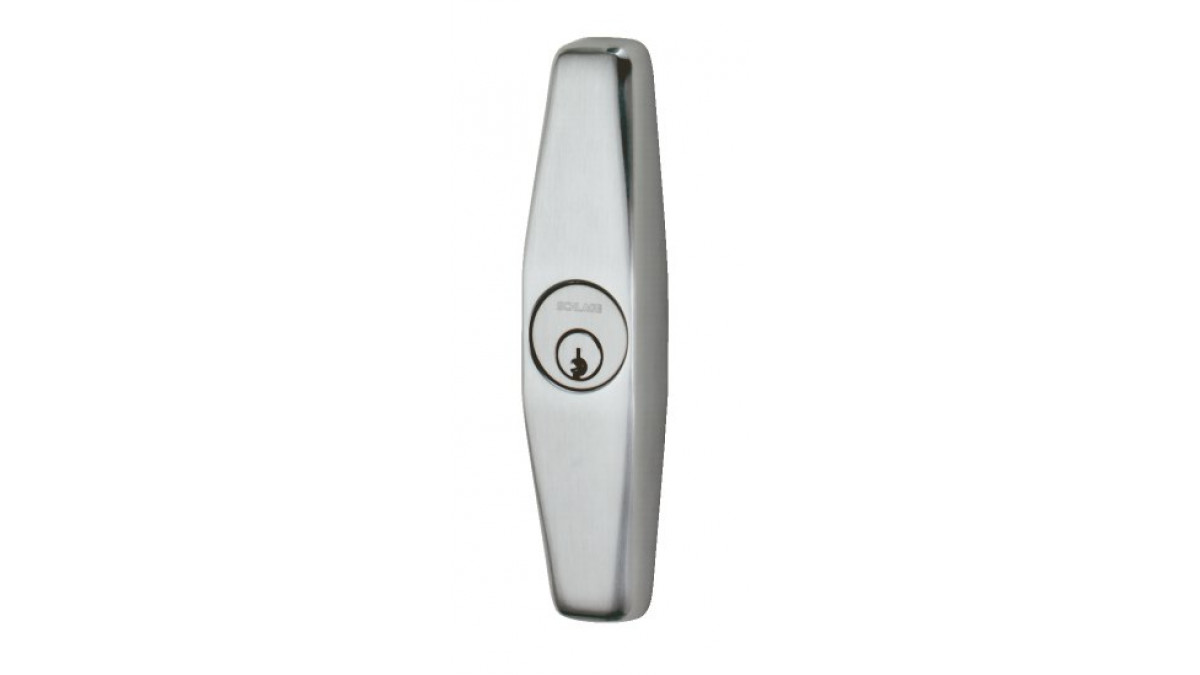

  • Optional external trims for access control
  • Latch Monitoring (LX) and Request to Exit (RX)switch kits available to provide monitoring to access control systems
Scope of Use
  • Designed to suit single and double door applications
  • Rim device has deadlocking latch with 19mm throw
  • Suits door stile as narrow as 44mm
  • Vertical rod device has deadlocking anti-friction latch with 16mm throw
  • Suitable for doors 711mm to 914mm (up to 1220mm with 1220mm exit device)
  • Extension rods are available for doors over 2134mm high
  • Optional external trims for access control
  • Latch Monitoring (LX) and Request to Exit (RX)switch kits avai
Other Performance Attributes

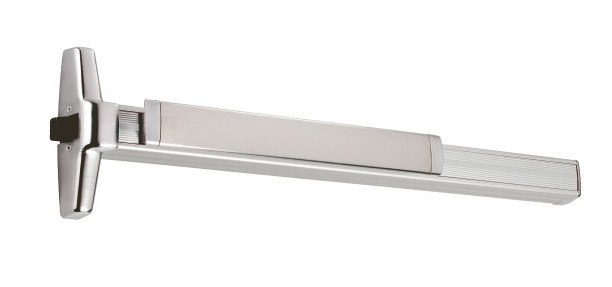

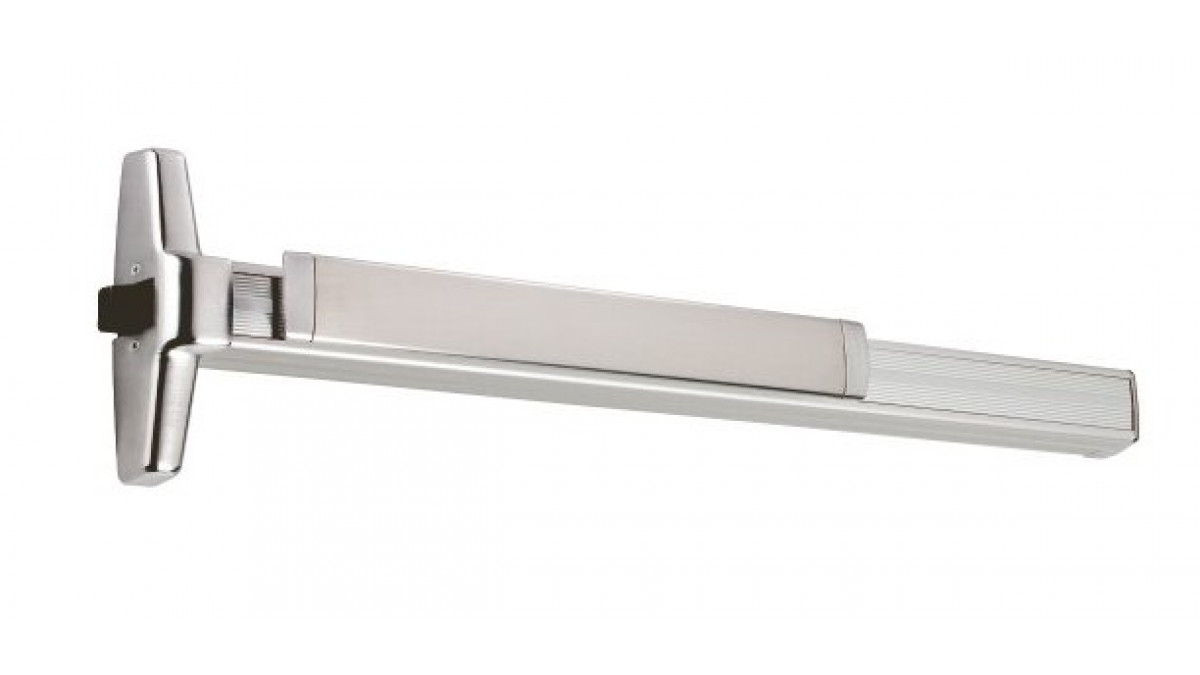

VD33A-EO Specifications

  • Door thickness Combination of fasteners are furnished for surface mounting or through bolting, surface mounted - 19mm minimum, through bolt - 44mm to 57mm
  • Stile width 44mm minimum
  • Door width 711mm to 914mm* (1220mm option available) * based on standard strike and 13mm stop height
  • Handing Reversible
  • Latch 19mm throw, deadlocking
  • Dogging Hex key dogging

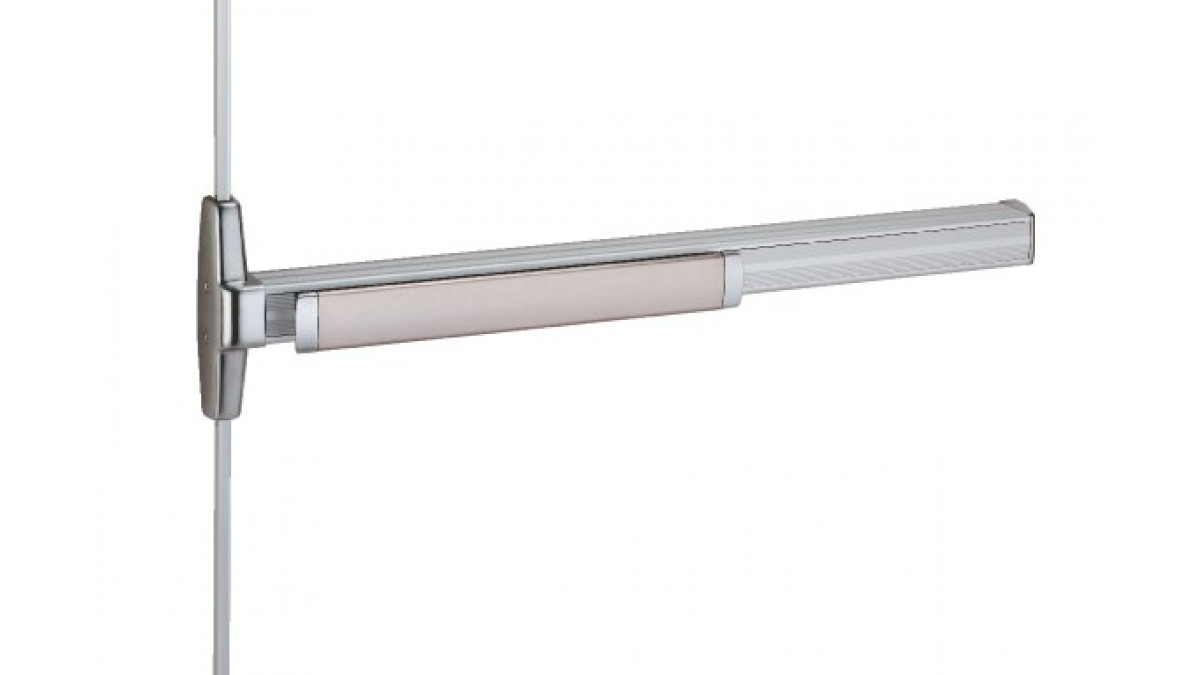

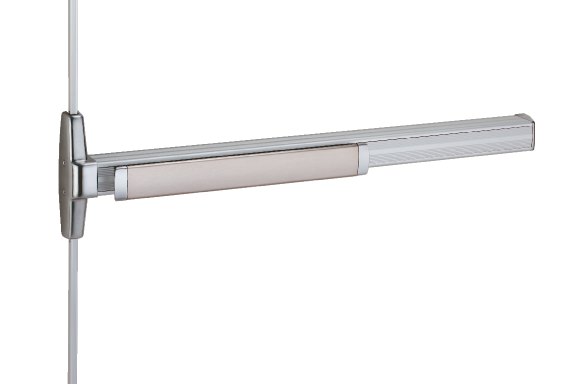

VD3327A-EO Specifications

  • Door thickness Combination of fasteners are furnished for surface mounting or through bolting, surface mounted - 19mm minimum, through bolt - 44mm to 57mm
  • Stile width 44mm minimum
  • Door width 711mm to 914mm* (1220mm option available) * based on standard strike and 13mm stop height
  • Door height 2134mm standard, extension rods available for doors up to 3050mm
  • Handing Reversible
  • Latch 16mm throw, deadlocking
  • Dogging Hex key dogging
Documents
Data Sheet
Commercial Warranty 2023
Caring for Door Hardware
