Legge 5400 Series
Allegion
All products

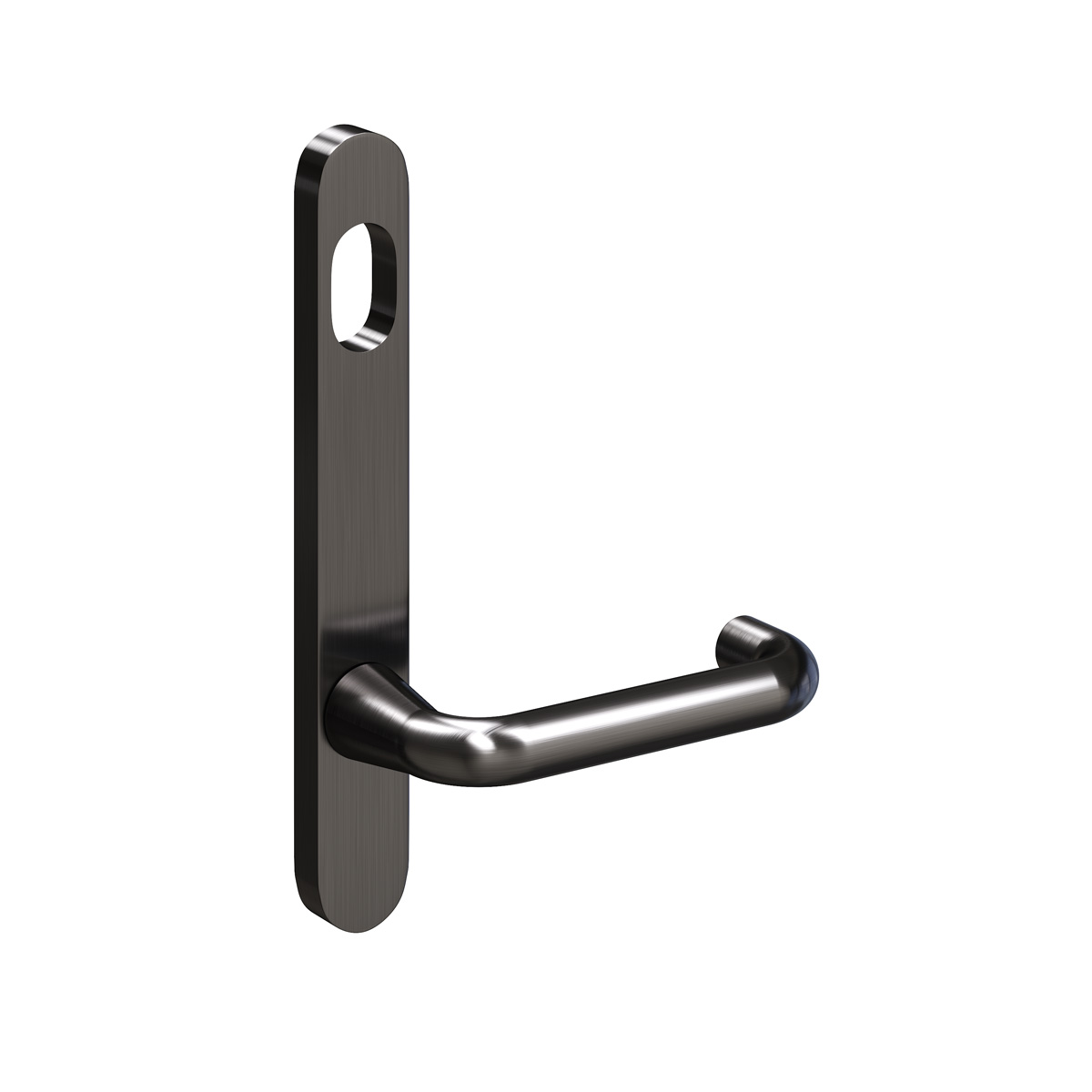

Legge 5403 Series Alpha Oil Rubbed Bronze
Legge 5403 Series Alpha Antique Bronze

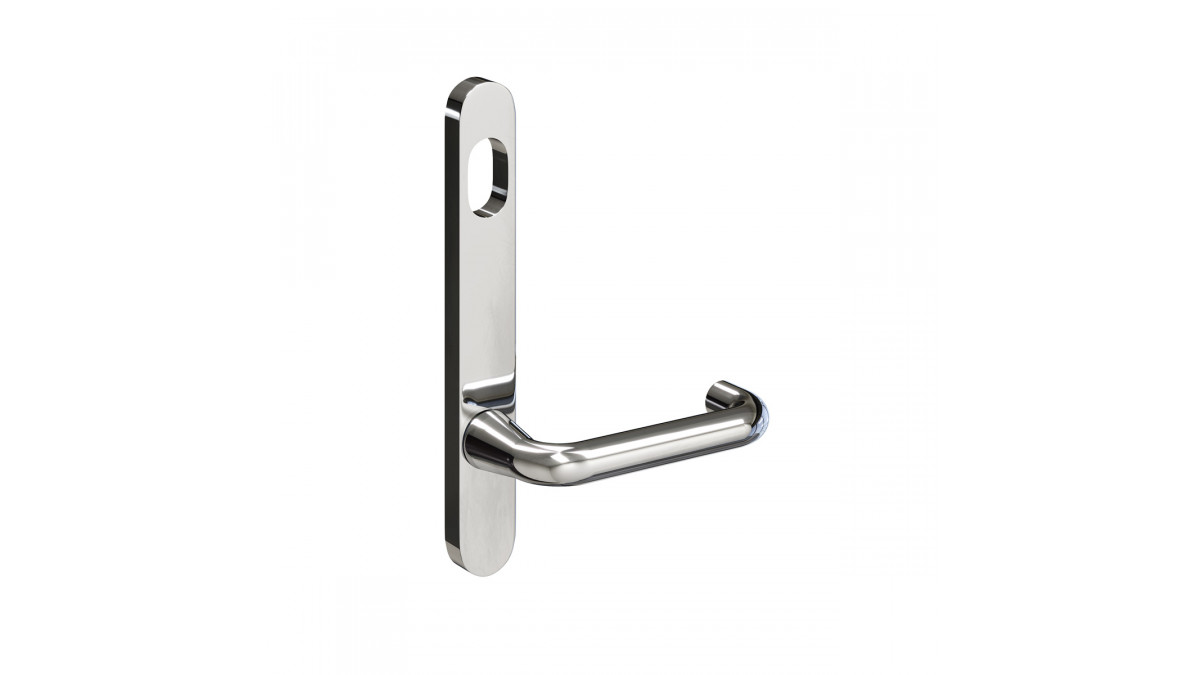

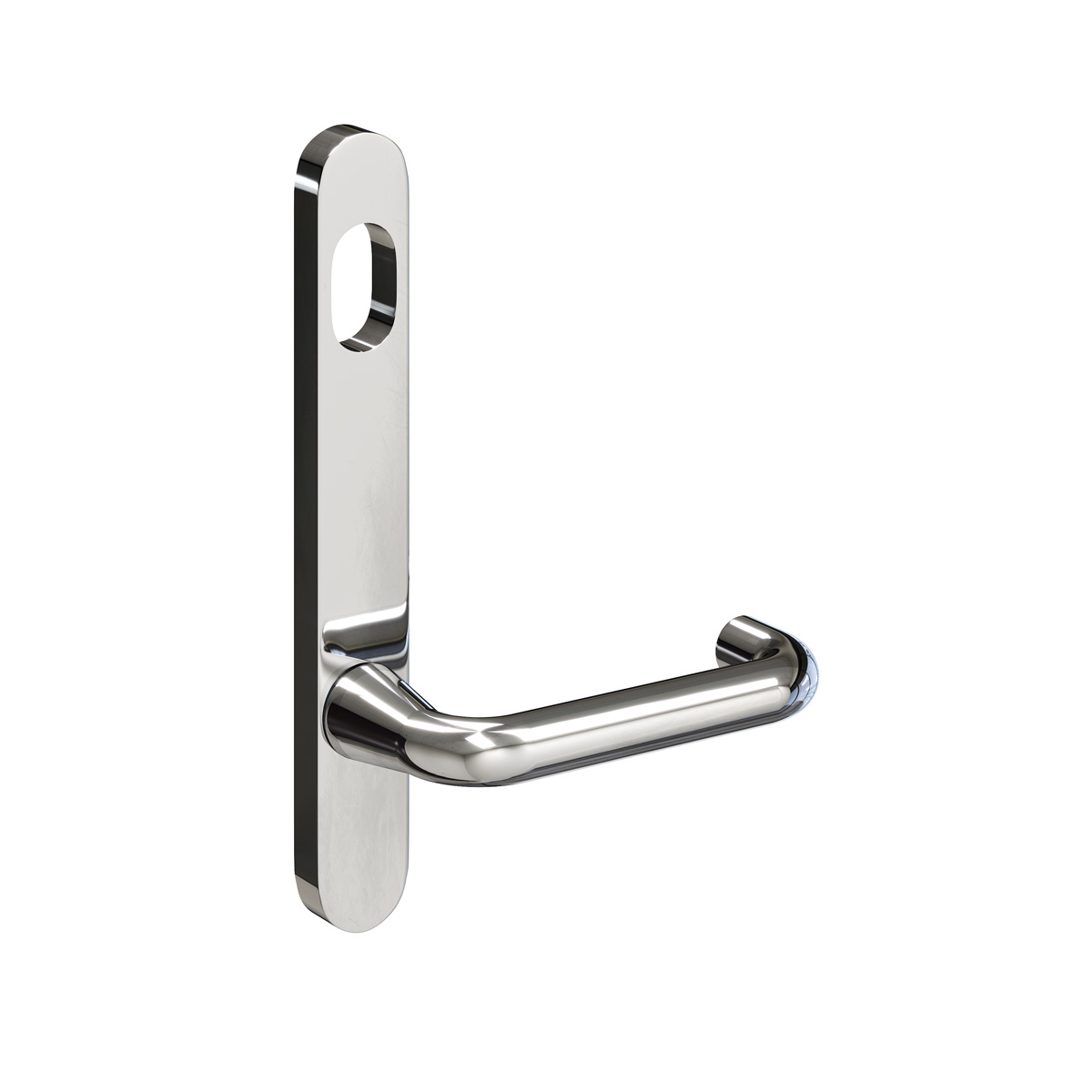

Legge 5403 Series Alpha Chrome
Legge 5403 Series Alpha Satin Brass

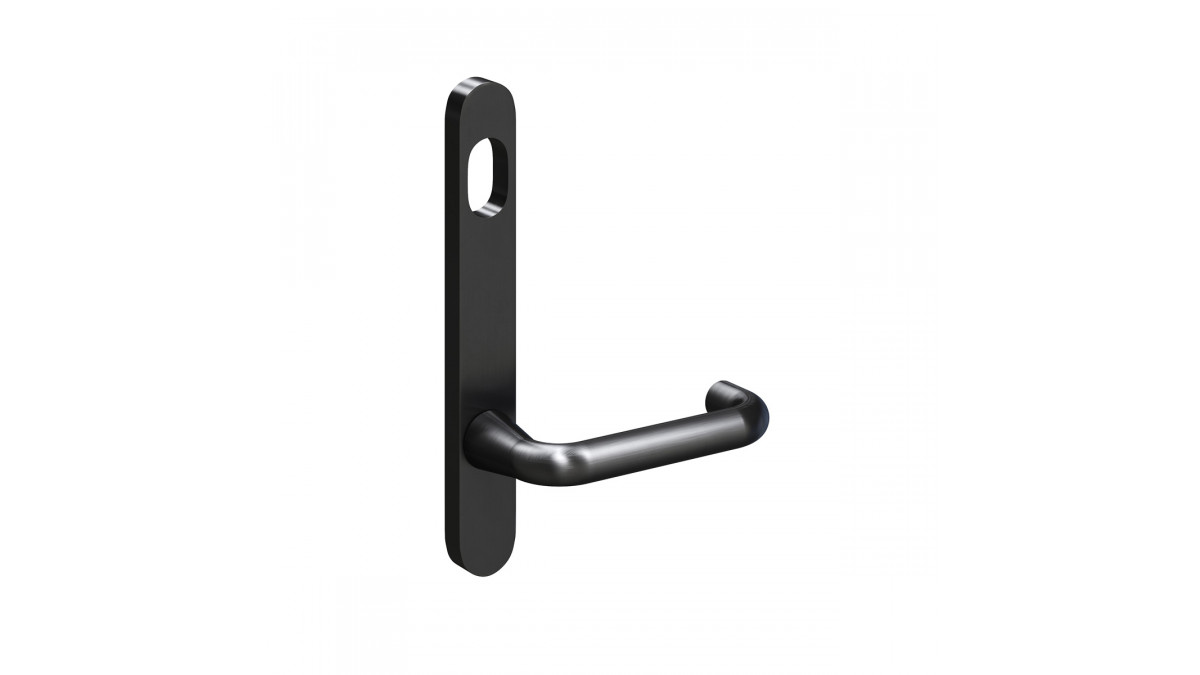

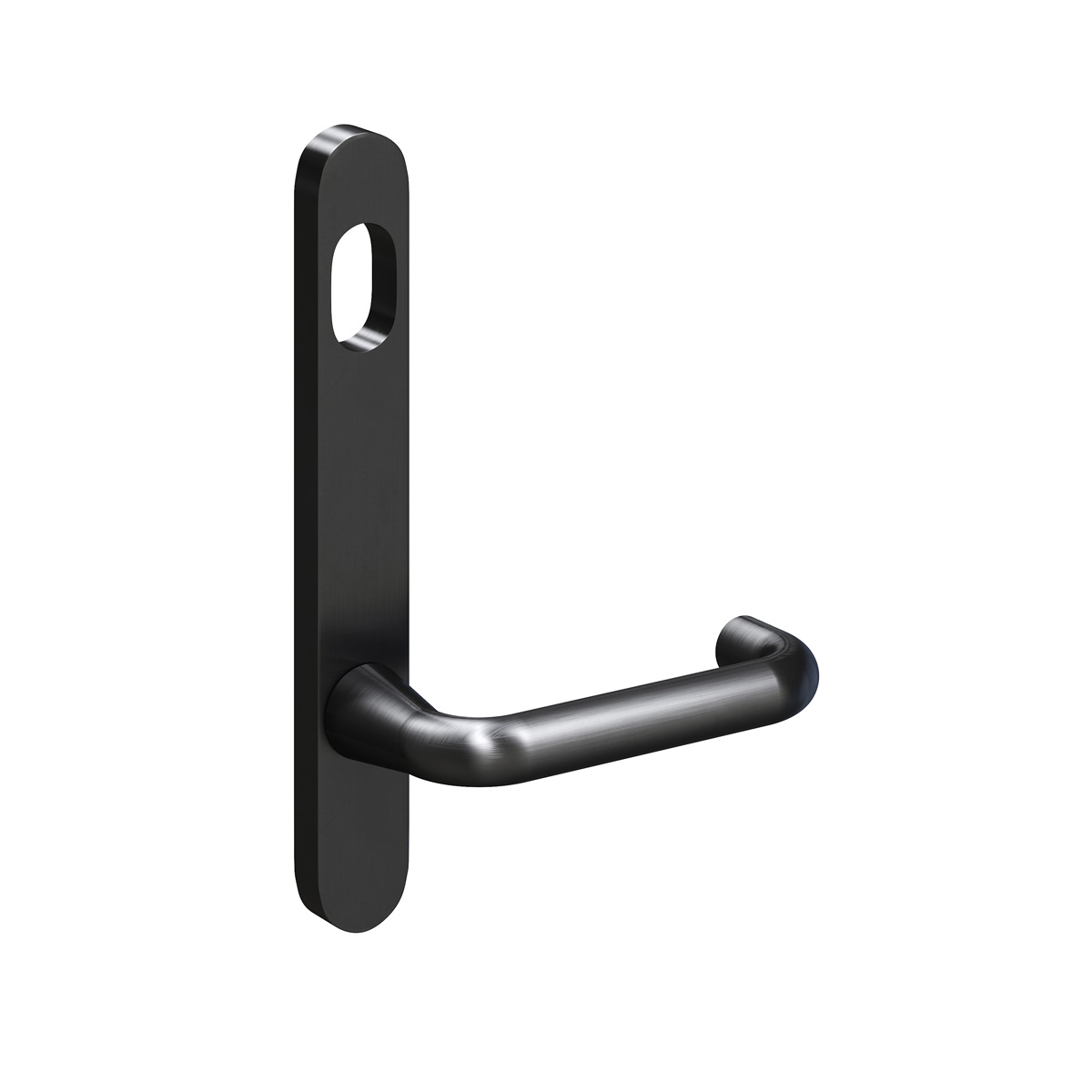

Legge 5403 Series Alpha Satin Black Chrome
Legge 5403 Series Alpha Polished Brass

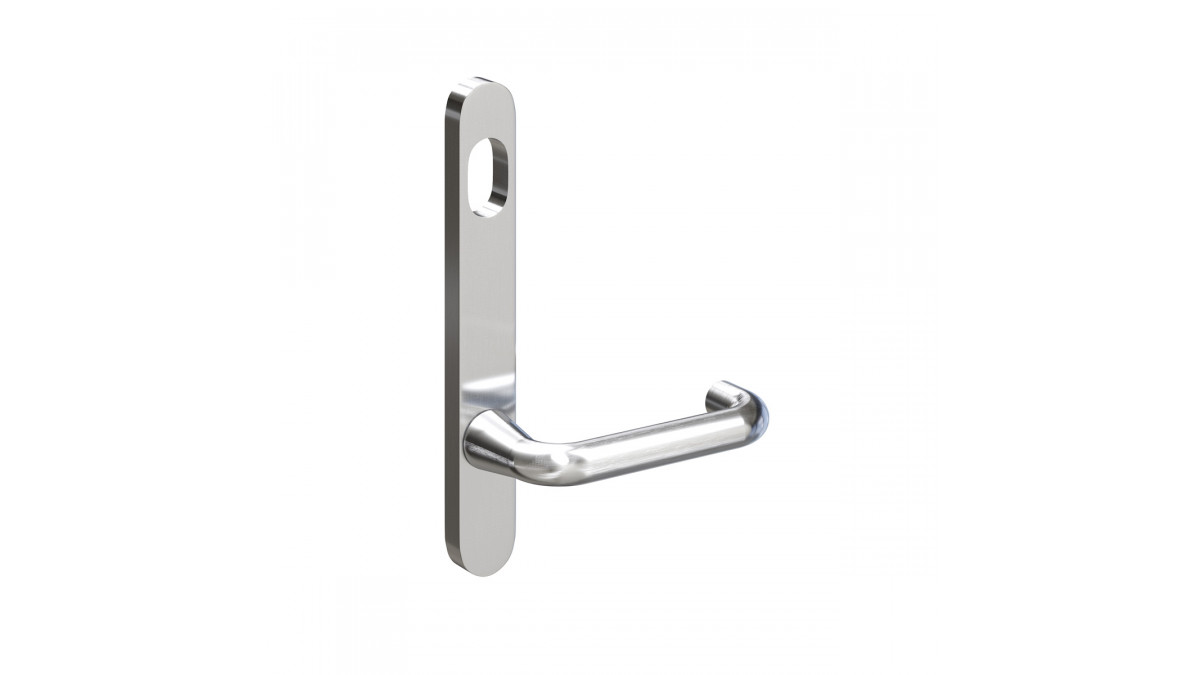

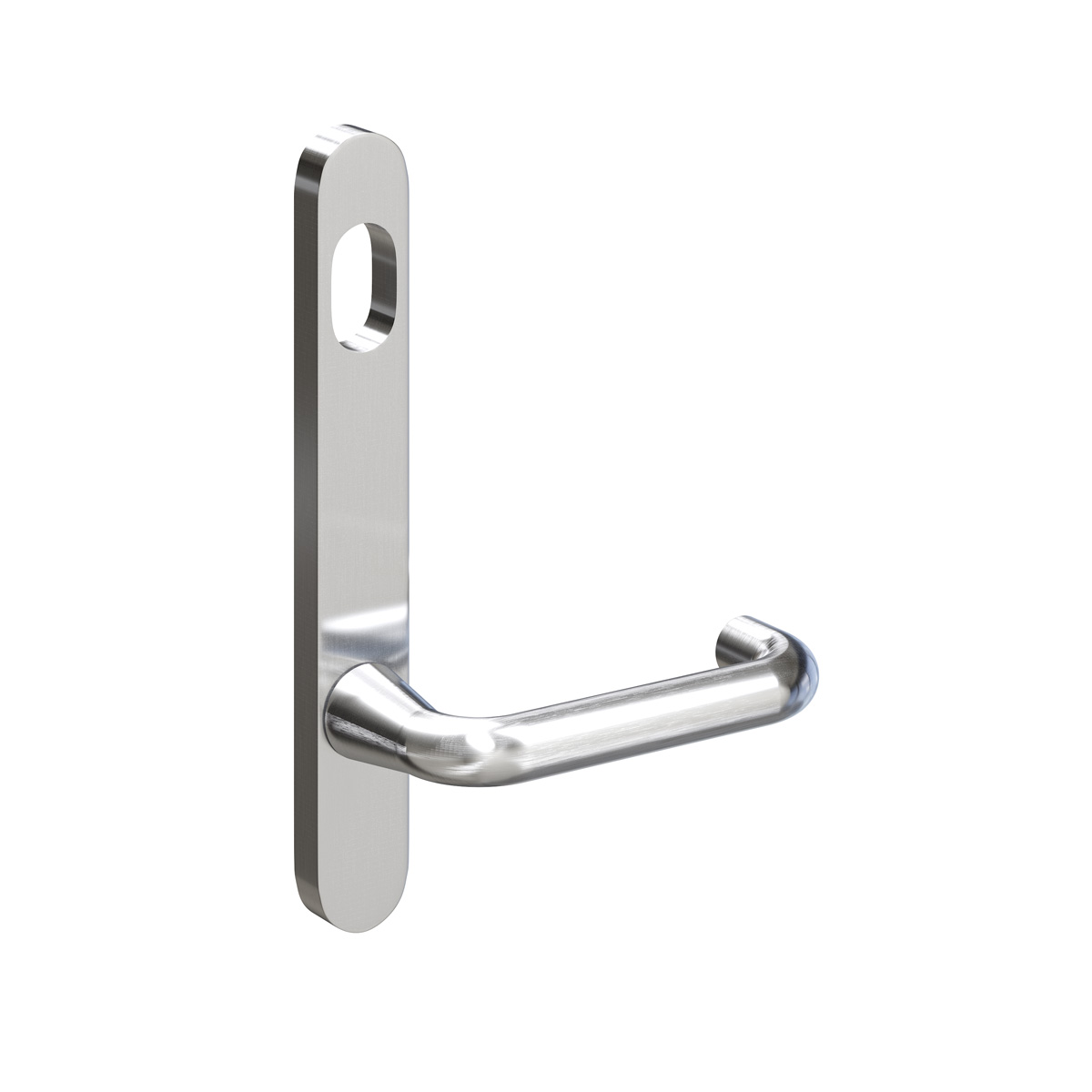

Legge 5403 Series Alpha Satin Chrome

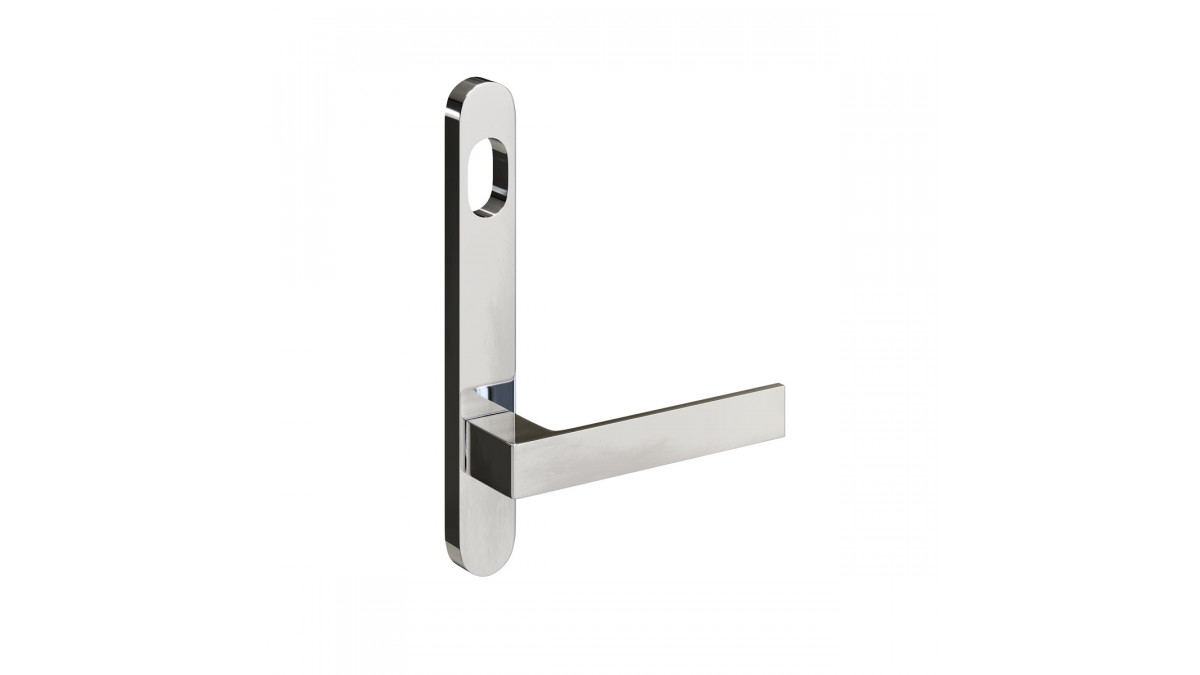

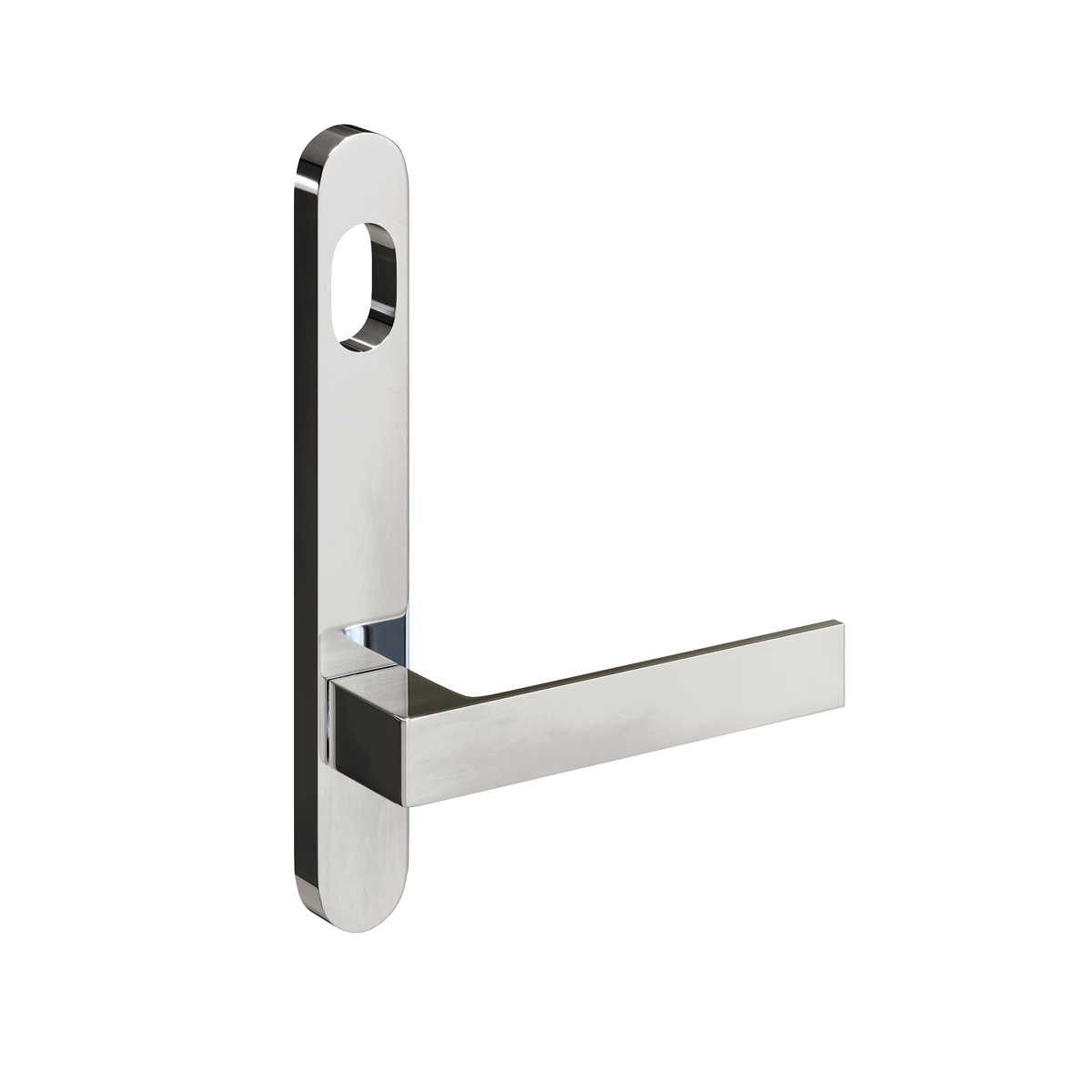

Legge 5403 Series Angelo Chrome

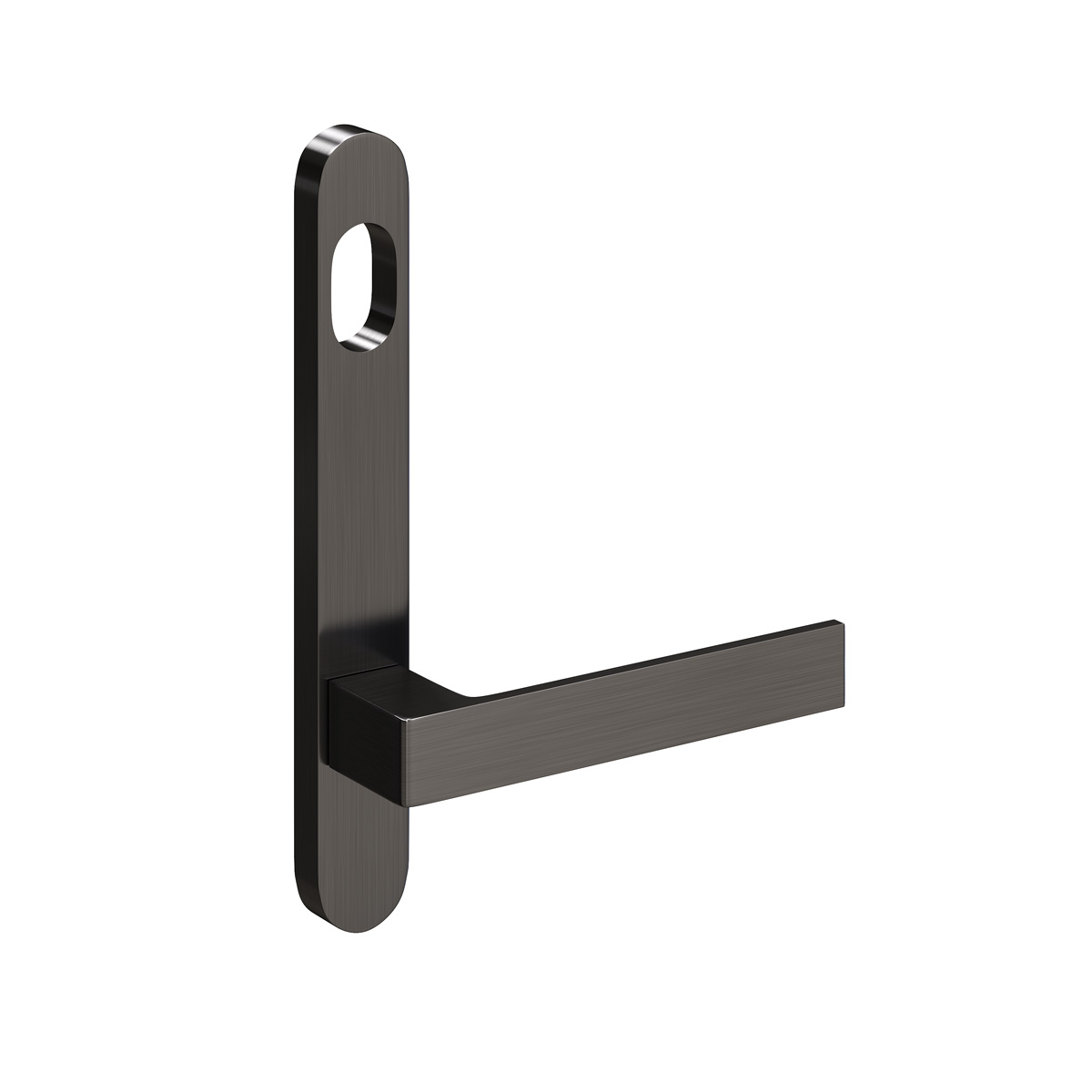

Legge 5403 Series Angelo Oil Rubbed Bronze

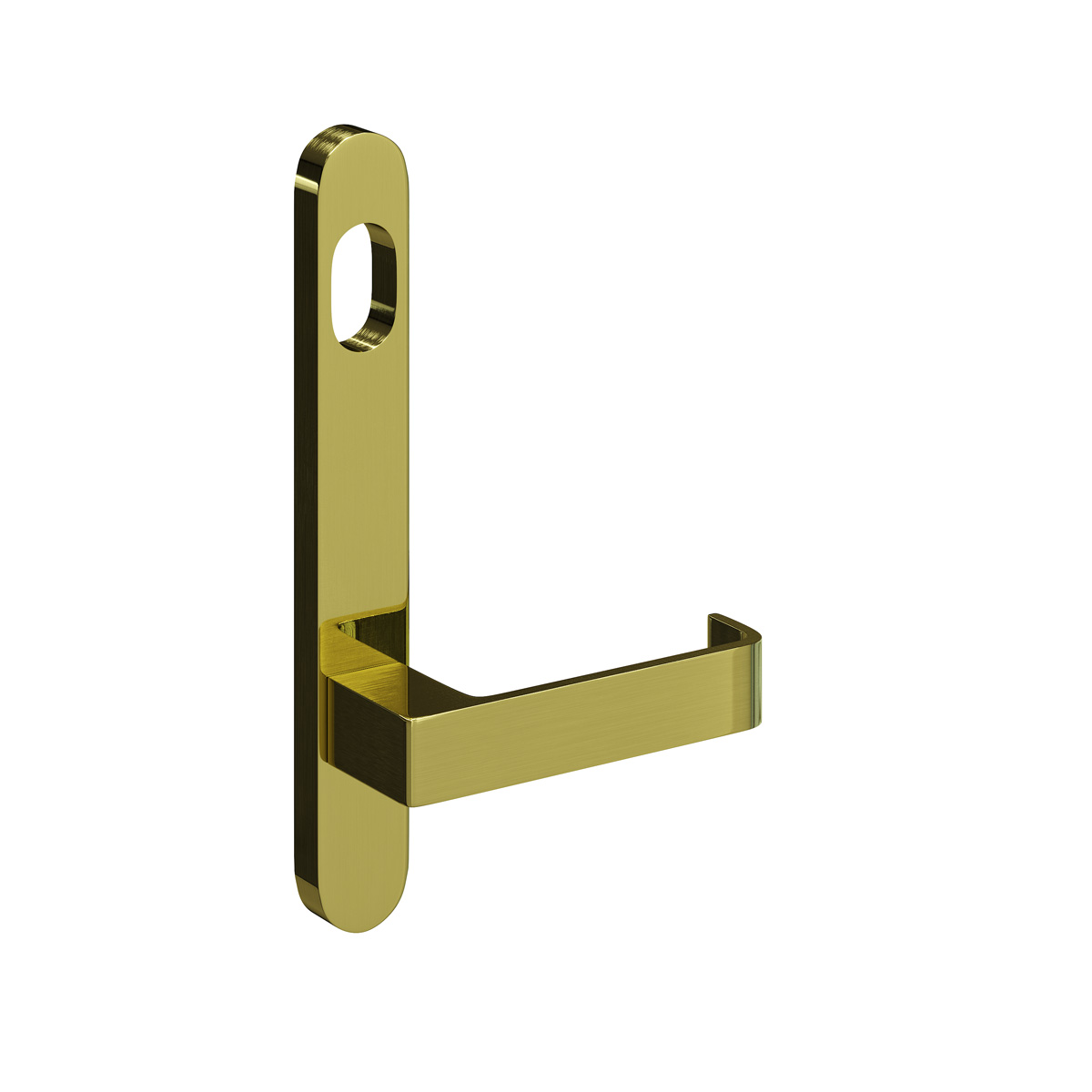

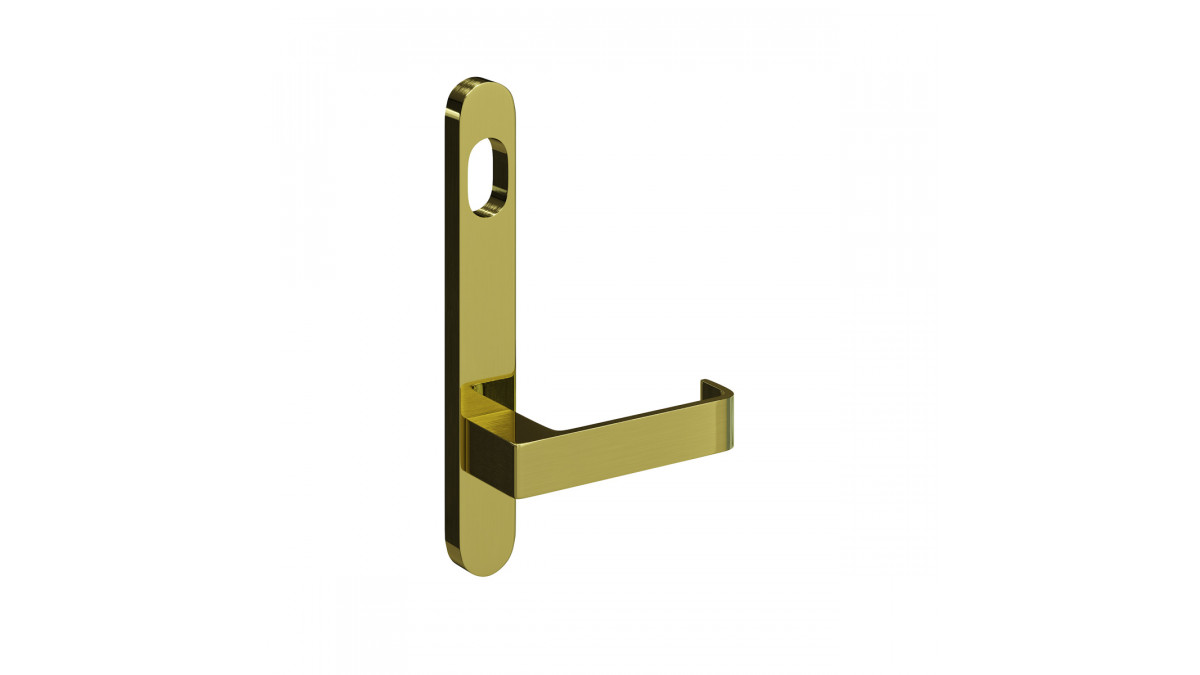

Legge 5403 Series Bergen Polished Brass
Legge 5403 Series Cisa Satin Brass

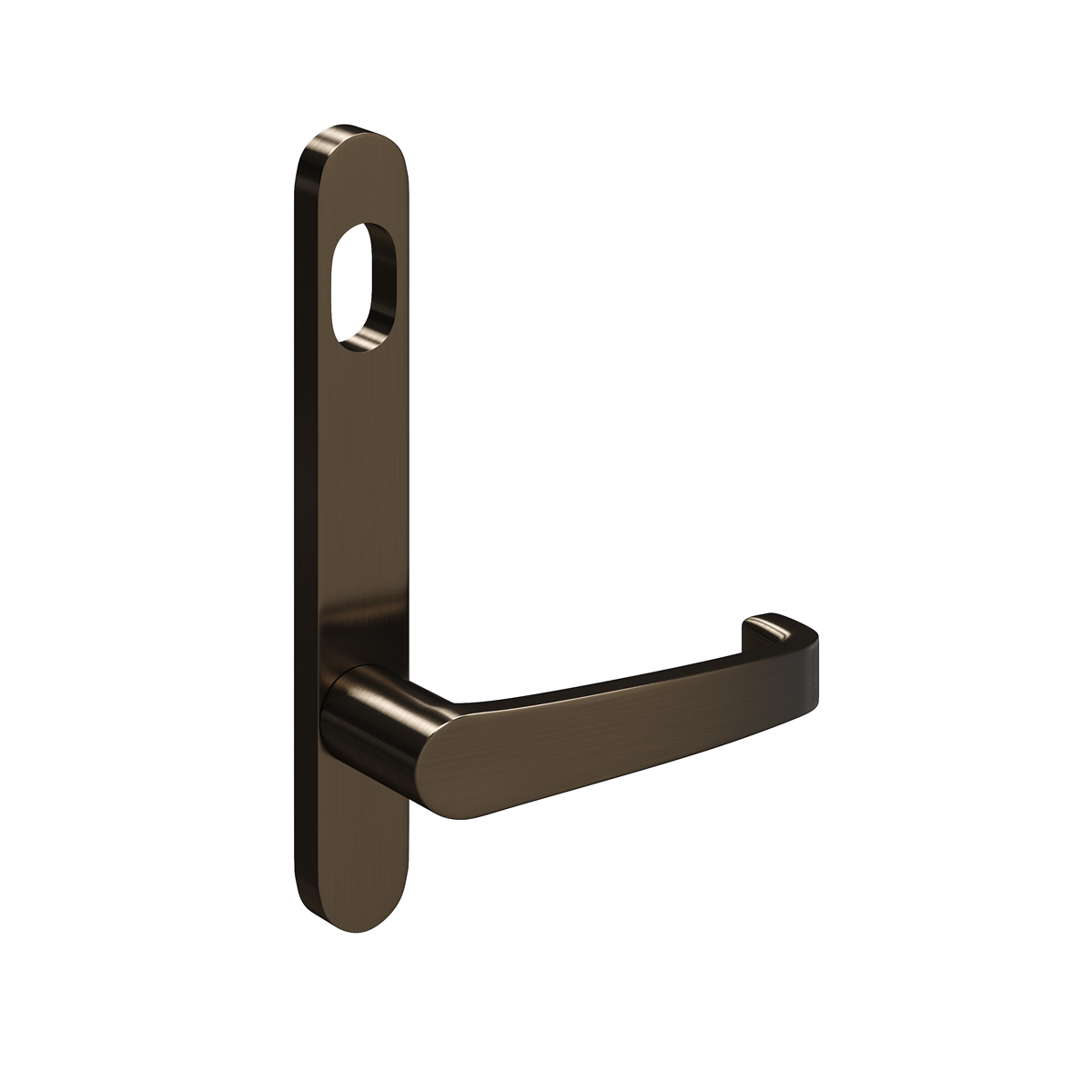

Legge 5403 Series Ergo Antique Bronze

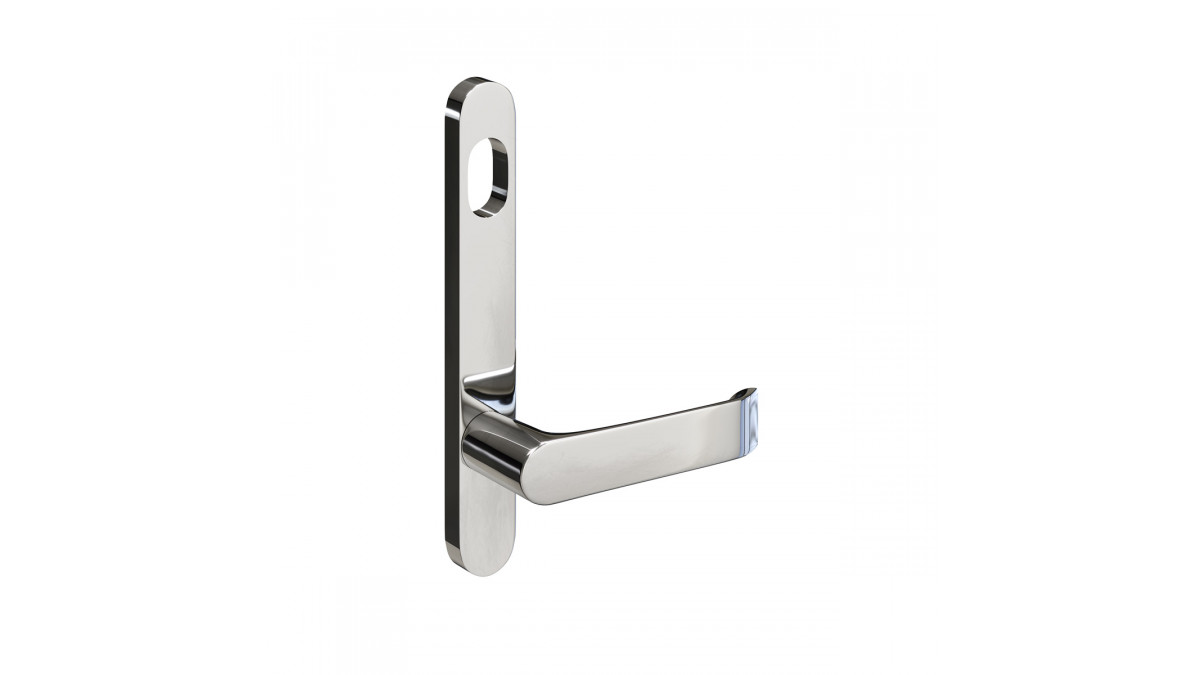

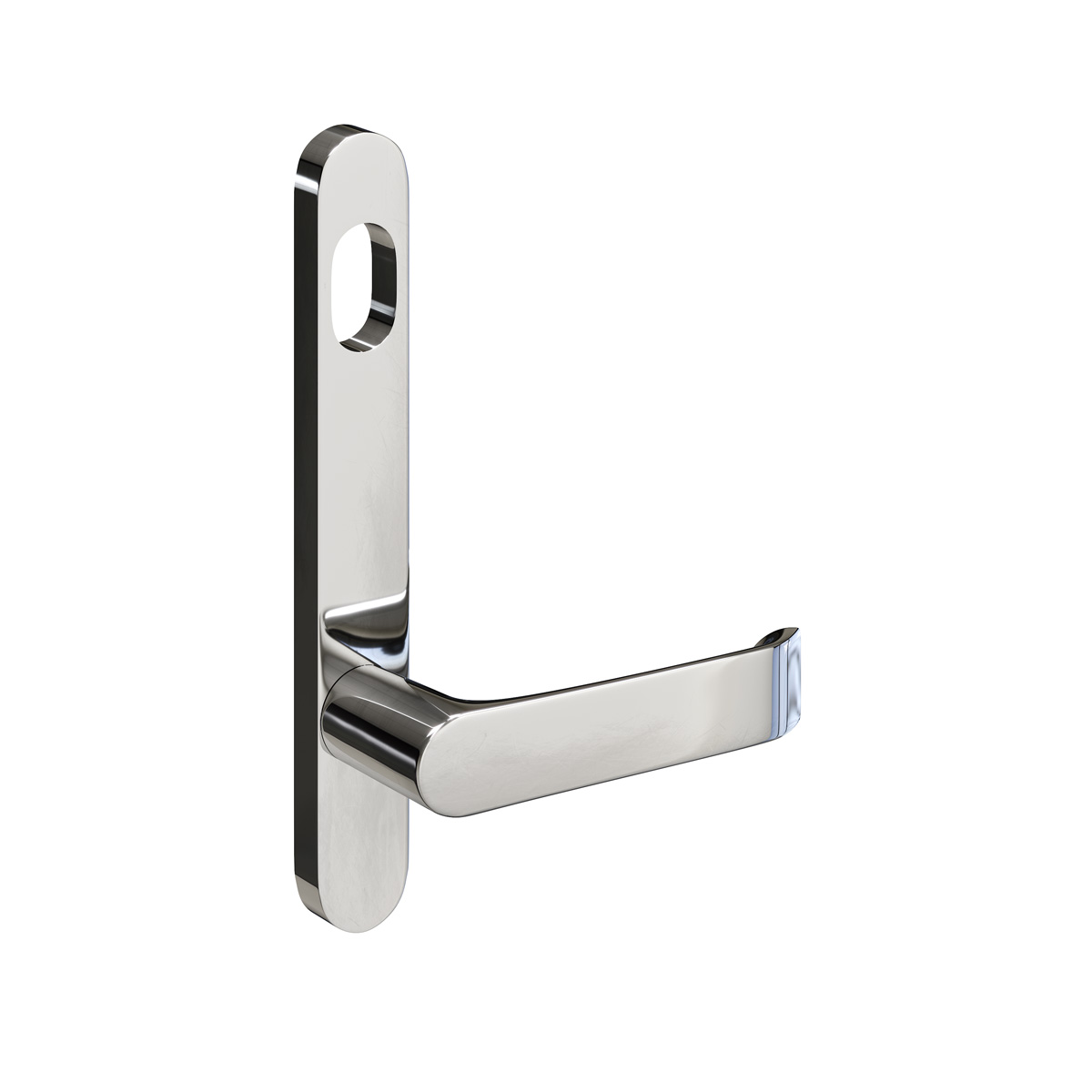

Legge 5403 Series Leonardo Chrome
Legge 5403 Series Monet Oil Rubbed Bronze

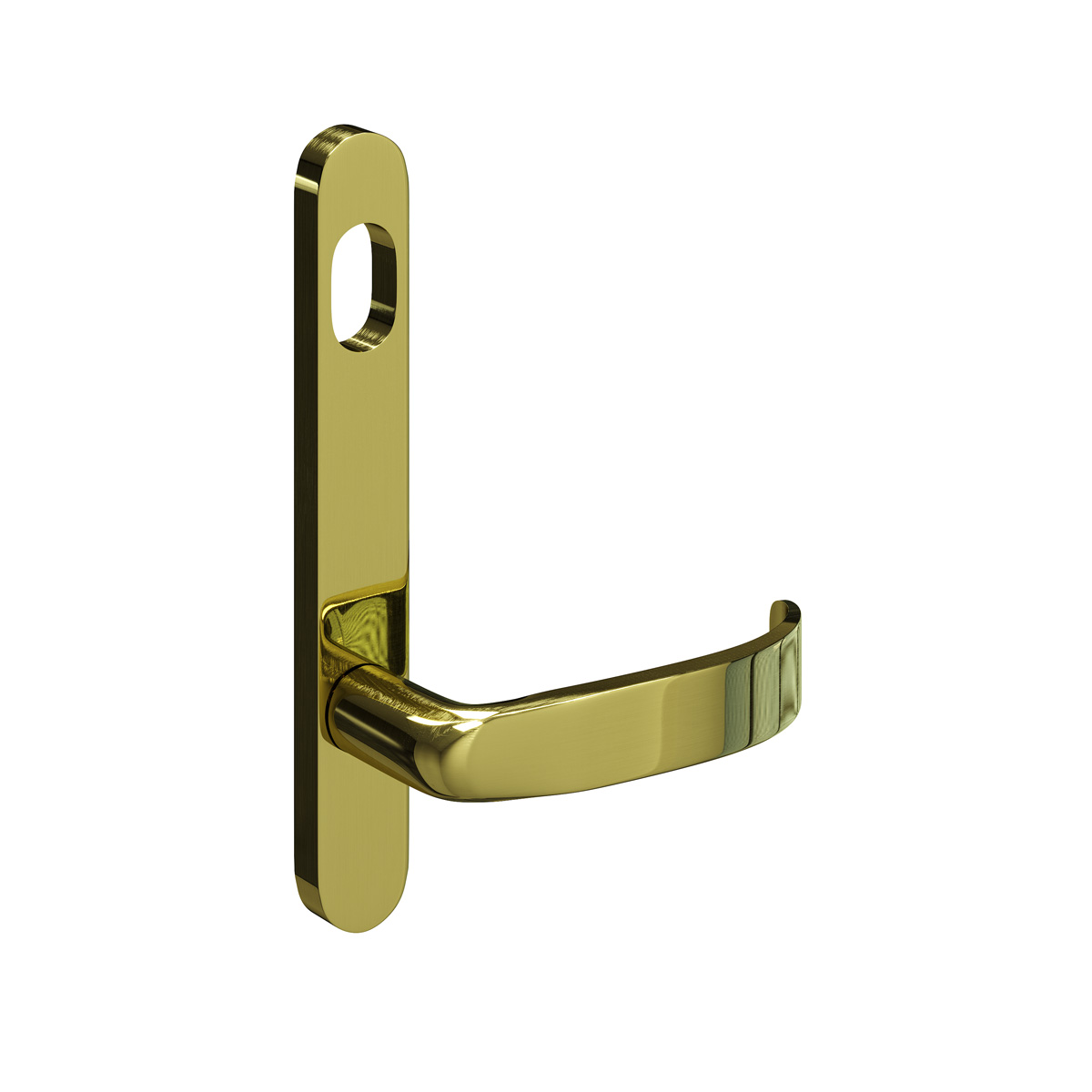

Legge 5403 Series Neptune Polished Brass
Legge 5403 Series Renoir Satin Black Chrome

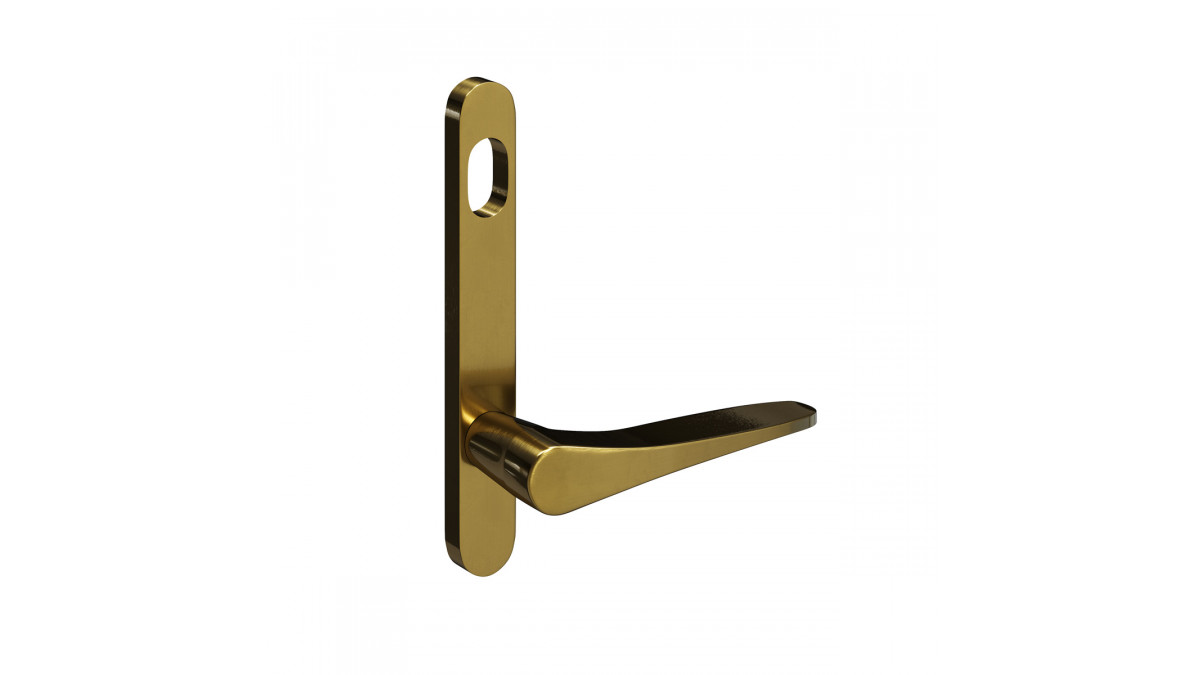

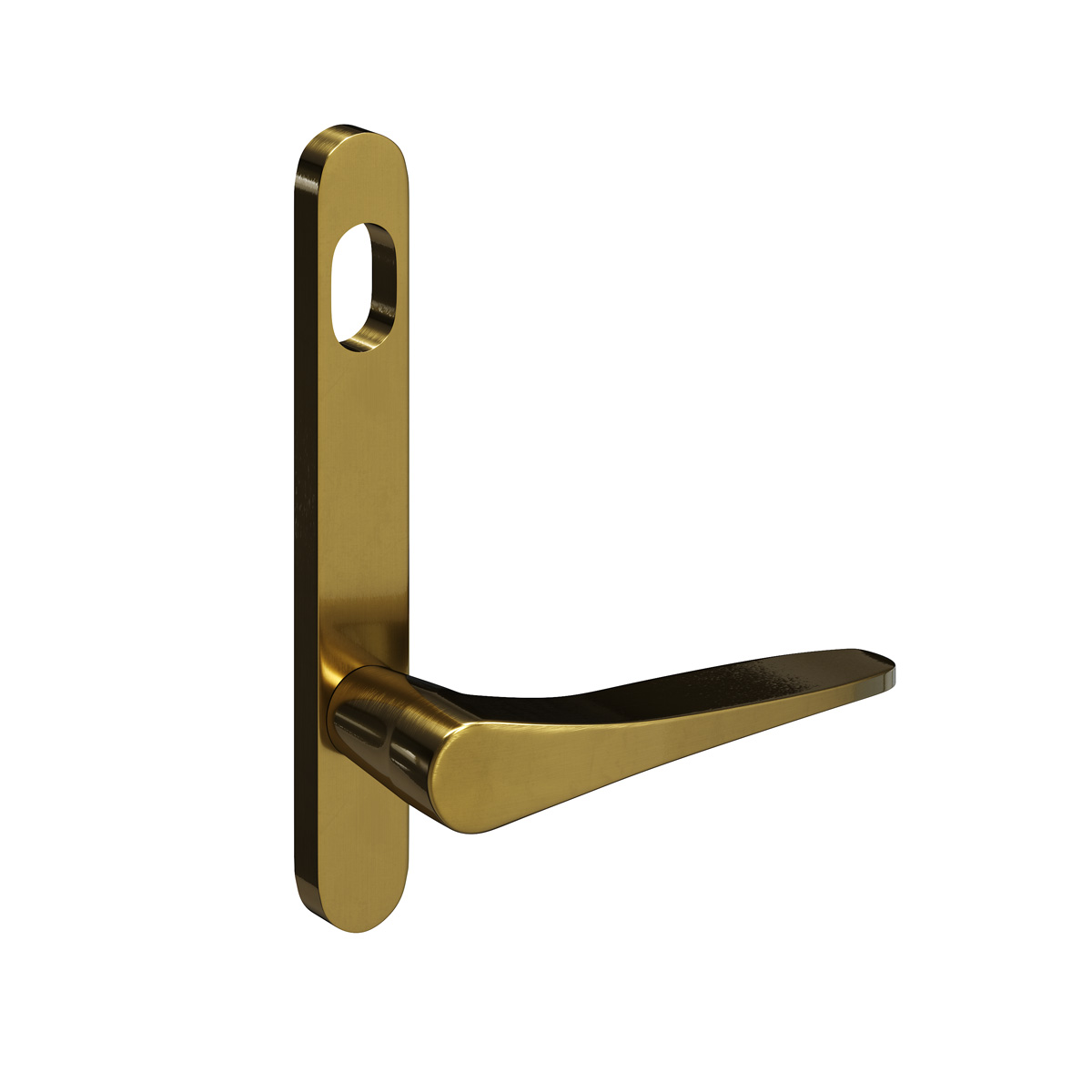

Legge 5403 Series Rubens Satin Brass
Description

The 5400 Series narrow stile furniture is designed for use in commercial applications, including exterior and interior doors for retail/shop front, educational, governmental, medical and public buildings. The narrow plate is ideal for use on narrow timber or aluminium stiles.

With a range of modern and contemporary lever designs, the 5400 Series will complement any décor. The handing mechanism of this series allows the furniture to be handed on-site, by simply rotating the handle in the preferred direction of use prior to installing on the door.

Available Finishes:

  • Oil Rubbed Bronze
  • Antique Bronze
  • Satin Brass
  • Satin Chrome
  • Polished Brass
  • Chrome
  • Satin Black Chrome
Key Features
  • Constructed of quality components including forged brass handles and extruded brass plates
  • Heavy duty compression spring provides a smooth, fast return action of the lever and minimises droop, extending the life of the furniture
  • Symmetrically designed levers are able to be handed on site within seconds, with a simple 180° rotation of the lever
  • Designed for use with Legge 995 narrow stile mortice locks, the 5400 Series can also be supplied to suit Legge 990MF mortice locks
  • The 30 year mechanical warranty provides specifiers and users with assured quality and performance
  • Levers — forged & extruded brass, plate — extruded brassa
Categories
Handles and Knobs
Ranges
Legge Door Furniture
Scope of Use

The 5400 Series of narrow stile furniture is designed for commercial applications, including exterior and interior doors for retail/shop front, educational, governmental, medical and public buildings. The narrow plate is ideal for use on aluminium stiles.

  • Door type: Timber or metal
  • Door thickness: 32mm to 50mm (51mm to 75mm with optional extended screws)
  • Fixing centres: 159mm
  • Plate height: 185mm
  • Plate width: 25mm
  • Plate thickness: 12mm
  • Lever to cylinder centres: 90mm for 995MF mortice lock and 69mm for 990MF mortice lock
  • Spindle size: 7.6mm
  • Compatible locks/latches: Legge 995MF and Legge 990MF Series mortice locks
  • Fixing: Back to back., external plates concealed fixing. Screws supplied with exterior plates only. 75mm M4 screw
Other Performance Attributes
  • The 30 year mechanical warranty provides specifiers and users with assured quality and performance
