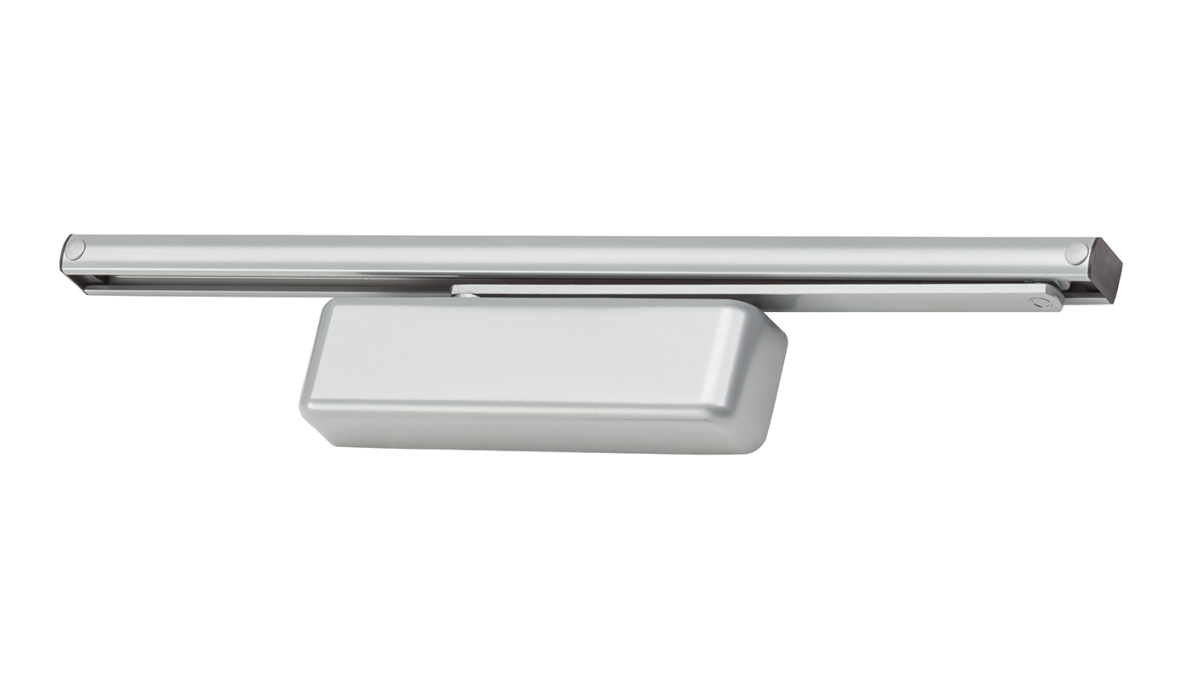

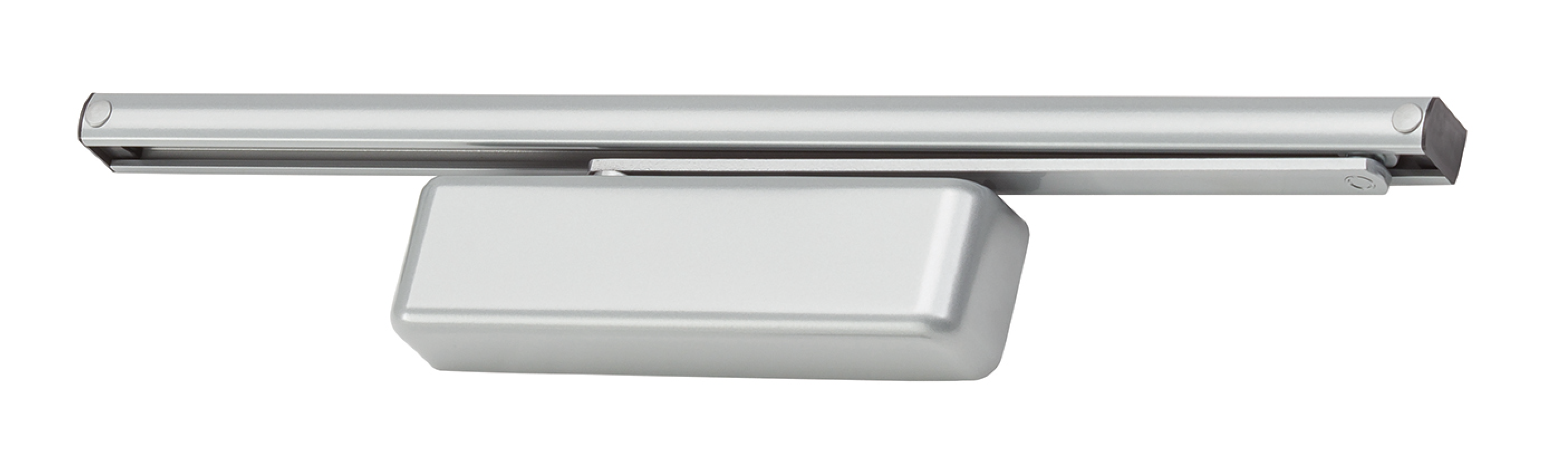

LCN 4031/4031T Series Surface Mounted Door Closer
Allegion
All products
4031T
Description

The 4031 Series is a non-handed, surface mounted closer. The choice of three mountings, installation accessories and ease of installation offers a versatile solution to door control in moderate traffic applications.

The 4031 Series has been designed to be used on aluminium, hollow metal or timber swinging commercial interior/exterior doors and is ideally suited for apartment entrance, office, storeroom or toilet doors.

Key Features
  • Universal, fully reversible, non-handed door closer
  • Closer cylinder constructed of high strength cast iron for increased durability
  • Tested to 1,500,000 cycles
  • Fully adjustable 1-4 strength
  • Factory set to strength 3
  • Standard closer offers 3 installation options: Regular (pull side), Top jamb (push side), Parallel arm (push side)
  • Independent adjustment valves for backcheck, closing and latching speeds
  • All adjustment valves are concealed behind the cover to prevent tampering
  • Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
Categories
Door Closers
Ranges
LCN Door Controls
Scope of Use
  • Universal, fully reversible, non-handed door closer
  • Designed to be used on aluminium, hollow metal or timber swinging commercial interior/exterior doors
  • Ideally suited for apartment entrance, office, storeroom or toilet doors
  • Door type: Timber or metal
  • Door size: External door 660-914mm, internal door 660-1219mm
  • Applications: Regular — pull side mount, parallel arm — push side mount, top jamb — push side mount
  • Adjustment controls: Closing speed, latching speed, backcheck
  • Strength 1-4 adjustable
  • Options Hold open arm, adaptor plate, parallel-arm drop plate, square metal cover
  • SRI For installations where a higher level of protection against weather conditions, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process
Other Performance Attributes
  • Tested to 1,500,000 cycles
  • Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
  • SRI For installations where a higher level of protection against weather conditions, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a standard powder coat finish of choice, or a custom powder coat finish for a nominal additional cost
  • Closers treated with the SRI process exceed the 100 hour protection level available with standard LCN powder coated finishes
Documents
4031 Series
pdf
4031T Series
pdf
4031
pdf
4031 Cush
pdf
4031 EDA
pdf
4031 Peel-N-Stick
pdf
4031 Track
pdf
Drop Plate
pdf
Drop Plate
pdf
