ACO TramDrain
Description

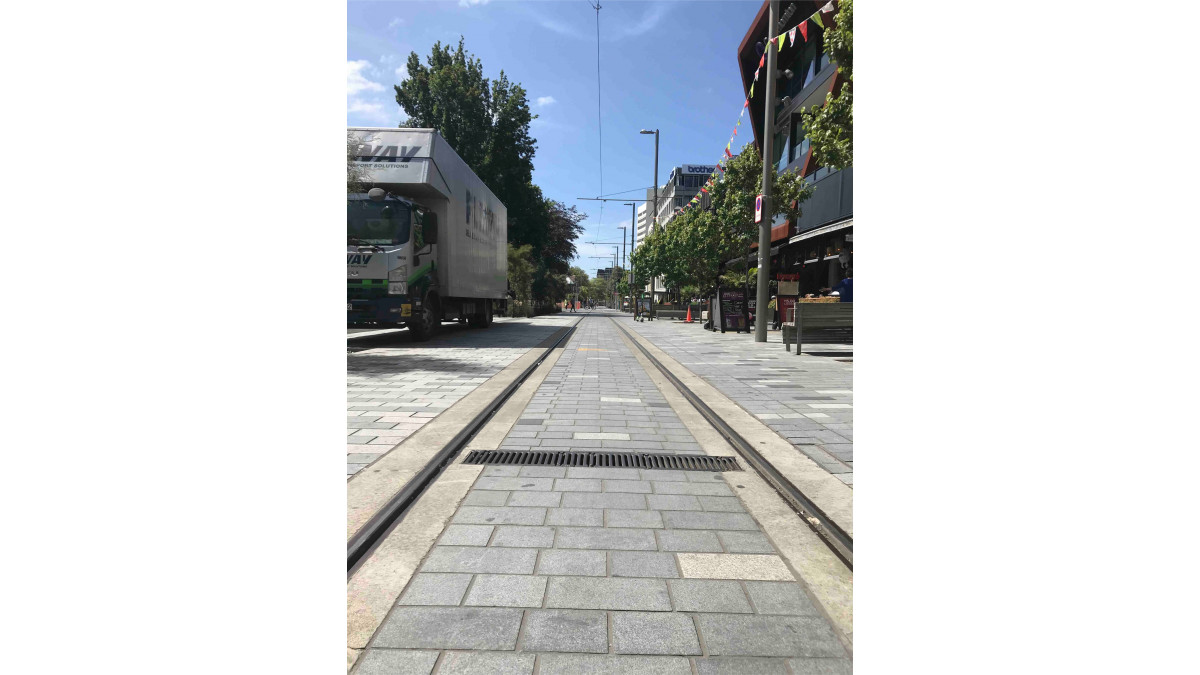

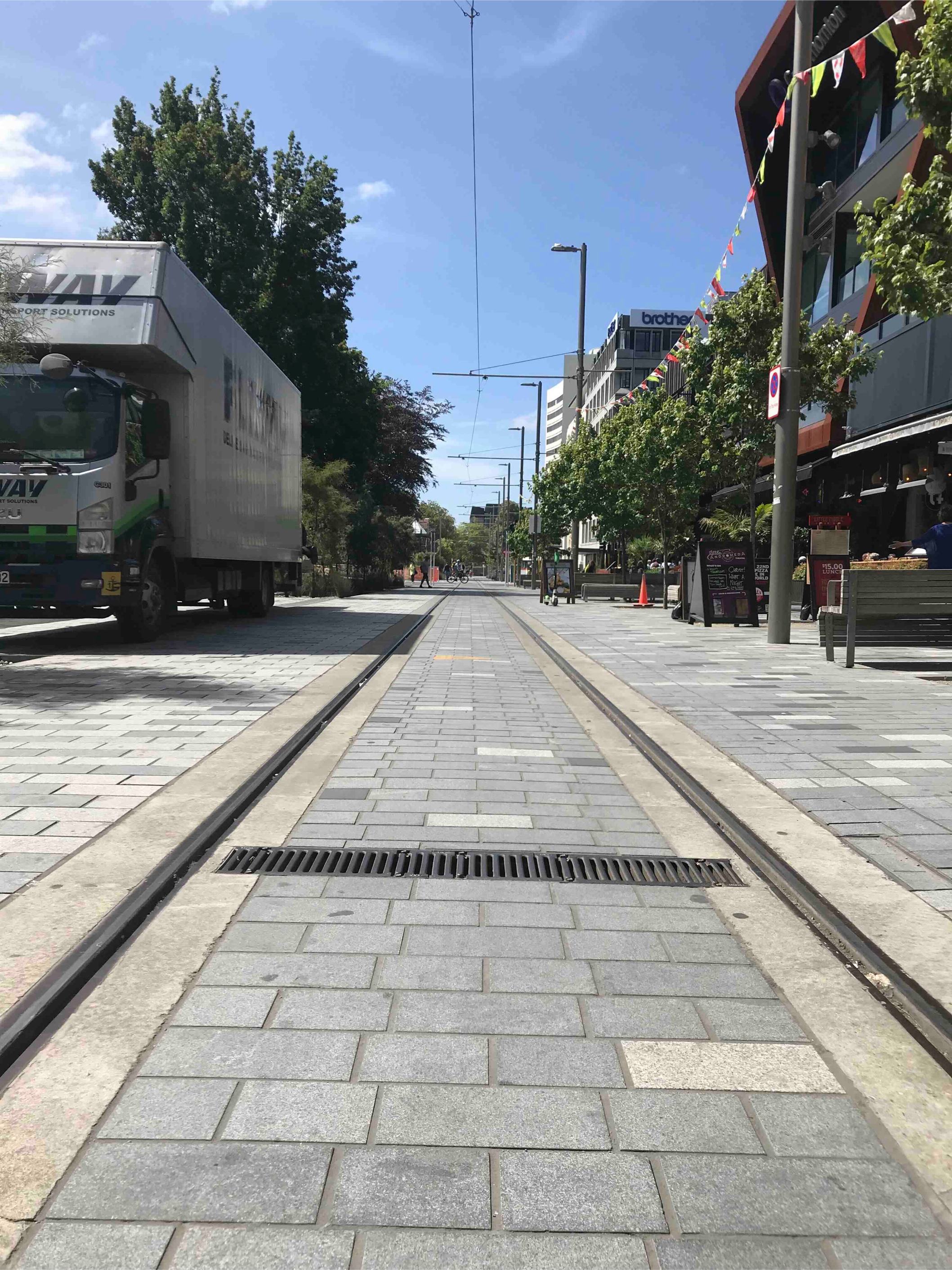

TramDrain is designed to provide efficient surface water drainage to the grooved rail and track slab.

  • TramDrain 175A is a compact drainage system with 175mm clear opening width and 166mm invert depth.
  • TramDrain 200A is a high capacity drainage system with 200mm clear opening width and 265mm invert depth
  • TramDrain 200B is a high capacity drainage system with 200mm clear opening width and 350mm invert depth
Key Features
  • Rubber chute:
    • Specially designed to discharge runoff collected in the rail groove
    • Flexible to suit various track rail sections, including 51R1 and 59R2
    • Isolates the TramDrain from stray currents in the track rail
  • Channel manufactured from polymer concrete — strong and durable

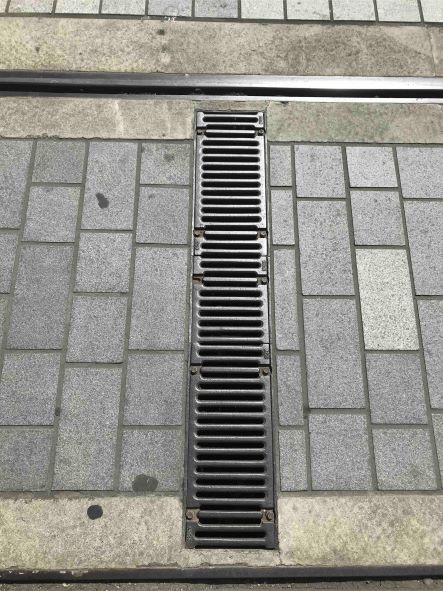

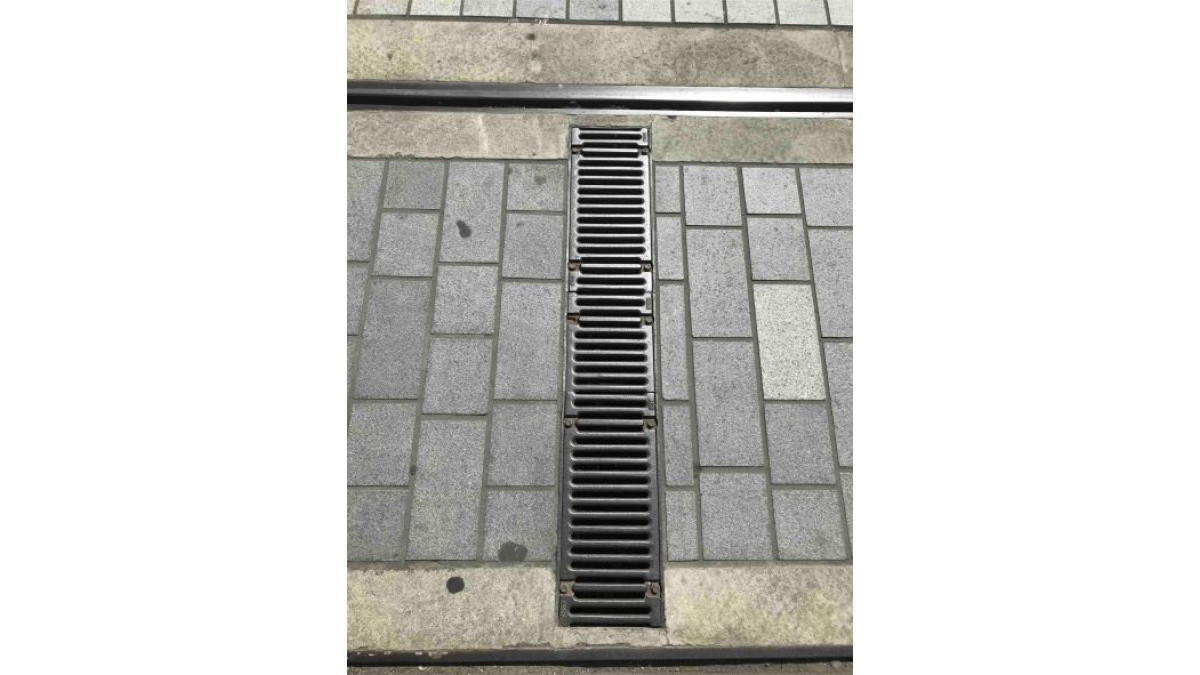

  • Two choices of ductile iron grates:
    • Heelsafe® Anti-Slip, pedestrian friendly with 8mm wide slots
    • Slotted with 13mm wide slots
  • Secured and locked down with bolts
  • Meets AS 3996 Class D (210kN)
Scope of Use
  • For track and rail groove drainage
  • Two choices of ductile iron grates:
    • Heelsafe® Anti-Slip, pedestrian friendly with 8mm wide slots
    • Slotted with 13mm wide slots
Other Performance Attributes
  • Meets AS 3996 Class D (210kN)
