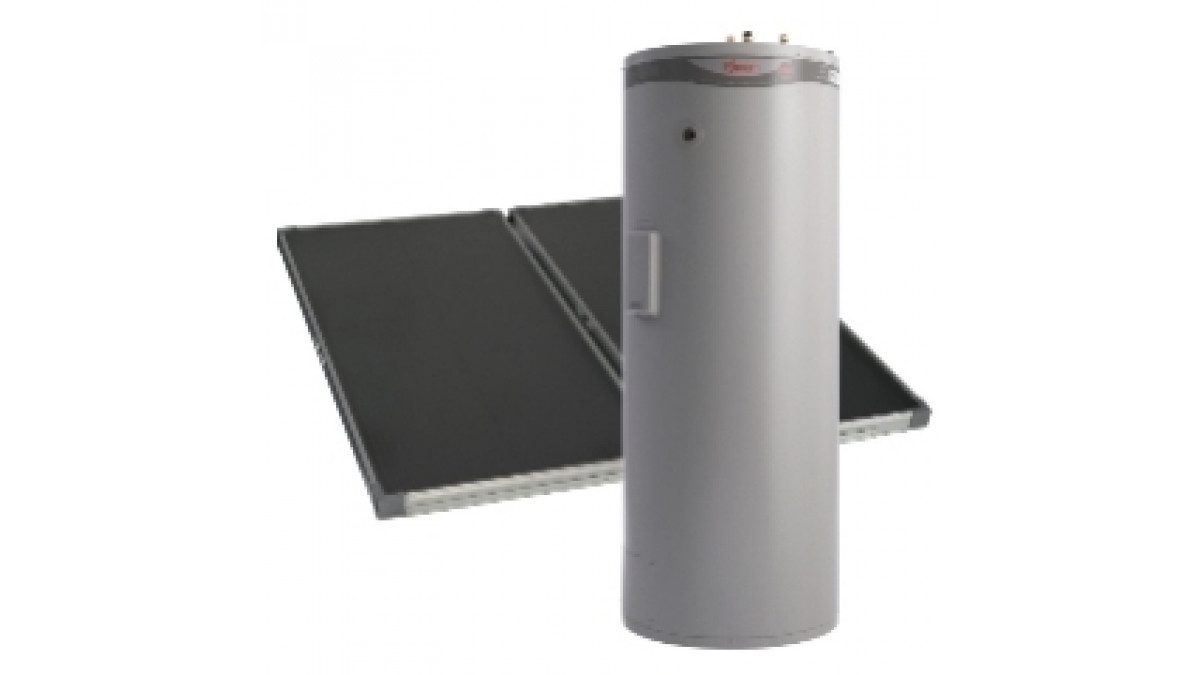

The collectors are mounted on the roof while the solar storage tank is located at ground level. This tank includes the pump and system controls (solar controller) all fitted neatly in its base.

The revolutionary system combines an "in tank" heat exchanger in a proven vitreous enamel lined cylinder with Rheem's high efficiency, multi riser, T200 collector to produce a system with superior solar performance.

The system is factory charged with the correct amount of heat exchange fluid which requires no further filling on site. During periods of solar gain, the heat exchange fluid is pumped through the collectors to capture the sun's energy. When heating is complete or during periods of frost the fluid drains back to the tank providing total frost protection to -17oC.

The heat exchange design is also perfectly suited for areas of poor water quality because heat transfer fluid (glycol) passes through the collectors instead of water, which can form calcium in the collectors. The heat exchange circuit is kept clean and maintains peak performance for the life of the system. With the correct selection of anode, vitreous enamel tanks have proven to be the most durable for all water conditions found in New Zealand.

Rheem Premier Solar is available in a 270 litre model with 26 litre a minute remote in-line gas boosting (gas type can be either Natural or LPG) or Electric boosting via a 3.6 kW element positioned to supply 135 litres of hot water when required.
