Pro Clima Wall Underlay Specified for Pauanui Bach

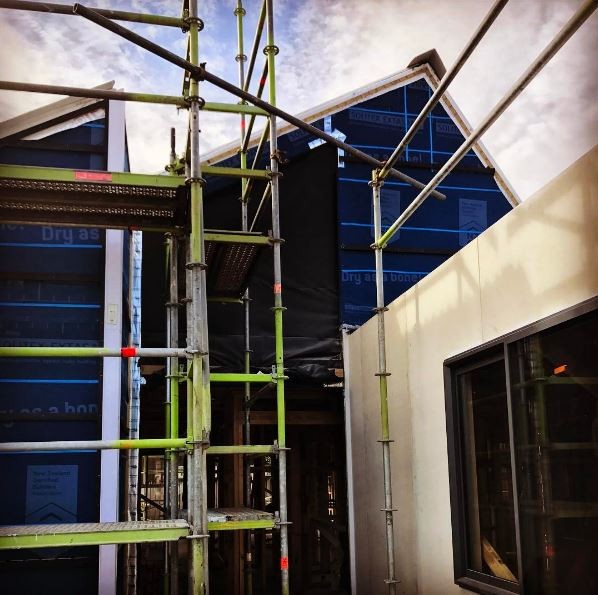

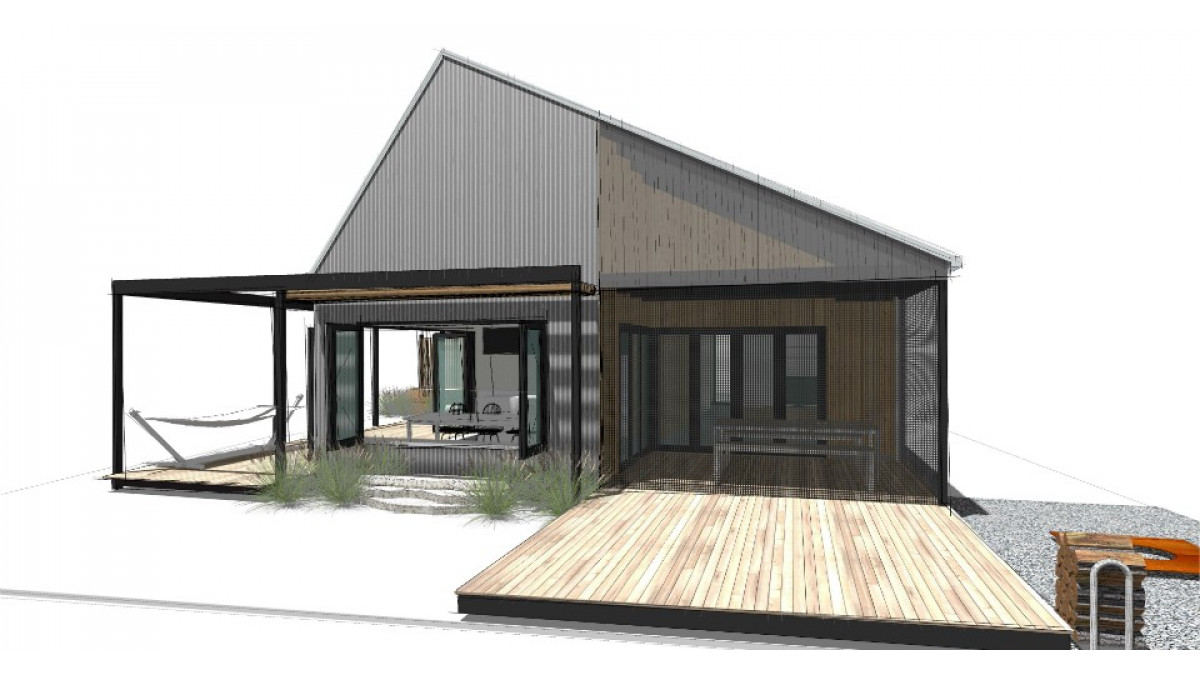

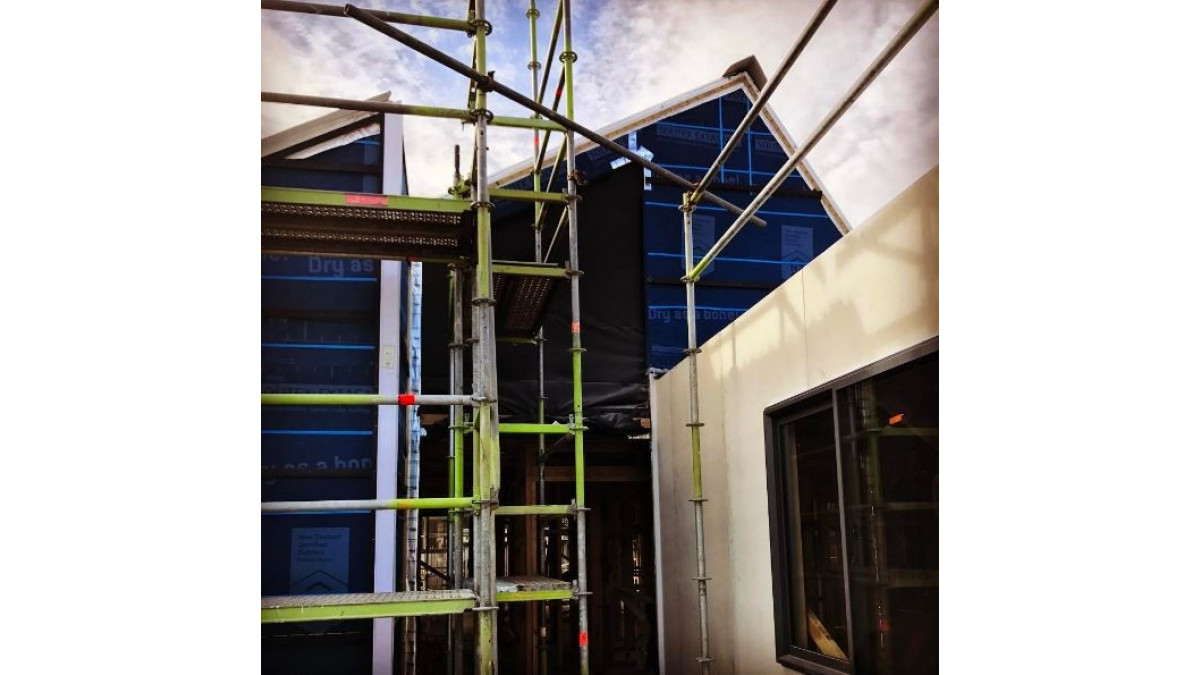

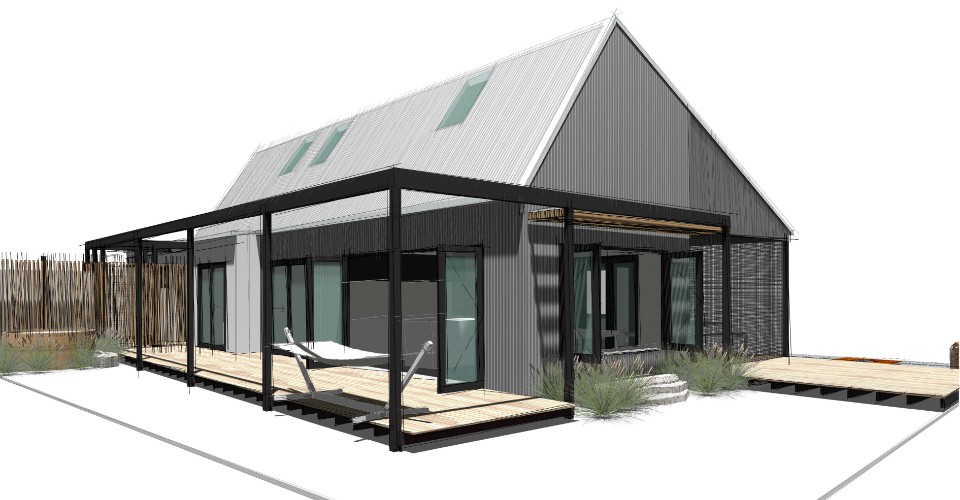

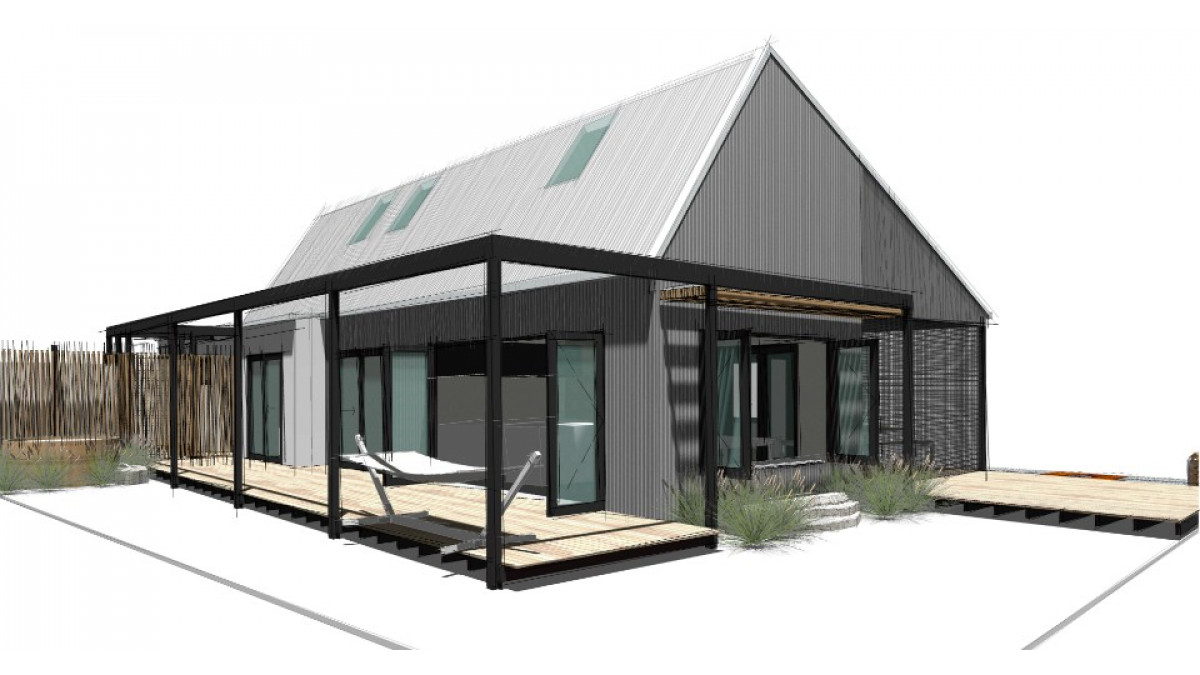

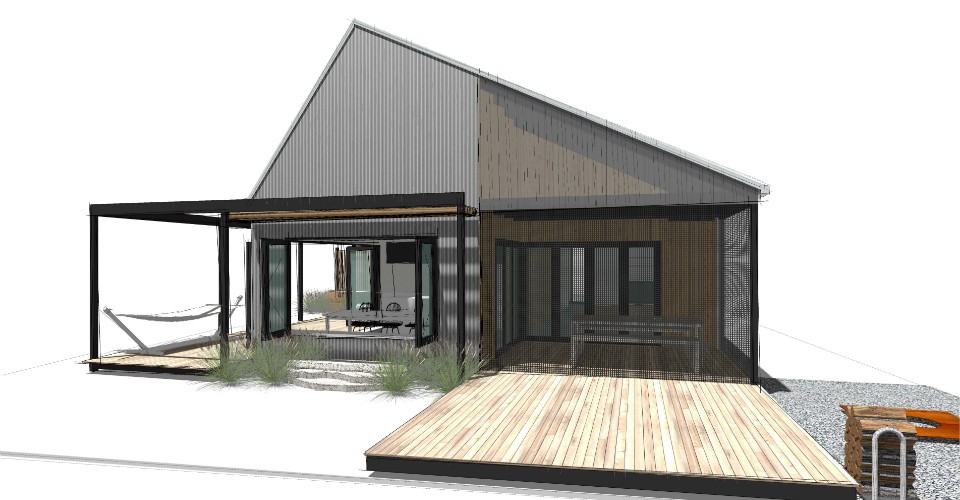

Adam Taylor of Adam Taylor Design recently commissioned a bach to be shared by two families in Pauanui. The footprint of 127m² includes five bedrooms and four living areas. Adam has included a mix of industrial and natural materials to replicate the original Pauanui utility sheds. Underneath the 'shed' cladding Adam chose pro clima's CodeMark certified SOLITEX EXTASANA wall wrap to offer the highest level of protection from external moisture.

A synthetic flexible wall underlay designed for New Zealand conditions, SOLITEX EXTASANA consists of a non-porous water resistant film laminated between two layers of spun-bonded polypropylene. It exceeds all of the testing standards of E2/AS1 Table 23, making it an ideal air barrier option.

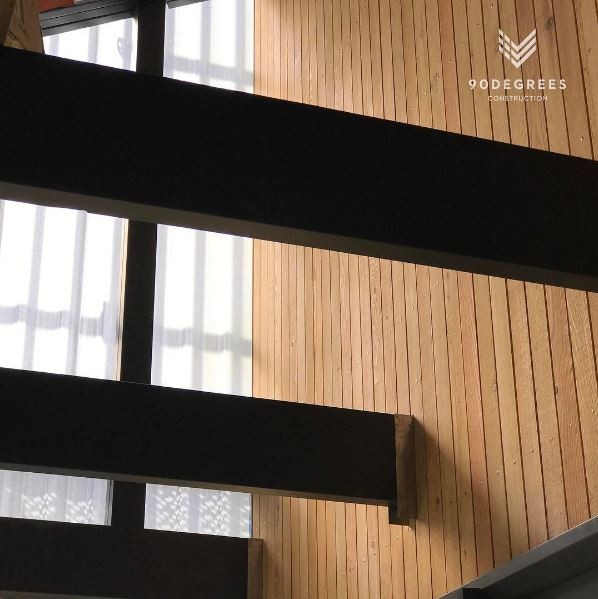

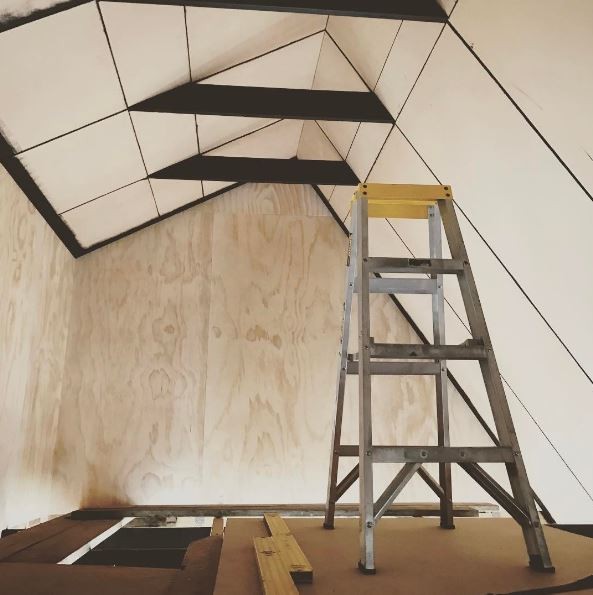

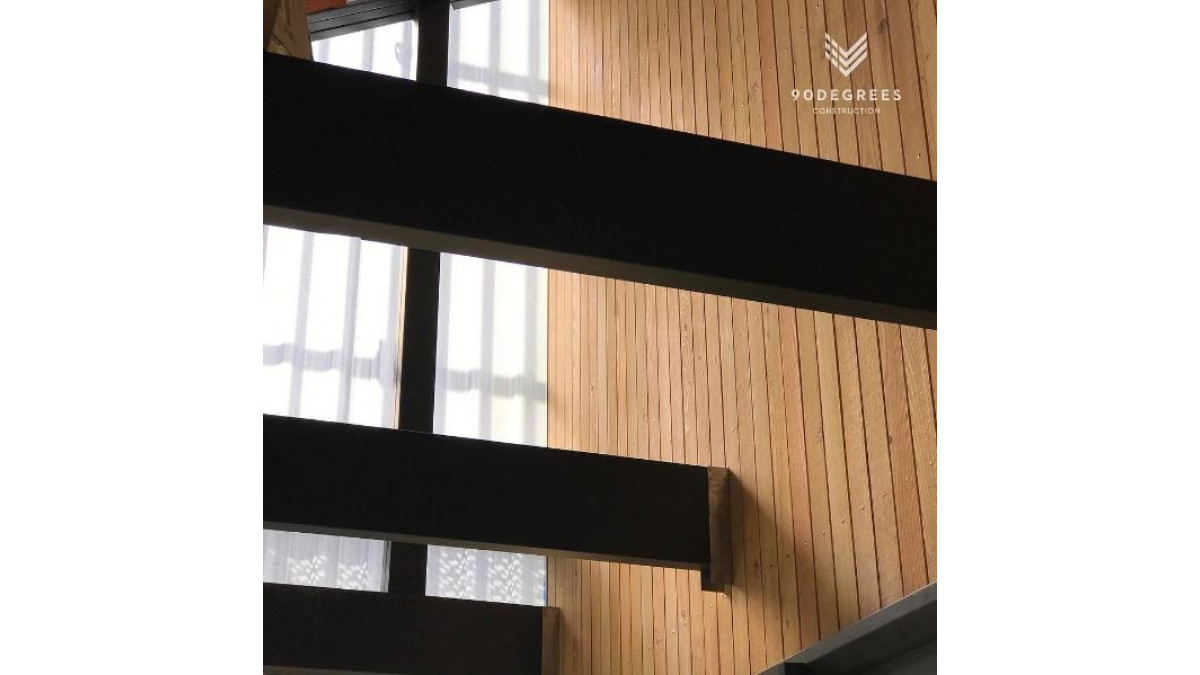

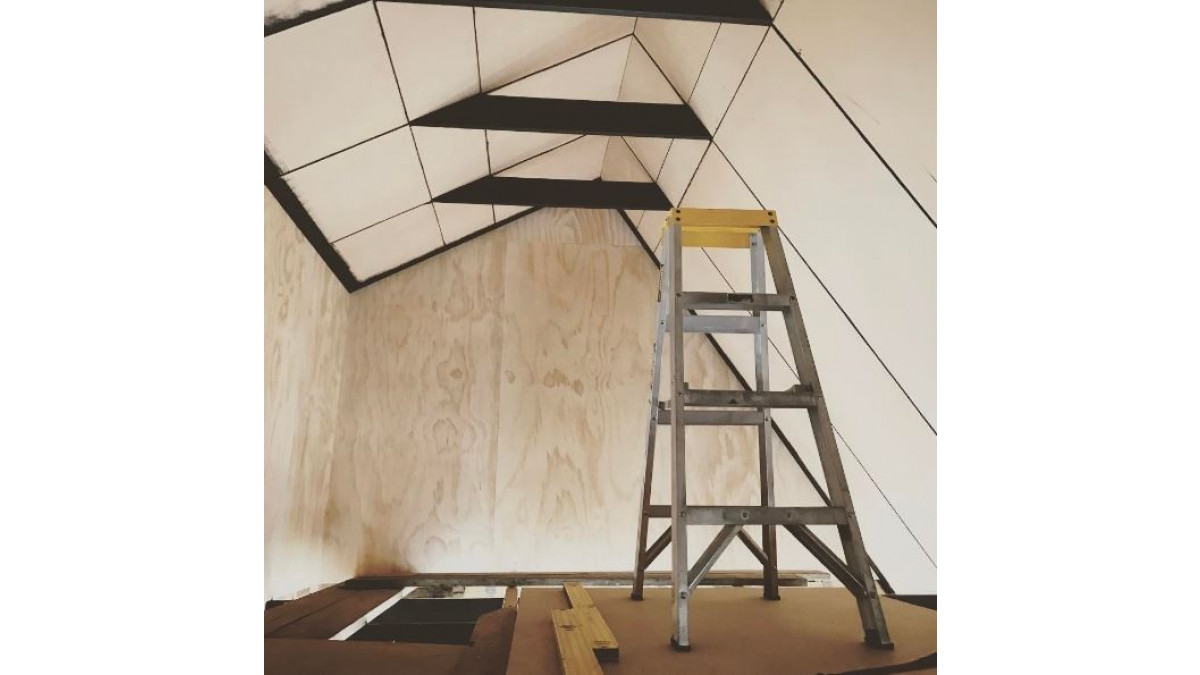

Other interesting details include a full height rope mesh arrest screen, exposed trusses, MDF negative detailed ceilings, plywood walls and MDF batten linings, and a stunning burnished concrete floor.

This is currently under construction by 90 Degrees.

SOLITEX EXTASANA Wall Underlay

pro clima

View Product

SOLITEX EXTASANA is a synthetic flexible wall underlay designed for New Zealand conditions, produced in Germany, and exceeds all of the testing standards of E2/AS1 Table 23.

Declare LBC Red List Free

Declared

Has been assessed for use as a flexible wall underlay on timber framed buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
with absorbent wall claddings directly fixed to framing; and,
with non-metallic, non-absorbent wall claddings directly fixed to frame; and,
with absorbent and non-absorbent wall claddings installed over an 18 mm minimum drained cavity; and,
with masonry veneer in accordance with NZBC Acceptable Solution E2/AS1; and,
situated in NZS 3604:2011 Wind Zones up to, and including ‘Very High’.

Has been assessed for use as a flexible wall underlay on steel framed buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area; and,
with absorbent and non-absorbent wall claddings installed over an 18 mm minimum drained cavity; and,
with masonry veneer in accordance with NZBC Acceptable Solution E2/AS1; and,
situated in NZS 3604:2011 Wind Zones up to, and including ‘Very High’.

Has been assessed for use as a flexible wall underlay over rigid wall underlays on timber and steel framed buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1 (August 2011), Paragraph 1.1 with regards to building height and floor plan area; and,
with absorbent and non-absorbent wall claddings installed over an 18 mm minimum drained cavity; and,
with masonry veneer in accordance with NZBC Acceptable Solution E2/AS1; and,
situated in NZS 3604:2011 Wind Zones up to and including ‘Extra High’

If used, designed, installed and maintained in accordance with the statements and conditions of the Installation Guide and the Codemark Certificate, will meet, or contribute to meeting the following provisions of the NZBC:

Clause B2 DURABILITY: Performance B2.3.1(a), not less than 50 years, B2.3.1(b), 15 years and B2.3.2. meets these requirements.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. When used as part of the cladding system, will contribute to meeting this requirement.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Meets this requirement and will not present a health hazard to people.

BRANZ Appraised

CodeMark
