Harmony Homes Utilise Palliside Weatherboards

It can be hard to determine priorities when planning a new home, but good architecture, high quality construction and an energy efficient design are right up there. The Lincoln show home brings together all these elements.

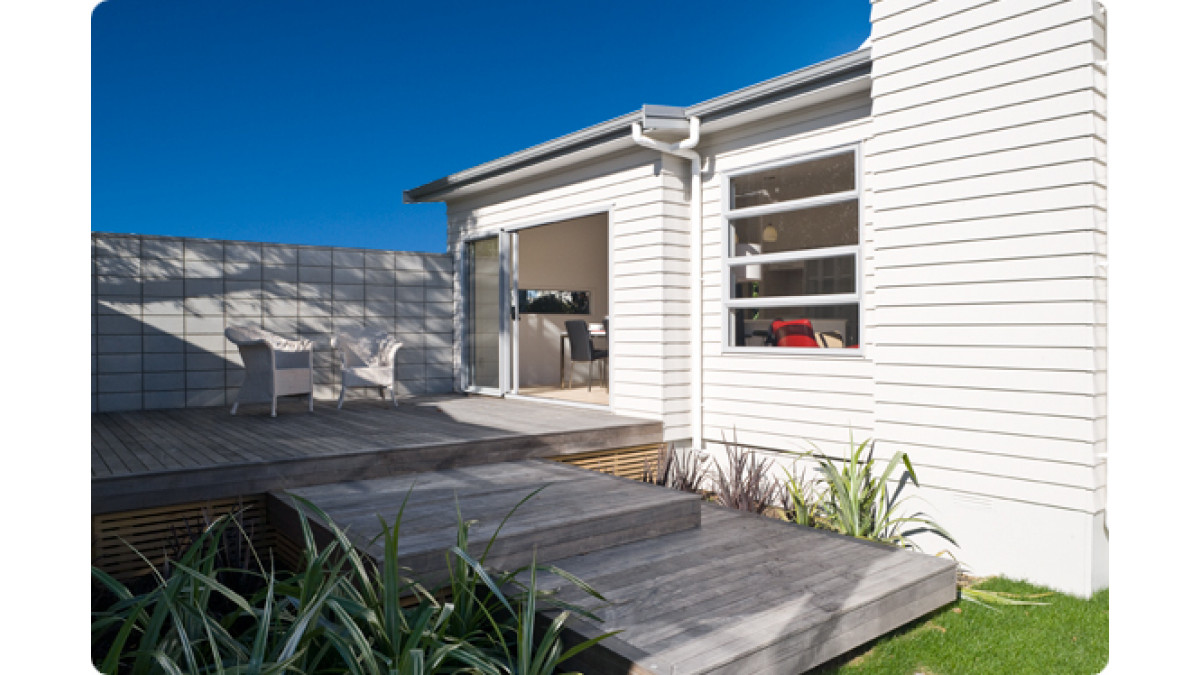

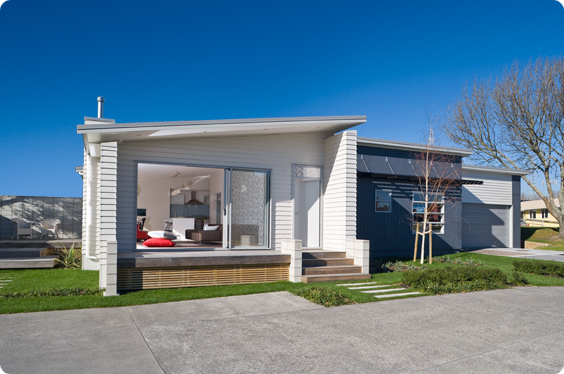

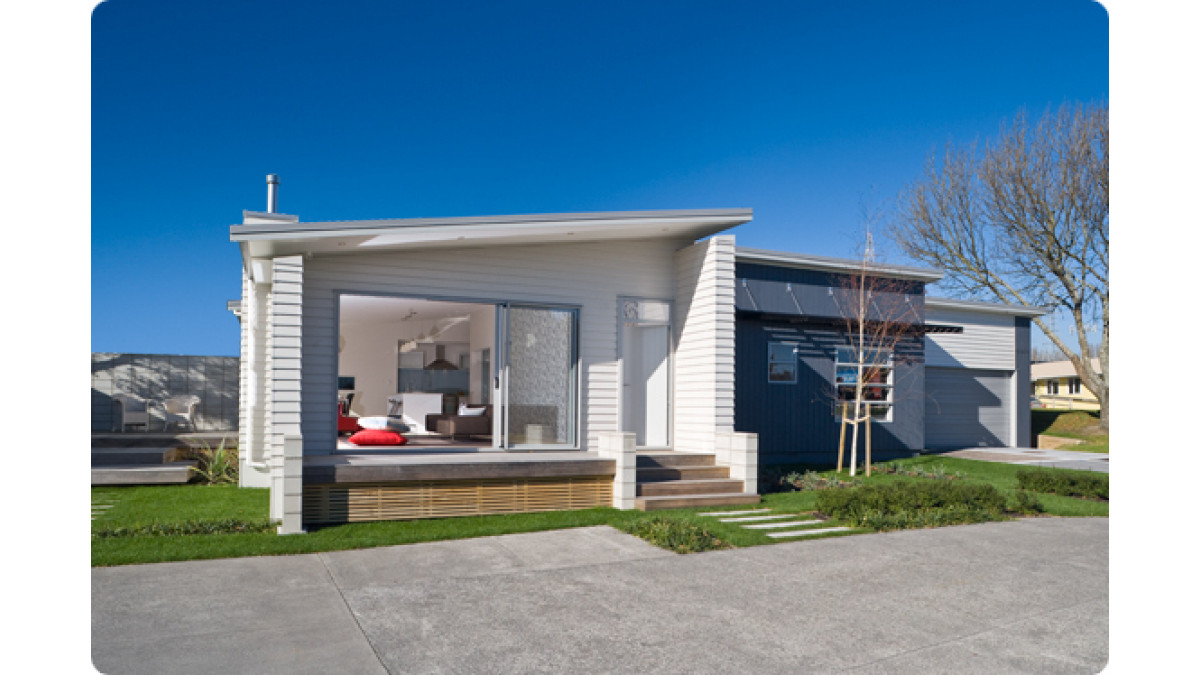

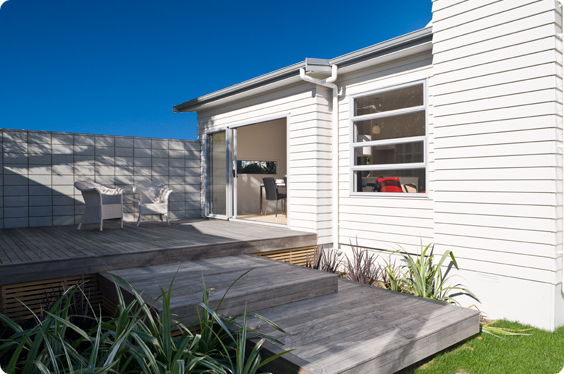

The distinctive horizontal lines of the home are enhanced by the Palliside Traditional Riverstone Weatherboards which feature on the exterior walls and chimney. Grant Russell, Director of Harmony Homes, chose to specify Palliside for its excellent aesthetic value and no-maintenance appeal.

Palliside is a solid weatherboard manufactured in New Zealand to withstand the country's climatic extremes and coastal conditions. The interlocking design which features hidden nailing, prevents moisture from getting behind the boards. In addition, a foamed cellular core and UV resistant top coat mean the boards will not chip or dent.

For more details check out Palliside's design tool on the their website.

PALLISIDE Traditional Weatherboards (Direct Fixed)

Dynex

View Product

PALLISIDE® is a low-maintenance, pre-finished weatherboard system that provides the look of traditional timber weatherboards, with natural shadow-lines and definition, without the requirement for painting and the cost of upkeep associated with it.

NZ Made

Pre-Consumer Recycled Content

PALLISIDE® Weatherboards Direct Fix have been appraised as an external horizontally fixed cladding for buildings within the following scope:

Constructed with timber framing in accordance with the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; or,
Constructed with steel framing subject to specific engineering design with building height and floor plan area scope limitations in accordance with NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
With a risk score of 0-12, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
Situated in NZS 3604 Wind Zones up to, and including Very High.

The PALLISIDE® Weatherboards Direct Fix must only be installed horizontally on vertical surfaces.

The PALLISIDE® Weatherboards Direct Fix are appraised for use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills. (The Appraisal of the PALLISIDE® Weatherboard system relies on the joinery meeting the requirements of NZS 4211 for the relevant Wind Zone.)

If PALLISIDE® Weatherboards are to be used in any applications not covered by the current Installation and Technical Guide and scope, written confirmation of suitability should be obtained from Dynex Extrusions Limited prior to the commencement of the project.

Very High WInd Zone

In the opinion of BRANZ, the Palliside Cellular uPVC Weatherboard Direct Fix or Drained Cavity Cladding Systems, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal No.490 and No.491 (2015), will meet the following provisions of the NZBC:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. The PALLISIDE® Cellular uPVC Weatherboard Cladding System meets the requirement for loads arising from self-weight, earthquake, wind, impact and creep [i.e. B1.3.3 (a), (f), (h), (j) and (q)].
Clause B2 Durability: Performance B2.3.1(b), 15 years.
Clause E2 External Moisture: Performance E2.3.2.
Clause F2 Hazardous Building Materials: Performance F2.3.1. The PALLISIDE® Cladding system will not present a health hazard to people.

The PALLISIDE® Cellular uPVC Weatherboard direct fix or drained cavity cladding systems have been appraised as Alternative Solutions in terms of New Zealand Building Code compliance.

Structure

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised
