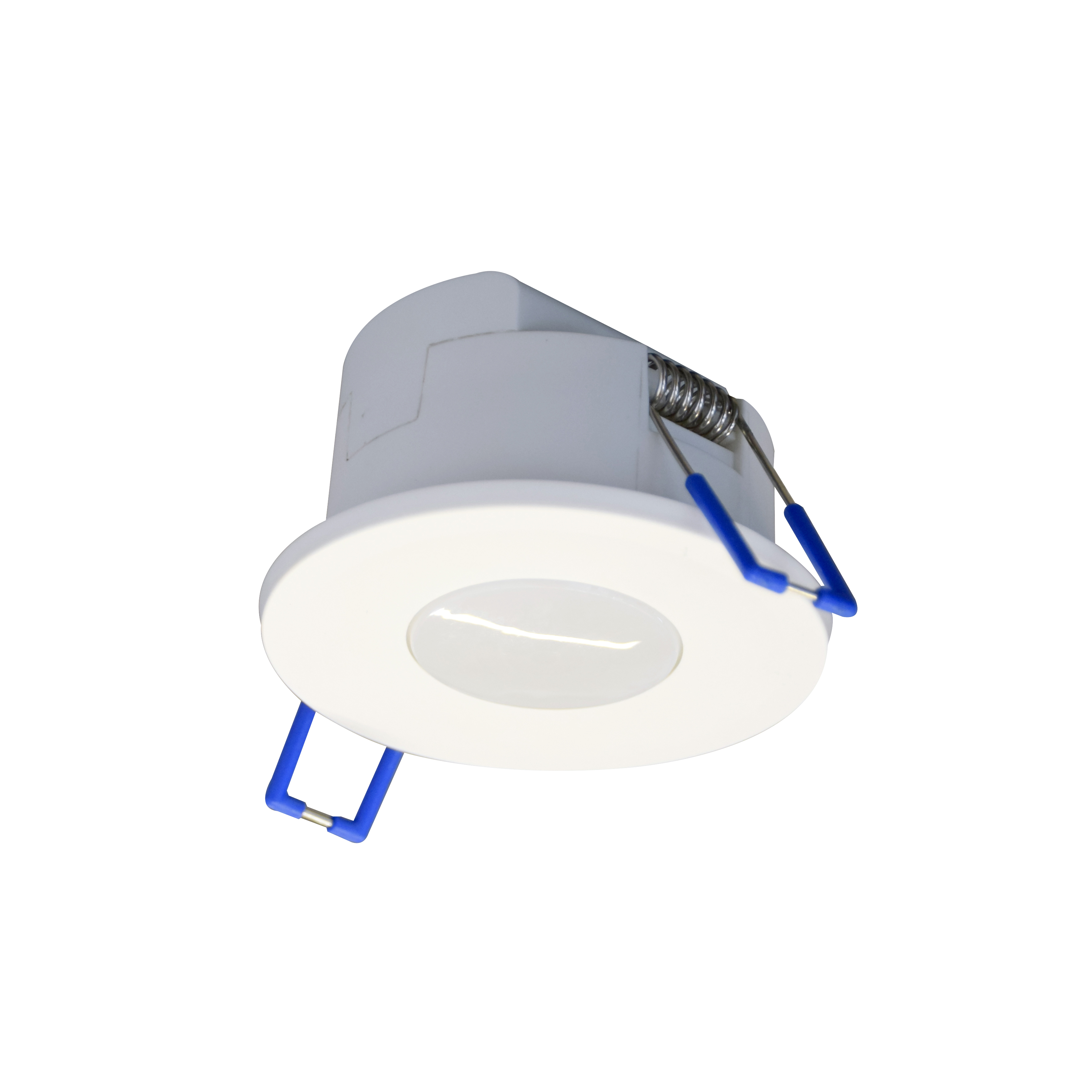

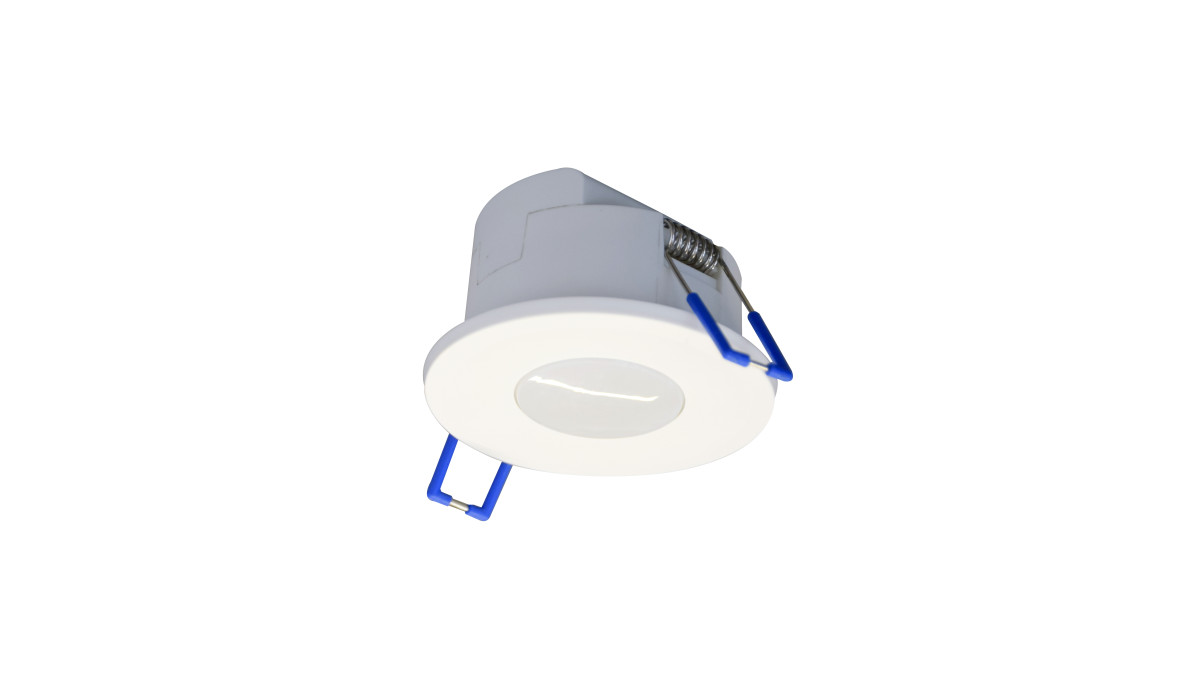

VMOSS Sensor
Description

Flush mount 360 degree PIR ceiling sensor. Low profile fascia provides unobstrusive option that matches with other Vynco ranges for a cohesive finish in the home.

Key Features
  • Low profile fascia provides unobstrusive option
  • White aesthetic finish, matches McQueen & Lopez Downlight Range
  • Controls under fascia
  • 3 year warranty
Scope of Use
  • Interior spaces, covered porches & soffits
  • Low profile fascia provides unobstrusive option
  • White aesthetic finish, matches McQueen & Lopez Downlight Range

Installation:

  • Fascia Size Ø 74mm
  • Cut-out Size Ø 60mm
  • Depth 27mm
Limitations on Use
  • Not suitable for exterior spaces
Statement of Building Code Compliance
  • AS/NZS 60669.2.1:2013
  • AS/NZS 60669.1:2013
  • AS/NZS CISPR 15-2017
Other Performance Attributes
  • 3 year warranty
  • Time Adjustment 5sec to 30min
  • Lux Adjustment 10 to 2000Lux
  • IP Rating IP44
  • Rated Current 10A
  • Rated Load Incandescent 2000W
  • Rated Load Fluorescent 450W
  • Rated Load Motor/Fan 400W
  • Rated Load LED 400W
  • Fascia Colour White & Black
  • RAL 9016 Construction Material Polycarbonate
  • Operating Temperature 5°C to +40°C
  • Input Voltage 230-240V AC
  • Detection Angle 360°
  • Detection Area Ø 6M at 2.4M Height
Documents
Additional Information

Vynco is a leading designer, distributor, and manufacturer of electrical components to the domestic, commercial and industrial markets within New Zealand.
