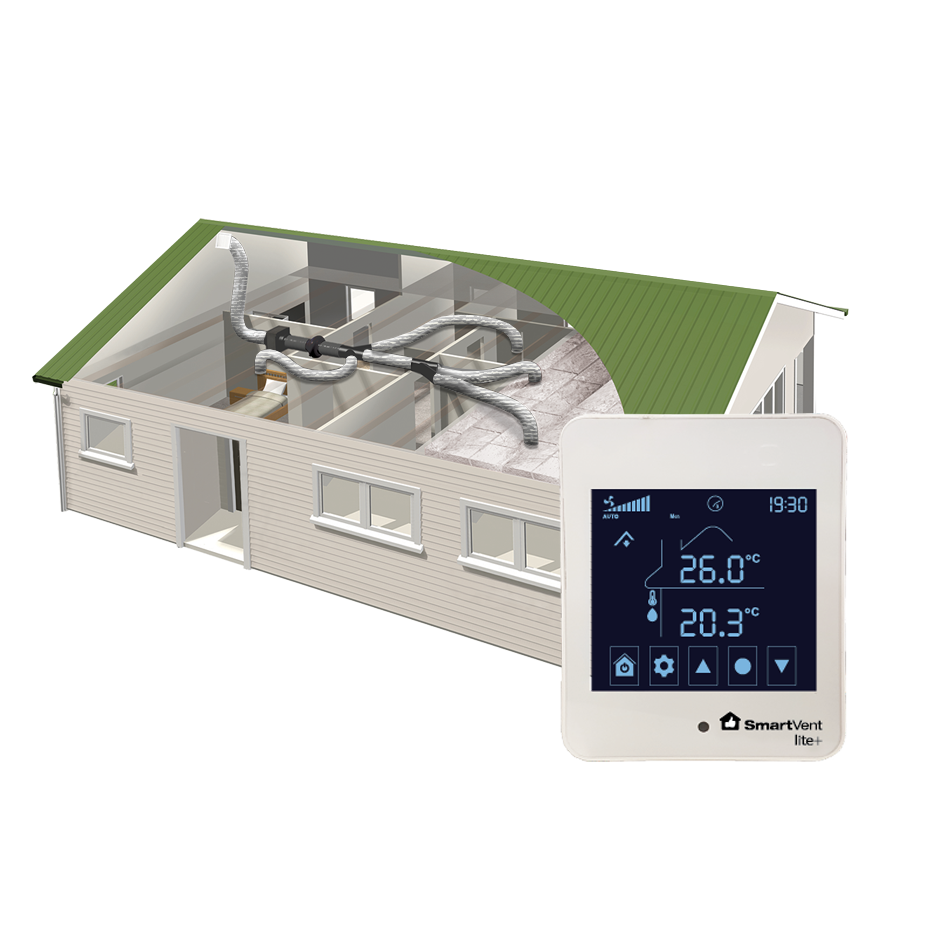

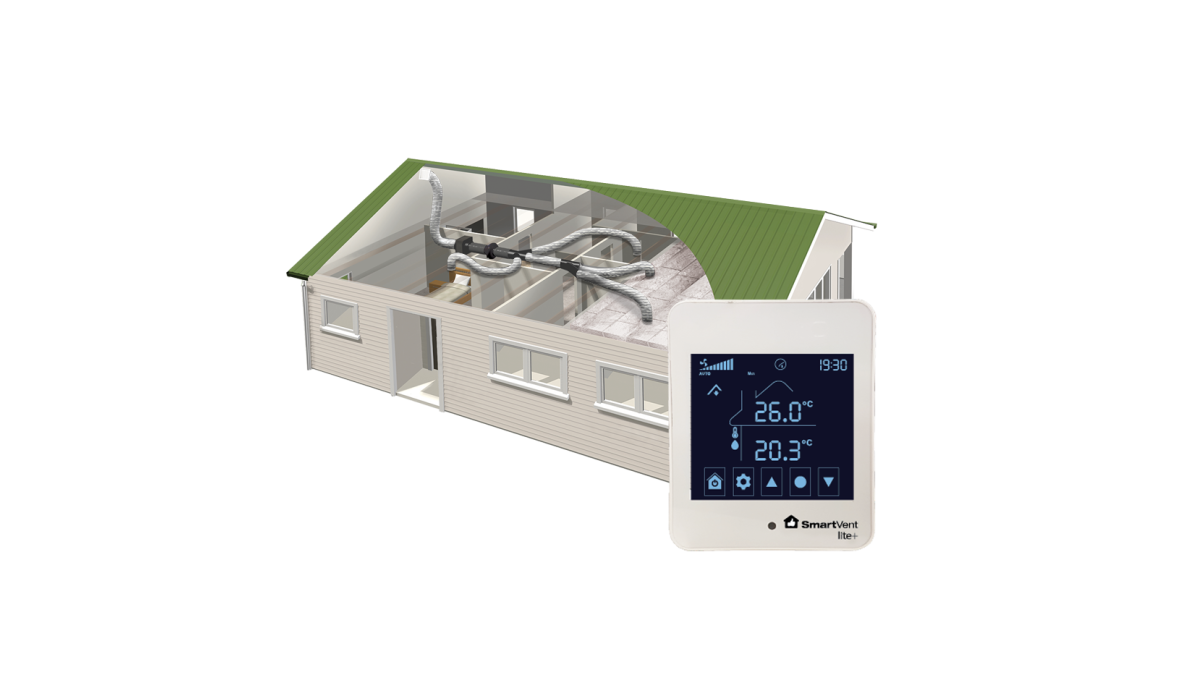

SmartVent Lite+ Basic Home Ventilation System
Description

The SmartVent Lite+ is a practical positive pressure home ventilation system with no extra frills. The Lite+ uses wired temperature and humidity sensors to defend against condensation and mould in winter while reducing overheating in summer. With its integrated rental lock, the Lite + is ideal for protecting investment properties. This home ventilation system can be installed in homes of up to 560m².

Key Features
  • Delivers fresh filtered air to homes, removing VOCs (volatile organic compounds), viruses, pollens, CO₂, condensation, and excess humidity
  • Ideal for installation in short- or long-term rental properties
  • Suitable for renovations, standalone homes, and terraced housing
  • Rental lock enables continuous ventilation, protecting rental properties from damaging moisture buildup
  • Temperature and humidity-based automation via two wireless temperature and humidity sensors
  • Humidity controls and automation to effectively manage internal moisture, condensation, and overheating
  • Protect homes against the harmful effects of mould and excess internal moisture
  • Low temperature protection, designed to reduce fan speed based on incoming air temperatures for comfort
  • User friendly operation via wall controller with boost control
  • Filter change alerts
  • F7 grade filter with HEPA or carbon filter alternatives available
Scope of Use

The SmartVent Lite + home ventilation system is suited for investment protection of rental properties, affordably reducing harmful moisture buildup.

Home ventilation systems are ideal for regions with environmental conditions that necessitate closed windows. This includes medium to high background noise areas, or regions with strong odours.

Suitable for:

  • Homes of up to 560m²
  • Rental properties
  • Standalone homes
  • Terraced homes
  • Low rise apartments
  • Retirement homes
  • Student accommodation
  • Up to 3 storey dwellings (design dependent)
  • All New Zealand climate zones, but ideal for humid, warmer regions
  • Integrating with ducted or high-wall heat pumps
  • Installation within roof cavities
Limitations on Use
  • Must be installed in accordance with the installation instructions and recommendations made by SmartVent.
  • Not suitable for larger commercial properties.
  • The SmartVent Lite + is incompatible with the range of SmartVent comfort add-ons, use a SmartVent Positive 3 if these add-ons are required.
Statement of Building Code Compliance

The SmartVent Lite+ is designed to comply with NZ Building code, although correct design and installation is required in order to meet these standards.

The acceptable solutions for G4 (G4/AS1) outlines specific ventilation requirements in homes. If natural activities or environmental conditions produce any of the types of air pollution outlined in NZBC G4 3.3 , mechanical ventilation is required.

Additionally; as per table 2 in NZS4303:1990, private dwellings require 0.35 air changes per hour, but no less than 7.5 L/s per person if openable windows aren’t suitable.



Other Performance Attributes

System filters: All SmartVent systems are supplied with an F7 filter, which is capable of capturing up to 90% of 0.4 micron particles such as fine pollens, dusts and other allergens from the air. High quality HEPA filters are also available, which can capture particles 0.04 microns in size, an ideal solution for asthma and allergy sufferers. For environments with strong odours carbon filters can be fitted.

All SmartVent systems feature a 5 year warranty.

Note that the product must be operated and maintained in accordance with the manufacturer’s instructions contained in the operating & installation instructions provided with the product. The warranty on the entire system is void if non-genuine SmartVent parts (including but not limited to; controller, filter, duct, fan(s) and grilles) are used as this may affect performance.

Filters should be changed every 6-18 months, depending on usage and environmental conditions.

Documents
Brochure: SmartVent Lite +
