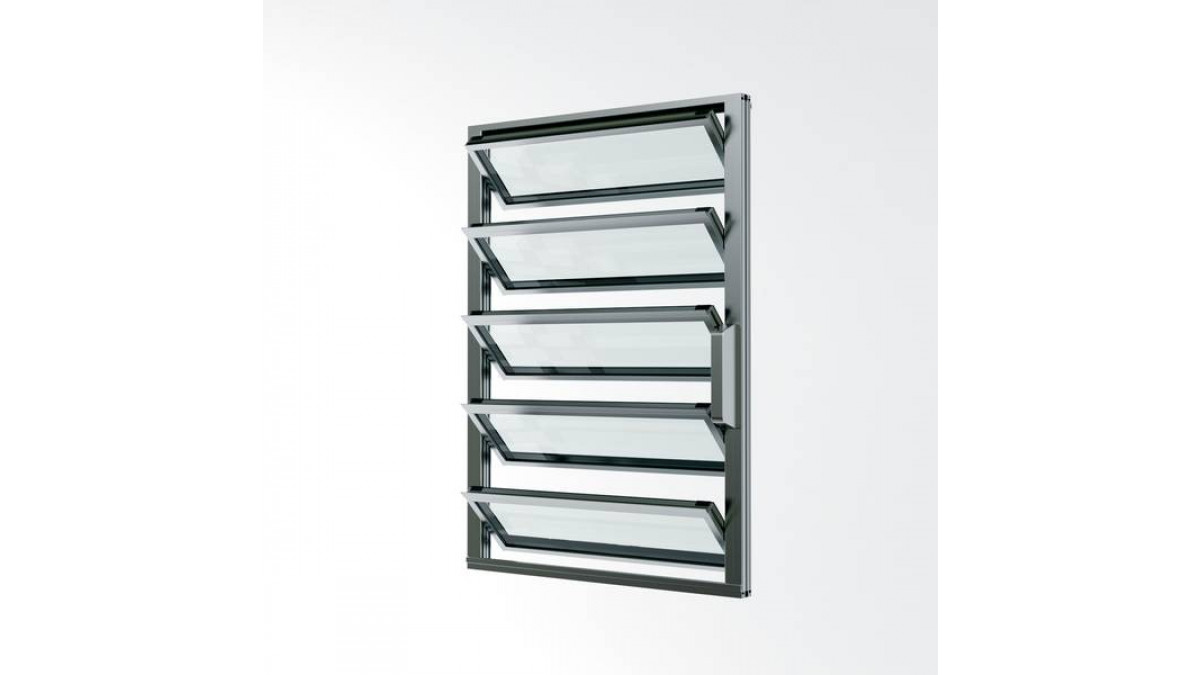

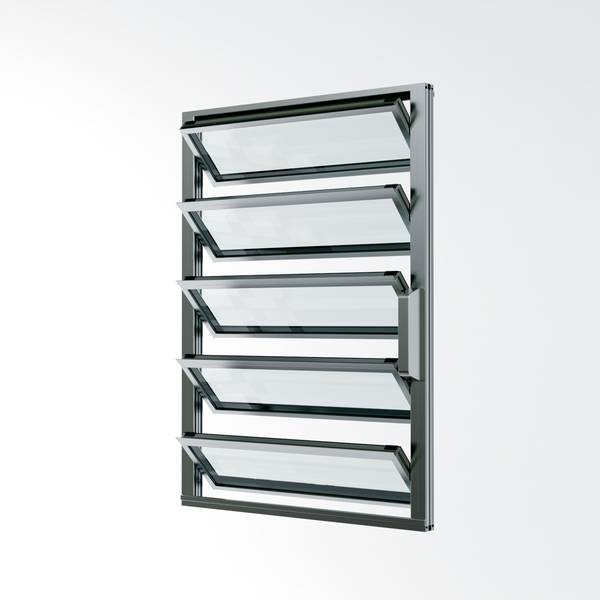

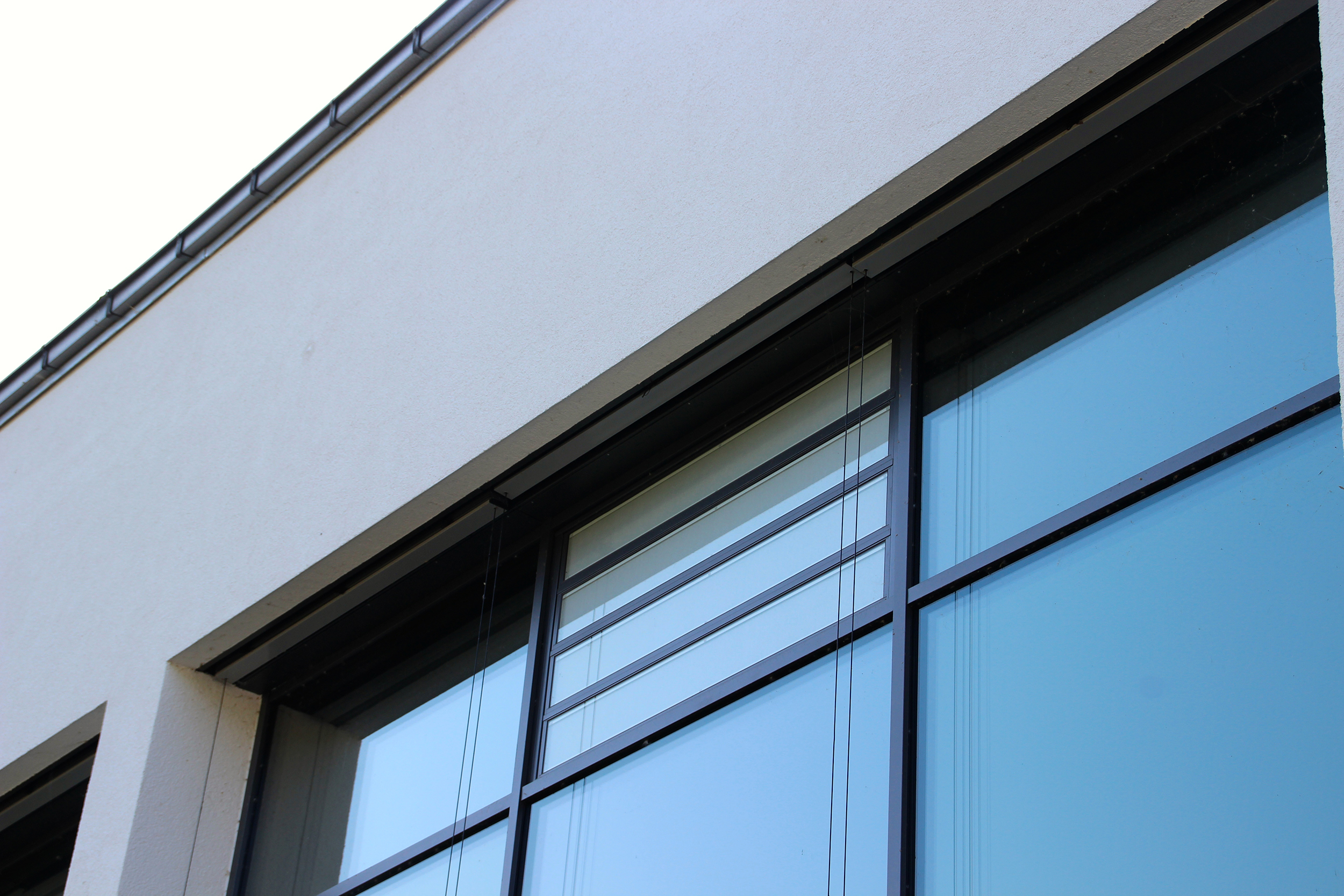

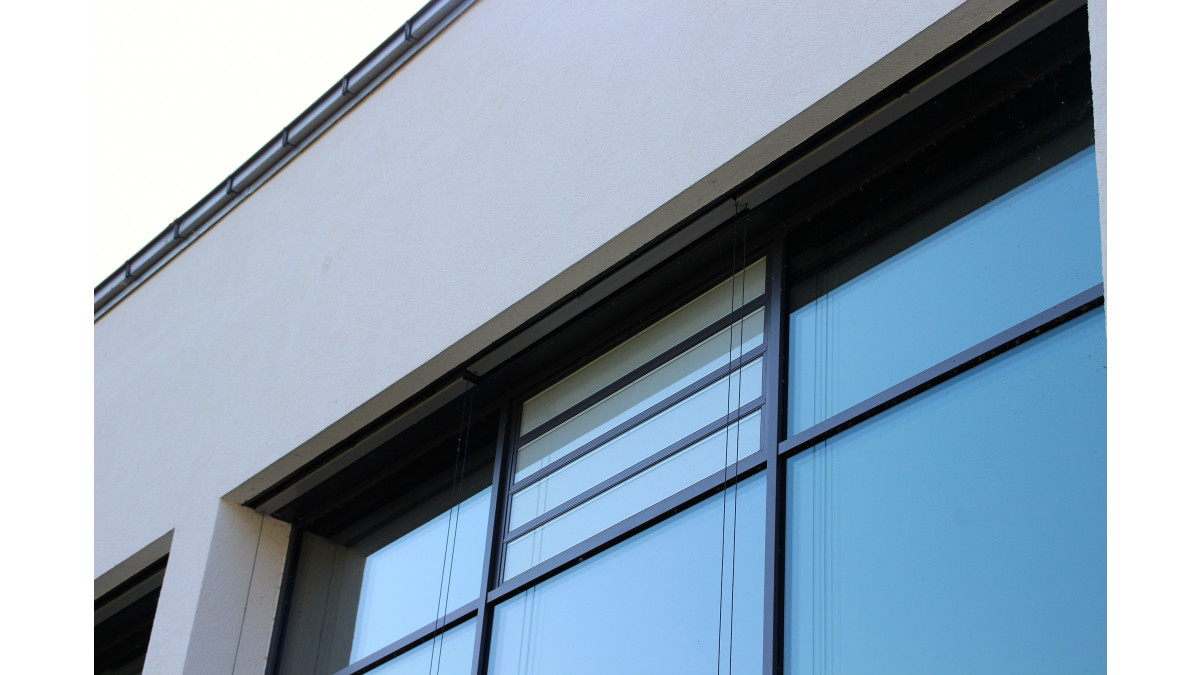

HAHN-S9iVA Double Glazed "All-Glass" Flush Glazed Louvre Window
Description

With double or triple-glazed, thermally broken flush glazed louvre blades, the Ventüer HAHN-S9iVA louvre window provides excellent ventilation, weather tightness and thermal protection. The stepped glass inserts create a clear flush all-glass look to outside of units for seamless integration into the facade design.

Key Features
  • Double or triple glazed aluminium-framed louvre blades
  • Various glass types and thicknesses available
  • Glass blades will clear span up to 1600mm wide without intermediate mullions (wind zone dependent)
  • Certified to EN:12101-2 for use as a smoke ventilation device
  • Compatible with all common structure and cladding types, including precast concrete, metal cladding, fibre cement sheet, window joinery and unitised curtainwall systems
  • Extruded aluminium frame, available in standard RAL powdercoat colours or anodising
  • Multiple control options, including manual lever handle, electric actuators and pneumatic systems
  • Anti-finger entrapment sensors fitted to electric actuators as standard
Scope of Use
  • Designed for use as a natural ventilation device or automated smoke ventilator
  • Double or triple glazed blades which are able to span up to 1600mm wide without intermediate mullions (wind zone dependent)
  • Constructed with an extruded aluminium frame and suitable for salt-spray zones and other corrosive environments when powdercoated appropriately
  • Compatible with all common structure and cladding types, including precast concrete, metal cladding, fibre cement sheet and unitised curtainwall systems
  • Available with optional frame profile which integrates directly with standard window joinery, being set within the glazing pocket and being rubbered in
  • Multiple control options available, including manual lever handles, electric actuators and pneumatic systems
  • Certified for use as a smoke ventilation device as part of the building fire safety system
Limitations on Use

Installation requirements for the HAHN-S9iVA glass louvre system vary dependent on the site wind loads, louvre panel sizes, cladding type and primary structure detailing. Ventüer provides full shop drawings for all installations which show sequencing, fixing type and sizing, flashing requirements and sealant details. Installers should make themselves fully conversant with these shop drawings prior to installation commencing.

Statement of Building Code Compliance
  • When sized correctly, the HAHN-S9iV glass louvre system complies with the requirements for natural ventilation of buildings under the New Zealand Building Code clause G4
  • When installed in accordance with Ventüer technical literature, shop drawings and site-specific engineering the HAHN-S9iV glass louvre system complies with the requirements for structure under the New Zealand Building Code clause B1
  • The HAHN-S9iV glass louvre is certified for use as a natural smoke ventilation device in accordance with EN 12101-3
In-Service History

The HAHN series of glass louvres have been supplied to the New Zealand market via Ventüer since 2019. Prior to this period they were distributed by another reseller, and there are multiple projects through New Zealand featuring the HAHN systems.

Other Performance Attributes
  • CE certified as natural smoke ventilation device (EN 12101-2)
  • Class 3 air permeability (EN 12207)
  • Class 4A watertightness (EN 12208)
  • Certified to EN 12210 for resistance against wind load
  • Uw-Value (max) = 1.7 W/m2k (EN ISO 10077)
  • Ball protection proof (DIN 18032-3)

Warranty and Maintenance

Warranty information and maintenance requirements to comply with B2 can be found in the Ventüer Aluminium Ventilation Louvre Operation & Maintenance Manual

Environmental Information

Effective use of passive ventilation devices such as glass louvre systems can significantly reduce the energy consumption of a building, reducing both its carbon footprint and whole of life cost.

Documents
Ventuer Glass Louvres Manual
Ventuer Aluminium Ventilation Louvre Operation & Maintenance Manual
CAD/PDF Details
HAHN-S9iVA Data Sheet

HAHN-S9iVA

Installation Details

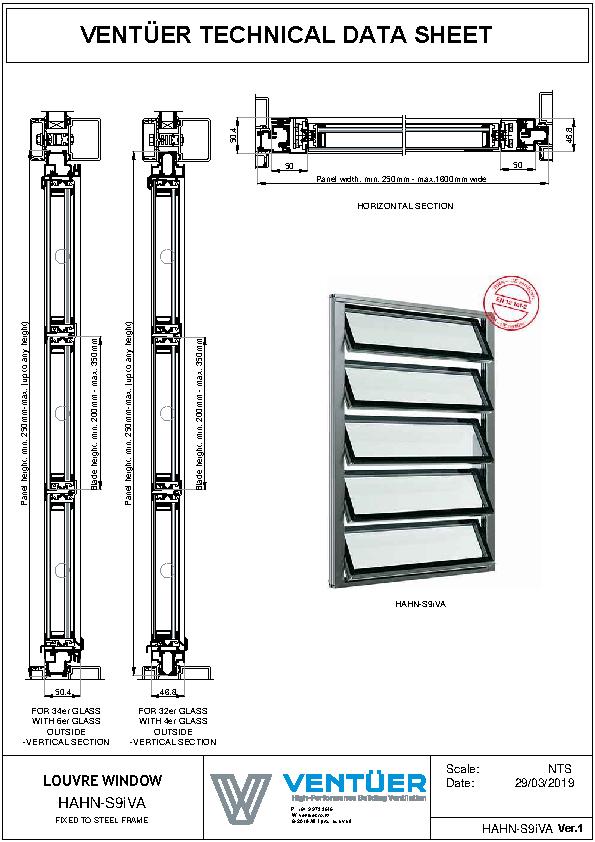

HAHN-S9iVA Fixed to Steel Frame

HAHN-S9iVA

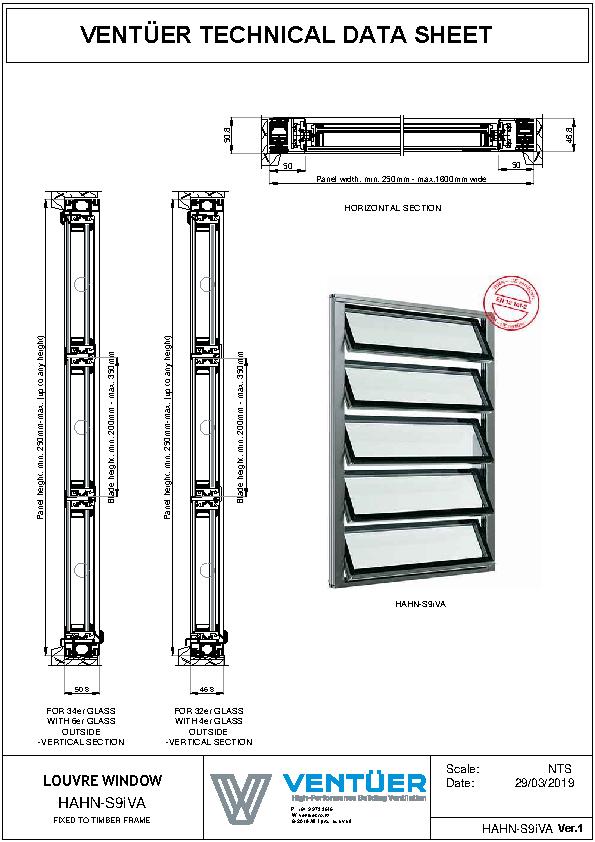

HAHN-S9iVA Fixed to Timber Frame

HAHN-S9iVA

HAHN-S9iVA Fixed to Window Joinery

HAHN-S9iVA
