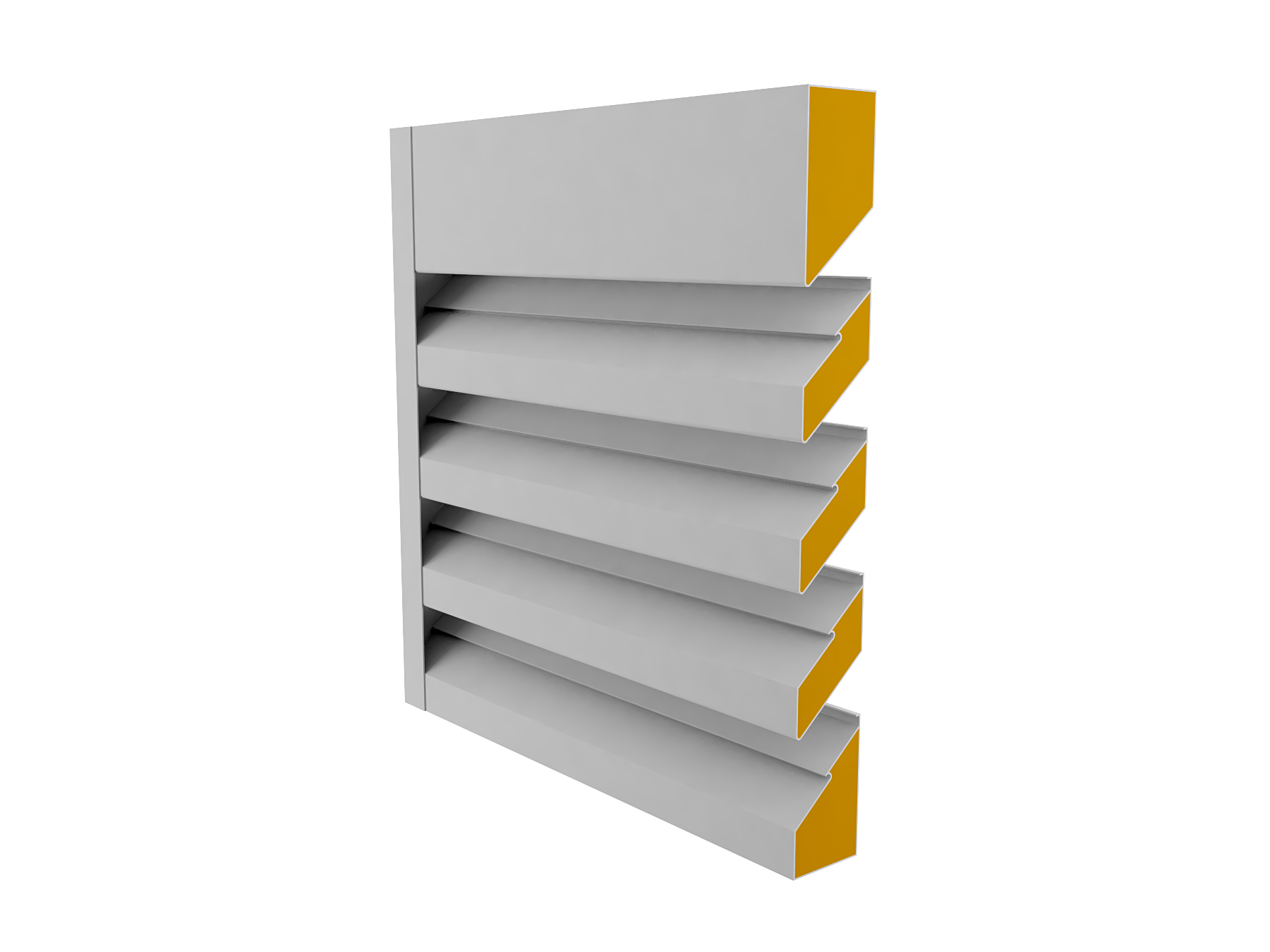

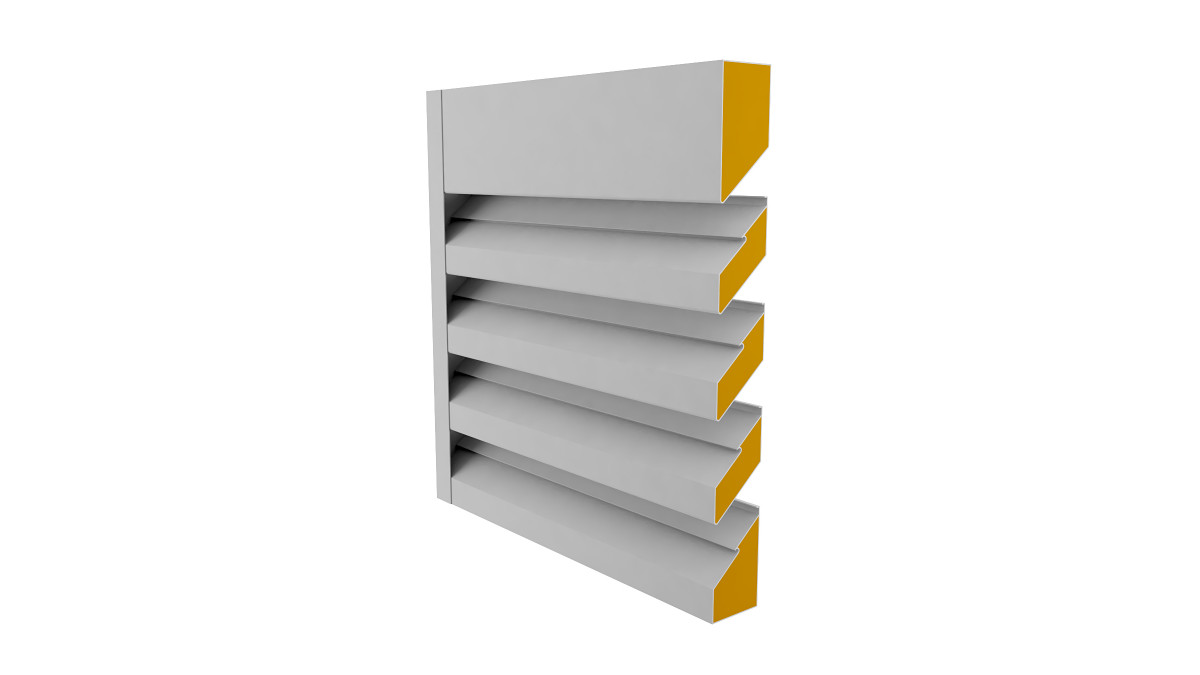

• Designed for use as an acoustic louvre in situations where space is limited, and where high attenuation rates are not required
• Fitted with an extruded aluminium front blade profile providing a higher level of weather resistance than traditional flat blade acoustic louvre profiles
• Shallow profile (100mm deep), suitable for use in restricted spaces or for fitting to hinged doors
• Constructed from aluminium and suitable for salt-spray zones and other corrosive environments when powdercoated appropriately
• Compatible with all common structure and cladding types, including precast concrete, metal cladding, fibre cement sheet and unitised curtainwall systems
• Ancillaries such as bird mesh, insect mesh, dust filters, mechanical dampers and plenums can be supplied fitted to the rear face

Should be used with caution in situations where water ingress is of concern as high wind speeds and heavy rainfall can result in water being blown between the blades.

Water ingress from wind driven rain can be substantial if exposed to high winds or situated where cross flow can occur (i.e. having louvres on both sides of an empty building such as a storage facility).

If interior linings or equipment within the building can be damaged by exposure to water, consider using a multi-stage ventilation louvre such as the Ventüer VL-3SD or VL-2SD louvre system instead. Note — these alternative louvres do not have acoustic properties.

Installation Requirements

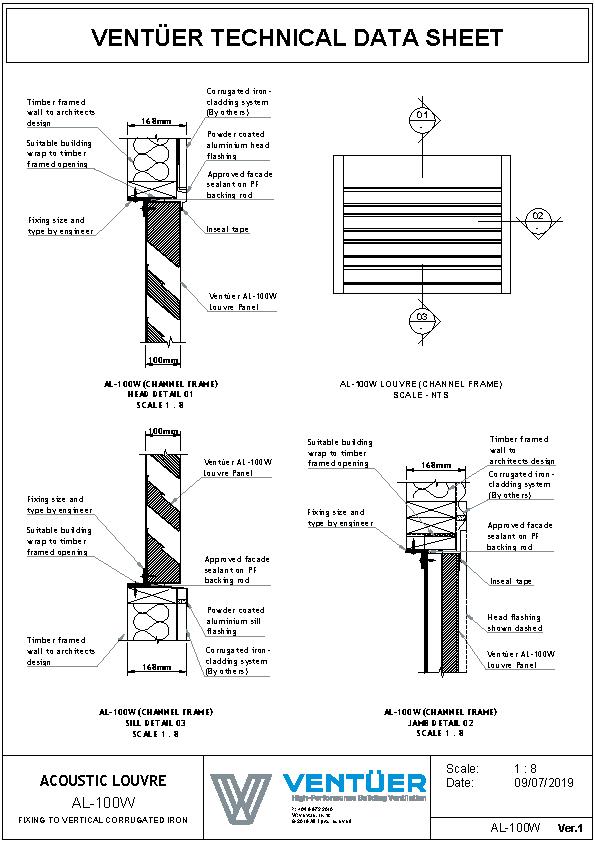

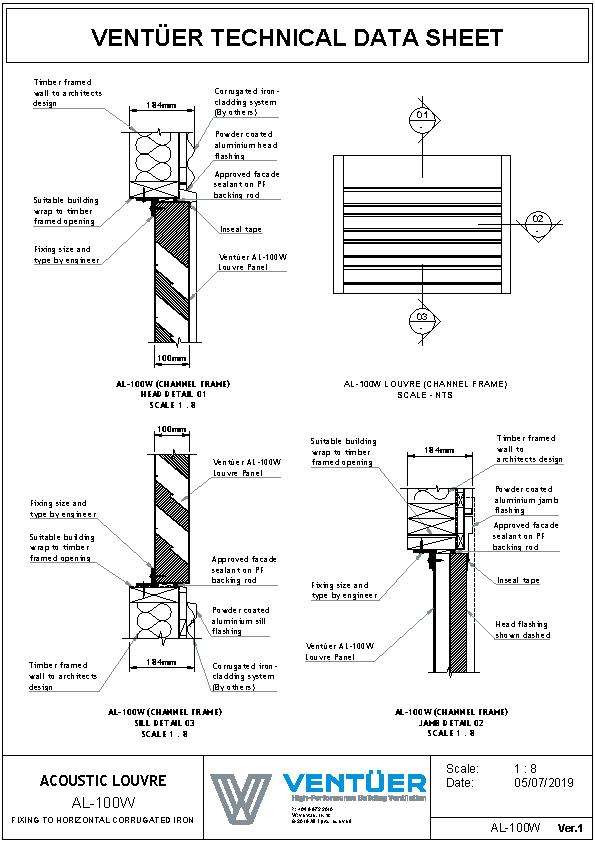

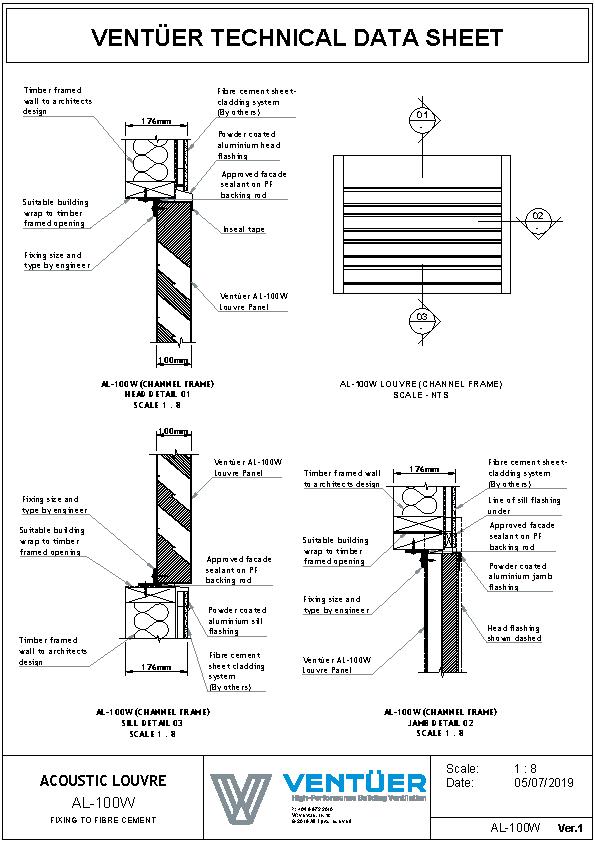

Installation requirements for the AL-100W louvre system vary dependent on the site wind loads, louvre panel sizes, cladding type and primary structure detailing. Ventüer provides full shop drawings for all installations which show sequencing, fixing type and sizing, flashing requirements and sealant details. Installers should make themselves fully conversant with these shop drawings prior to installation commencing.

• When sized correctly, the AL-100W louvre system complies with the requirements for natural ventilation of buildings under the New Zealand Building Code clause G4
• When installed in accordance with Ventüer technical literature, shop drawings and site-specific engineering the AL-100W louvre system complies with the requirements for structure under the New Zealand Building Code clause B1
• When installed in accordance with Ventüer technical literature and shop drawings the AL-100W louvre system complies with the requirements around external moisture as outline in New Zealand Building Code clause E2

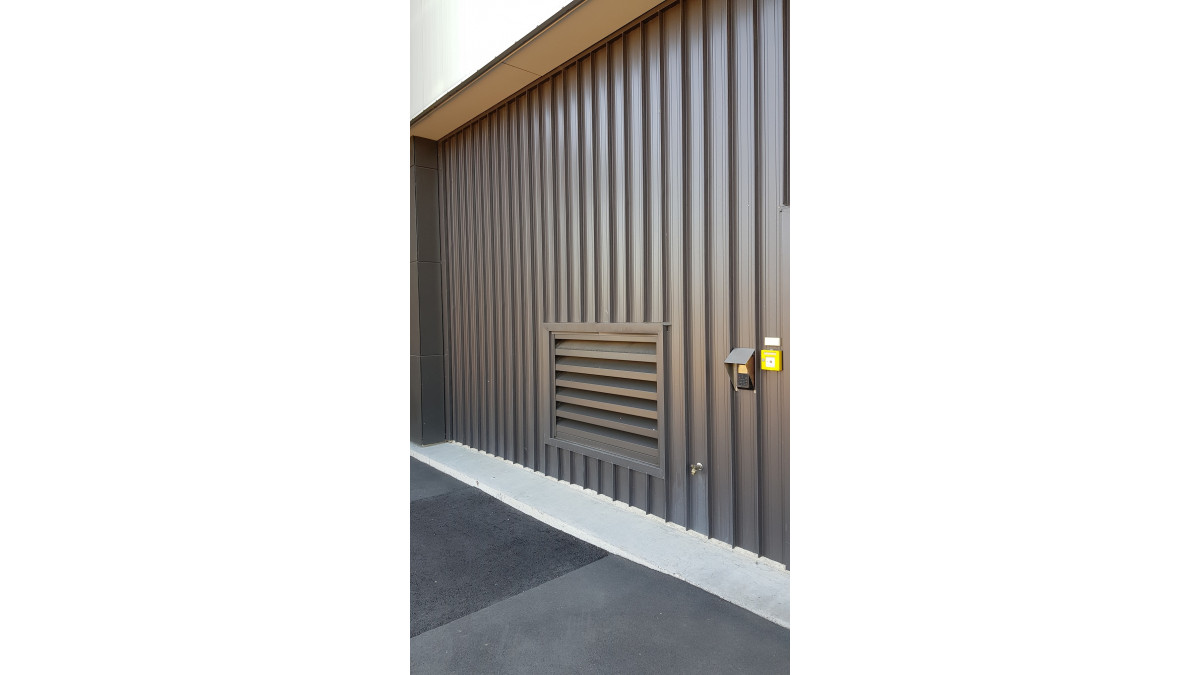

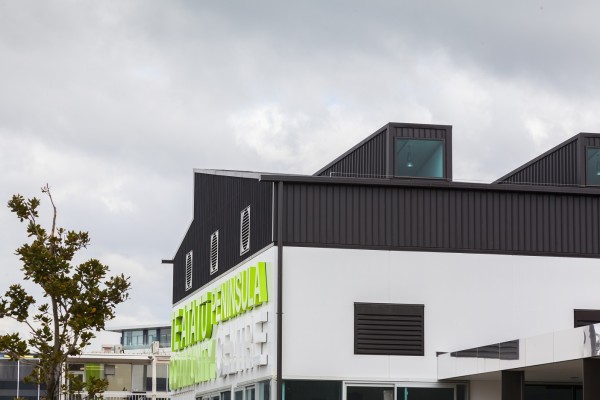

The AL-series of acoustic louvres were developed in New Zealand in 2019. Since that time they have been used on multiple projects throughout New Zealand, including apartments, hotels, industrial buildings and residential dwellings. Refer to the Ventüer website for detailed case studies.

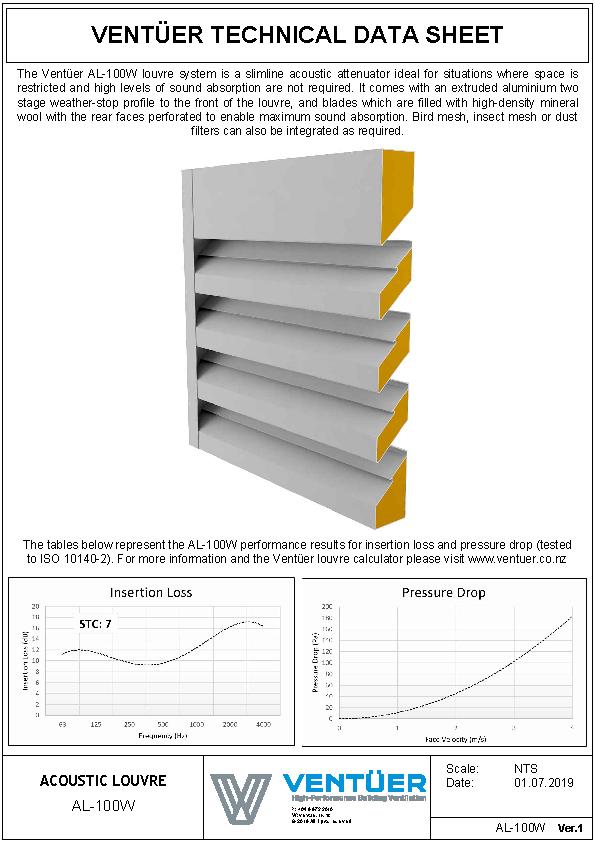

Performance tested for acoustic properties to ISO 10140-2, the AL-100W has a STC rating of 7. Refer to Ventüer technical literature for detailed information regarding insertion loss and pressure drop.

Engineered to withstand site-specific structural, seismic and wind loads in accordance with NZS:1170.

Fixings, flashings and sealant details are designed to comply with NZ Building Code Clause E2.

Warranty and Maintenance

Warranty information and maintenance requirements to comply with B2 can be found in the Ventüer Aluminium Ventilation Louvre Operation & Maintenance Manual

Environmental Information

All Ventüer ventilation louvre systems are fabricated from aluminium which is extruded locally in New Zealand. The majority of this aluminium is 'green aluminium', meaning that the electricity for smelting is supplied from renewable energy sources (such as is the case with Tiwai Point, which relies on hydro-power).

Any waste generated during manufacture is fully recycled, as can be any louvres at the end of their useful life.

All powdercoating of louvre components is carried out by certified applicators and the use of chromate treatment processes is strictly avoided.

Effective use of passive ventilation devices such as louvre systems can significantly reduce the energy consumption of a building, reducing both its carbon footprint and whole of life cost.
