Flat Countersunk Head Screws
SPAX
All products
Countersunk Delta Seal
KS A2B6D3E1F10G3H3I3L2
Description

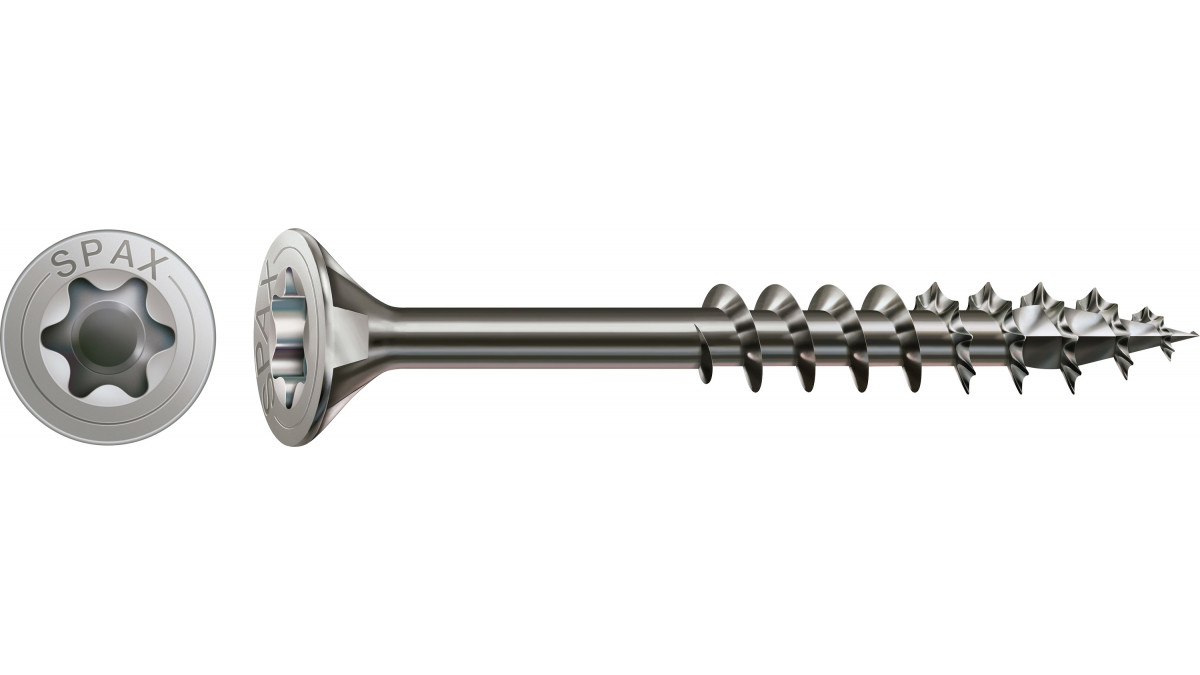

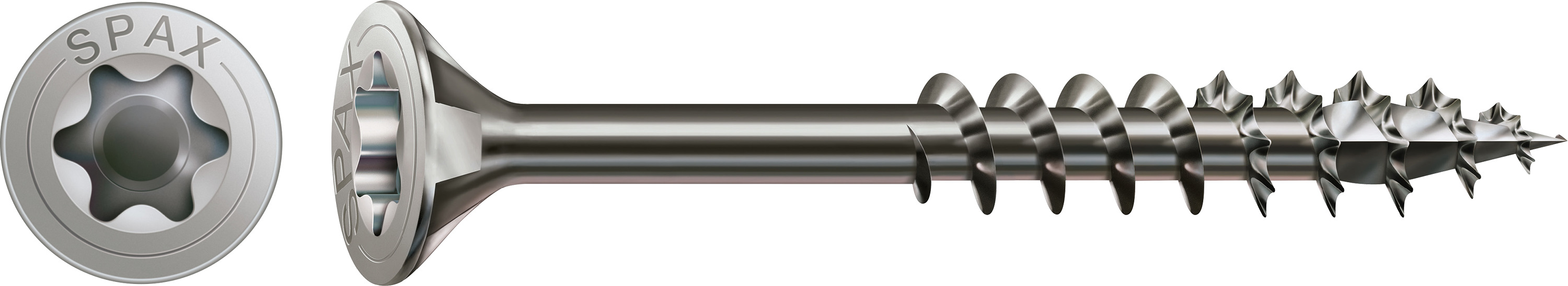

Ideal for use on timber structures where a flat countersunk finish is required, the SPAX countersunk head screw is a modern, innovative screw for timber connections.

It is a partial thread screw for clamping timber components together, achieving better performance than traditional batten screws.

Key Features
  • Quick and easy installation compared with traditional wood screws, saving time and money
  • Higher load capacities due to coarse thread design and high strength steel
  • Four-cut point and serrated thread for reduced chance of splitting the timber and reduced screwing-in torque
  • Unique T-STAR plus recess for better torque transfer and reduced chance of stripping the head

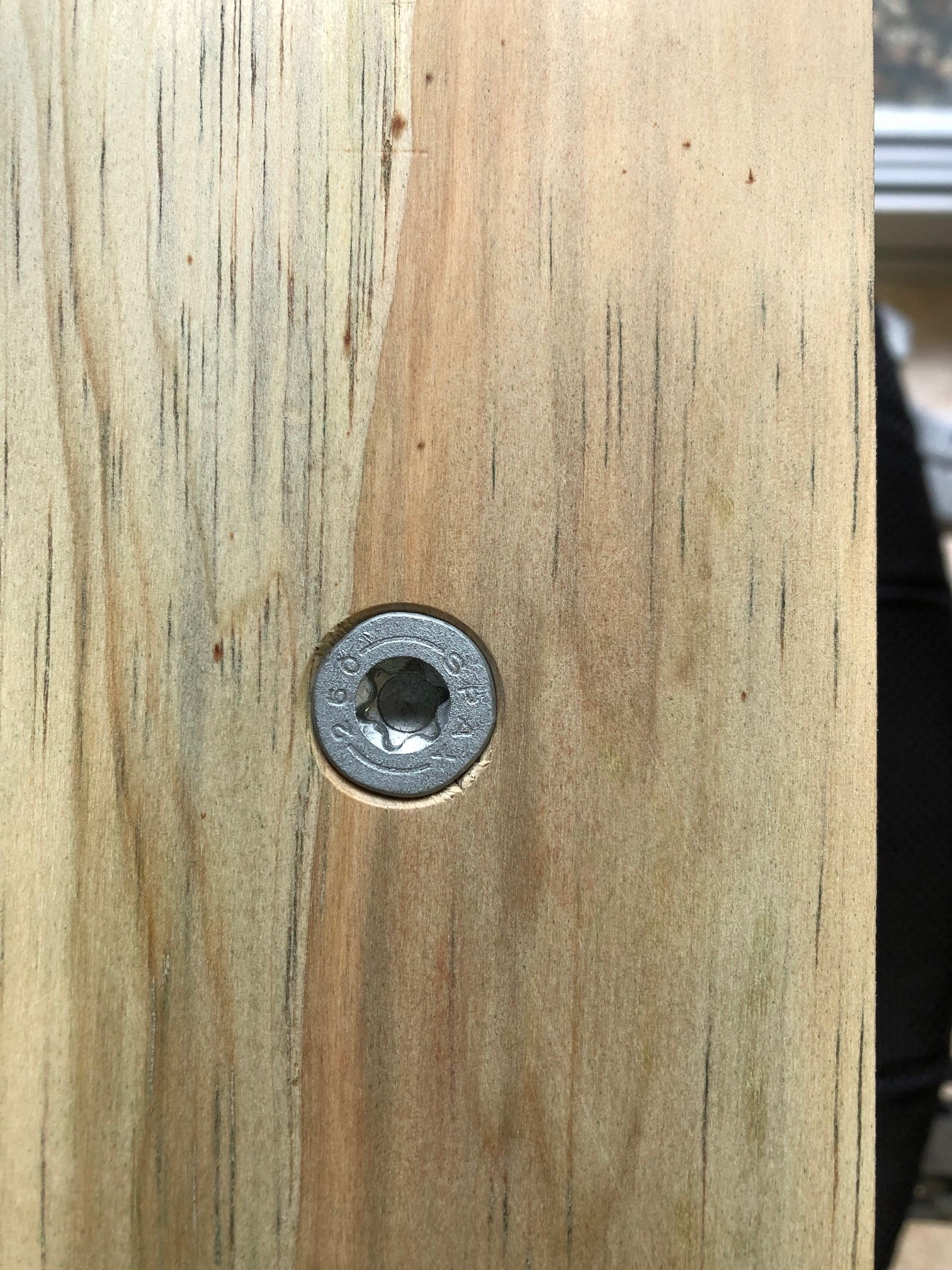

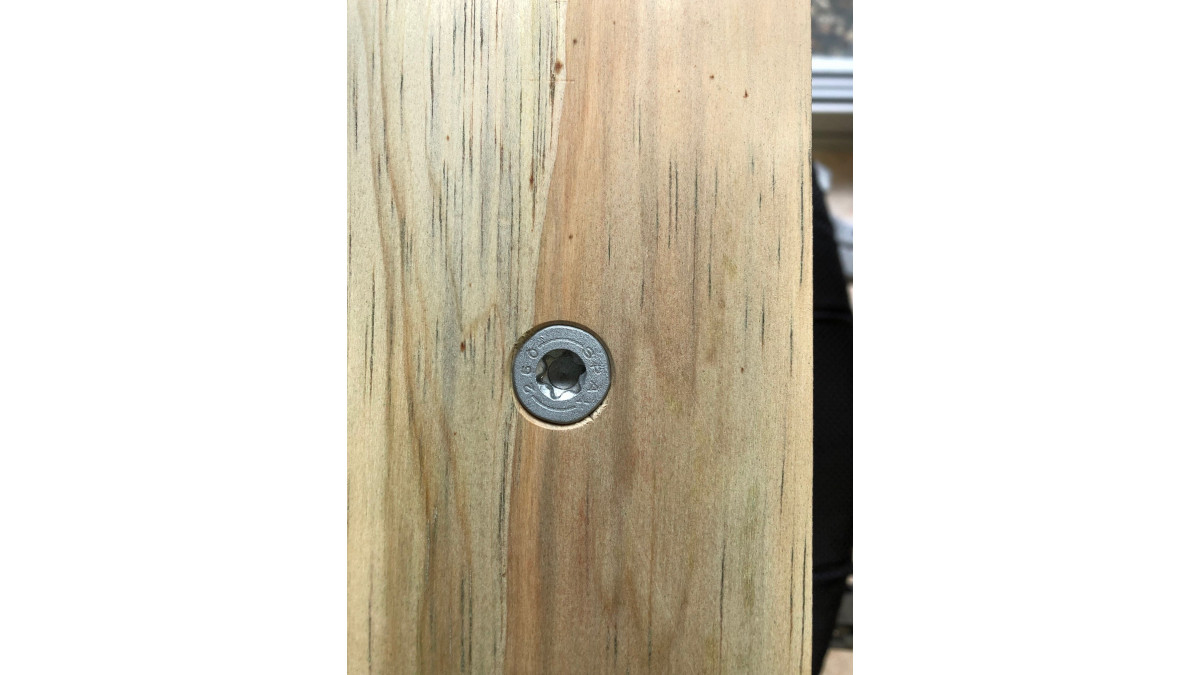

  • Multi-head will self-countersink in timber or act as a brake in metal brackets
  • 8, 10 and 12mm diameters available in DELTA-SEAL coating for superior corrosion protection and resistance to timber treatments
  • 6 and 8mm diameters available in stainless steel
Categories
Fasteners and Connectors
Scope of Use
  • CLT connections such as half-lap joints, floor to wall connections etc.
  • LVL connections
  • Replacing failed batten screws in decks and boardwalks
  • Any connection requiring a flush, countersink finish
Limitations on Use
  • DELTA-SEAL suitable for outdoor use with direct exposure to weather
  • Stainless steel A2 suitable for coastal areas
Statement of Building Code Compliance
  • SPAX products are manufactured in Germany and comply with the latest European requirements but have also been tested in local New Zealand timbers
  • Timber connection design can be performed according to either European Technical Assessments or to NZS 3603
Other Performance Attributes
  • Testing conducted on local timbers for timber connection design according to NZS 3603
Documents
Data Sheet: Countersunk Universal Screw
pdf
SPAX Screws for CLT Half-lap Wall Joints
pdf

SPAX is a German manufacturer of quality, innovative screws for timber connections such as framing, timber construction, decking, flooring, and cladding.
