THD Titen HD Heavy Duty Screw Anchor — Concrete & Masonry
Description

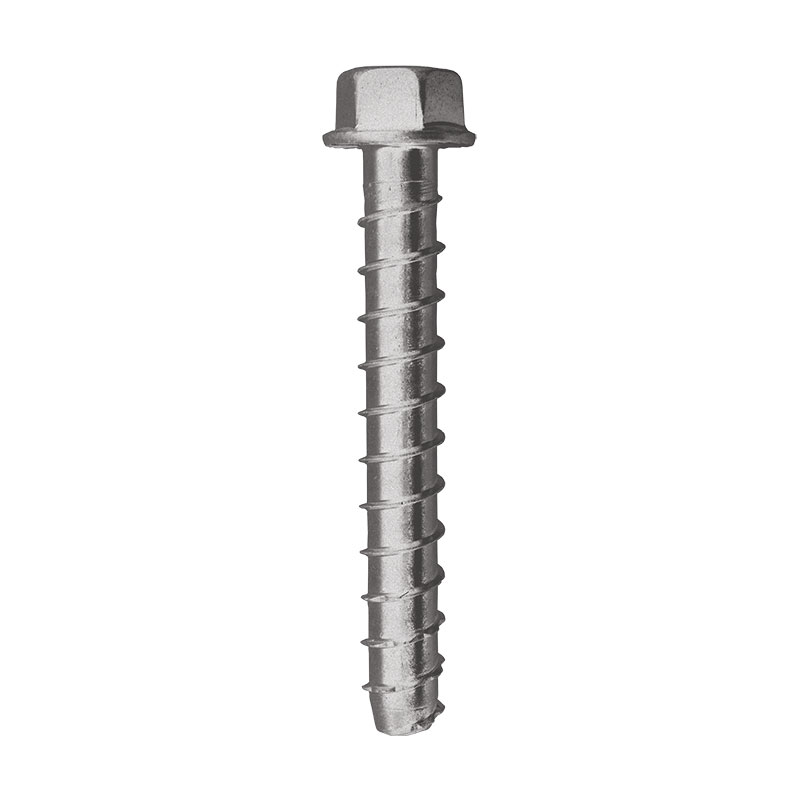

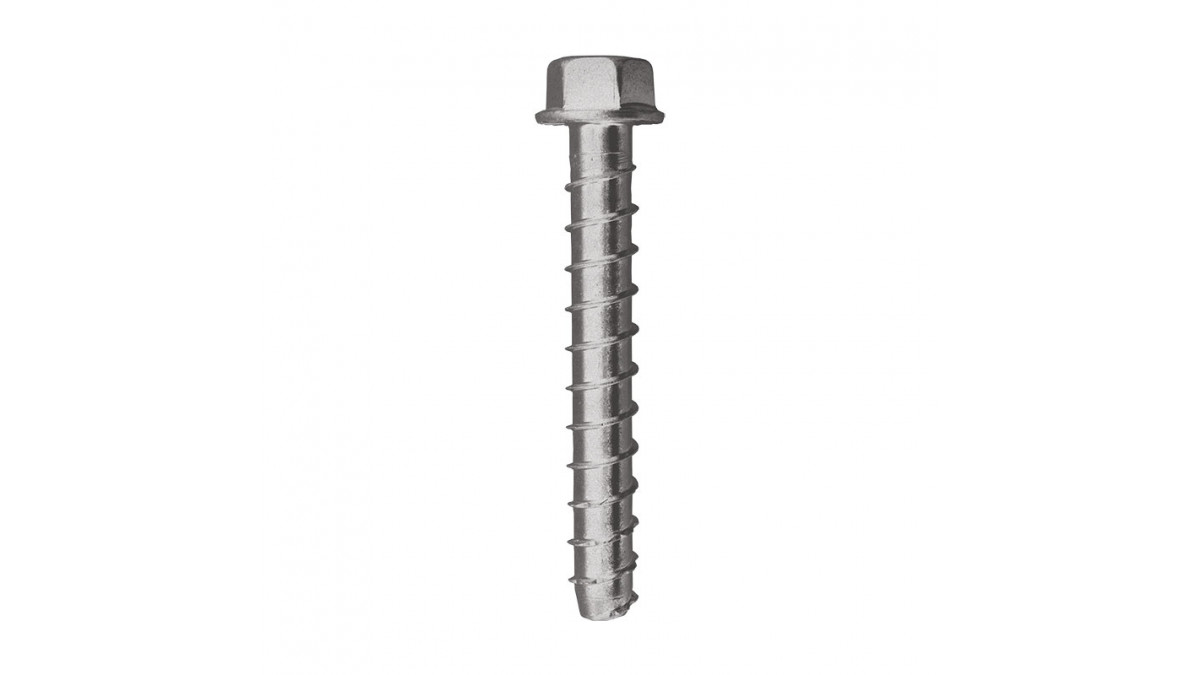

Titen HD Heavy Duty Screw Anchor is the original high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD demonstrates industry-leading performance.

Key Features

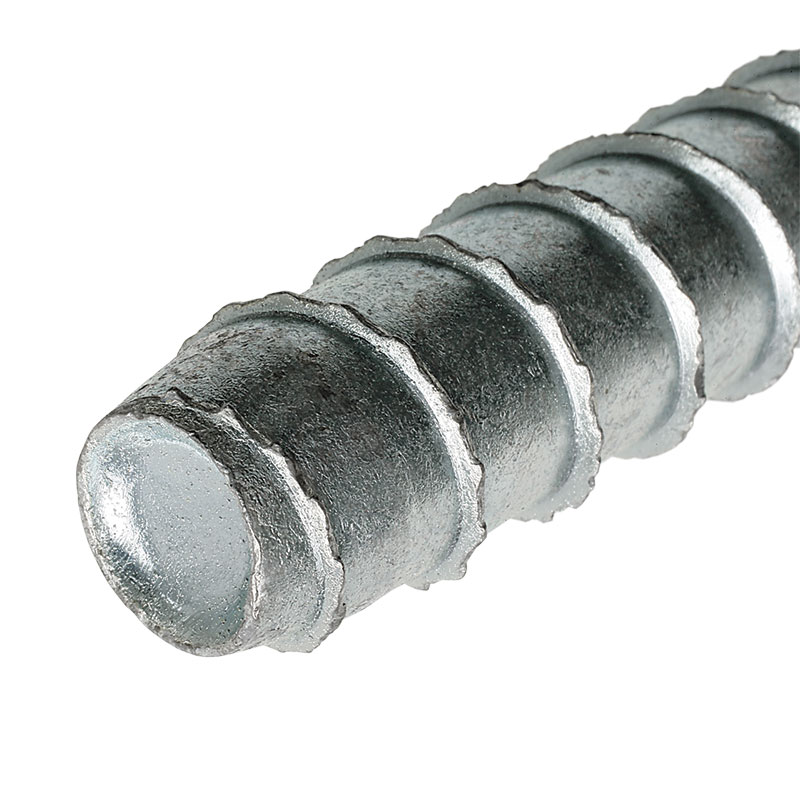

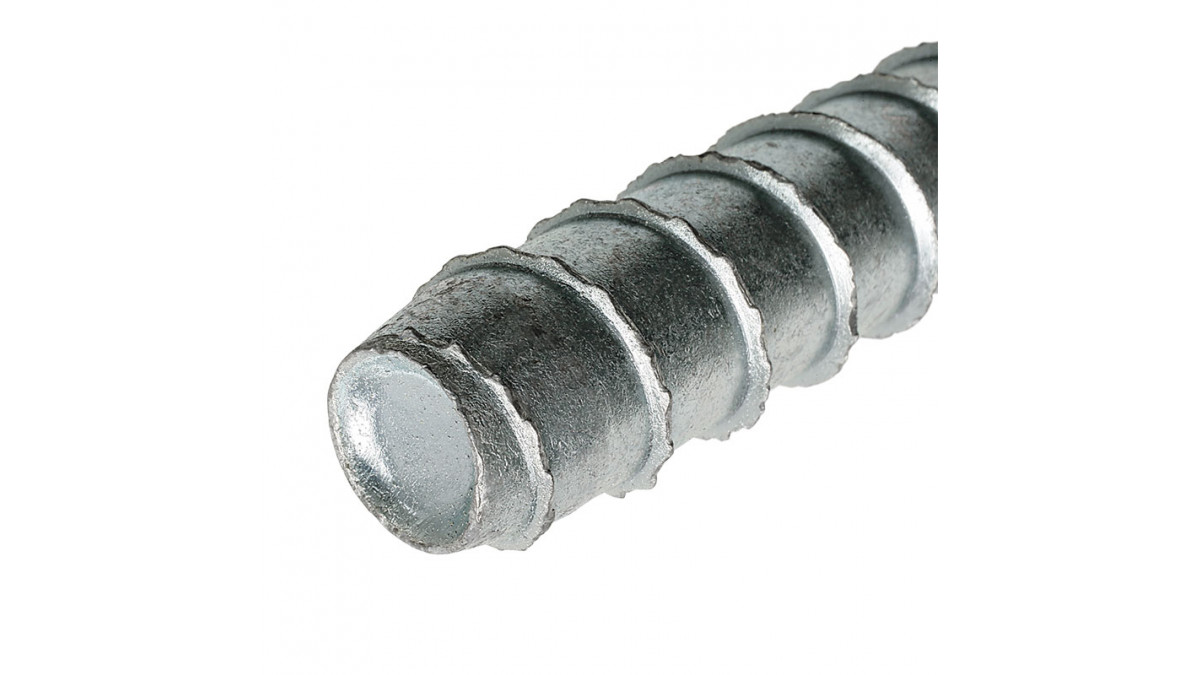

  • Serrated cutting teeth and patented thread design reduce installation torque, enable quick and easy installation
  • Head stamp with the Simpson Strong‑Tie "≠" sign and the anchor size for easy post-installation inspection
  • Specialised heat-treatment process creates tip hardness to facilitate cutting while the anchor body remains ductile
  • With high ductility it can be bent to a right angle (90 degrees) and remain intact without snapping or breakage

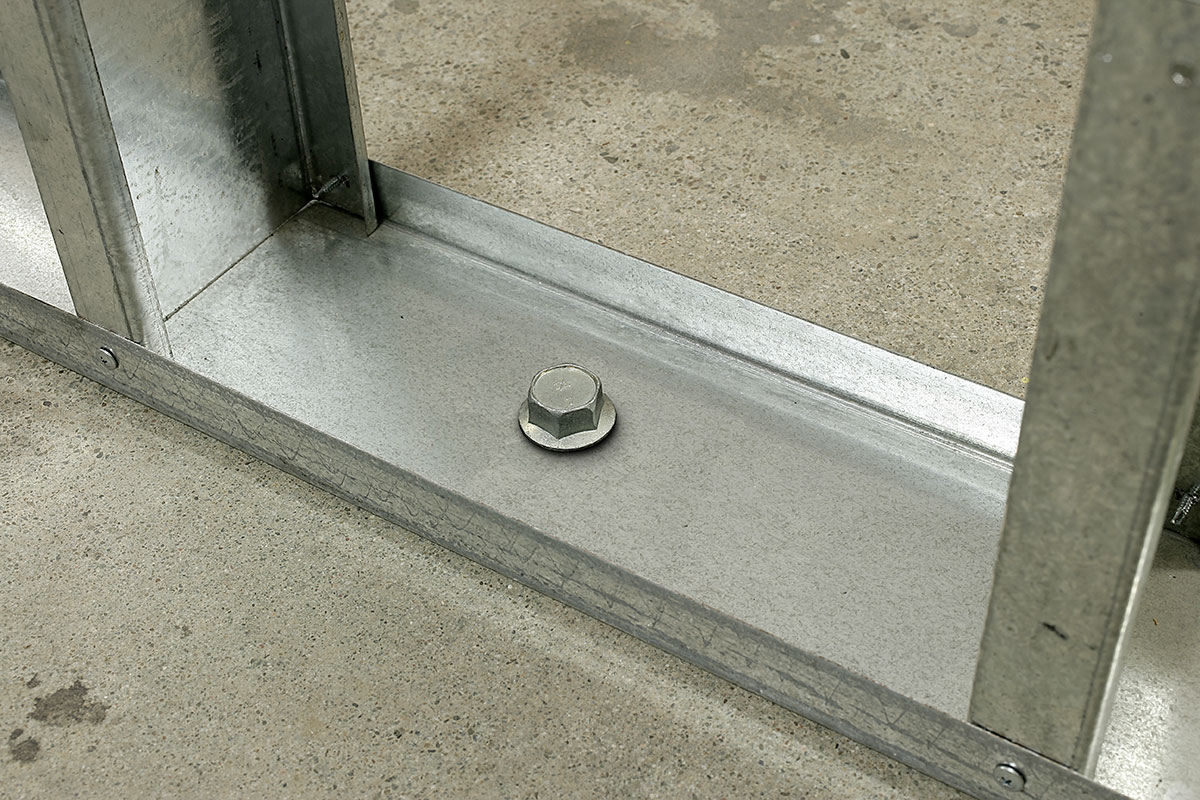

  • Hex-washer head increases bearing surface and requires no separate washer, unless required by specification and provides a clean installed appearance
  • No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits
  • Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors
  • Removable — ideal for temporary anchoring (e.g. formwork, bracing) or applications where fixtures may need to be moved
  • Vibration and shock resistance

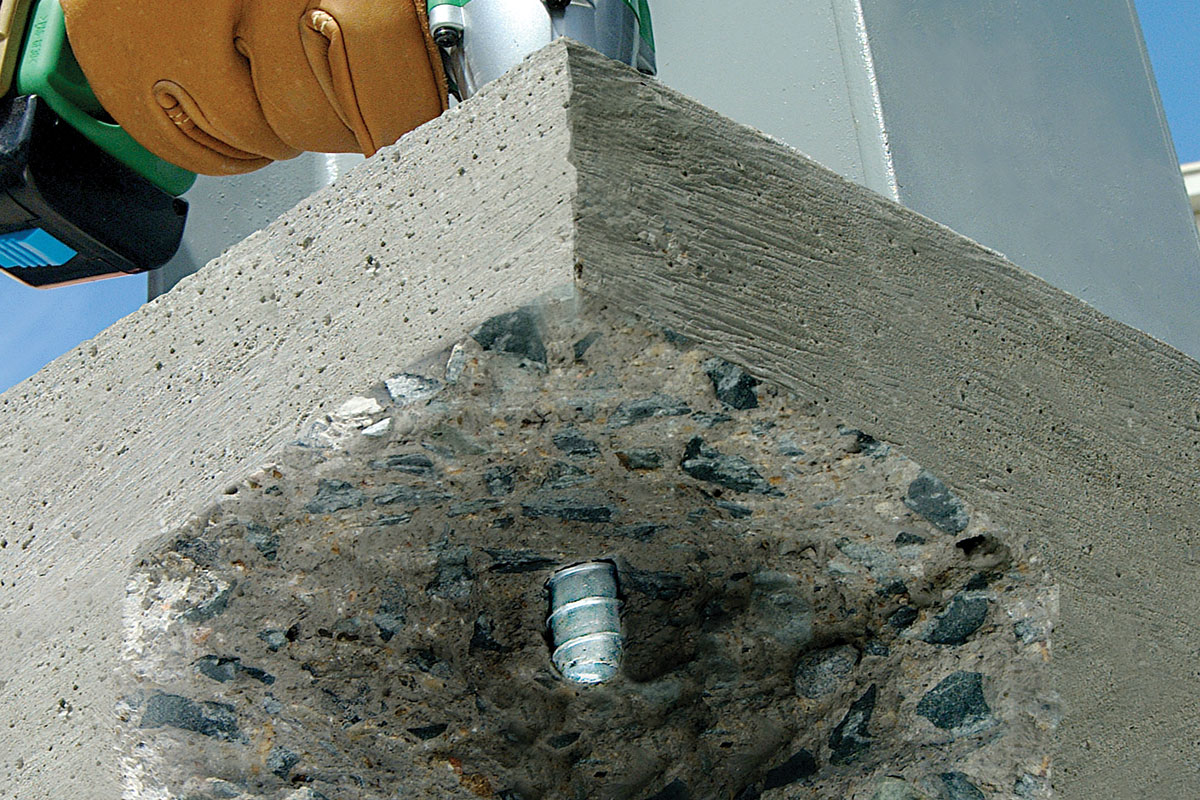

  • Excellent minimum edge distance performance
  • Qualified for static and seismic loading conditions
  • Available in a wide range of diameters and lengths
Scope of Use
  • For use in cracked and uncracked concrete, as well as uncracked masonry
  • Qualified for static and seismic loading conditions
  • Available in a wide range of diameters and lengths
  • Removable — ideal for temporary anchoring (e.g. formwork, bracing) or applications where fixtures may need to be moved
  • Can be bent to a right angle (90°)
  • Length is measured from the underside of the head to the tip of the anchor.
  • The max. fixture holes are limited to the outside diameter of the anchor based on ETAG 001, Annex C

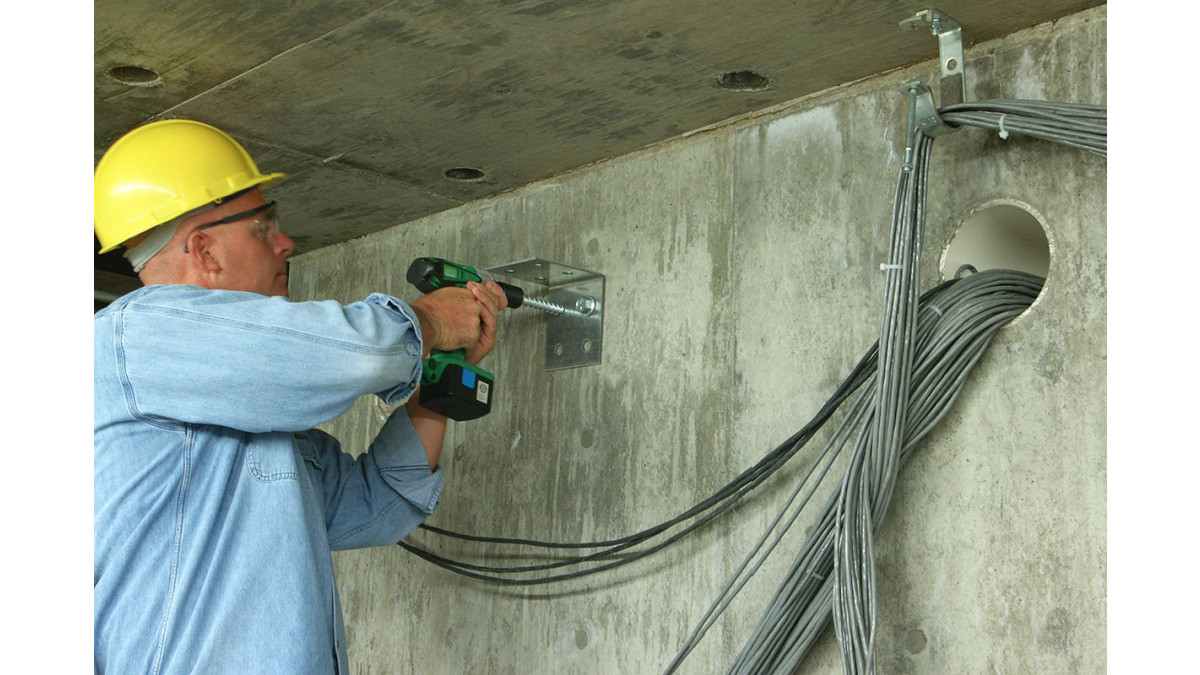

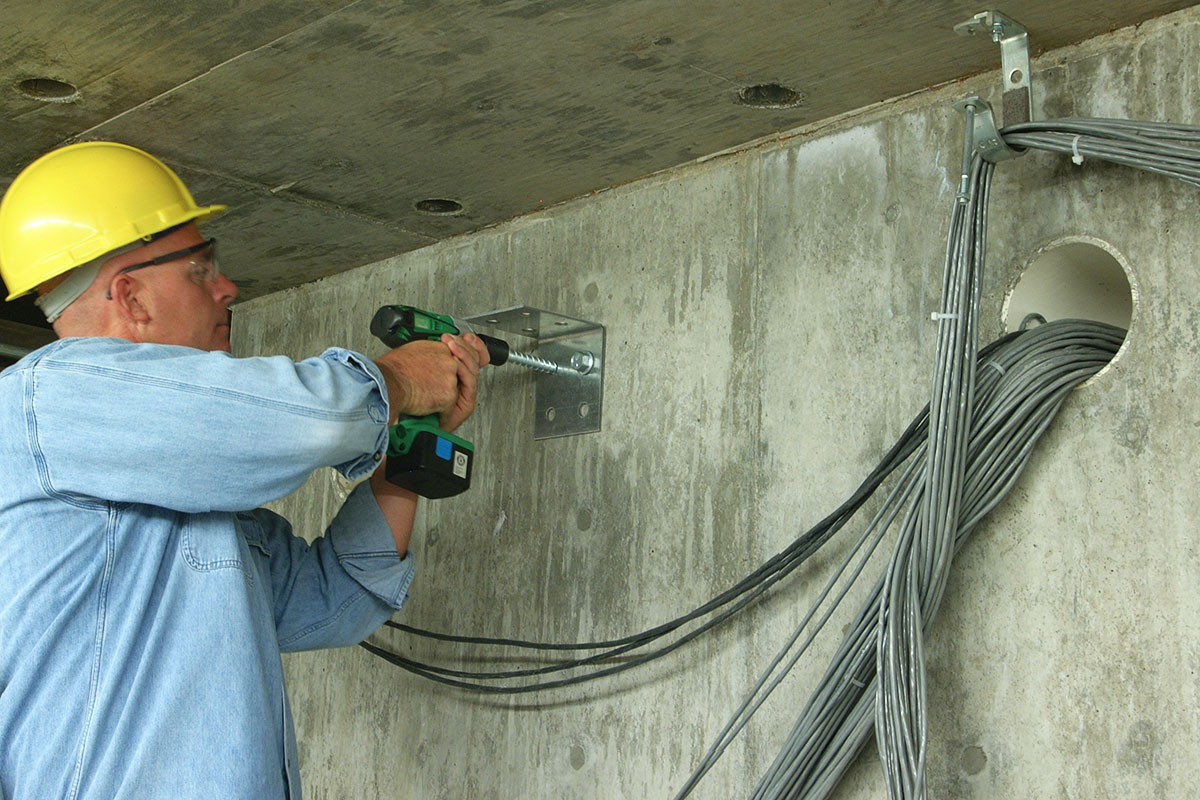

Typical applications:

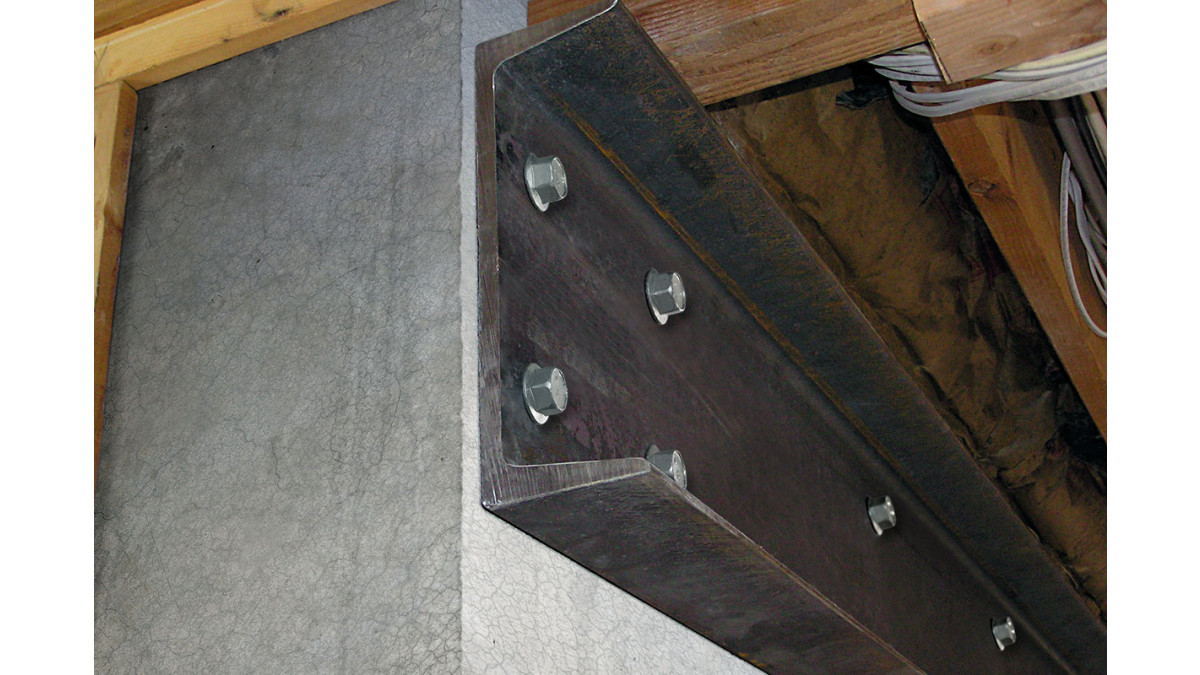

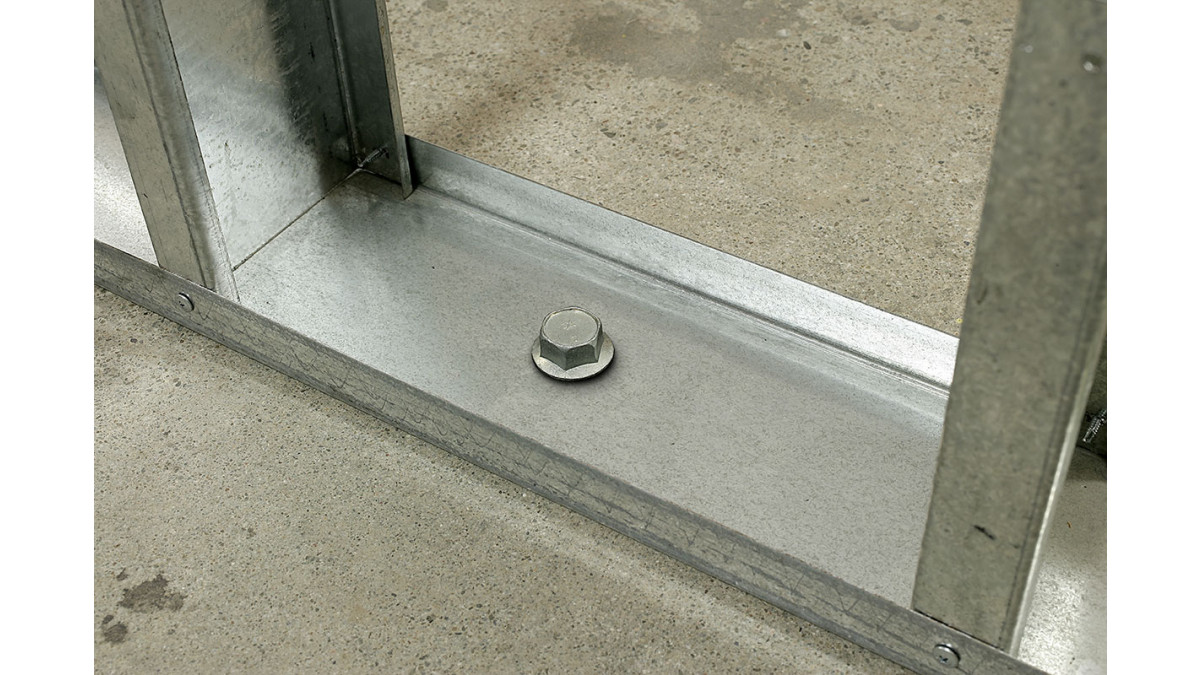

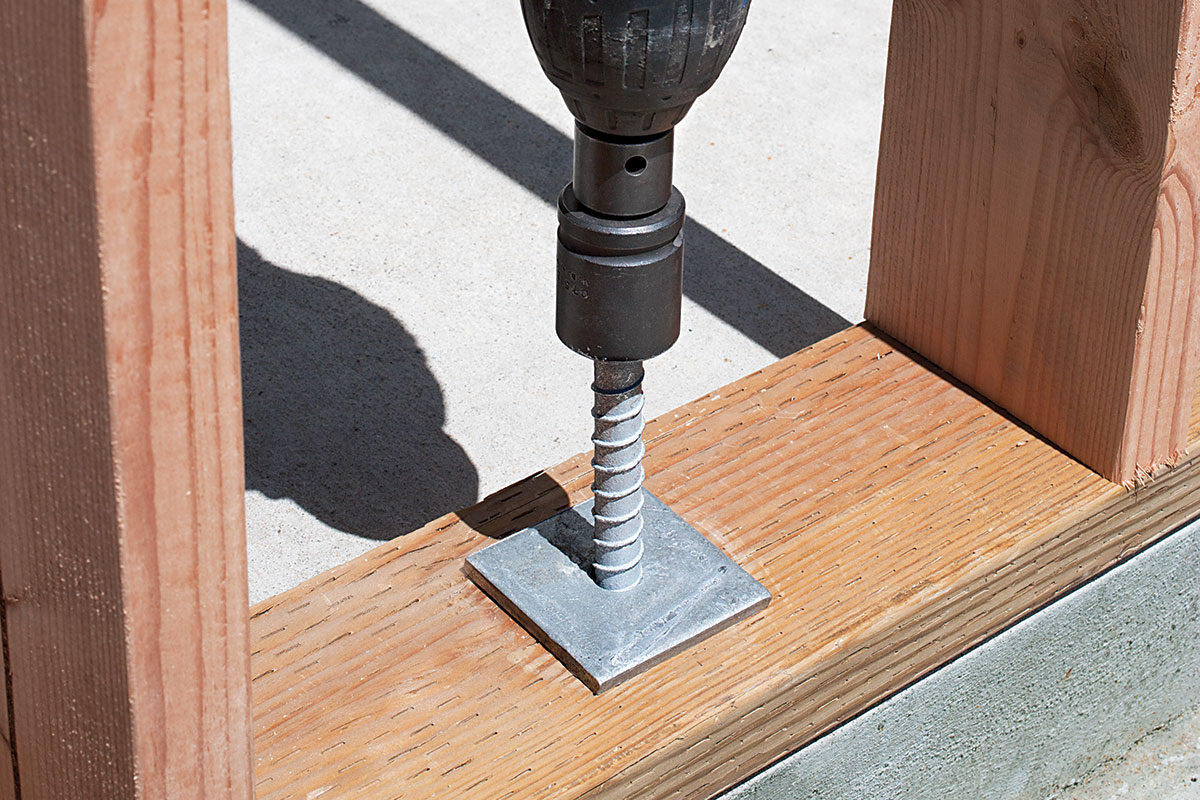

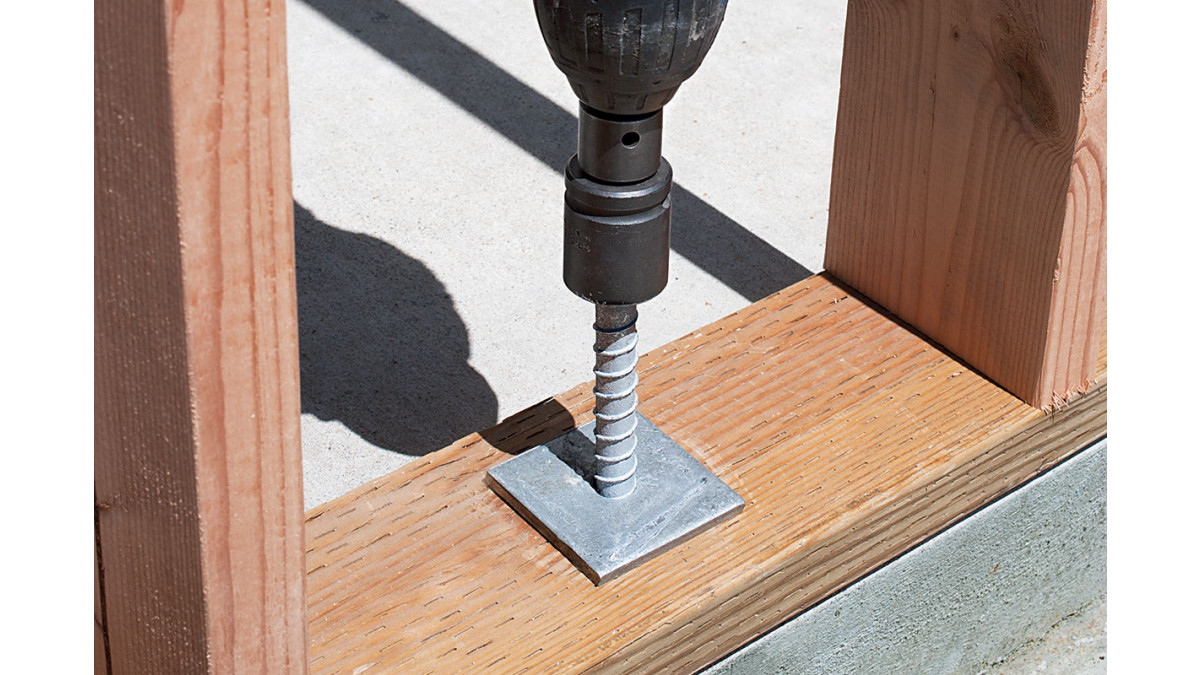

  • Timber bottom plate and hold-down fixings

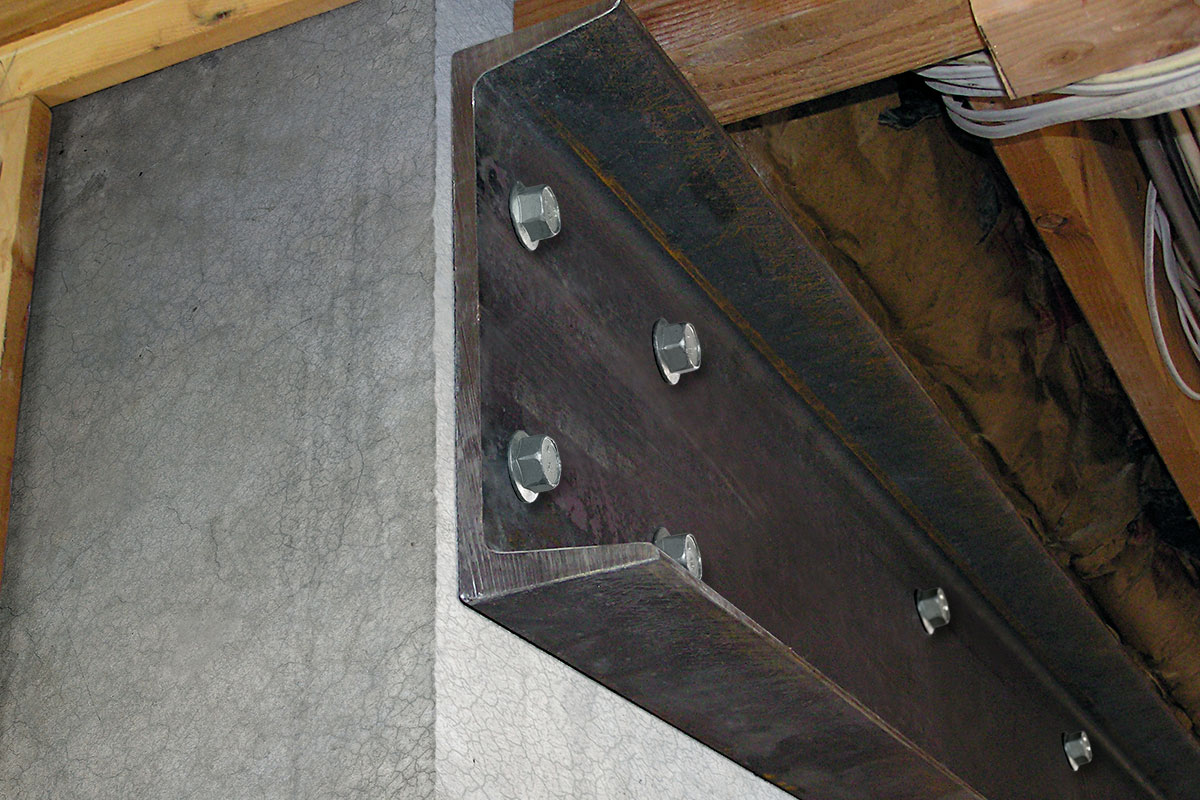

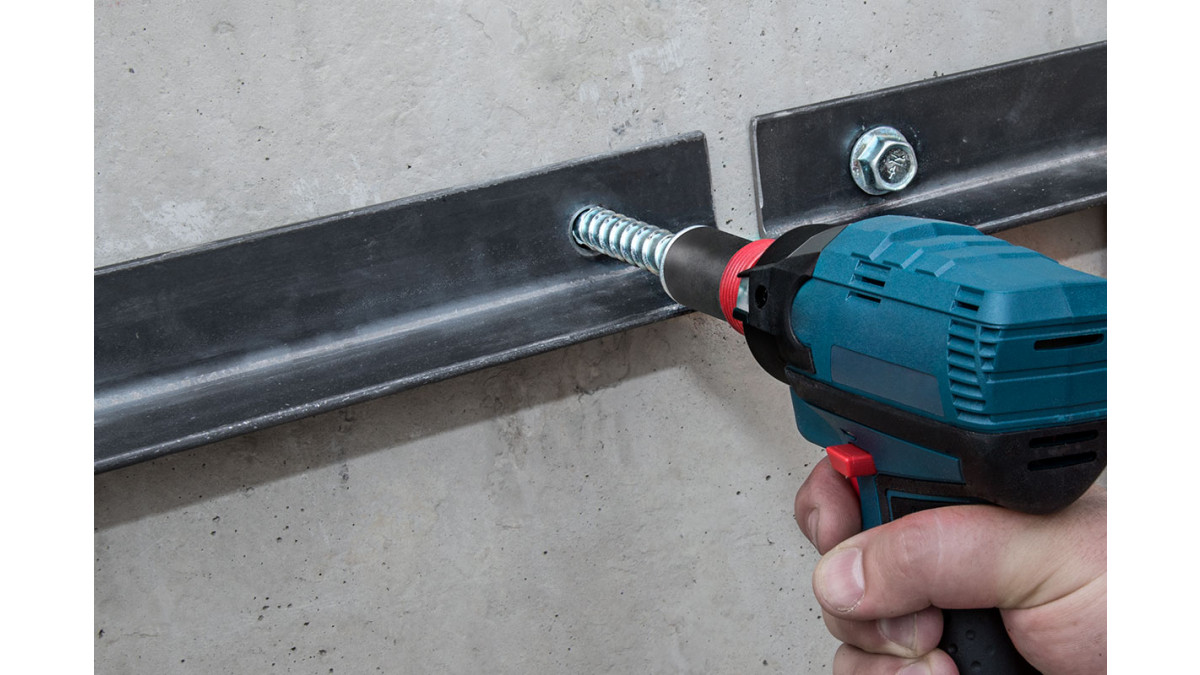

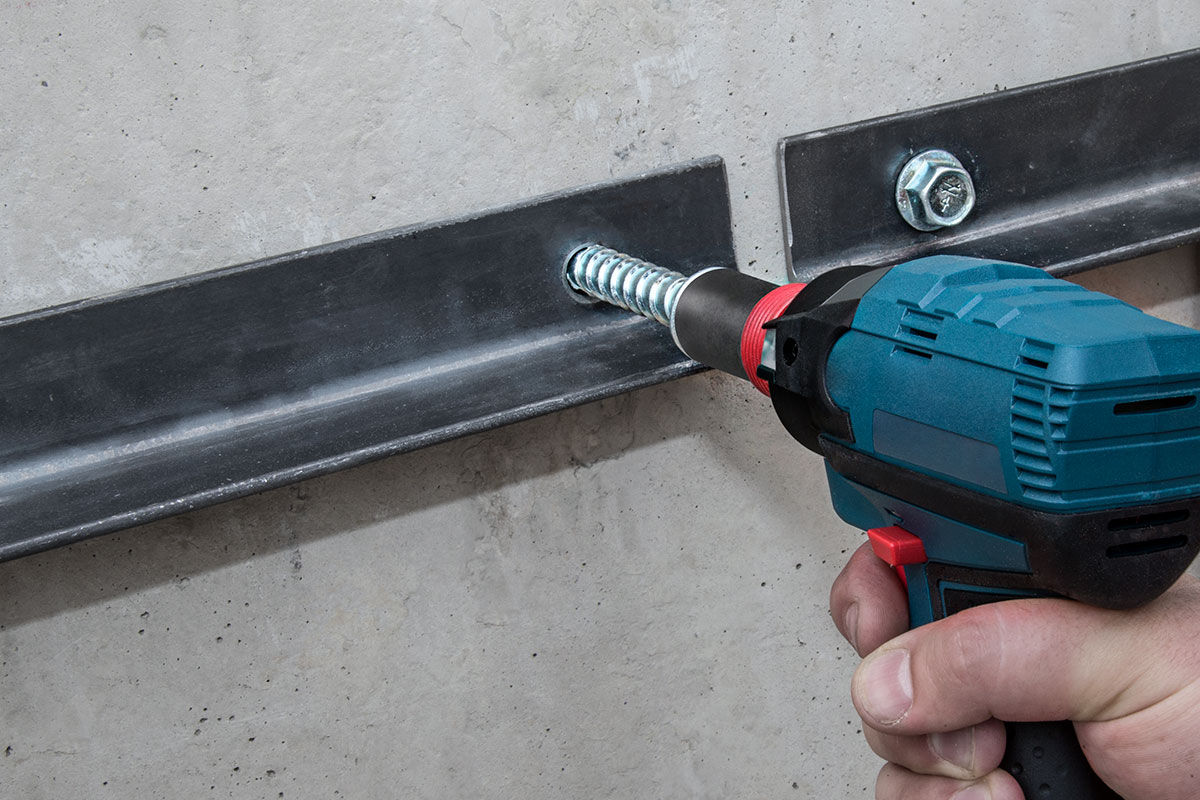

  • Structural steel
  • Subway/railway fixings
  • Machinery and equipment
  • Concrete formwork and bracing

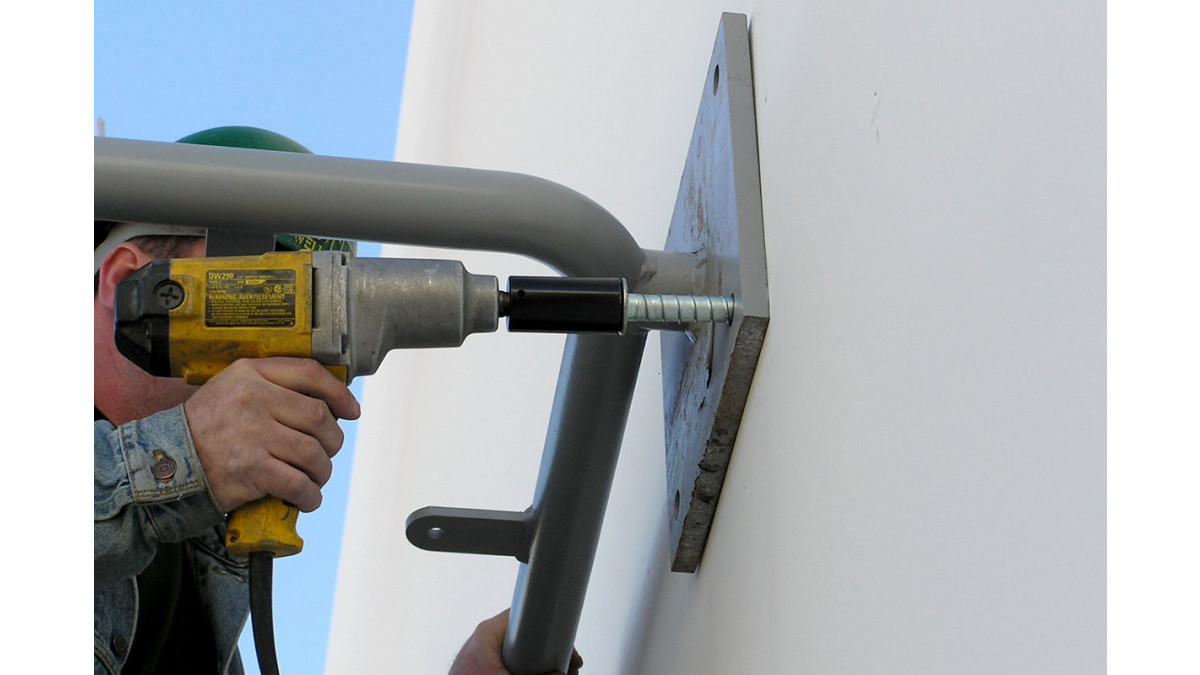

  • Access equipment — ladders, staircases
  • Deck ledgers

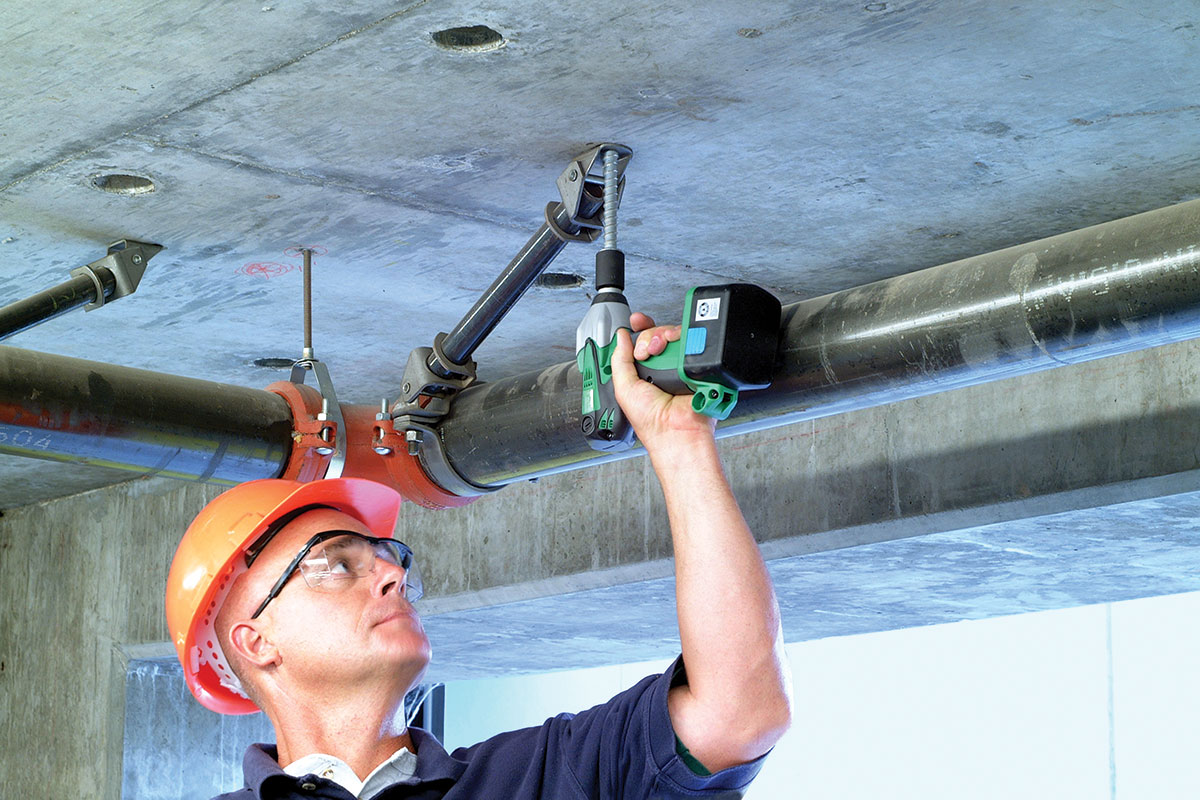

  • Overhead anchoring (tension zones)

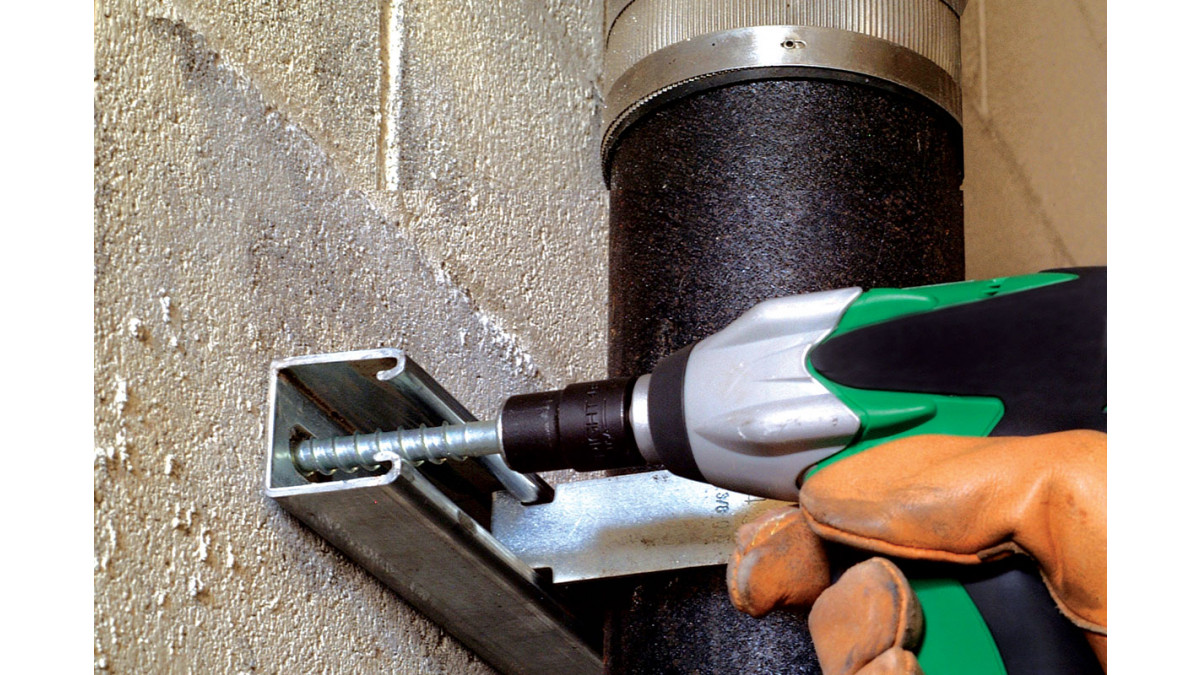

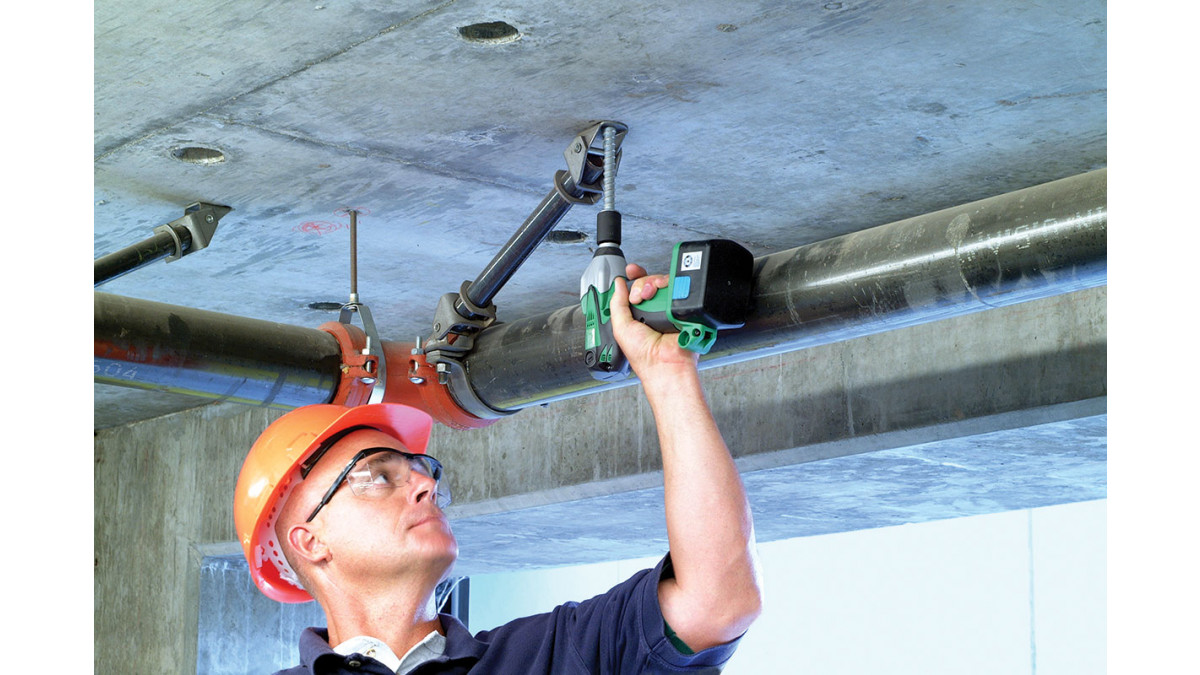

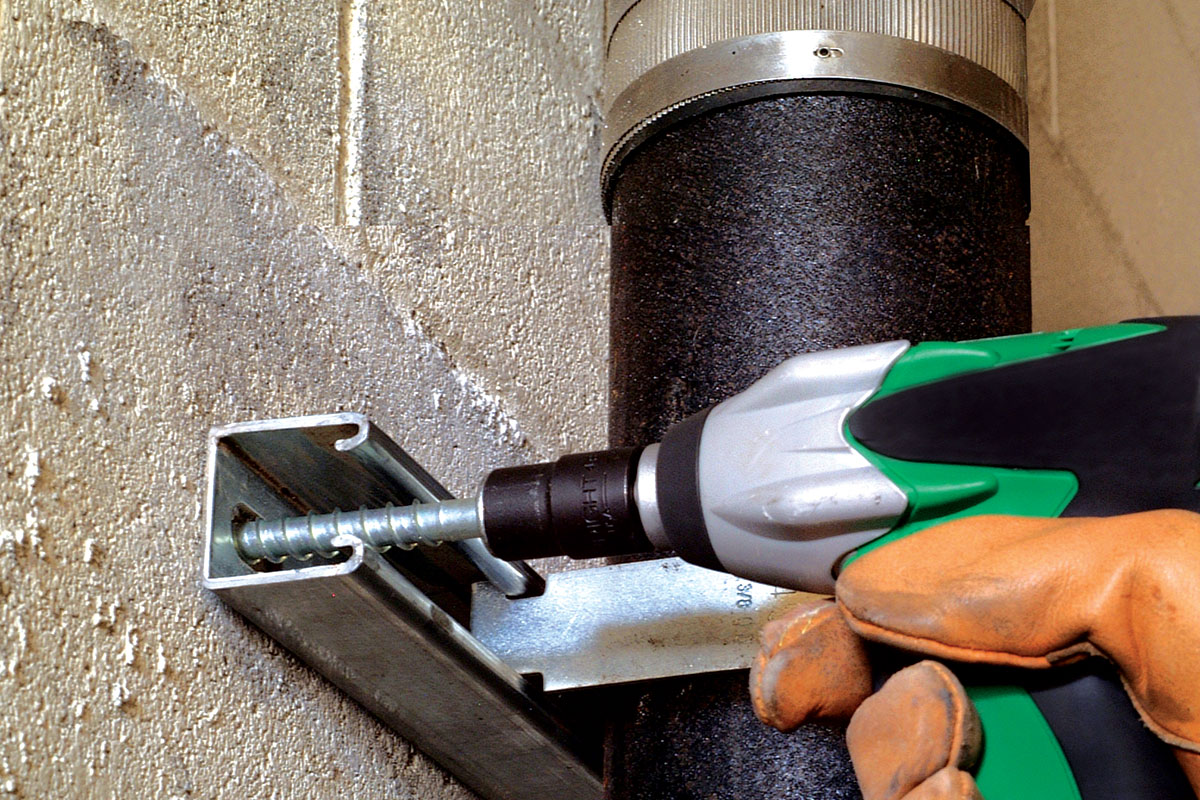

  • Strut and pipe hangers
  • Junction boxes and control panels

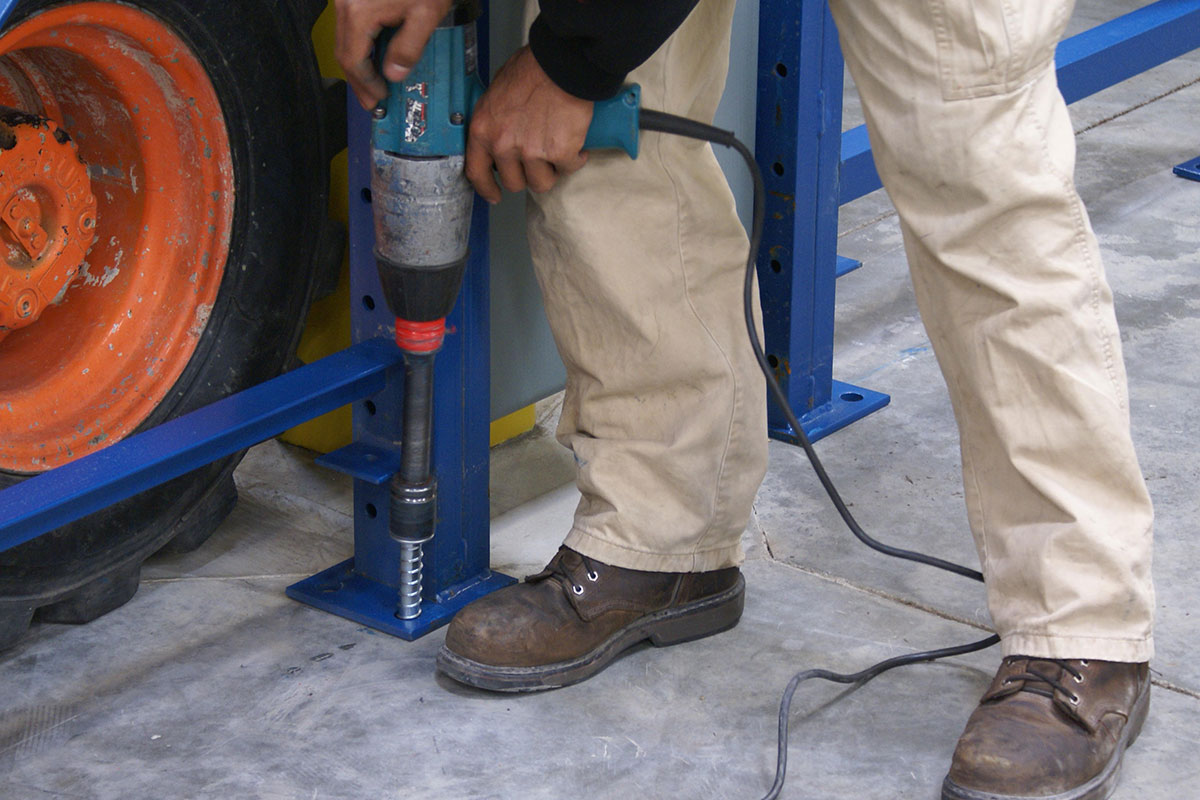

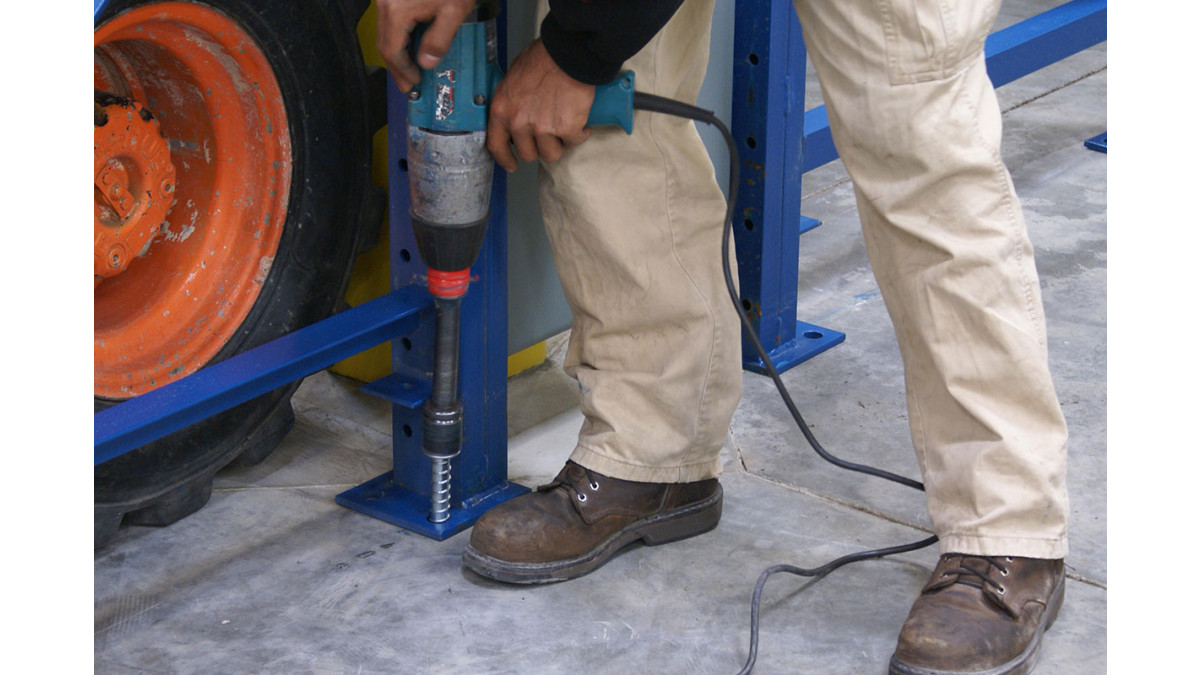

  • Racking, mezzanines, conveyors
  • Furniture and storage

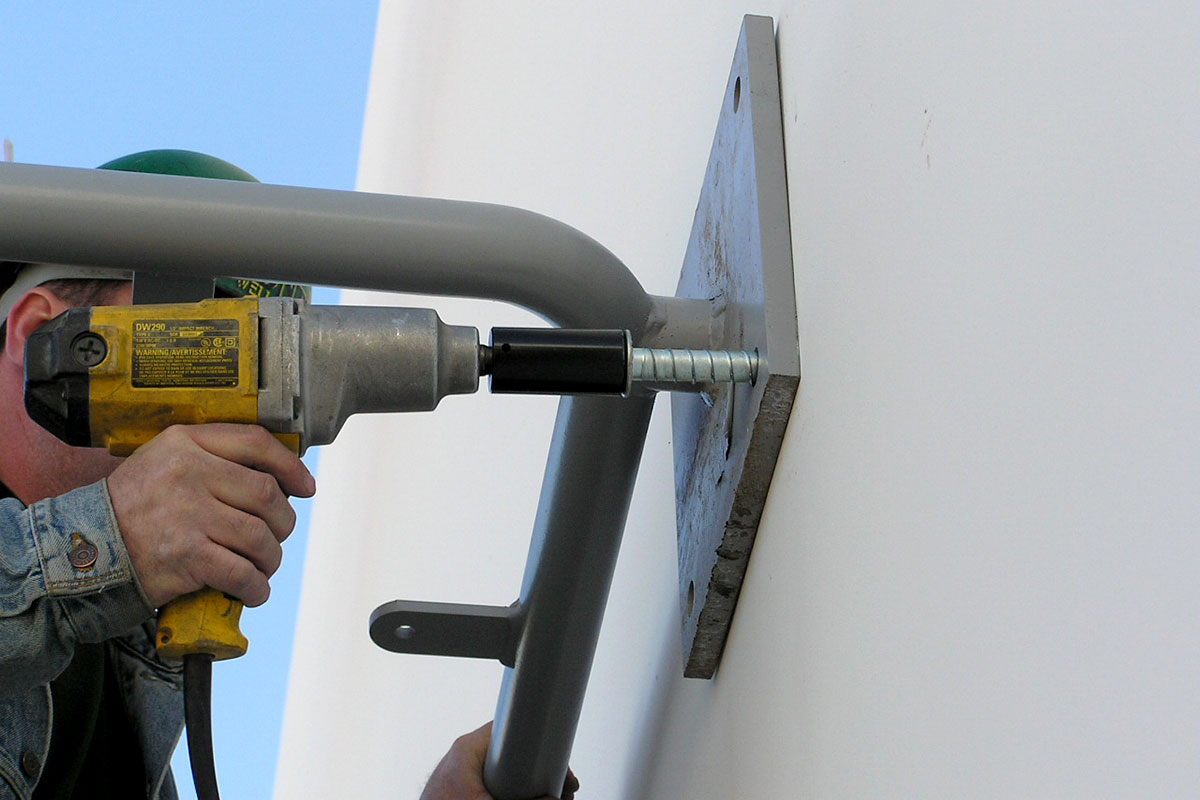

  • Guardrails, railings, fencing
Limitations on Use
  • Mechanically galvanised finish is ≥ 12 microns in accordance with EN ISO 12683, Type 1. Not for use in highly corrosive or outdoor environments.
Statement of Building Code Compliance
  • Complies with AS5216
  • ETA-12/0060 (Option 1)
  • Code listed under IBC/IRC in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete per ICC-ES ESR-2713
  • Code listed under IBC/IRC in accordance with ICC-ES AC106 for masonry per ICC-ES ESR-1056
  • BRANZ Appraisal 983 (2023) for applications related to bottom plate fixings and holdown applications per NZS 3604 using Titen HD
B1 Structure compliant
Structure
B2 Durability compliant
Durability
BRANZ Appraised
BRANZ Appraised
Independent Assessment
Independent Assessment

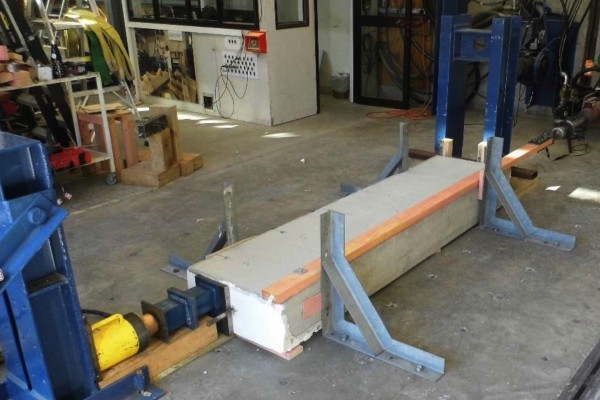

Test Results
Test Results
Documents
CAD Drawings
Technical Data Sheet

2020

BRANZ Appraisal

983 [2023]

BRANZ Test Report

TV11968

European Technical Assessment

8.06.01-509/16

Infill Testing Report

LR0441

Installation Guide: Bottom Plate
Installation Guide: Brick Walls
Catalogue: Titen HD Heavy Duty Screw Anchor

2018

Full Catalogue: Anchoring and Fastening Systems

2018

Full Catalogue: Timber Connectors NZS3604

F-C-NZS3604-20
