E5 Reinforced Angle Bracket
Simpson Strong-Tie
All products

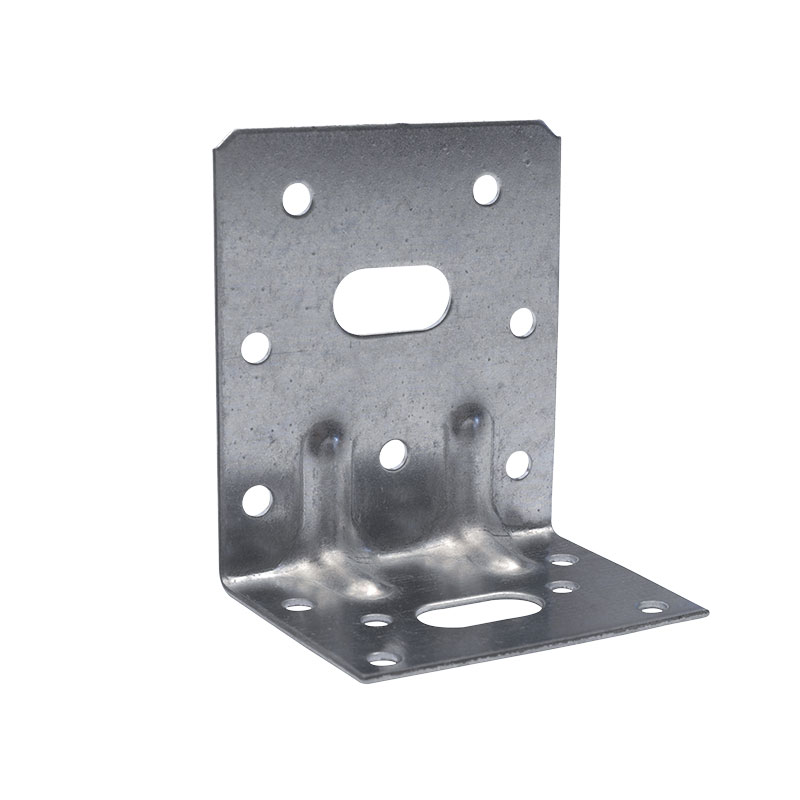

E5

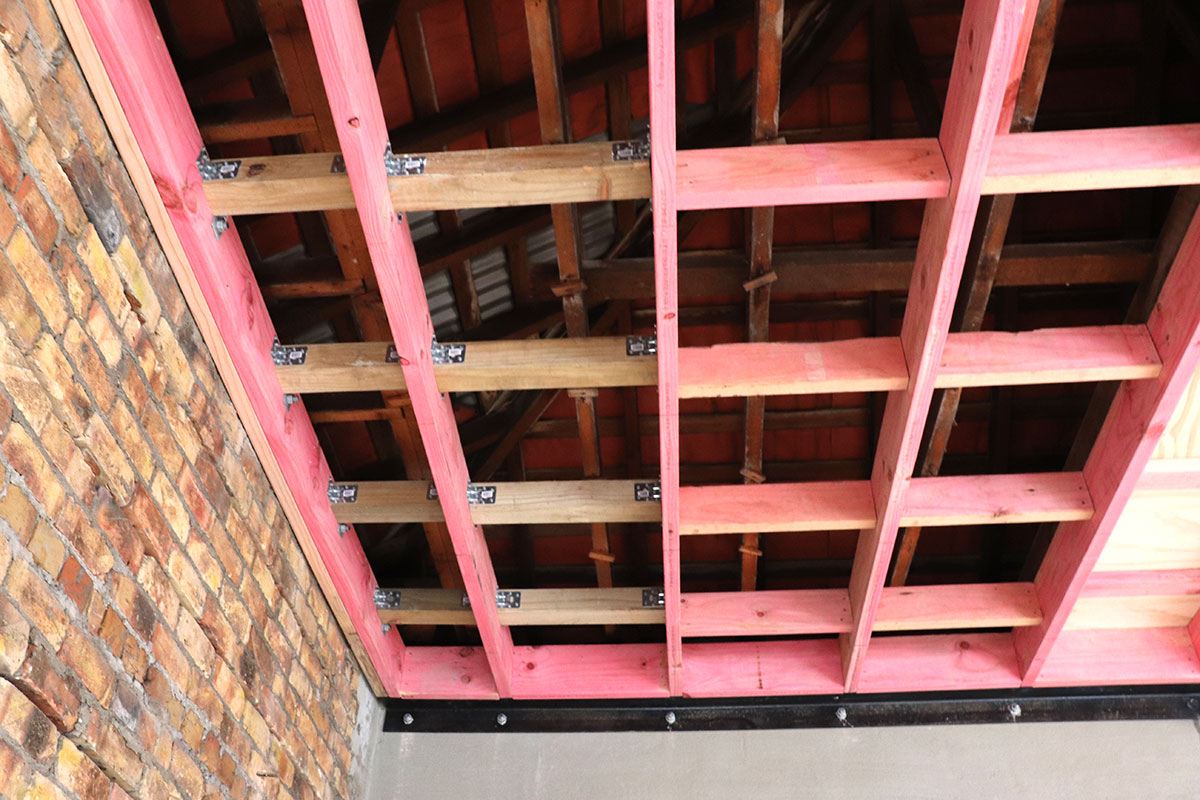

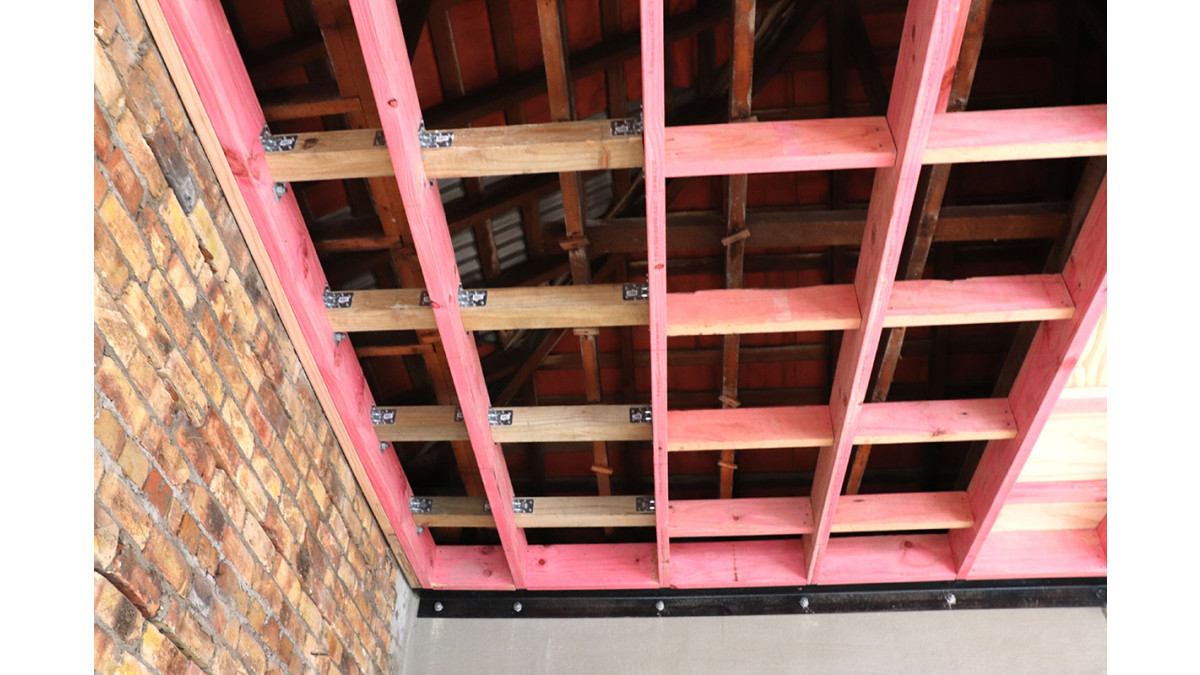

E5 Application 00

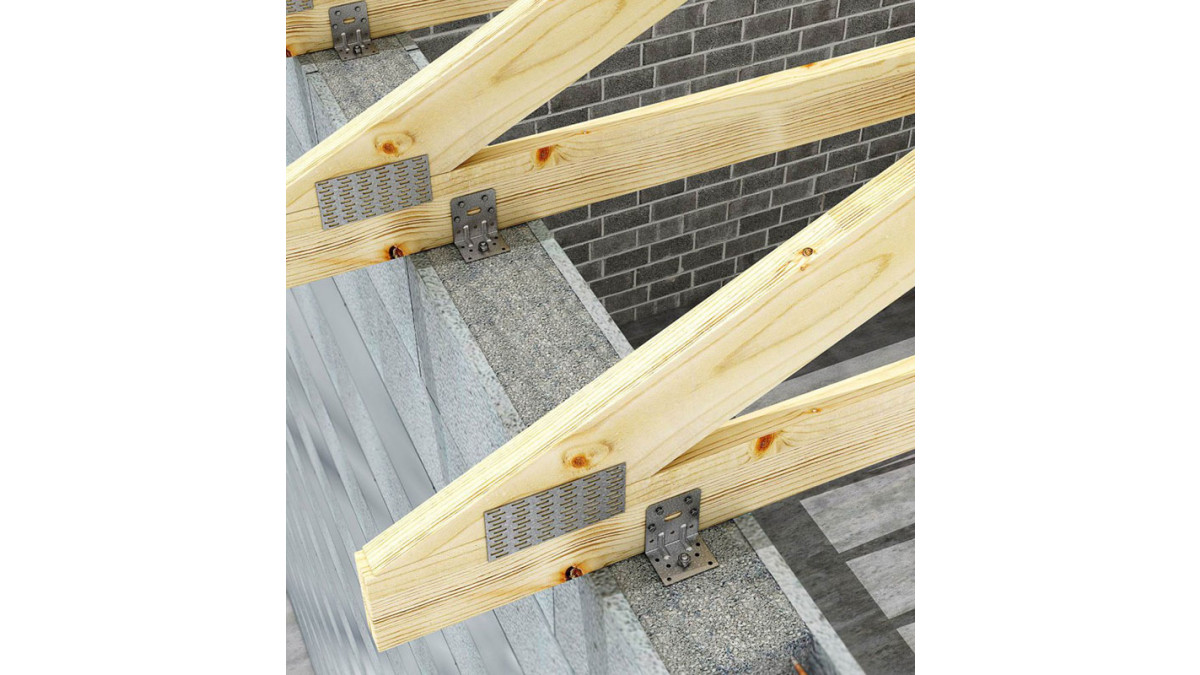

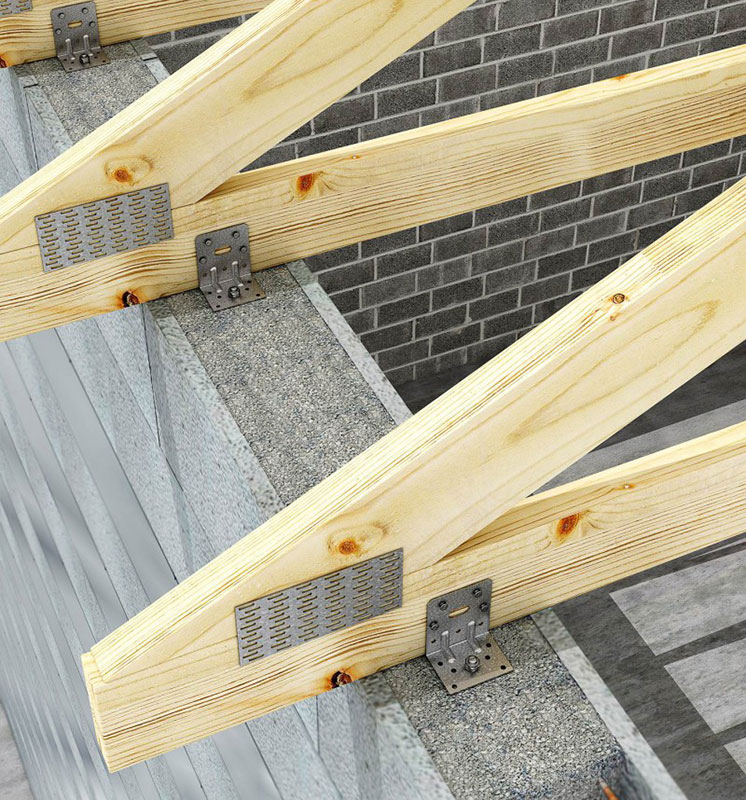

E5 Application 01

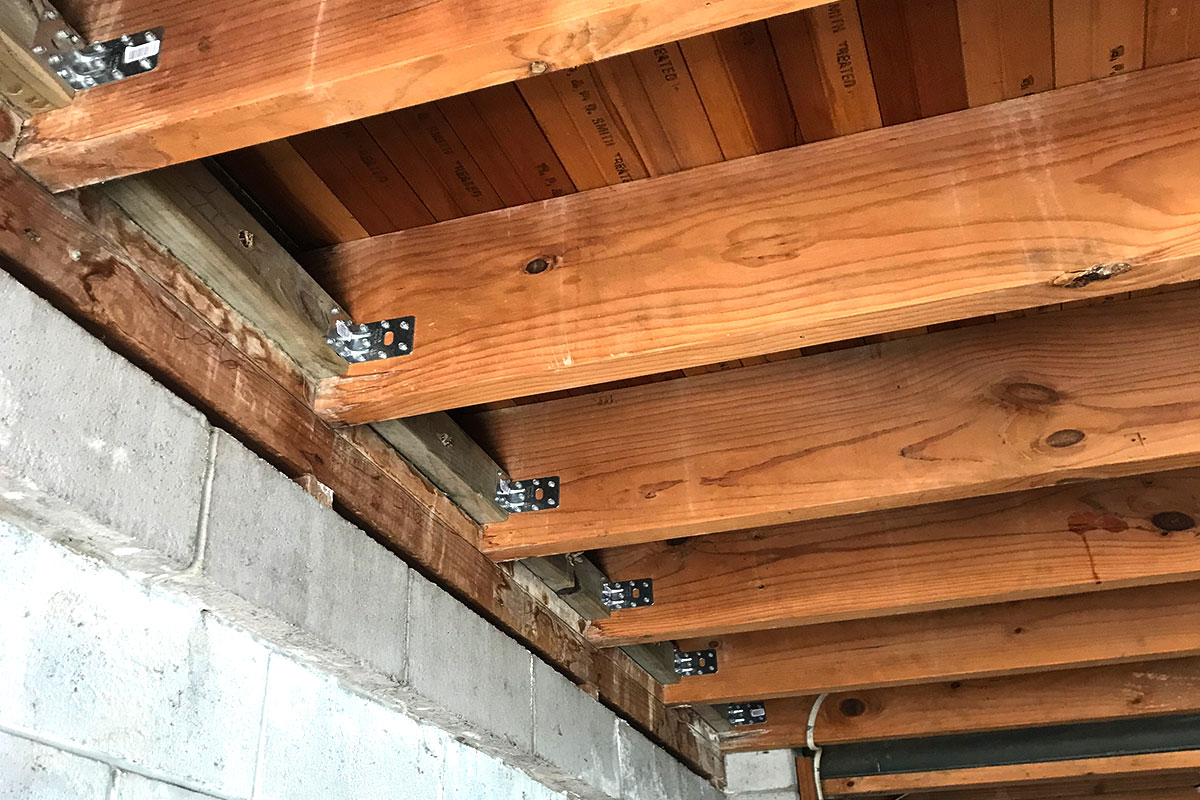

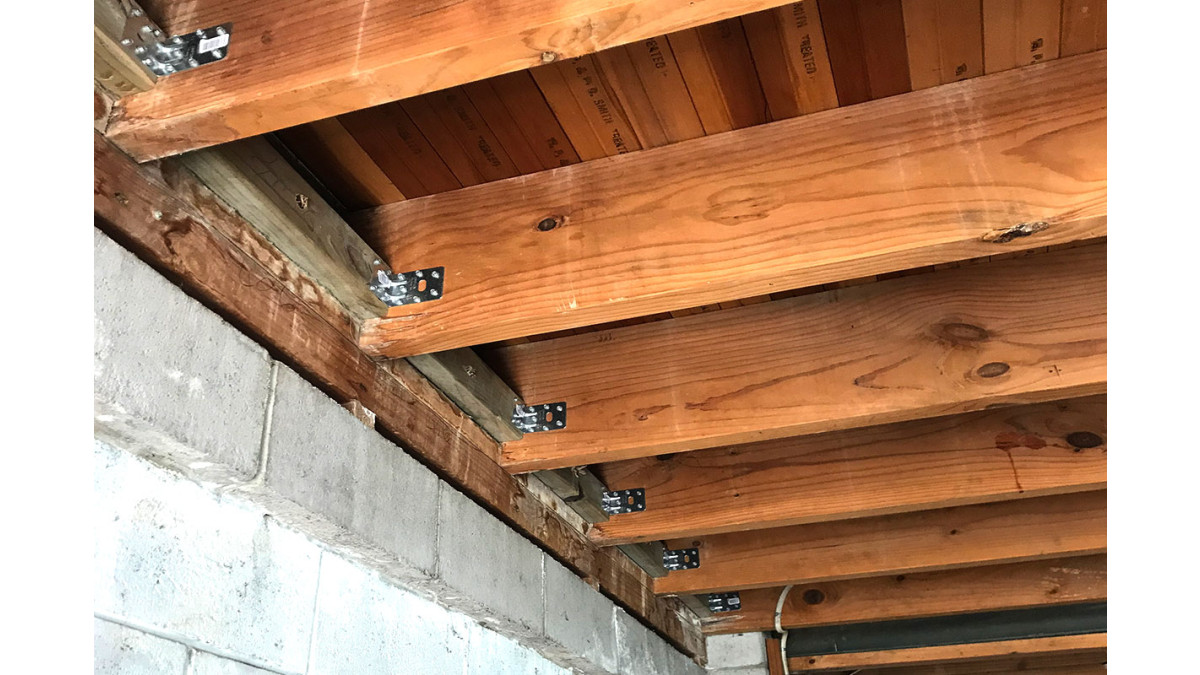

E5 Application 02

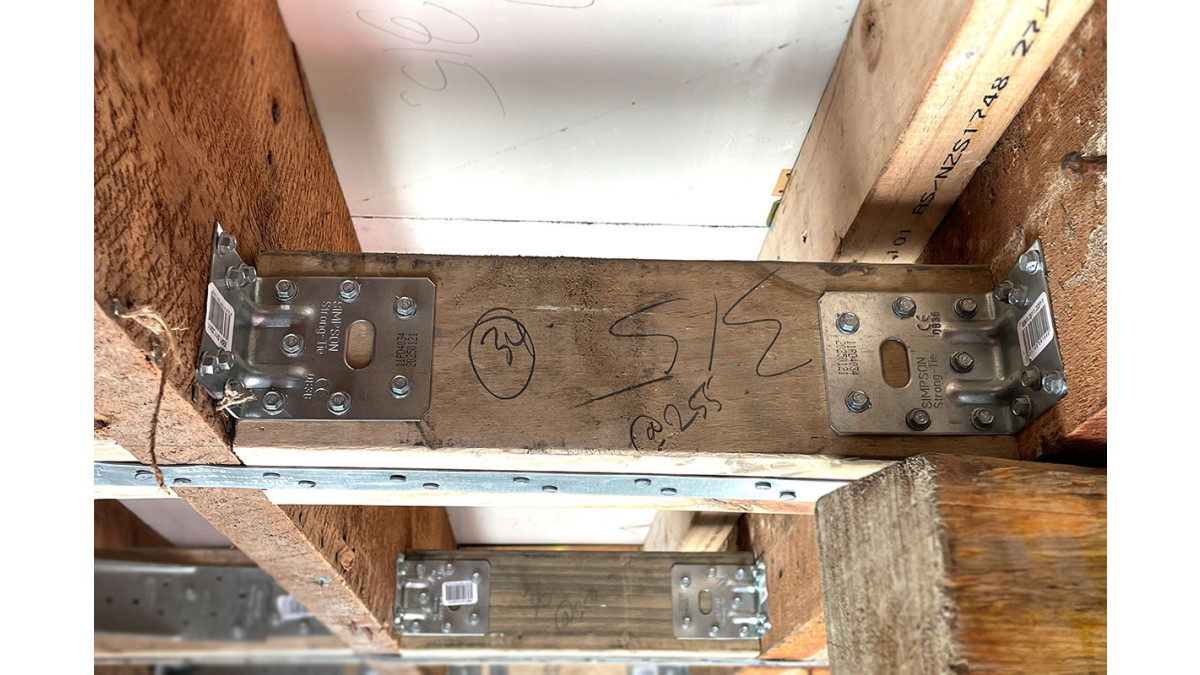

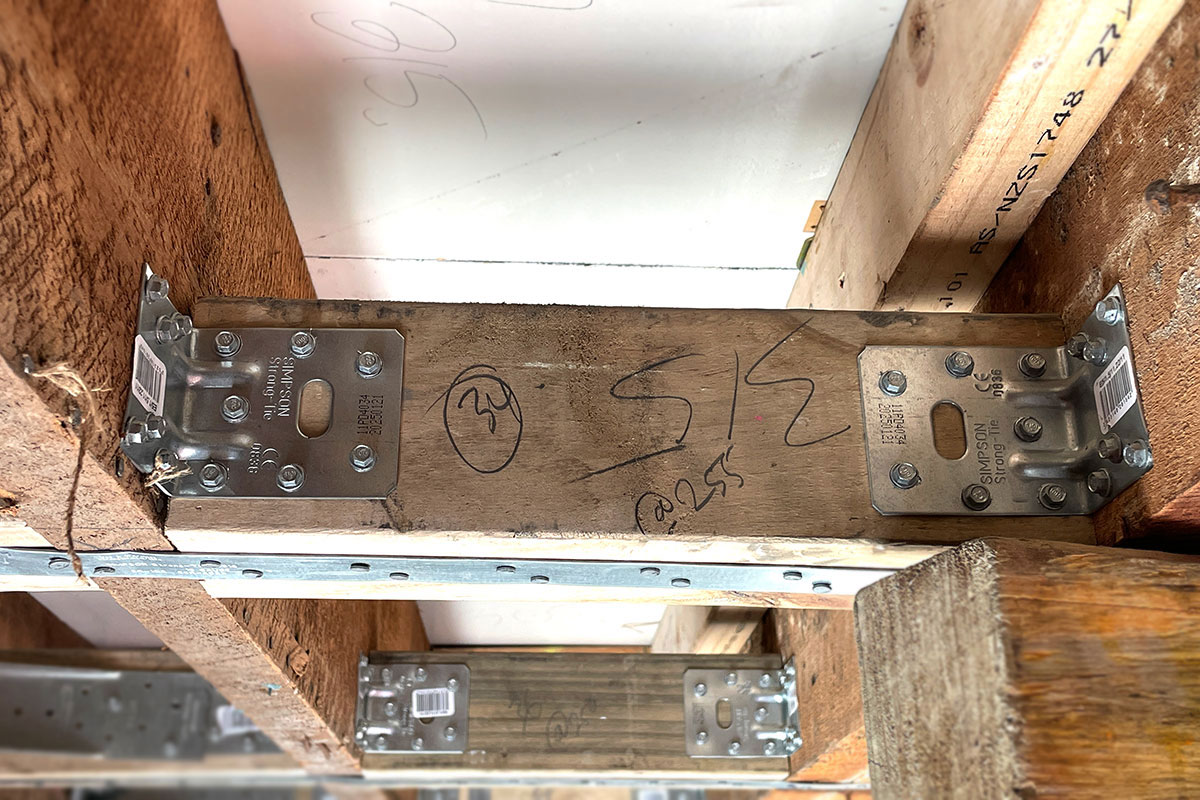

E5 Application 04

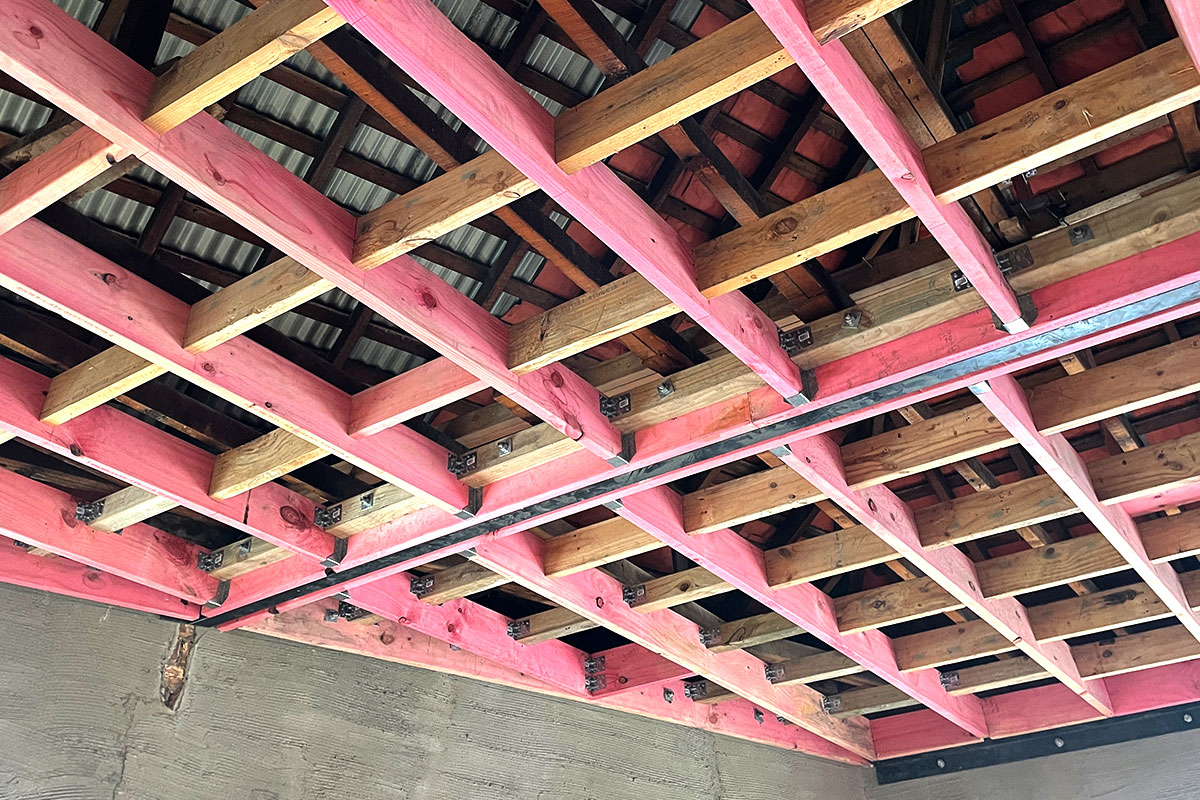

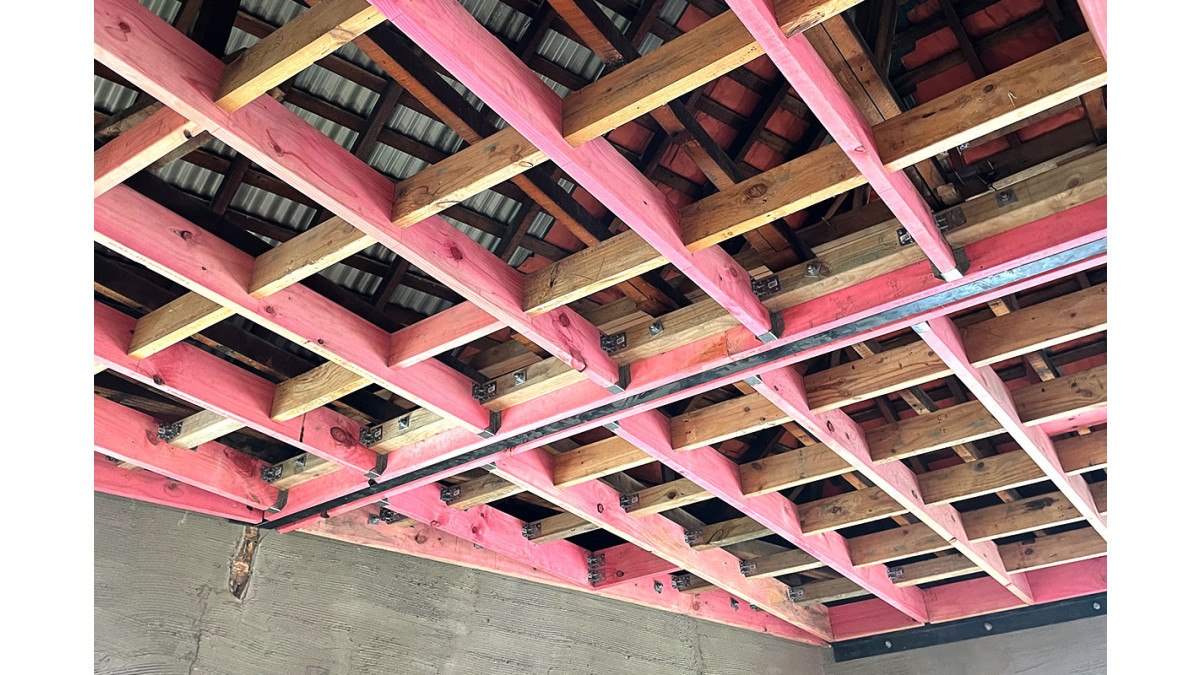

E5 Application 05

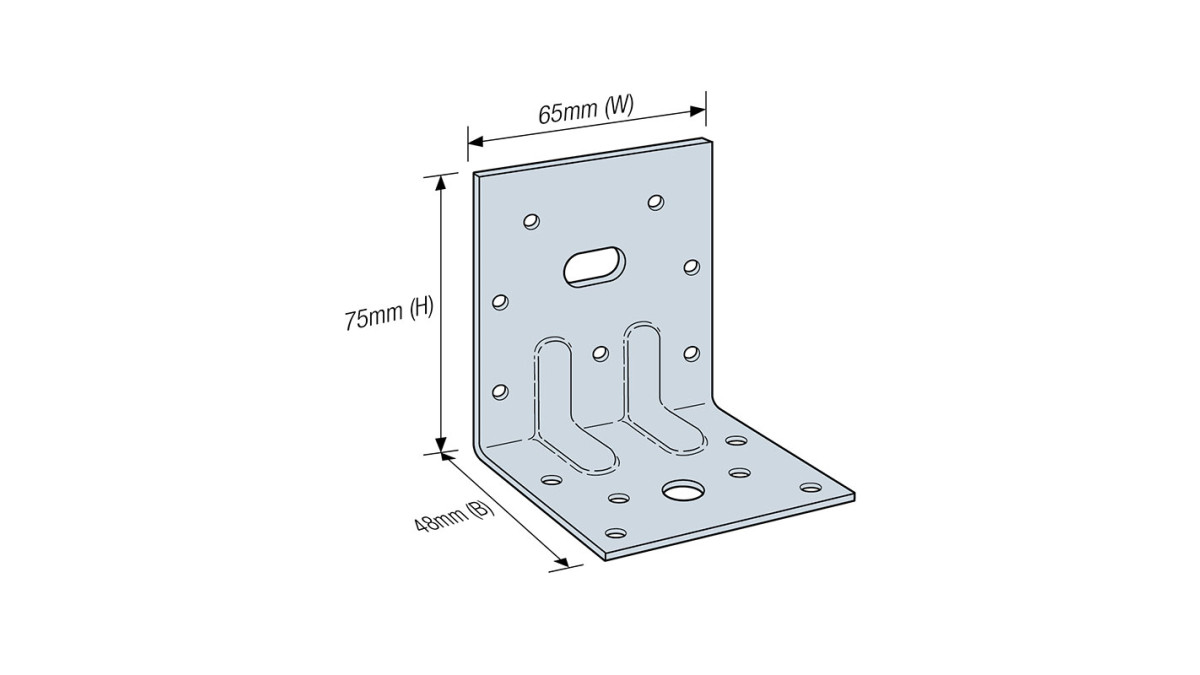

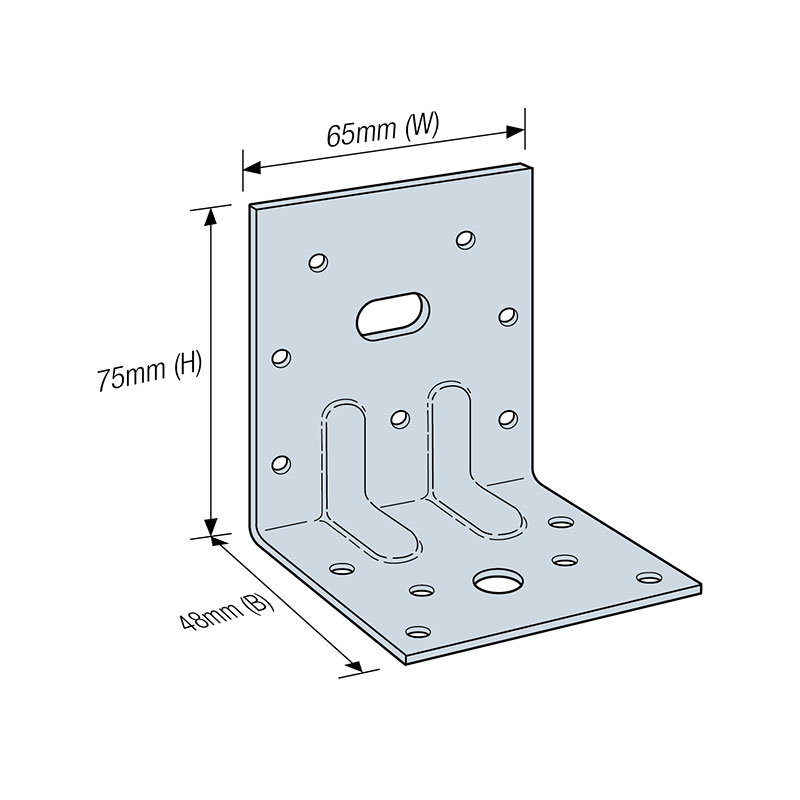

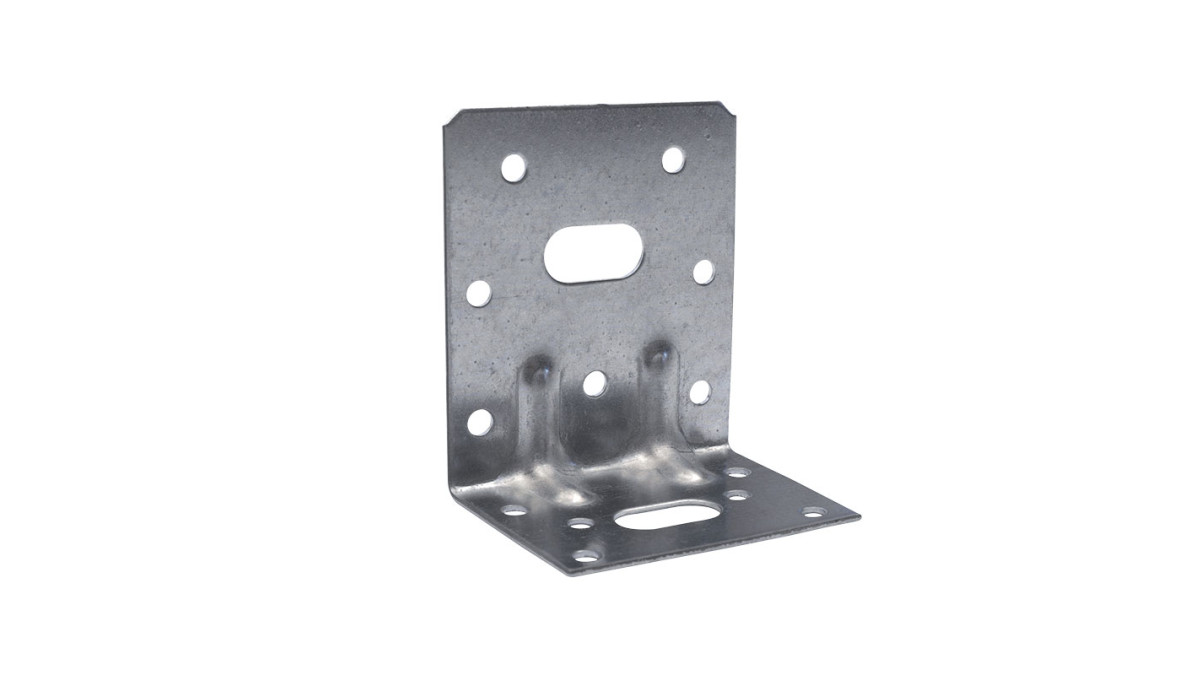

E5 Illustration
Description

E5 Reinforced Angle Bracket is suitable for structural applications in framing and timber-frame houses for general connecting of timber at 90° angles. Typical applications include fixing trusses, studs, purlins, beams and posts. Suitable support materials include solid timber, composite timber, laminated timber and trusses.

  • Z275 Galvanised: E5
  • 316 Stainless Steel: E5SS
Key Features
  • Removes the guesswork for making perfectly square connections
  • Reinforces 90° connections
  • Two anchor holes for extra strength in required applications
  • Heavily swaged without any welding during the manufacturing process gives it extra strength
  • Easy to install for right-angled corner joints reinforcement
  • The E5SS is ideal for deck joist fixing combined with Simpson Strong-Tie's DTT Tension Tie & Holdown
  • Available in 316 stainless steel for outdoor structures and more corrosive environments such as coastal areas
Categories
Fasteners and Connectors
Ranges
Structural Fasteners and Connectors
Scope of Use
  • Suitable for structural applications in framing and timber-frame houses for general connecting of timber at 90° angles
  • Ideal for deck joist fixing combined with Simpson Strong-Tie's DTT Tension Tie & Holdown
  • Available in 316 stainless steel for outdoor structures and more corrosive environments such as coastal areas
  • Typical applications include fixing trusses, studs, purlins, beams and posts
  • Suitable support materials include solid timber, composite timber, laminated timber and trusses.
Statement of Building Code Compliance
  • E5 Reinforced Angle Brackets are compliant with NZS 3604:2011
B1 Structure compliant
Structure
B2 Durability compliant
Durability
Documents
Technical Data Sheet
pdf
ETA Report

ETA-06/0106

pdf
Externally Hosted Drawings
URL
Flyer
pdf
Full Catalogue: Timber Connectors NZS3604

F-C-NZS3604-23

pdf
