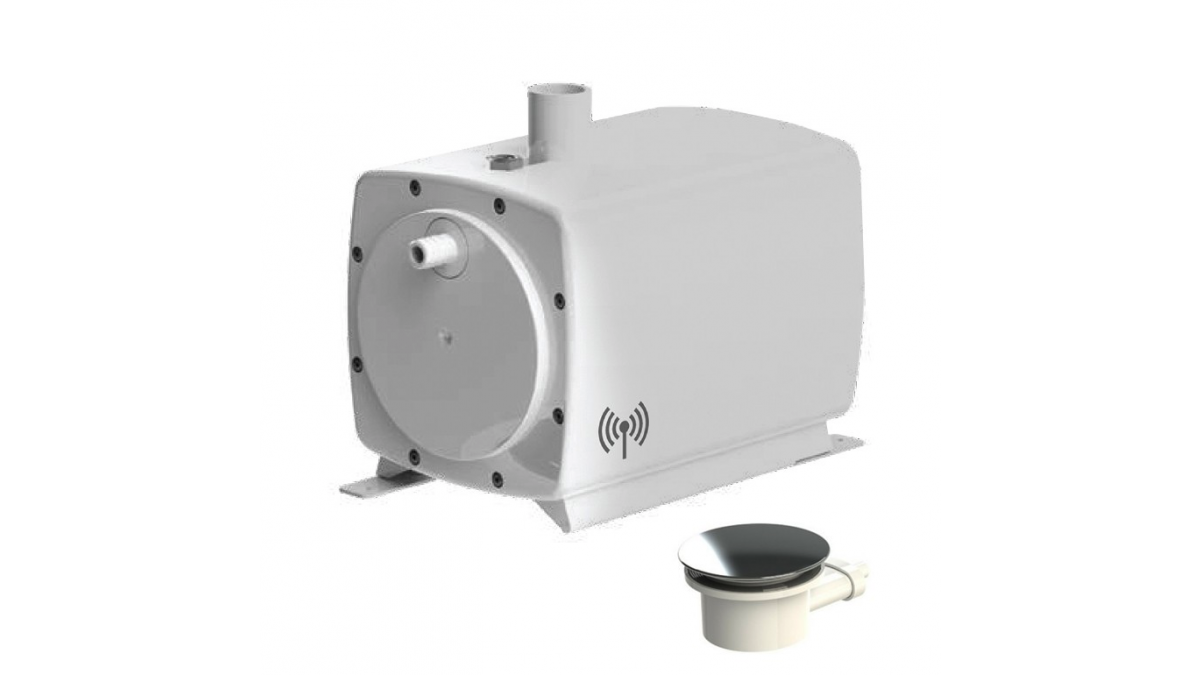

Sanifloor Grey Water Pump
Description

Sanifloor allows a shower to be installed easily and economically without major work accessing sewer pipes. The pump sucks the water from the shower gully and discharges back to the existing sewer line. Suitable for walk-in showers and low level shower trays.

Saniflo grey water pumps allow sanitary fixtures to be installed in areas where access to waste water pipes and conventional gravity drainage is limited, increasing the design possibilities for installing additional facilities in existing buildings.

Options:

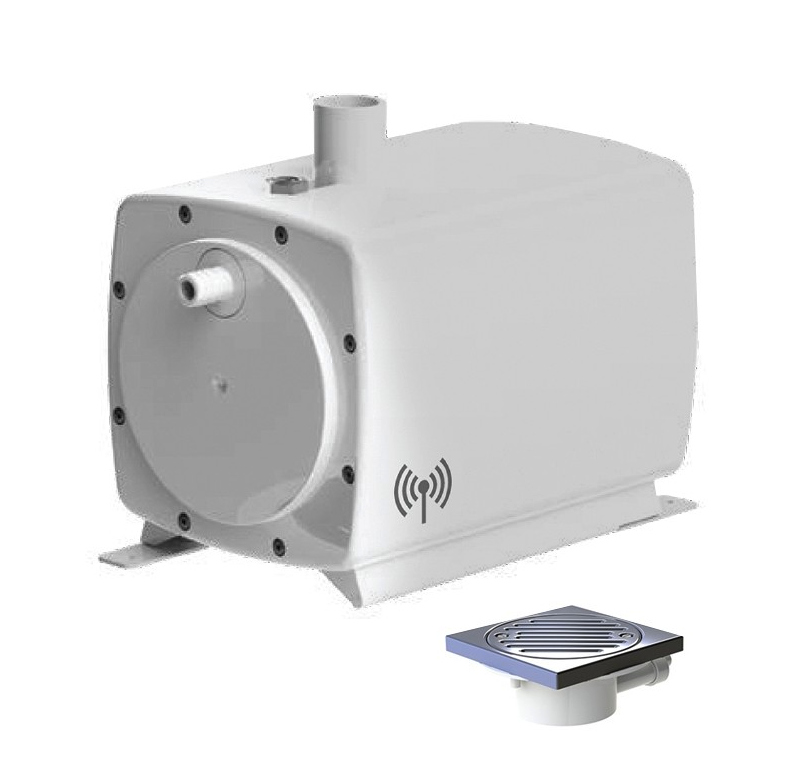

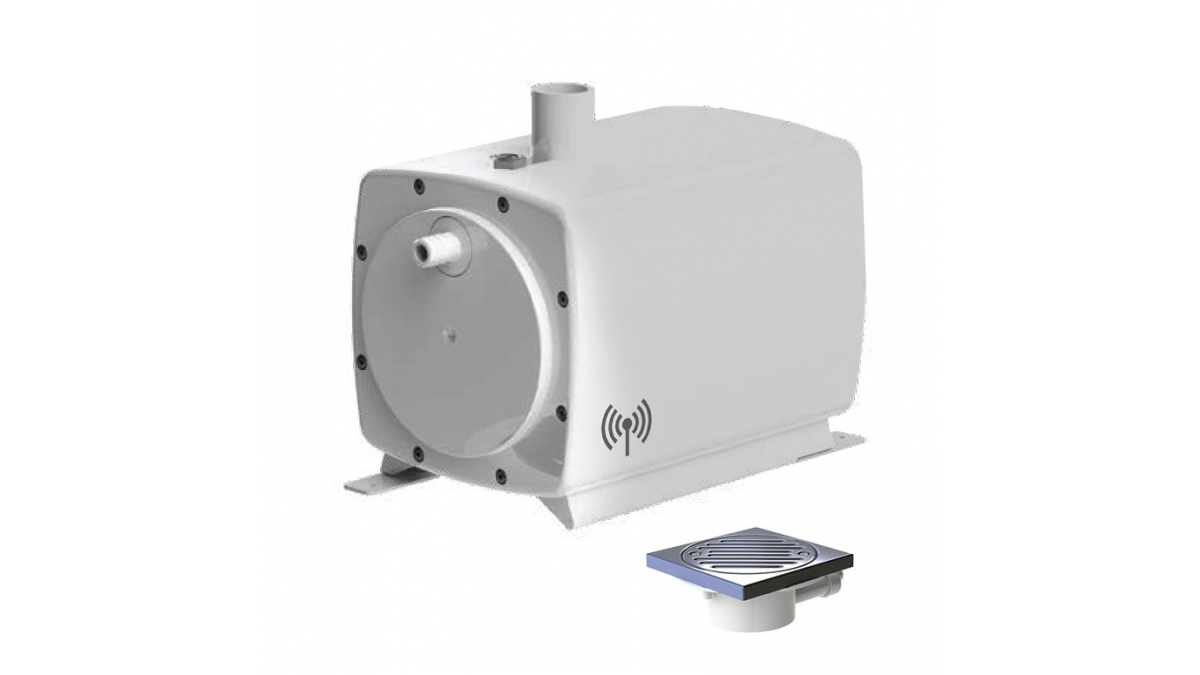

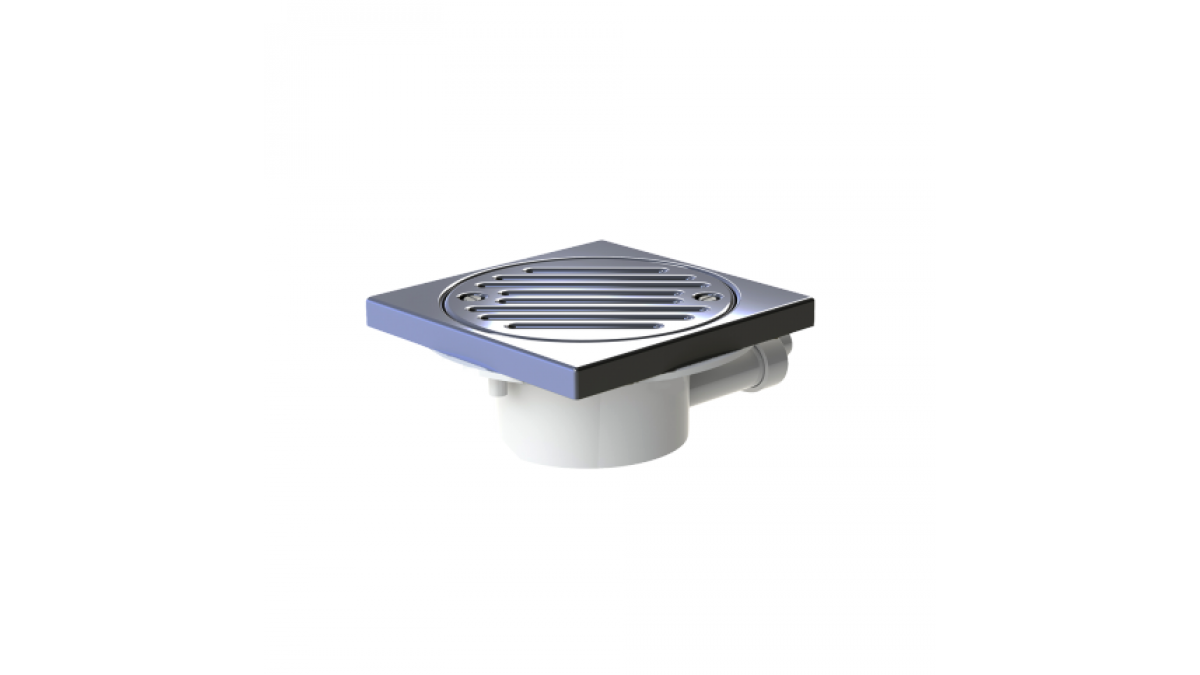

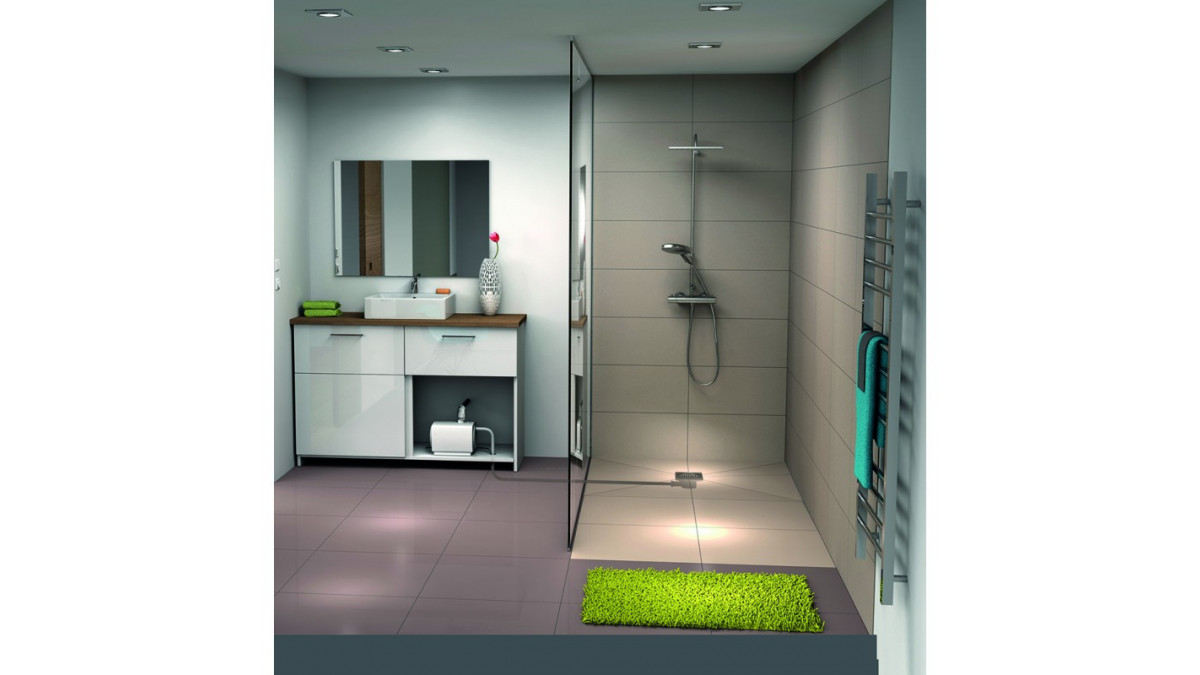

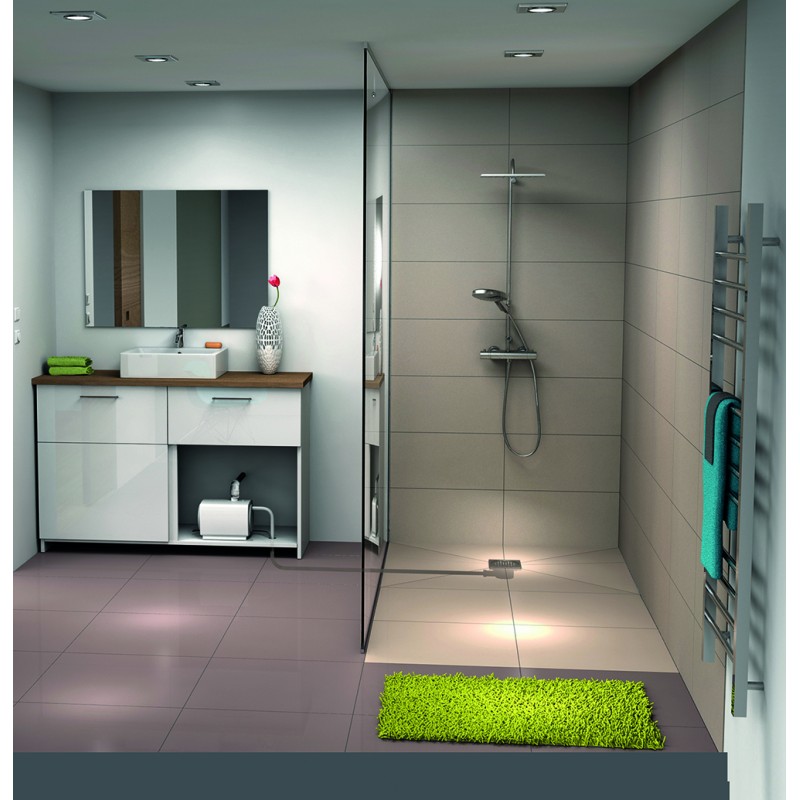

  • Sanifloor 1 with specially designed gully for tiled floors

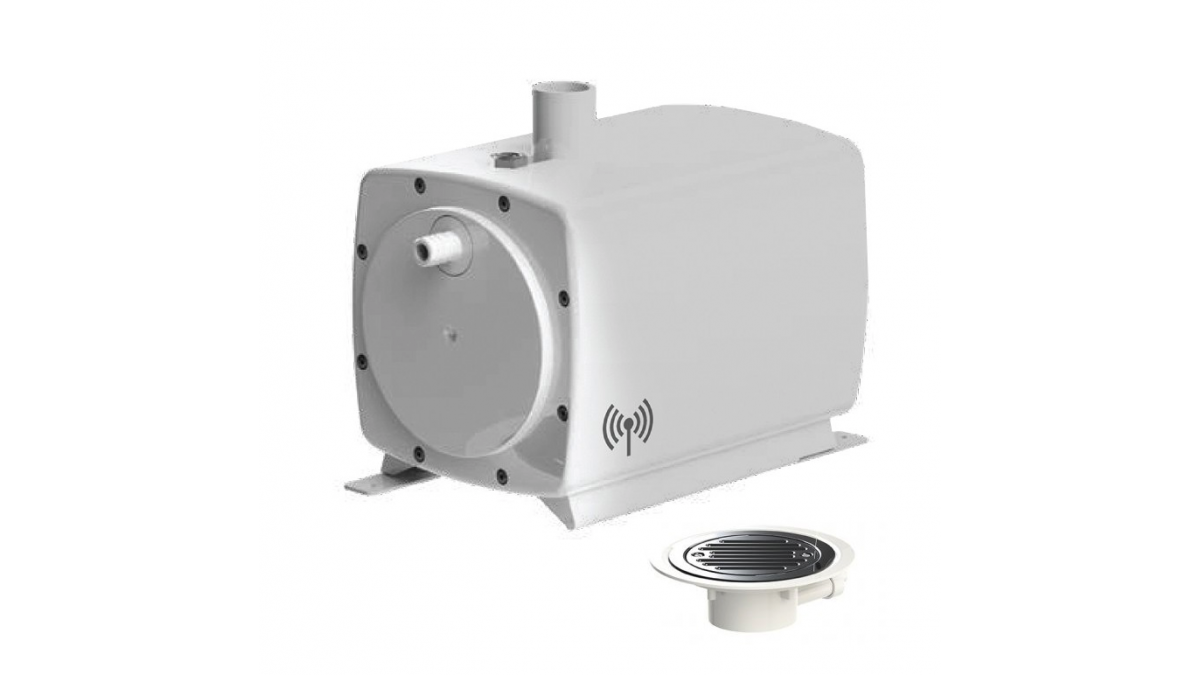

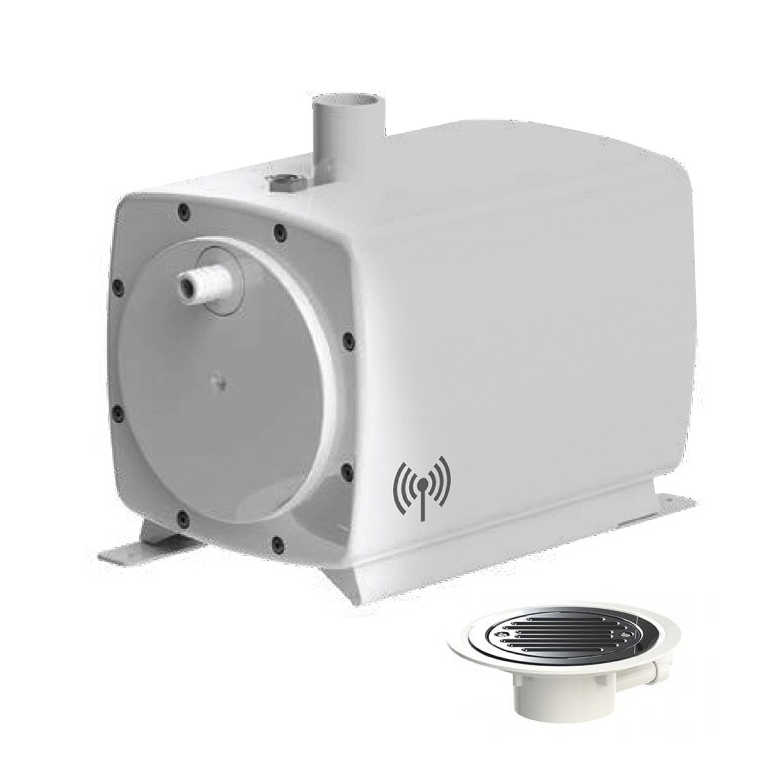

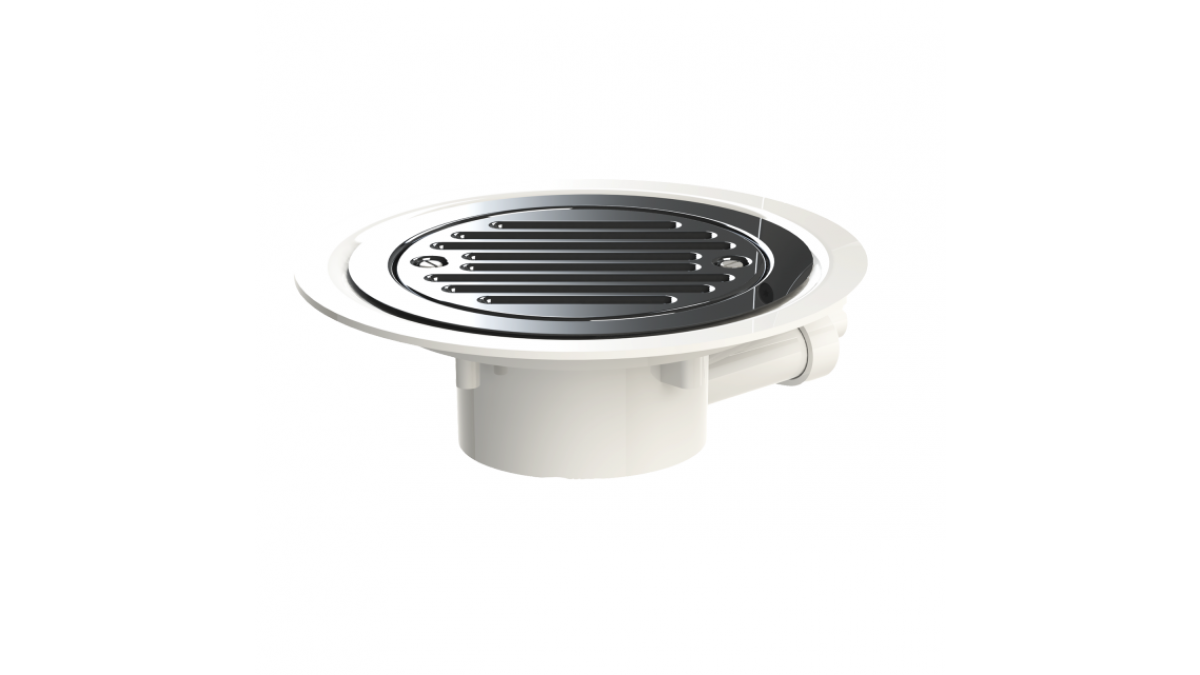

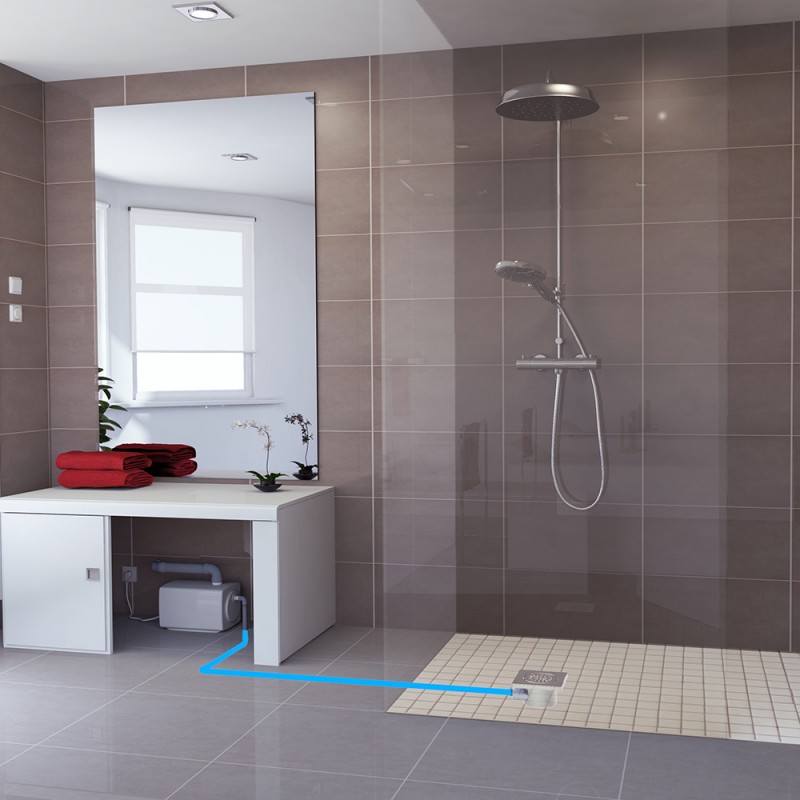

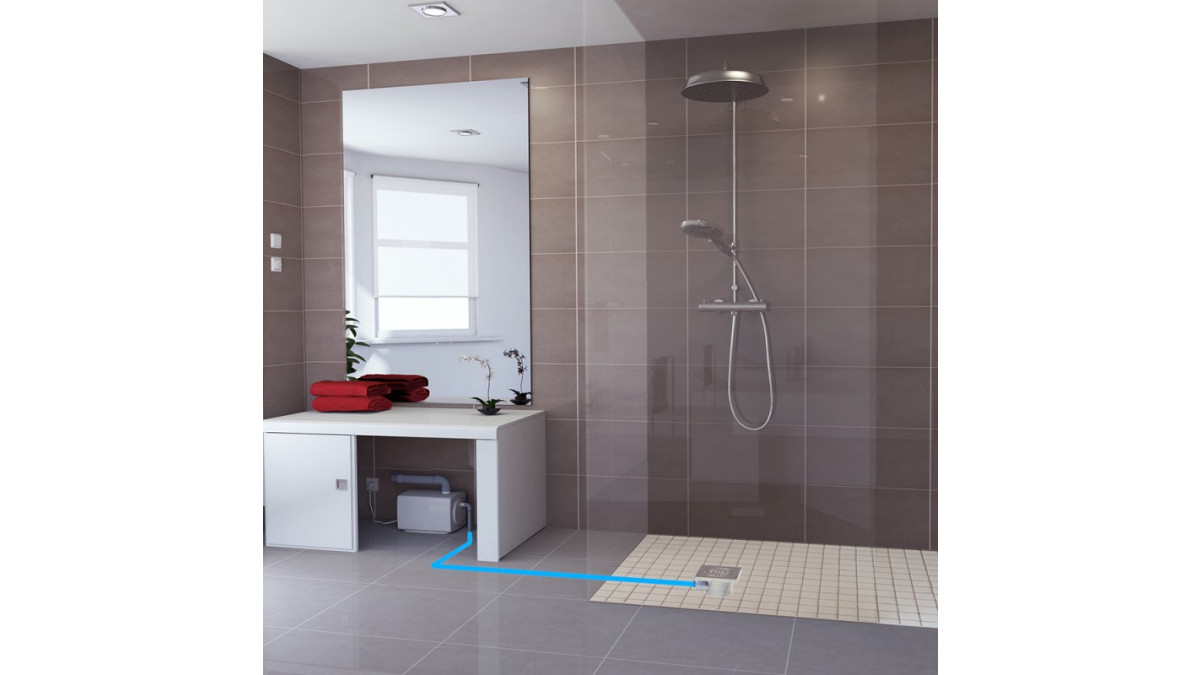

  • Sanifloor 2 with specially designed gully for flexible floors

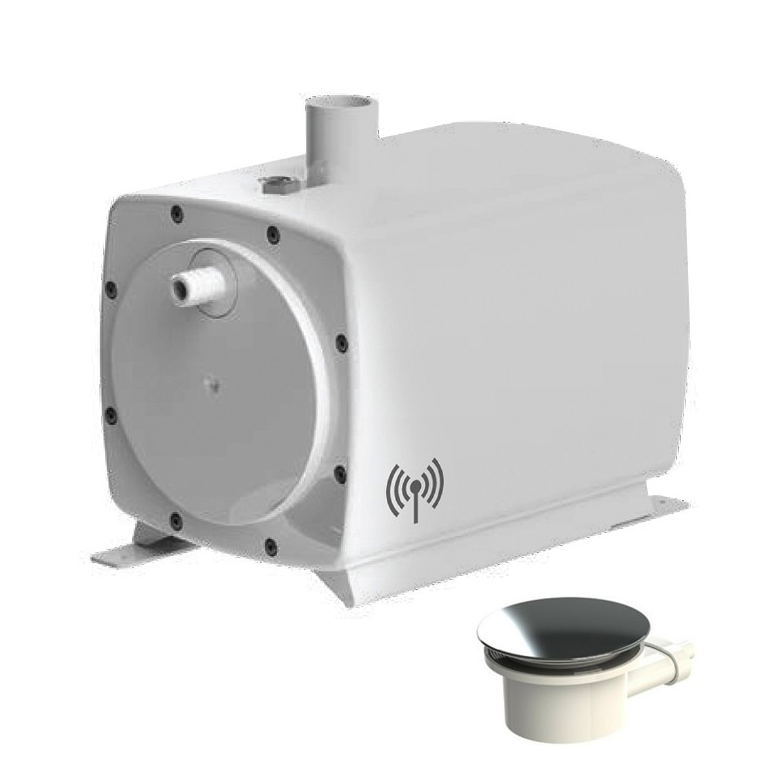

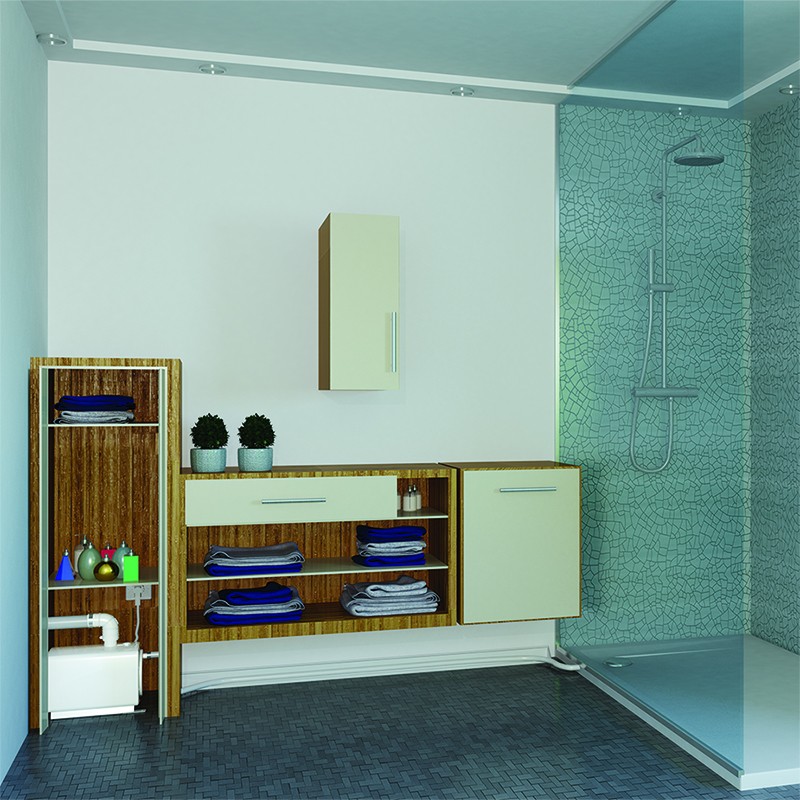

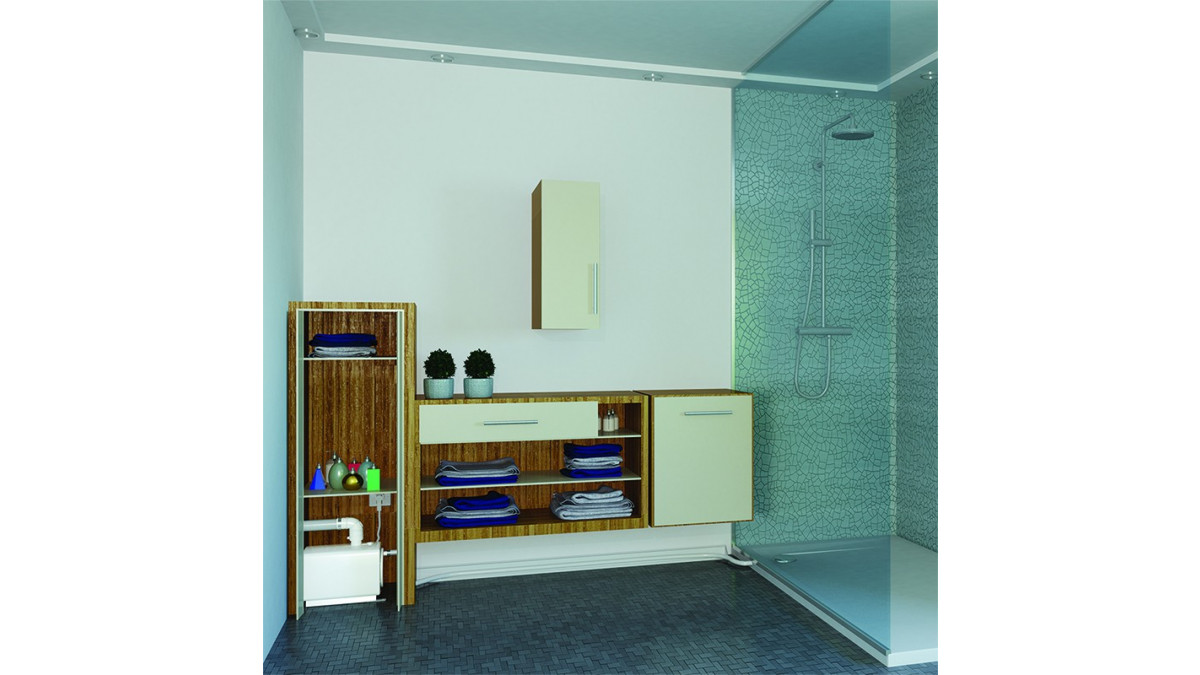

  • Sanifloor 3 with specially designed gully for extra flat shower trays
Key Features
  • Suitable for popular walk-in showers
  • Installation without the need for major work
  • Wireless communication between pump and plug
  • Large volume output 30l/min
  • Dual function — sucks waste up from the gully and pumps waste water away up to 3m vertically or 30m horizontally
Scope of Use

Sanifloor is a grey water solution for the installation of a shower:

  • Suits walk-in showers and low level shower trays
  • Ideal for high flow applications — large volume output 30l/min
  • Dual function — sucks waste up from the gully and pumps waste water away up to 3m vertically or 30m horizontally — refer to data sheet
  • Pump and waste inlet can be up to 3m apart horizontally
  • Pump can be positioned up to 300 mm above the gully
  • All gully types are 90 mm in diameter, 24mm OD suction pipe

Gully types:

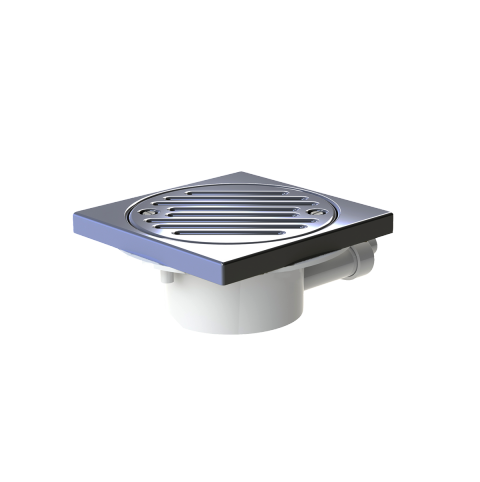

  • Sanifloor 1 shower waste gully for vinyl floor — height 68mm

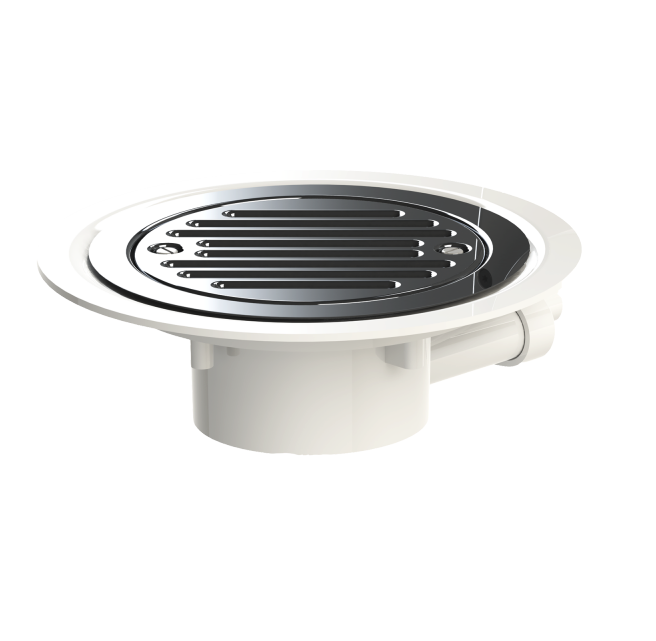

  • Sanifloor 2 shower waste gully for tiled floor — height 68mm

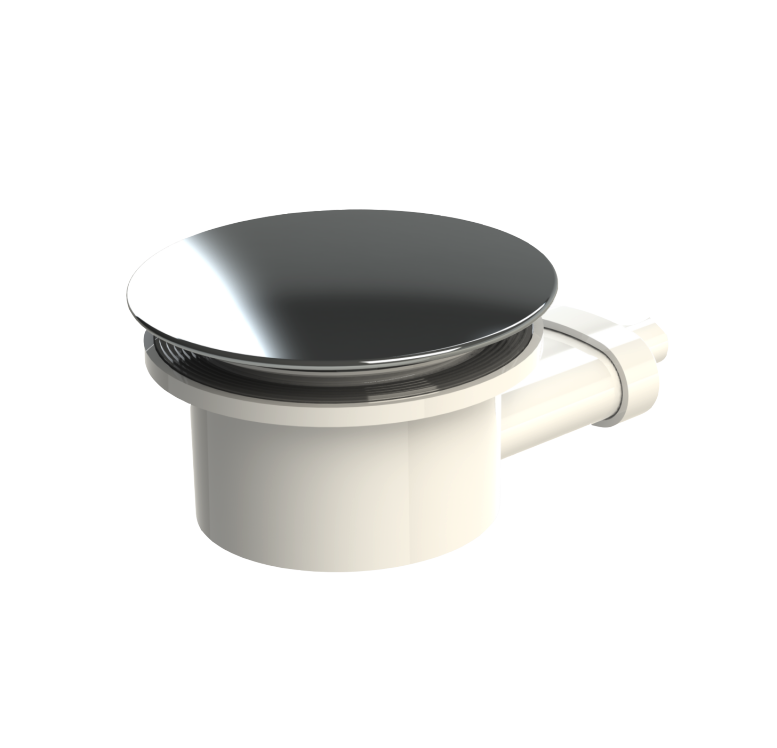

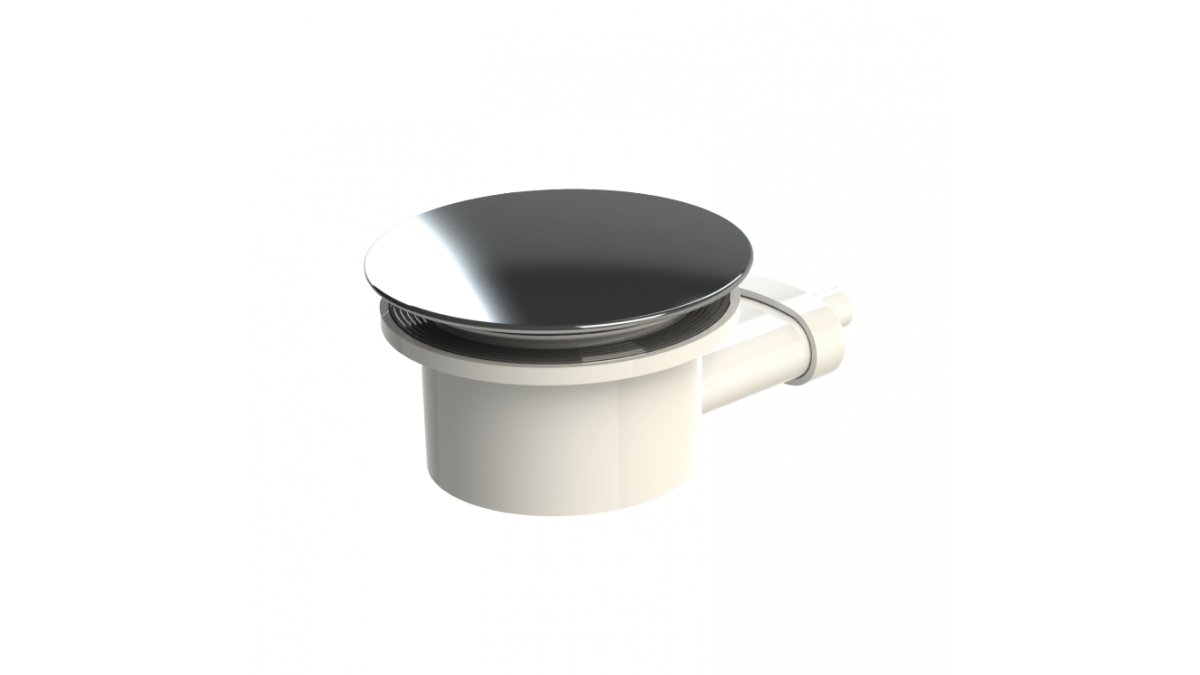

  • Sanifloor 3 shower waste gully for trays — height 63mm
Limitations on Use
  • To maintain radio signal integrity pump must be installed in same room with power cable end facing towards shower waste gully
  • Must be installed by a licensed plumber
  • All horizontal pipework requires a minimum of 1:100 fall
  • Working waste water temperature of 35°C
  • For other applications see Product Selection Grid
Statement of Building Code Compliance

In opinion of Saniflo this product meets the following provisions of the NZBC:

  • Clause B2 DURABILITY: Performance B2.3.1 [a] not less than 50 years, and B2.3.1 [b] 15 years, and B2.3.2. Sanifloor meets this requirement
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Sanifloor meets this requirement and does not present a health hazard to People
  • Clause G13 FOUL WATER: Performance G13.3.1 and G13.3.2. Sanifloor meets these requirements

Producer Statement available. Project specific compliance statements are available on request.

In-Service History

The Saniflo SFA Company is the inventor of the macerator concept, with waste solution products successfully deployed around the world for the past 60 years.

Other Performance Attributes
  • Watermark Certificate WMTS 106: 2019 Certificate number: 23048
  • This product meets AS/NZS 3500.1:2018
  • IP rating 44

Warranty Conditions

  • This device is guaranteed for 2 years from the date of purchase and is subject to:
    • NZ CG Act 1993 if used for personal, domestic or household use
    • Installation in strict compliance with manufacturers installation manual in the product box
  • This warranty does not cover the following which remain at the risk, cost and responsibility of the owner:
    • Costs of travel and transport or insurance of the device
    • Device installed outside 50km radius from an accredited Saniflo Agents Office
    • All Costs necessary to safely access and replace the installed device including costs of additional plant equipment, materials. handling and/or safety equipment
  • This warranty is not transferable
  • This warranty shall not apply when the product is sold or installed outside New Zealand
Documents
Data Sheet: Sanifloor+
Drawings on BIMobject: 1 Tiled Floors

Sanifloor +1

Drawings on BIMobject: 2 Flexible Floors

Sanifloor +2

Drawings on BIMobject: 3+ Extra-Flat Shower Trays

Sanifloor +3

Installation: Sanifloor+

01.18

Saniflo Design Guide
Saniflo Product Selection Grid

Saniflo has a solution to overcome those situations where drainage is a problem — allowing freedom of design without the cost and inconvenience of moving sewer pipes.
