Patrol Horizontal Lifelines
Description

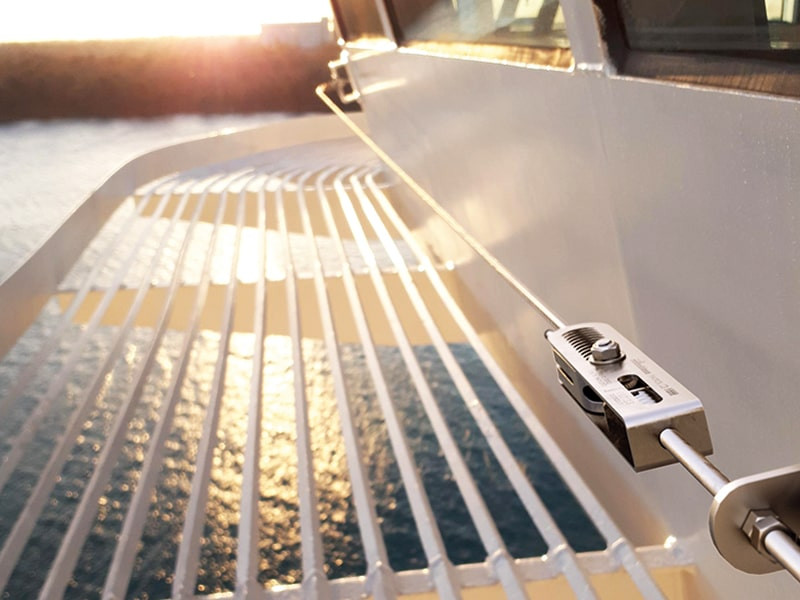

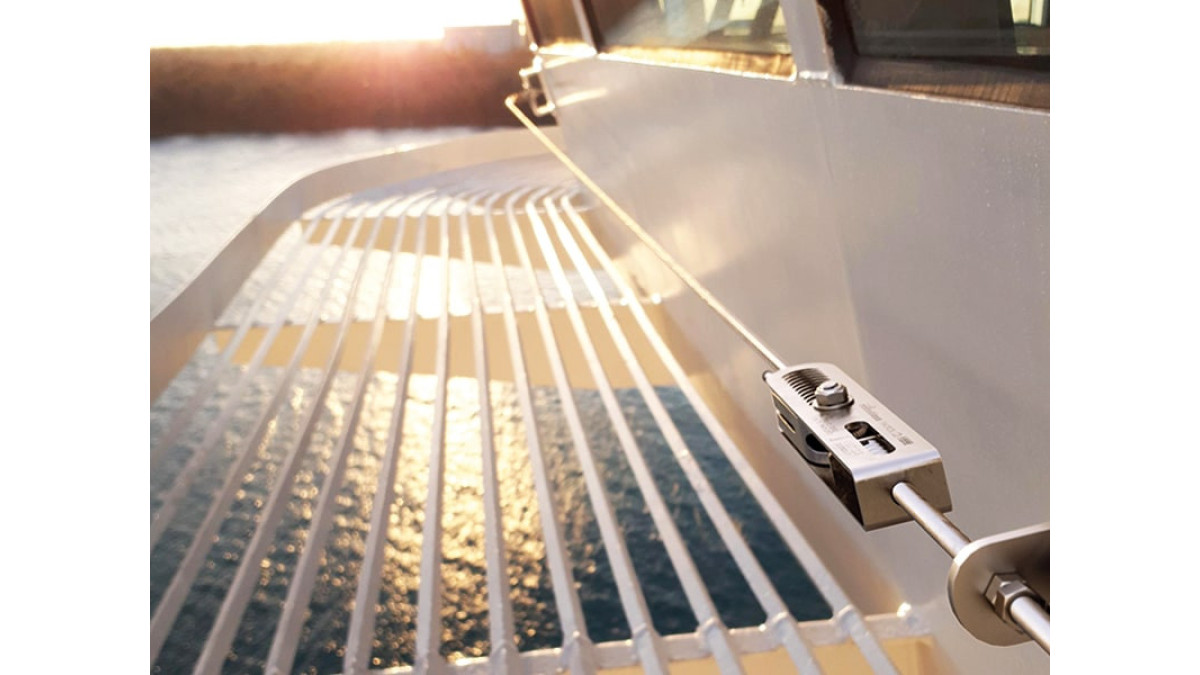

The Patrol Horizontal Lifeline systems rely on a tensioned 7x7 stainless steel wire. The system is supplied with brackets, tensioners, wire, base plates suitable for the specific substrate and sliding units.

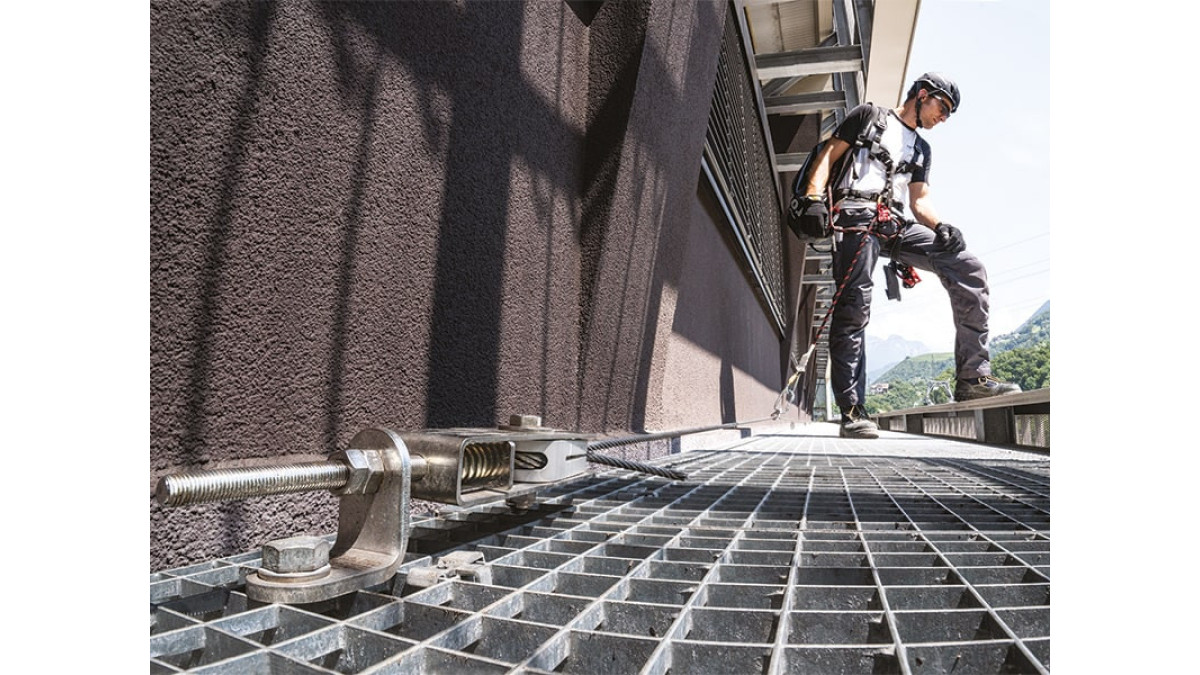

The system may be fixed to timber, concrete, or steel substrates with fixing systems that determine the distance of the tensioned wire from the substrate and are specific to the substrate and environmental conditions.

Key Features
  • Minimal visual impact
  • Simple installation
  • Tensioned line reduces load in event of a fall
  • Suitable for variety of substrates and environmental conditions

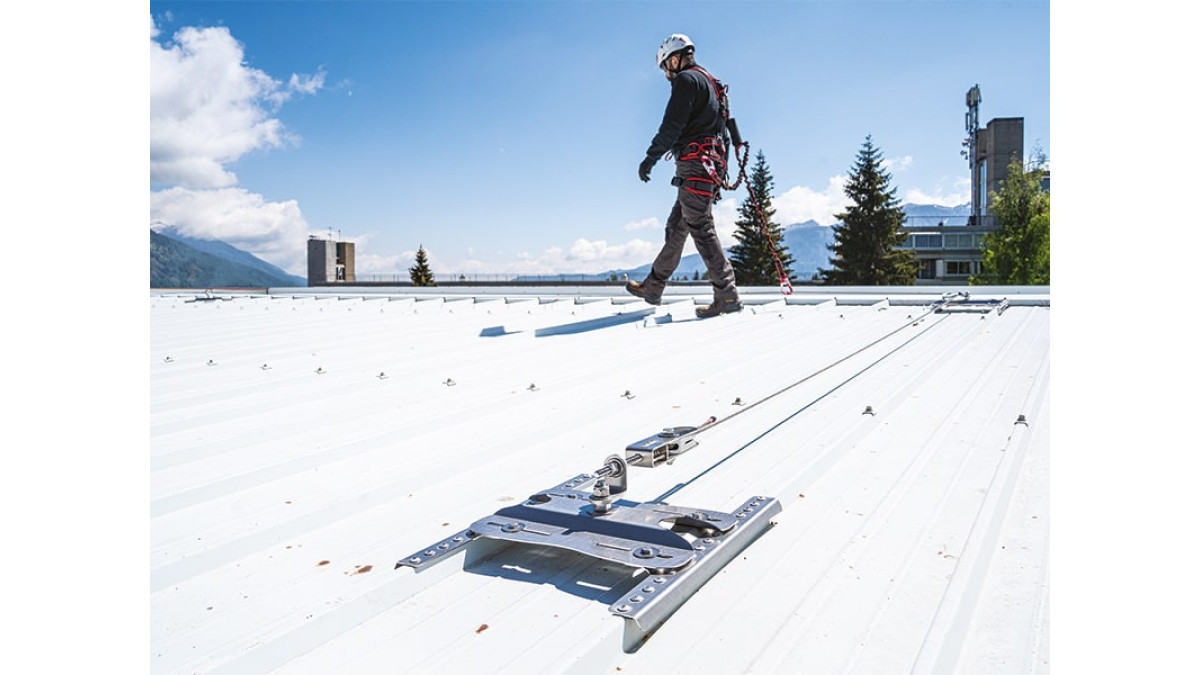

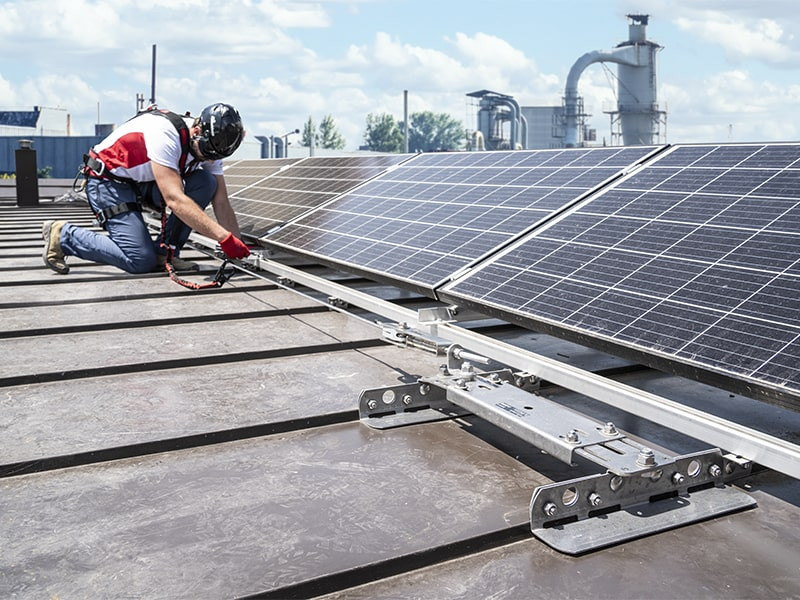

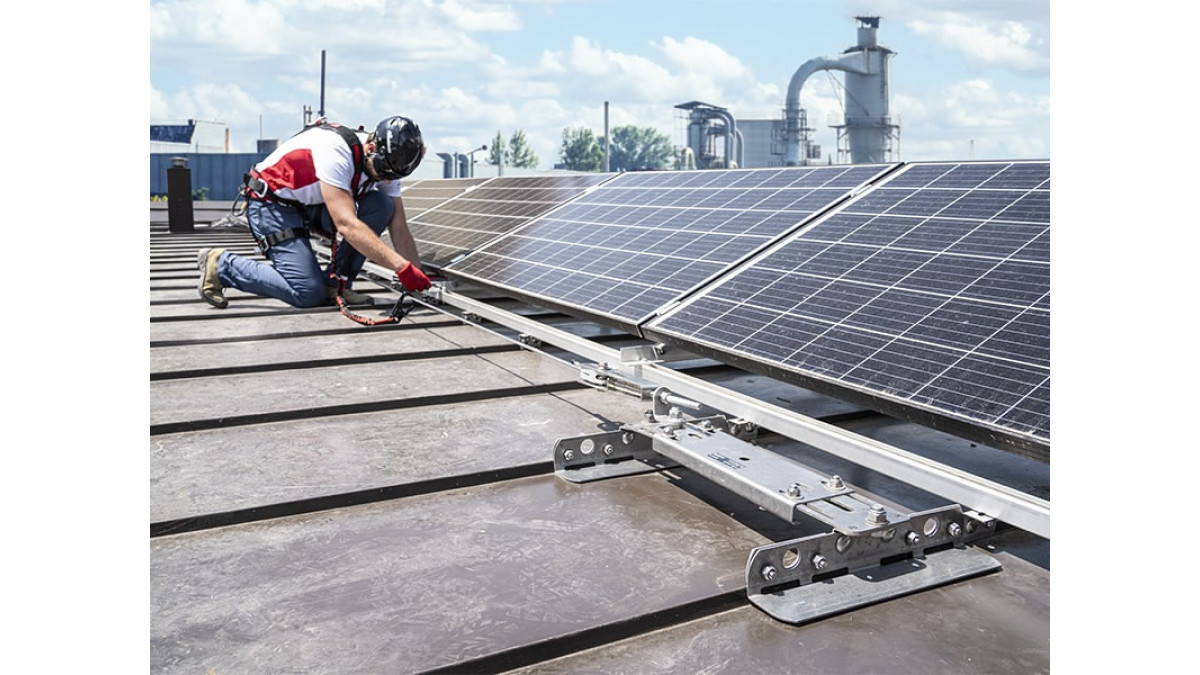

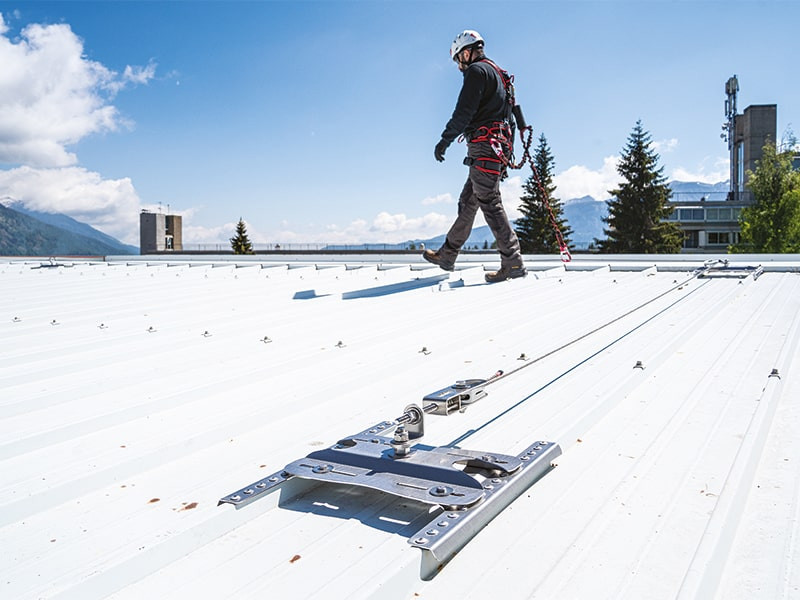

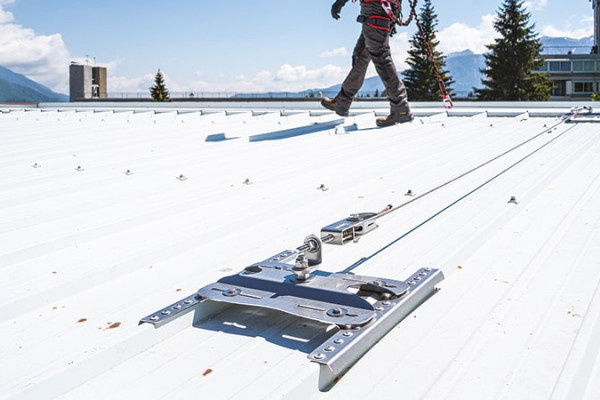

  • Installation option on standing seam or trapezoidal metal roofs without drilling into roof — no penetration of building envelope
  • Tower fixing systems determine the distance of the tensioned wire from the substrate

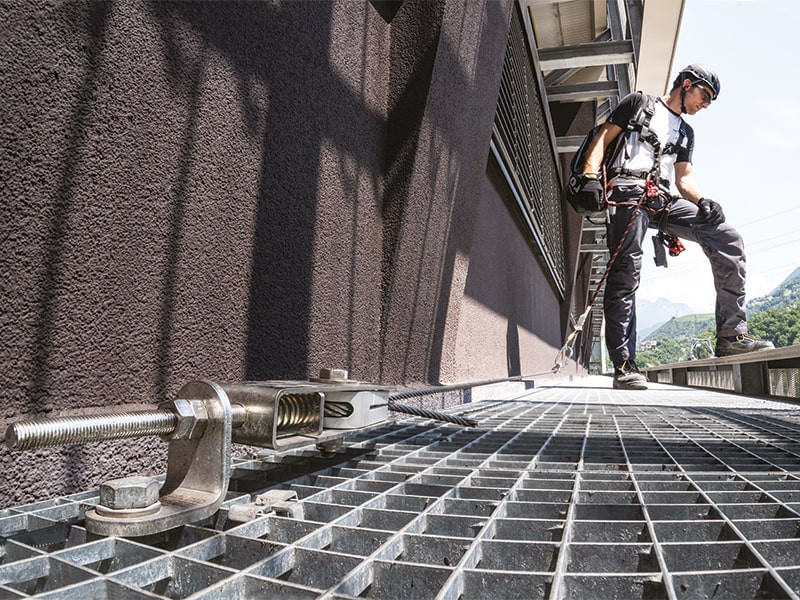

  • Can be installed on walls, flat and sloping roofs, and on ceilings
  • Withstands all plane stresses (360°)
Scope of Use
  • Timber, concrete or steel substrates
  • On standing seam metal roofs, on trapezoidal metal roofs with and without insulation
  • Walls, sloped or flat roofs, or overhead

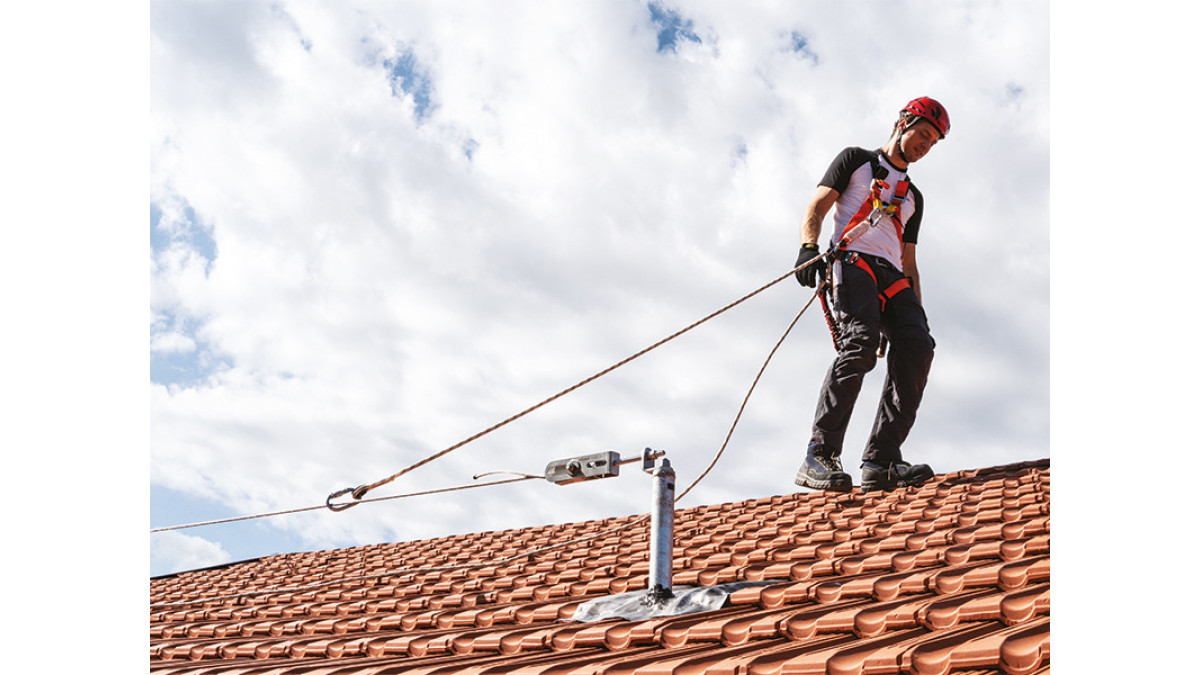

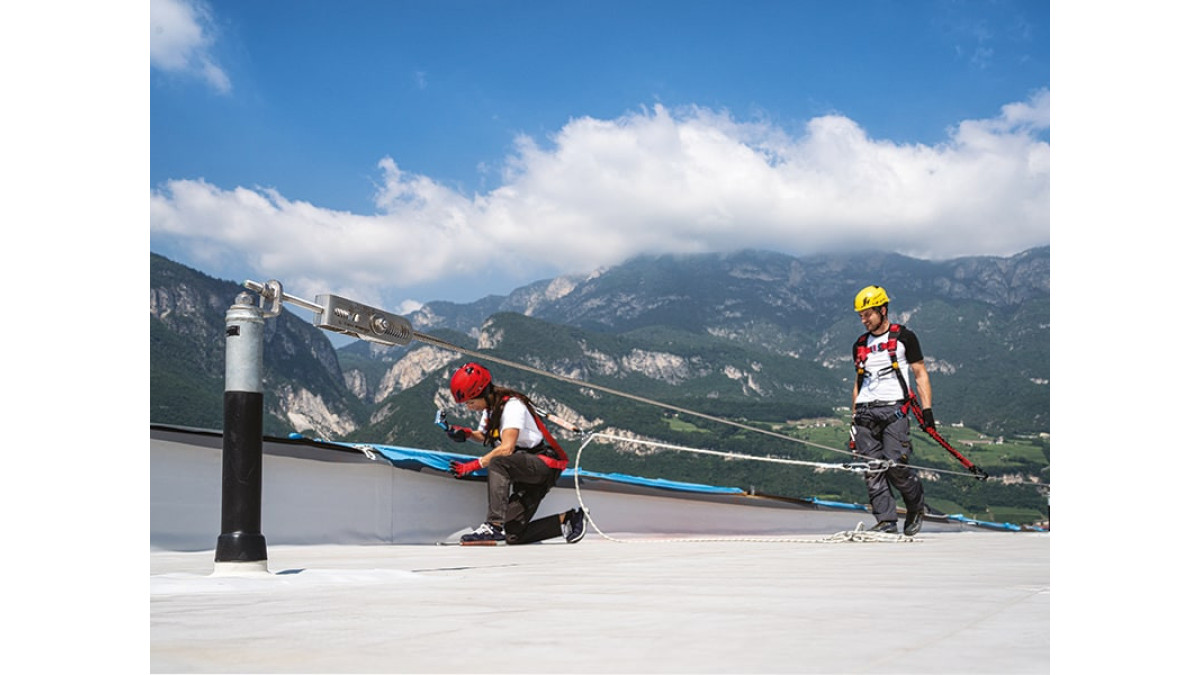

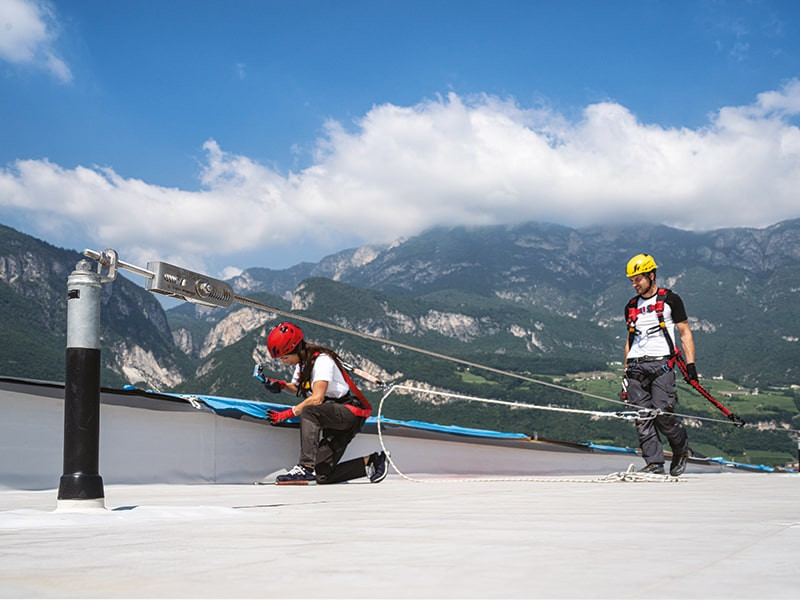

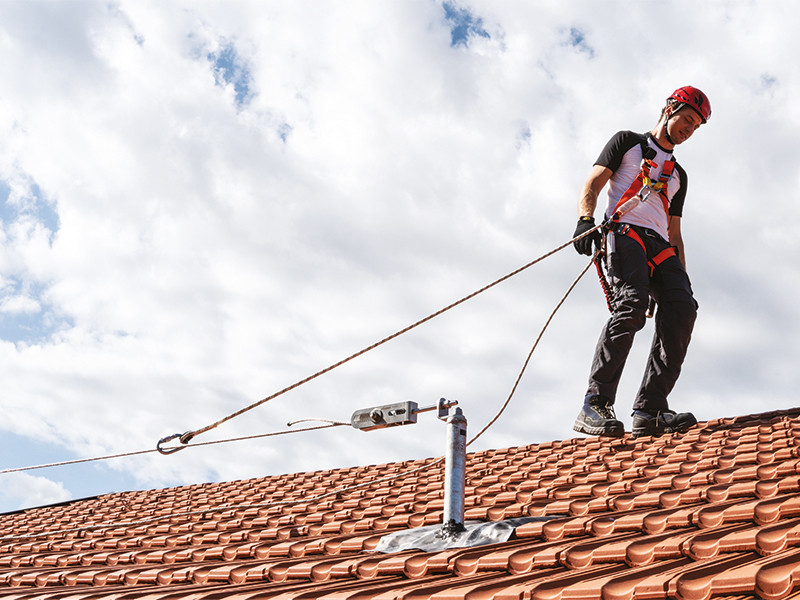

  • Supported on zinc plated towers or stainless steel towers to set line at distance from building
  • Stainless steel tower option ideal for coastal/corrosive environments
  • Fixing systems that determine the distance of the tensioned wire from the substrate
  • System is supplied with brackets, tensioners, wire, base plates suitable for the specific substrate and sliding units
Limitations on Use
  • Must be installed and maintained in accordance with Rothoblaas technical literature
Statement of Building Code Compliance

When installed in building work, Rothoblaas fall protection systems will comply with or contribute to compliance with the following building code clauses:

  • B1 (Structure). B1.3.1, B1.3.2 B1.3.3 (a, b, c, e, f, h, j, m, q).
  • B2 (Durability). B2.3.1(b), B2.3.2(b).
  • F2 (Hazardous Building Materials). F2.3.1.
  • F4 (Safety from Falling). F4.3.1.
In-Service History

Founded in 1991, Rothoblaas now supplies products to more that 70 countries.

Other Performance Attributes

All Rothoblaas Fall Protection systems conform with AS/NZS 1891:2009 which is cited in D1/AS1 through AS/NZS 1657:2013, and are manufactured from AISI 304 or AISI 316 stainless steel unless otherwise stated.

Documents
BPIR Product Declaration: Fall Protection

2024 v1.0

Data Sheets: Patrol
Data Sheets: Patrol + Shield / Siank
Data Sheets: Patrol + Tower
Installation Videos: Fall Protection
CAD/PDF Details
Fall Protection CAD (DXF)
Fall Protection CAD (SAT)
BIM
Fall Protection BIM (IFC)
Fall Protection BIM (RFA)

Rothoblaas is a global company whose product range encompasses fastening, airtightness, water and soundproofing, fall protection systems, and tools and machines for timber industry professionals.
