Rondo Finishing Sections
Description

Rondo's Finishing Sections offering includes the Exangle, and Exangle Render & Texture finishing sections, along with Extreme PVC plasterboard and render beads.

The Exangle range of building board finishing profiles are designed to give plasterers a clean, defined edge on straight or curved details for internal building board applications.

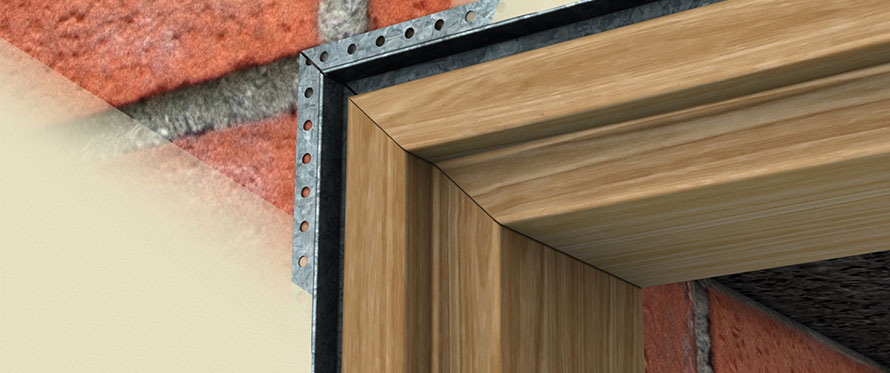

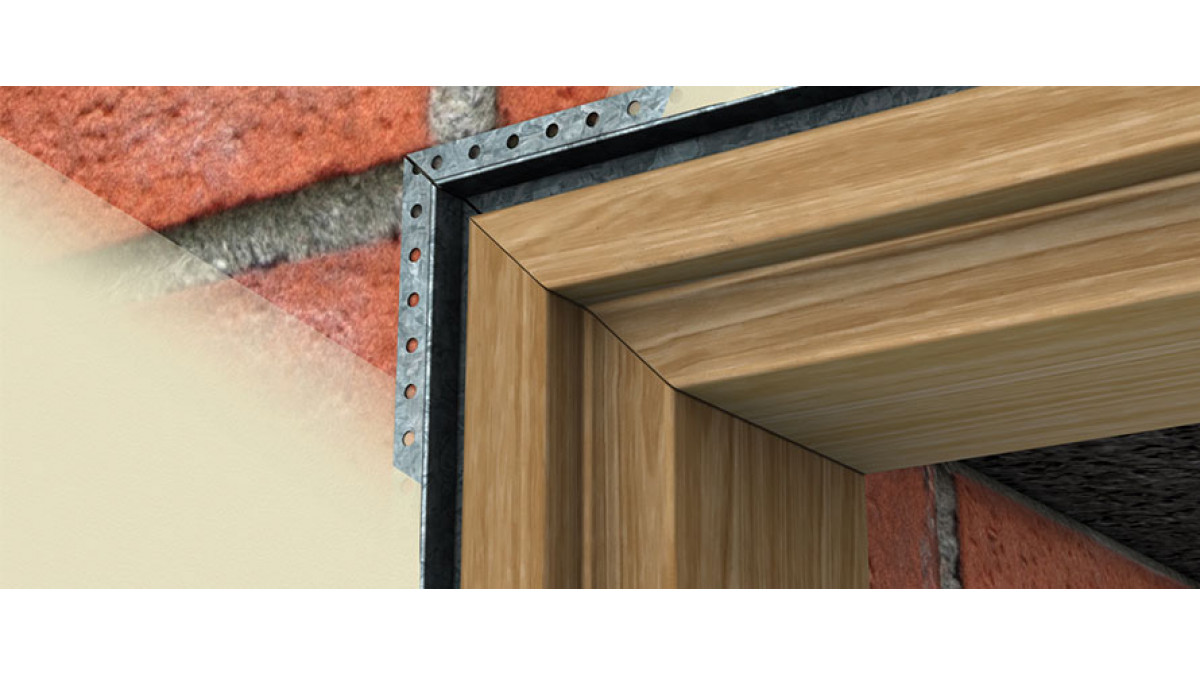

Exangle RT is designed for render and texture applications where a straight defined edge is needed, and are available for both internal and external applications. They are designed to give a bonding key to the finishing cements used at corners and abutments whilst also reducing the risk of cavities.

Extreme PVC Beads are made from high quality, UV-stabilised material, and are suitable for a range of indoor or outdoor applications for plasterboard, render, or texture coating.

Key Features

Exangle:

  • Choice of perforated or expanded profiles
  • Nail holes on selected profiles for easy installation
  • Minimum coating of Z200
  • Made from 0.30-0.50BMT Galvabond or Zincanneal steel to provide ideal stiffness

Exangle RT:

  • Stainless Steel SR02 for outdoor render applications
  • 7 year warranty
  • Selected products are zinc coated and powdercoated for maximum protection

Extreme PVC Beads:

  • 15 year warranty
  • Profiles to suit Plasterboard and Render Applications
  • All products are UV stabilised and suitable for outdoor use
  • Tear-away profiles available for clean, sharp edges
Scope of Use

Exangle suitable for:

    • Internal and external corners
    • Shadowline applications
    • Flashing in wet areas
    • Archways
    • Control joints
    • Edge capping
    • Bullnose corners

Exangle RT suitable for:

    • External corners
    • Exterior applications (specified products only)
    • Shadowline
    • Edge capping
    • Control joints

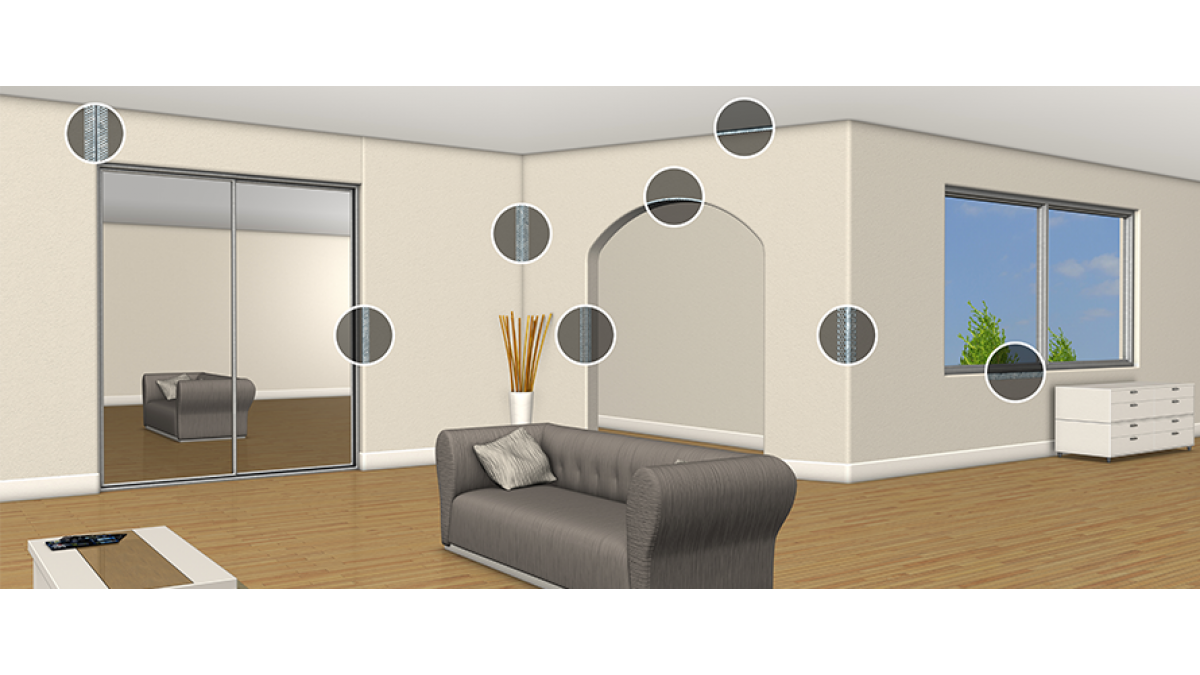

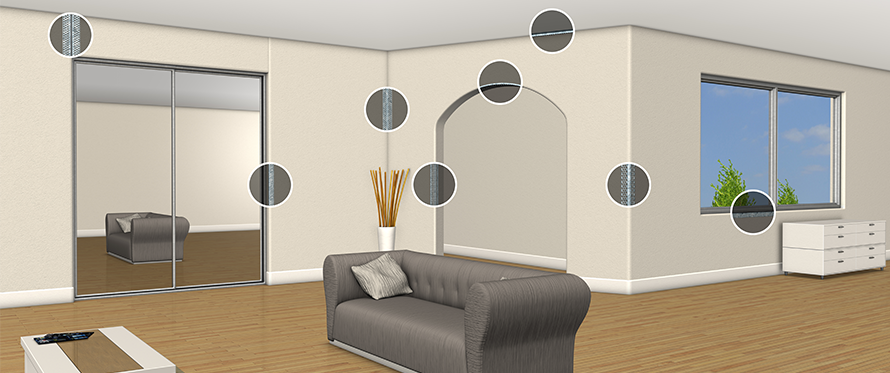

Extreme PVC Beads suitable for:

    • Plaster, render and texture applications
    • Shadowline features
    • Archways
    • Bullnose corners
    • Window sills
    • Edge capping
    • Outdoor and indoor applications
Limitations on Use
  • Installation by qualified tradesperson is recommended
In-Service History

Exangle Plasterboard Beads have been used in many leading projects to complete the wall and ceiling linings, such as City Square in Perth where the popular P50 Shadowline Stopping Angle was installed on 45 levels of the building and the Royal Children's Hospital in Melbourne where 44,000 metres of the finishing sections were used.

The Exangle RT range has been developed over 40 years and has been used in many commercial and high-rise residential projects.

Other Performance Attributes
  • Exangle RT: 7 year warranty
  • Extreme: 15 year warranty
Documents
Complete Rondo Design Manual
Rondo Design Wizards
BPIR Statement: Exangle Plaster Beads

2023

BPIR Statement: Exangle Render & Texture Beads

2023

Sample Warranty
Manual: Exangle
Manual: Exangle RT
Manual: Extreme Beads
Project: City Square, Perth
Rondo Distributors
CAD/PDF Details

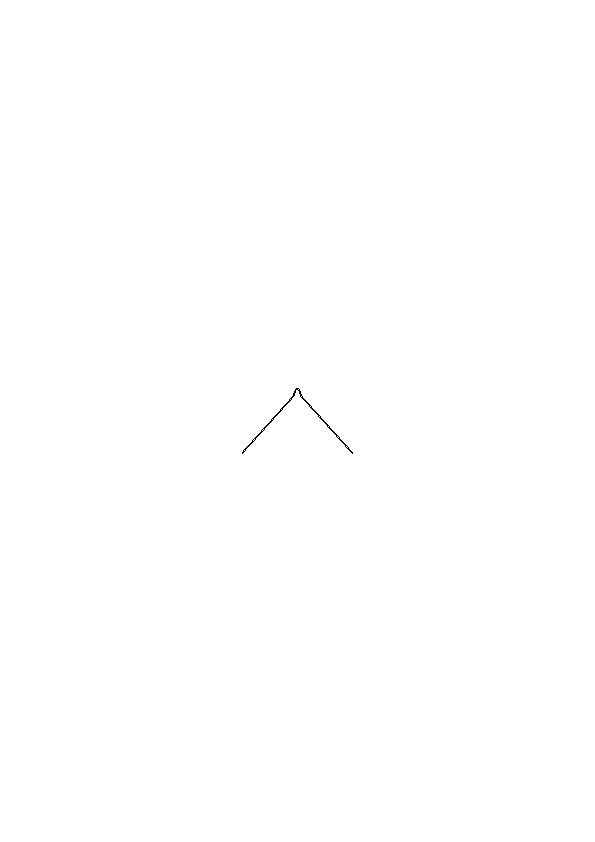

Mini Bead Perforated 30mm

P01
