Devon Brick
Description

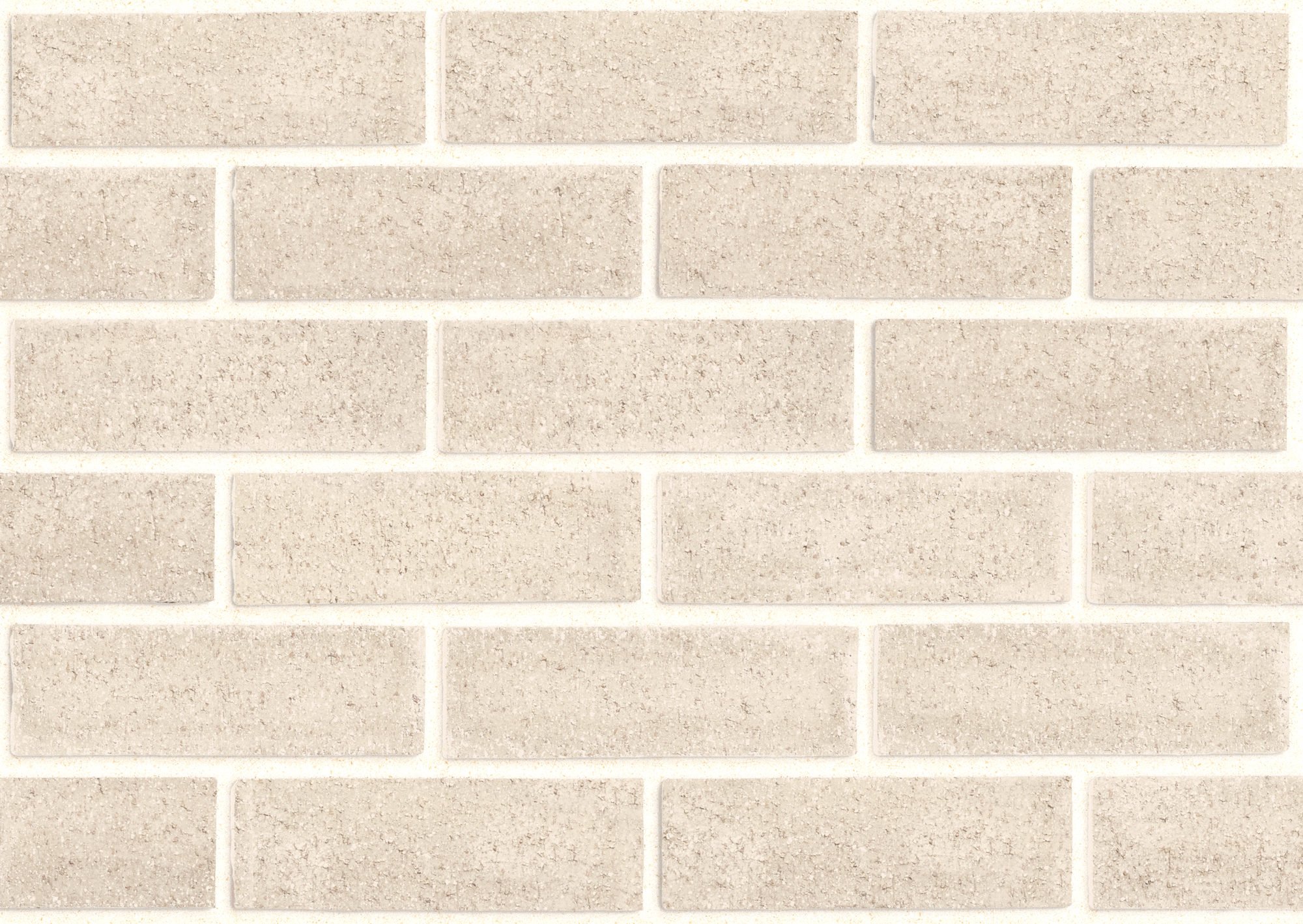

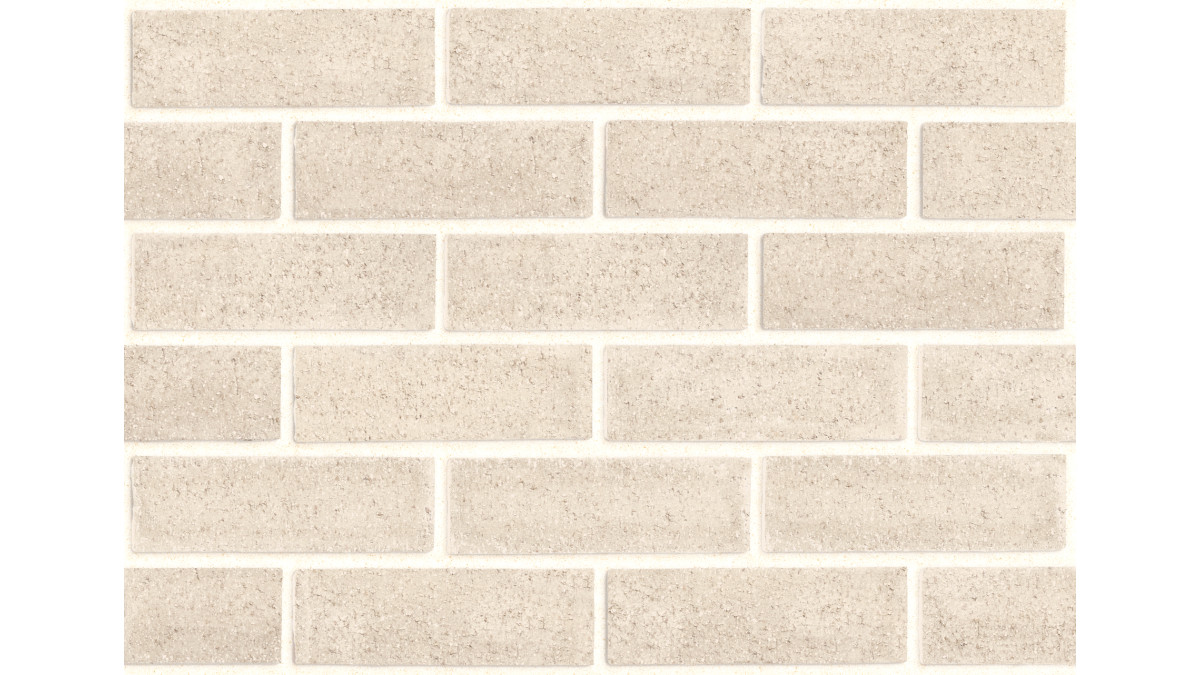

PGH Face Bricks are kiln-fired clay bricks made predominantly from clay and shale fired at high temperatures. This brick, with its soft clotted cream hue, brings a warm and welcoming feel that's perfect for New Zealand homes.

Monier Bricks have rebranded to PGH Bricks, the same bricks under a new roof.

Key Features
  • 230 x 76 x 70mm
  • Product code: 468282
Scope of Use
  • Suitable for masonry veneer exterior cladding applications
  • Suitable for use in a variety of residential, commercial, and industrial construction applications across New Zealand
Limitations on Use
  • IMPORTANT: Do Not Modify This Product: Compliance with the evidence of suitability data referenced in this document is only achieved by the product or configuration listed on the product technical statement.
  • Design and installation of the wall system should be in accordance with the New Zealand Building Code.
  • These products are only intended for masonry veneer exterior cladding applications.
  • This product is not subject to any warning or ban declared by MBIE under section 26 of the Building Act 2004.
  • Colours are represented as accurately as possible, but checking the chosen product against a sample (or in a selection centre) before purchasing as digital representations may affect colour tones and finishes. In addition, products (including from batch to batch) and samples may vary regarding colour and surface finish due to manufacturing processes and raw materials used.
Statement of Building Code Compliance

When correctly specified and installed, this product meets or contributes to compliance with the following performance requirements of the building code:

  • B1 Structure B1.3.1, B1.3.2 — PGH Face Bricks have been tested in accordance with AS/NZS 4455.1 to verify compliance with the minimum material quality standards as specified in B1/AS1.
  • B2 Durability B2.3.1(a) — Bricks have historically demonstrated enough durability to meet the NZBC B2 – Durability requirements. Additionally, bricks have been tested in accordance to AS/NZS 4456.10 to determine exposure category and may be used depending on the exposure category requirement in Appendix 2.E of NZS 4210:2001.
  • C3 Fire affecting areas beyond fire source C3.4(a), 3.7(a) — Brick materials are deemed to be non-combustible as stated in the definition of terms in C/AS1.
  • E2 External Moisture E2.3.2, E2.3.3, E2.3.5, E2.3.7 — Face bricks have nominal width of not less than 70mm and have density not exceeding 220kg/m³ when tested in accordance with AS/NZS 4456.8 as required by E2/AS1.
  • F2 Hazardous building materials F2.3.1 — Bricks are not classified as hazardous according to criteria of WorkSafe New Zealand GHS 7. However, the fine dust in/on the supplied product may include respirable crystalline silica. Cutting, breaking, drilling, sawing, grinding, and finishing may generate hazardous dust. Refer to the product SDS at pghbricks.co.nz for more information
In-Service History

PGH's New Zealand brick range had its start in 1862 as Monier Bricks, with manufacturing in New Lynn, Auckland. Monier Bricks rebranded to PGH Bricks in October 2024.

Other Performance Attributes

PGH warrants that the bricks manufactured and supplied will remain fit for purpose and maintain colourfastness (i.e. they will not fade or change shade) for 25 years from the date of warranty registration or purchase. This warranty is subject to the terms, conditions, and exclusions set out below.

Store in the original packaging in a cool, dry area, away from foodstuffs.  Ensure packages are adequately labelled, and protected from physical damage.  Brick cleaning after bricklaying is a specialist trade and should only be undertaken by a professional. The chemicals and high-water pressures used can easily damage the product, if not done correctly. Different brick textures and colours often have different cleaning considerations. Dry brushing bricks periodically when laying to remove residual mortar is an effective way to reduce the amount of effort required to clean bricks. Bricks should be cleaned within 2 to 14 days of laying.

Documents
Product Technical Statement: PGH Face Bricks

2024

Alternative Solution to E2/AS1 Masonry

2024

Monier Bricks Flyer

Monier Bricks is now PGH Bricks — the same quality bricks, available under a new name in New Zealand.
