Dezignatek Swurves™
Description

Swurves are lightweight, bendable panels offering the ultimate solution for curves in interior projects. Swurves have thermoformed vinyl on the face and all four edges of a 4mm thick MDF, making them flexible and easy to manage for vertical joinery.

Key Features
  • Five thermoformed profiles available
  • Over 40 Dezignatek colours to choose from
  • Lightweight and easy to install
  • All profiles have a square edge
  • New Zealand made
  • 10 year warranty on thermoformed Swurves, 7 year warranty on raw Swurves supplied for painting
  • Available as raw, un-sanded on 4mm MDF for painting
NZ Made
NZ Made
Scope of Use

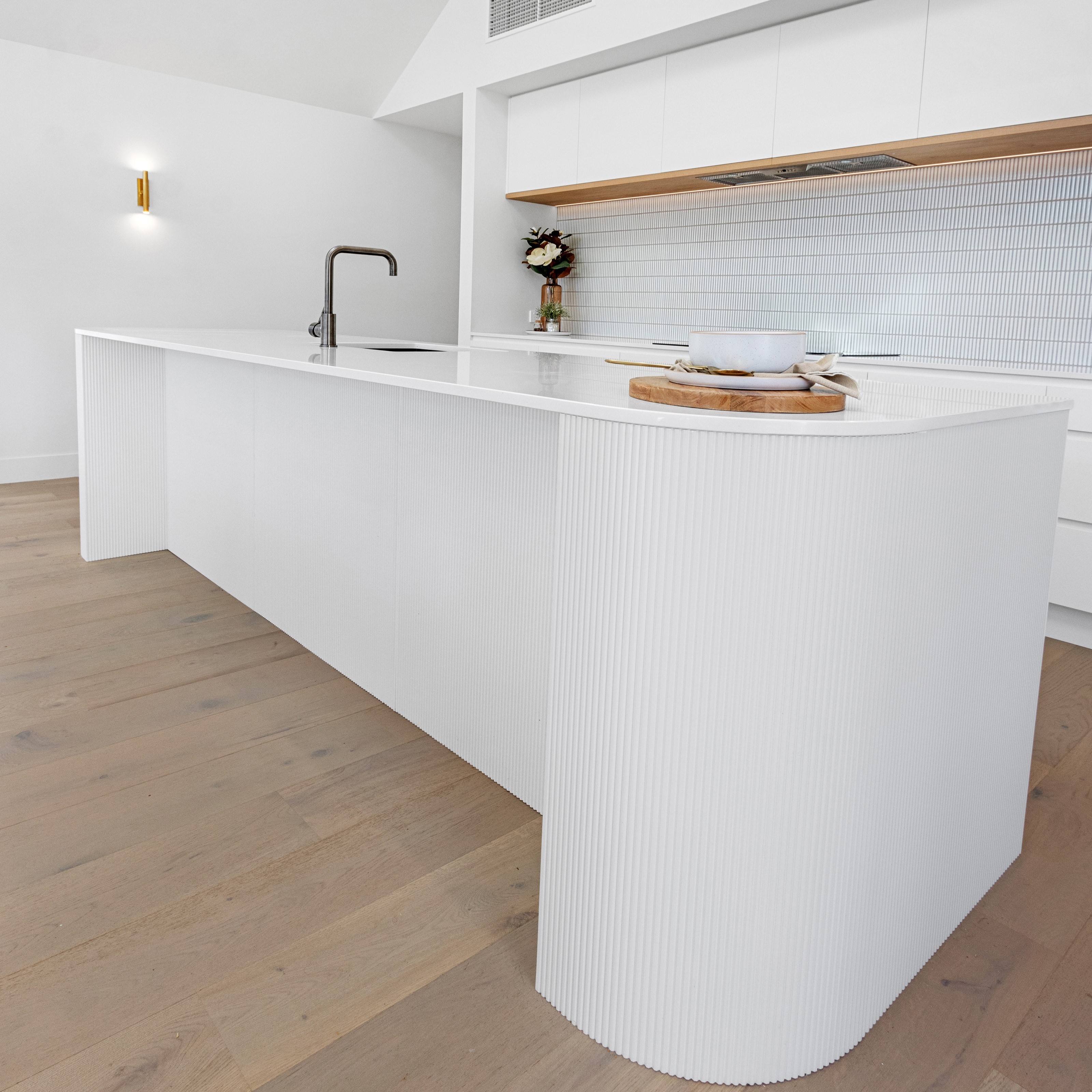

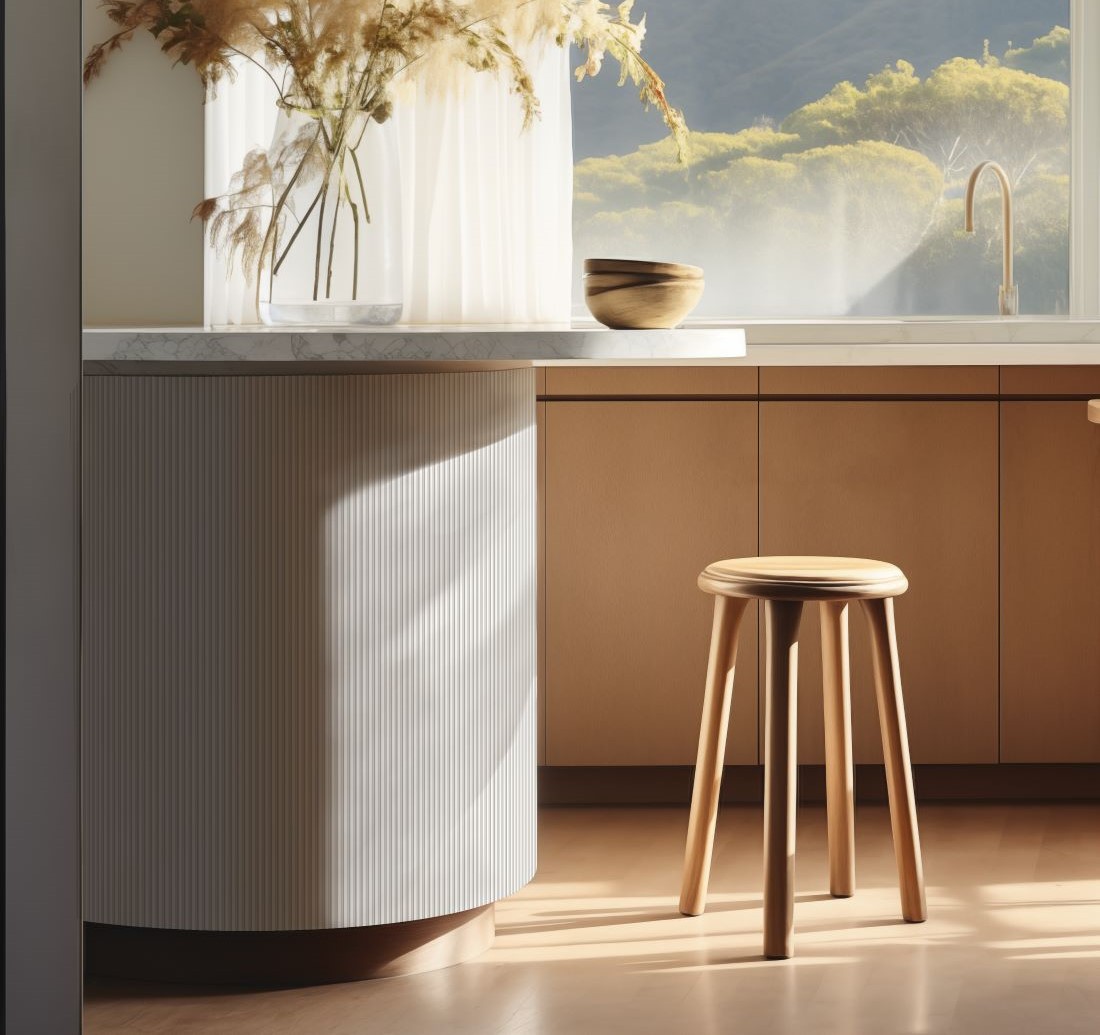

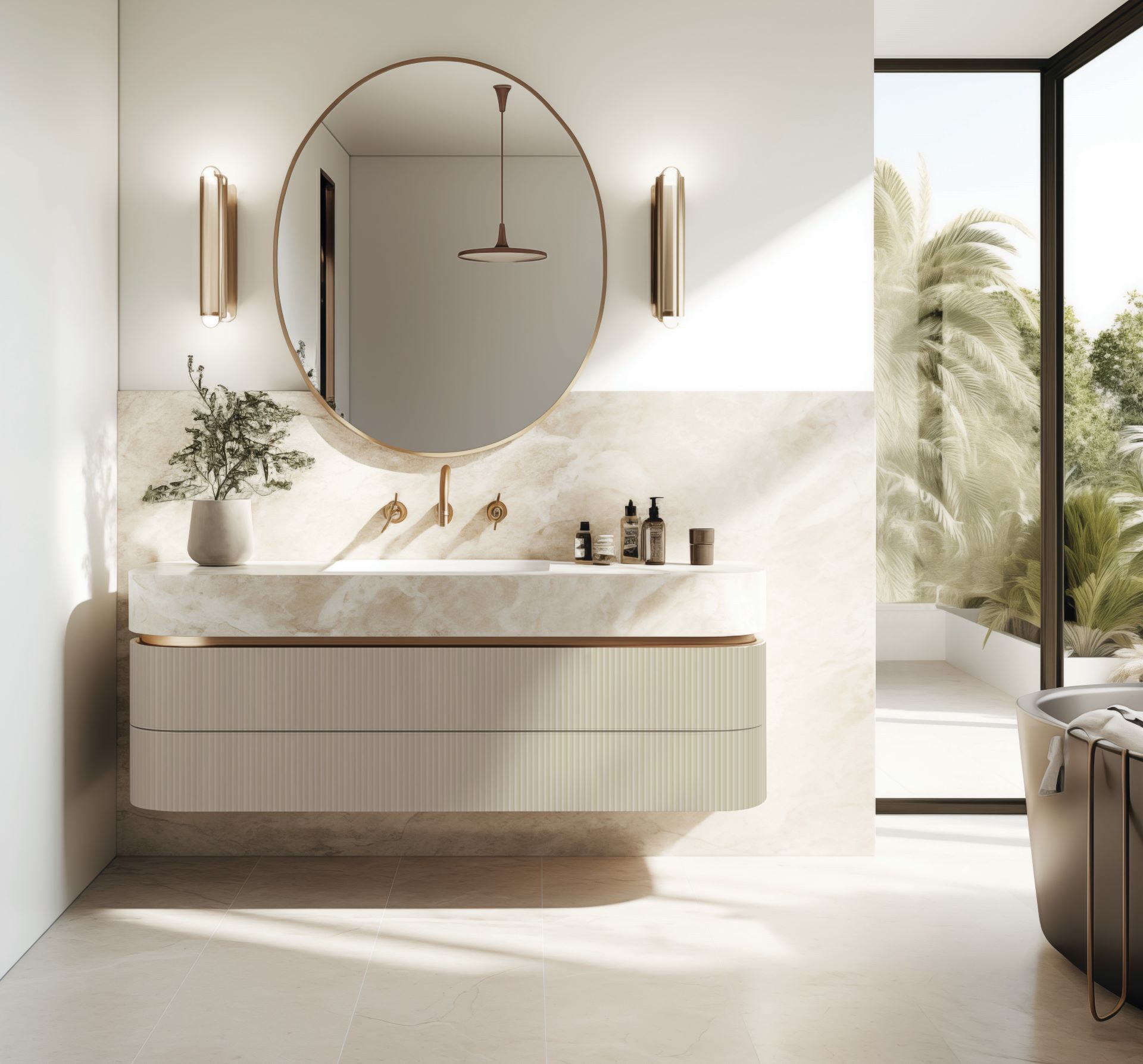

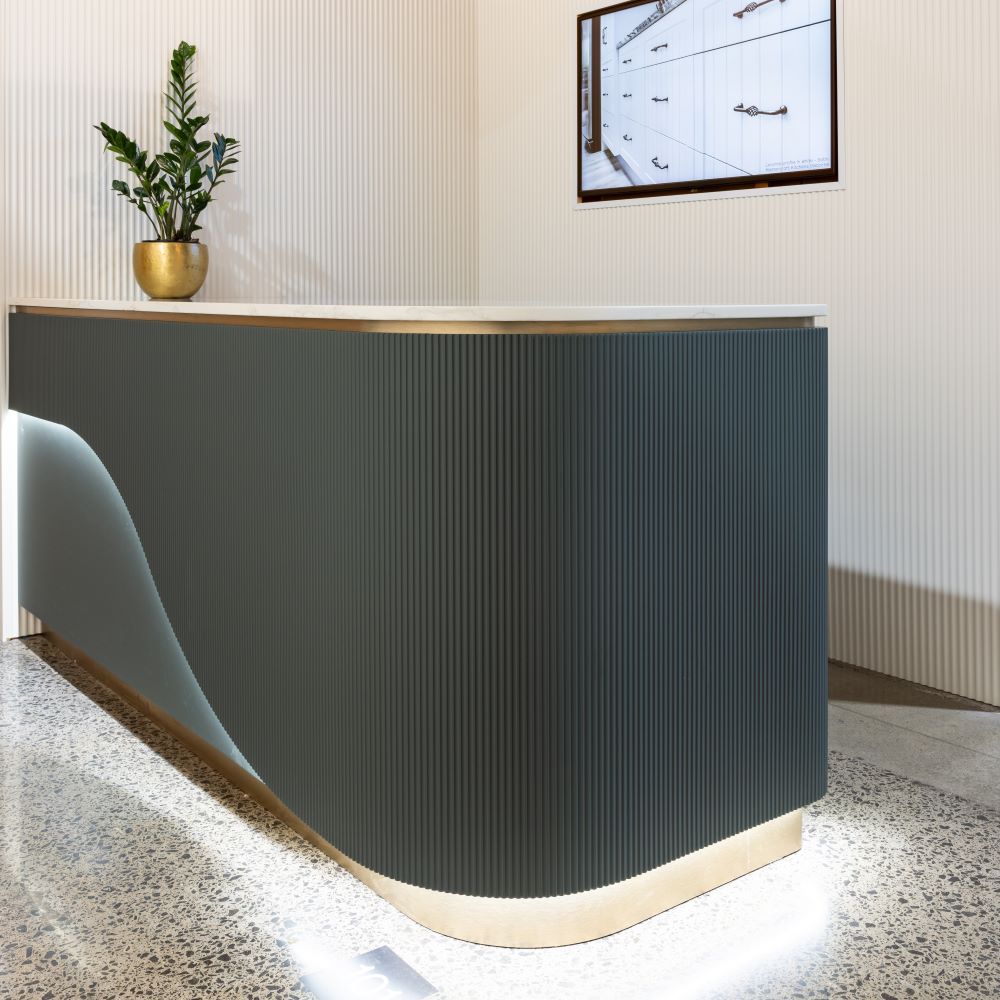

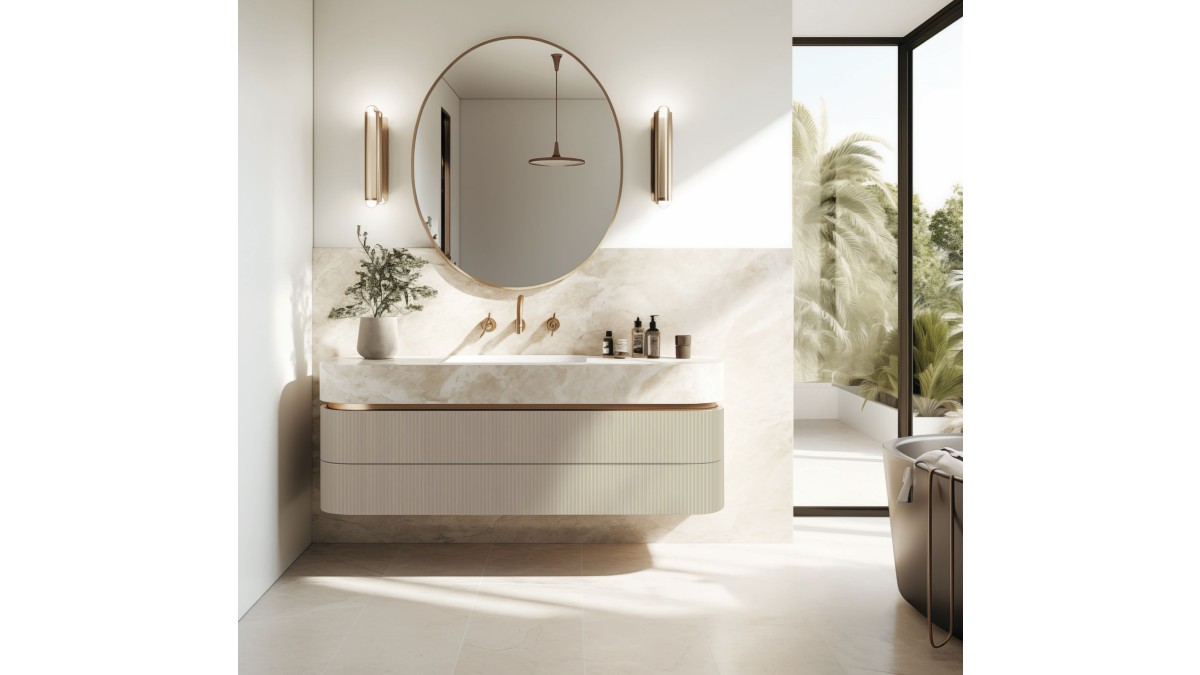

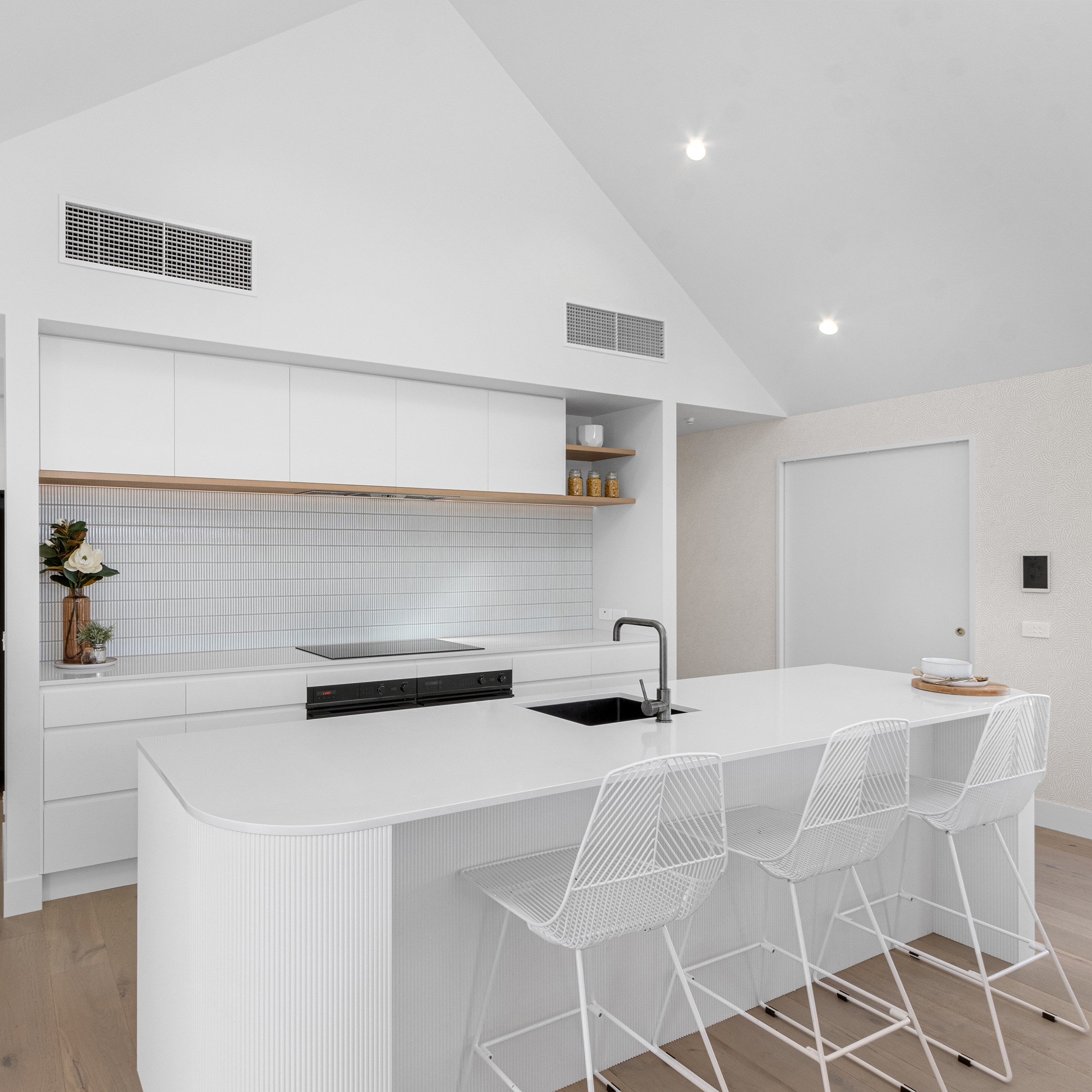

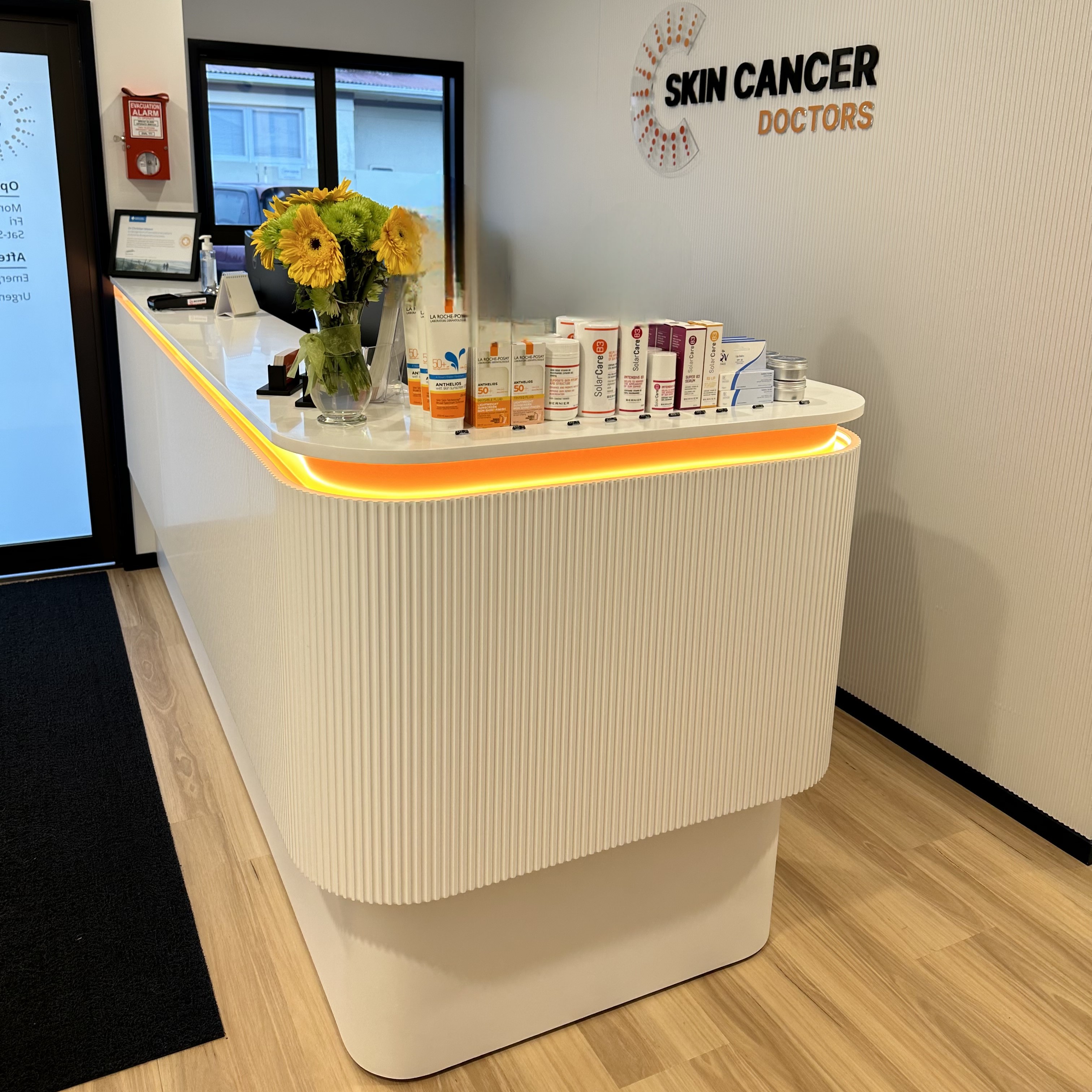

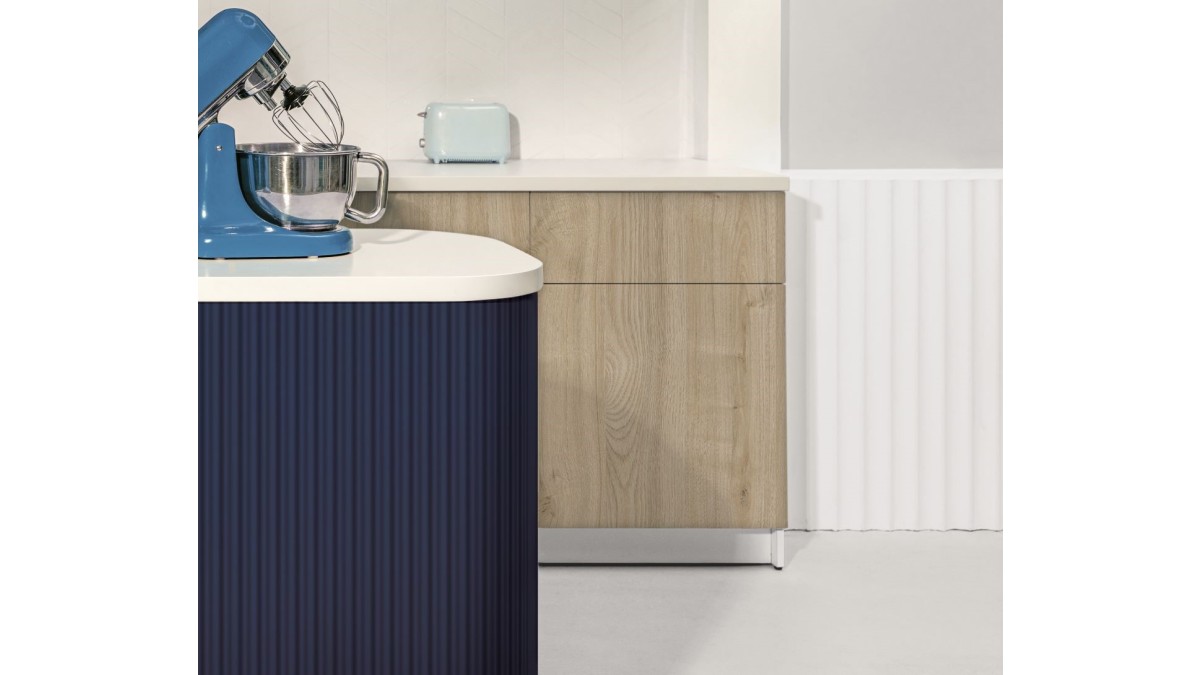

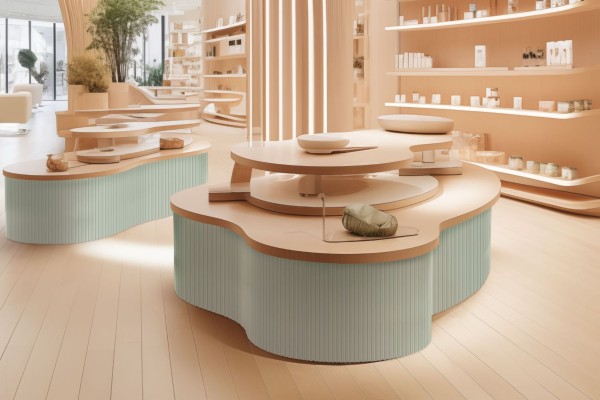

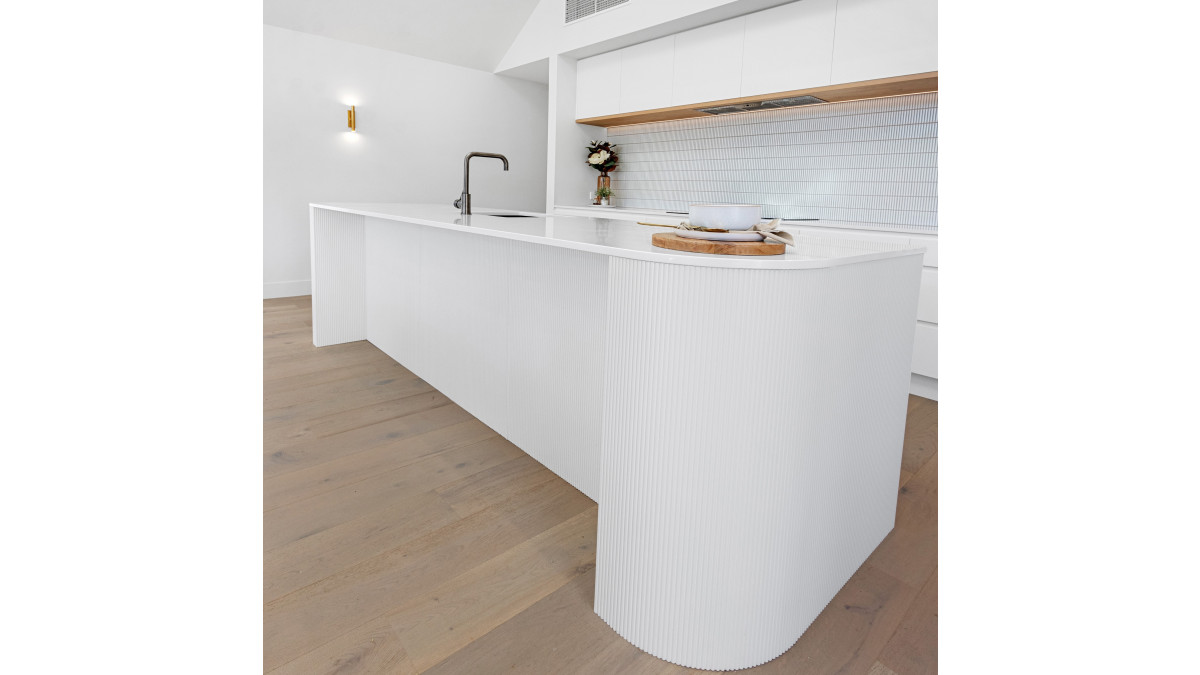

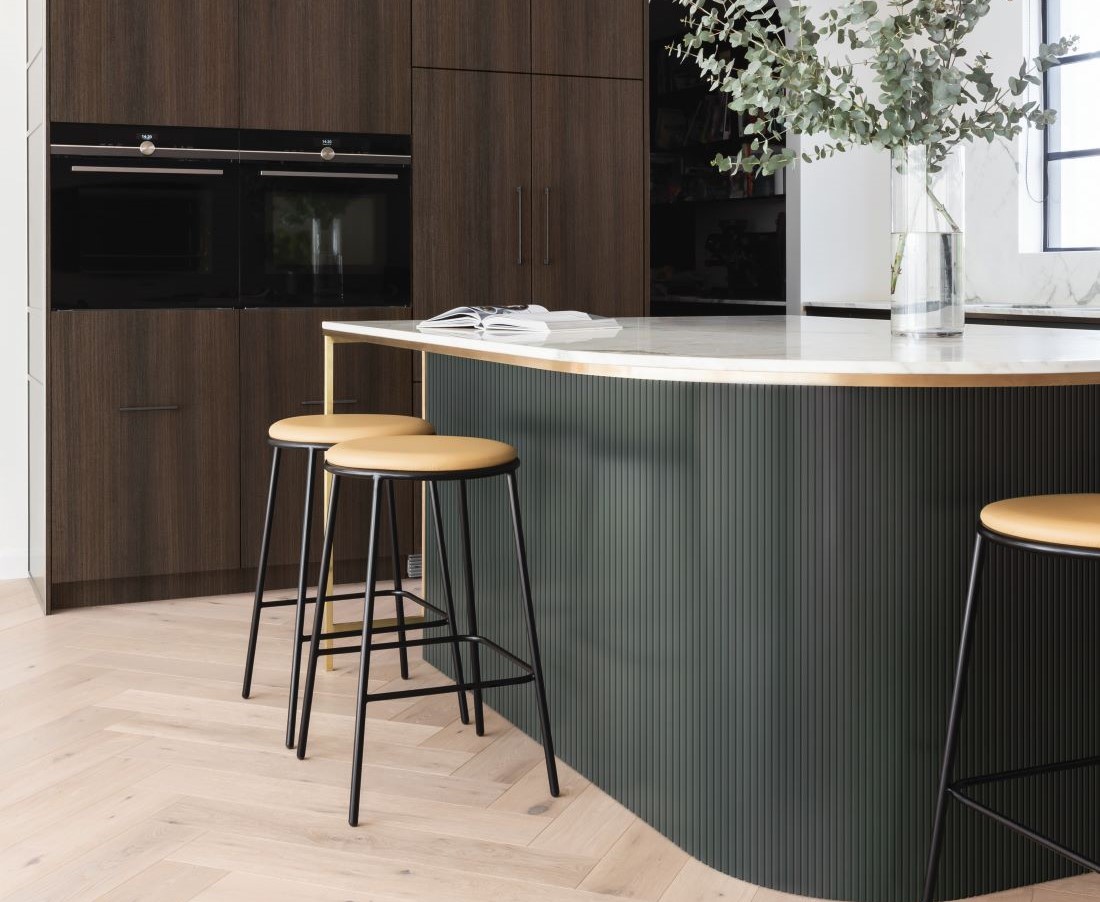

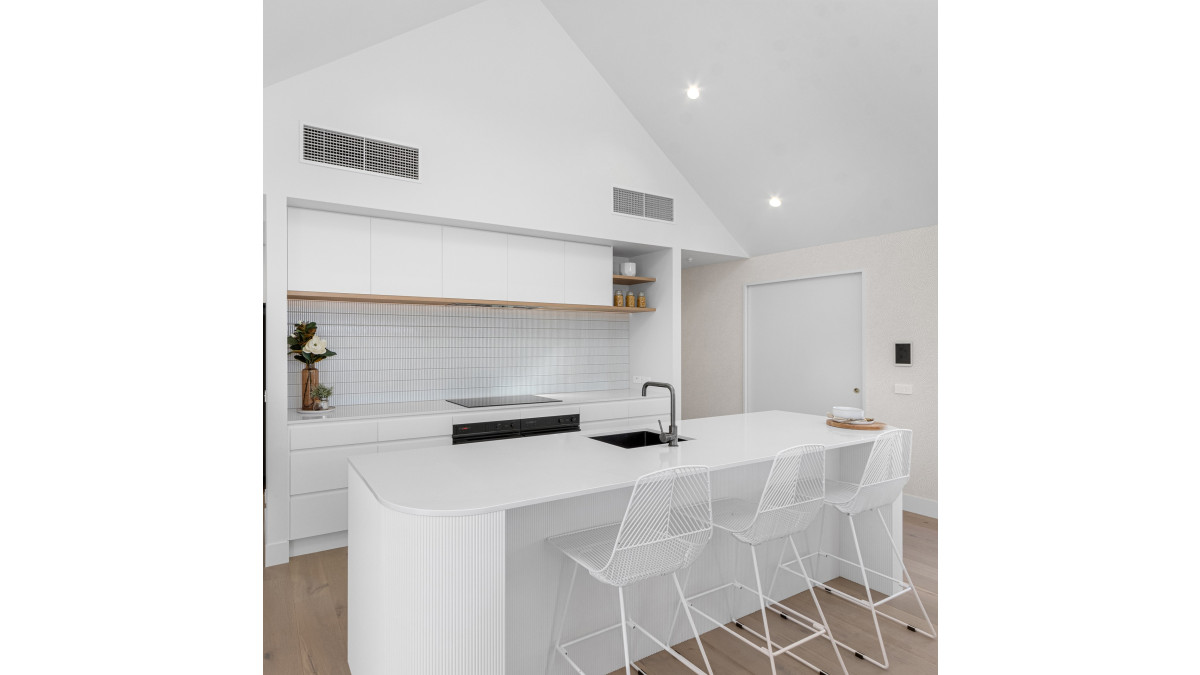

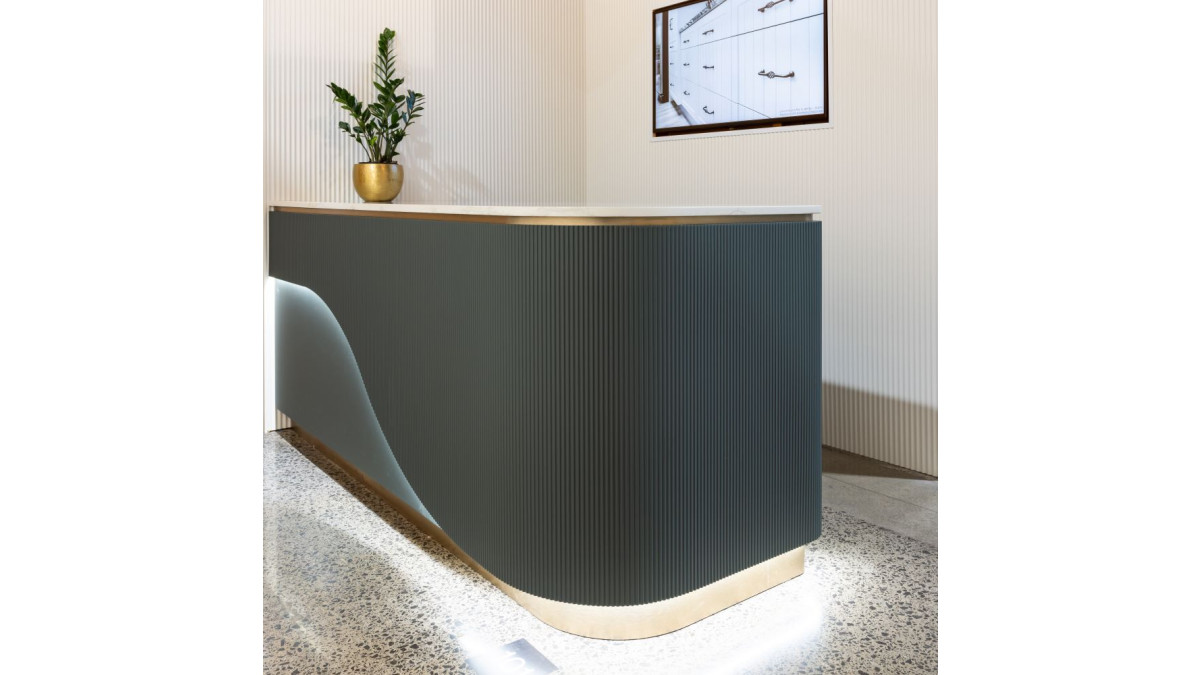

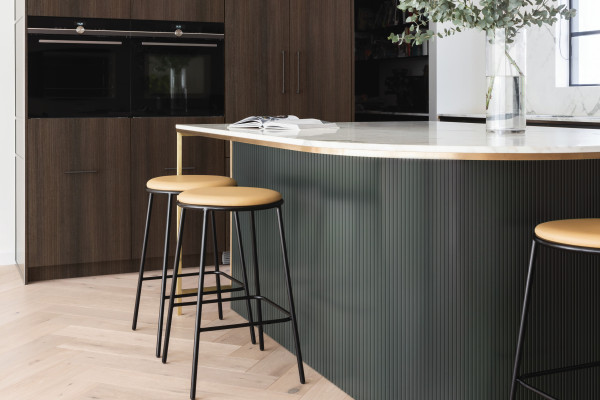

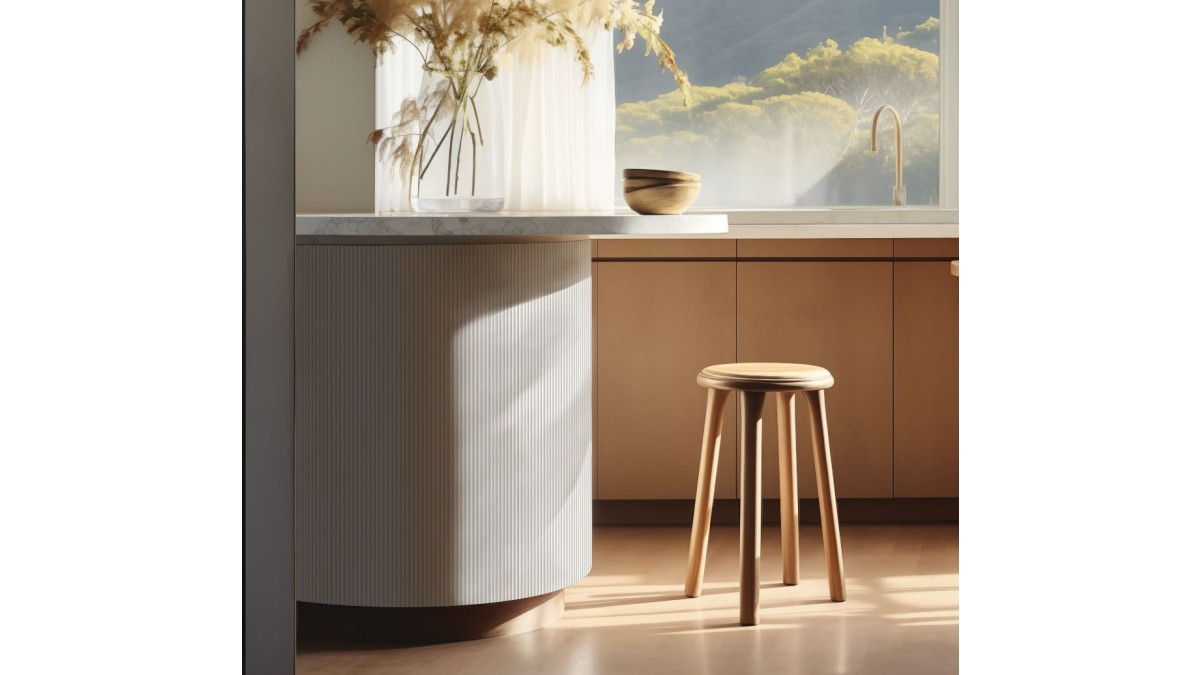

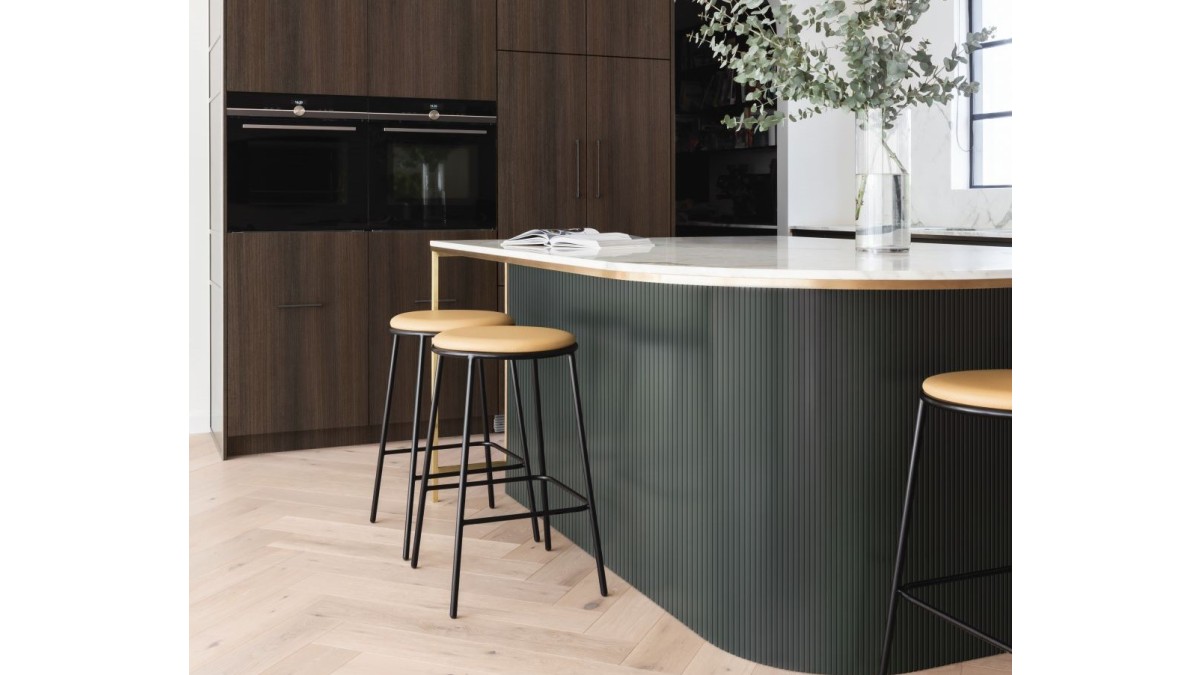

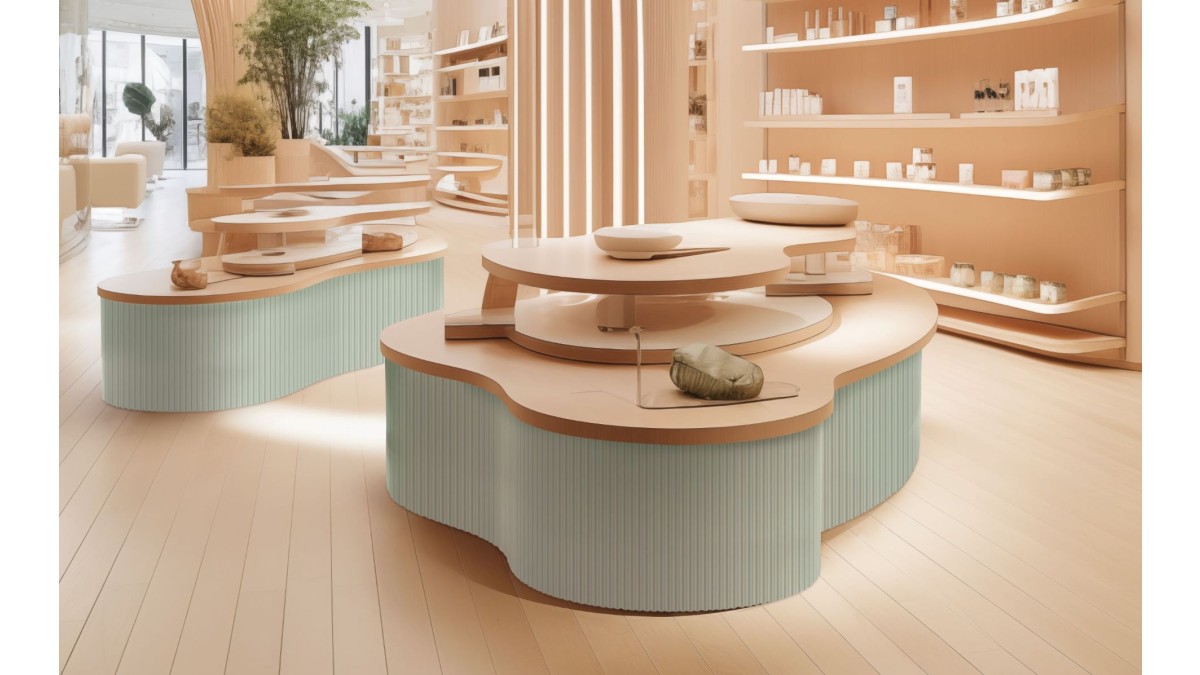

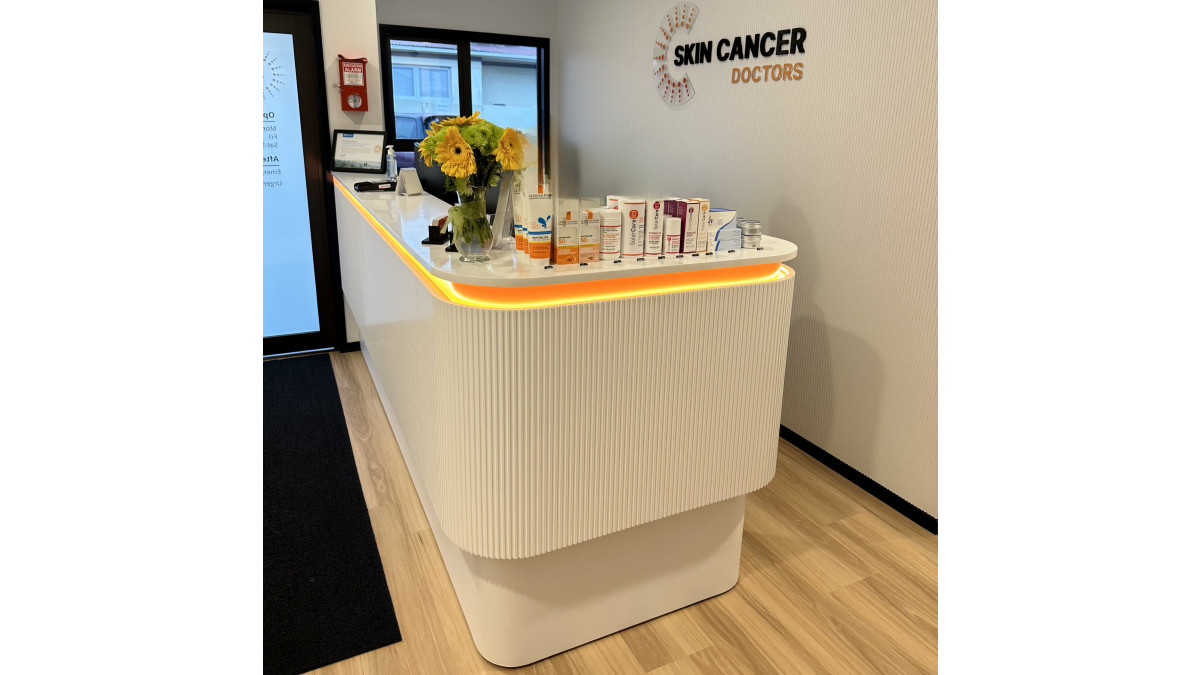

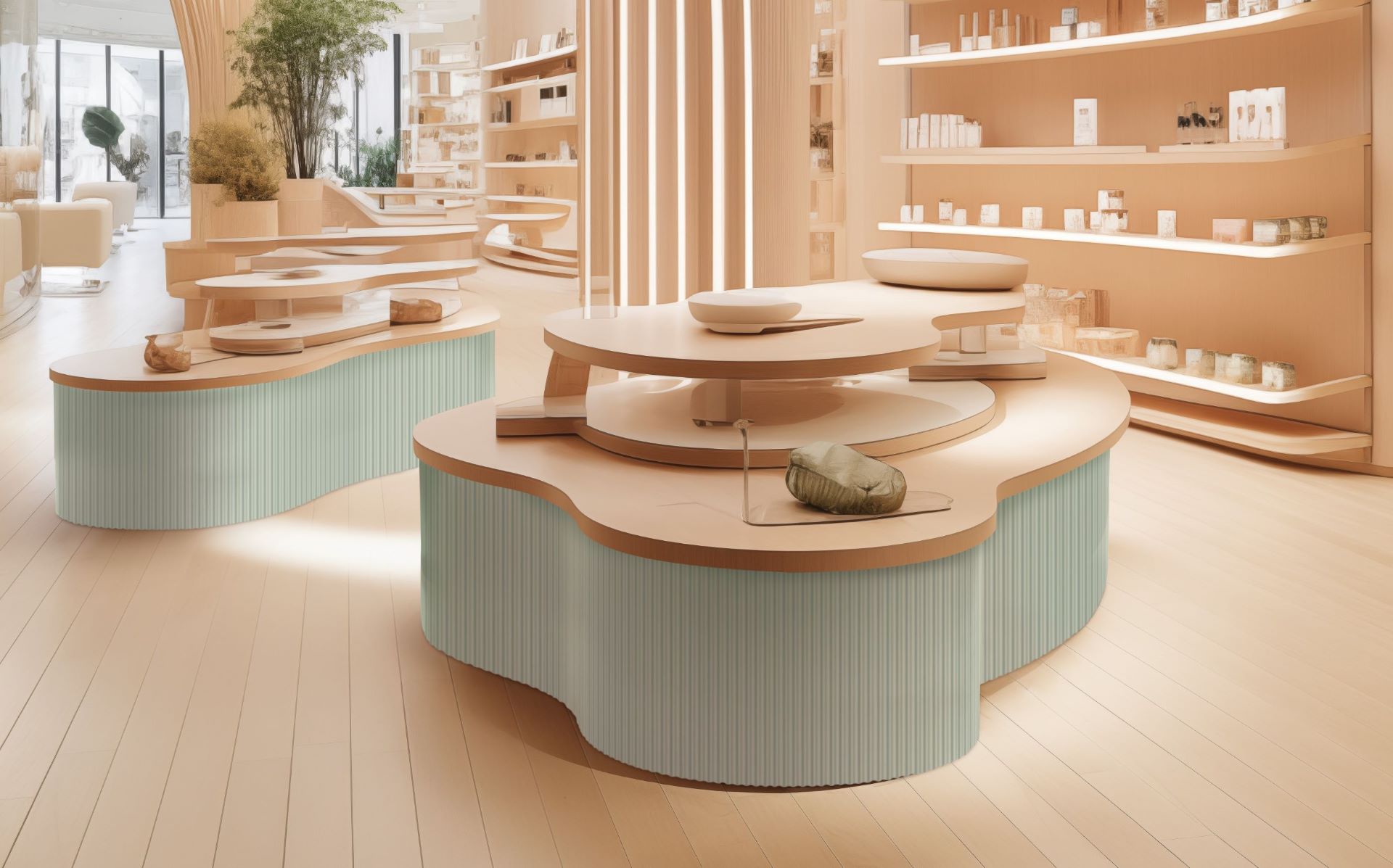

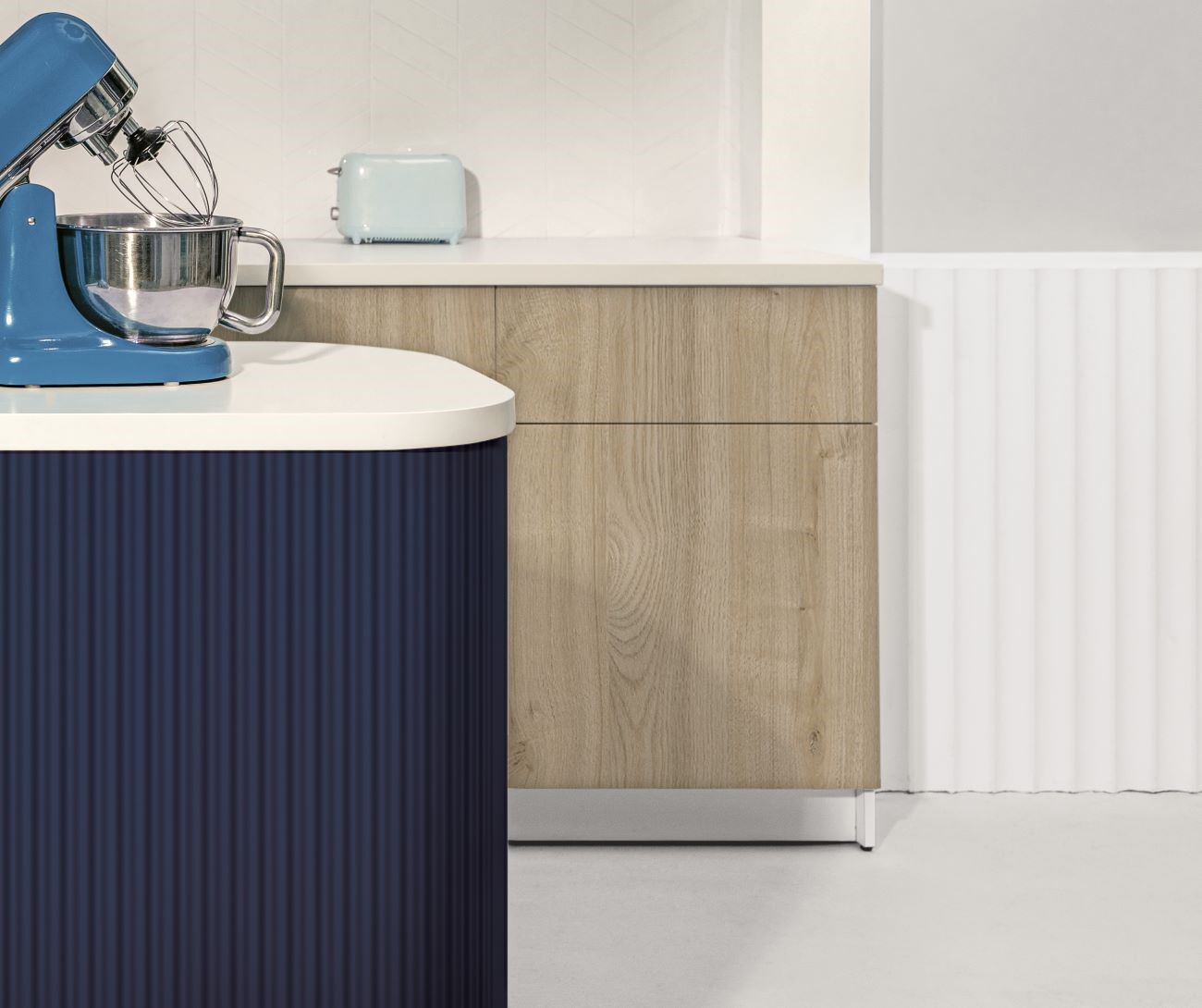

Suitable for a wide range of interior applications including kitchen cabinetry, island units, vanities, furniture and retail fit-outs.

  • Maximum panel size is 2400mm x 1200mm
  • Minimum convex radius is 100-150mm depending on design
  • Minimum concave radius is 150-200mm depending on design
  • Available as raw, un-sanded on 4mm MDF
Limitations on Use

Never use the following on Swurves panels: abrasive cleaners, Janola or similar, scourer pads, wire wool, sand paper or solvents and thinners

While Dezignatek Swurves are water resistant (not water proof), care should be taken to ensure excessive exposure to water, steam or extreme humidity is avoided.

In-Service History

Dezignatek operates from a state of the art production facility in East Tamaki with a high level of automation covering its CNC operations, sanding and robotic glue application prior to thermoforming. It also provides finished melamine, acrylic and Soft-Matt  HPL doors with decors available from Prime Panels or Bestwood ranges.

Other Performance Attributes
  • 10 year warranty on thermoformed Swurves
  • 7 year warranty on raw Swurves supplied for painting
Documents
Swurves Line Drawings
Swurves Technical Data Sheet
Swurves Brochure
Swurves by Dezignatek

New Zealand Panels Group offer a wide collection of decorative interior panels and benchtop surfaces through its Prime Panels and Bestwood brands, and thermoform and custom finishing via Dezignatek.
