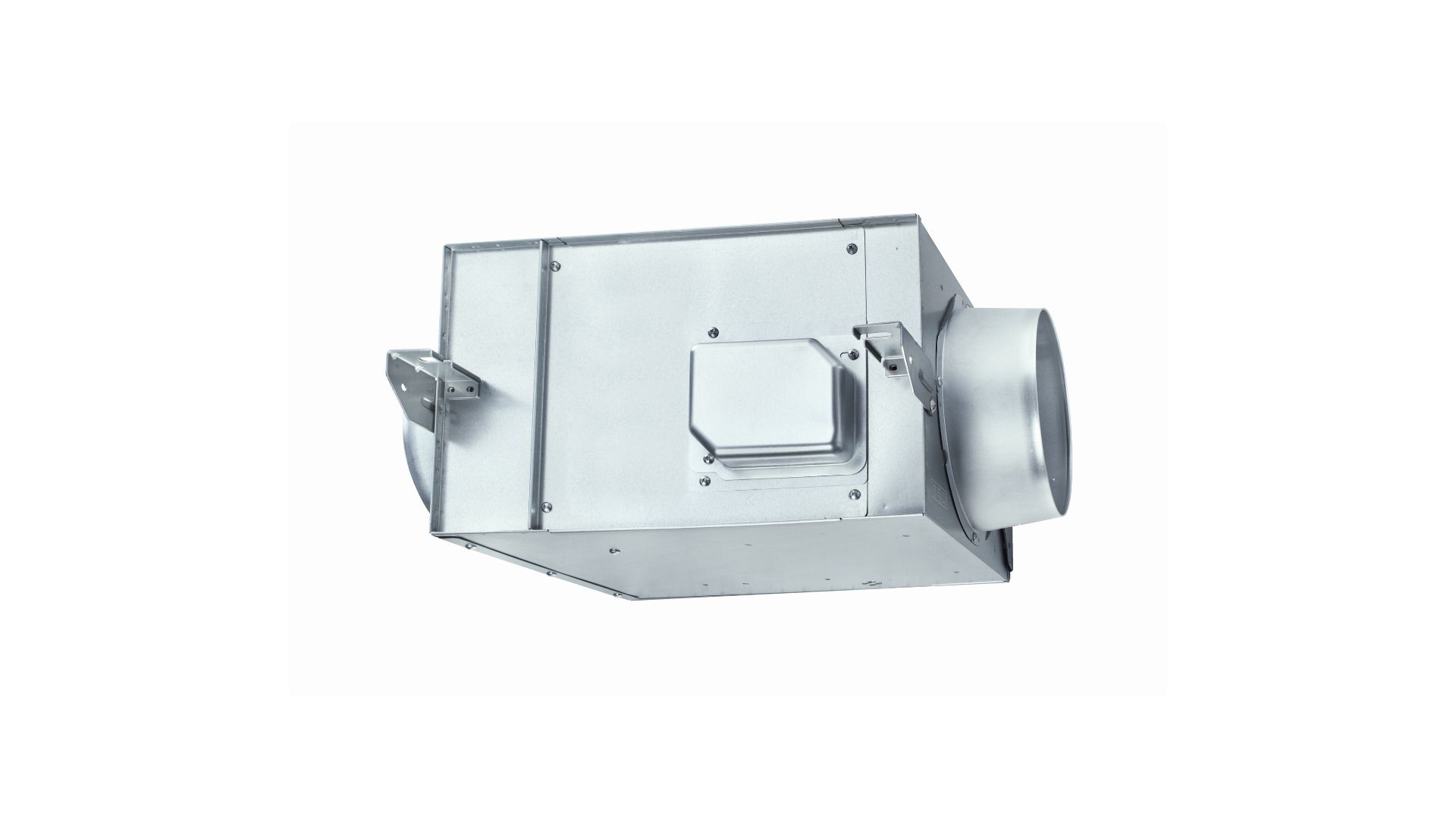

Ducted In-Line Ventilation Fans — Residential & Commercial
Description

Featuring an advanced air duct design, Mitsubishi Electric Ducted In-line Fans efficiently move large volumes of air with minimal operation noise, making them New Zealand's quietest in-line fan range*. The compact size makes them easy to install in the ceiling, and they can be paired with third-party grilles to blend seamlessly into the interior design. The Ducted In-line Fan range is ideal for offices, gyms, schools and libraries, where discreet, low-noise air extraction or circulation is required.

*Starting from 18.5dBA (V-15ZMW-E on low fan speed.)

Key Features
  • Starting from 18.5dBA, it’s the quietest In-line Fan Range in New Zealand* all while maintaining high airflow
  • Two speed options
  • Galvanised steel casing for durability
  • Removable cover for easy maintenance
  • Compact design with all models measuring less than 260mm in height
  • Adjustable mounting brackets and removable duct spigots for a convenient and versatile install
  • Low power consumption — starting from 18 Watts at low fan speed

* V-15ZMW-E on low fan speed. Measured at 1.5m from the side of the unit: Ducting attached.

Available in four sizes:

  • V-15ZMW-E — Delivering an air flow from 44 L/s to 58 L/s using a 100mm duct dia
  • V-15ZMWP-E — Delivering an air flow from 79 L/s to 94 L/s using a 150mm duct dia
  • V-18ZMW-E — Delivering an air flow from 105 L/s to 143 L/s using a 150mm duct dia
  • V-18ZMWP-E — Delivering an air flow from 184 L/s to 215 L/s using a 200mm duct dia
Scope of Use

The Mitsubishi Electric Ducted In-Line Fans are the ideal ventilation solution for both commercial and residential applications, including toilets, changing rooms, meeting rooms, offices, storage areas and residential living spaces. They can also be used as heat transfer systems.

Heat Transfer

  • The Mitsubishi Electric In-line Fan can also be used as a heat transfer system by taking excess heat created from the heating source, (e.g. heaters, fireplaces) and distributing this heat to cooler areas of the home. Please note that it is not recommend to install a heat transfer system if the heating service is a heat pump.

Versatile Installation

  • The In-line Fan Range also has the flexibility to be installed away from the extraction room/point, effective for noise-sensitive rooms and/or if there is limited space in the roof cavity directly above.
  • Compact design with all models measuring less than 260mm in height
  • Adjustable mounting brackets and removable duct spigots for a convenient and versatile install
Limitations on Use
  • Not suitable for operation outside the temperature range of -15°C and 40°C, or in environments with relative humidity above 90%, such as installing them in or around enclosed showers.
  • Not suitable for use in high combustion areas or near combustion devices.
  • Units need to be installed by a registered electrician per the installation manuals.
  • The duct distribution connection needs to be installed efficiently and effectively to avoid a reduction in airflow capacity. Contact the Mitsubishi Electric Team for advice on how best to do so.
  • Please note that it is not recommend to install a heat transfer system if the heating service is a heat pump.
Statement of Building Code Compliance

Mitsubishi Electric Ducted In-line Ventilation Fans comply with suppliers’ declaration of conformity in accordance to IEC60335-1:2010 AMD1:2013, AMD2:2016 and IEC60335-2-80:2015 standards.

In-Service History

The Mitsubishi Electric In-Line Fan range was introduced into New Zealand in 2017.

Other Performance Attributes
  • Starting from 18.5dBA, it’s the quietest In-line Fan Range in New Zealand* all while maintaining high airflow
  • Removable cover for easy maintenance
  • Low power consumption — starting from 18 Watts at low fan speed

Warranty

1 Year Parts and Labour Warranty
