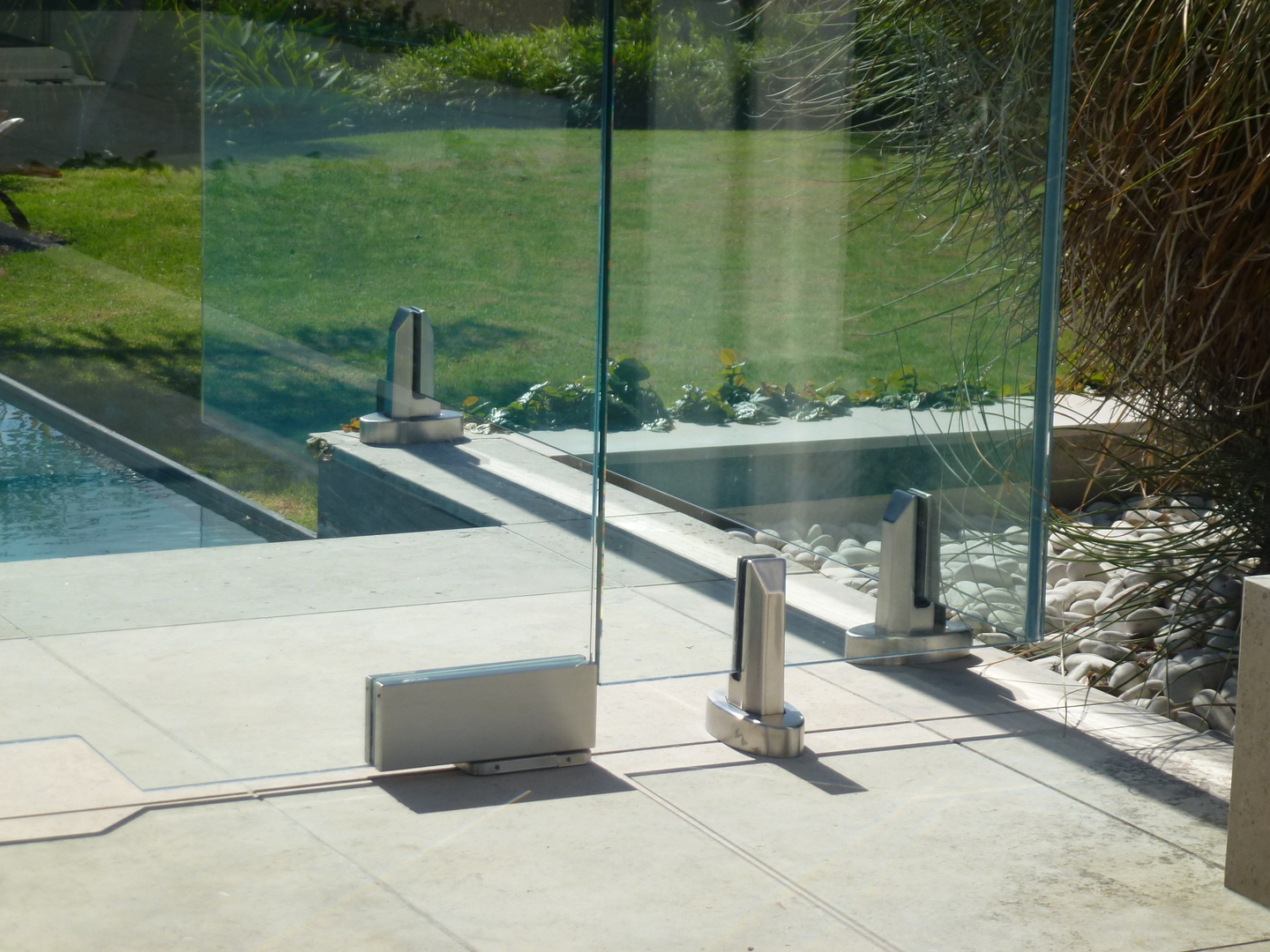

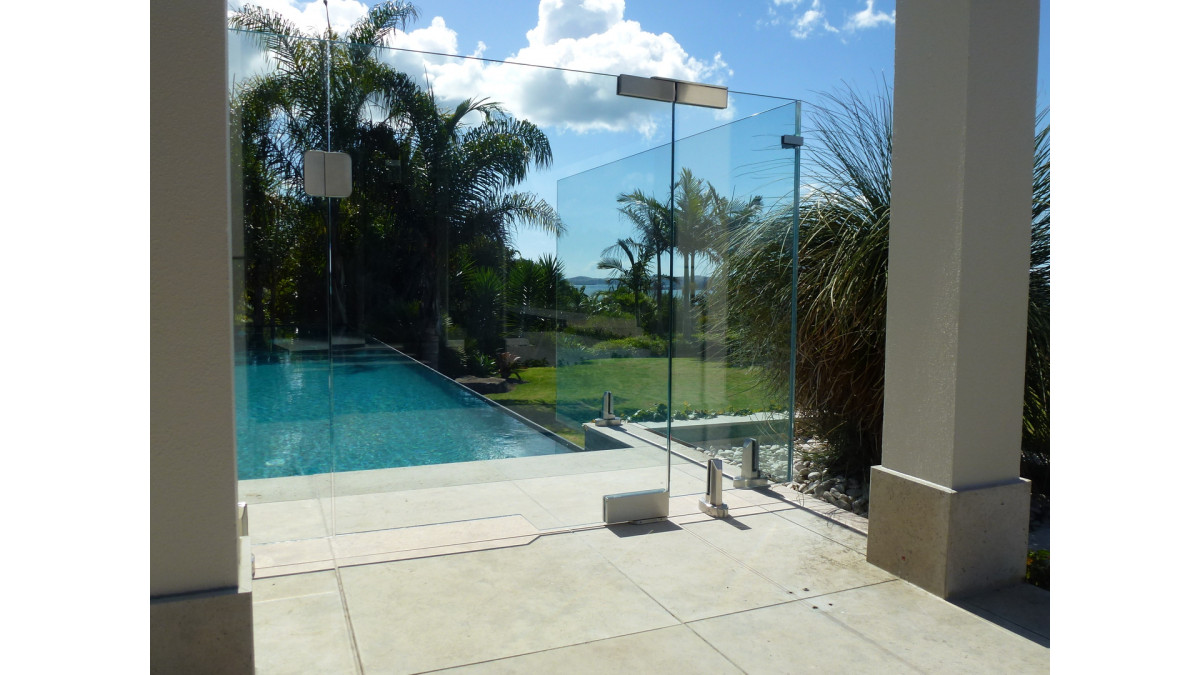

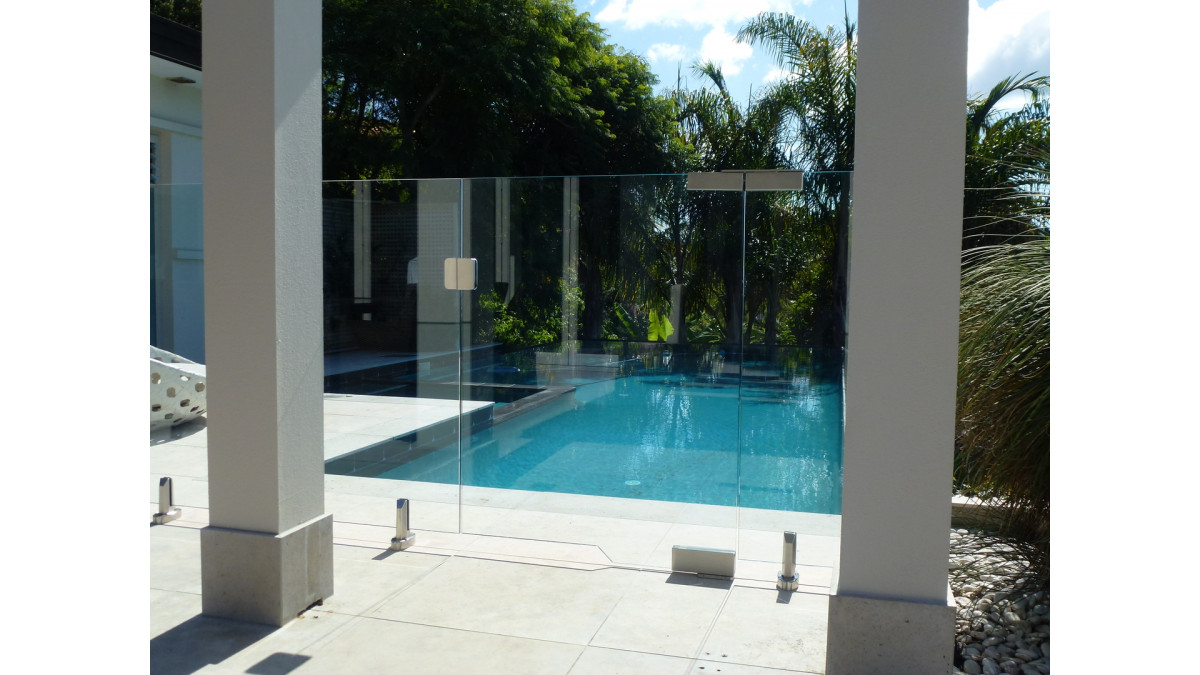

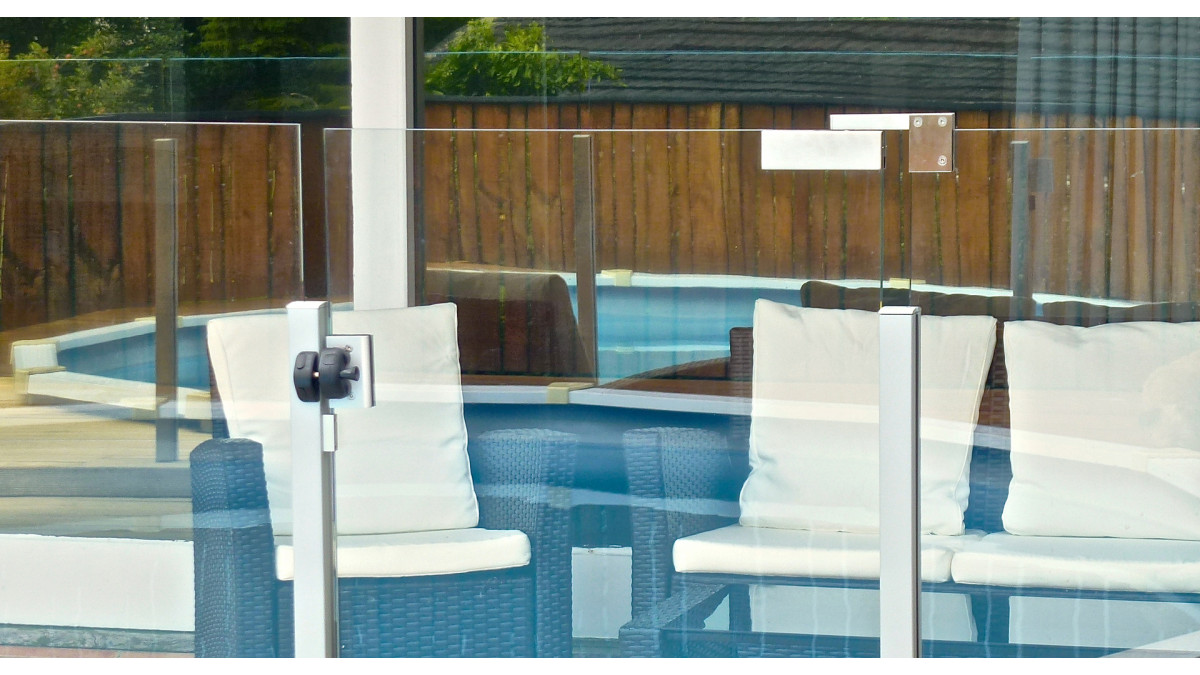

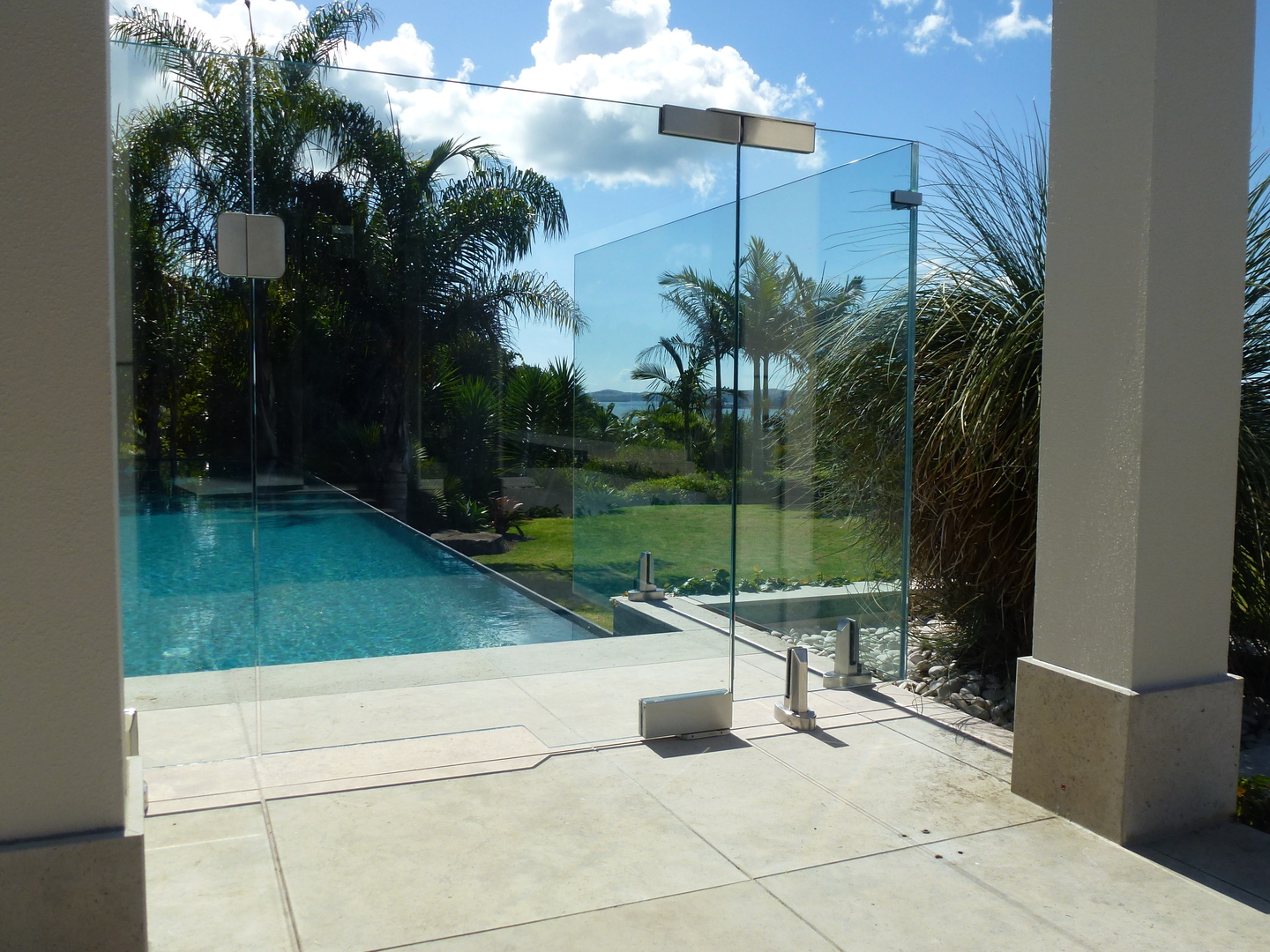

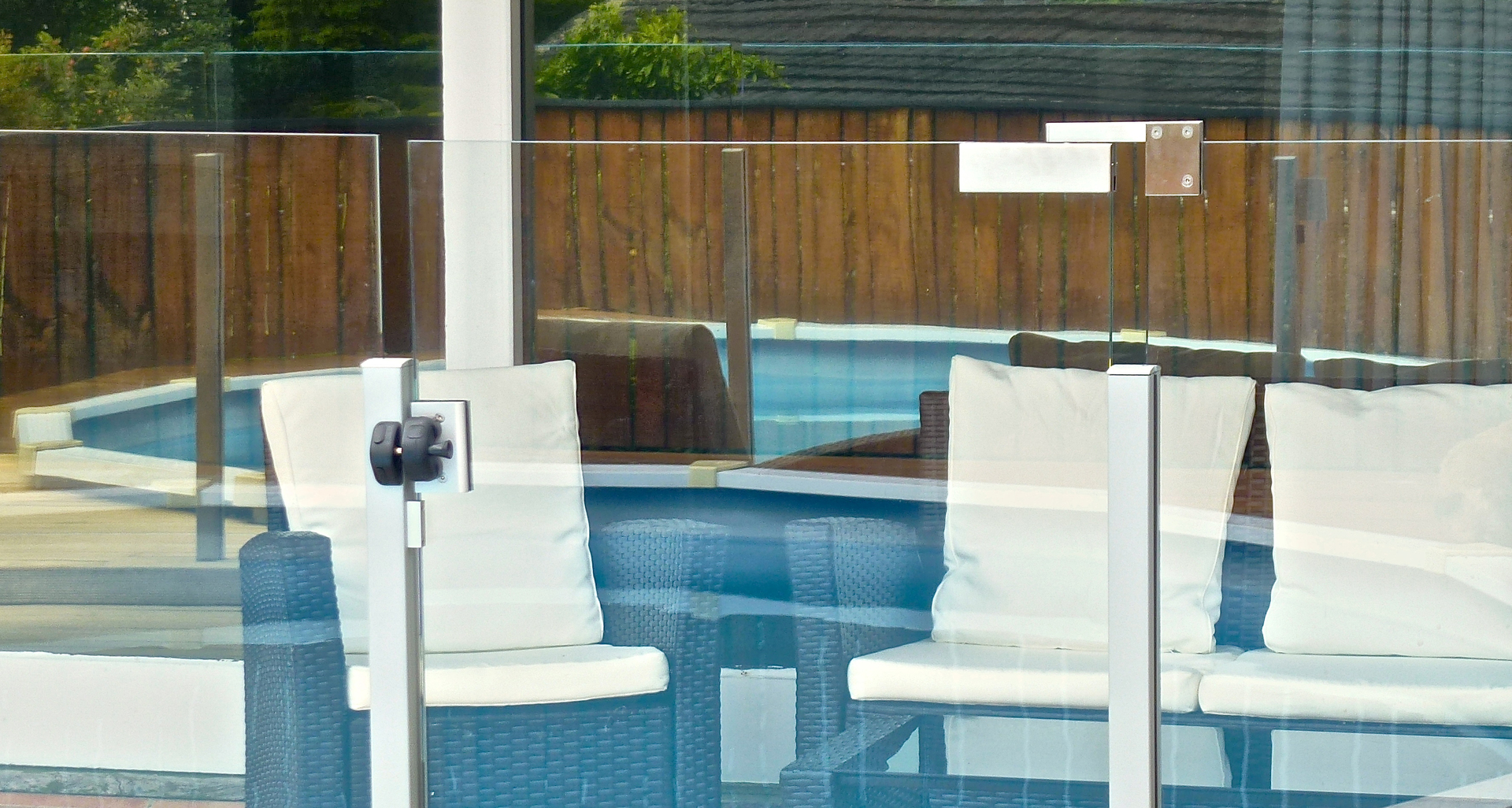

Ozone Pool Gate System
Description

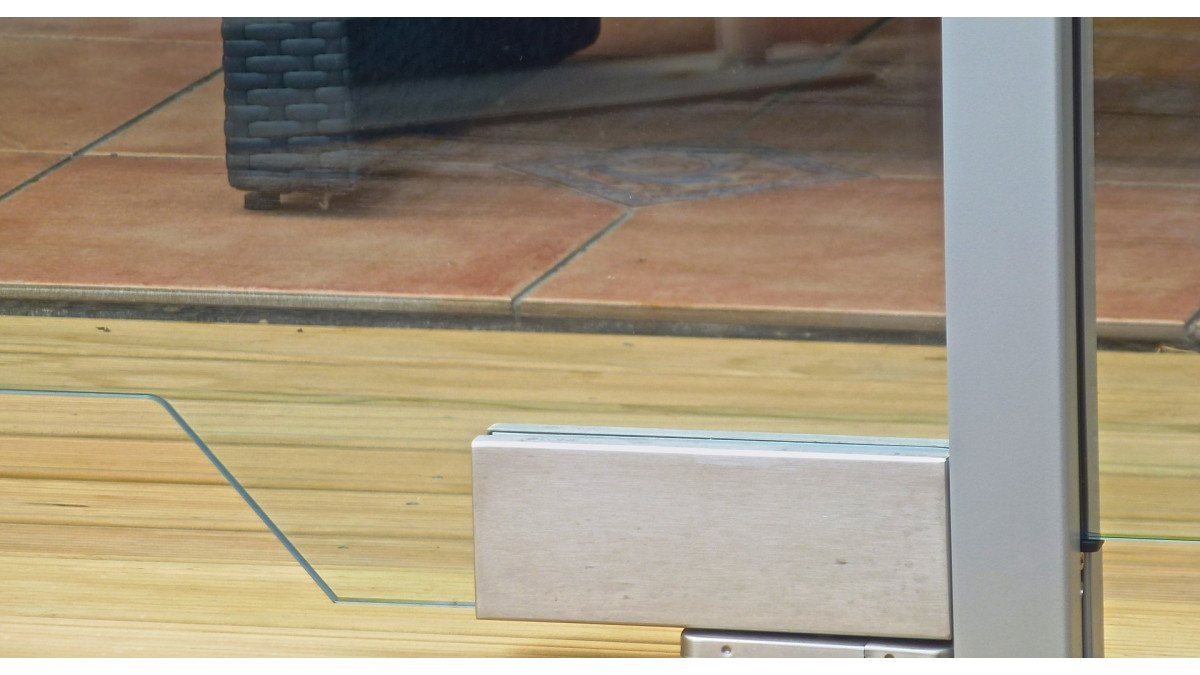

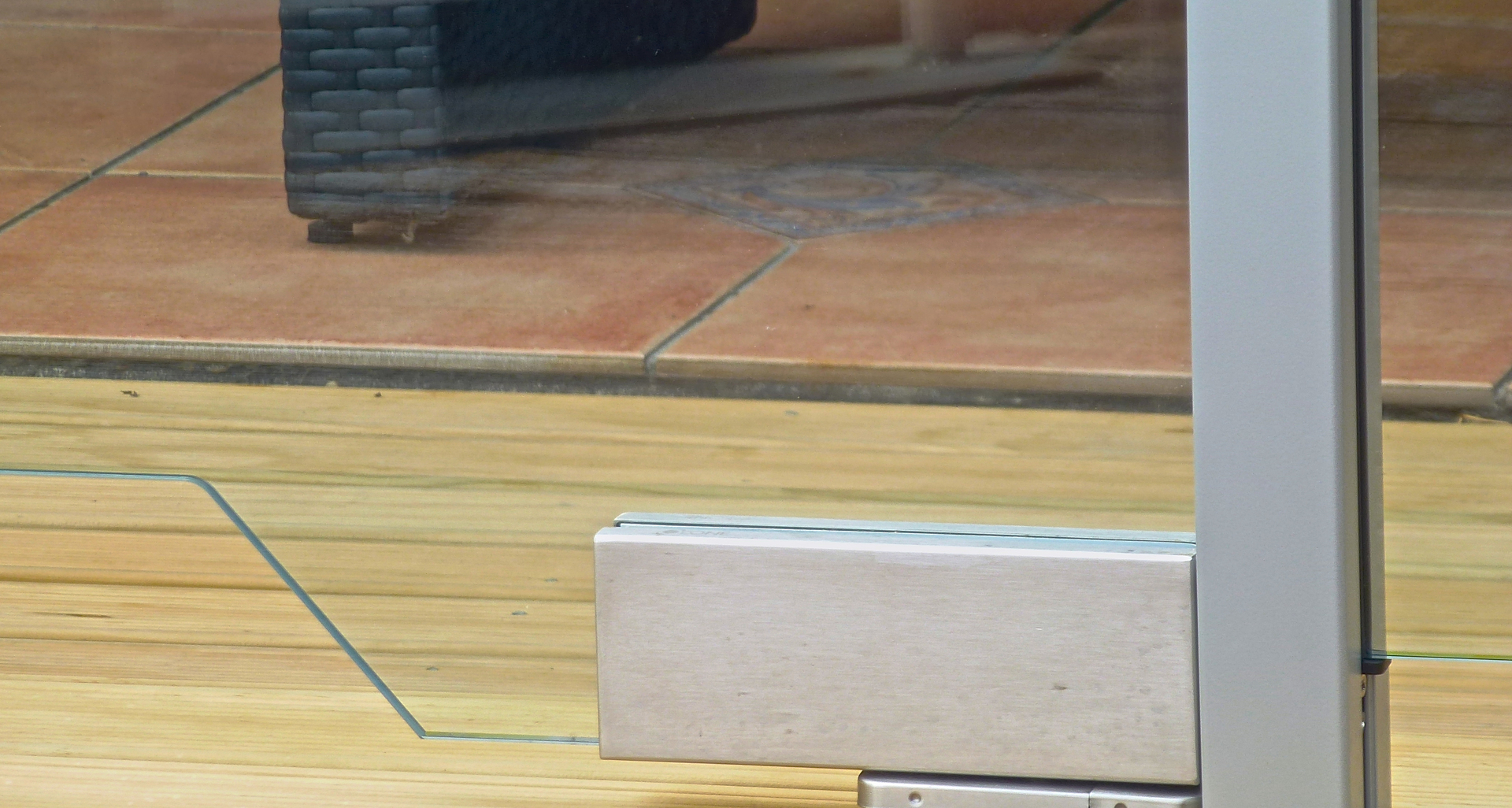

Ozone Hydraulic Patch is a revolutionary closer that incorporates an adjustable self closing mechanism into the bottom patch fitting alleviating the need for a floor spring. Four screw holes are all that is required to fix into timber, concrete or steel. A top patch, pool gate arm and latch are also required and will differ depending on your application.

Documents
5.39 - Pool Gate Components
5.40 - Ozone Pool Gate Components for 12mm Glass
CAD/PDF Details

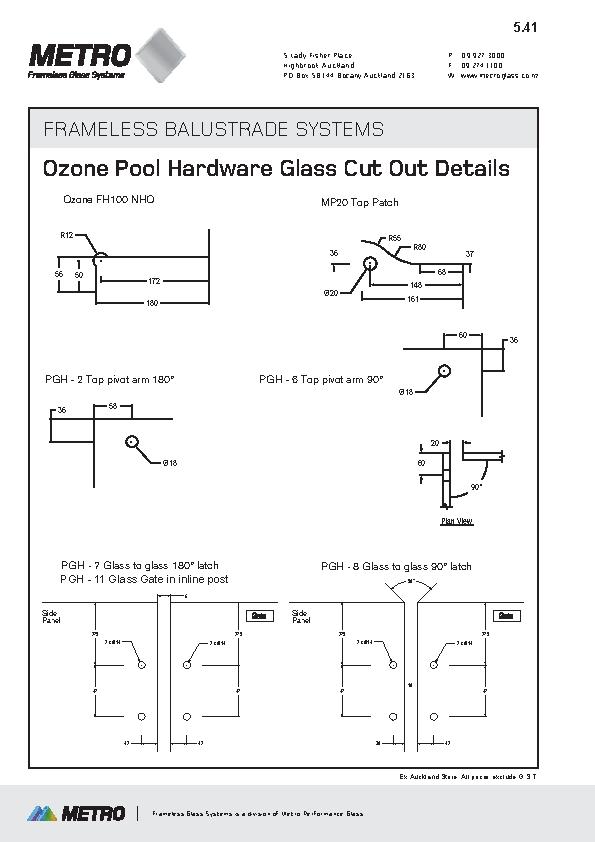

5.41 - Ozone Pool Hardware Glass Cutout Details

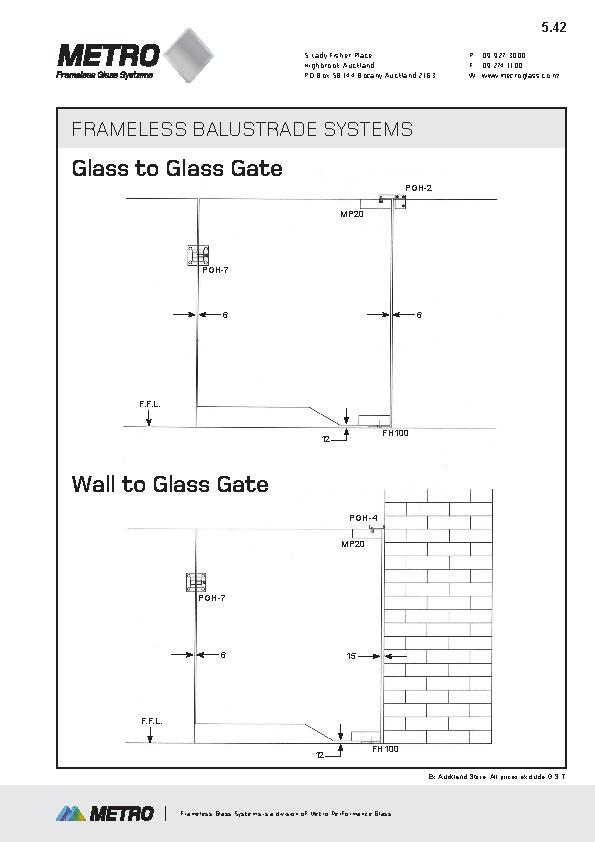

5.42 - Glass to Glass Gate and Wall to Glass Gate Details

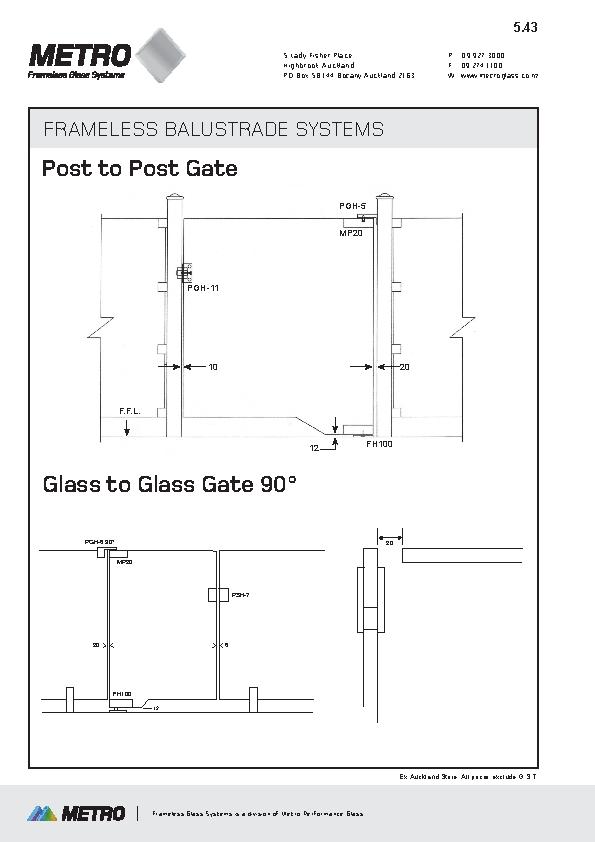

5.43 - Post to Post Gate and Glass to Glass Gate Details
